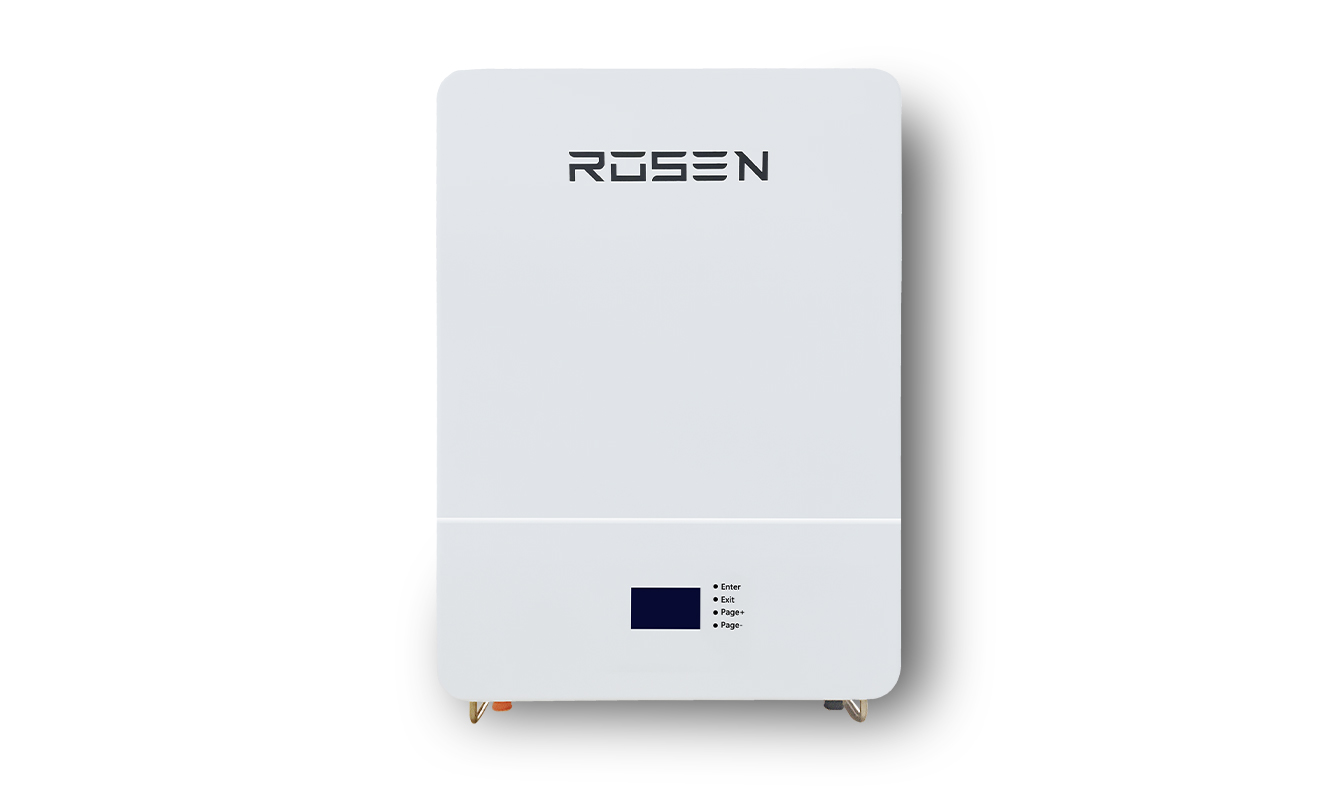

Lithium battery home appliance style, white matte paint is more suitable for the decoration of the house, compact design takes up less space indoors. Natural cooling design reduces indoor decibels. Touch screen is used in the latest battery in 2025, and the system is easy to operate.

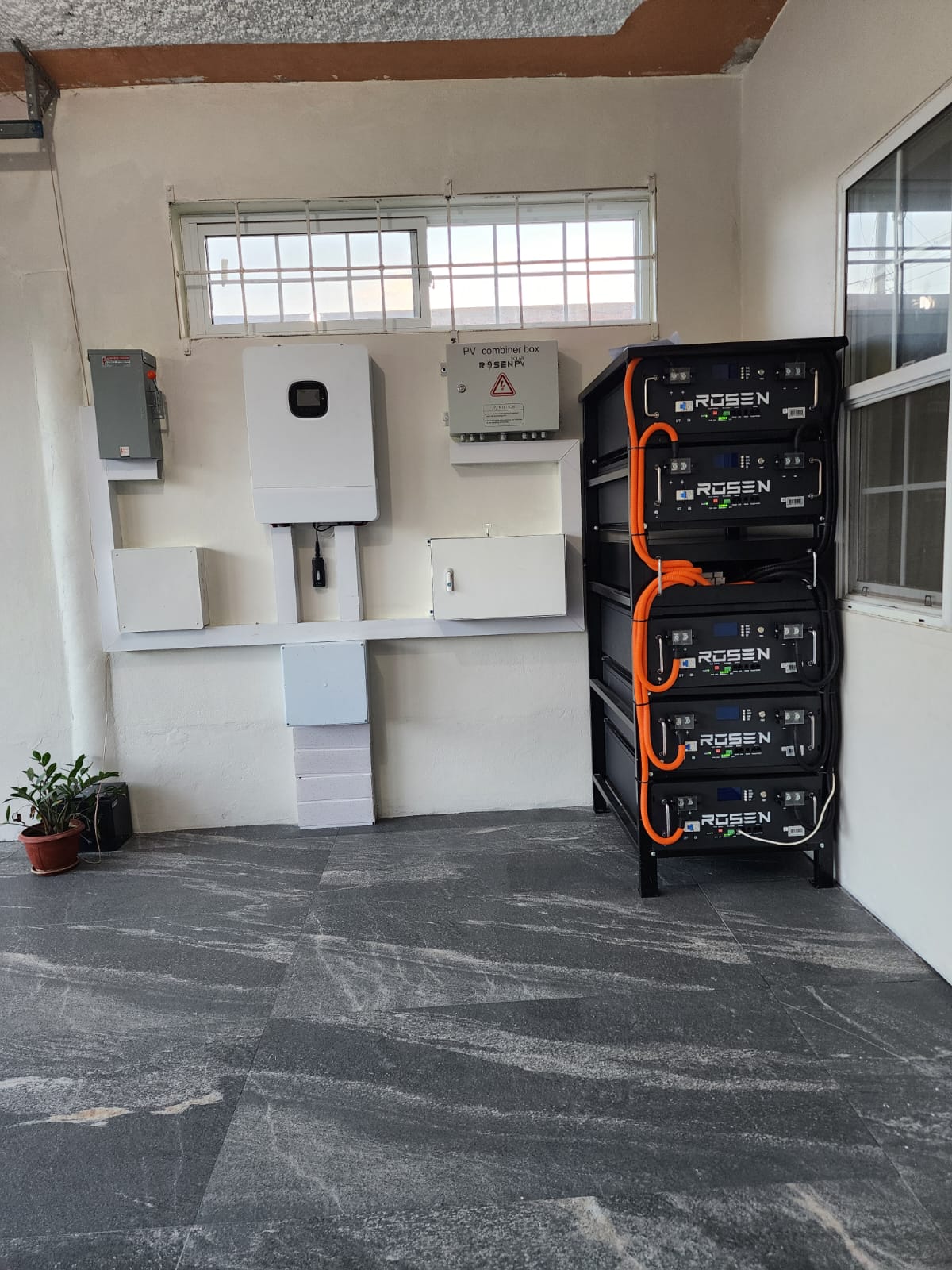

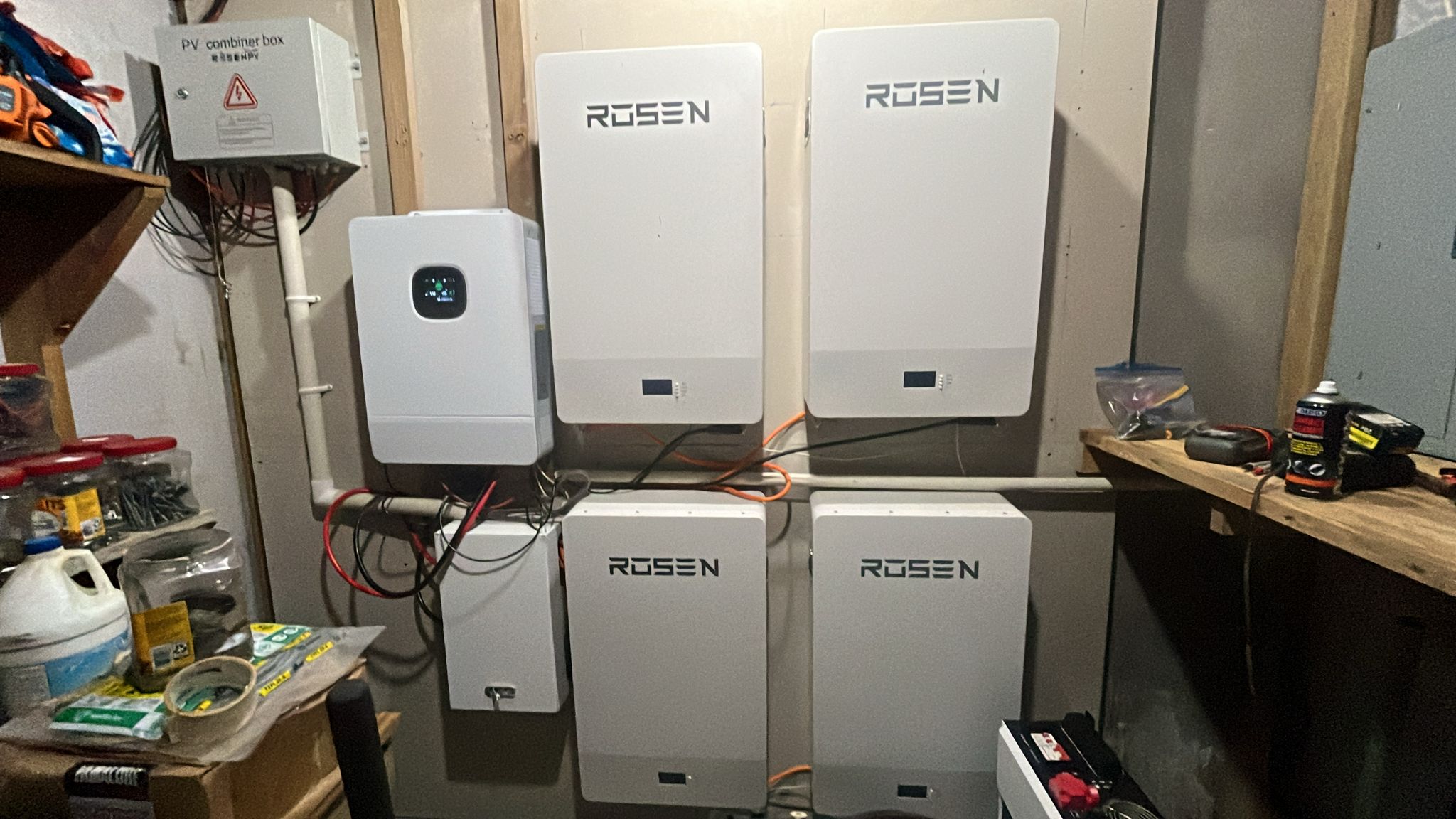

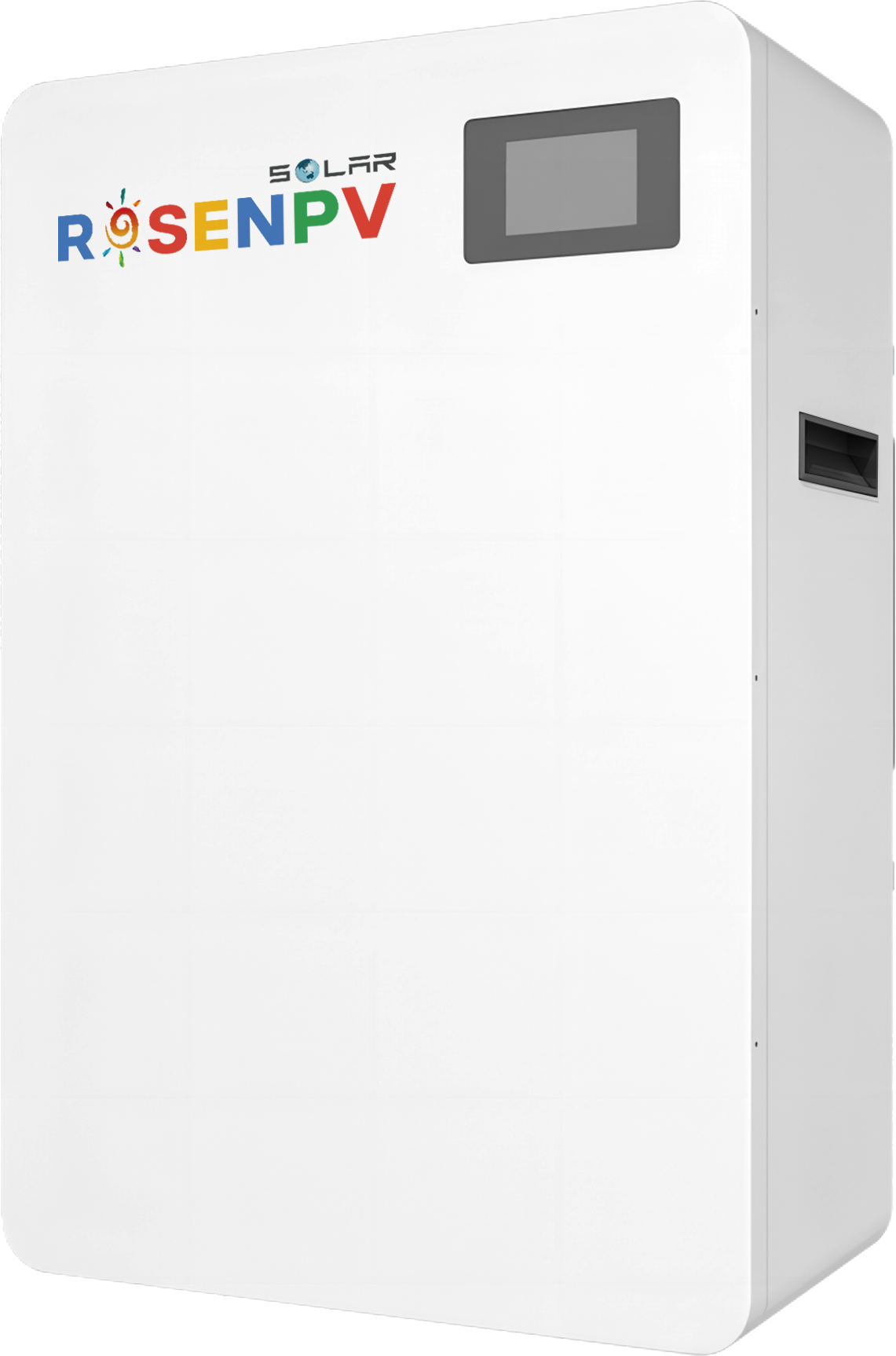

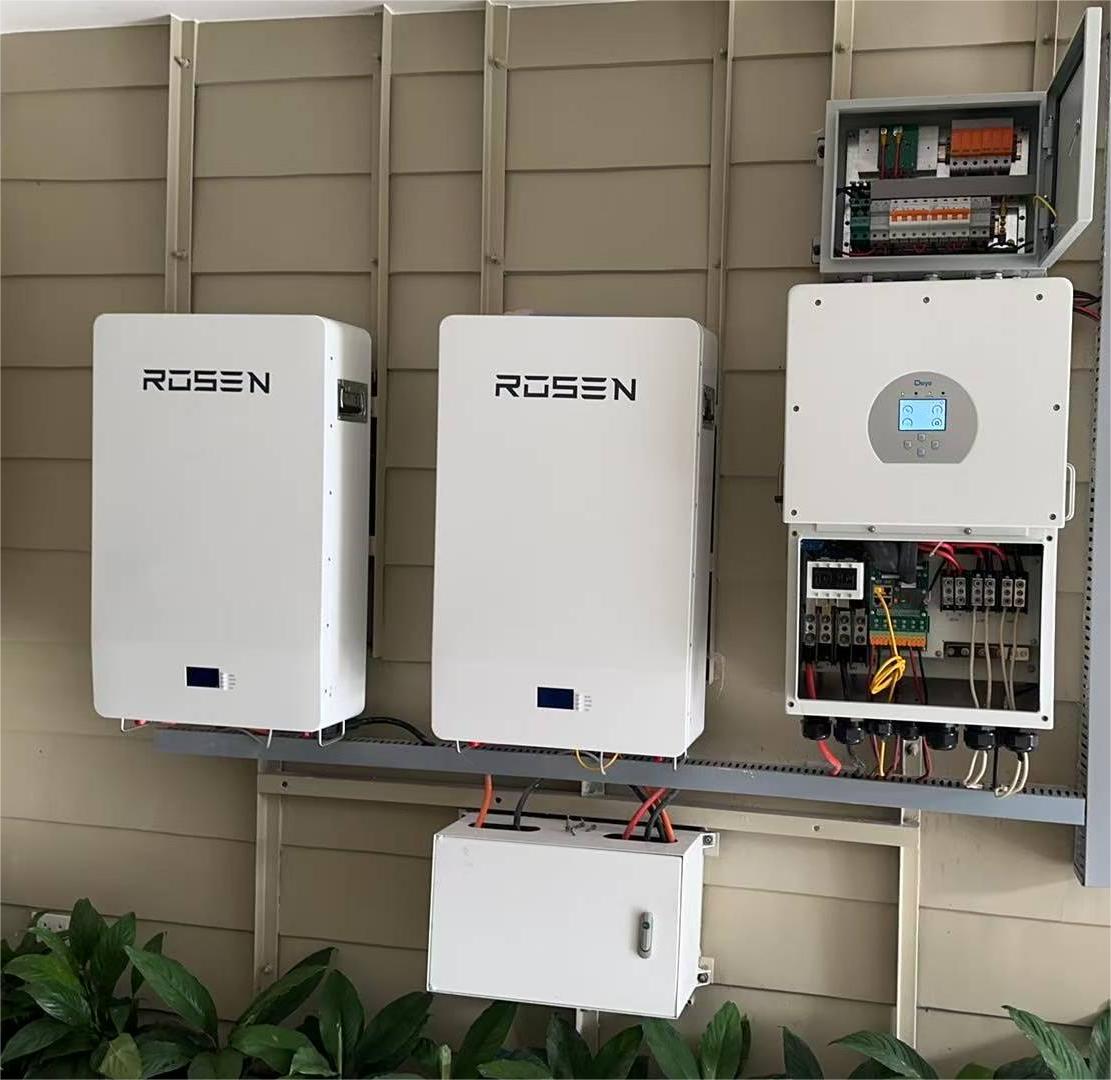

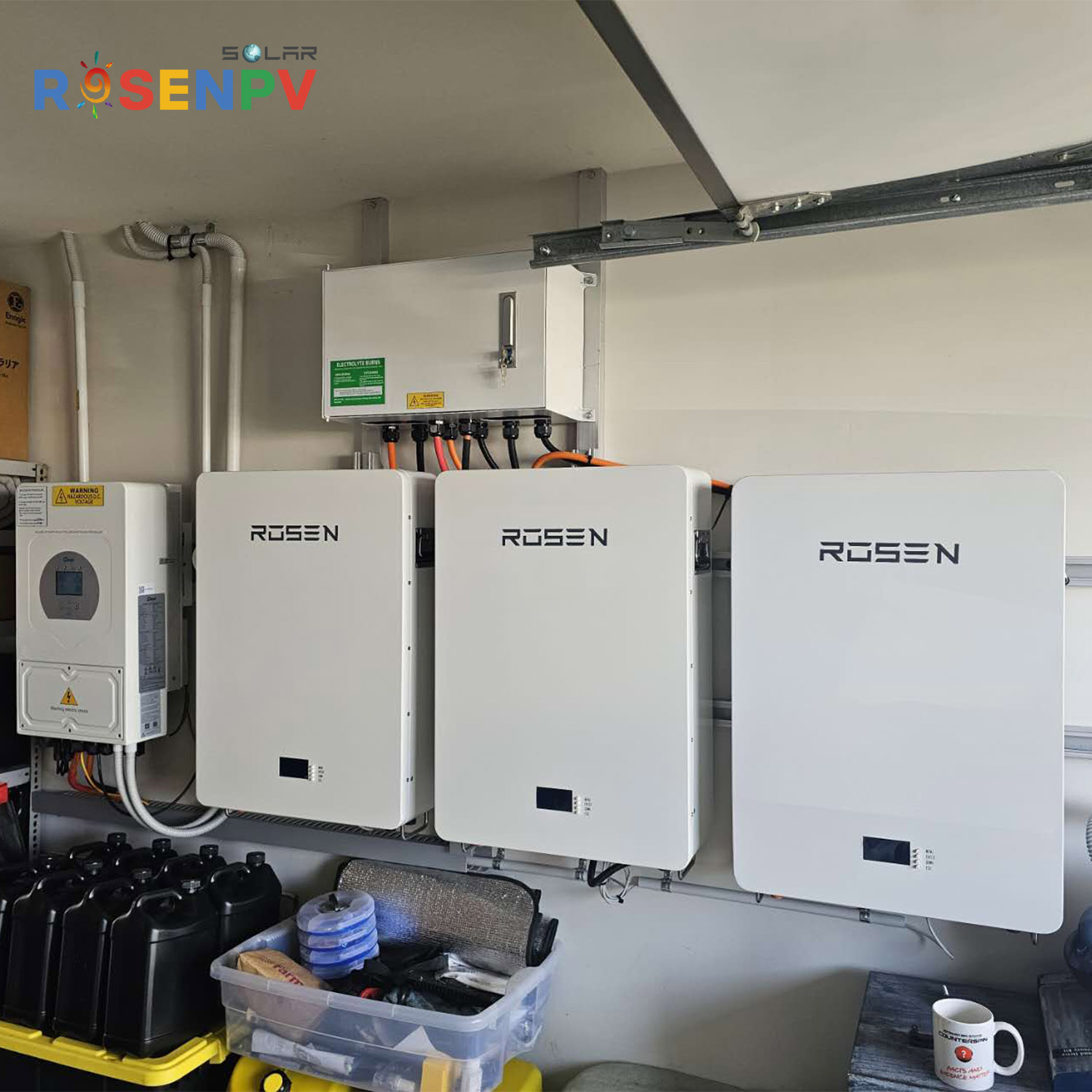

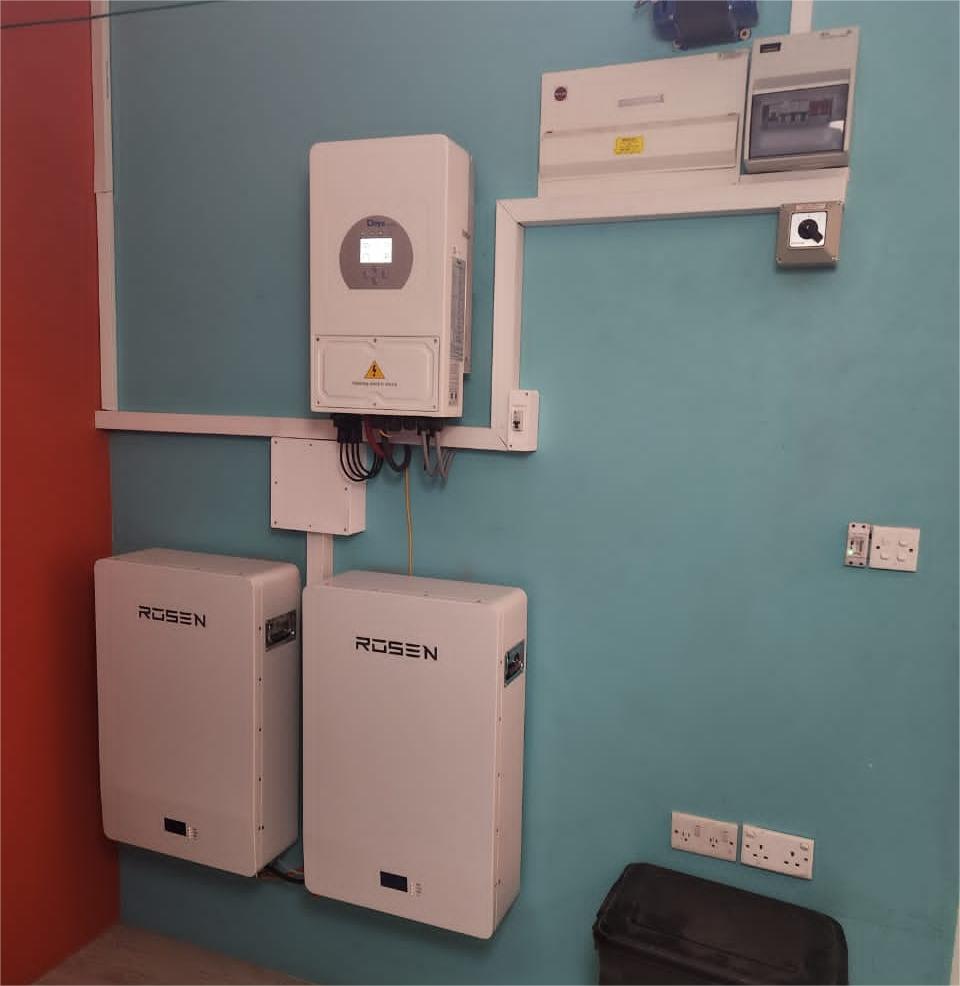

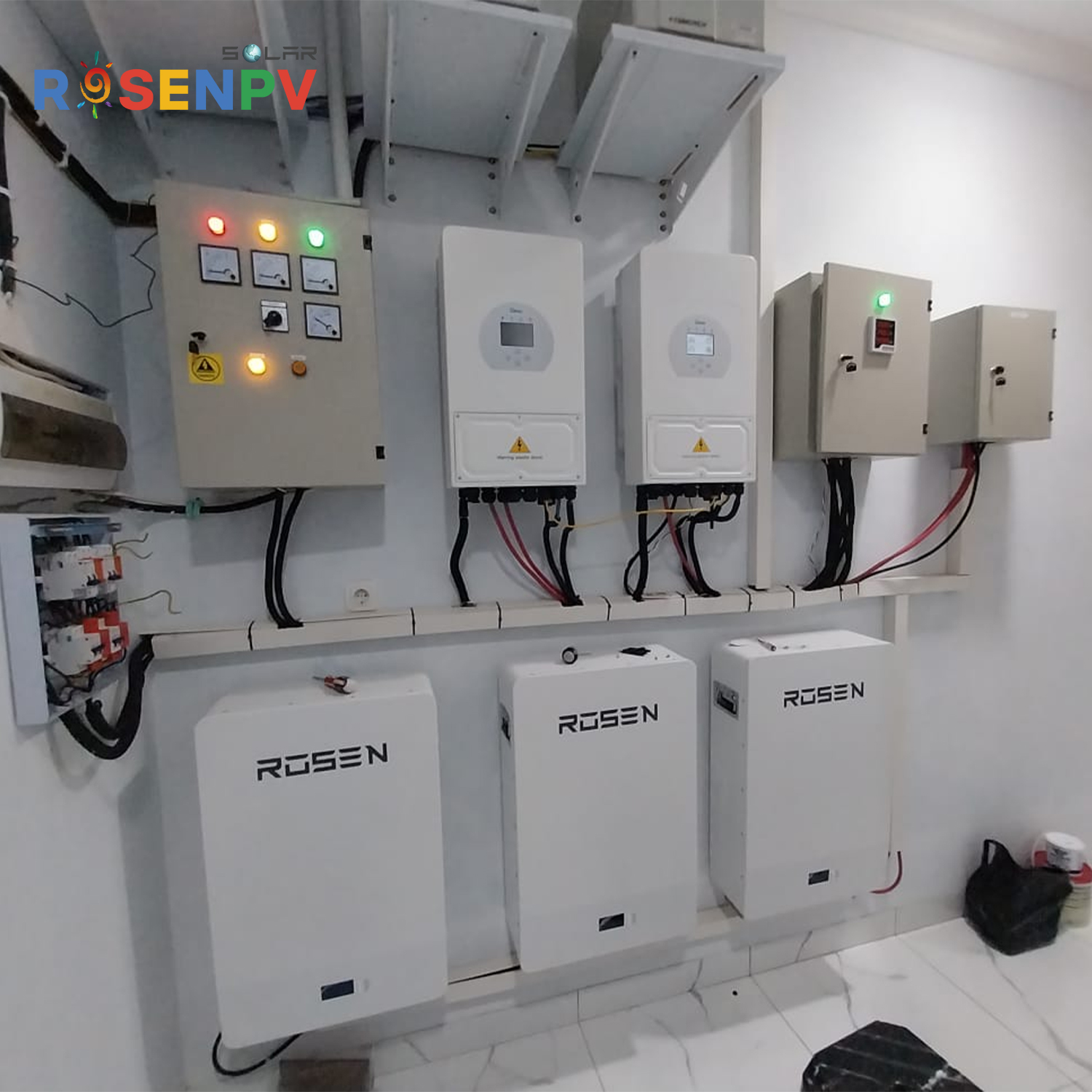

Lithium ion batteries of different capacities are suitable for energy storage needs of different households. 5kwh, 10kwh, and 15kwh are available. It can be used to hybrid on-grid systems and off-grid systems. It is widely used in farms, islands, villas, and resorts.

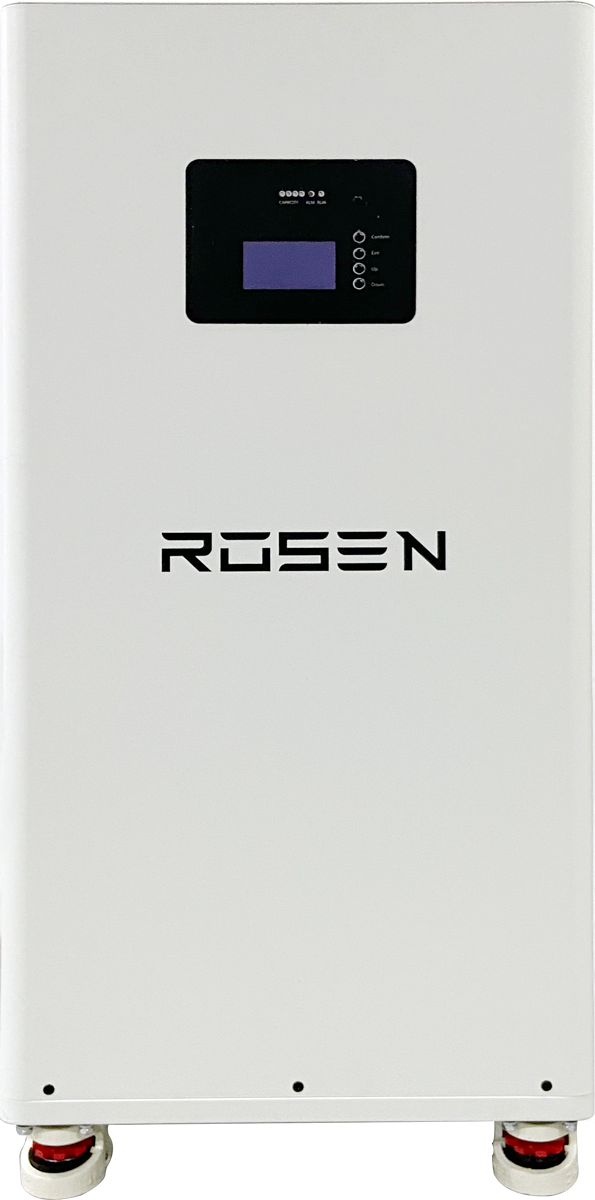

We use brand new A-grade battery cells from top brands in the market, with a built-in BMS to monitor the status of each cell at all times. The system will alarm and automatically turn on protection when there is overvoltage, overcurrent, or high temperature.
| Model | LFP5KWH | LFP10KWH | LFP15KWH |
| Battery Pack Energy | 5.12KWH | 10.24KWH | 15.36KWH |
| Nominal Voltage & Capacity | 51.2V 100AH | 51.2V 200AH | 51.2V 300AH |
| Battery Cells | 3.2V 100AH 16S1P | 3.2V 200AH 16S1P | 3.2V 300AH 16S1P |

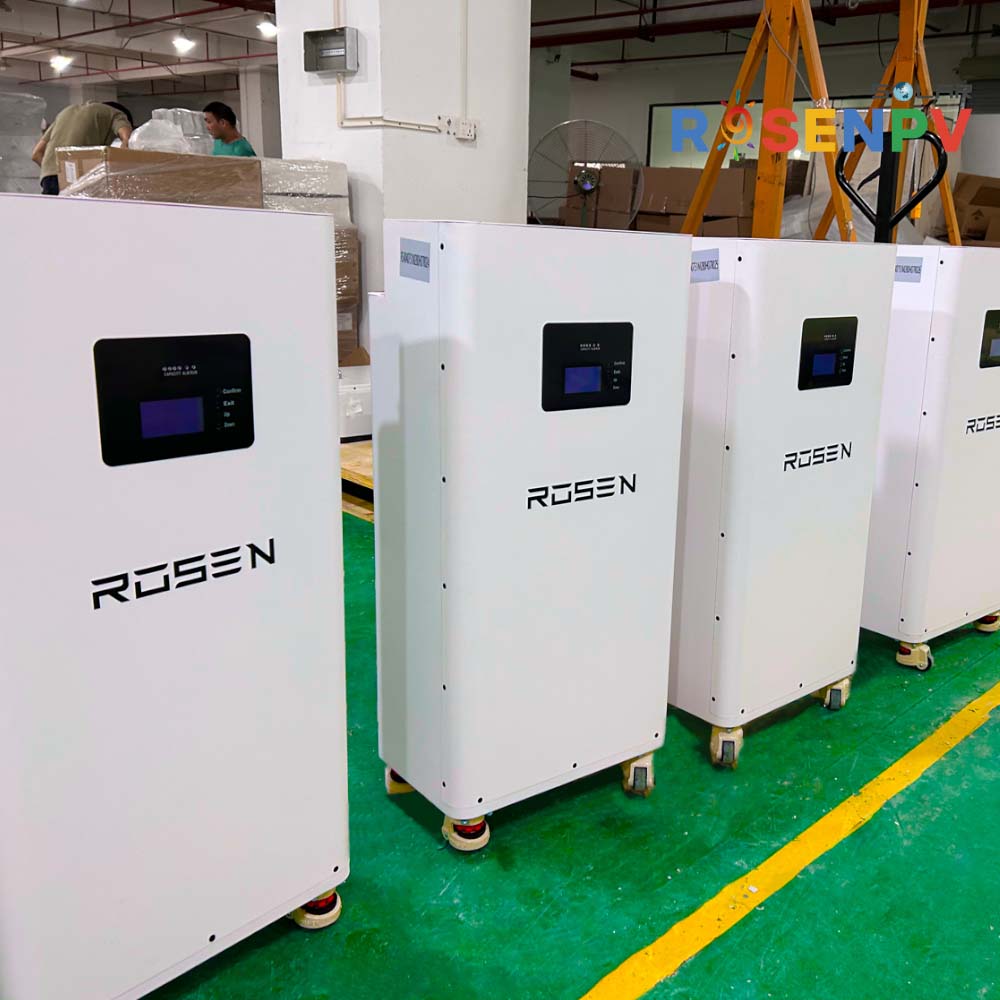

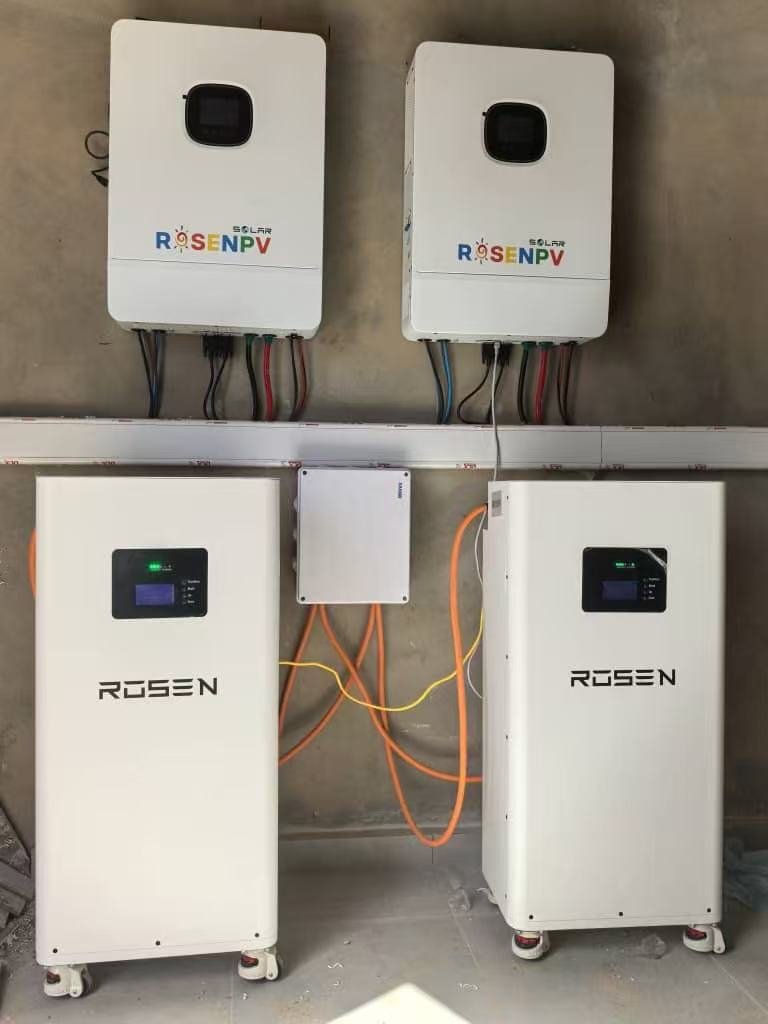

| Installation Type | Wall Mounted | Wall Mounted | Floor with Wheels |
| Max. Charge / Discharge Current | 100A | 150A | 200A |
| Operating Temperature | -10°C ~ +60°C | ||
| Cycle Life | ≥8000 cycles @DOD80% | ||
| Max Energy Expansion | 16 Batteries in Parallel | ||
| Communication | CAN / RS485 | ||

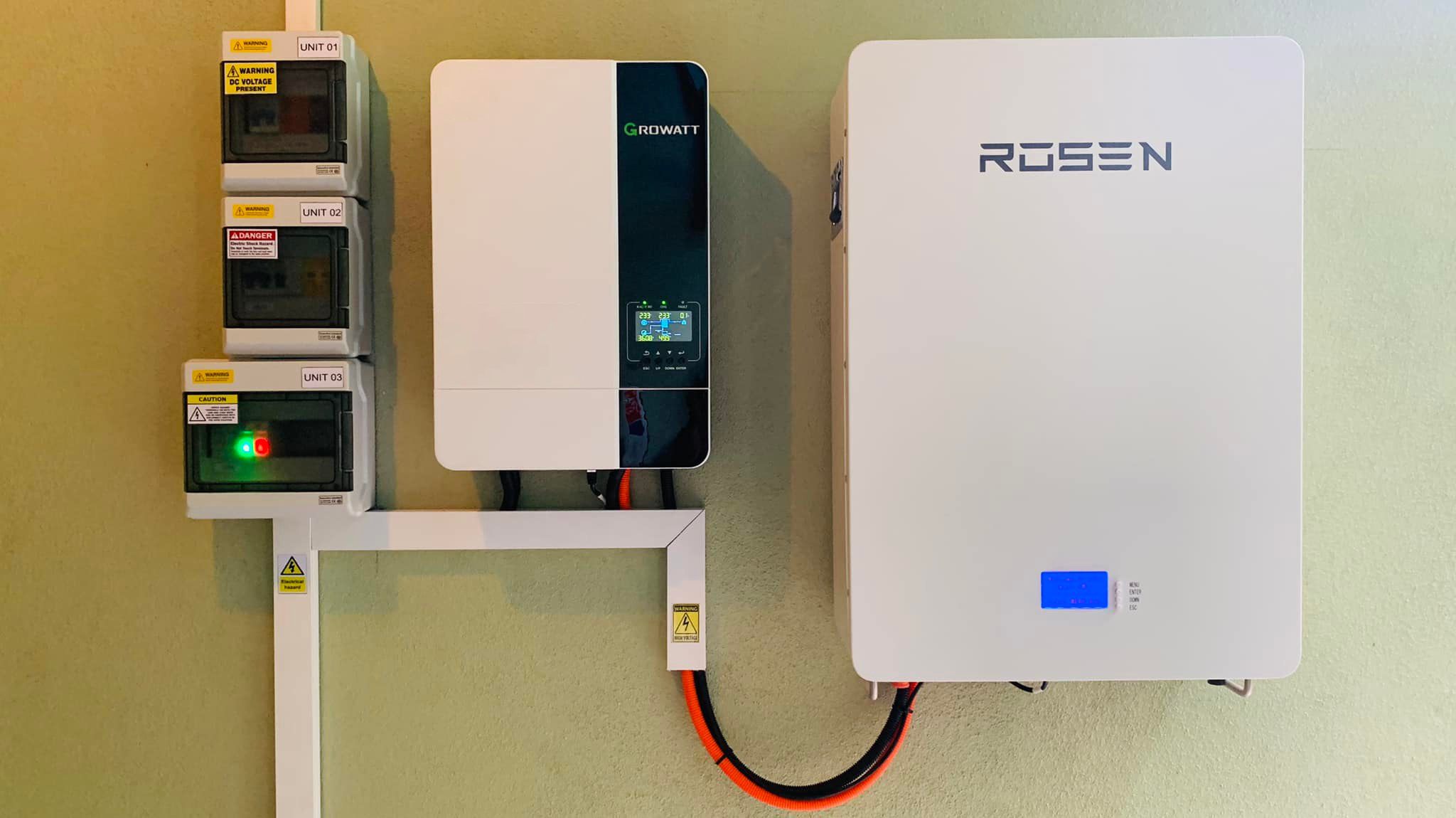

| Application | Solar Energy Storage Systems / UPS / Home Application | ||
| Warranty | 10 Years | ||
| Certificate | CE / MSDS / UN38.3 | ||
Capacity Options: 51.2V 100AH, 51.2V 200AH (5KWH - 10KWH)
Package Inclusions: Wall Racks, Battery Cables, Communication Cables, Expansion Bolts

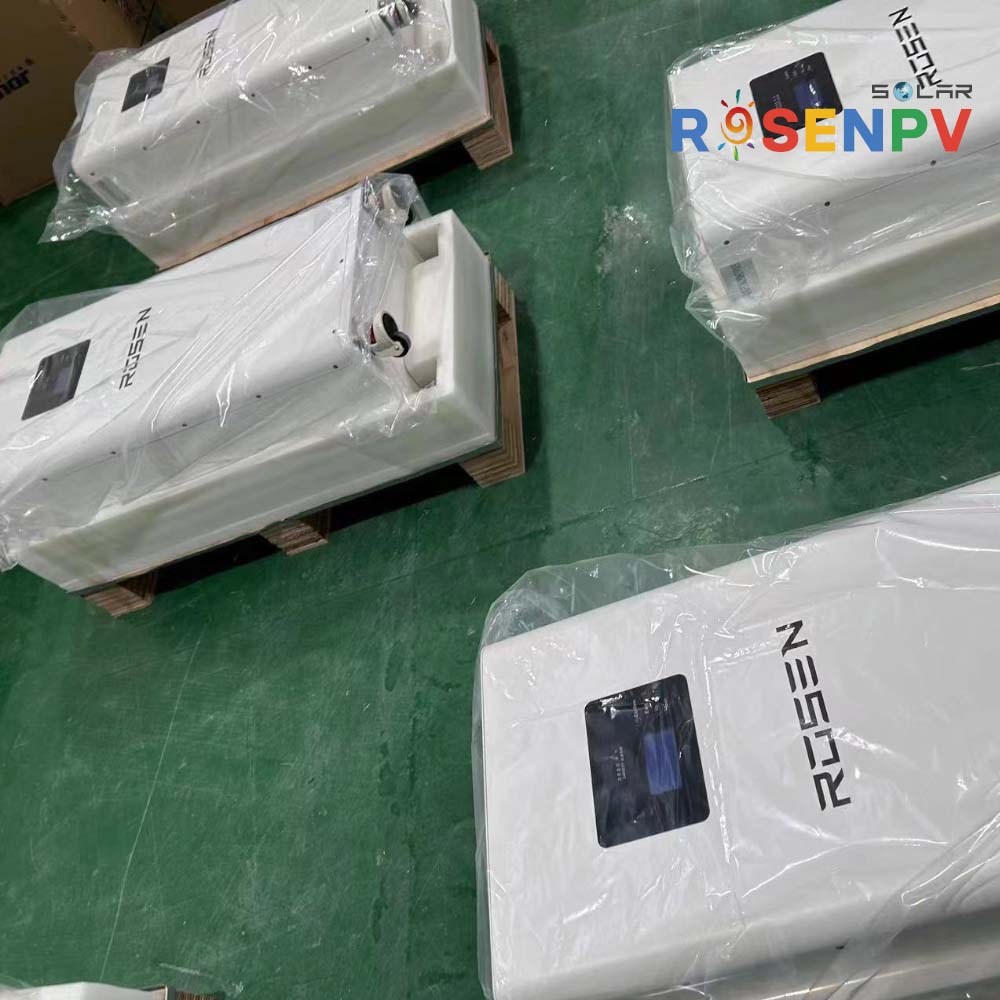

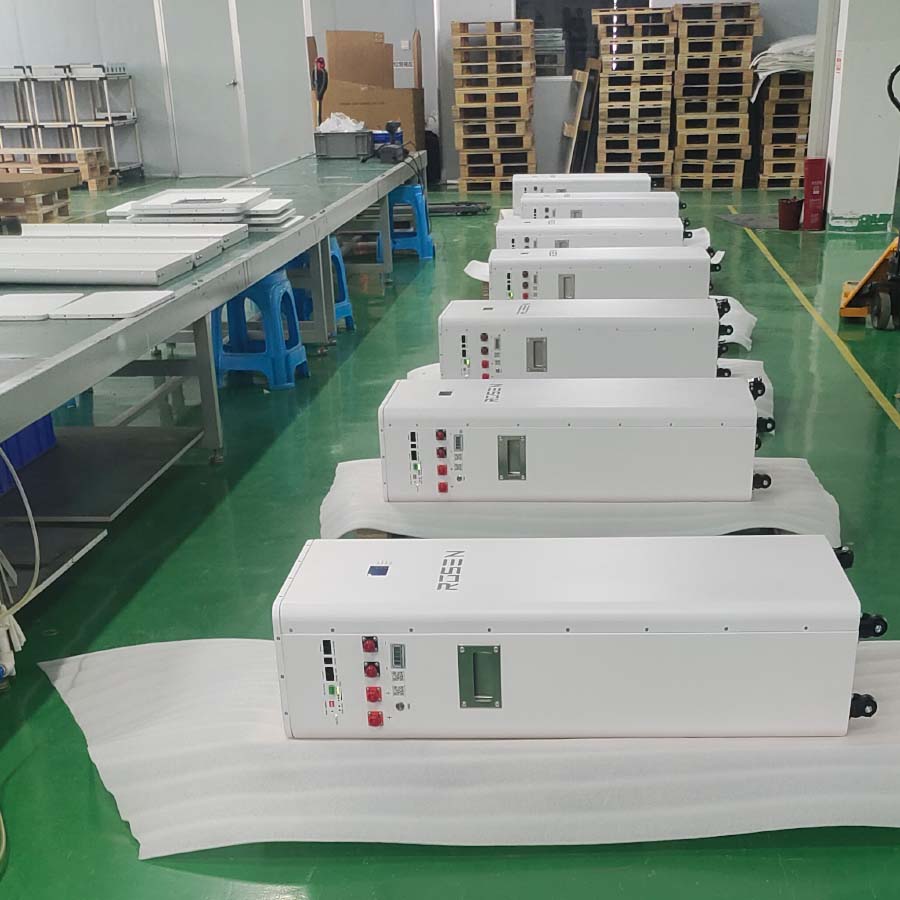

Capacity Options: 51.2V 280AH, 51.2V 300AH, 51.2V 314AH (15KWH - 16KWH)

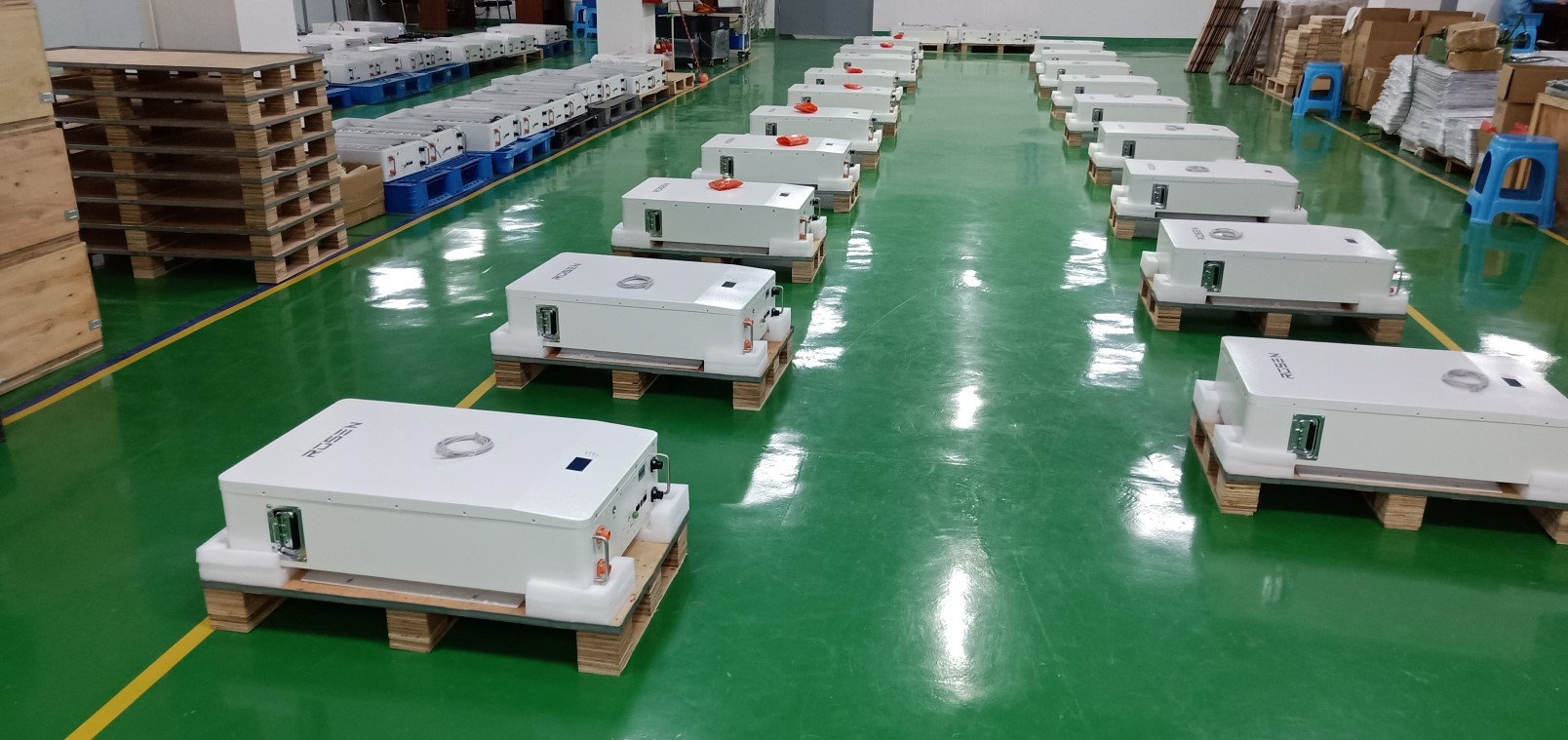

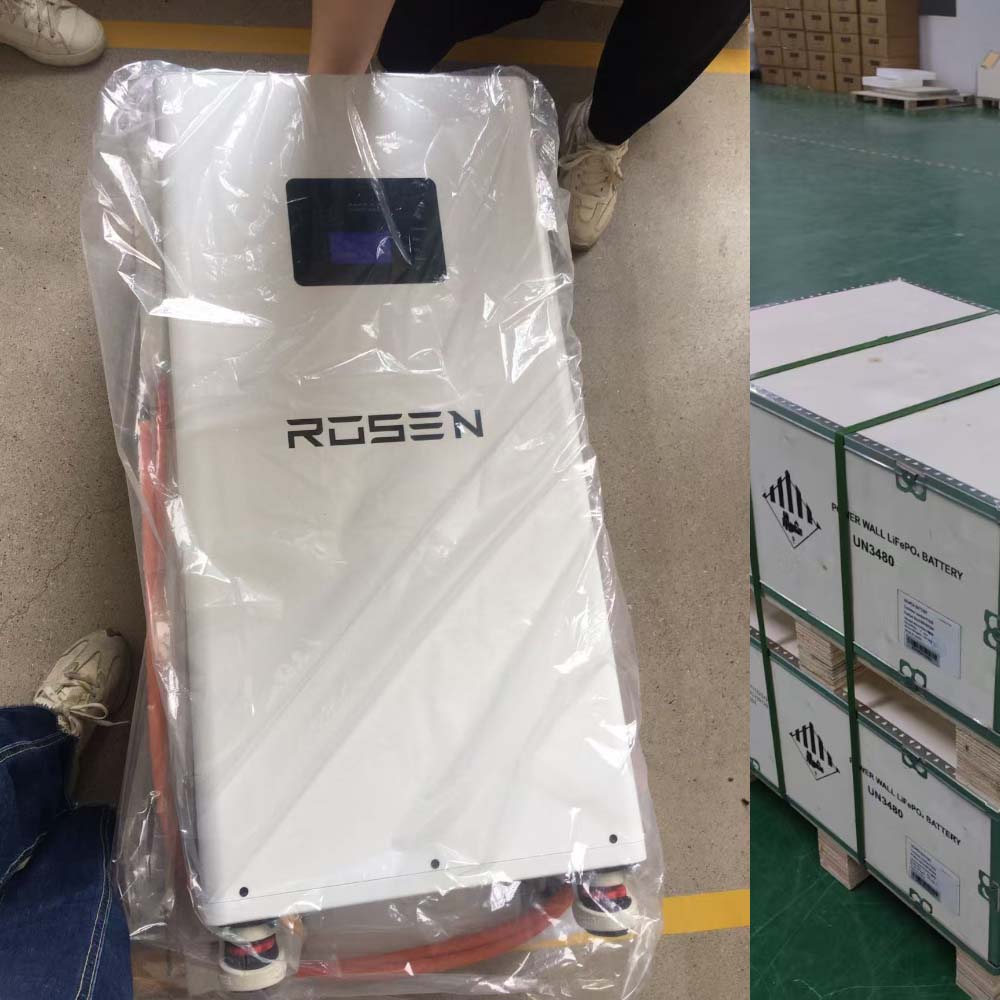

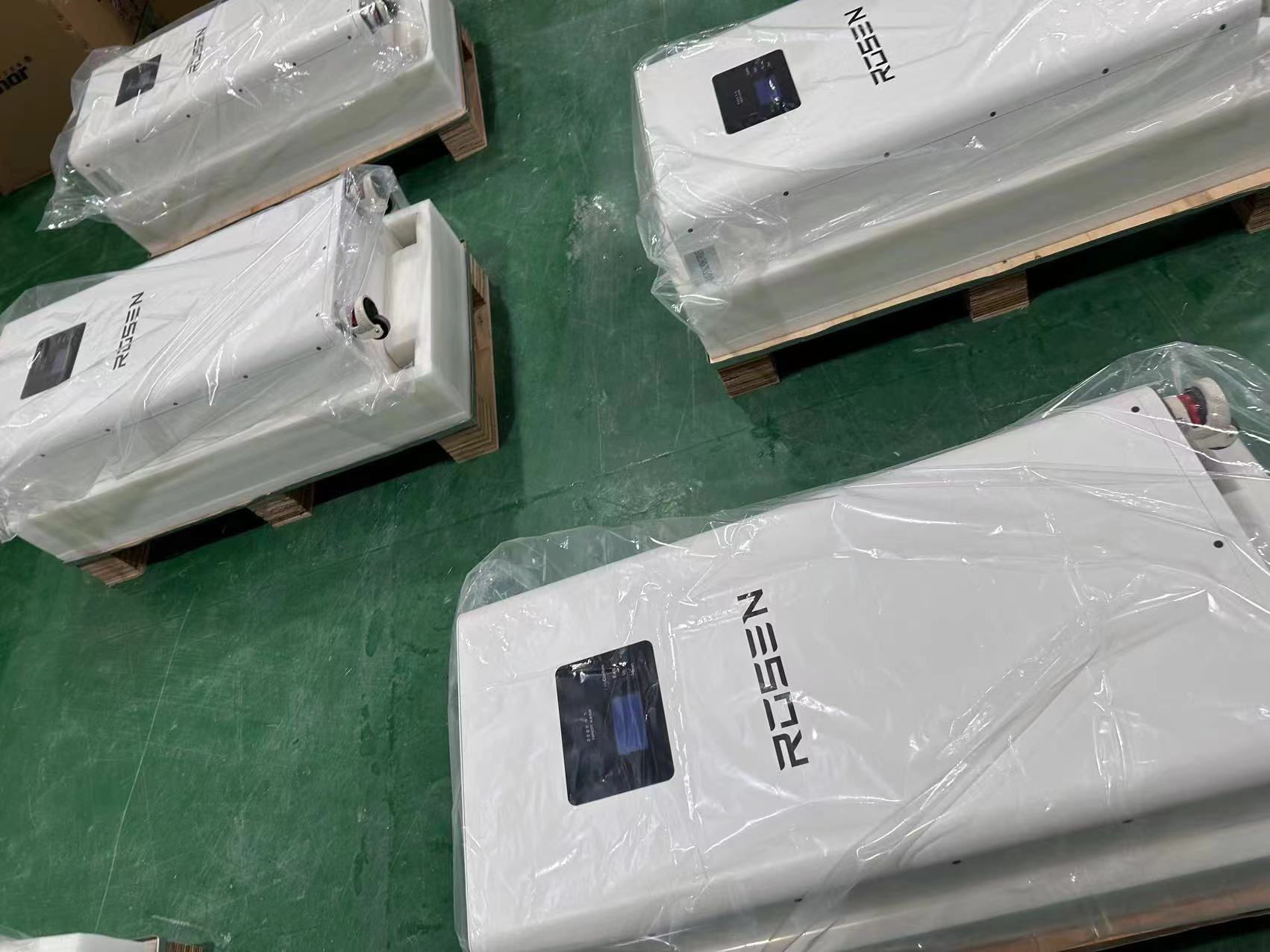

All LiFePo4 Batteries Packed By Wooden Case with MSDS, UN38.3 Security Certificate.
