Vrla 12v 200ah Deep Cycle Solar Storage Battery Lithium Battery Solar Storage samsung Battery

Product Description

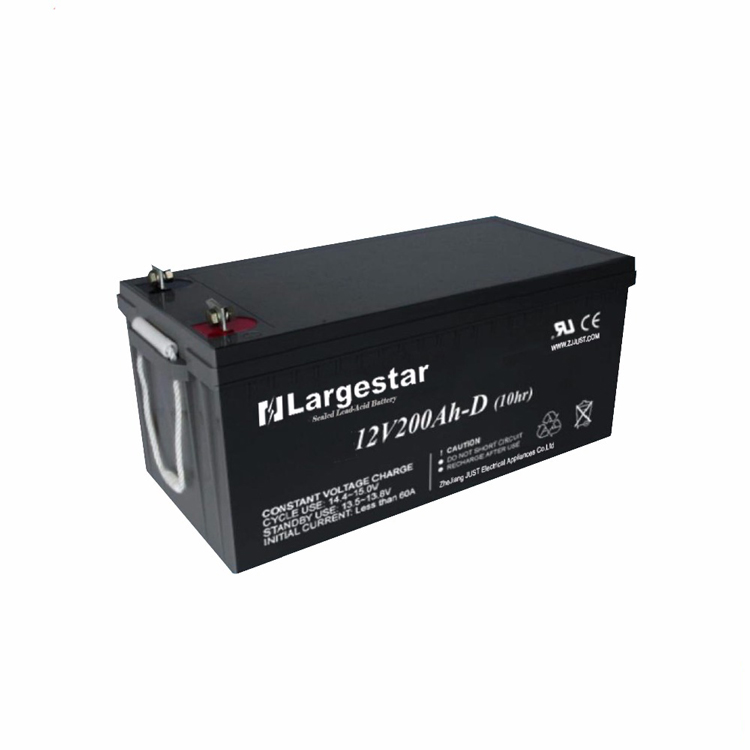

Vrla 12v 200ah deep cycle solar storage battery
Product Description
Item Storage battery Colour Black, Grey, Orange
Dimension Custom-made Special Dimension
Product Advantages

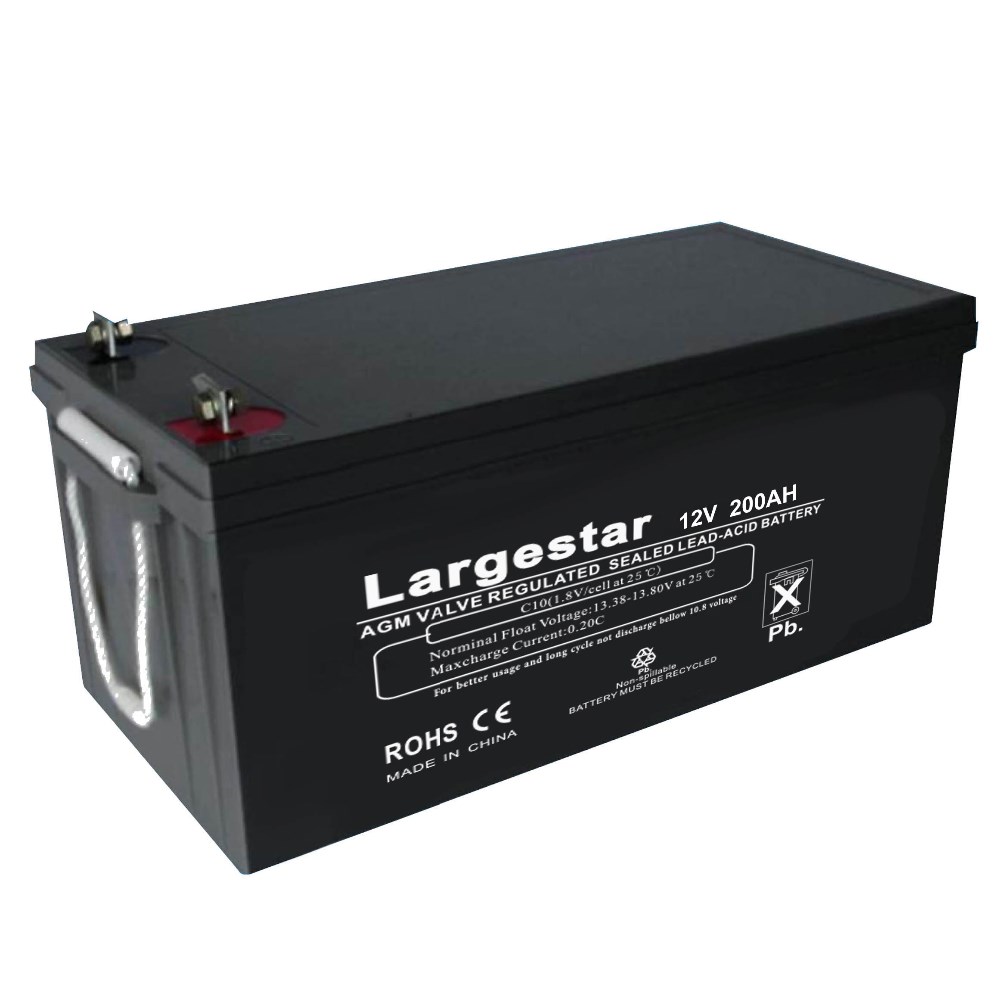

Battery Advantages Diagram
Deep Cycle Performance
High Temperature Resistant
Greater Vibration Resistance
Low Self-discharge
Long Service Life
Maintenance Free
High Power to Weight Ratio
No Memory Effect
Technical Specifications
Specification Parameter Details
Nominal Voltage 12V
Capacity (25℃) 10HR (10.8V) 200AH
5HR (10.5V) 175AH
1HR (9.60V) 125AH
Dimension Length 522 ± 2mm (20.55 inch)
Width 238 ± 2mm (9.37 inch)
Height 218 ± 2mm (8.58 inch)
Total Height (T5) 238 ± 2mm (9.37 inch)
Total Height (T11) 211 ± 2mm (8.70 inch)
Approx. Weight 57.5Kg (126.5lbs) ± 4%
Terminal Type T5 / T11
Internal Resistance (Fully Charged, 25℃) Approx. 3mΩ
Capacity Affected by Temperature (10HR) 40℃ 102%
25℃ 100%
0℃ 85%
-15℃ 65%
Performance & Charging parameters
Self-discharge 3 Months Remaining Capacity: 91%
6 Months Remaining Capacity: 82%
12 Months Remaining Capacity: 65%
Nominal Operating Temp. 25℃ ± 3℃ (77℉ ± 5℉)
Operating Temperature Range Discharge -15℃ ~ 50℃ (5℉ ~ 122℉)
Charge -10℃ ~ 50℃ (14℉ ~ 122℉)
Storage -20℃ ~ 50℃ (-4℉ ~ 122℉)
Float Charging Voltage (25℃) 13.50 to 13.80V (Temperature Compensation: -18mV/℃)
Cyclic Charging Voltage (25℃) 14.50 to 14.90V (Temperature Compensation: -30mV/℃)
Maximum Charging Current 60A
Terminal Material Copper
Maximum Discharge Current 1600A (5 sec.)
Designed Floating Life (20℃) 7 ~ 10 Years
Battery Structure and Layout Diagram
Related Products

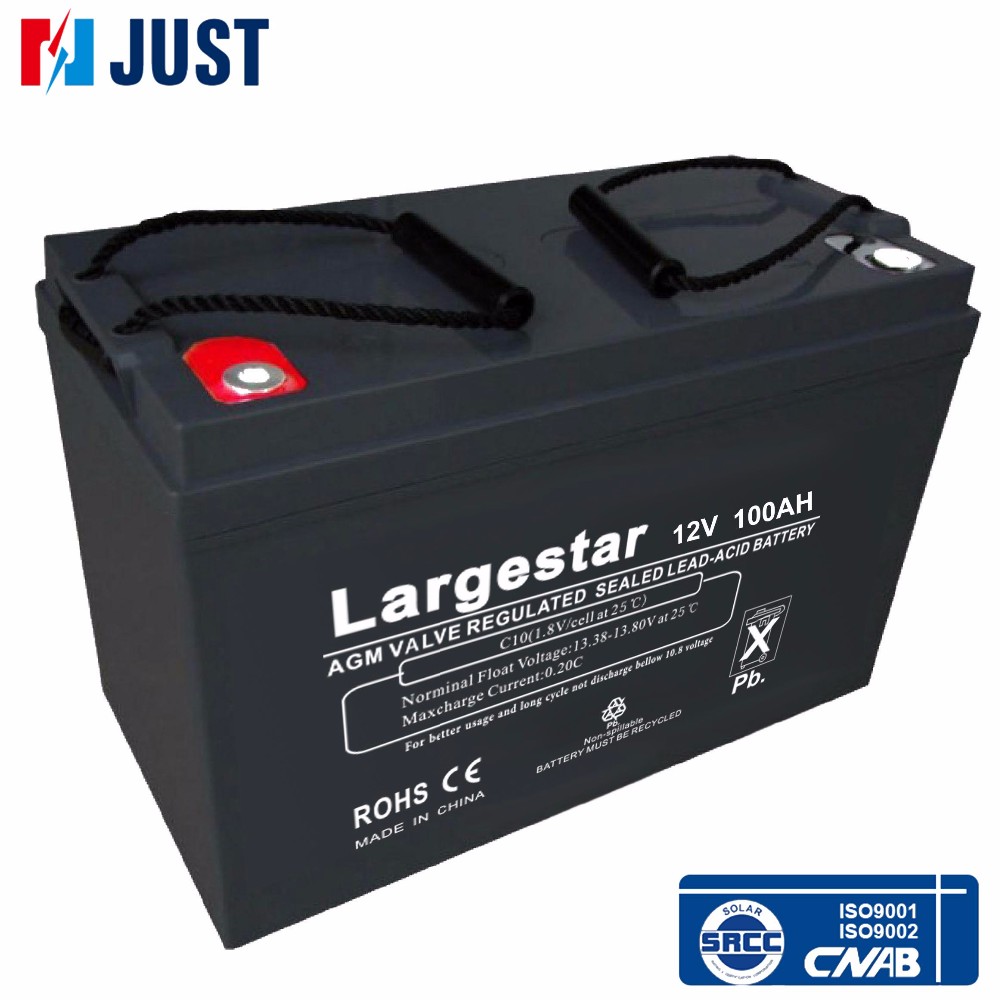

12V 100AH Battery
12V 100AH

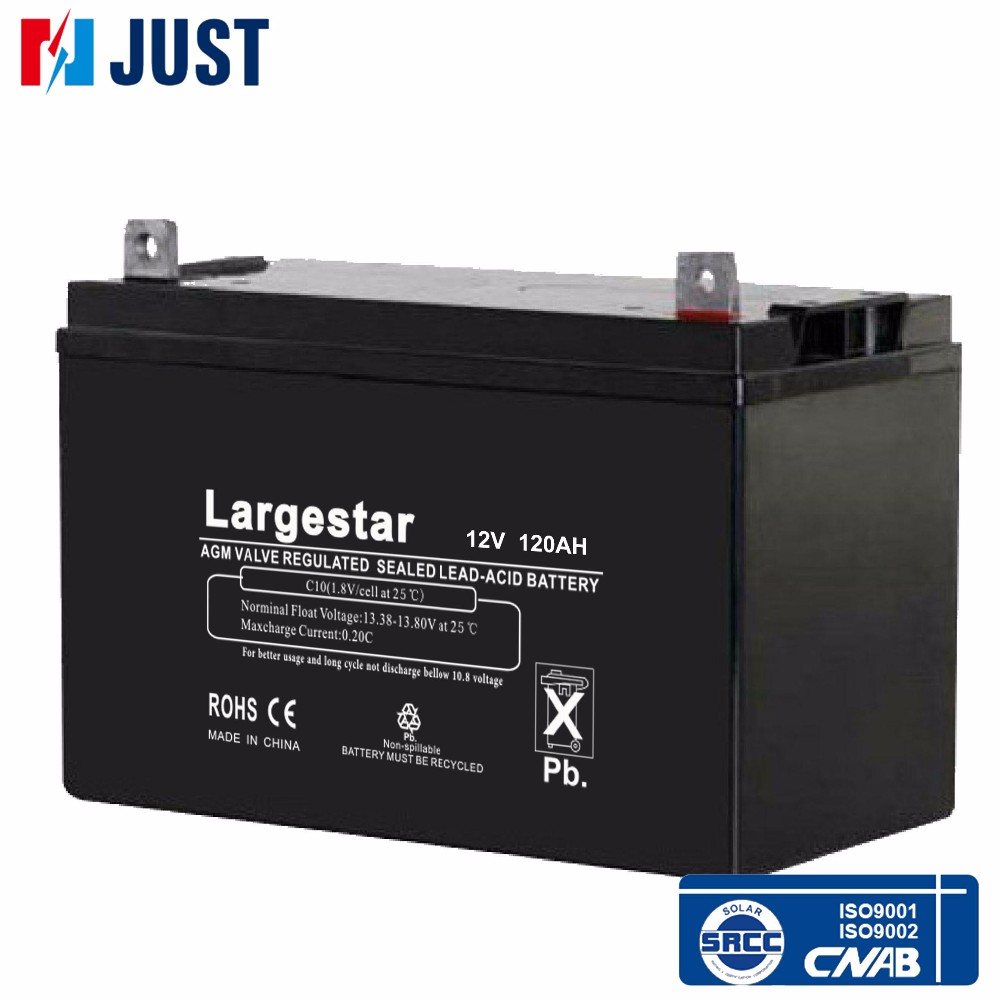

12V 120AH Battery
12V 120AH

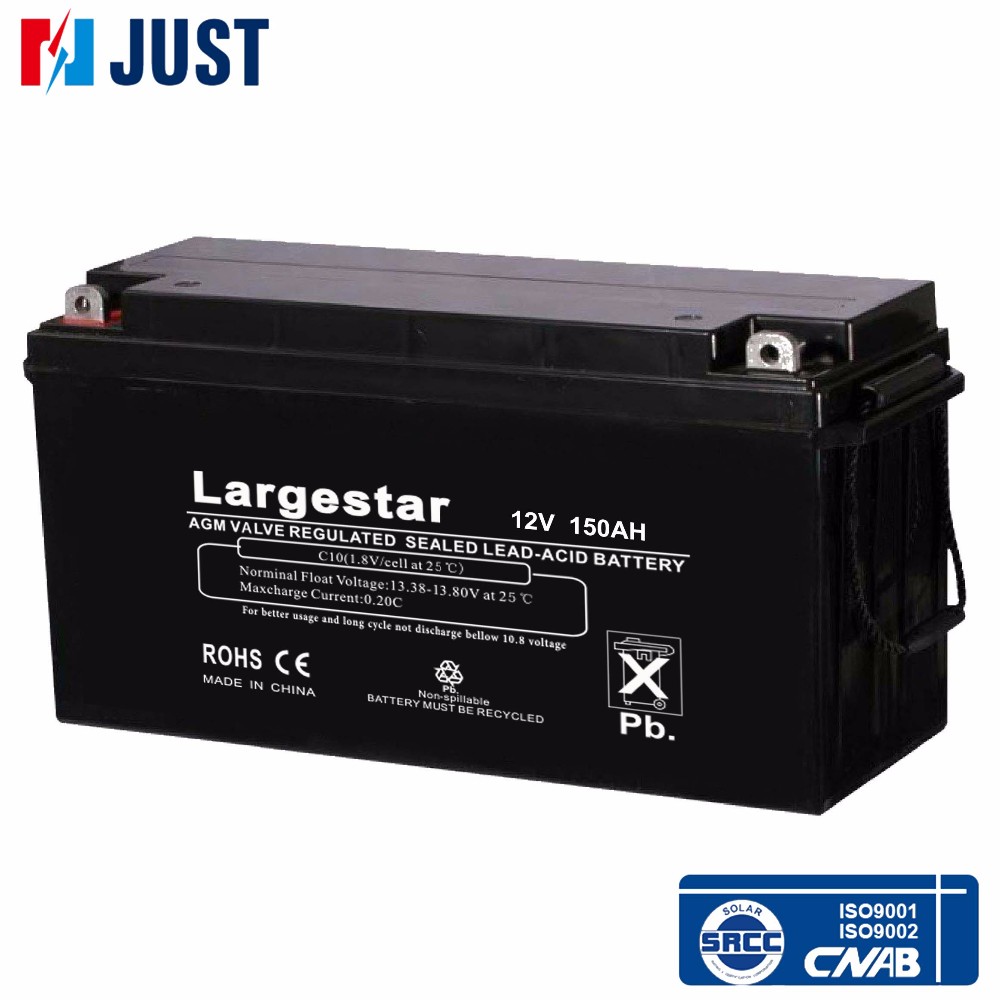

12V 150AH Battery
12V 150AH

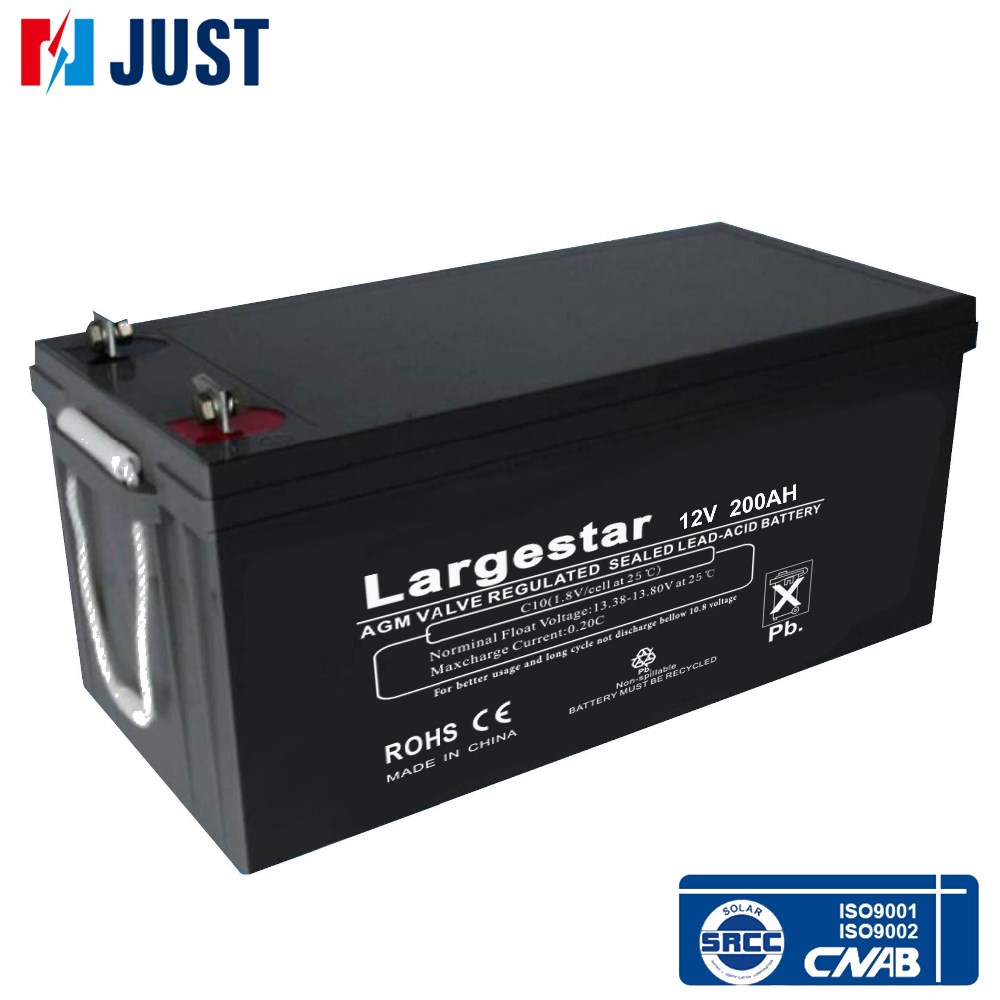

12V 200AH Battery
12V 200AH
Health and Safety
Precautions
  • Always handle batteries with care.
  • Always store upright.
  • Never over-fill with acid.
  • Always charge in a well ventilated place.
  • Always wear eye protection when handling batteries.
  • Wear protective clothing if there is any risk of acid splashing.
Danger
  • Do not use at the places near fire. Hydrogen gas generated from battery may cause fire and explosion.
  • This 12v battery is only for starting engine. Do not apply for other uses.
  • Keep out of the reach of children or the personnel who do not understand the manual. It may cause blindness or severe burn.
  • When using the battery, wear safety glasses and rubber gloves. Sulfuric acid may cause blindness or severe burn.
Safety Warning Icons
Warning
  • Replacement of battery shall be performed as per following order. If failed, it may cause fire and explosion. Remove cable from negative terminal first. Connect cable to negative terminal last.
  • When connect cable to battery, make sure not to get changed post of + and -. It may cause the damage of electronic components or fire.
  • When using the battery, handle with care, sulfuric acid may cause blindness or severe burn.
Caution
  • When moving battery, be careful not to drop the battery, which is heavy. Do not shake the battery with handle, if there is the handle, it may cause the injury.
  • Do not store the battery at the following places: High temperature and humidity; being exposed to rain, snow, direct sunshine.
Packaging & Shipping

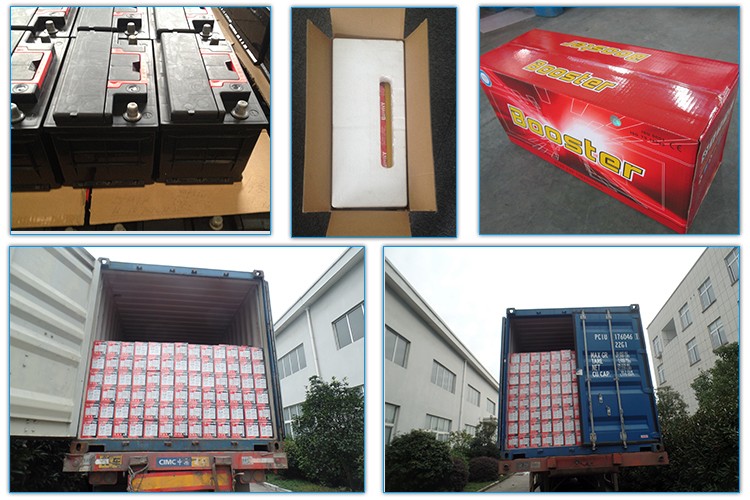

Packaging and Loading details
Trade Terms FOB, CIF, EXW
Payment Terms T/T, L/C
Delivery Time 25 - 30 days
Packing Cartons and Pallet
Shipping By sea
Frequently Asked Questions
QWhat is your terms of payment?
30% deposit in advance, 70% balance pay off against the copy of bill of loading. We'll show you the photos of the products and packages before you pay the balance.
QWhat kinds of battery will you provide?
We have three type battery: There are many different model battery here, we can supply 2v 100ah-3000ah battery, 4v 0.25ah-4v 4.5ah battery, 6v 1.3ah-6v 12ah battery, 12v 0.8ah-12v 250ah battery.
QWhat is the operating temperature range?
Discharge: -15 to 40°C
Charge: 0 to 40°C
Storage: -15 to 40°C
QCan you print my logo on the battery cover?
Yes, OEM is available. We can print your logo on the battery case, and you can offer your logo design.
QHow should the battery be maintained?
The battery should be stored in clean, dry, ventilated, dark environment when not using. Keep it fully charged, and recharge it every 3 months or 6 months.
QIf a battery fails, what will be the indications?
1. Lower performance
2. Low voltage
3. Cannot charge/recharge
4. Swelled container
5. Acid corrosion
