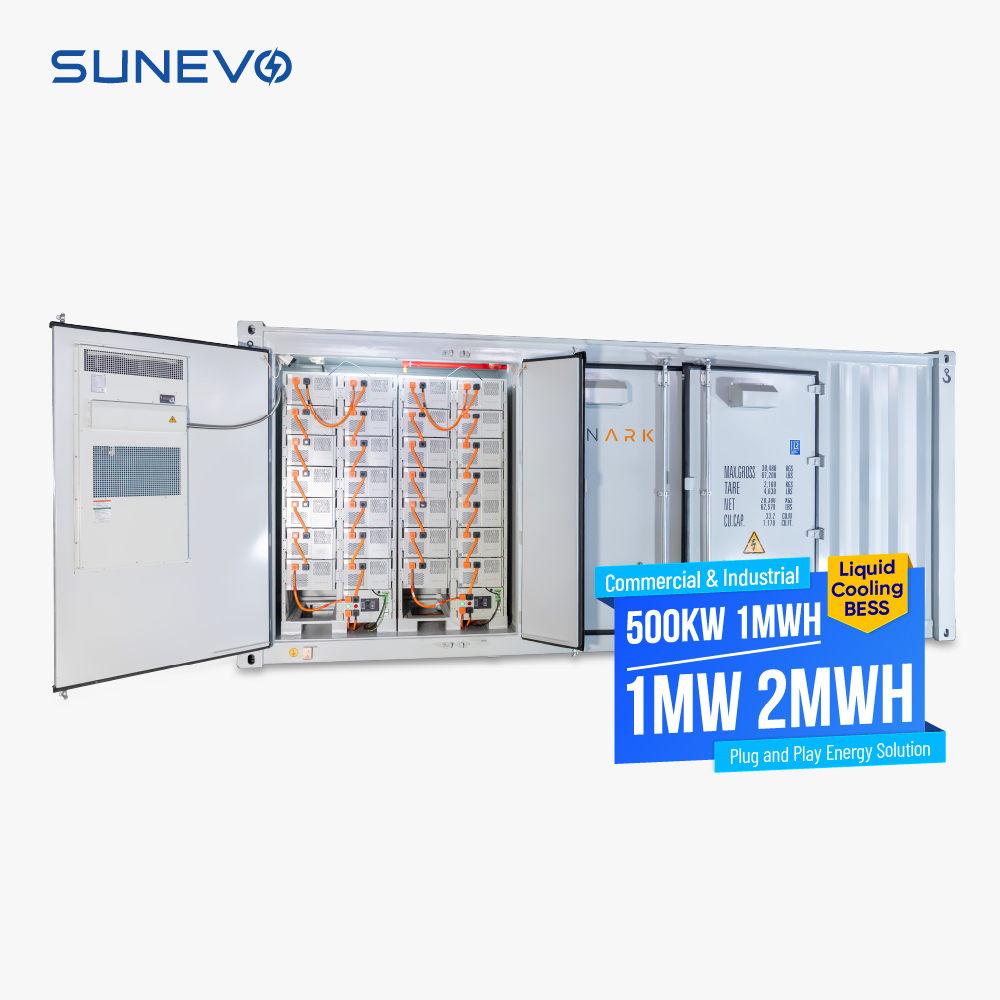

Industrial Lipo4 Solar Storage Batteries 500Kw 1Mwh 1Mw 2Mwh Super Capacitor Energy Storage System
Industrial Lipo4 Solar Storage Batteries 500Kw 1Mwh 1Mw 2Mwh Super Capacitor Energy Storage System
Industrial Lipo4 Solar Storage Batteries 500Kw 1Mwh 1Mw 2Mwh Super Capacitor Energy Storage System
Industrial Lipo4 Solar Storage Batteries 500Kw 1Mwh 1Mw 2Mwh Super Capacitor Energy Storage System
Industrial Lipo4 Solar Storage Batteries 500Kw 1Mwh 1Mw 2Mwh Super Capacitor Energy Storage System
1 / 5
Industrial Lipo4 Solar Storage Batteries 500Kw 1Mwh 1Mw 2Mwh Super Capacitor Energy Storage System
Industrial Lipo4 Solar Storage Batteries 500Kw 1Mwh 1Mw 2Mwh Super Capacitor Energy Storage System
Industrial Lipo4 Solar Storage Batteries 500Kw 1Mwh 1Mw 2Mwh Super Capacitor Energy Storage System
Industrial Lipo4 Solar Storage Batteries 500Kw 1Mwh 1Mw 2Mwh Super Capacitor Energy Storage System
Industrial Lipo4 Solar Storage Batteries 500Kw 1Mwh 1Mw 2Mwh Super Capacitor Energy Storage System

Industrial Lipo4 Solar Storage Batteries 500Kw 1Mwh 1Mw 2Mwh Super Capacitor Energy Storage System

Send Inquiry

Product Description

Energy Storage System
MODULE CubeArk-1MW-2MWH
DC Data
Cell type Prismatic LFP
Cell brand HiGEE/EVE/GOTION
Cell life cycle >8,000 [email protected], 25℃
Cell spec 3.2V 280Ah/314Ah
String configuration 1P224S/1P240S
Number of strings 10
String rated energy capacity 200kWh/215kWh
DC rated energy capacity 2000kWh
Rated voltage 716.8V/768V
Voltage range 627.2V~795.2V
BMS communication interface Ethernet, CAN, RS485
BMS communication protocol Modbus RTU, Modbus TCP
AC Data
Rated AC power 2*500kW
Maximum AC power 2*550kW
Rated AC voltage 400V
AC PF 1 leading ~ 1 lagging
Output THDi ≤3%
Nominal grid frequency 50/60Hz
Isolation method 3 Phase 4 line Transformer

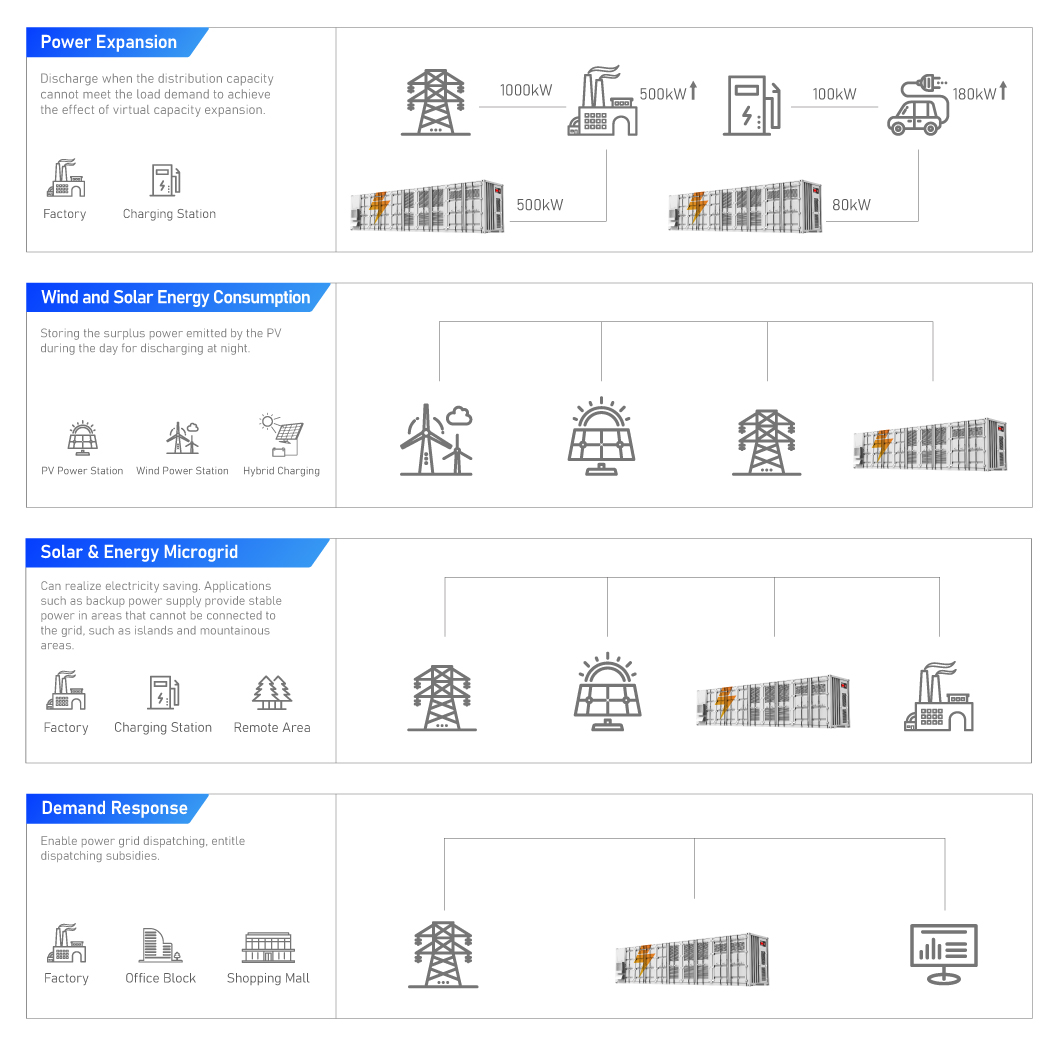

How it Works

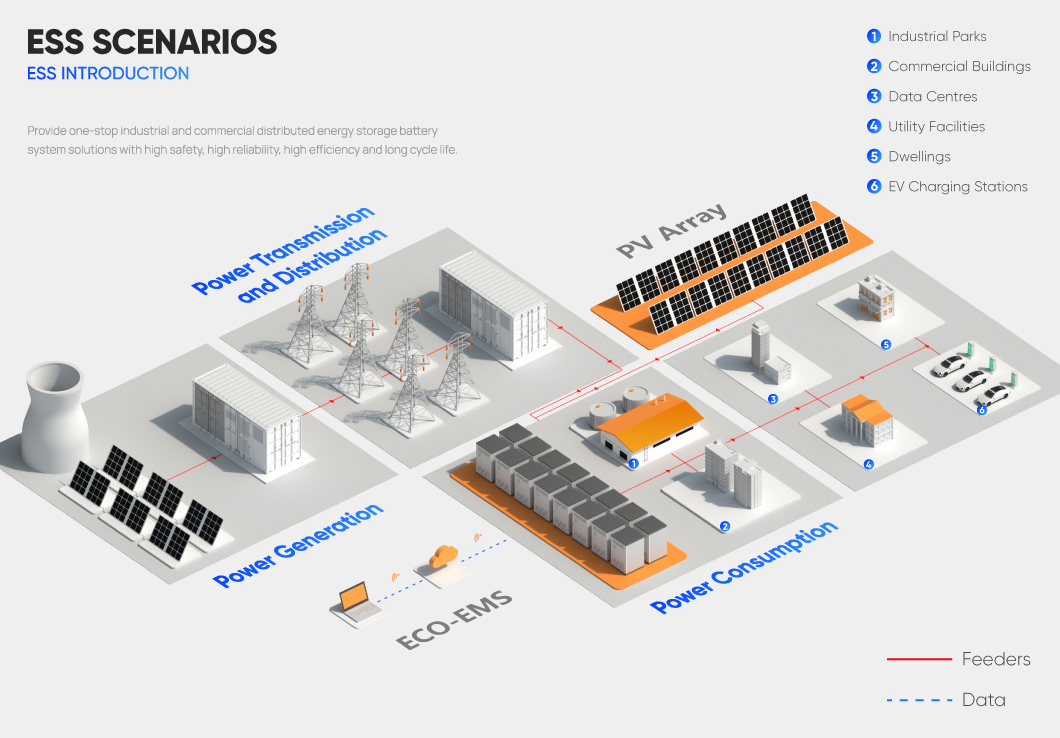

How it Works Diagram 1 How it Works Diagram 2

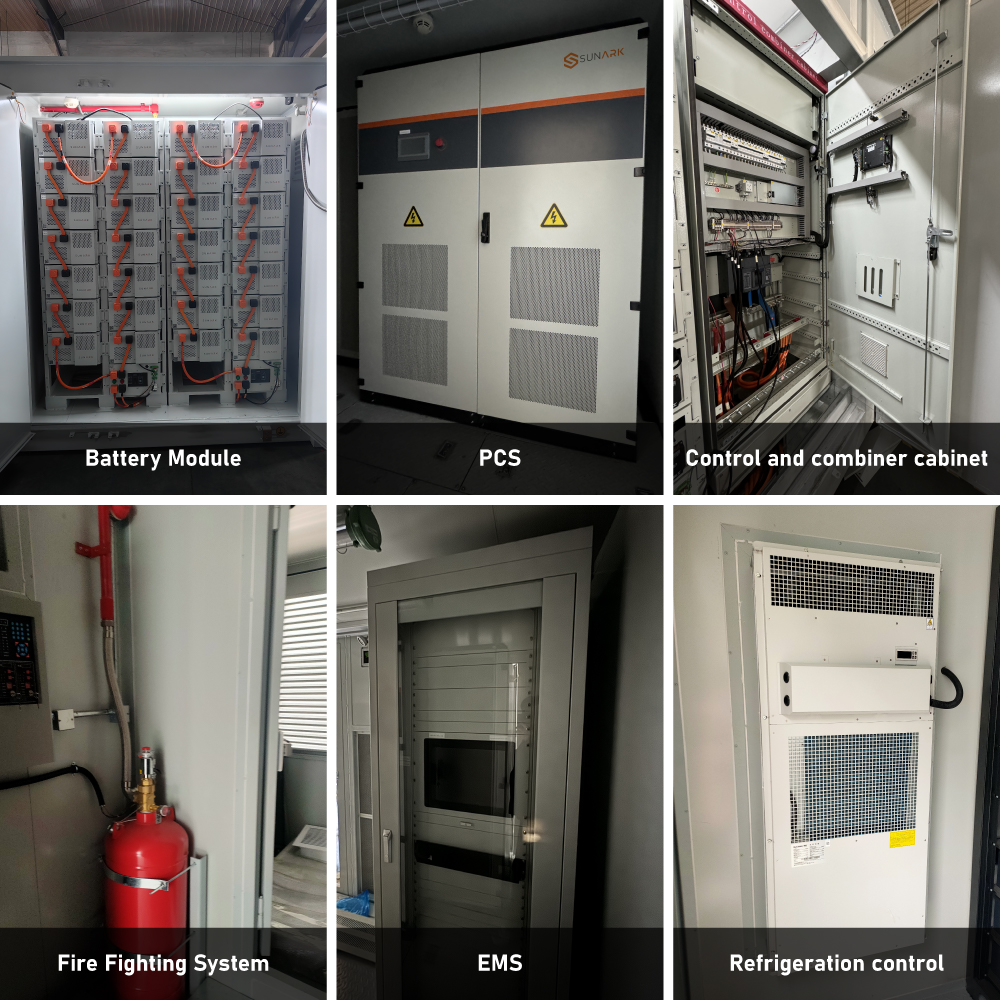

Product Detail

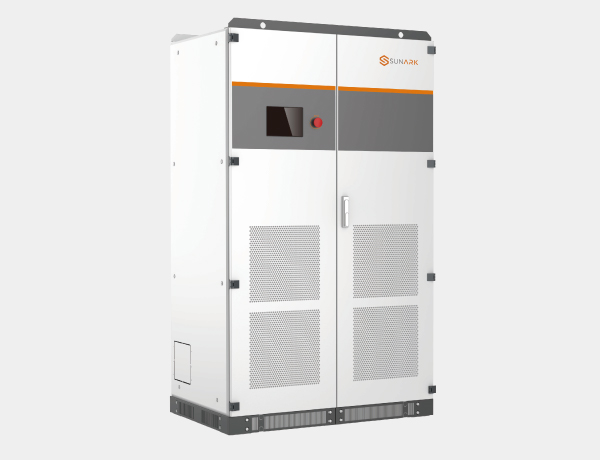

PCS Cabinet
PCS
Output Power: 30-500kW per PCS cabinet Weight: 605-2665kg Dimensions (W*D*H) (mm): 800*800*1900 / 800*800*2050 / 1600*1050*2050 Display: LCD touchscreen

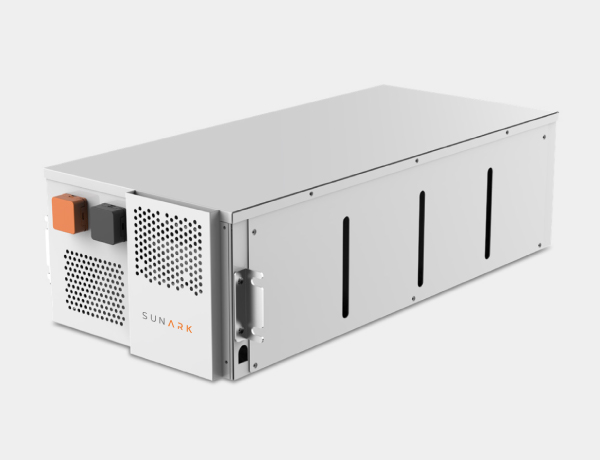

Lithium Batteries
Lithium Batteries
Capacity (kWh): 16.0768 / 48.230 / 52.250 Nominal Voltage (Vdc): 51.2V / 153.6V / 166.4V Nominal Capacity (Ah): 314Ah Cycle Life: >8,000 cycles @0.5C Communication: CANBUS / Modbus RTU / TCP/IP Design Life: 20+ years (25°C)

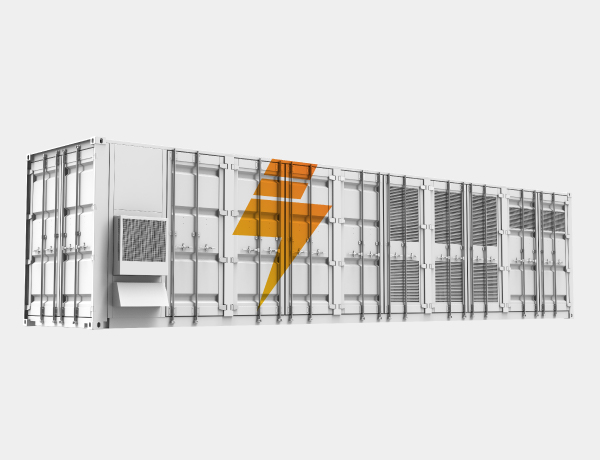

BESS System
BESS
1. Support PV, BAT, DG and GRID access
2. Automatic switching between on/off-grid
3. Support forklift and hoisting transportation
4. Event and Caution Alarm
5. Multiple Protections
6. Real time and History Data Accumulation
7. Dual Working Power Support

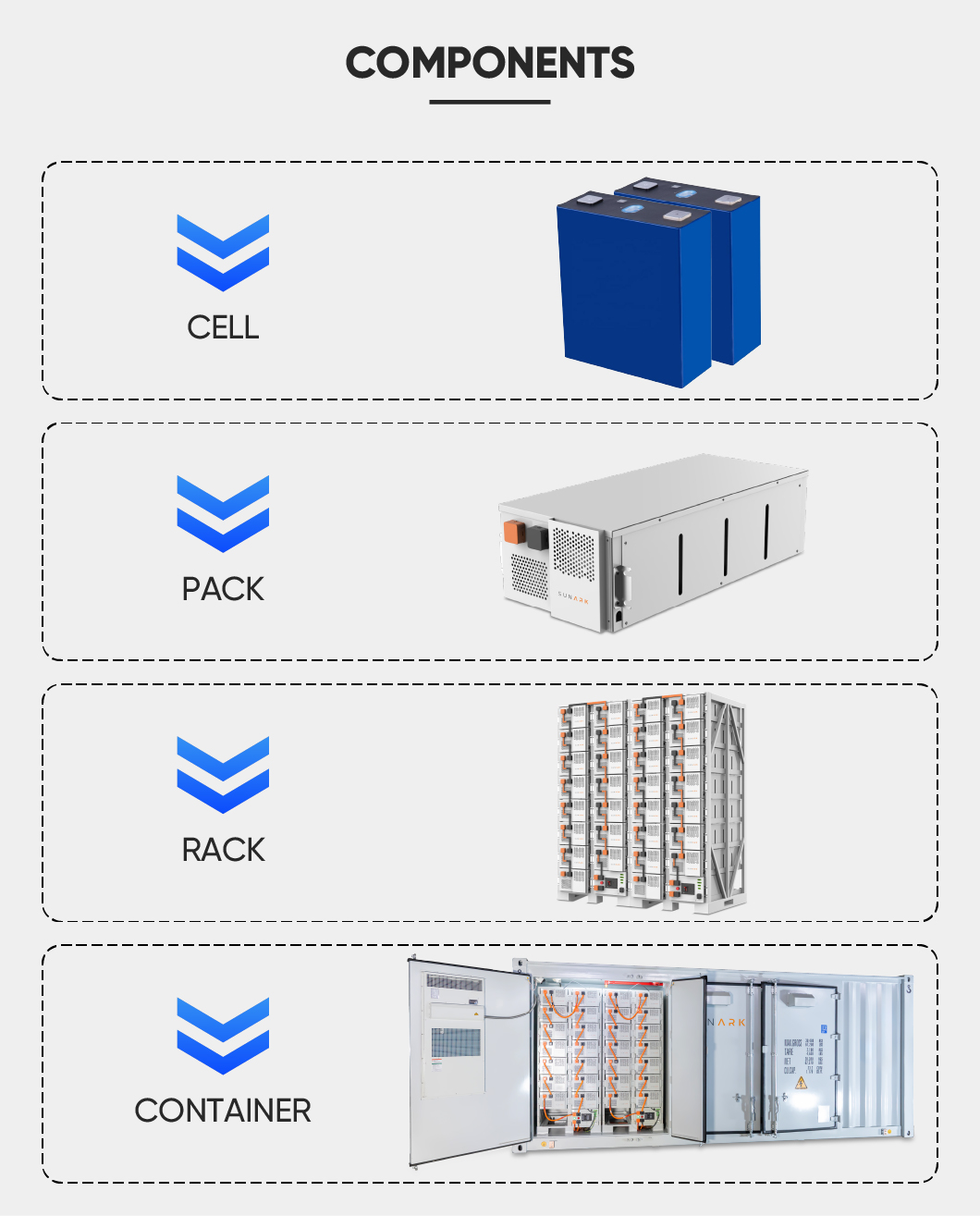

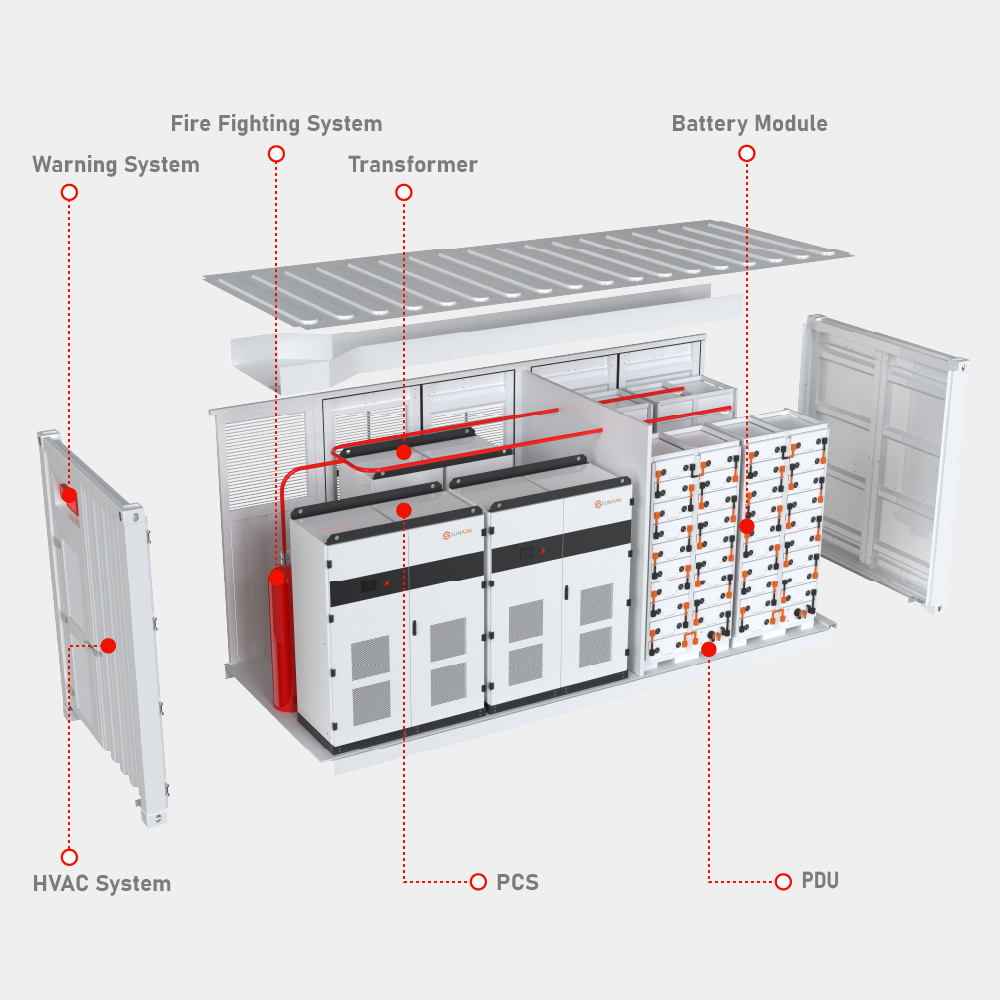

BESS Internal Layout

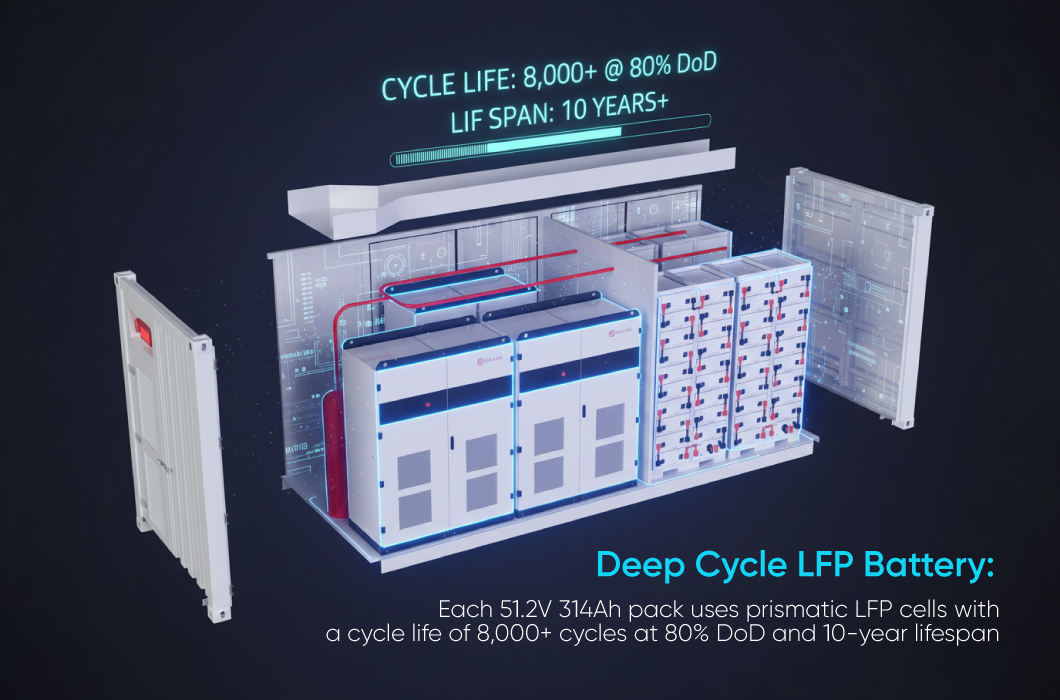

Products Features

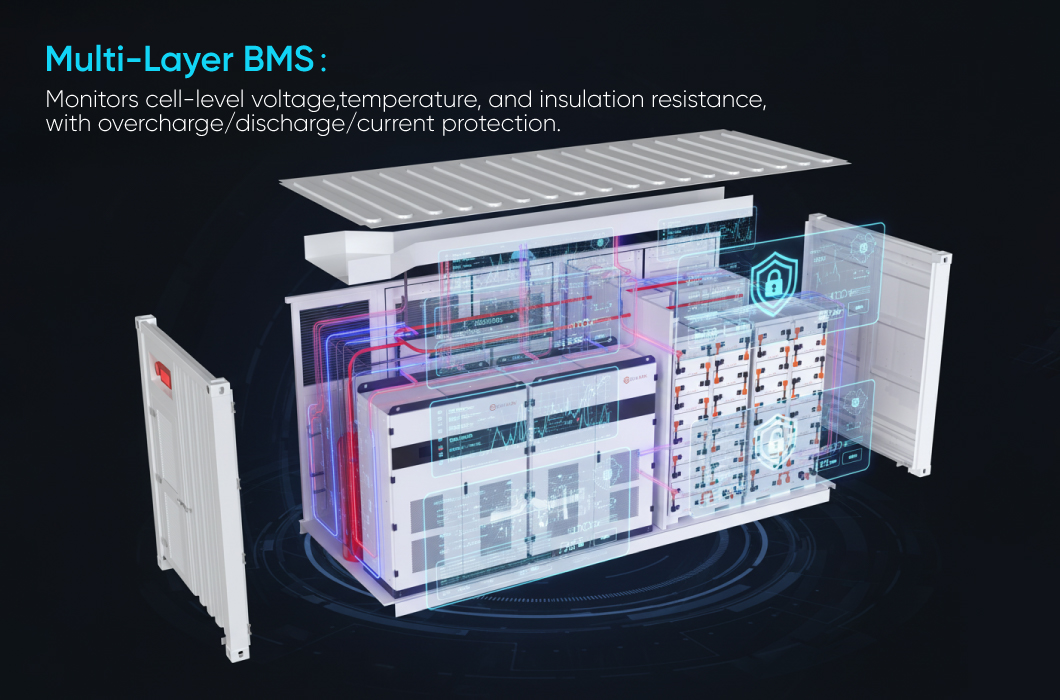

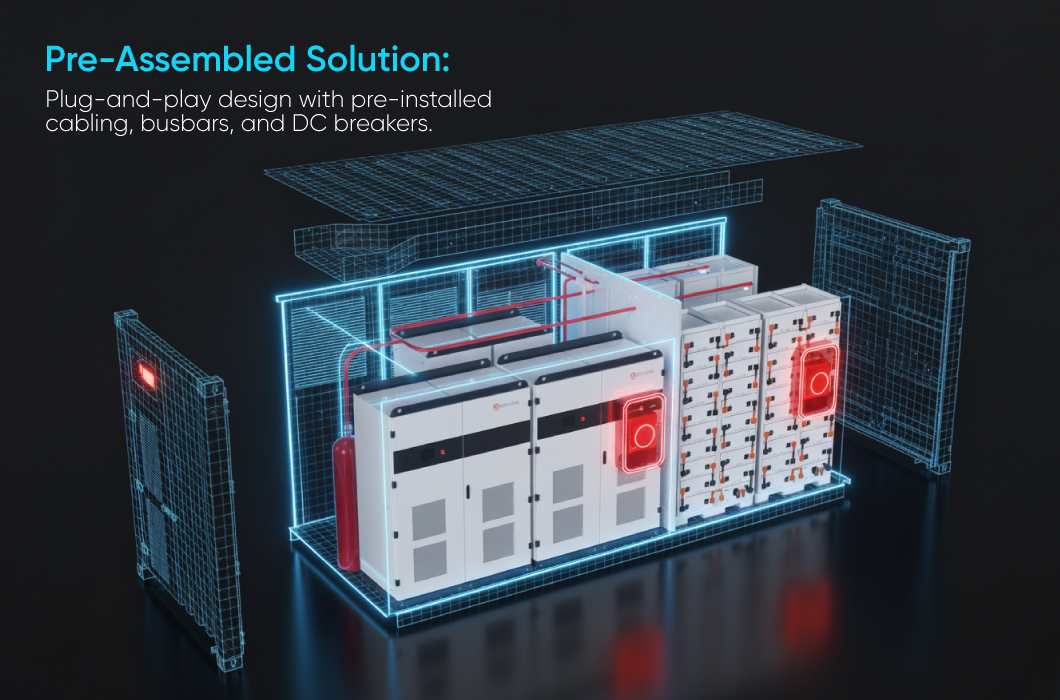

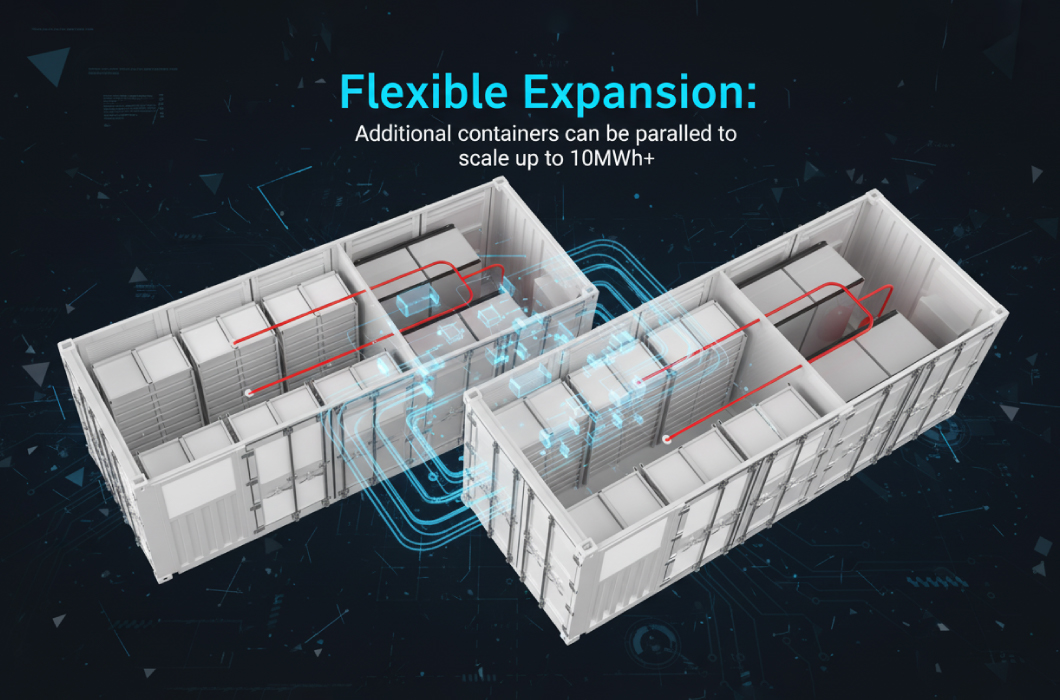

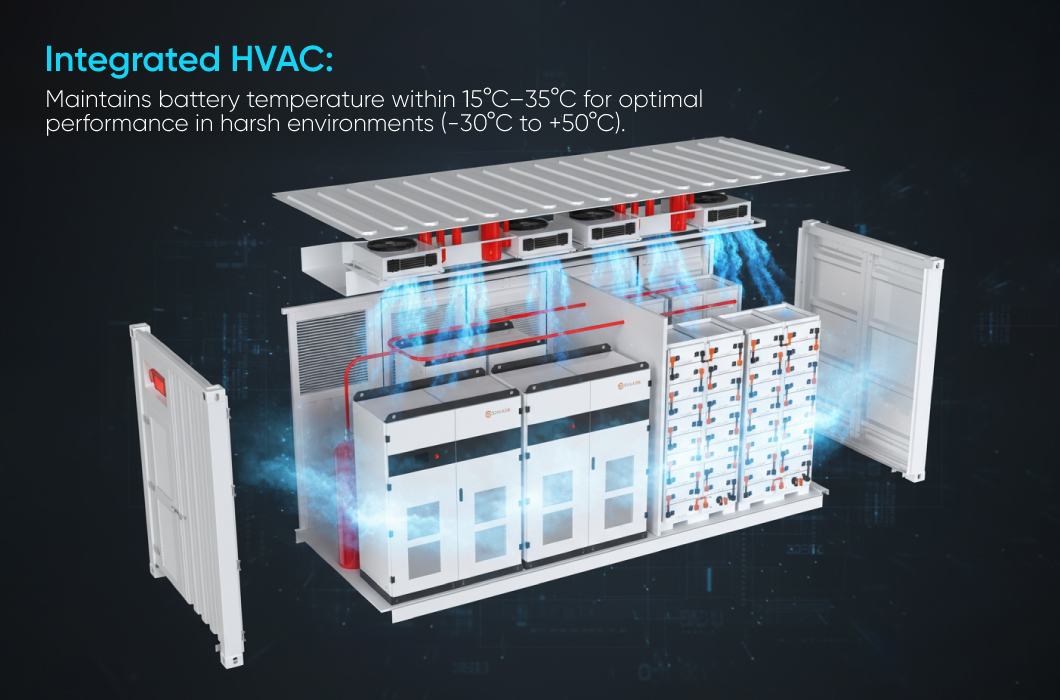

Product Feature 1 Product Feature 2 Product Feature 3 Product Feature 4 Product Feature 5
Packaging & Shipping

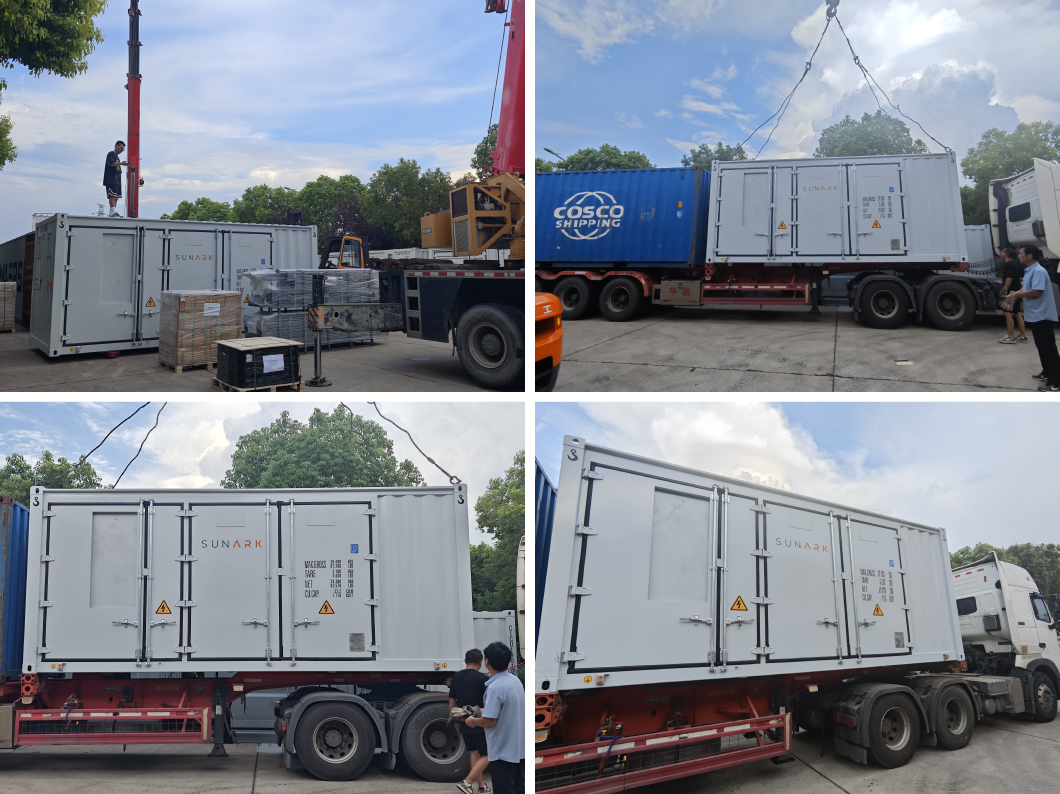

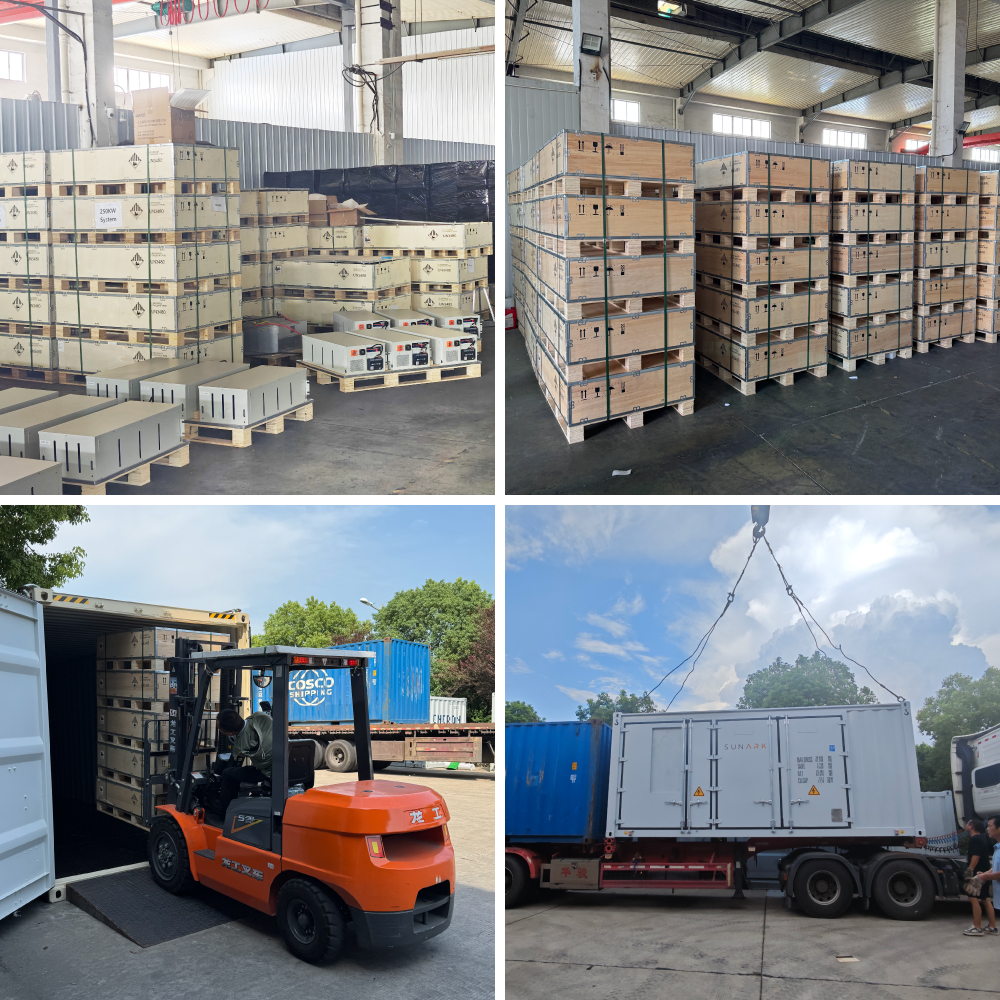

Packaging and Shipping Process
Delivery Time
Item 1-10PCS 10-50pcs 50-100pcs 100+pcs
Need Dangerous Goods Transport Certificate 30 days 30-45 days 45-60 days 60+ days
Not Need Dangerous Goods Transport Certificate 30 days 30-45 days 45-50 days 50+ days

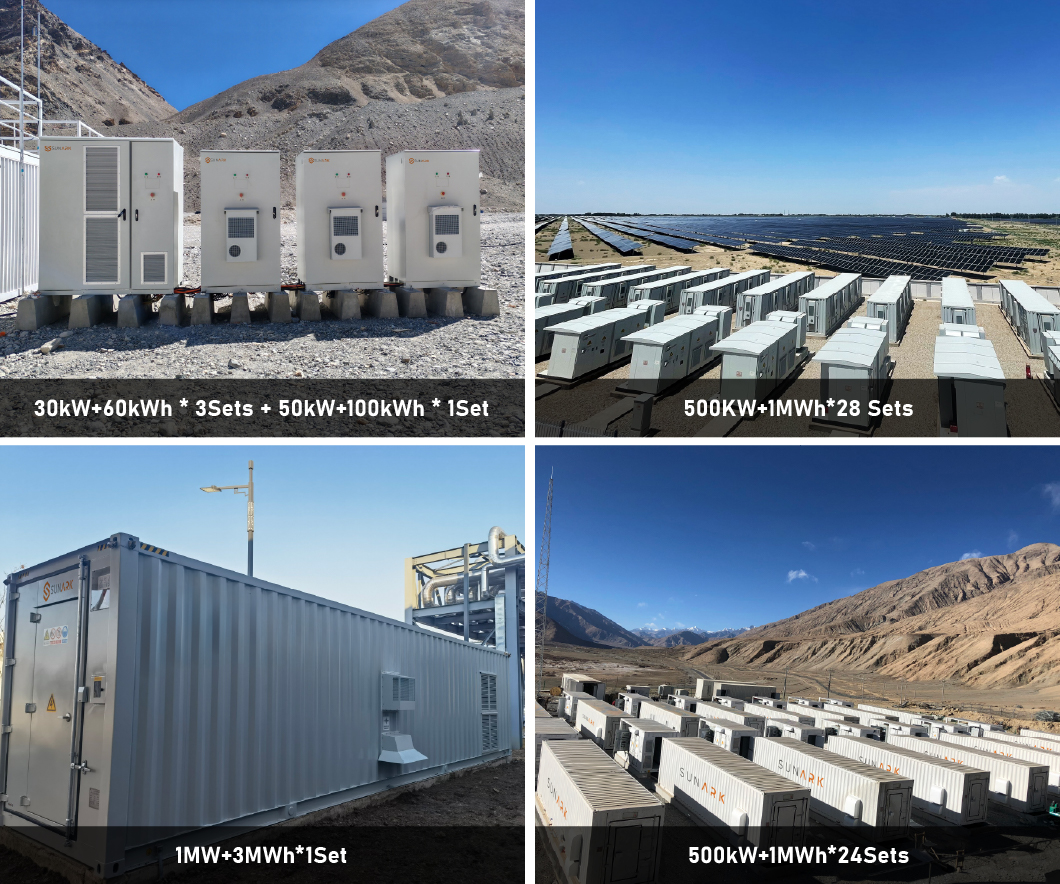

Project Case
Project Case Study
Why Choose Us
Why Choose Us Reason 1 Why Choose Us Reason 2
Exhibitions and Customer Visits
Exhibitions and Customer Visit 1 Exhibitions and Customer Visit 2
Frequently Asked Questions (FAQ)
What is the lifespan of the LFP cells used in this system?
The battery cells feature an impressive lifespan of over 8,000 cycles at 0.5C discharge rate under a temperature of 25°C. The overall design life of the system exceeds 20 years.
What type of communication interfaces and protocols does the BMS support?
The Battery Management System (BMS) supports Ethernet, CAN, and RS485 communication interfaces, and is fully compatible with Modbus RTU and Modbus TCP protocols.
What are the main integration capabilities of the BESS system?
The system supports multi-source power inputs, including PV (solar), battery (BAT), diesel generator (DG), and utility grid access. It also features automatic switching between on-grid and off-grid modes.
Which brands of LFP cells are utilized in the CubeArk-1MW-2MWH?
We utilize high-quality prismatic LFP cells from industry-leading brands, including HiGEE, EVE, and GOTION.
How long does the delivery take for different order volumes?
For orders of 1-10 units, the delivery time is approximately 30 days. For bulk orders ranging from 10 to 100+ units, delivery spans between 30 to 60+ days depending on the certification requirements.
What protection features are included in the PCS and BESS cabinets?
The system is equipped with multiple electrical and thermal protections, real-time and historical data accumulation, events and caution alarms, and features an interactive LCD touchscreen for effortless operations.
