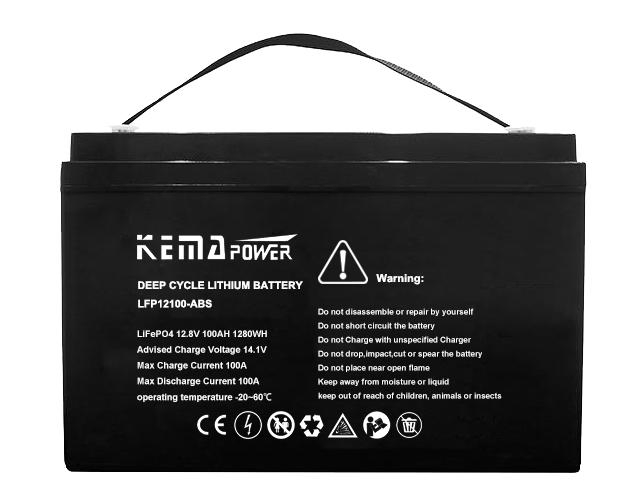

6000 Cycles Prismatic 12V Li-ion Solar Storage Pack Camper Marine Boat 12 Volt LiFePO4 100ah Lithium Ion Battery
6000 Cycles Prismatic 12V Li-ion Solar Storage Pack Camper Marine Boat 12 Volt LiFePO4 100ah Lithium Ion Battery
6000 Cycles Prismatic 12V Li-ion Solar Storage Pack Camper Marine Boat 12 Volt LiFePO4 100ah Lithium Ion Battery
6000 Cycles Prismatic 12V Li-ion Solar Storage Pack Camper Marine Boat 12 Volt LiFePO4 100ah Lithium Ion Battery
6000 Cycles Prismatic 12V Li-ion Solar Storage Pack Camper Marine Boat 12 Volt LiFePO4 100ah Lithium Ion Battery
1 / 5
6000 Cycles Prismatic 12V Li-ion Solar Storage Pack Camper Marine Boat 12 Volt LiFePO4 100ah Lithium Ion Battery
6000 Cycles Prismatic 12V Li-ion Solar Storage Pack Camper Marine Boat 12 Volt LiFePO4 100ah Lithium Ion Battery
6000 Cycles Prismatic 12V Li-ion Solar Storage Pack Camper Marine Boat 12 Volt LiFePO4 100ah Lithium Ion Battery
6000 Cycles Prismatic 12V Li-ion Solar Storage Pack Camper Marine Boat 12 Volt LiFePO4 100ah Lithium Ion Battery
6000 Cycles Prismatic 12V Li-ion Solar Storage Pack Camper Marine Boat 12 Volt LiFePO4 100ah Lithium Ion Battery

6000 Cycles Prismatic 12V Li-ion Solar Storage Pack Camper Marine Boat 12 Volt LiFePO4 100ah Lithium Ion Battery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Lead-Acid Alternative LiFePO4 Lithium Battery
LFP-ABS Series 24V/48V, 1.28-5.12kWh
Basic Information
Model NO.
LFP-ABS
Rechargeable
Yes
Size
Large
Nominal Voltage
12V/24V/48V
Product Name
LiFePO4 Battery LFP-ABS
Cycle Life
6000 Times
Transport Package
Seaworthy Packing
Origin
China
HS Code
8507600090
Capacity
50000 PCS/Year
Key Features
✔
24VDC 48VDC Deep Cycle Energy storage Lead-acid alternative LiFePO4 battery
✔
Capacity options: 25.6V 50Ah-200Ah, 51.2V 50Ah-100Ah
✔
6000 Cycle life (80% DOD@25ºC), 10 times more than AGM battery
✔
Discharge DOD over 95%, 25-50% more than AGM battery
✔
Compact size & Light weight (>50% smaller and lighter than AGM)
✔
Wide Compatibility with most standard inverters
✔
Embedded BMS with full protection and balance charge/discharge
✔
Optional LCD Display and Bluetooth communication
Technical Specifications
MODEL LFP24050 LFP24100 LFP24120 LFP24200 LFP48050 LFP48060 LFP48100
Battery Module Rated Voltage 25.6V 25.6V 25.6V 25.6V 51.2V 51.2V 51.2V
Rated Capacity 50AH 100AH 120AH 200AH 50AH 60AH 100AH
Rated Energy 1280WH 2560WH 3072WH 5120WH 2560WH 3072WH 5120WH

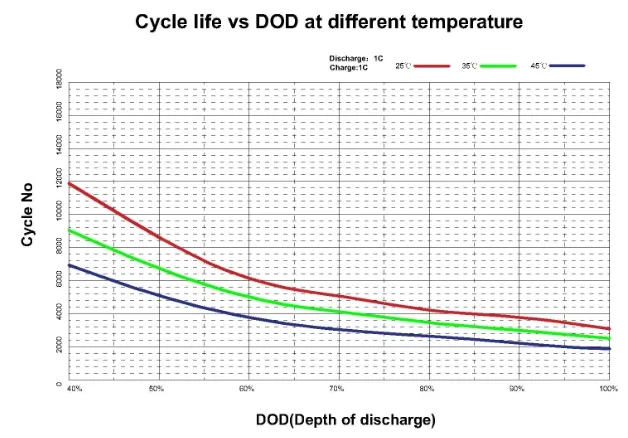

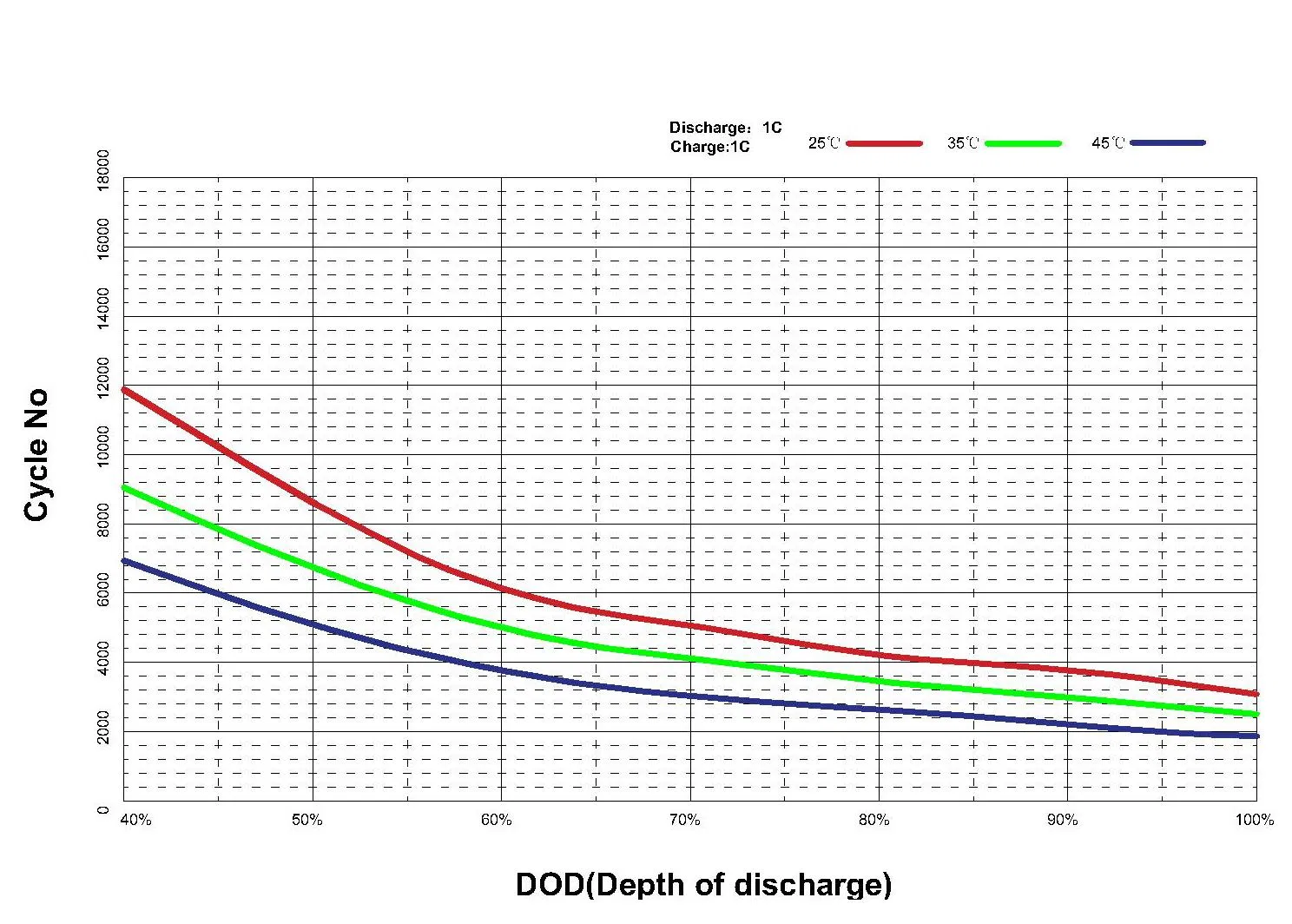

Cycle Life 6000 Cycles under 80% DOD / 3000 Cycles under 100% DOD
General Design Life Over 10 Years
Protection BMS Function Over charge, Over Discharge, Over Temp, Over Current, Short Circuit
Physical Dimensions (mm) 330*220*173 552*240*218 552*240*218 521*269*220 552*240*218 552*240*218 521*269*220
Weight (kg) 12.5kg 24kg 28kg 40kg 24kg 28kg 40kg
Product Display

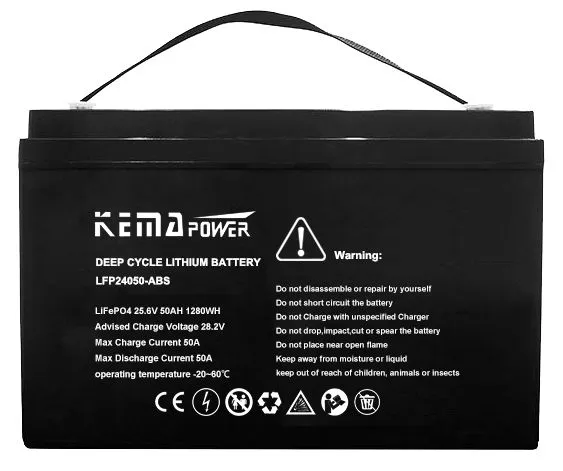

LFP24050-ABS
LFP24050-ABS

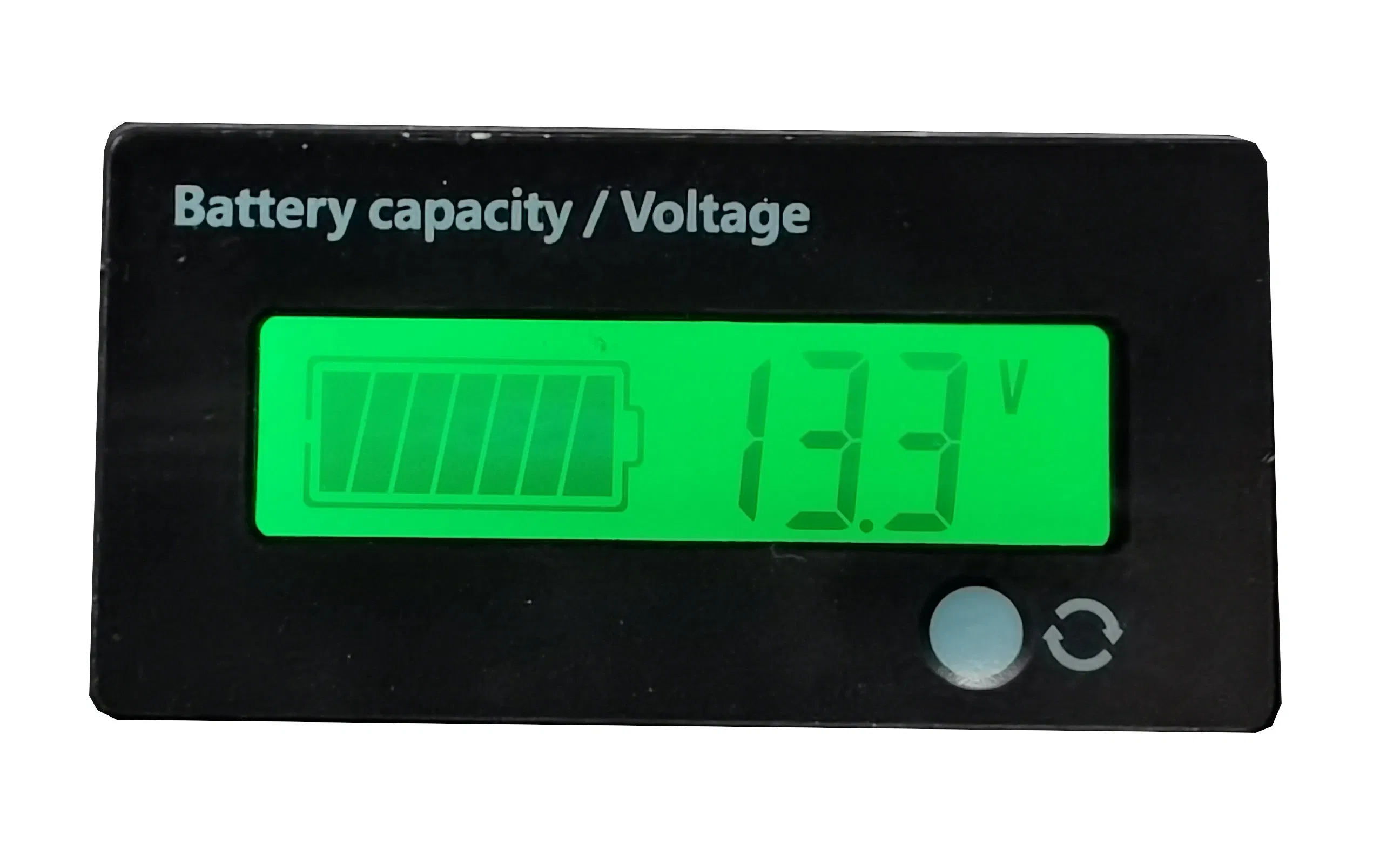

LCD Display Option
LCD DISPLAY OPTION
Bluetooth Communication
BLUETOOTH OPTION
Battery Structure
Internal Cells
Battery Terminals
Application 1
Application 2
Wide Applications
RV Car, Marine, Golf Car, Buggies, Remote Monitoring, Switching Applications, UPS and more.

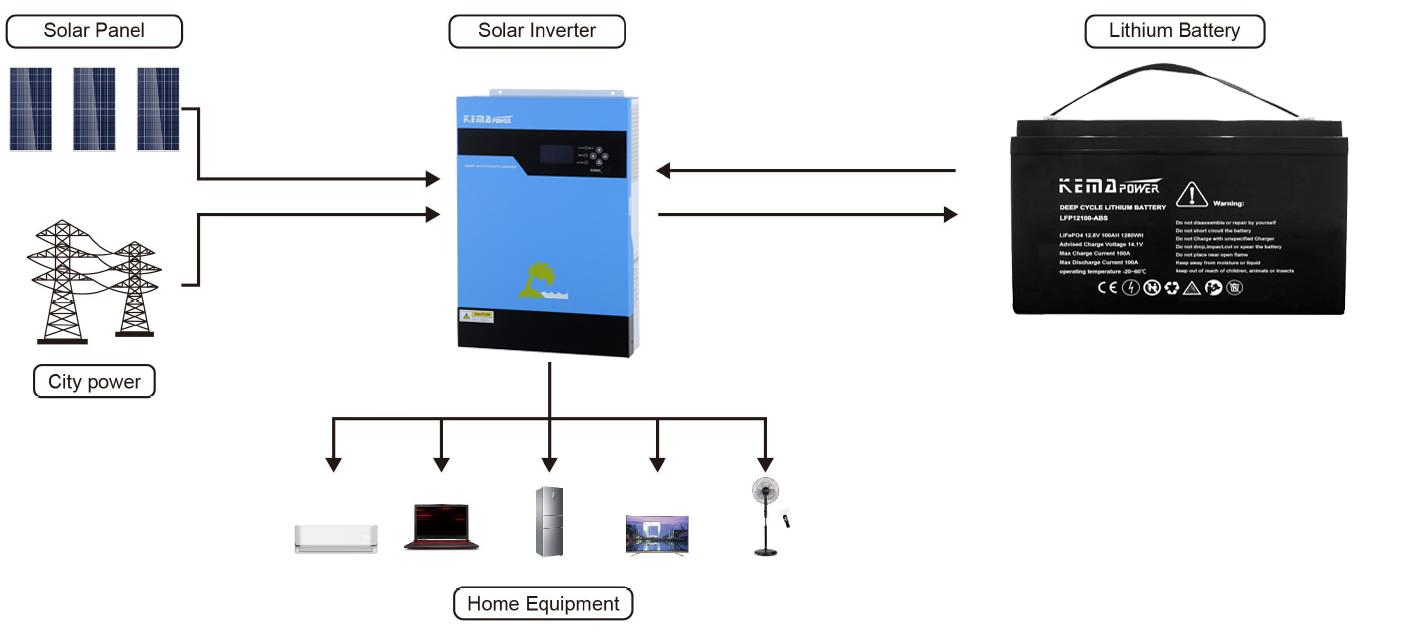

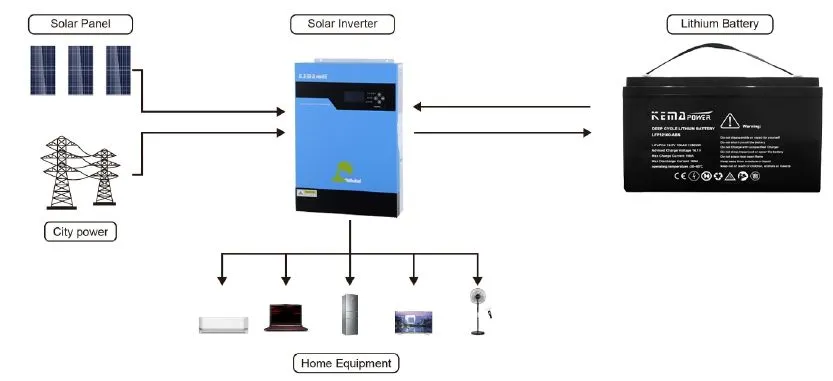

Application Scenarios Solar Storage Marine Usage Installation
Frequently Asked Questions
What is the expected lifespan of the LFP-ABS battery?
The battery features a design life of over 10 years and provides approximately 6000 cycles at 80% Depth of Discharge (DOD) under standard conditions.
Can I use this battery to replace my existing lead-acid battery?
Yes, this LiFePO4 battery is designed as a direct high-performance alternative to lead-acid batteries, offering lighter weight and higher efficiency.
How does the embedded BMS protect the battery?
The built-in Battery Management System (BMS) provides comprehensive protection against overcharging, over-discharging, over-temperature, over-current, and internal short circuits.
What are the communication options available?
Users can opt for an integrated LCD display to monitor status or choose the Bluetooth communication option to view battery data via an App or PC.
Is the battery suitable for outdoor or marine use?
The battery has an IP65 rating and is ideal for marine, RV, and solar storage applications due to its robust ABS case and deep cycle capabilities.
