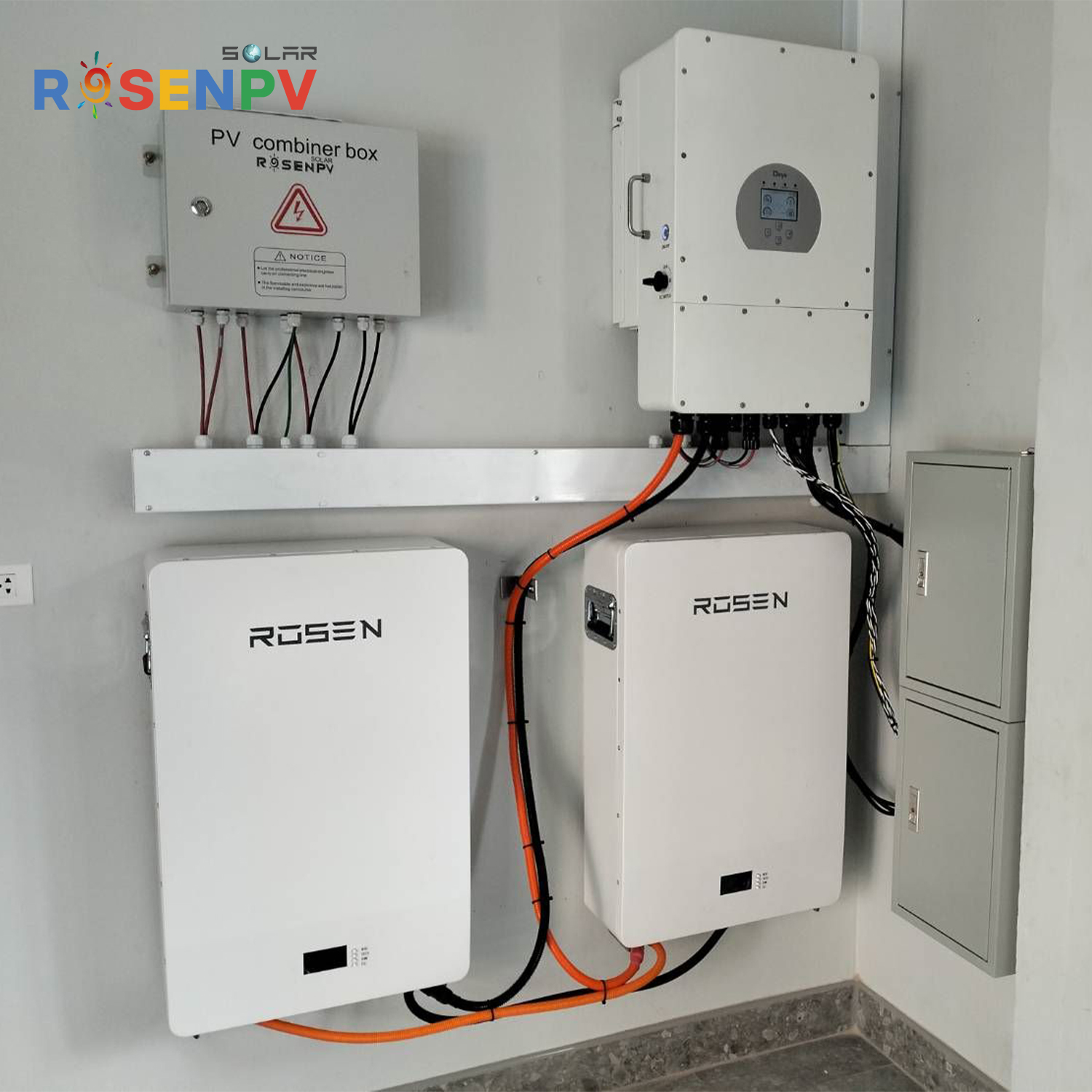

5kW 10kW 20kW Solar System 10000Watts 10kva Hybrid Home Power System Single Phase Solar Inverter with Wi-Fi Monitor

Send Inquiry

Product Description

System Configuration

Item	5KW	10KW	15KW
Half Cell Solar Panel	10 pieces	20 pieces	30 pieces
PV Combiner Box	DC Breaker/Combiner/Short-Circuit Protection/Lightning Protector (2-3 inputs/outputs)
Hybrid Inverter (On and Off Grid)	5kw	10kw	15kw
WIFI Module Monitor	1 set	1 set	1 set
Solar Battery	Lithium Powerwall with BMS/GEL	Lithium Powerwall with BMS/GEL	Lithium Powerwall with BMS/GEL
PV Cable	4/6mm²	4/6mm²	4/6mm²
Mounting Bracket	Tile Roof/Ground	Tile Roof/Ground	Tile Roof/Ground
MC4 Connector	10pcs	20pcs	30pcs
Installation Tool Box	1set	1set	1set
Installation Manual	Yes	Yes	Yes

Technical Specification

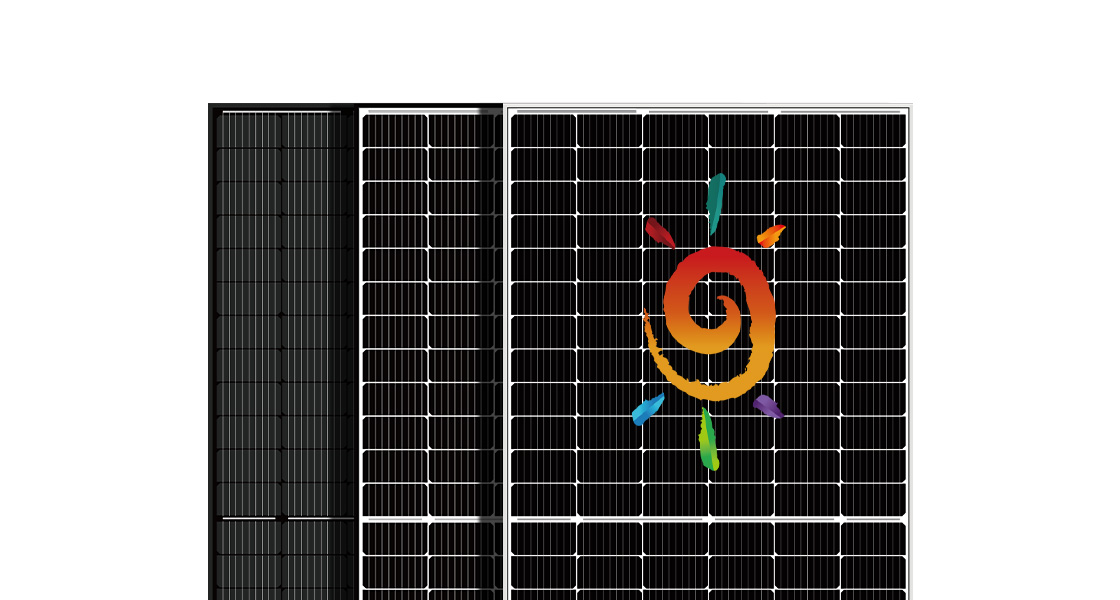

Solar Panels

Optional Mono/Poly Blue/Black Panels
High Efficiency with Half Cell PERC panels available
9BB/10BB/12BB PV cell Mono 182mm/210mm
Wind/Snow Load 2400Pa / 5400Pa*
Silver/Black Panels OEM/ODM
Anti-PID

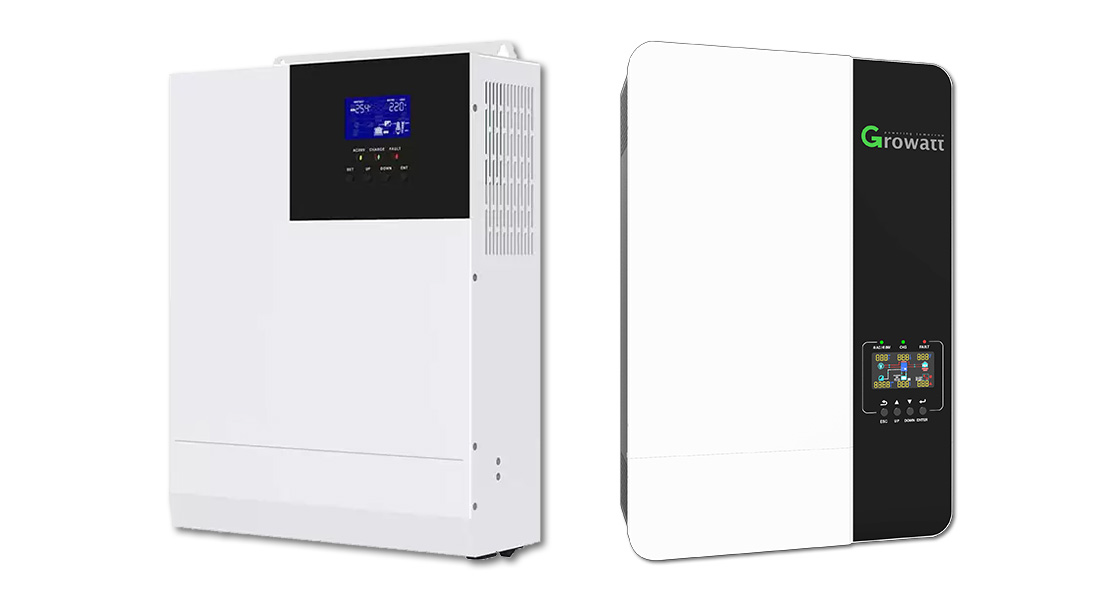

Hybrid On Grid Inverter

Single Phase/Three Phase AC Voltage
Intelligent cloud platform monitoring
Real-time monitoring via APP
Supports RS232, RS485, GPRS, WIFI
BMS communication for Lithium battery

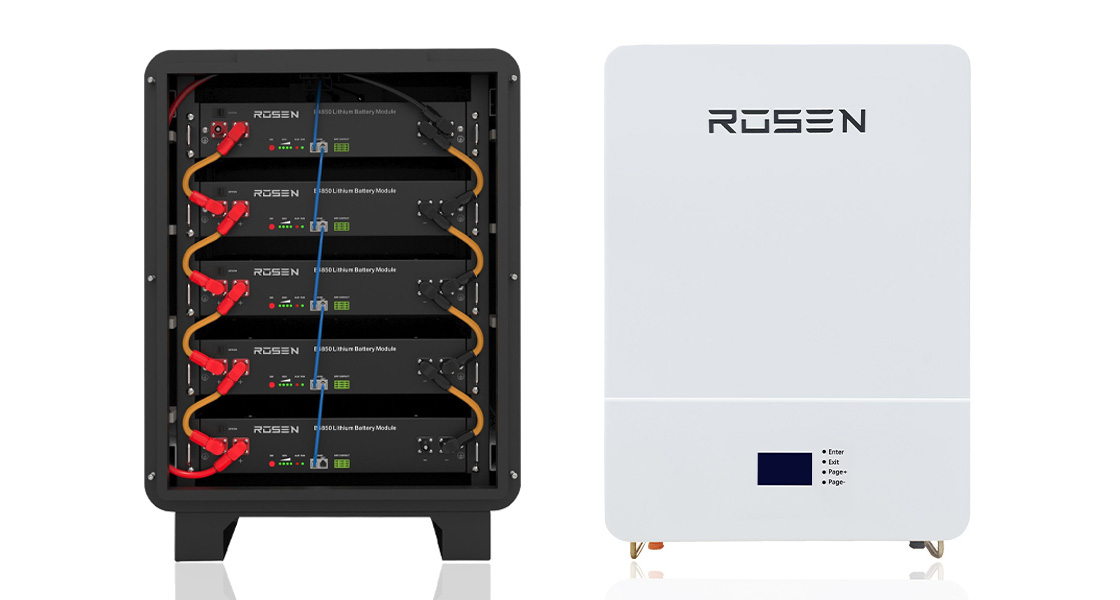

Solar Battery

48V LV / 96V / 192V / 384V HV Battery Options
Lithium ion LifePO4 Module or Powerwall
Matched BMS for hybrid inverters
Lead Acid Deep Cycle Battery Storage

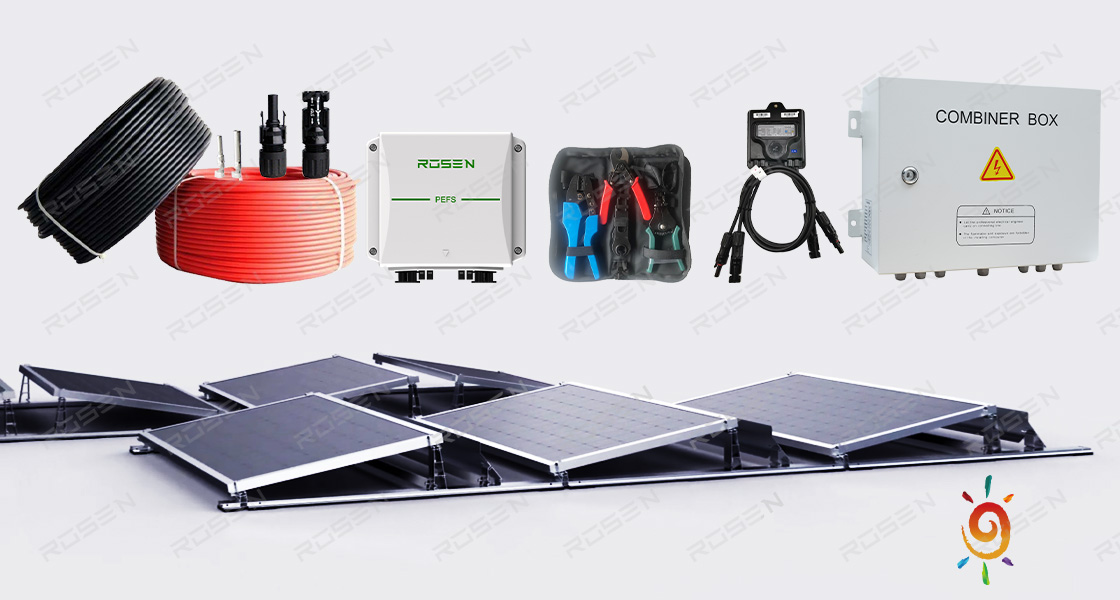

EPC Accessories

Tile or color steel roof/ground installation
DC Breaker & Short-Circuit Protection
Lightning Protector & Safety Smart Switch
DC Cable & MC4 Connectors
Professional Installation Tool Box

Packaging & Delivery

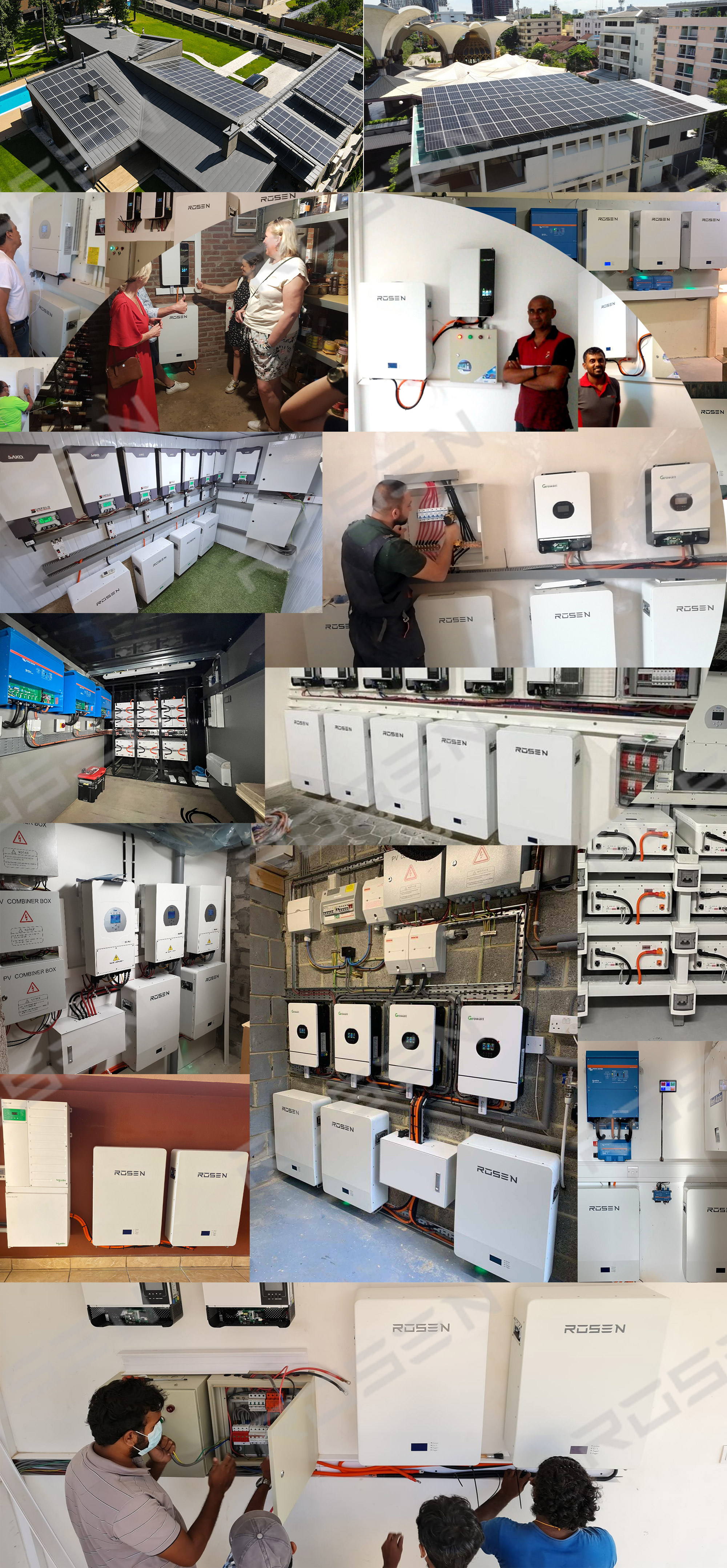

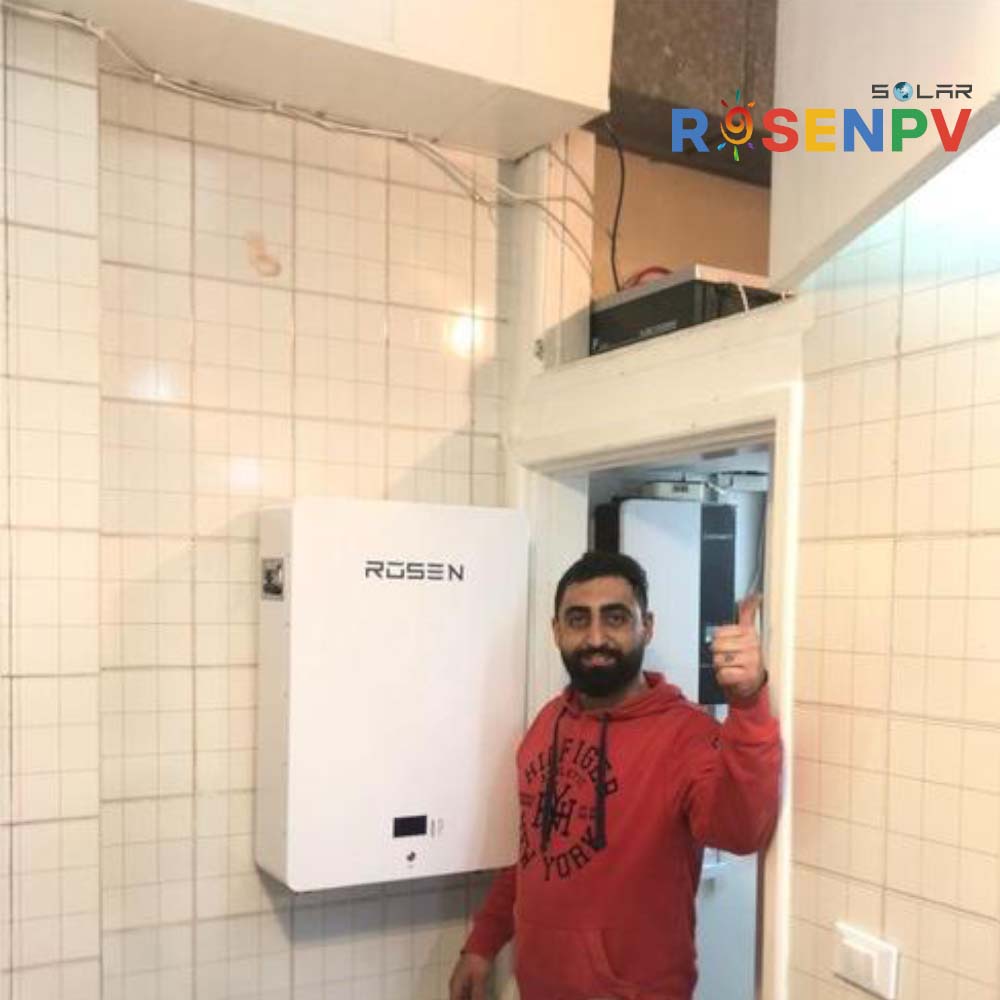

Projects

Our Support

Frequently Asked Questions

What is the main benefit of a Hybrid Solar System?

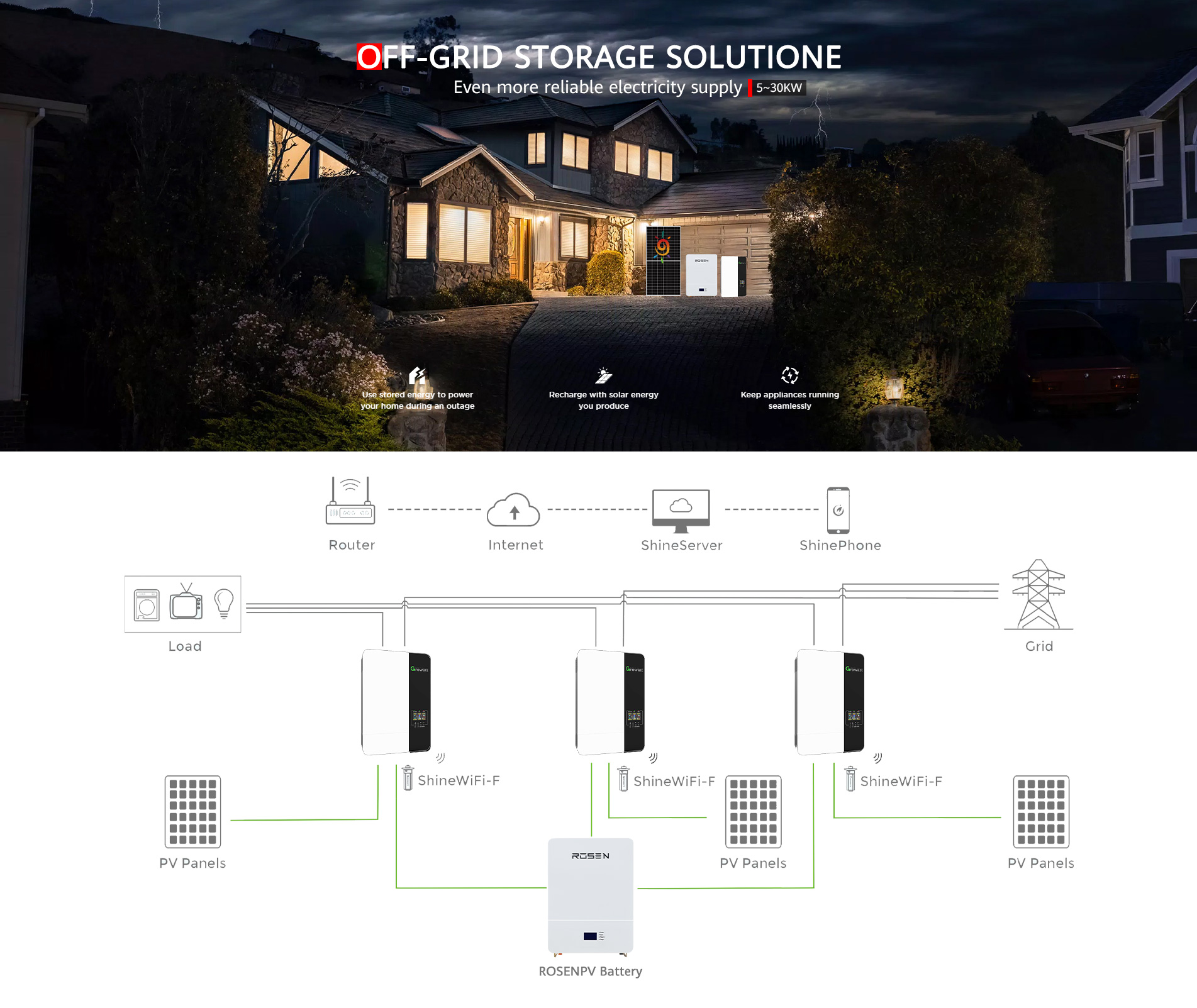

A hybrid system combines the benefits of on-grid and off-grid systems. It allows you to stay connected to the grid for backup power while also using batteries to store excess energy for use at night or during power outages.

Can I monitor the system performance remotely?

Yes, the system includes a WIFI module and supports an intelligent cloud platform. You can monitor real-time performance and power production via a mobile APP.

How do I choose between the 5KW, 10KW, and 15KW systems?

The choice depends on your daily electricity consumption. Generally, a 5KW system is suitable for small households, while 10KW and 15KW systems are ideal for larger homes or small businesses with higher energy needs.

Are the solar panels durable in extreme weather?

Absolutely. The panels are designed to withstand wind loads of up to 2400Pa and snow loads of up to 5400Pa, featuring Anti-PID technology for long-term durability.

Is everything included for the installation?

Yes, the package is a complete solution. It includes solar panels, inverter, battery, PV cables, combiner box, mounting brackets, MC4 connectors, and even a professional tool box and installation manual.

What type of batteries are used in this system?

The system primarily supports Lithium ion LiFePO4 modules or Powerwalls for high efficiency, but it is also compatible with Lead Acid Deep Cycle batteries depending on your requirements.
