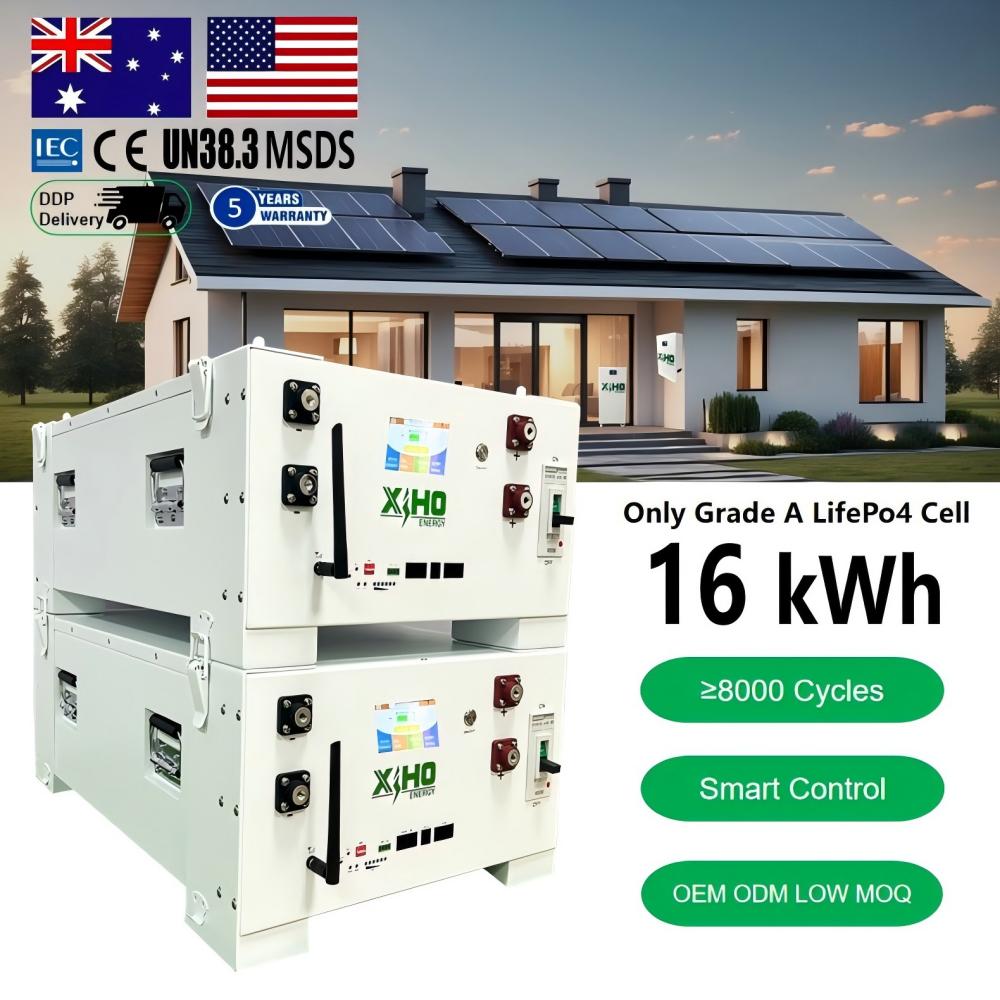

Starmax 51.2V 48V 314Ah 280Ah Grade A+ Lifepo4 Battery Cells 15kWh 16Kwh Stackable Solar Home Energy Storage System
Starmax 51.2V 48V 314Ah 280Ah Grade A+ Lifepo4 Battery Cells 15kWh 16Kwh Stackable Solar Home Energy Storage System
Starmax 51.2V 48V 314Ah 280Ah Grade A+ Lifepo4 Battery Cells 15kWh 16Kwh Stackable Solar Home Energy Storage System
Starmax 51.2V 48V 314Ah 280Ah Grade A+ Lifepo4 Battery Cells 15kWh 16Kwh Stackable Solar Home Energy Storage System
Starmax 51.2V 48V 314Ah 280Ah Grade A+ Lifepo4 Battery Cells 15kWh 16Kwh Stackable Solar Home Energy Storage System
1 / 5
Starmax 51.2V 48V 314Ah 280Ah Grade A+ Lifepo4 Battery Cells 15kWh 16Kwh Stackable Solar Home Energy Storage System
Starmax 51.2V 48V 314Ah 280Ah Grade A+ Lifepo4 Battery Cells 15kWh 16Kwh Stackable Solar Home Energy Storage System
Starmax 51.2V 48V 314Ah 280Ah Grade A+ Lifepo4 Battery Cells 15kWh 16Kwh Stackable Solar Home Energy Storage System
Starmax 51.2V 48V 314Ah 280Ah Grade A+ Lifepo4 Battery Cells 15kWh 16Kwh Stackable Solar Home Energy Storage System
Starmax 51.2V 48V 314Ah 280Ah Grade A+ Lifepo4 Battery Cells 15kWh 16Kwh Stackable Solar Home Energy Storage System

Starmax 51.2V 48V 314Ah 280Ah Grade A+ Lifepo4 Battery Cells 15kWh 16Kwh Stackable Solar Home Energy Storage System

Send Inquiry

Product Description

Product Overview
Product Description

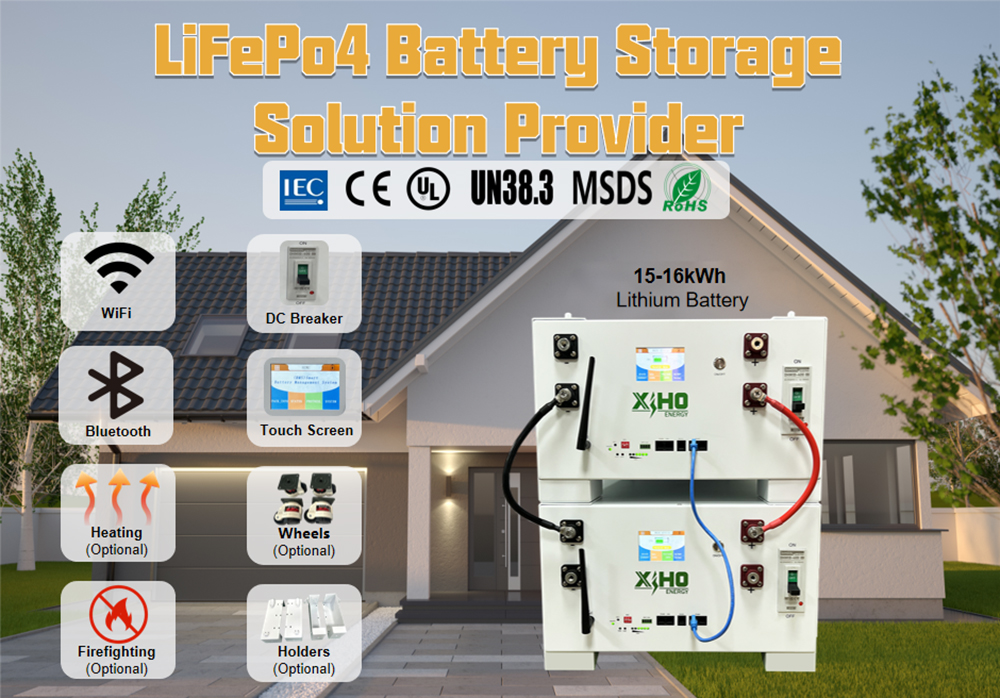

Product Details 1

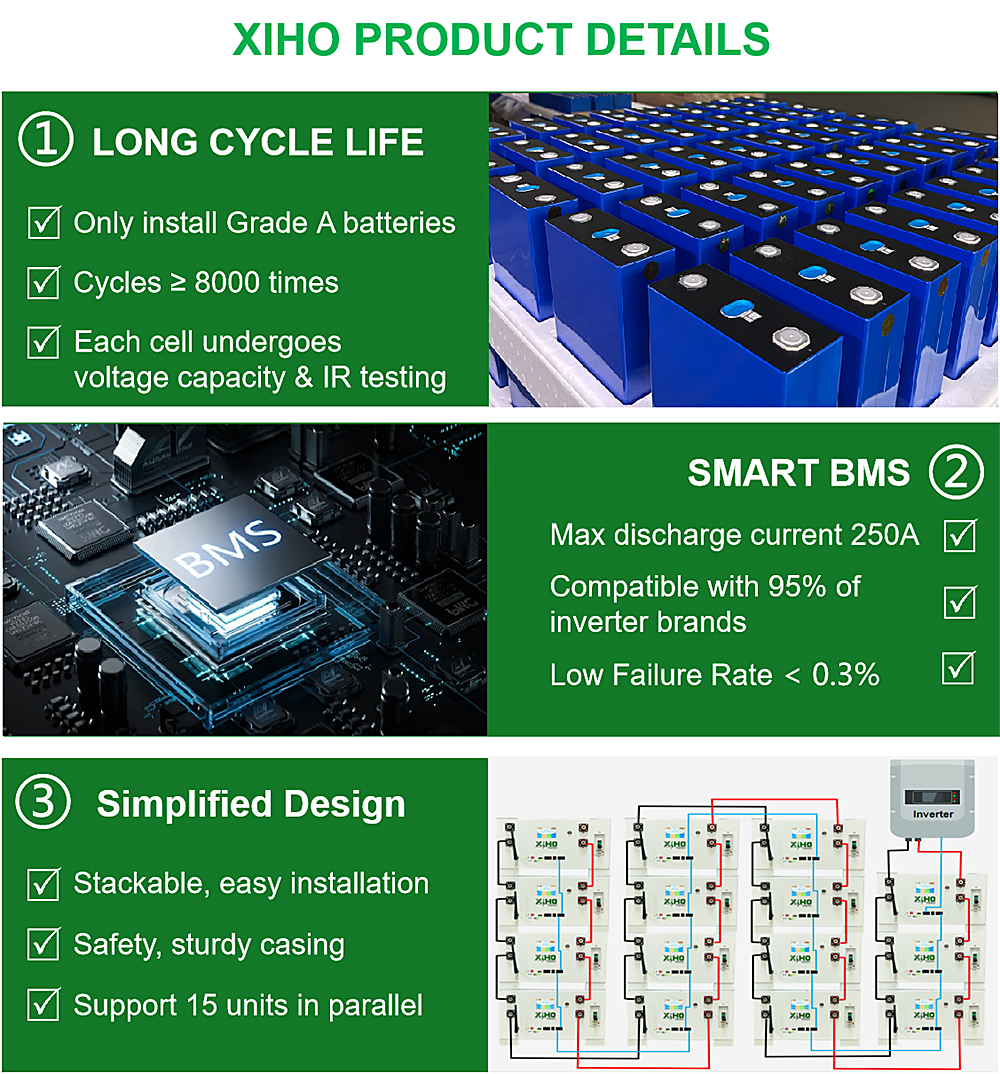

Product Details 2
Product Details 3

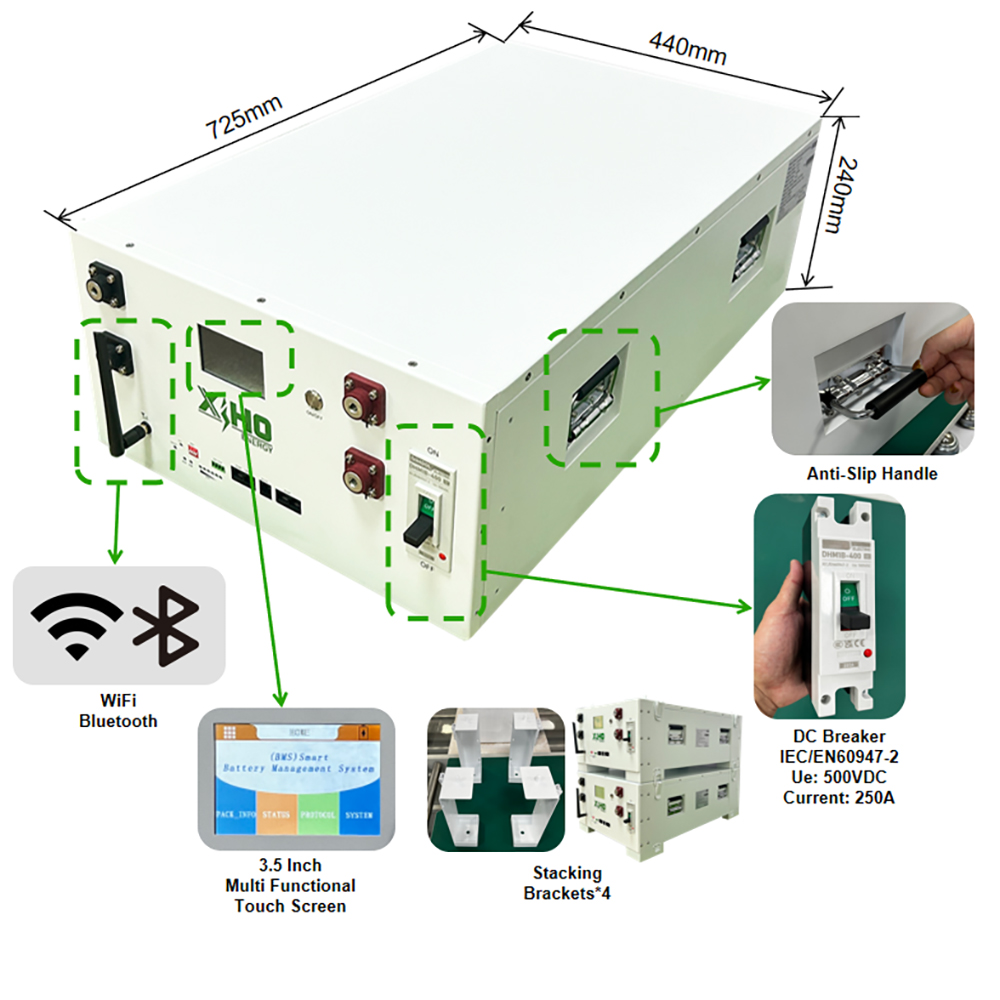

Product Details 4

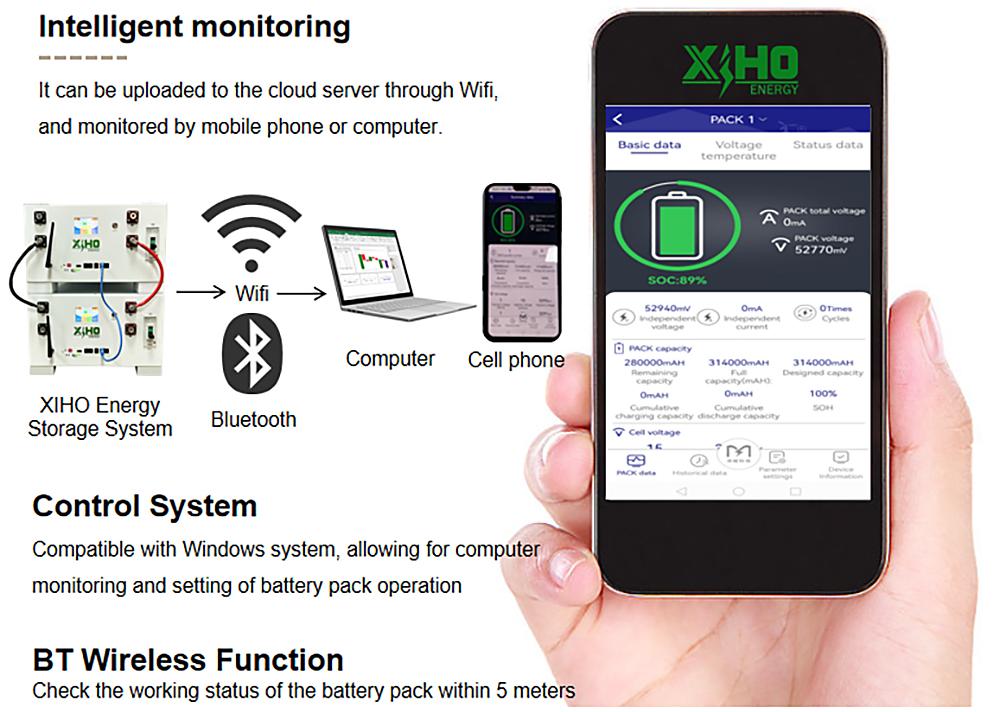

Product Details 5

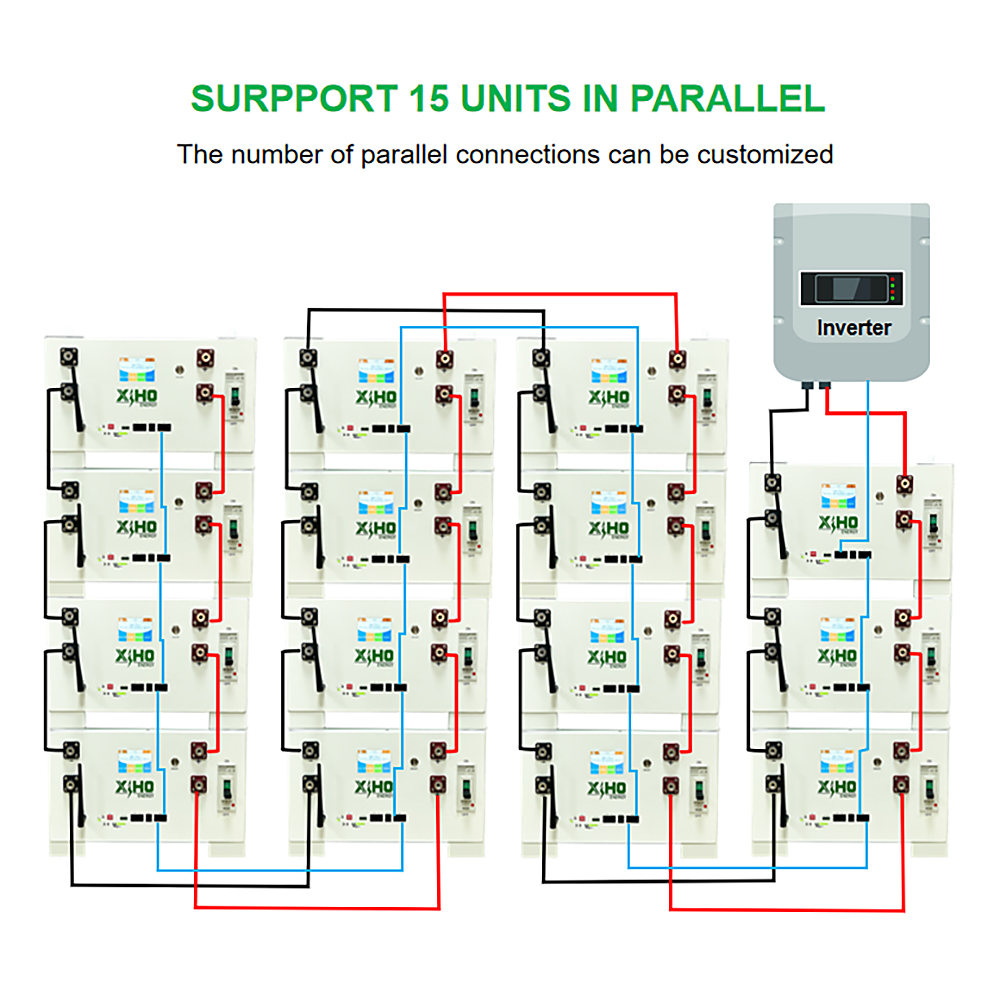

Product Details 6

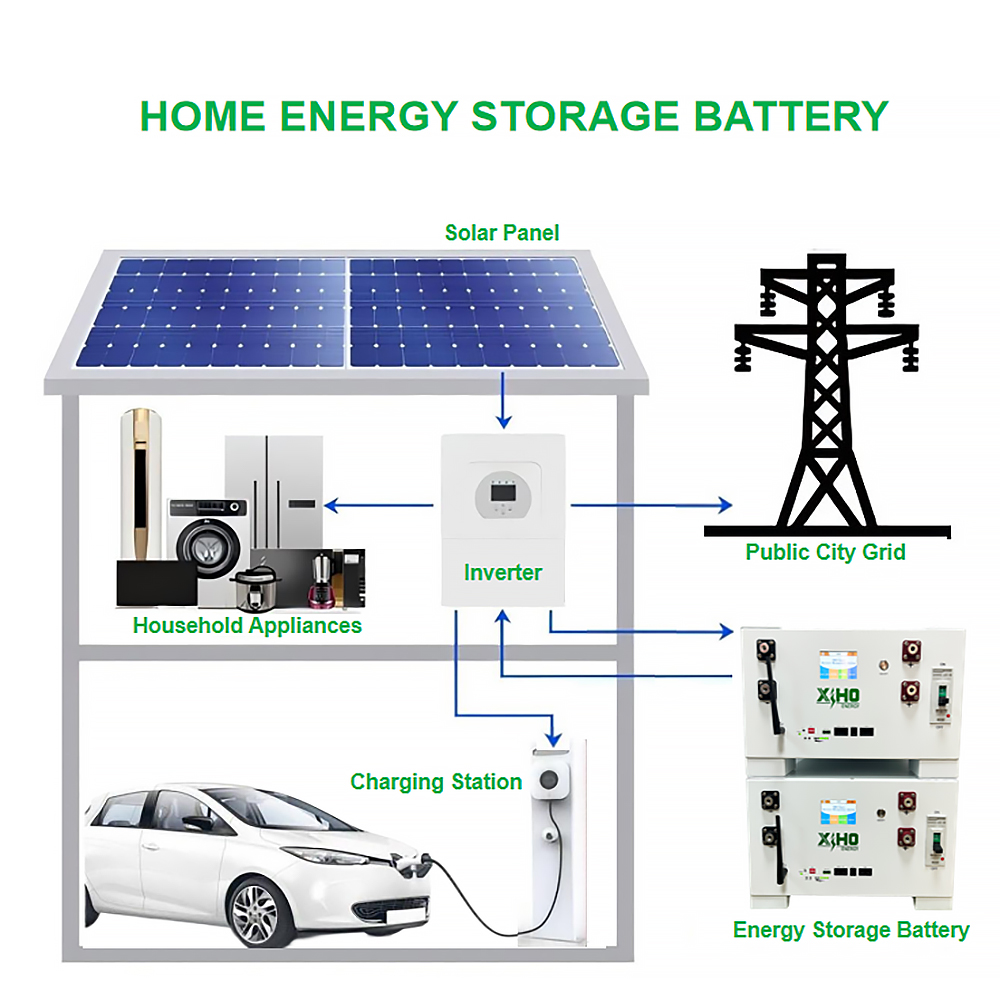

Product Details 7
Product Details 8
Specifications
Item Specifications
Model XH-S14 XH-S15 XH-S16
Nominal Voltage 51.2V
Operating Voltage 43.2V-57.6V
Nominal Capacity 280AH 300AH 314AH
Total Energy 14336Wh 15360Wh 16076.8Wh
Configuration 16S1P
Operation Temperature 0°C~45°C(Charge), -10°C~60°C(Discharge)
Standard Charge Current 60A 70A
Standard Discharge Current 140A 150A
Maximum Continuous Charge Current 140A 150A
Maximum Continuous Discharge Current 200A
Communication Protocols RS485/RS232/CAN
Dimensions (L*W*H) 725mm*440mm*240mm
Net Weight 118kg 119kg 120kg
Specification drawing 1
Specification drawing 2

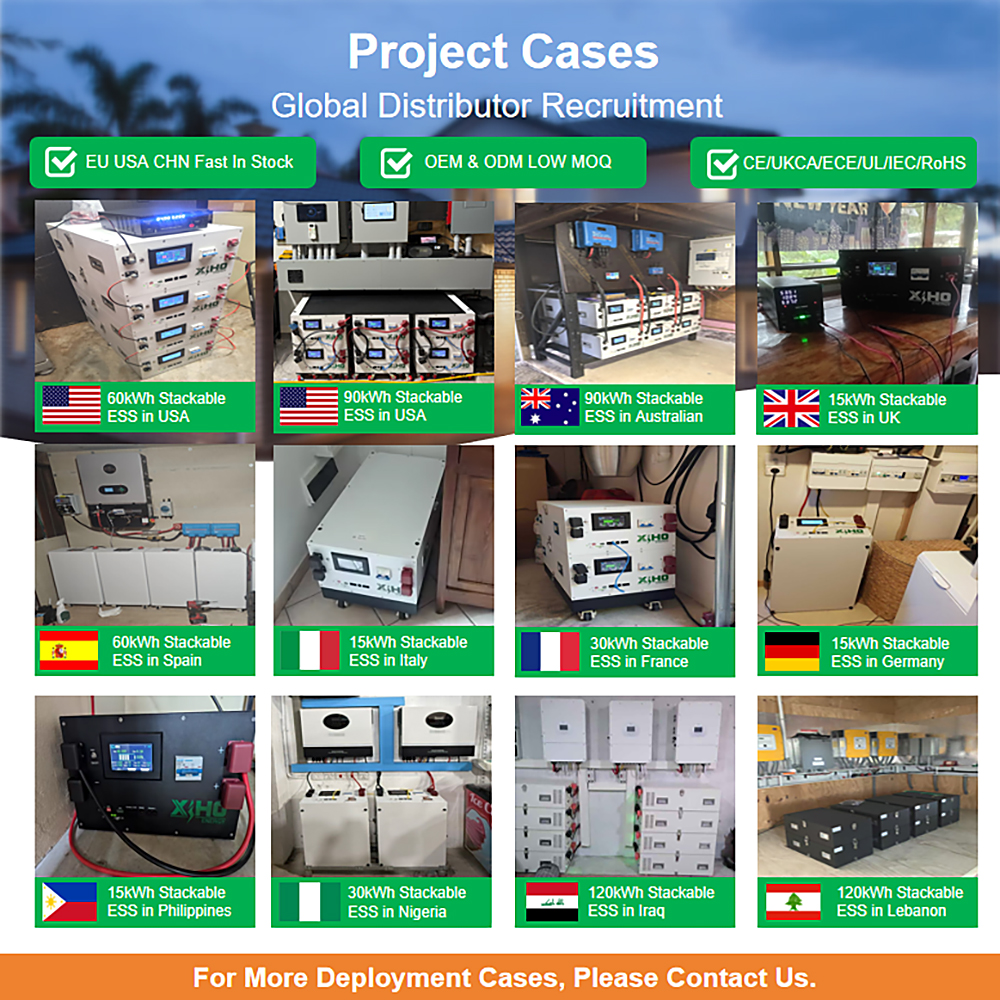

Project Cases

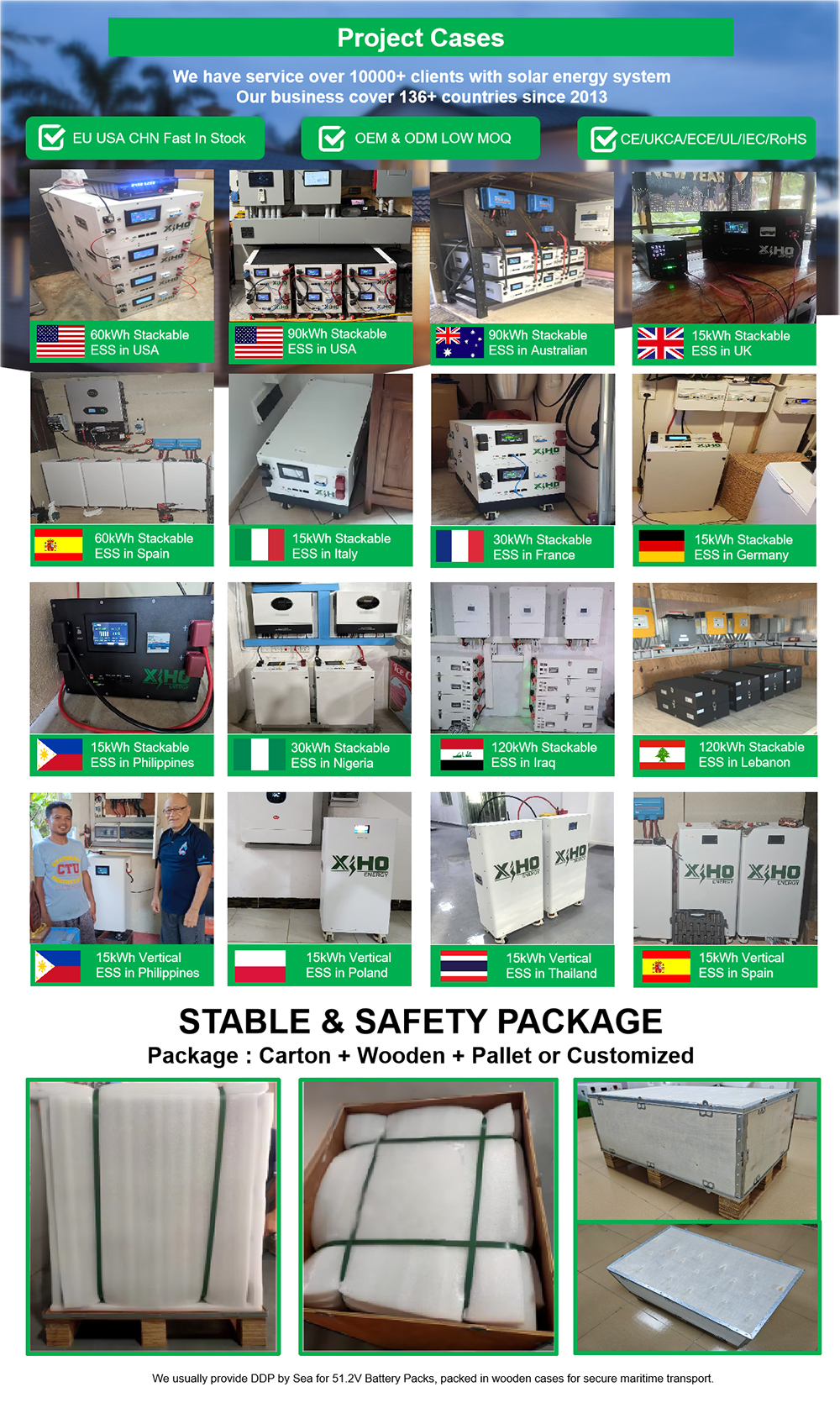

Project Case 1
Project Case 2

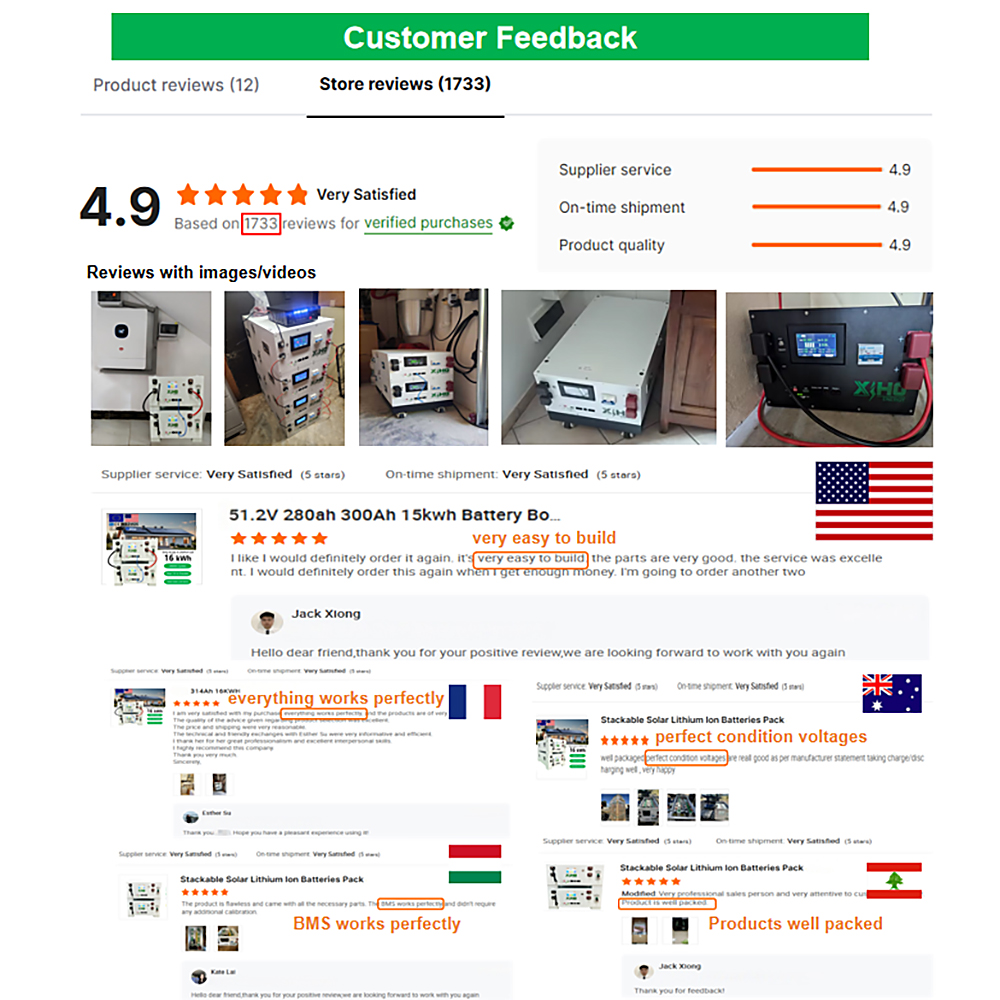

Project Case 3
Project Case 4
Project Case 5
Why Choose Us
Your Expert For Power Solutions
With 12 years of specialized experience in battery energy storage solutions, we have served 10,000+ clients across 136 countries. Our 90%+ repurchase rate, 99.8% on-time delivery, and 99% positive feedback have secured Top-Rated Supplier certification.
Authorized Distributor & Source Factory
As an authorized partner for top lithium ion battery manufacturers including CATL, EVE, REPT, LISHEN and CALB, we supply 100% authentic Grade A cells from new production batches. Weekly inventory replenishment with freshly manufactured cells ensures seamless supply for custom lithium battery packs and long-term projects.
Quality Assurance Protocol
Every battery undergoes 100% pre-shipment testing, including voltage and internal resistance (IR) matching for battery energy storage solutions. We welcome third-party inspections and live video verification before shipping.
Comprehensive Warranty & Support
We provide full product guidance and technical support. For confirmed non-artificial defects, we offer complete after-sales solutions to ensure worry-free procurement of custom lithium battery packs.
OEM/ODM & Market Expansion Support
Our R&D team—experts in battery energy storage solutions—delivers flexible customization services. Supported by tailored marketing strategies and one-on-one support, we empower your local market penetration with top lithium ion battery manufacturers' technologies.

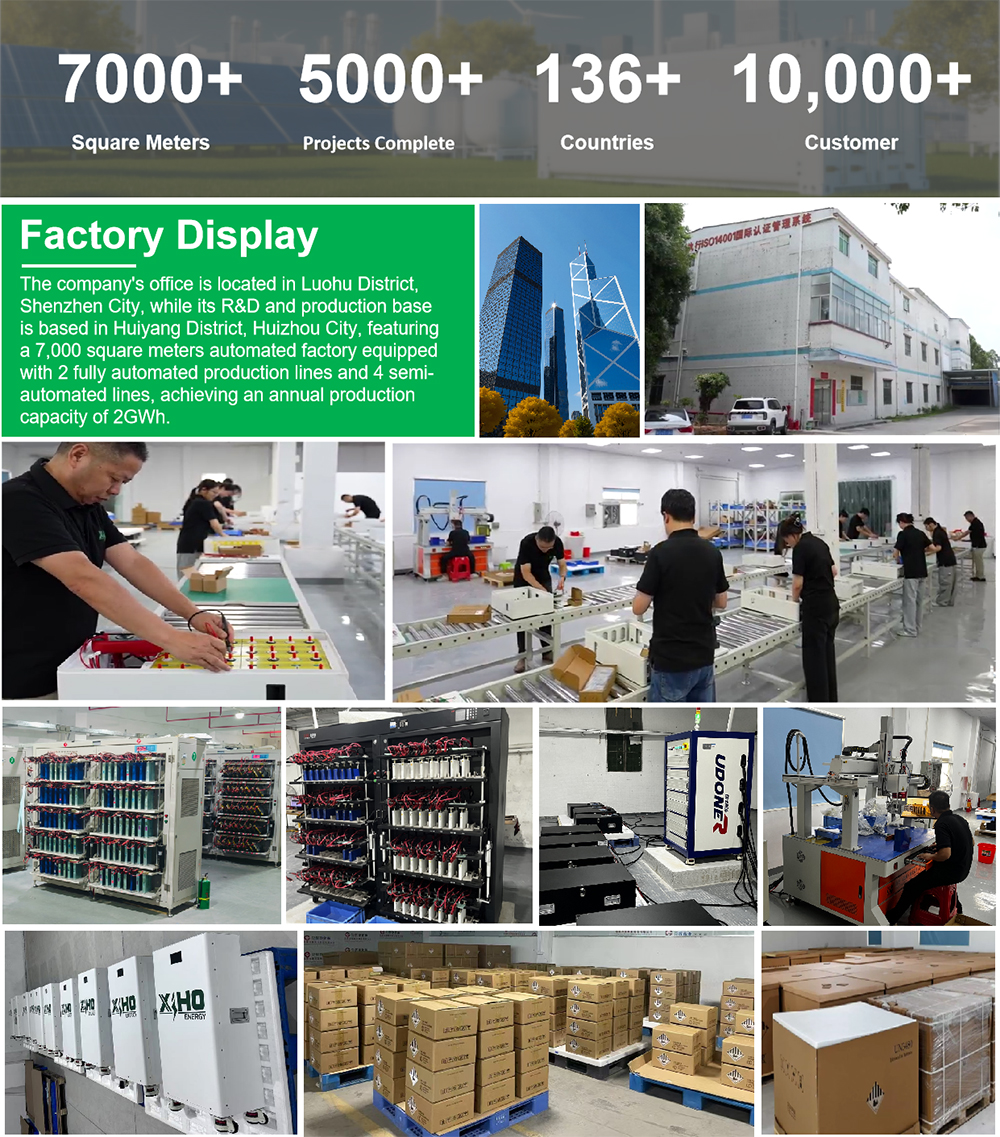

Why Choose Us Graphics
Payment & Delivery
Payment and Delivery Methods
FAQ
Q1 Can I have samples to test? And what is the lead time for sample orders?
Yes, we can supply samples, the lead time for samples is 7-10 days. Buyers pay for sample costs and shipping costs.
Q2 Do you provide after-sales service?
Yes, the warranty is usually 5 years, with options to increase to 10-15 years. If there is a broken item under quality problems within the warranty period, please send us test pictures or videos, and we will replace it or offer a satisfying solution.
Q3 What is your advantage?
We only supply high-level quality lithium batteries, guarantee on-time shipment, and provide excellent after-sales service.
Q4 Do you accept OEM/ODM?
Yes, OEM/ODM services are available.
Q5 Are your batteries real capacity?
All of our battery cells are Grade A, 100% new and real capacity.
Q6 What kind of certificates do you have?
We can provide CE, ROHS, UL, FCC, IEC, MSDS, UN38.3, etc., as required.
