| Item | Product Parameter | ||
|---|---|---|---|
| Model | YY48100LS | YY48200LS | YY48300LS |
| Batteries materials | Lithium iron phosphate | ||
| Series parallel mode (S series, P parallel) | 16S1P | 16S1P | 16S1P |
| Nominal voltage | 51.2V | 51.2V | 51.2V |
| Nominal capacity | 100Ah | 200Ah | 300Ah |

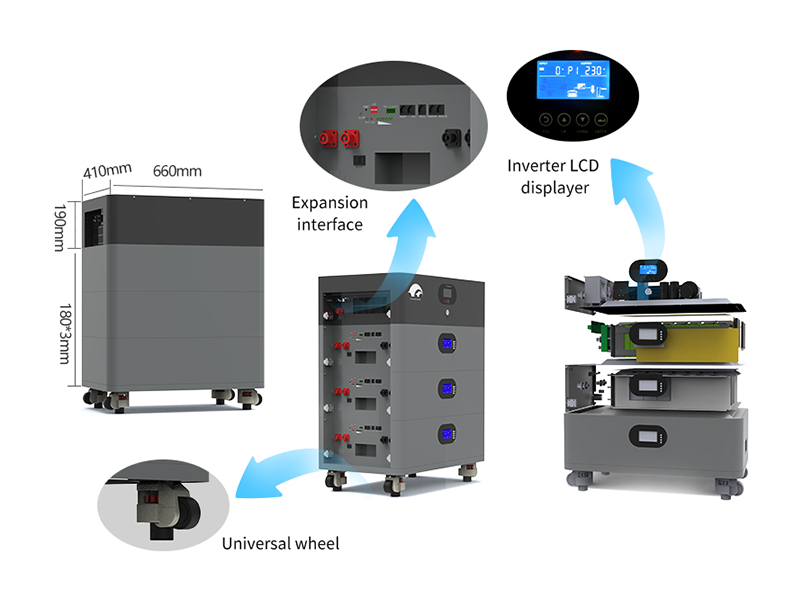

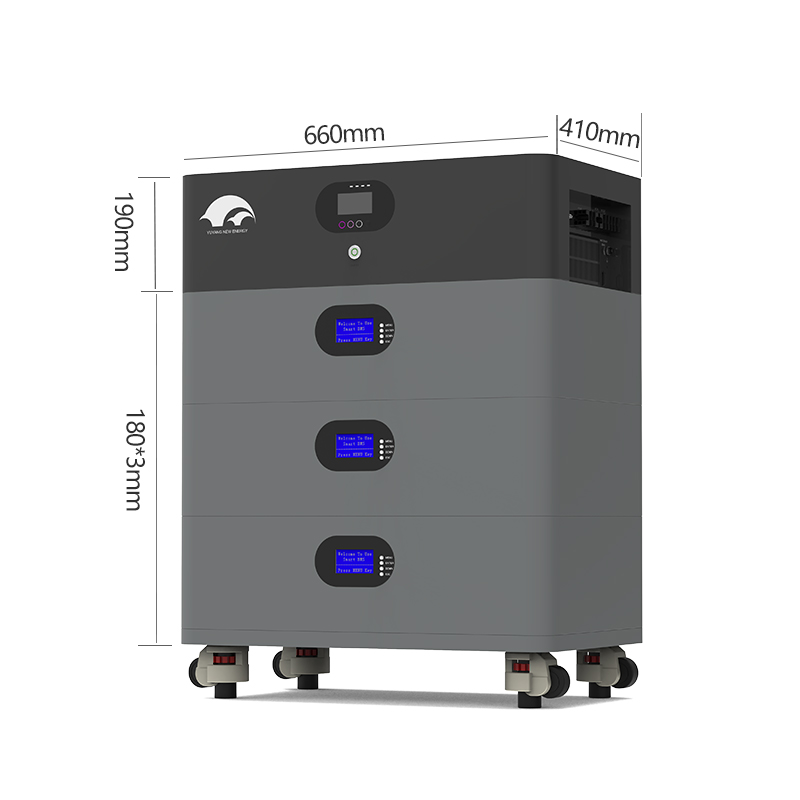

| Size (mm) | 588*195*430/module | 588*195*430/module | 588*195*430/module |
| Weight | 48KG | 96KG | 144KG |
| Color | Optional | ||

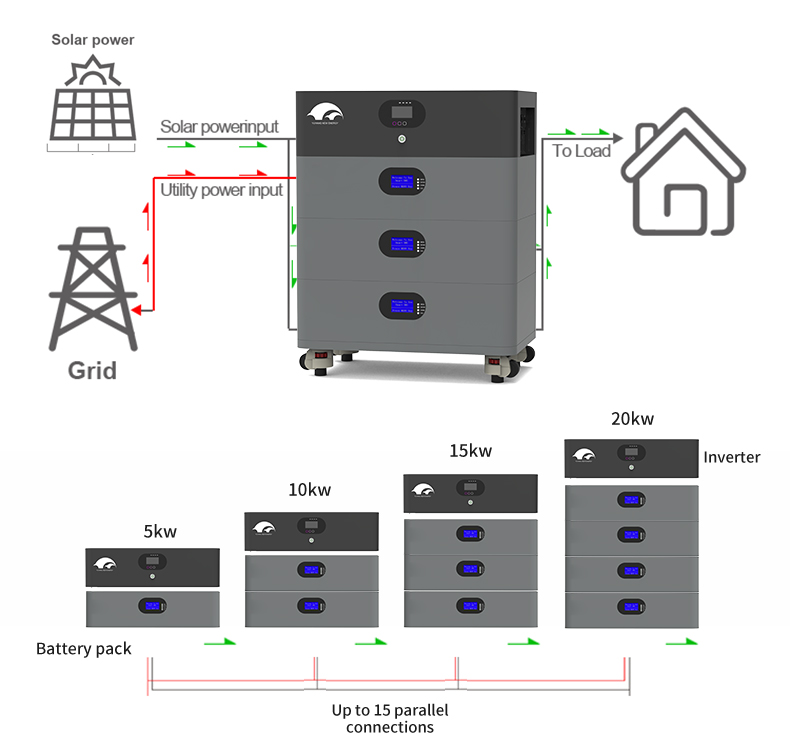

| Parallel support | Parallel terminals are supported | ||
| Output port mode | Terminal | ||
| Charging way | CC/CP/VP | ||
| Charging current | 0.2C (Standard) | ||
| Maximum charging current | Max 1C @25℃ | ||
| Charge cut-off voltage | 58.4V | ||
| Discharge way | CC/CP/VP | ||
| Discharge current | 1C | ||
| Maximum discharge current | Max 1C @25℃ | ||
| Discharge cut-off voltage | 44.8V | ||

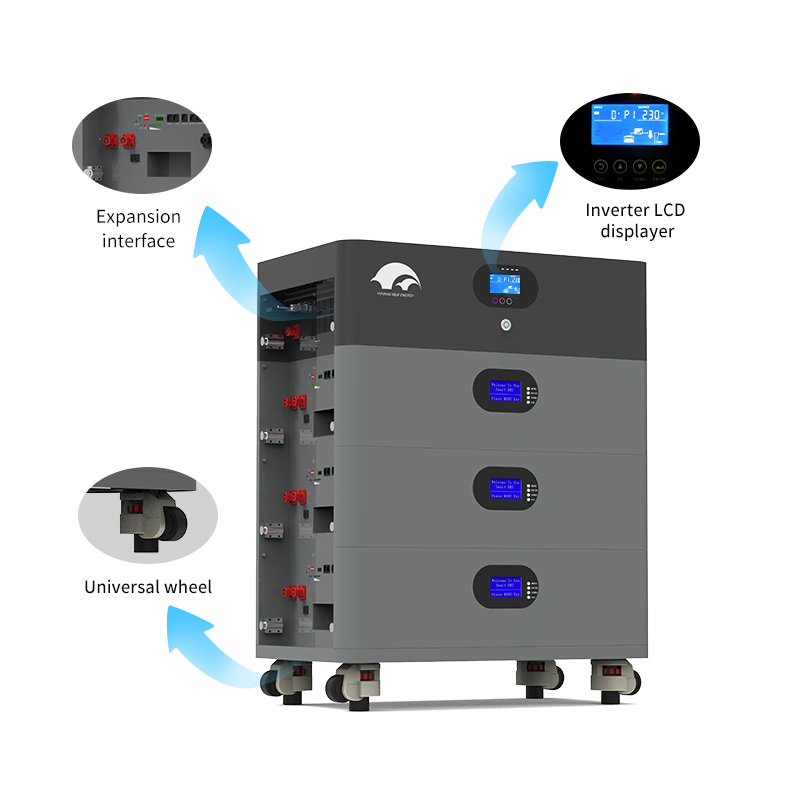

| Display | LCD | ||
| Communication interface | RS485/RS232/CAN | ||
| Charging operating temperature | 0 ~ +50℃ | ||
| Discharge operating temperature | -20 ~ +55℃ | ||
| Warranty | 5 years | ||
| Inverter | 3.5/5.5KW | ||
| Scope of application | Hospital, bank data center, wall-mounted home, enterprise energy storage backup power supply, wind complementary system, office, base station and other uninterrupted energy storage power supply. | ||
