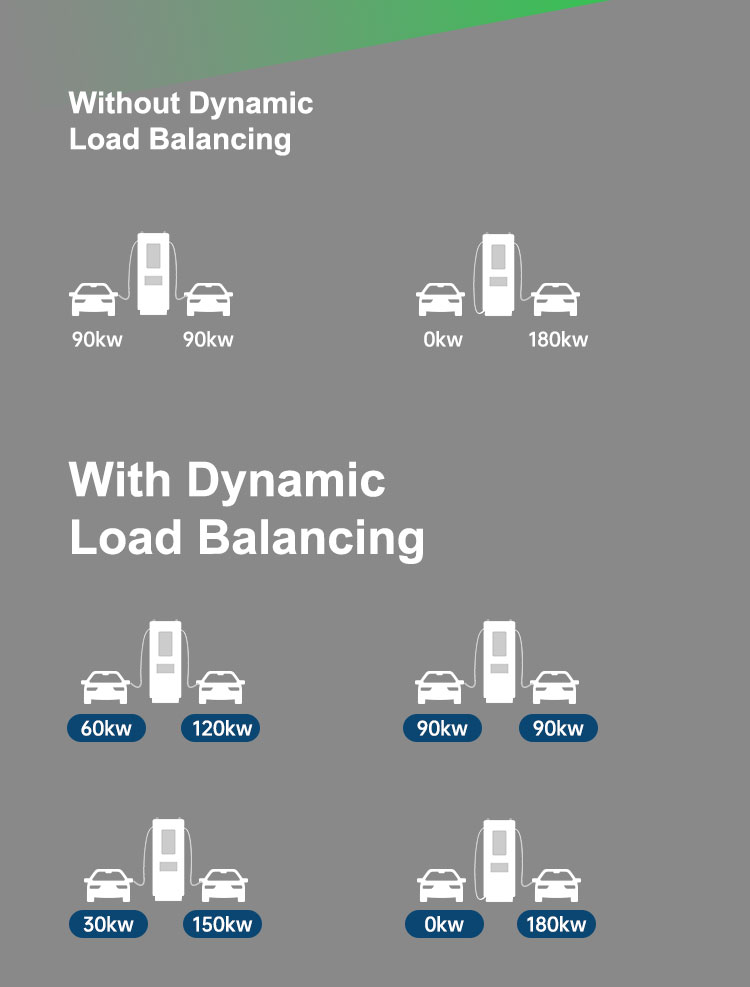

We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging systems. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS, we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.

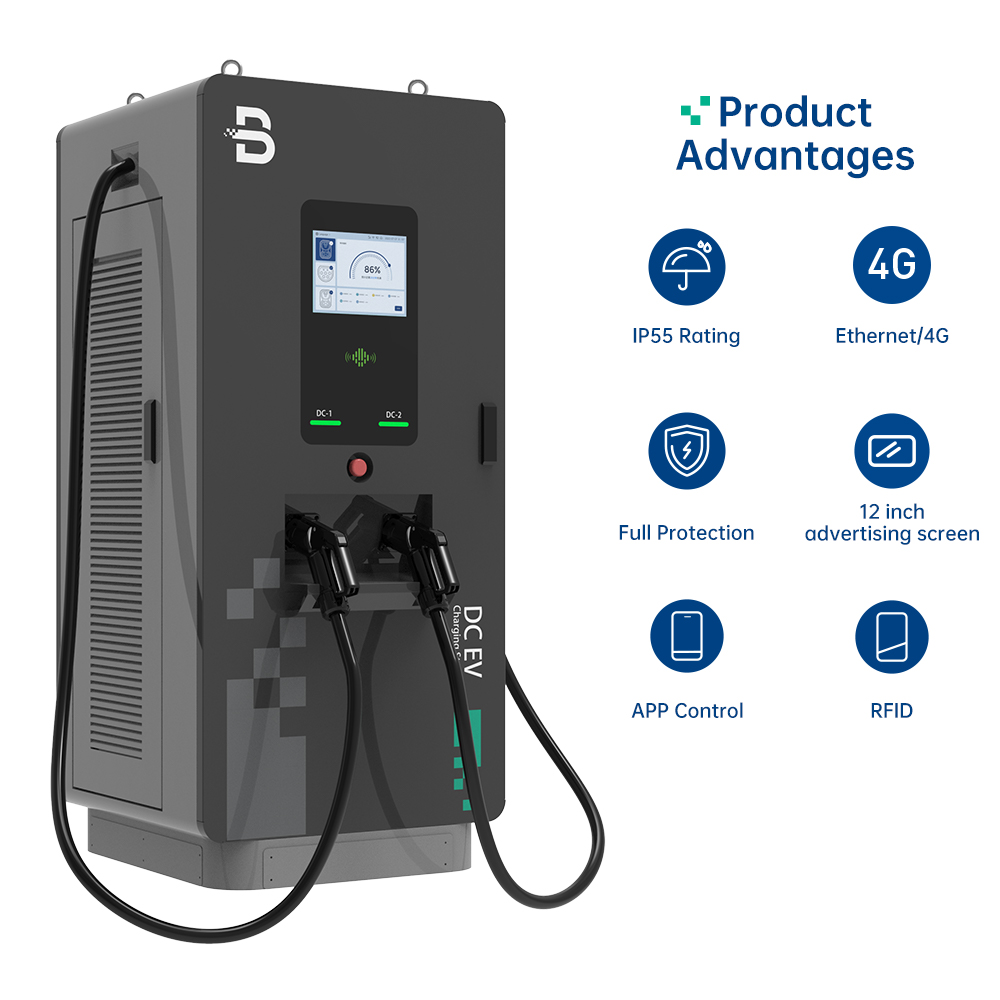

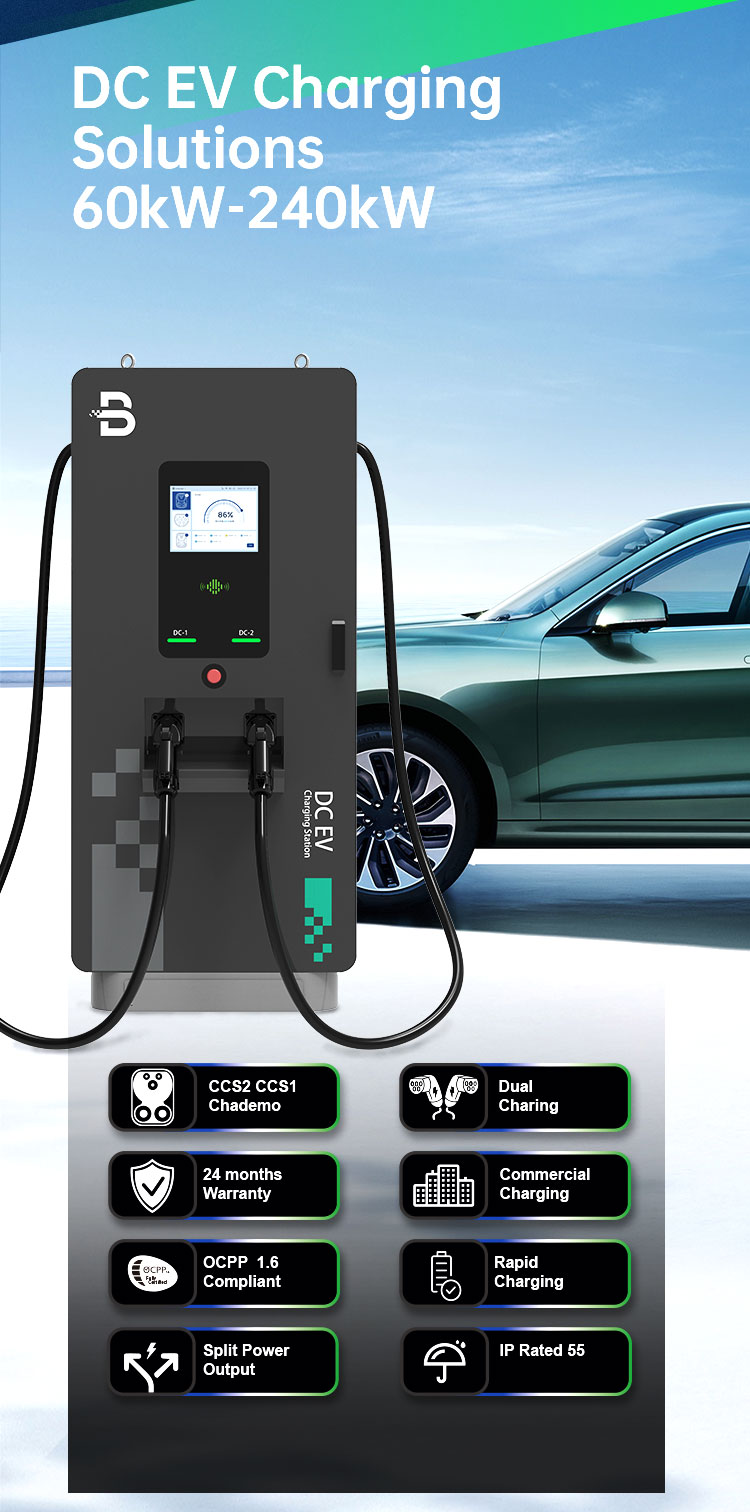

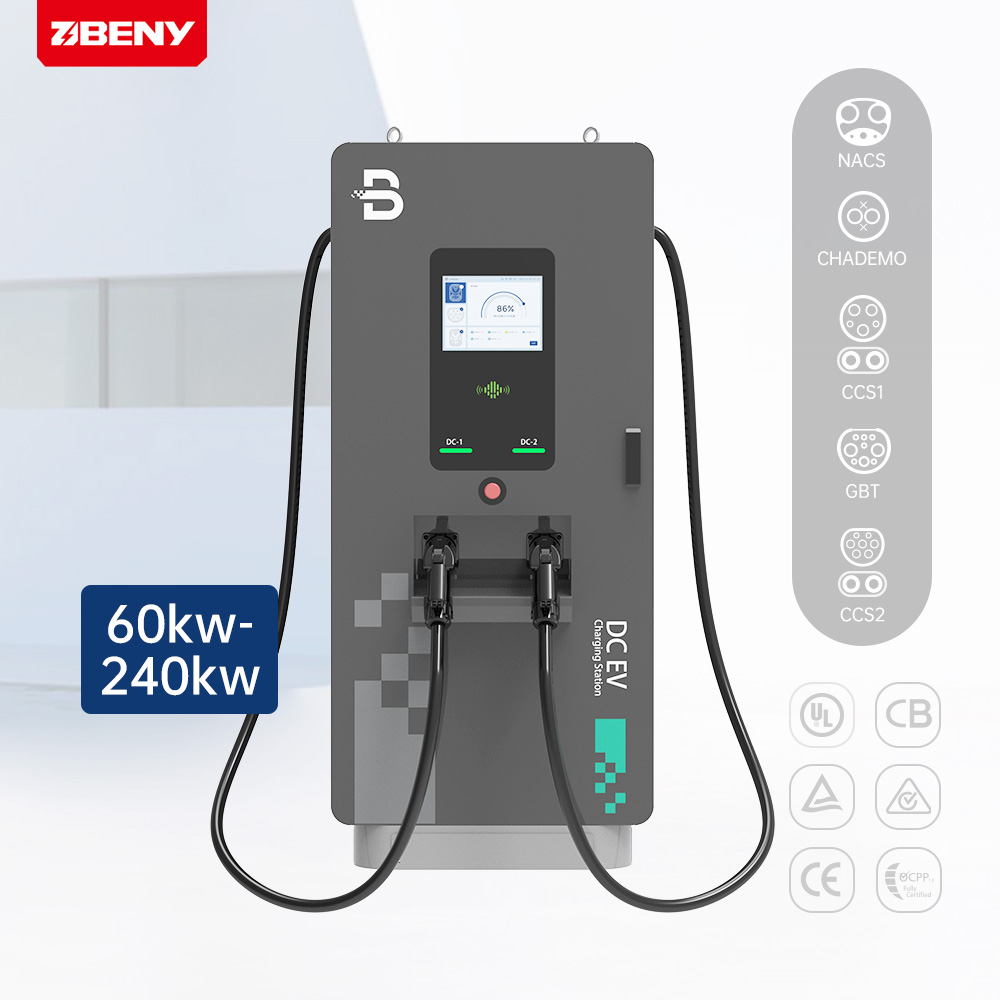

| Models | BDC60-D / BDC90-D / BDC120-D / BDC150-D / BDC180-D / BDC240-D |
| Rated Power | 60kW / 90kW / 120kW / 150kW / 180kW / 240kW |
| Shell Material | Sheet Metal |

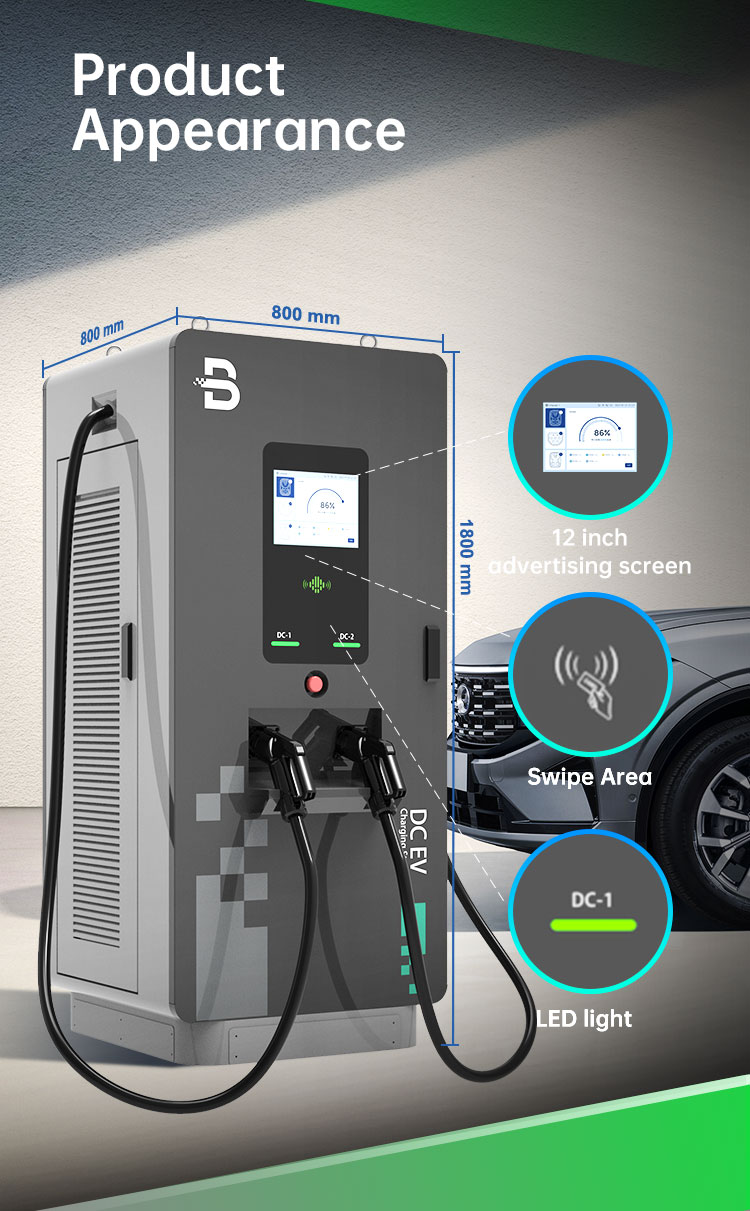

| Dimension | 800*800*1800 (L*W*T) |
| Weight | ≤ 440kG |
| Installation Method | Floor-stand Type |
| Cable Routing | Bottom Inlet Wiring, Up Outlet Wiring |

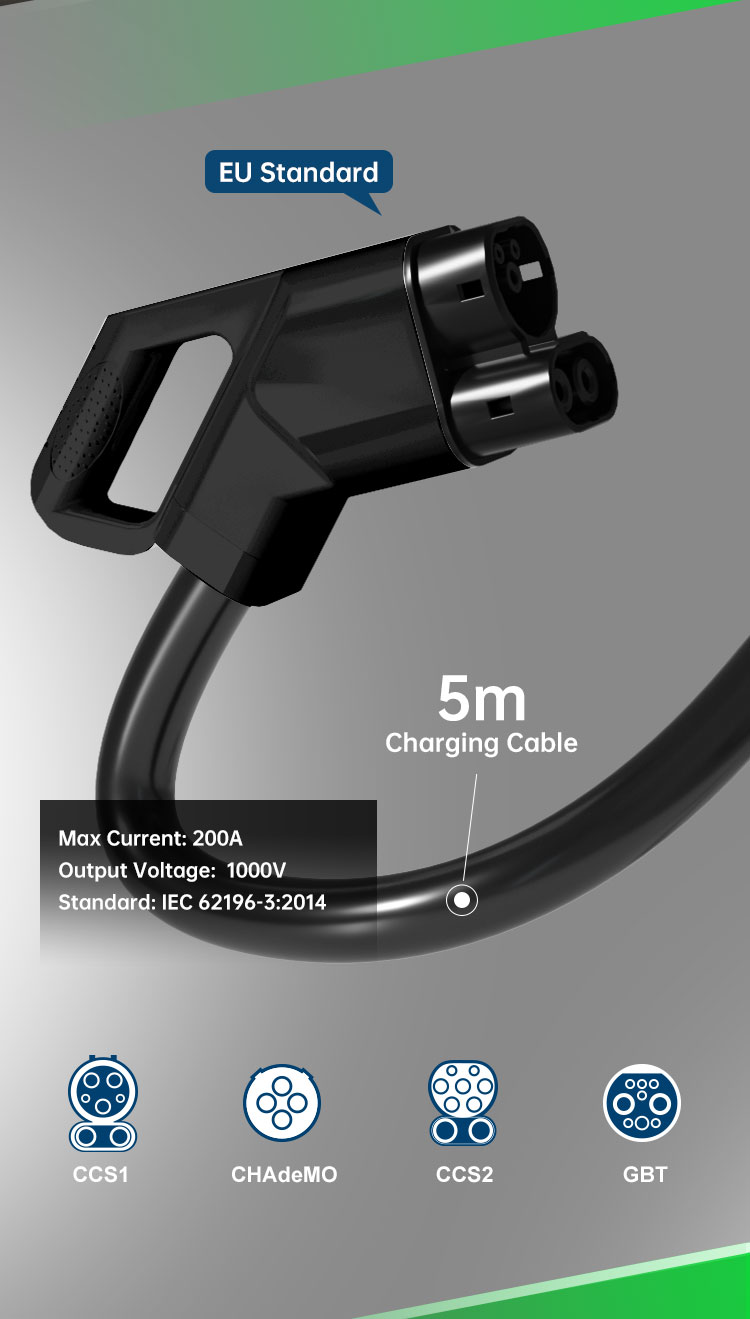

| Cable Length | 5 M |
| Charging Outlets | Double (CCS1+CCS1) / (CCS1+CHADEMO) / (CCS2+GBT) / (CHADEMO+CHADEMO) / (CCS2+CCS2) / (CCS2+CHADEMO) / (CHADEMO+GBT) / (CCS1+CCS2) / (CCS1+GBT) / (GBT+GBT) / (CCS1+NACS) / (CCS2+NACS) / (GBT+NACS) / (CHADEMO+NACS) / (NACS+NACS) |
| Connectivity Authorization | RFID, App |
| Screen | 7 Inch LCD Screen/LED Light |
| AC Input Voltage | AC400V±10%, 3P+N+PE |
| Input Frequency | 50Hz/60Hz |
| Consumption | ≤ 24W |
| Output Voltage Range | CCS1/CCS2/GBT: 150Vdc - 1000Vdc; CHADEMO: 150Vdc - 500Vdc |
| Output Current | CCS1/CCS2/GBT: 0~250A; CHADEMO: 0~125A |

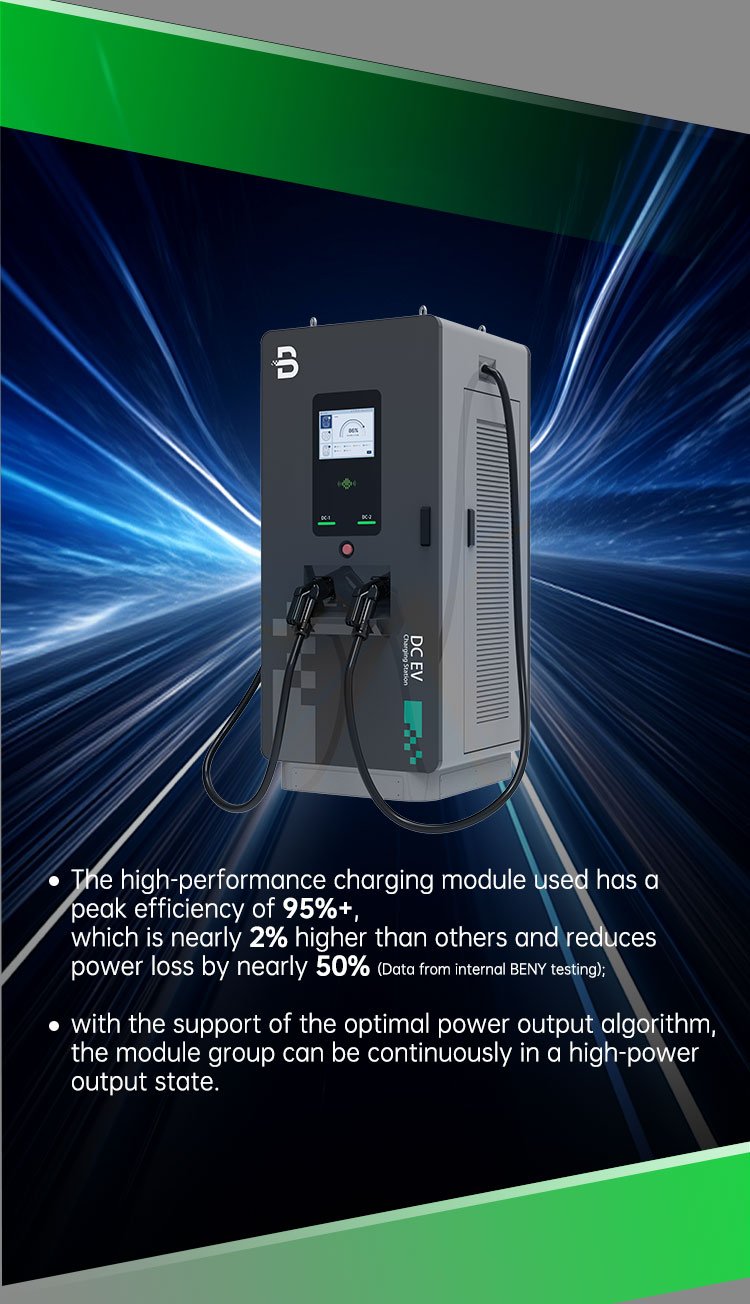

| Efficiency | ≥ 95% |
| Power Factor | ≥ 0.99 (load: 100%) |
| User Interface | Emergency Stop Button, LED Indicator, Card Swiping, Touch Screen |
| Charging Standards | IEC 61851-21-2:2021; IEC 61000-6-2:2019; EN61000-6-4:2019; IEC 61851-1:2019; EN 61851-23:2014; EN 61851-24:2014 |
| OCPP | OCPP 1.6 |
| Network Interface | Ethernet/4G/WiFi |

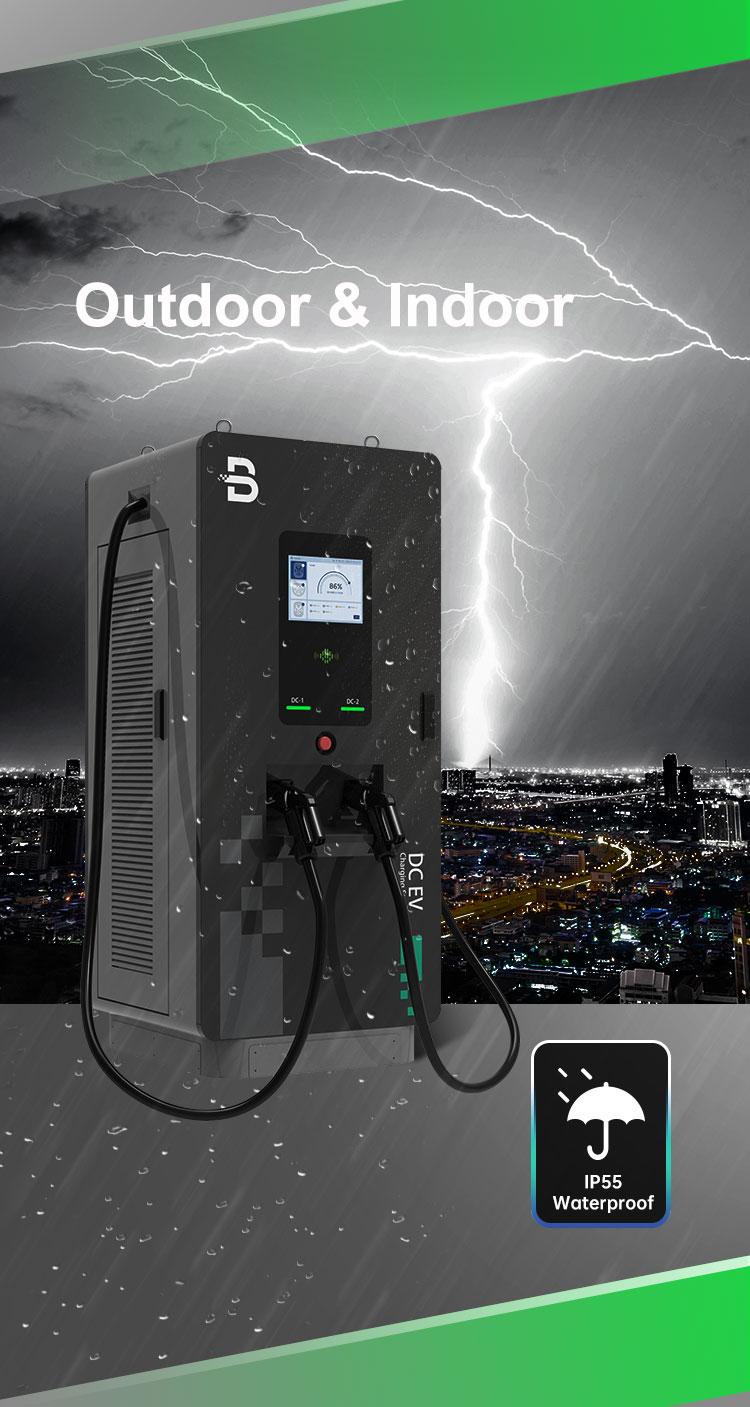

| Application Place | Indoor/Outdoor |
| Working Altitude | < 2000m |
| Working Temperature | -30°C ~ +50°C |
| Working Humidity | 5% ~ 95% |
| Protection Level | IP55 |
| Cooling Method | Forced-air Cooling |
| Warranty (MTBF) | 24 Months Warranty |
| Security Design | Over/Under Voltage Protection, Overload Protection, Current Leakage Protection, Grounding Protection, Over Temp Protection, Lightning Surge Protection |

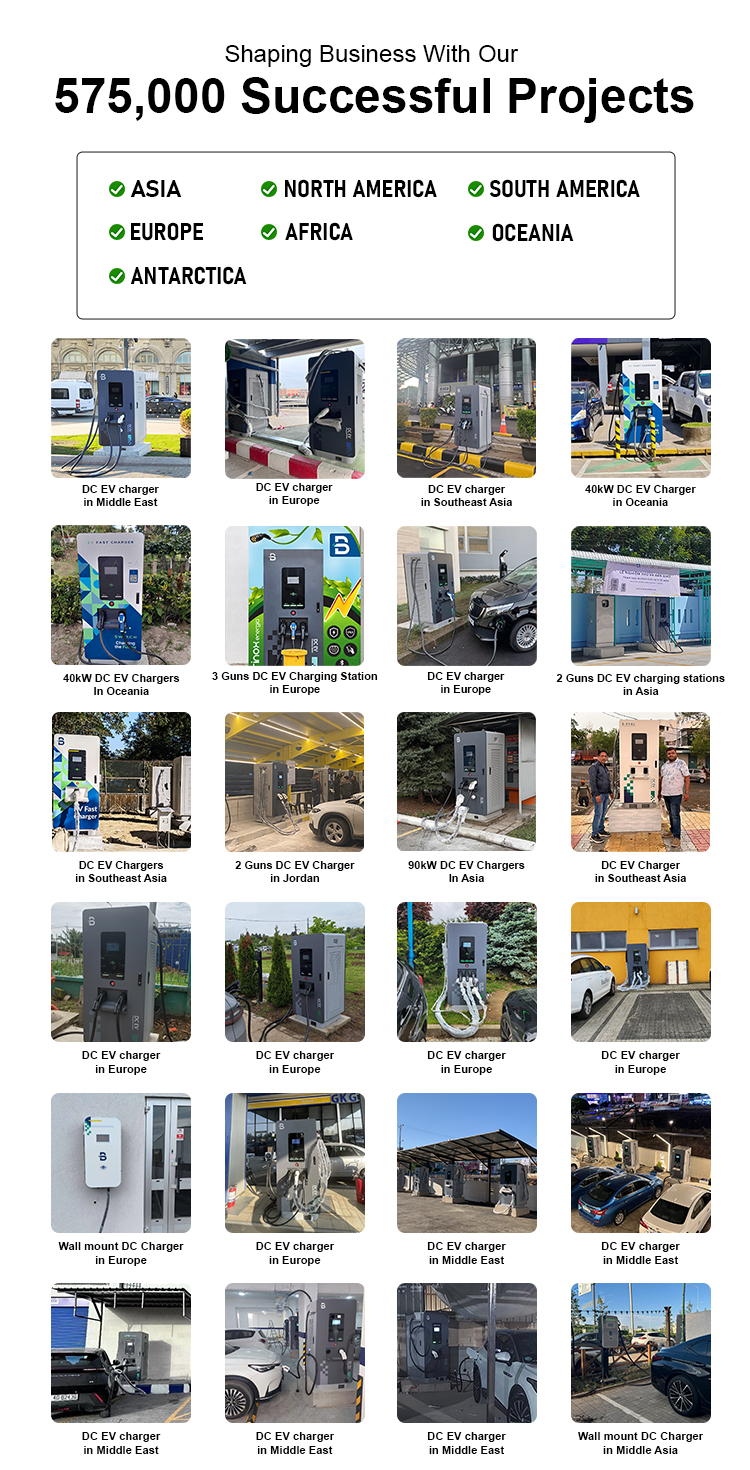

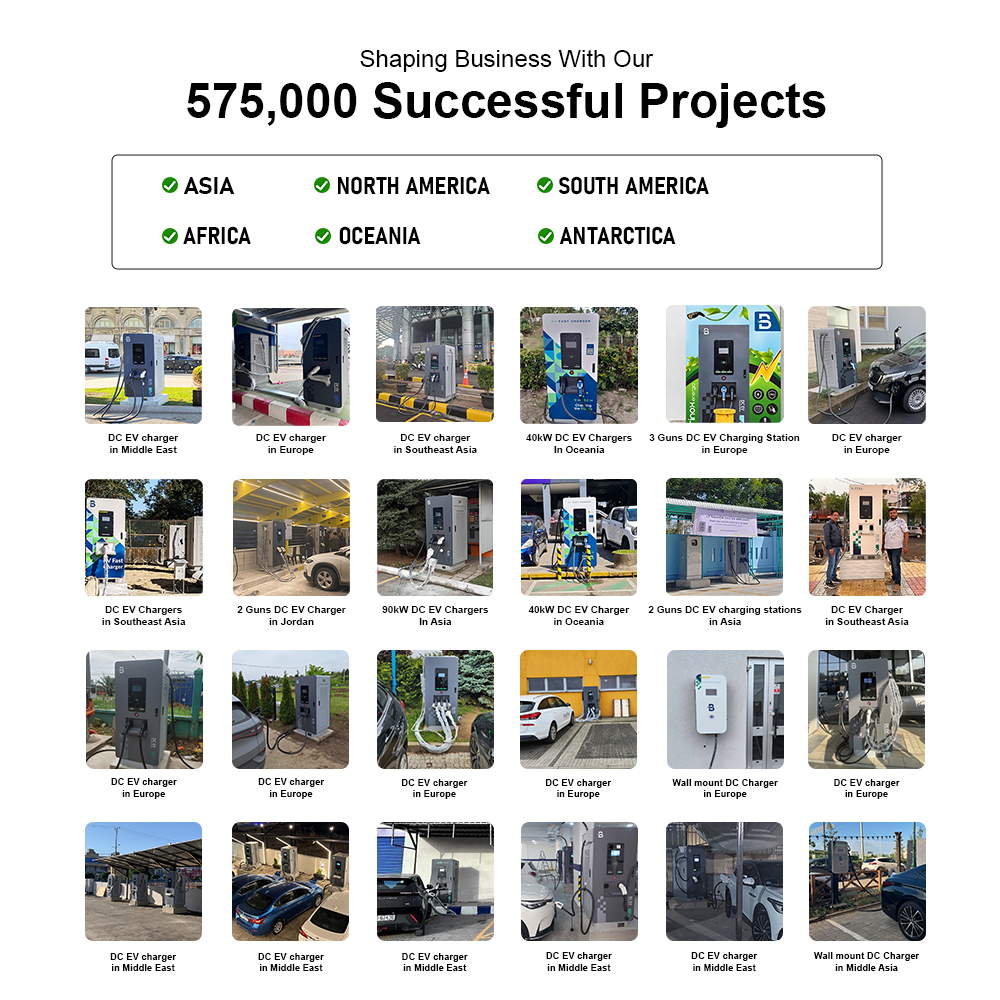

Across the globe, we have forged robust business relationships with clients in the realm of EV charging station construction, offering comprehensive, cost-effective, instant charging solutions for their vehicles. Our expertise and services in EV charging projects empower numerous individuals worldwide to start global EV charging station development. These worldwide projects of EV chargers showcase how our innovative global EV charging station solutions have been applied to diverse environments, contributing to EV charging station construction.

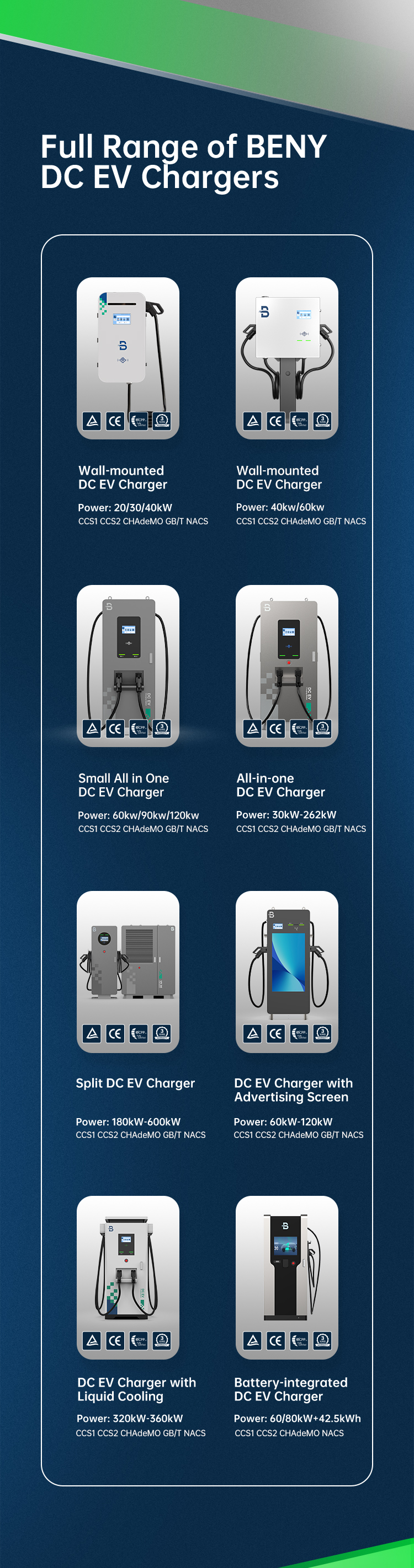

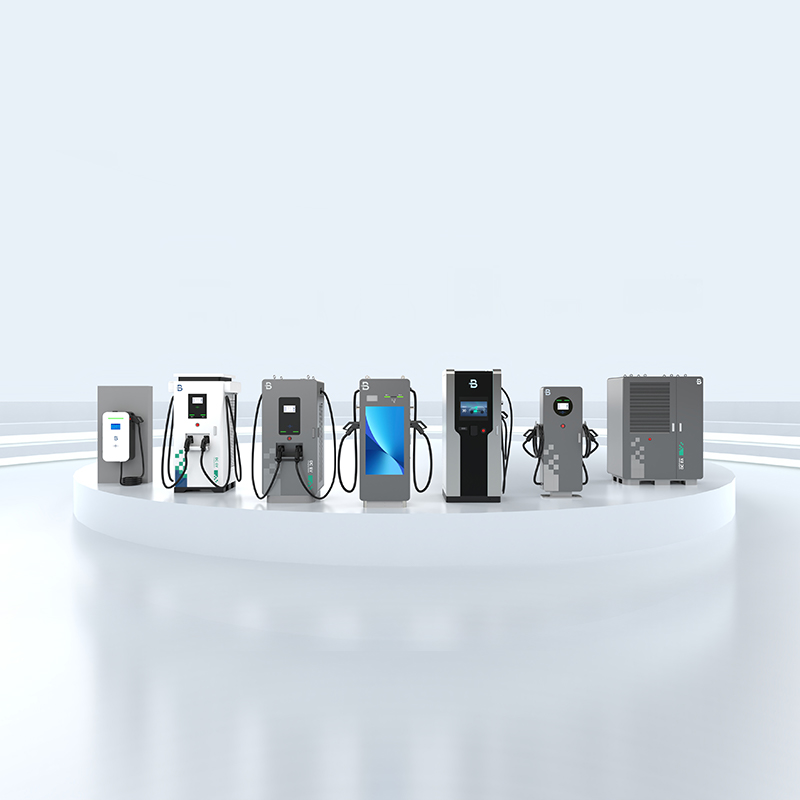

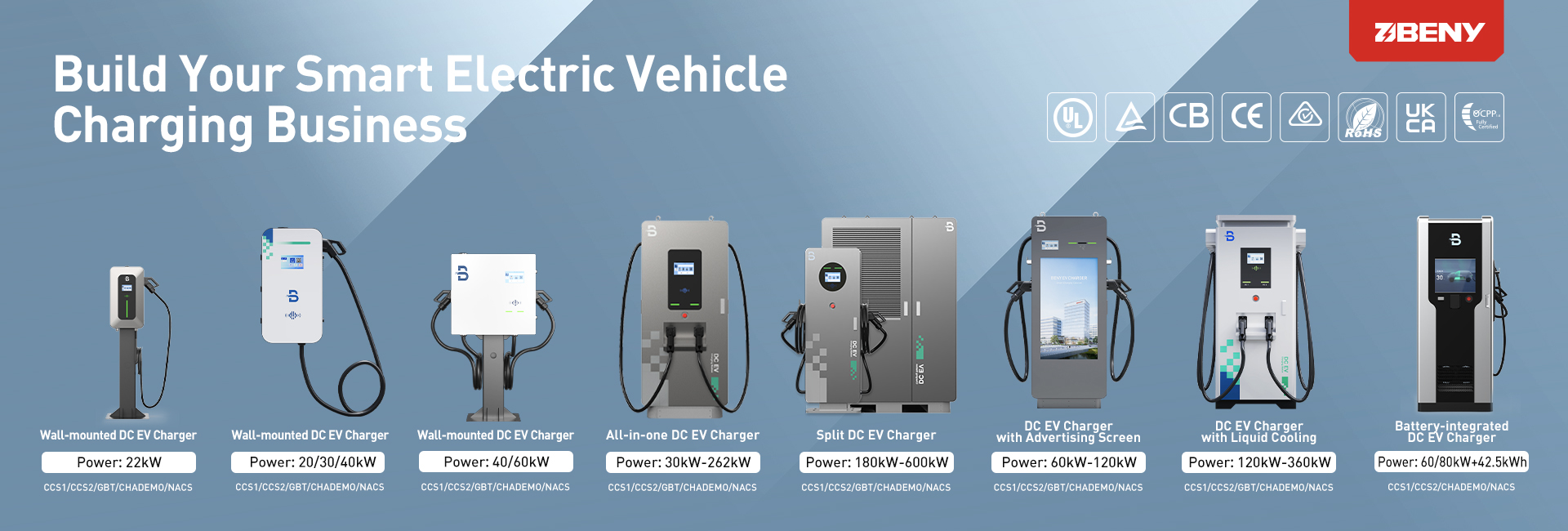

Our EV charger supplies power to any electrical vehicle. The wall-mounted and floor-mounted design as well as its IP65 dust and waterproof housing make the EV chargers suitable for outdoor or indoor spaces. The output of our AC EV charger ranges from 16amps to 32amps. And the output power of DC fast EV charging is up to 600kW.
We are a long-running EV charger and PV products manufacturer with more than 30 years of experience. Our knowledge in manufacturing PV components ensures all of our EV chargers surpass your expectations in terms of service life and performance. The robust build of our EV charger lets you satisfy various business goals while driving your brand.
We are a specialist in EV charging station installations in multiple different scenarios. Our products possess top-grade materials to withstand extreme conditions, being temperature-resistant, waterproof, and dustproof, which comply with the IP55 and IP65 certification. We can install wall or floor-mounted EV Chargers, which are applied in both indoor and outdoor settings, such as garages at home or villas, carports, on-street parking, and driveways.

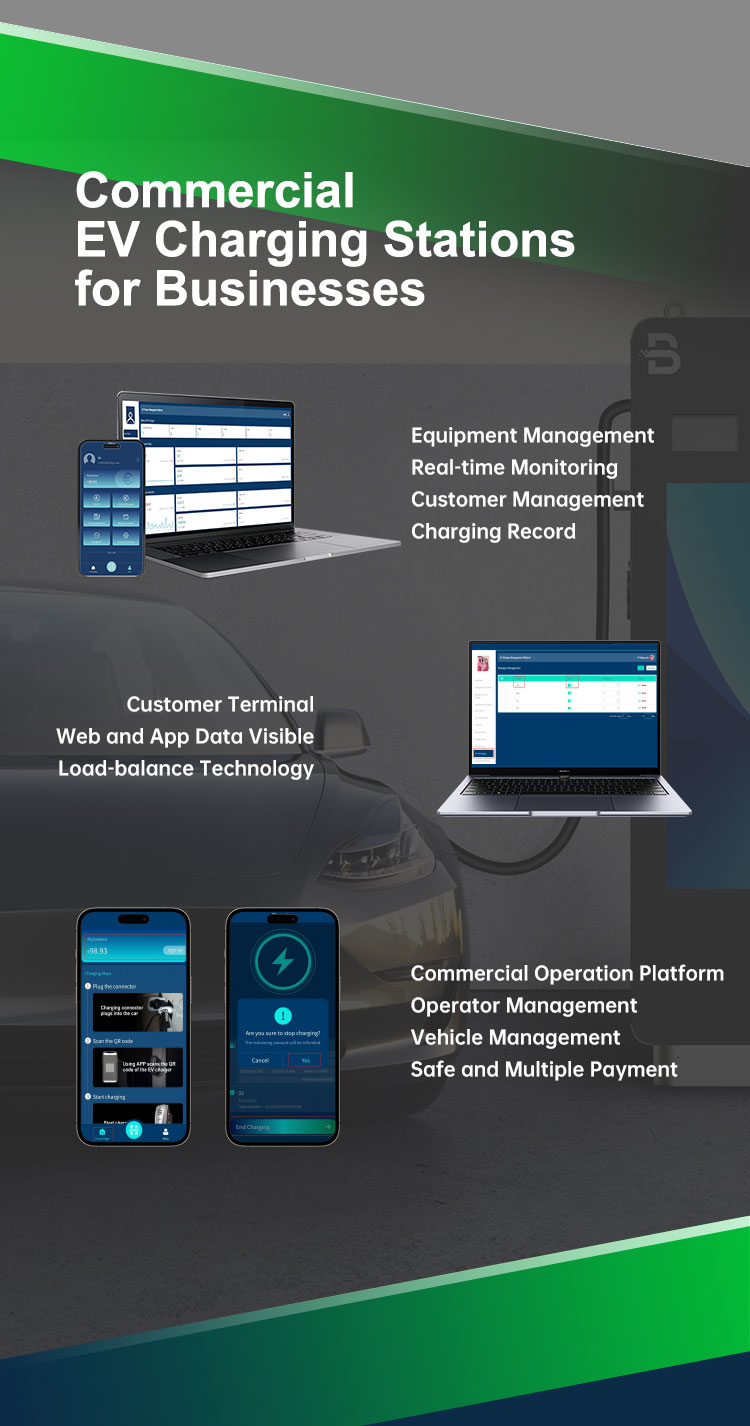

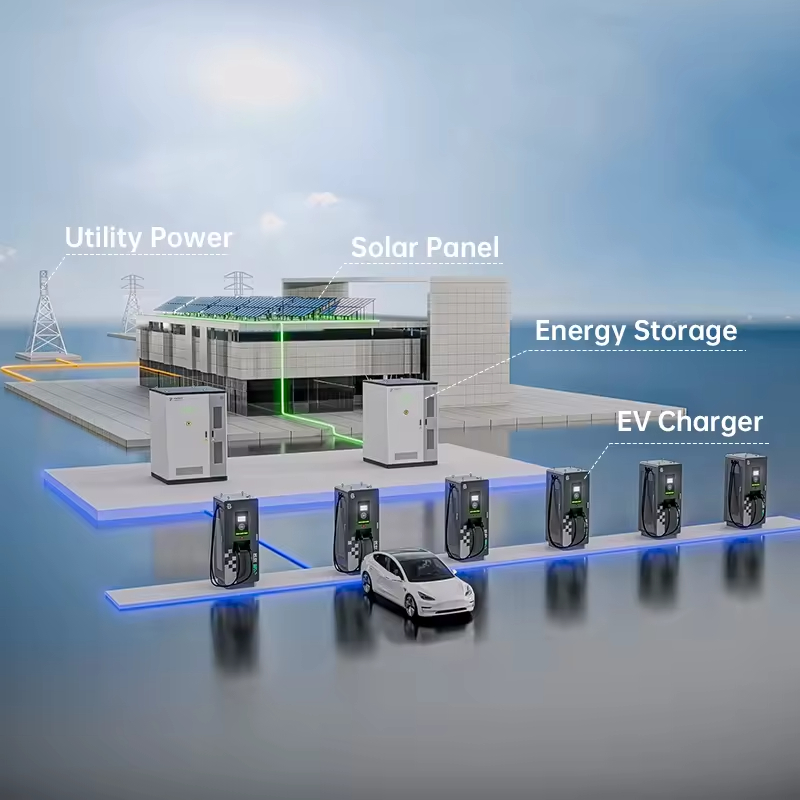

These charging stations can interconnect with payment systems and back-office support through the OCPP platform for residential management and commercial use. We incorporate solar PV systems or energy storage systems into our products. Meanwhile, all EV chargers are qualified with level II charging speed. Therefore, people can efficiently charge their electric vehicles by using solar energy.
With sincere service and professional manufacturing for our customers over 30+ years, our products have attracted numerous customers from Europe, Australia, the Middle East, and South Asia.
Our EV Charger has been enjoying a good reputation across the world from the coldest areas of Ireland to the hottest areas of South Africa. Therefore, our EV charger has been catering to different customers' needs and updating our products in terms of functions, materials, etc.
