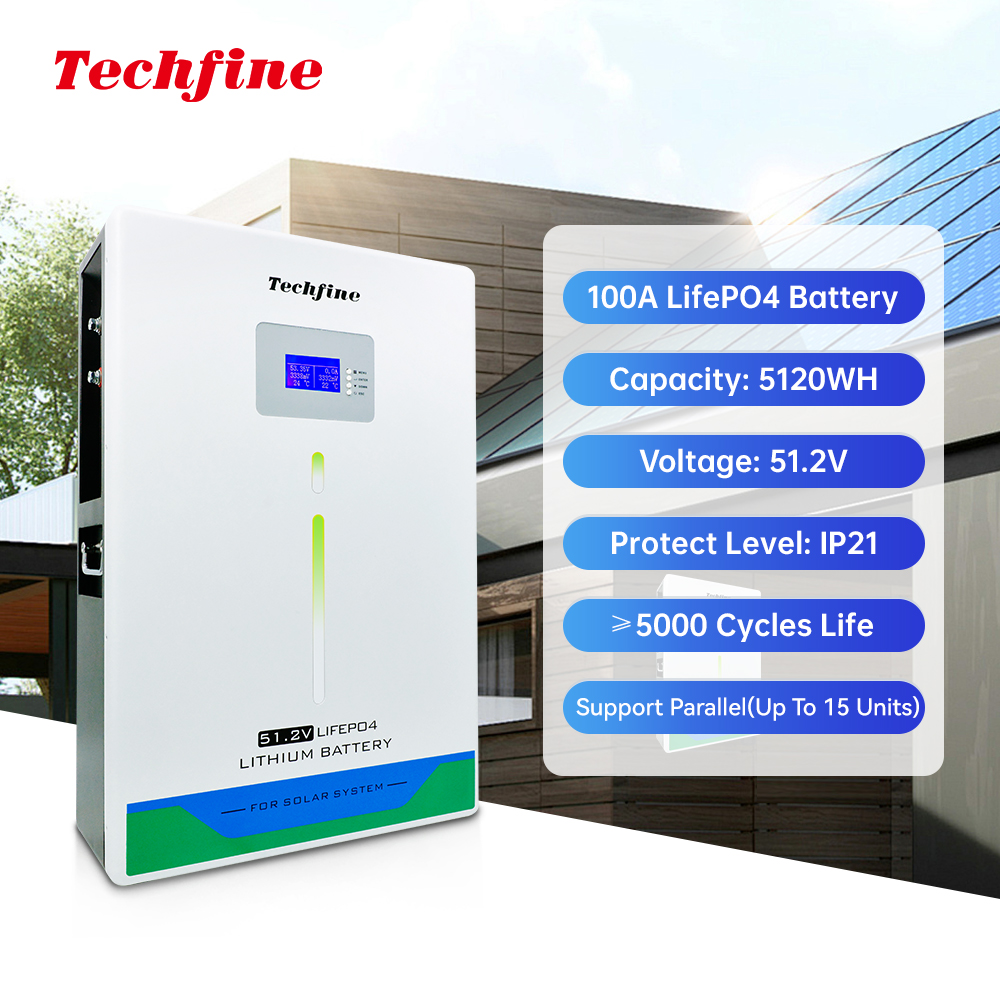

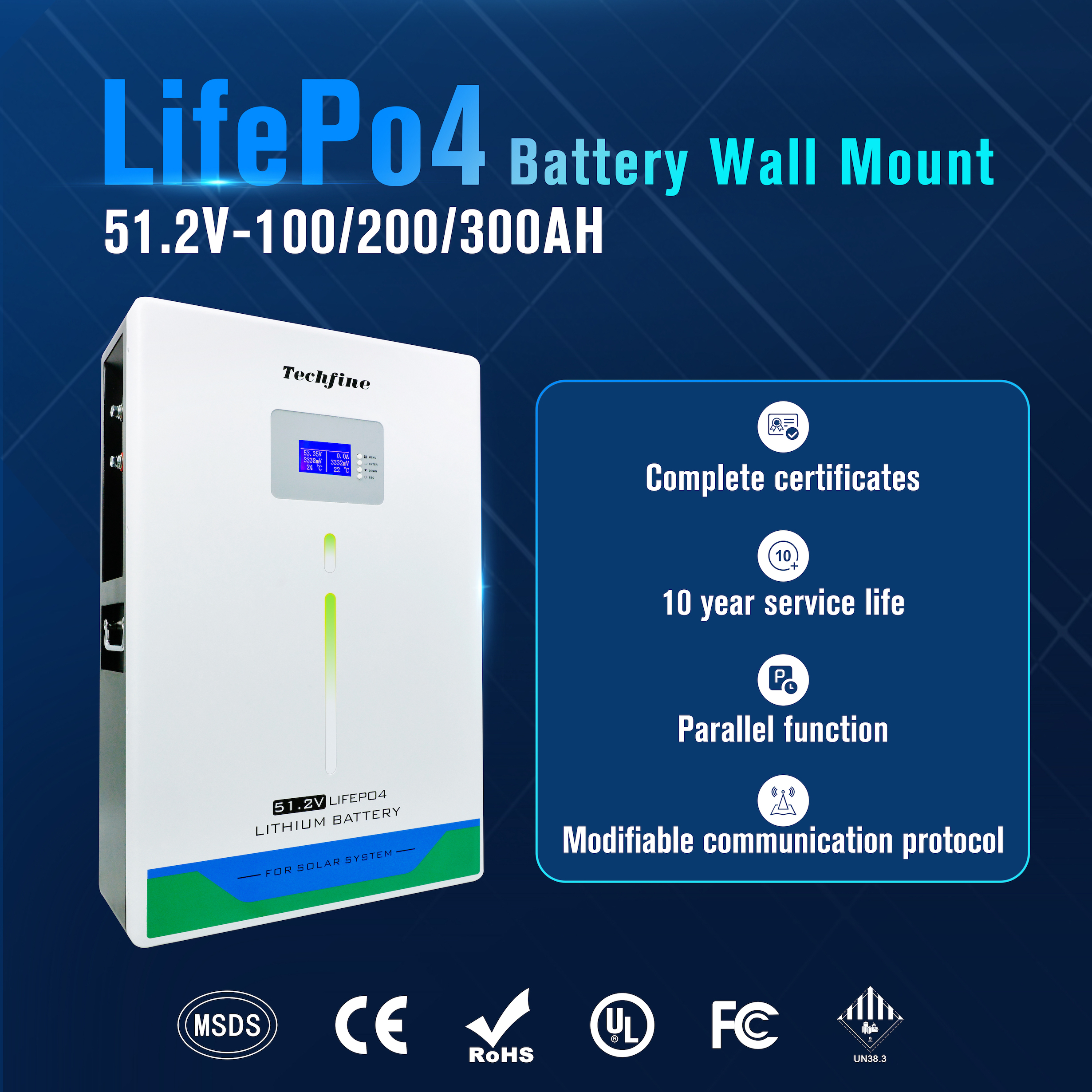

| Model | LB100-51250 | LB230-512100 | LB300-512100 | LB200-256100 |
|---|---|---|---|---|
| Available Capacity | 5120WH | 11776WH | 15360WH | 5120WH |

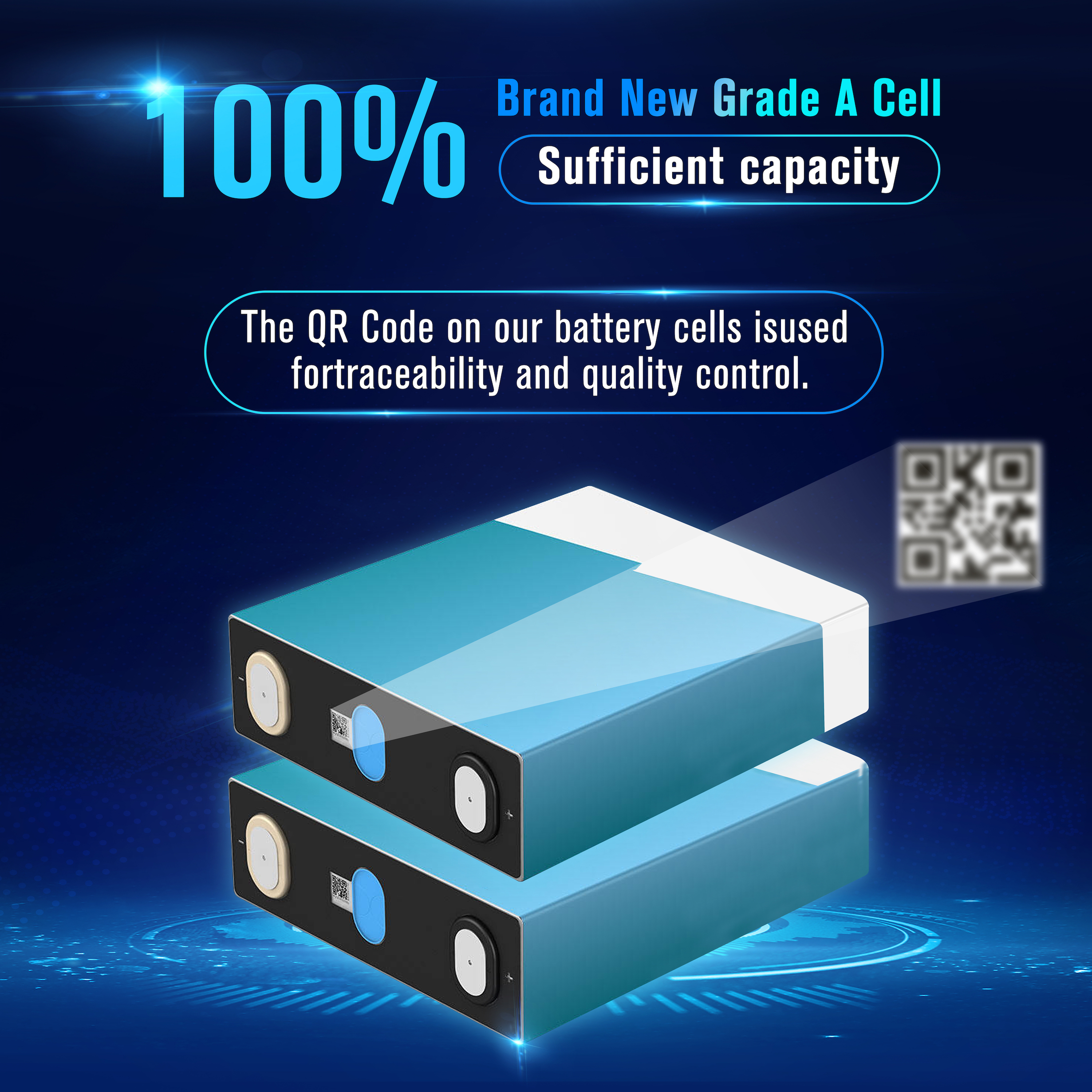

| Cell Chemistry | LiFePO4 | |||
| Max Discharge Current | 100A | |||
| Rated Voltage | 51.2V|DC | 25.6V|DC | ||
| Voltage Range | 43.2V-58.4V|DC | 21.6V-29.2V|DC | ||
| Maximum Output Power | 5120W | 2560W | ||
| Maximum Charging Voltage | 58.4V±0.2V|DC | 26.2±0.2V|DC | ||
| Rec. Charge Voltage | 58.4V±0.2V|DC | 26.2±0.2V|DC | ||
| Rec. Charge Current | 50A | 100A | 100A | 100A |
| Charge Current Limit | 10A | |||
| Long Delay Overcurrent Prot. | Alarm at >105A, protection at >110A/1S | |||
| Instant Overcurrent Prot. | ≥150A/100ms | |||
| Charge Overcurrent Release | Discharge current >1A to release | |||
| Discharge Overcurrent Release | Charging current >1A to release | |||
| Short Circuit Prot. | Yes, automatically releases when charging | |||

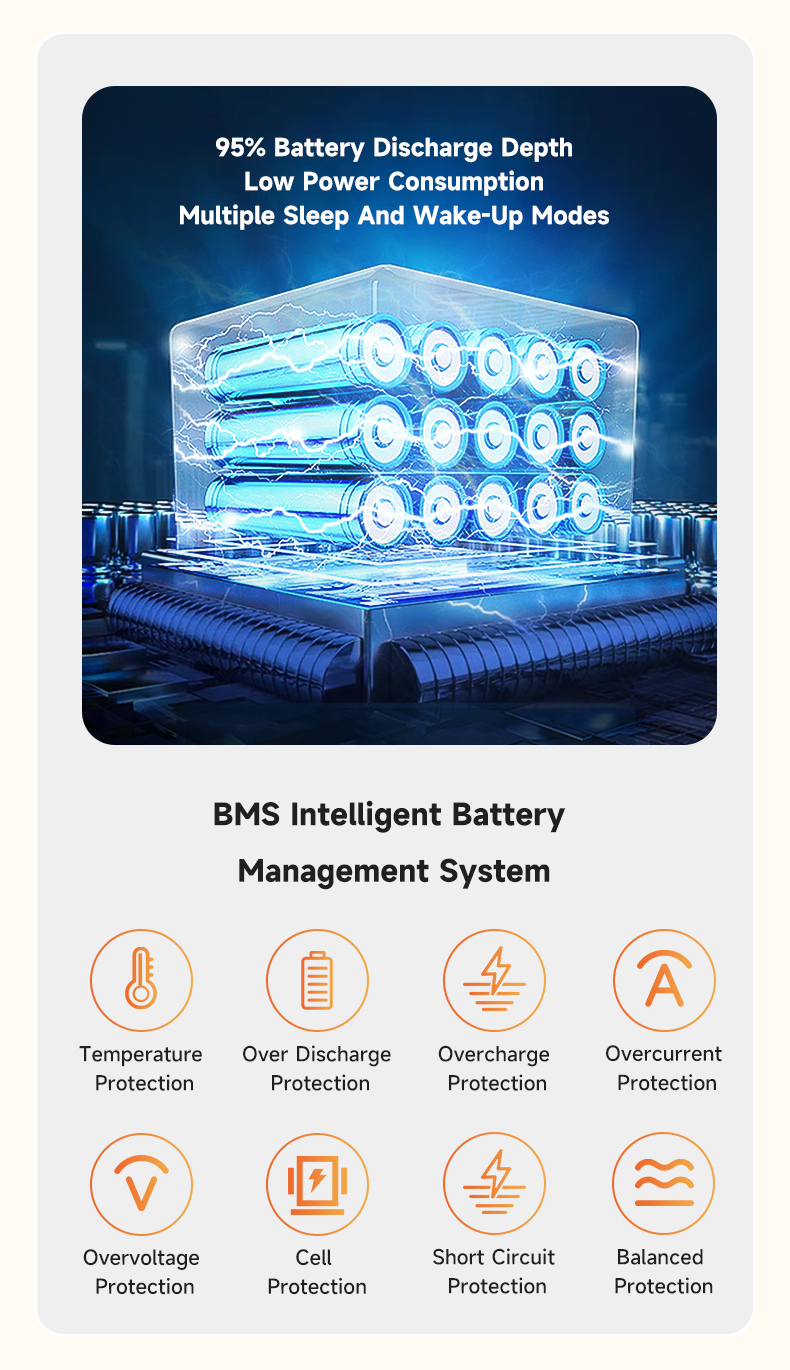

| Temp & Safety Prot. | MOS Cell Ambient Failure & Temperature Protection | |||

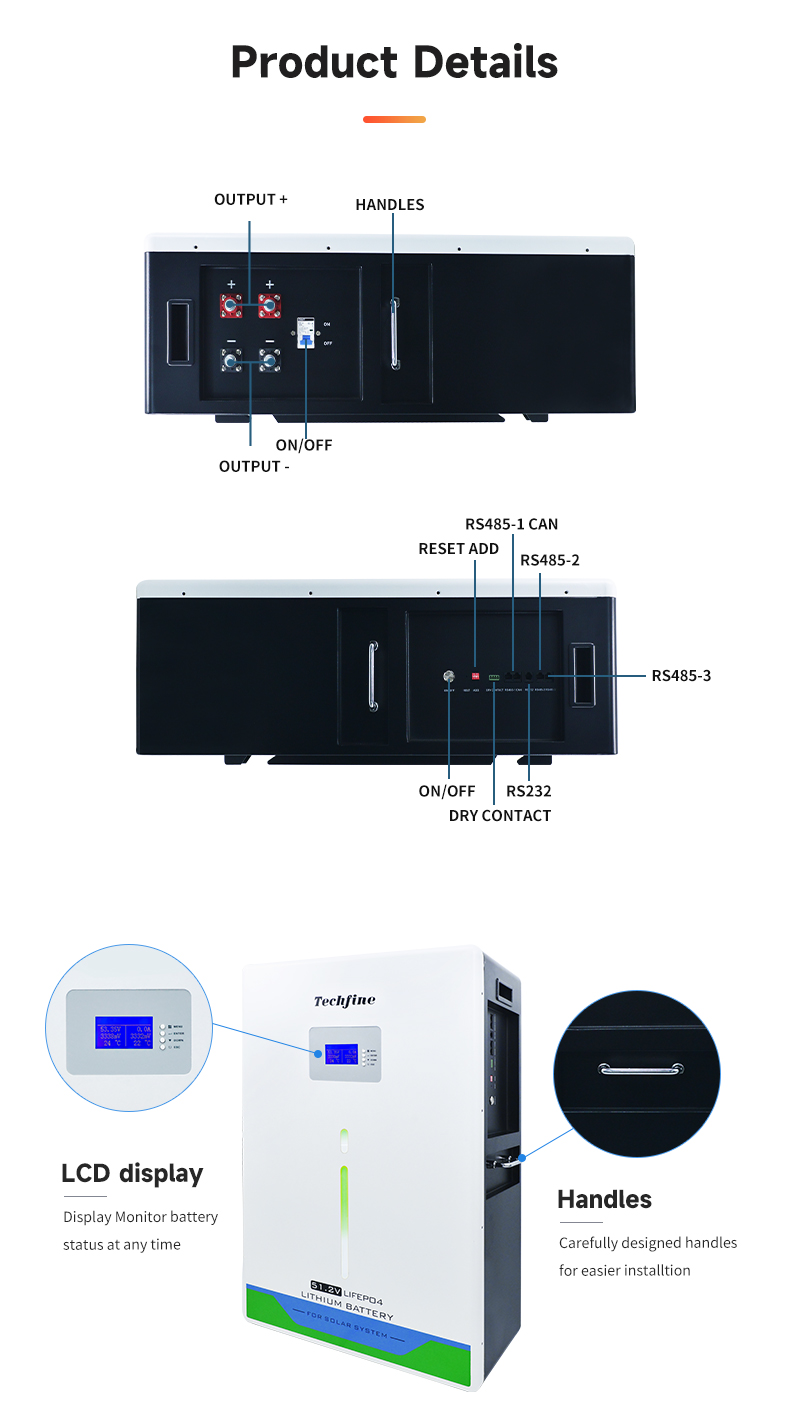

| Display Screen | LED strip display + LCD screen | |||
| Battery Depth of Discharge (DOD) | ≥95% | |||

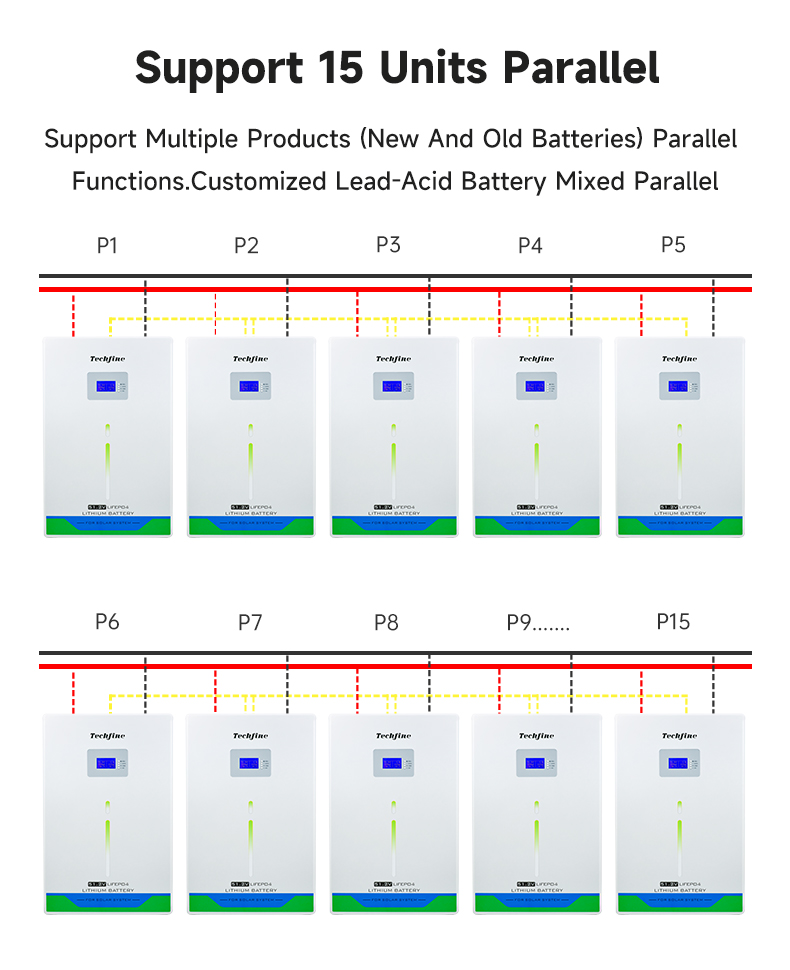

| Modules Connection | 1-5 | |||
| Communication | Standard configuration with RS232, RS485, CAN | |||
| Protection Level | IP21 | |||
| Cycle Life | ≥5000 cycles | ≥5000 cycles | ≥8000 cycles | ≥5000 cycles |
| Operating Temperature Range | Discharging: -10°C to +50°C; Charging: 0°C to +60°C | |||
| Storage Temperature | 1 month, 0–35°C; ≤1 month, -20–45°C | |||
| Terminal Type | M8 | |||
Yes, welcome to take some sample to test!
7 days for sample; 25 days for bulk order.
T/T, Western Union, Paypal, L/C etc.

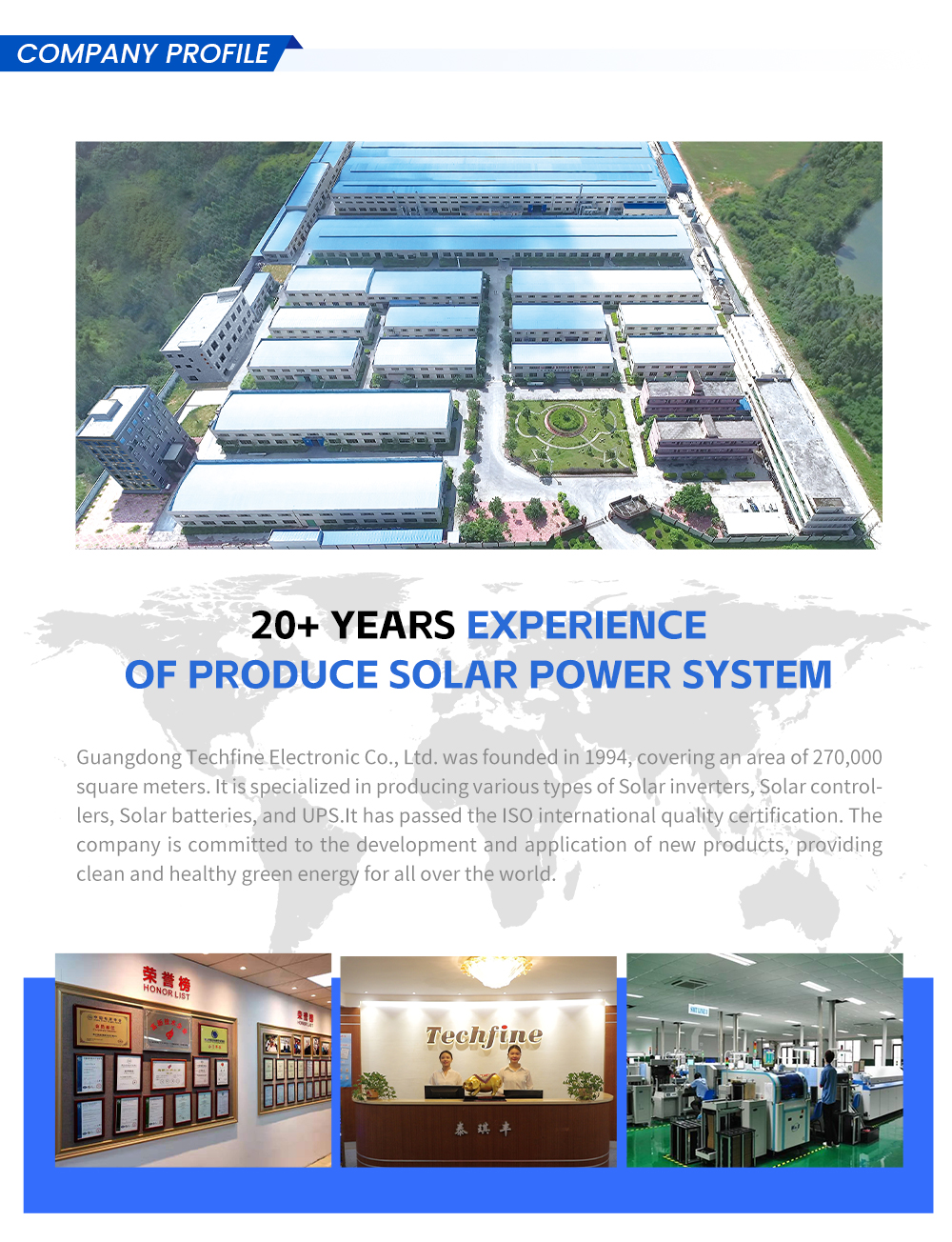

We focus on Solar Product manufacturing for 20+ years, and we accept OEM / ODM for products.
We can accept EXW, FOB, CIF and so on.
We have ISO9001:2000, CE, RoHS, certificates for all of our products.
