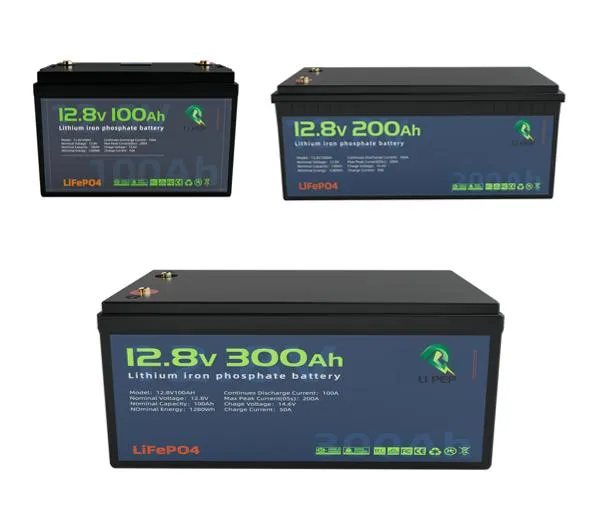

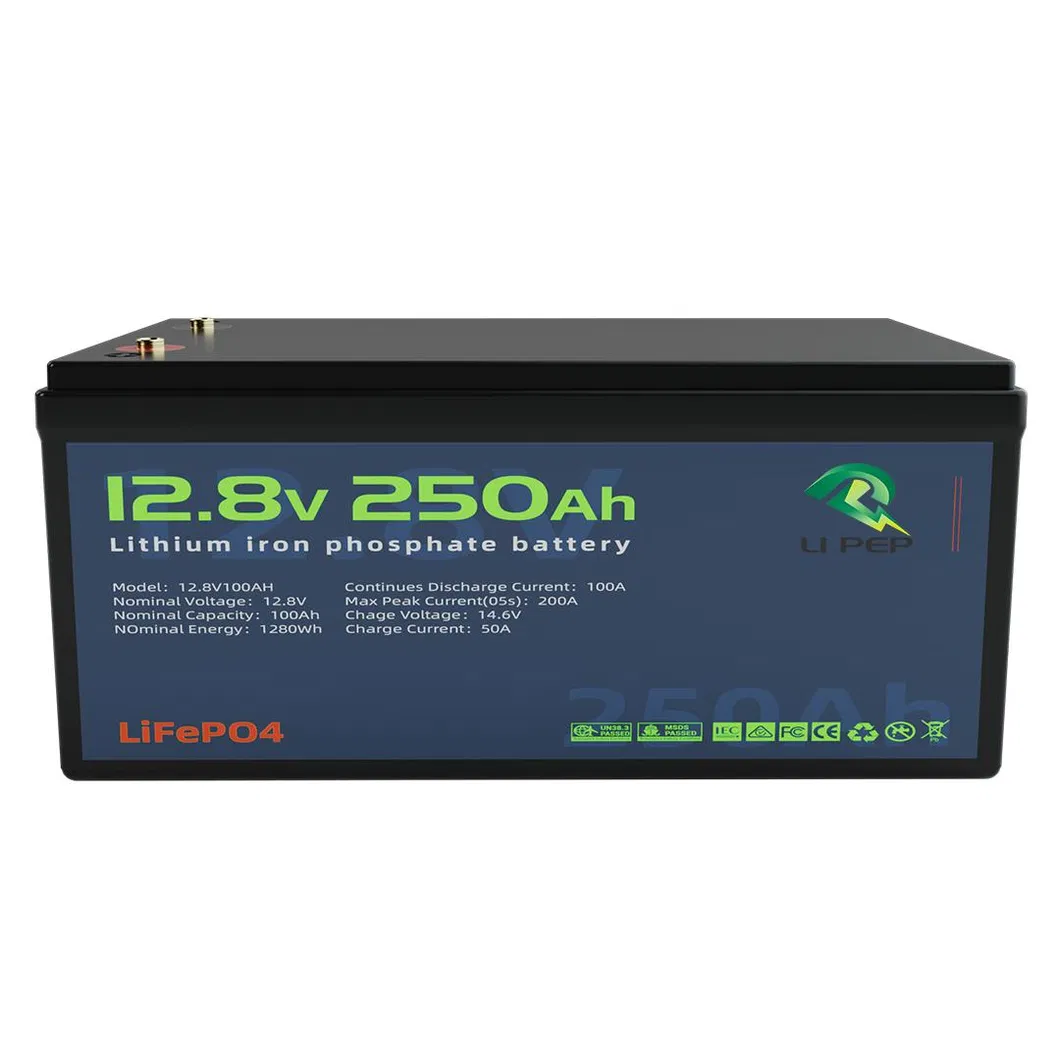

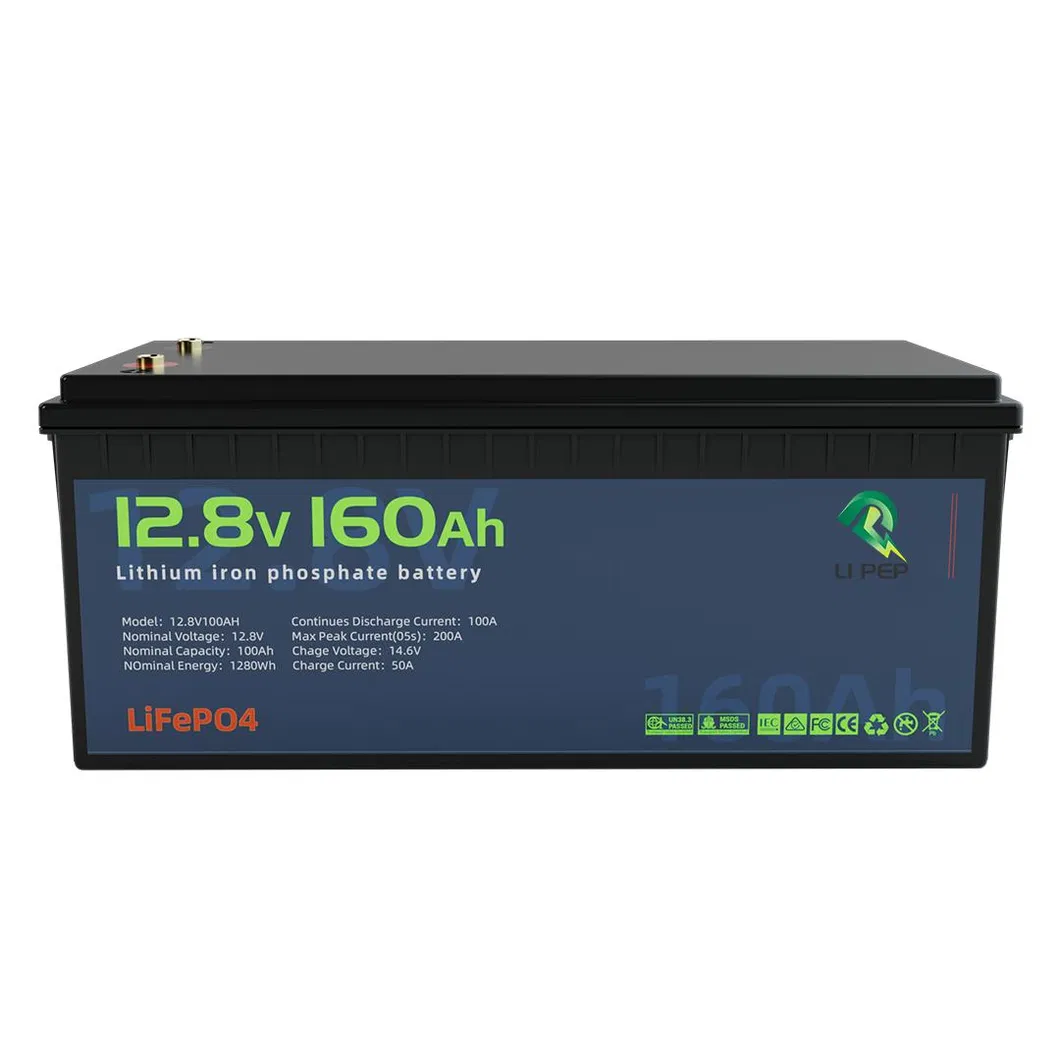

Alternative lead acid Lithium iron phosphate battery series
Lithium iron phosphate battery monomer 3.2V, the combined voltage is exactly the same as that of lead-acid batteries, and lithium iron phosphate has higher energy density and lighter weight under the same volume. It is the best choice to replace lead-acid batteries.

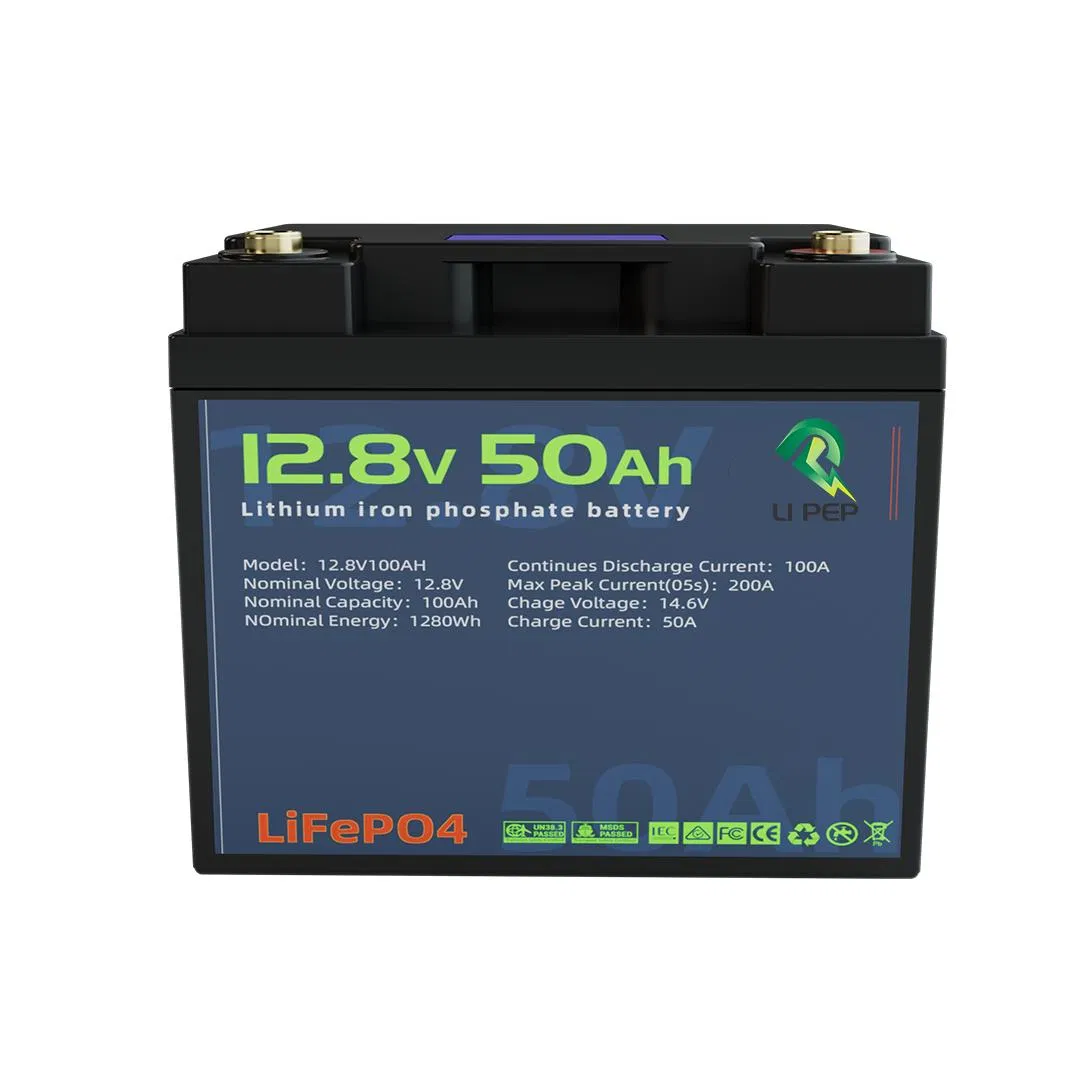

| Model | 12V 50Ah | 12V 100Ah | 12V 200Ah | 12V 300Ah |
|---|---|---|---|---|
| Nominal voltage | 12.8V | 12.8V | 12.8V | 12.8V |
| Nominal Capacity | 50Ah | 100Ah | 200Ah | 300Ah |

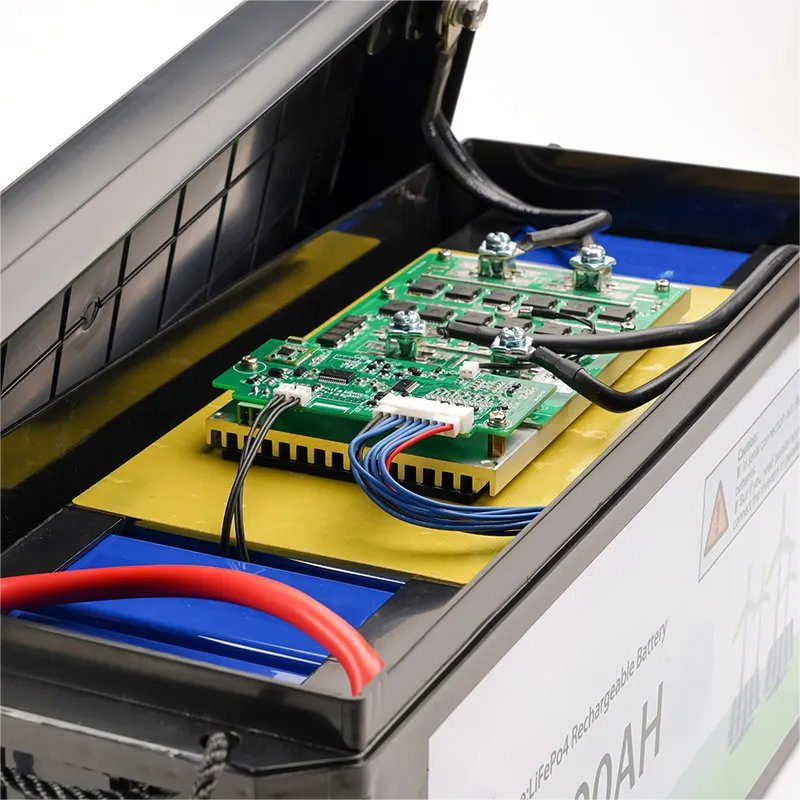

| BMS | 50A | 100A | 200A | 200A |
| Structure | 3.2V 50Ah 4S1P | 3.2V 100Ah 4S1P | 3.2V 200Ah 4S1P | 3.2V 300Ah 4S1P |
| Charge Current | 25A | 50A | 100A | 100A |
| Rated Energy Storage | 0.64kwh | 1.28kwh | 2.56kwh | 3.84kwh |
| Operating Voltage | 10V-14.4V | 10V-14.4V | 10V-14.4V | 10V-14.4V |
| Temp Range | Charge: 0-55ºC; Discharge: -20-60ºC | |||

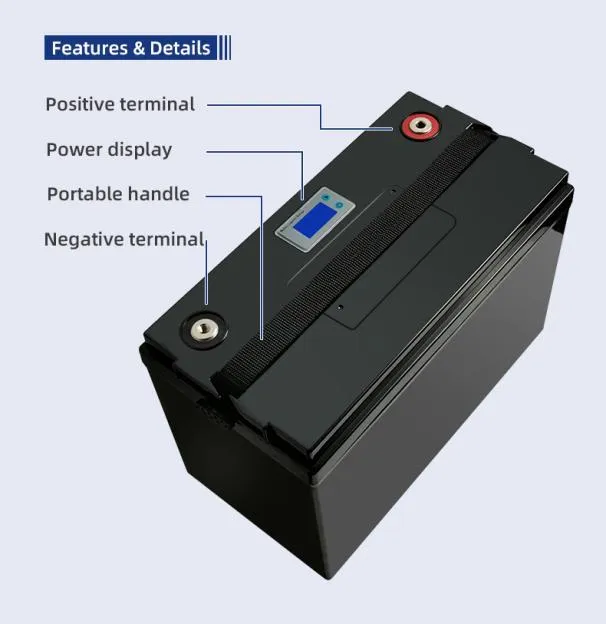

| Interface | CC/AC | CC/AC | CC/AC | CC/AC |
| Weight | 5.5kg | 14kg | 25kg | 36kg |
| Size (mm) | 223*150*178 | 307*169*208 | 483*170*240 | 520*269*220 |
| Cycle Life | ≥2000 | ≥2000 | ≥2000 | ≥2000 |

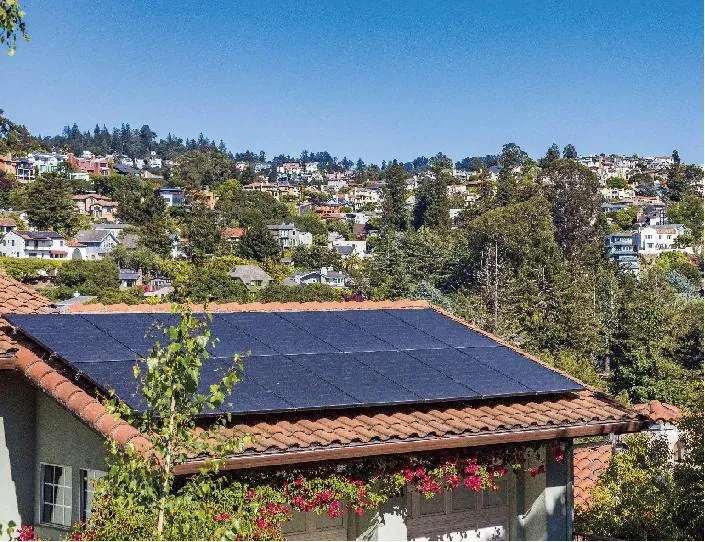

Perfectly suited for: Caravan/marine energy storage; photovoltaic energy storage; solar street lights; UPS backup power; communication base stations.

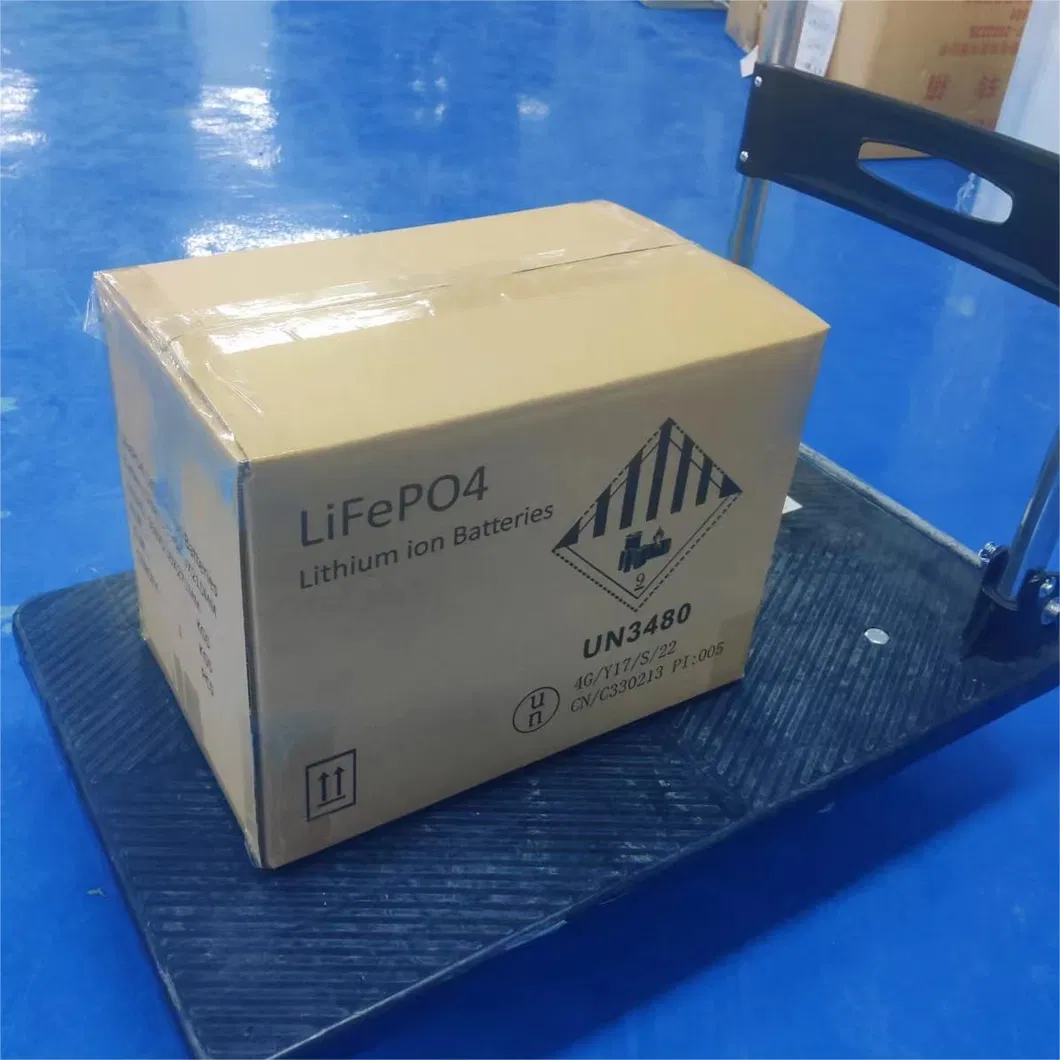

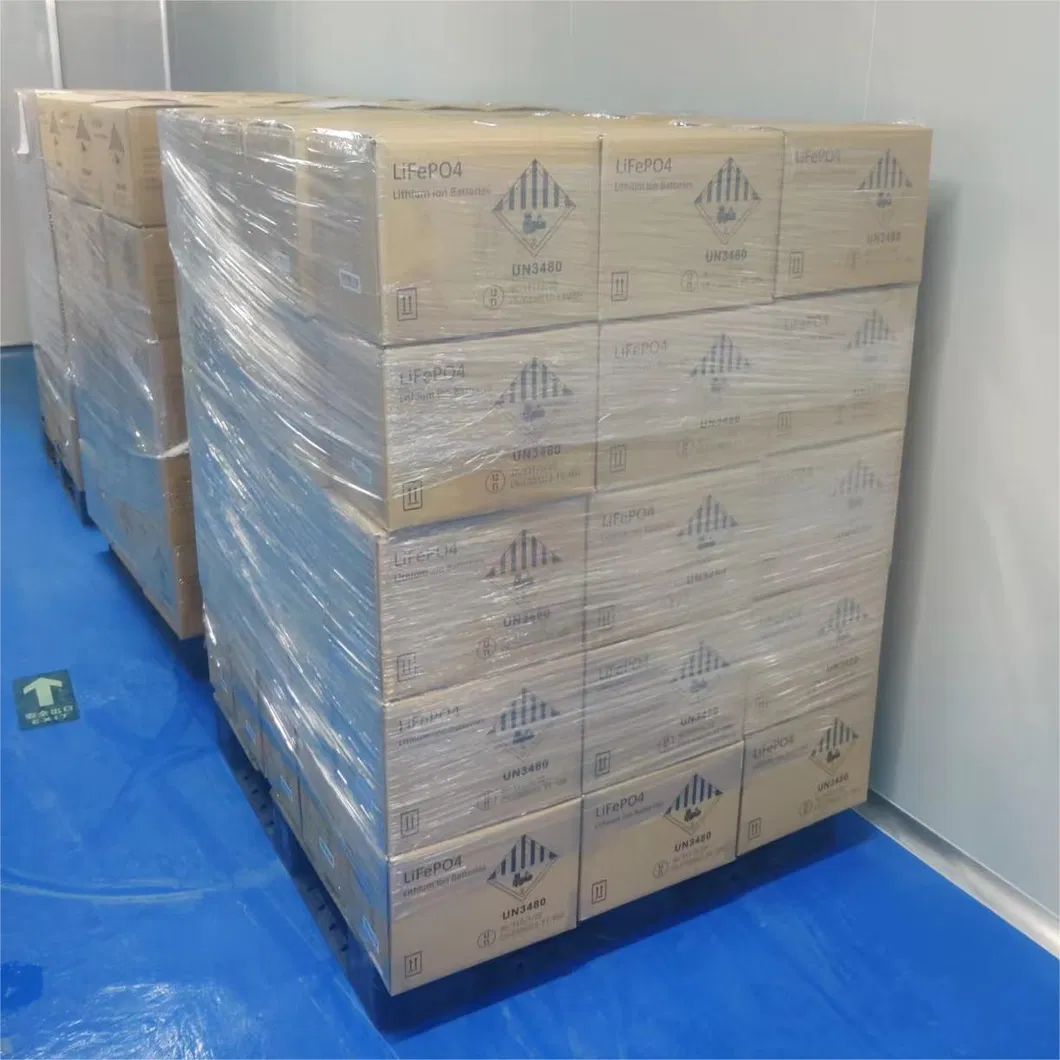

We normally use cartons for packing; we can also pack upon customer requirements to ensure safe transport.
| T/T | EXW / FOB | 30% in advance, balance before shipment |
| CFR (C&F) / CIF | 30% in advance, balance against copy of B/L | |
| L/C | Accepted for amounts above 50,000 USD (at sight) | |
| Other | Paypal / West Union for amounts lower than 5000 USD | |
Trade Assurance Benefits: 100% product quality protection, 100% on-time shipment protection, and 100% payment protection.
