| No. | Item | General Parameter |
|---|---|---|
| 1 | Nominal Voltage | 12.8V |
| 2 | Nominal Capacity | 200Ah |
| 3 | Energy | 2560Wh |
| 4 | Efficiency | 99% |
| 5 | Self Discharge | <2% per month |
| 6 | Maximum Modules in Series | 1 |
| 7 | Maximum Continuous Discharge Current | 100A |
| 8 | Peak Discharge Current | 220A (≤5s) |
| 9 | BMS Discharge Current Cut-off | 330A ±50A |
| 10 | Discharge Cut-off Voltage | 8.8V |
| 11 | BMS Discharge Voltage Cut-off | 8.8V (2.2±0.1V) |
| 12 | Reconnect Voltage | 10.8V (2.7±0.1V) |
| 13 | Recommended Charge Current | 50A |
| 14 | Maximum Charge Current | 100A |
| 15 | Recommended Charge Voltage | 14.6V |
| 16 | BMS Charge Voltage Cut-off | 15.0V (3.75±0.05V) |
| 17 | Reconnect Voltage | 14.2V (3.55±0.05V) |
| 18 | Charge Temperature | 0 to 45ºC |
| 19 | Discharge Temperature | -20 to 60ºC |
| 20 | Storage Temperature | -20 to 45ºC |
| 21 | BMS High Temperature Cut-off | 75±5ºC |
| 22 | Reconnect Temperature | 55±15ºC |
| 23 | Dimensions (L x W x H) | 522 x 238 x 220mm |
| 24 | Weight | 28.0KG |

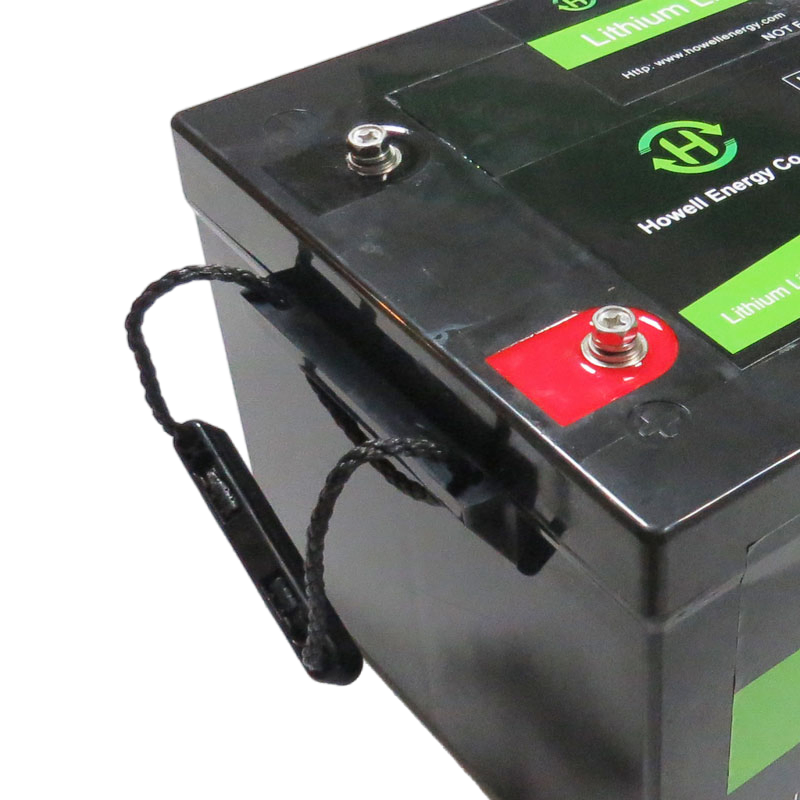

| 25 | Terminal Type | M8 |
| 26 | Case Material | ABS+PC |
| 27 | Enclosure Protection | IP65 |
| 28 | Application | Solar/wind energy storage, generator storage, golf cart, marine boat, floor cleaning machine, forklift, UPS power, emergency lighting system, electric supplies etc. |
