Wall Mounted 16kwh Lifepo4 Solar Battery Batterie Lithium Home Residential Energy Storage Battery 48V 51.2V 314Ah Powerwall

48V 314Ah 16kWh LiFePO4 Battery | Wall-mounted for Home Solar Storage
8000+ Cycles + Built-in BMS, High Safety & Long Lifespan
Daily Output: 500 Units, Fast Delivery & Stable Supply
OEM/ODM Available: Logo, Label & Packaging Customization
Complete Certifications & Professional Technical Support

■Residential Renewable Energy

51.2V 314Ah 16kWh LiFePO4 Powerwall, Wall-Mounted Home Energy Storage Battery with BMS, Perfect for Solar Off-Grid, Backup Power

This 48V 314Ah LiFePO4 home storage battery delivers reliable and high-efficiency energy storage for residential use. It stores surplus power from solar panels and electricity generated during off-peak periods, helping households optimize energy consumption and cut dependence on the public grid.

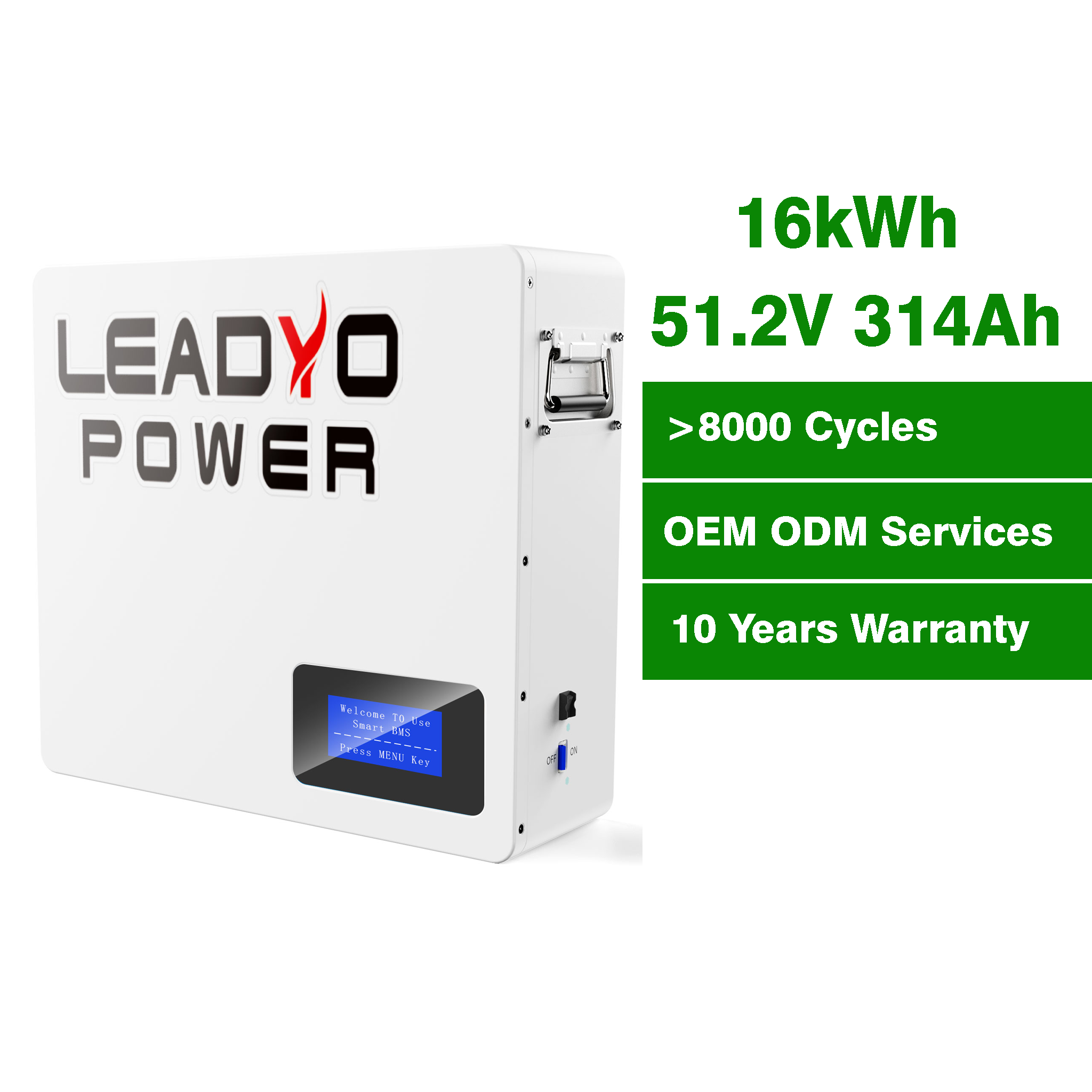

■Specification

Model: LY-BG01 / LY-BG02
Nominal voltage	51.2V	51.2V	51.2V	51.2V
Nominal capacity	100Ah	200Ah	280Ah	314Ah
Power	5kWh	10kWh	15kWh	16kWh
Charging cut-off voltage	58.4V
Discharging cut-off voltage	41.6V
Charge current	50A	100A	200A	200A
Discharge current	50A	100A	200A	200A
Communication port	RS485 + CAN

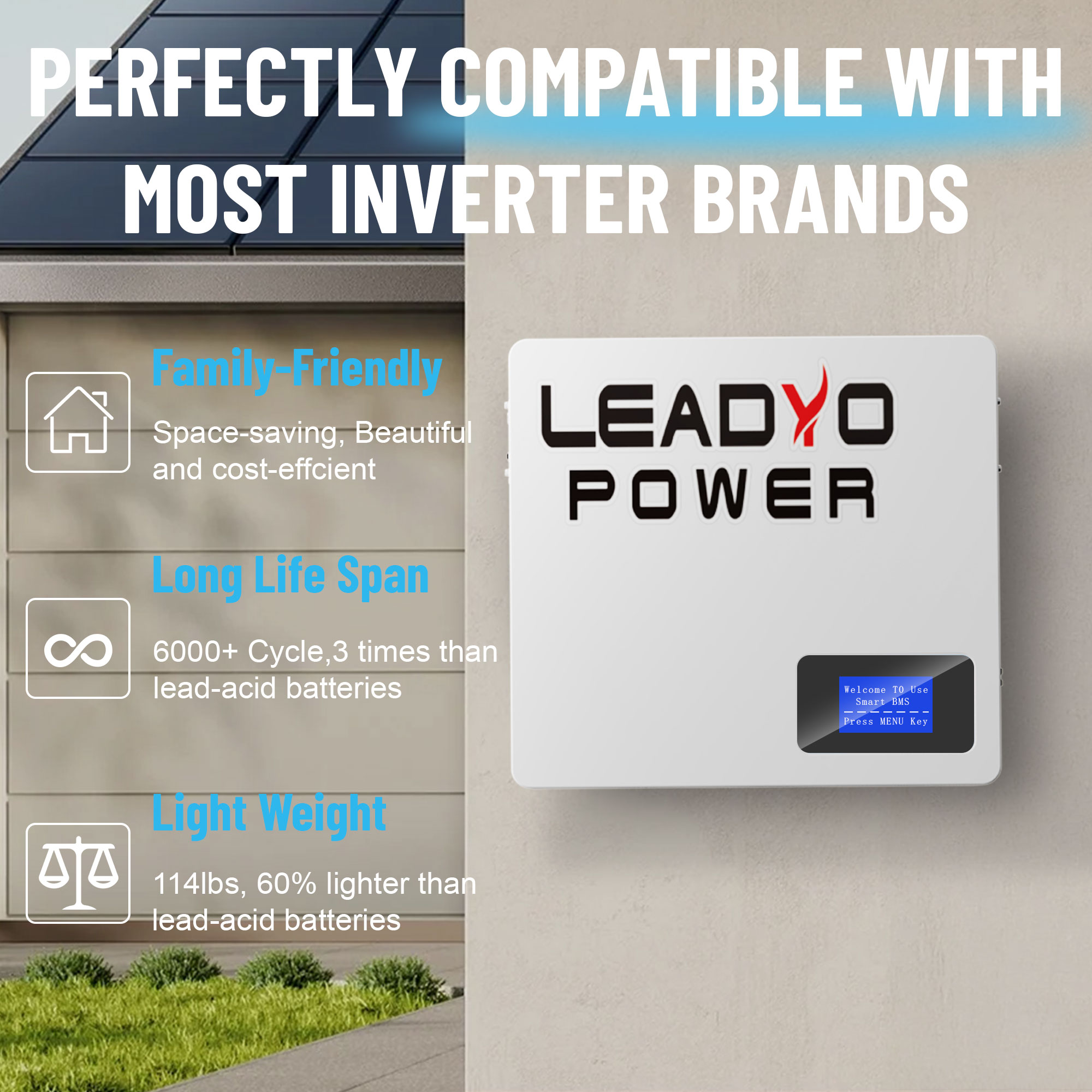

Communication protocol	Compatible with many brands on the market mainstream inverter protocol
Product size	H33 * W19.5 * T8.2 INCH		H41.2 * W19.5 * T8.2 INCH
Package size	Carton case: L 95cm * W 60cm * H 26cm		Carton case: L 1.2m * W 60.0cm * H 26.0cm
Working Temperature	0℃ ~ 45℃ at Charge
Working Temperature	-20℃ ~ 55℃ at Discharge
Storage temperature	-10℃ ~ 45℃ (Charge and discharge once every other month)
IP rating	IP20
Humidity	5% ~ 95% (RH) No Condensation
Cycle Life	>8000+ at 25℃
Design life	10+ Years

■Product Features & Advantages

Product Features

⚙LCD Display

The battery is equipped with an LCD display that provides real-time information on battery status, including voltage, capacity, and charging/discharging status.

⚙BMS (Battery Management System)

It incorporates a sophisticated BMS that ensures optimal performance, protects against overcharging, over-discharging, and provides cell balancing for extended battery life.

⚙Easy Installation

The battery is designed for easy installation, with clear instructions and user-friendly connectors for quick and hassle-free setup.

Product Advantages

✔High Energy Density

The LiFePO4 chemistry provides a high energy density, allowing for efficient storage of a significant amount of energy in a compact size.

✔Long Cycle Life

With over 2000 cycles, the battery ensures long-term durability and reliability, minimizing the need for frequent replacements.

✔High Efficiency

The battery boasts an efficiency of over 95% in energy conversion, maximizing the utilization of stored energy.

✔Wide Operating Temperature Range

It performs reliably in a temperature range of -20°C to 55°C, making it suitable for various climates and environments.

✔Environmentally Friendly

The LiFePO4 chemistry is non-toxic and environmentally friendly, ensuring safe and sustainable energy storage.

Installation Method

1

Choose a suitable location for installation, ensuring proper ventilation and protection from extreme temperatures.

2

Connect the battery to the designated power source or solar panels using the provided connectors.

3

Install the battery securely in the chosen location, following the manufacturer's guidelines and ensuring it is firmly mounted.

4

Connect the battery to the household electrical system or inverter, adhering to the specified wiring and safety standards.

5

Finally, verify the connections and perform a functionality test to ensure the battery is properly installed and operational.

Product

Full certifications, stable specs, strict QC & consistent bulk quality

Factory

Daily output, lead time, stock & long-term supply

Custom

Logo print, private label, custom package, BMS/port adjustment (OEM/ODM)

Terms

Sample rule, MOQ, price, logistics & customs compliance

Tech Support

Drawings, manuals, docs, on-site & remote service

■Packing & Delivery

■Frequently Asked Questions

Q:What is the specification of this battery?

It is a wall-mounted LiFePO4 home storage battery, rated 48V 100Ah with total capacity up to 5kWh. Perfect for residential solar system, off-grid living and emergency backup power.

Q:Can it work with solar panels?

Yes. It is specially designed to store excess power generated by rooftop solar panels and supply electricity to all household appliances.

Q:Is it easy to install?

Absolutely. Wall-mounted design saves space and comes with complete mounting accessories. Simple connection allows DIY installation.

Q:What's the advantage of LiFePO4 battery over lead-acid battery?

LiFePO4 features higher safety, more than 5000 deep cycles and over 10 years service life, much longer than traditional lead-acid batteries.

Q:Does it have built-in protection function?

Yes. Equipped with intelligent BMS, it provides full protection against overcharge, over-discharge, over-current and short circuit.

Q:Do you support OEM & ODM service?

Yes. We support custom logo printing, private label and customized packaging. We can also adjust BMS parameters and ports as your request.
