10 Years Warranty 50kwh 60kwh 80kwh 100kwh Lifepo4 High Voltage Battery Commercial Industrial Energy Storage Systems Container

1 / 5

10 Years Warranty 50kwh 60kwh 80kwh 100kwh Lifepo4 High Voltage Battery Commercial Industrial Energy Storage Systems Container

Send Inquiry

Product Description

Overview

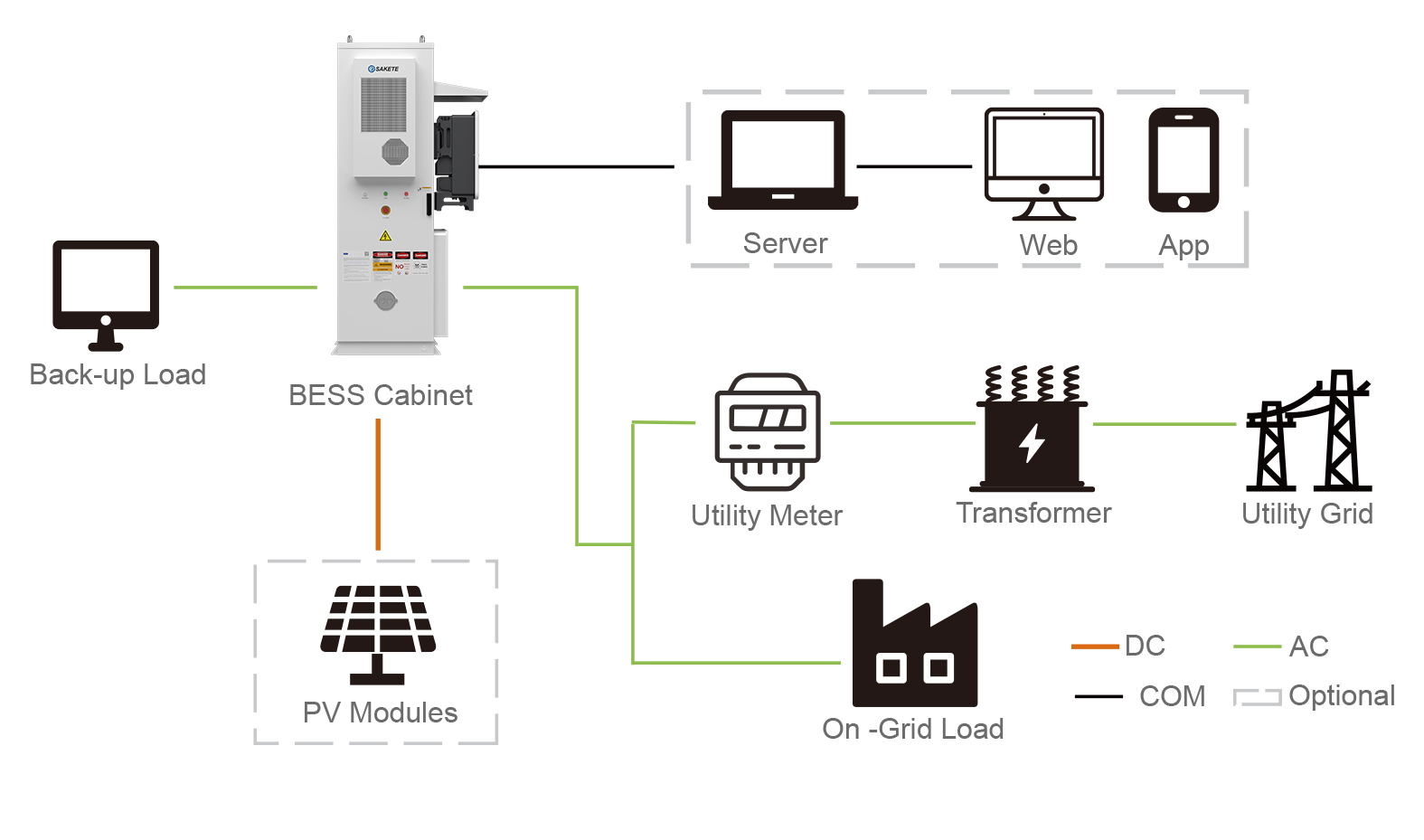

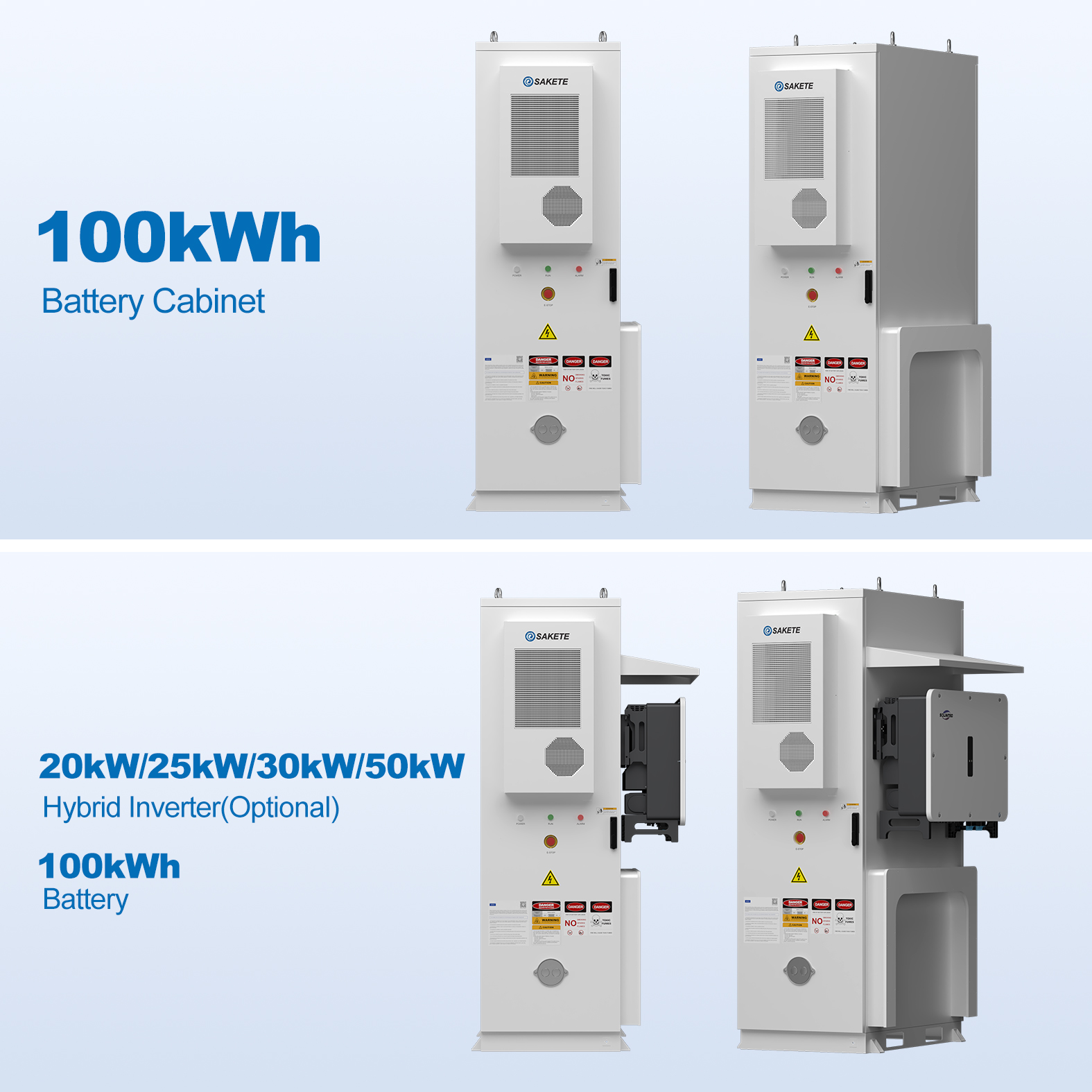

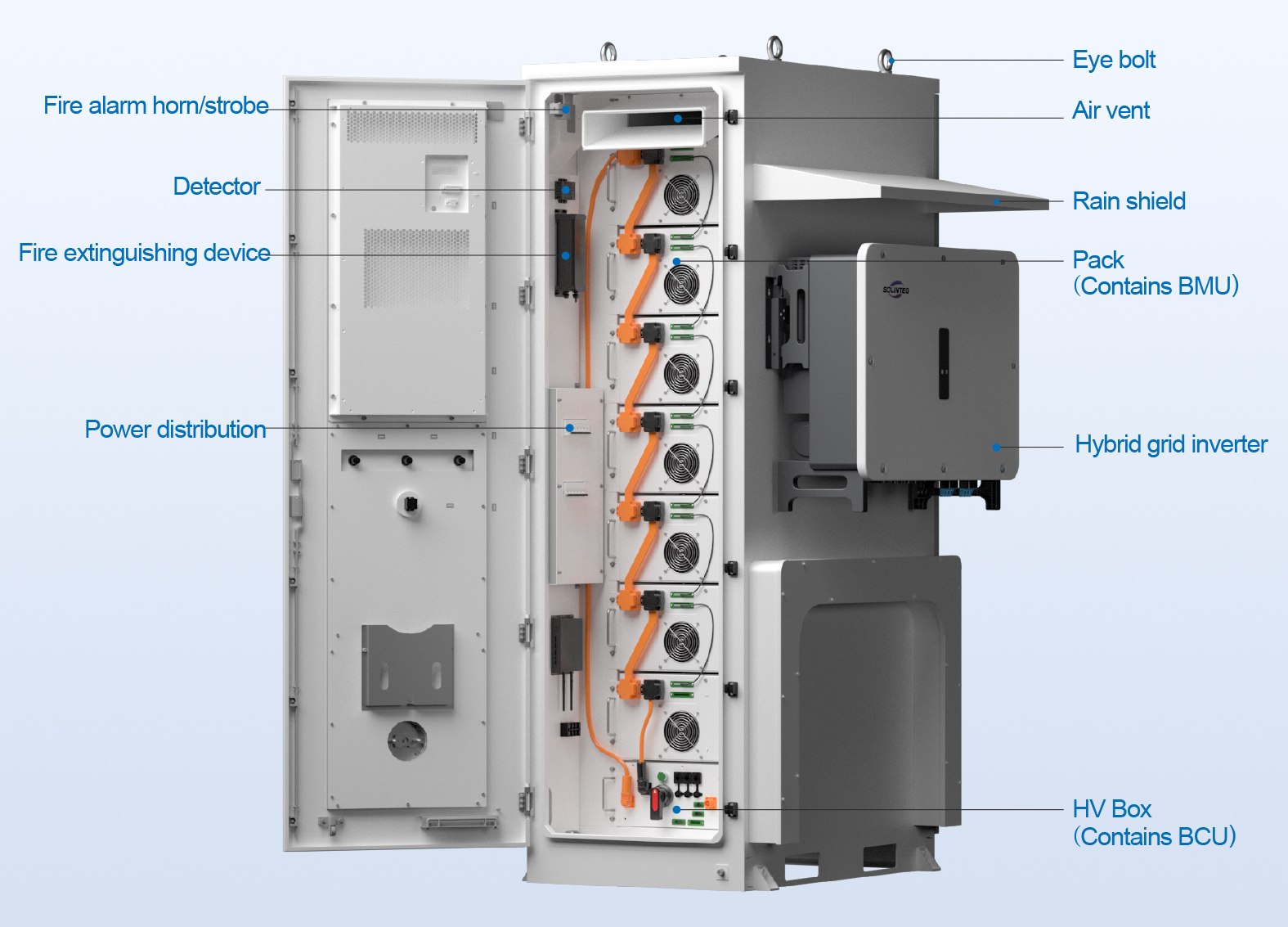

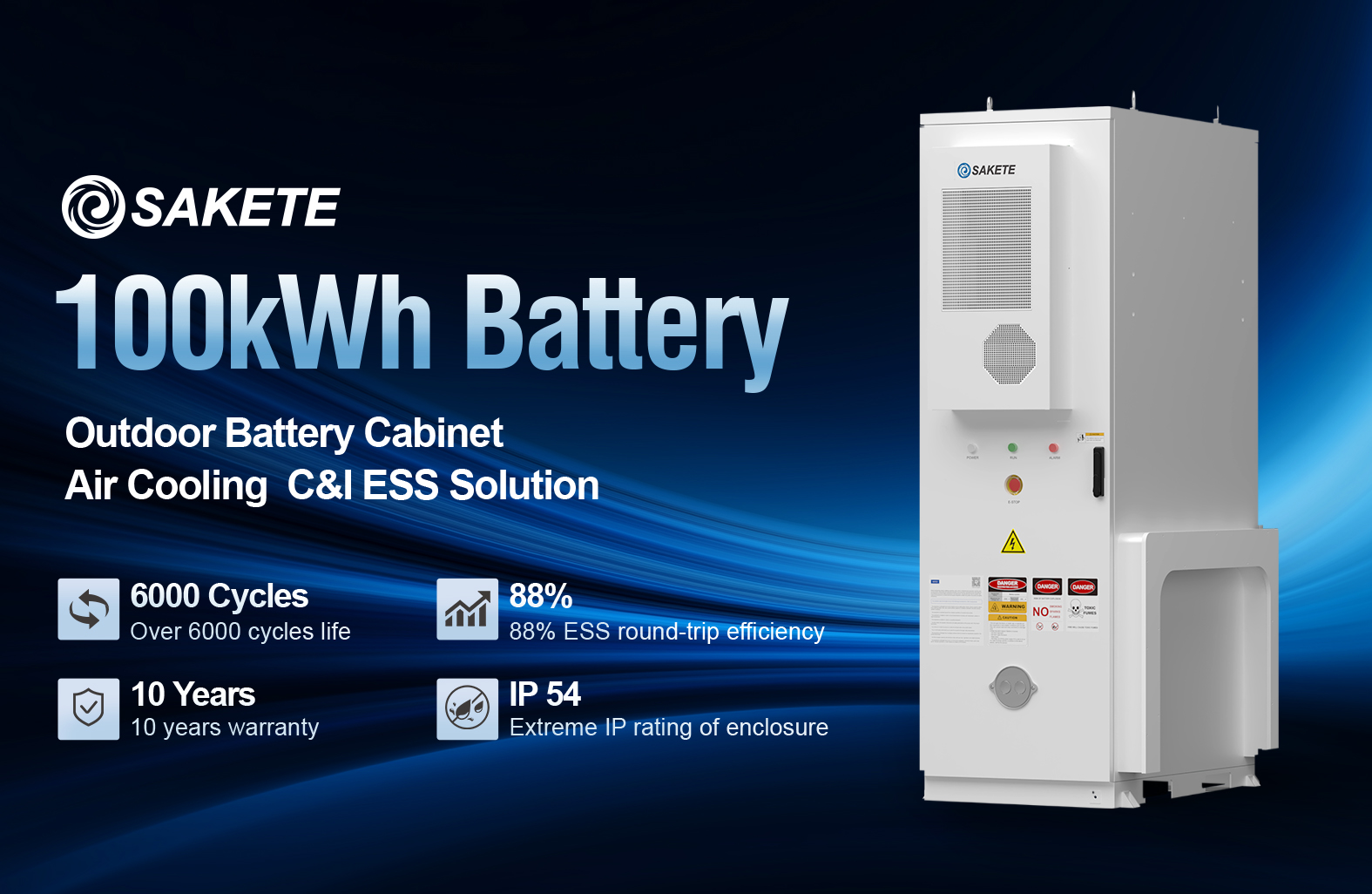

Product Introduction: SKTESS100 is a DC battery cabinet designed for outdoor installation, featuring intelligent air cooling for efficient heat dissipation. Paired with a wall-mounted hybrid inverter, it delivers stable and reliable AC output. Ideal for small commercial and industrial applications including office parks, commercial buildings, and EV charging stations.

Technical Specifications

Model	SKTESS72	SKTESS86	SKTESS100
Battery Type	LiFePO4
Battery Capacity	280Ah
Pack Configuration	1P16S*5	1P16S*6	1P16S*7
Nominal Capacity	71.68kWh	86.016kWh	100.352kWh
Nominal Voltage	256V	307.2V	358.4V
Operating Voltage Range	224~284V	268.8~304.8V	313.6~397.6V
Max.Continuous Charge / Discharge Current	140A
Charge / Discharge Rate	0.5C
Ingress Protection	IP54
Anti-Corrosion Grade	C3 (C4 Optional)
Cycle Life	Cycle Life ≥6000 /5 Years (@25°C ±2°C, 0.5C /0.5C,70% EOL)
Charge Operating Temperature	0°C~45°C
Discharge Operating Temperature	-20°C~50°C
Operating Temperature Range	-20°C~50°C
Relative Humidity	5~95 %(non-condensing)
Communication	CAN/RS485
Cooling	Air Cooling
Dimension	(851.5±0.5) x(1325±5) x2280mm
Weight	≤1050kg	≤1150kg	≤1250kg

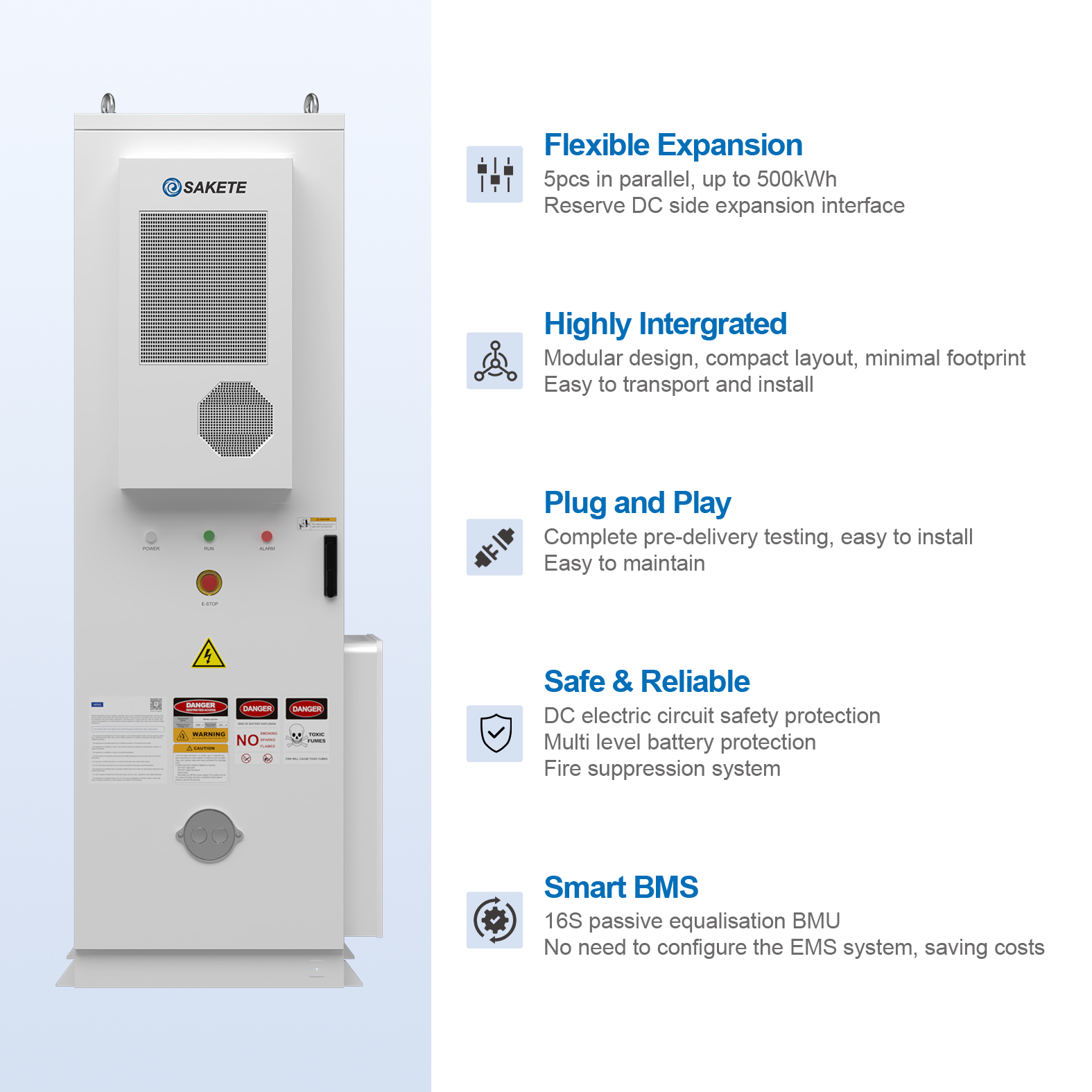

Products Advantages

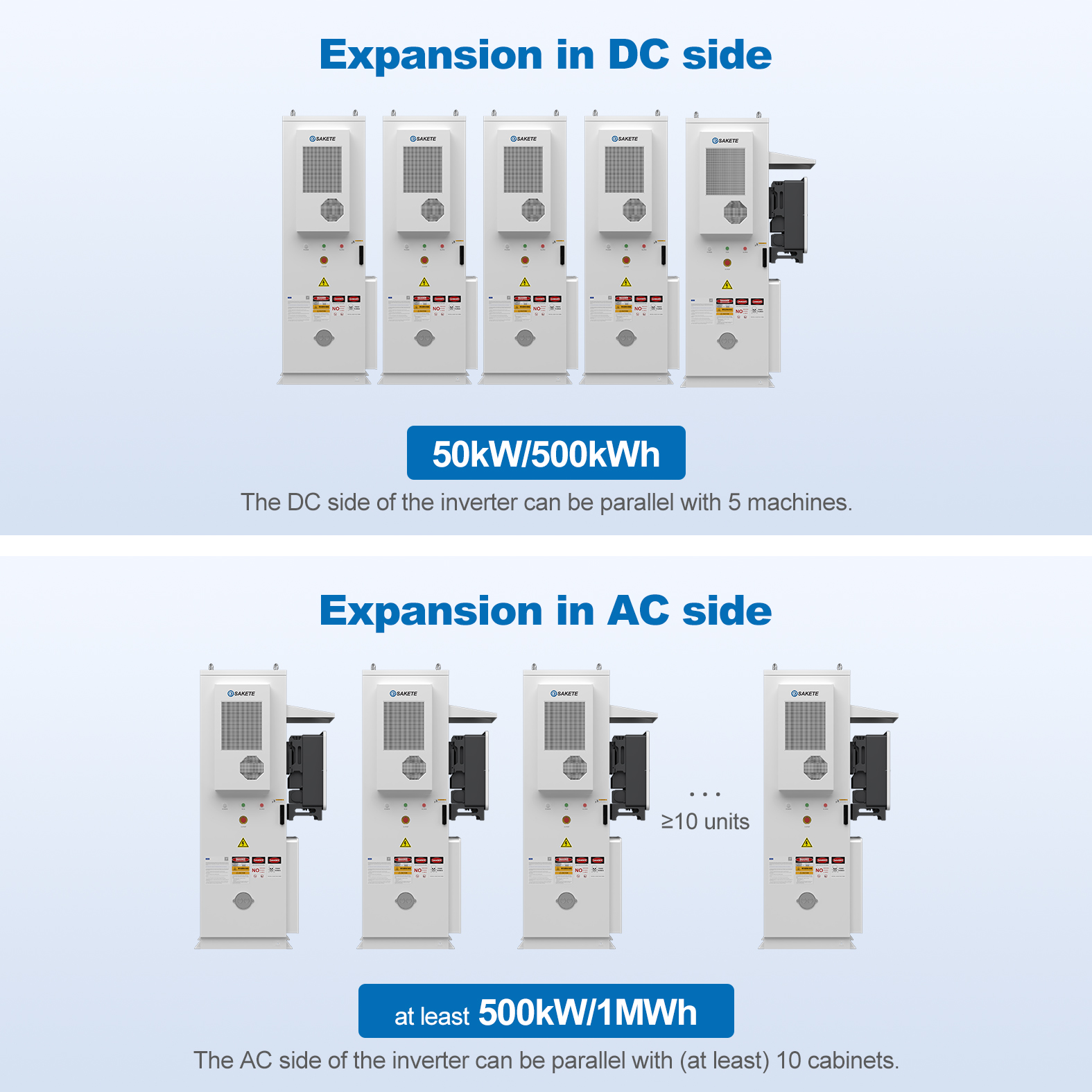

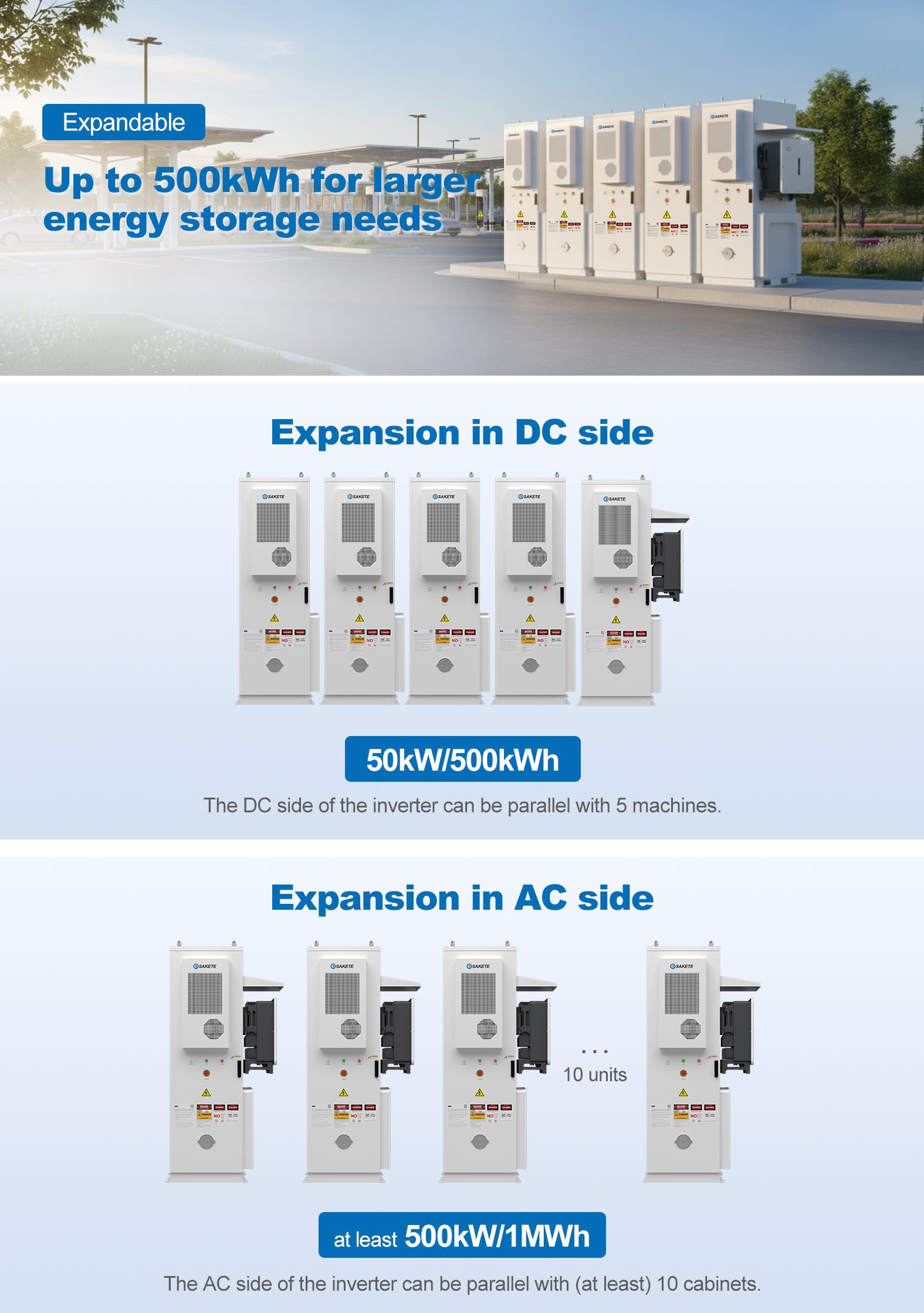

This product employs a modular design, featuring an externally mounted energy storage inverter. It offers flexible adaptation to diverse power application scenarios, supports rapid on-site installation, and enables multiple units to be interconnected for capacity expansion according to customer requirements, thereby achieving larger-scale configuration upgrades.

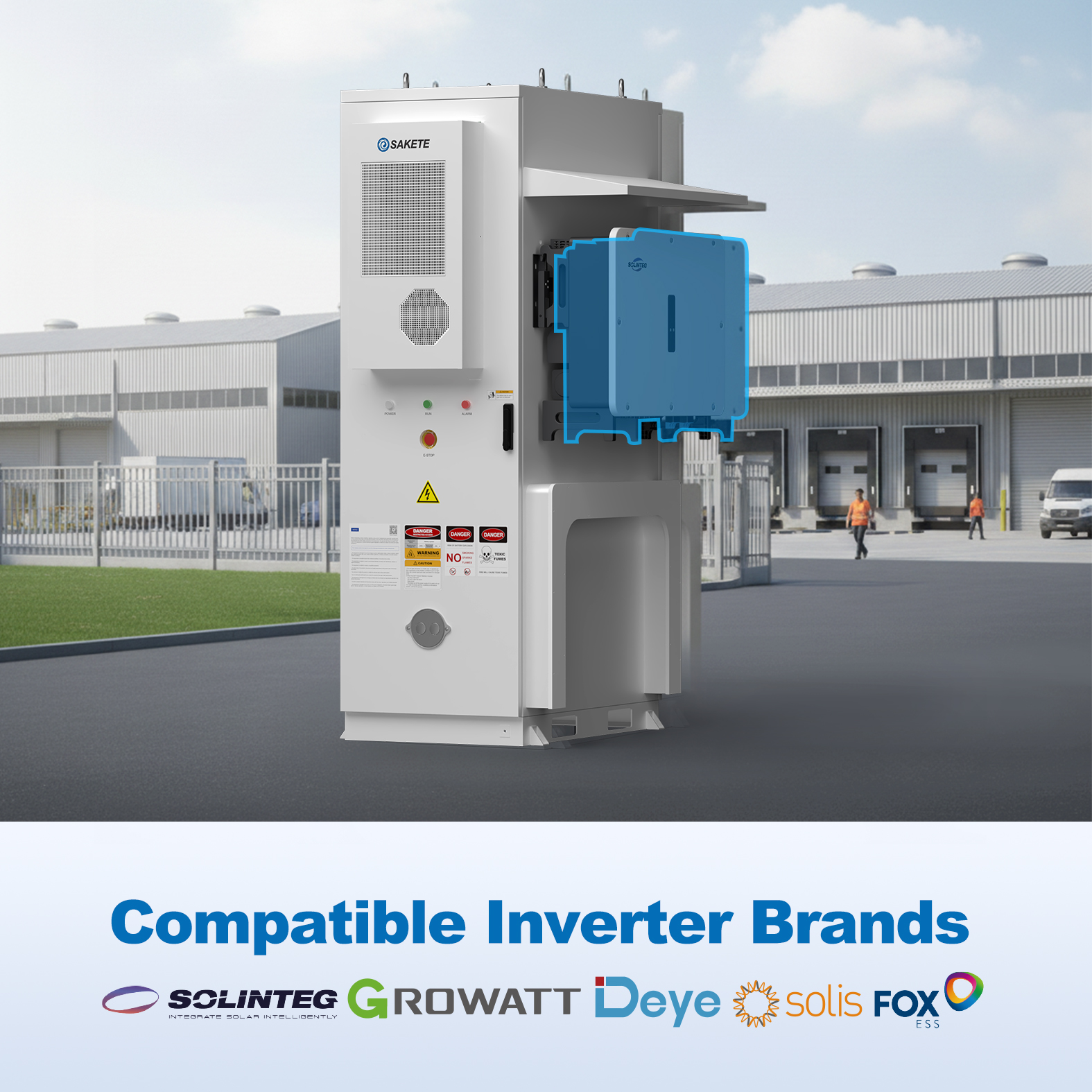

This product can be matched with inverters from multiple brands according to customer requirements.

Products Description

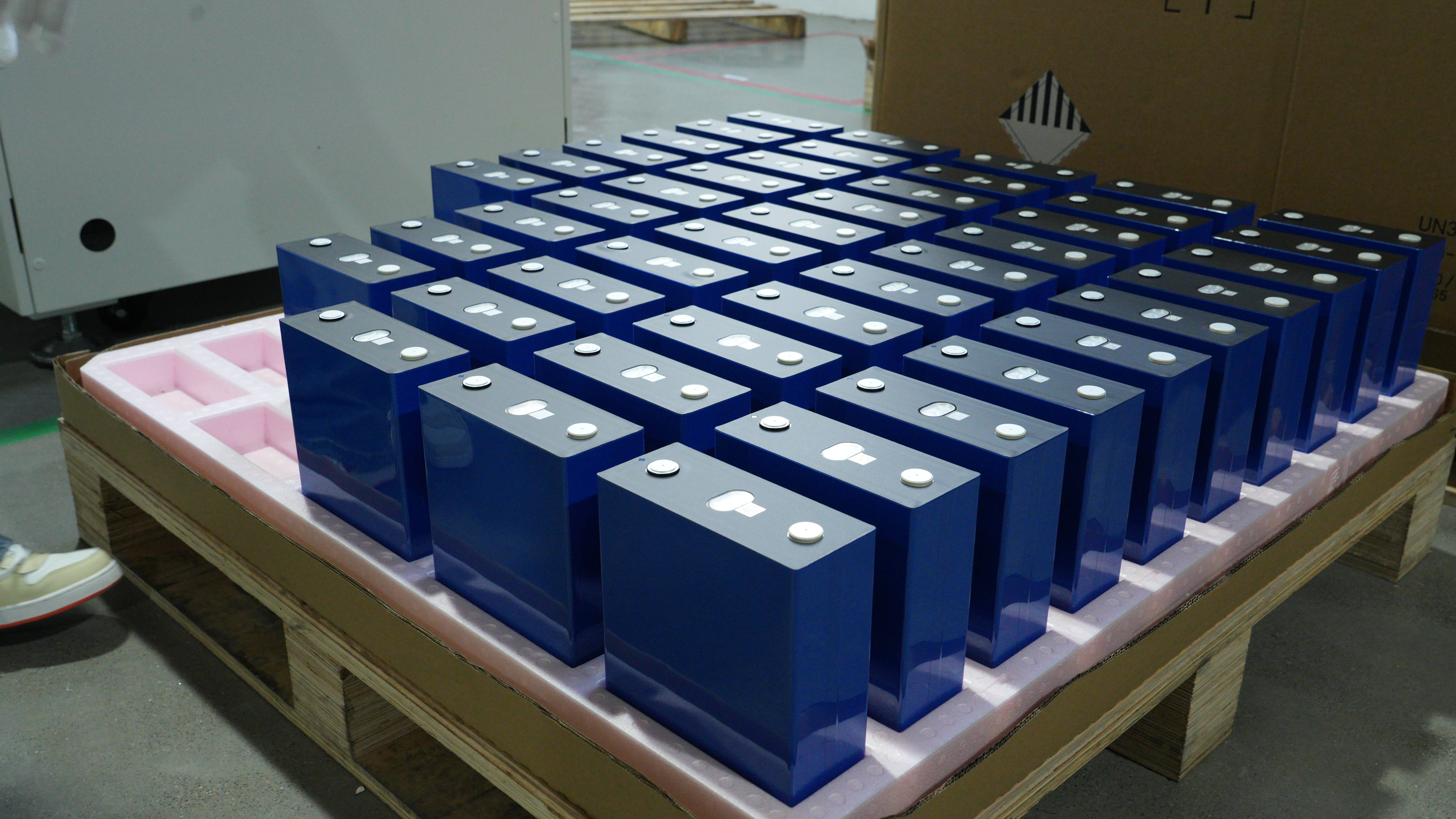

LiFePO4 Lithium Battery

This product utilises lithium iron phosphate batteries with a cell capacity of 280Ah. The nominal cell voltage is 3.2V, with an operating voltage range of 2.5V to 3.65V per cell. The monthly self-discharge rate does not exceed 3%. These cells offer extended longevity, robust battery safety, and excellent consistency. The battery has passed multiple stringent national testing protocols, with safety performance meeting national standards.

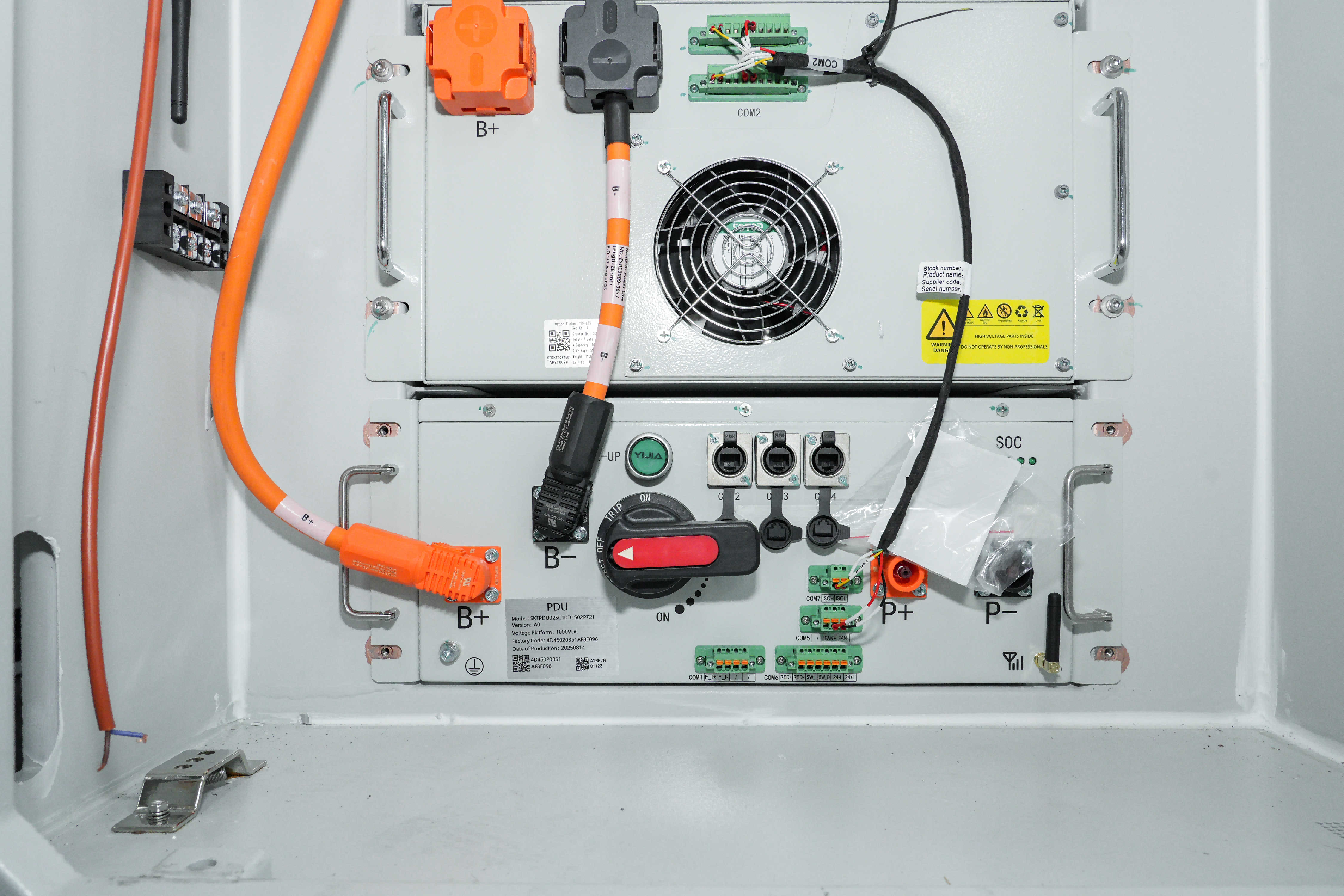

HV Box

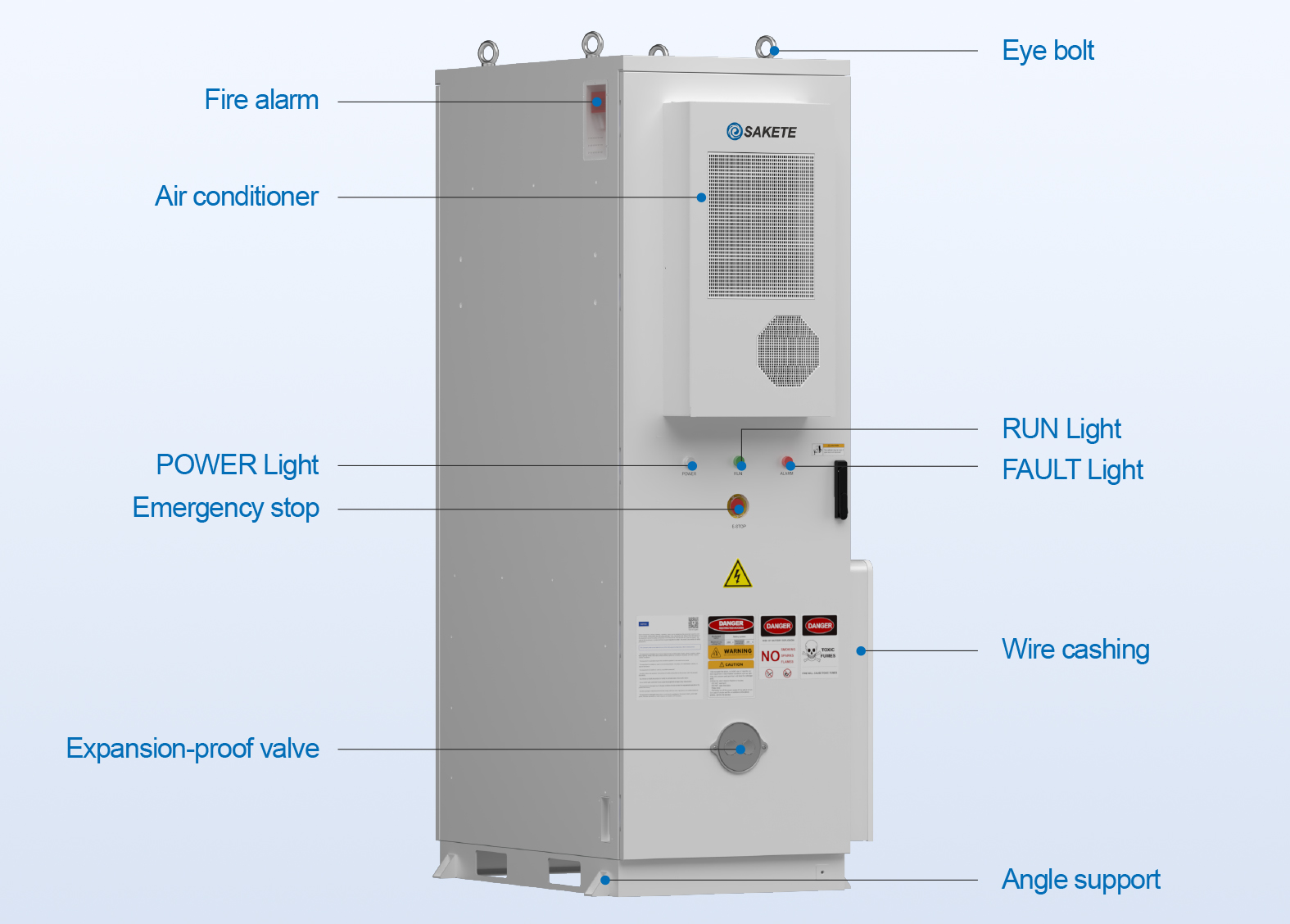

The high-voltage box features an integrated, compact design with optimised dimensions. It incorporates multiple interfaces for strategy expansion, including fire alarm, air conditioning, temperature detection, dry contacts, and RS485. Utilising DC-side power extraction eliminates the need for external power supply, enabling full black start capability for the system.

Monitoring Cloud Platform

The cloud platform supports direct wireless transmission of battery-side parameter information via 4G/WiFi/Bluetooth to the energy storage cloud platform, eliminating the need for an EMS system configuration. It further enables core functionalities including real-time battery system information and status queries, remote alarms, software/hardware traceability, as well as over-the-air BMS firmware upgrades and parameter calibration.

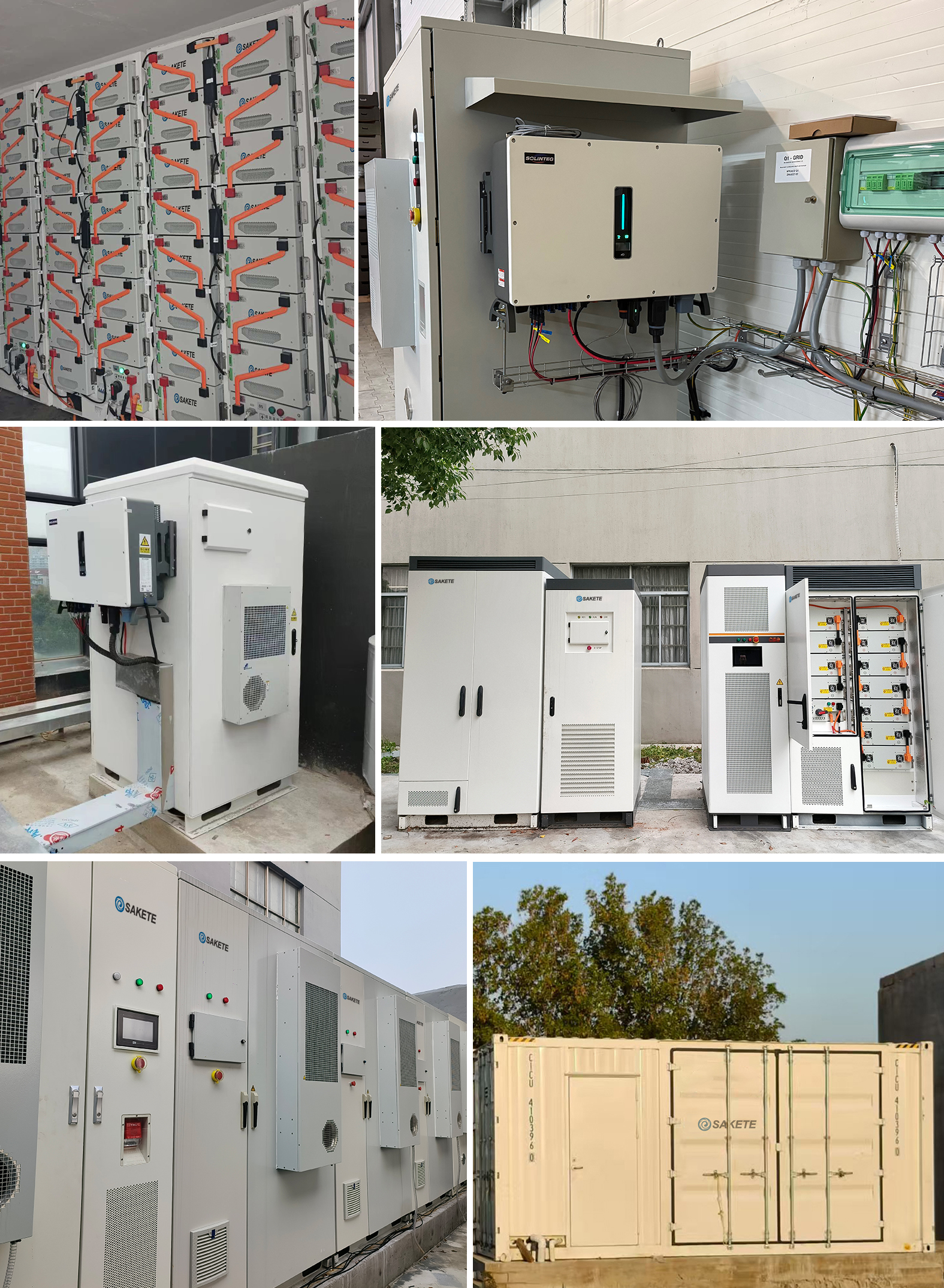

Projects

Product Packaging

Our Strengths

Integrating research, development, production, sales and service
Providing integrated green energy solutions for multiple scenarios
Comprehensive product portfolio featuring a diversified industrial, commercial and residential storage product matrix
Robust ‘3S’ (BMS, EMS, PCS) product architecture ensuring seamless, stable operation of smart industrial, commercial and residential storage systems
Possesses OEM & ODM capabilities
Products hold industry certifications guaranteeing safety, reliability and efficiency
24-hour professional technical support team

Frequently Asked Questions

What applications are best suited for the SKTESS100 battery cabinet?

The SKTESS100 is designed for outdoor small-scale commercial and industrial applications, including office parks, commercial buildings, EV charging stations, and smart microgrids.

What battery technology does the system utilize?

The cabinet utilizes advanced Lithium Iron Phosphate (LiFePO4) battery cells with a cell capacity of 280Ah. These cells offer superior safety, long cycle life (≥6000 cycles), and a monthly self-discharge rate of less than 3%.

Does the cabinet support outdoor installation and environment extremes?

Yes, it features an IP54 protection grade, C3 anti-corrosion grade (C4 optional), and an intelligent air cooling system. This enables reliable operation within a discharge temperature range of -20°C to 50°C.

Is the system modular and expandable?

Absolutely. The system employs a modular design with an externally mounted inverter, allowing multiple units to be interconnected easily to expand energy capacity according to customer scaling needs.

How is the battery cabinet monitored?

It features a Monitoring Cloud Platform that transmits battery parameter data directly via 4G, WiFi, or Bluetooth. Users can query real-time status, manage remote alarms, track software/hardware, and perform over-the-air (OTA) BMS firmware updates.

What safety mechanisms are built into the HV Box?

The integrated high-voltage box supports fire alarms, air conditioning status monitoring, temperature detection, and dry contacts. Additionally, it uses DC-side power extraction, eliminating the need for an external power supply and enabling full system black start capabilities.
