| Parameter | Details & values | |
|---|---|---|

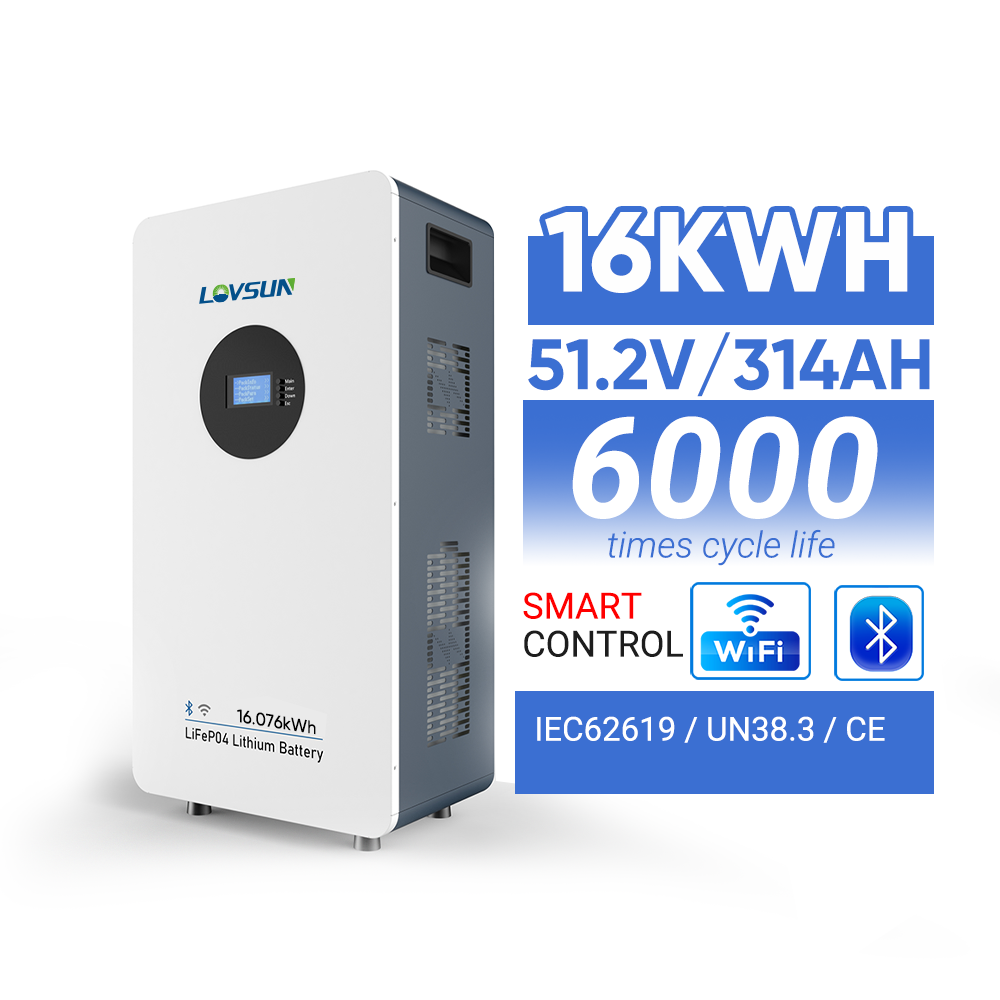

| Battery Type | LiFePO4(LFP) | |
| Nominal Voltage(V) | 51.2V | |
| Nominal Capacity(WH) | 16076WH | 10240WH |
| Usable Capacity(WH) | 14468WH/90%DOD | 8192WH/80%DOD |
| Design Life | 15+ Years (25°C) | |

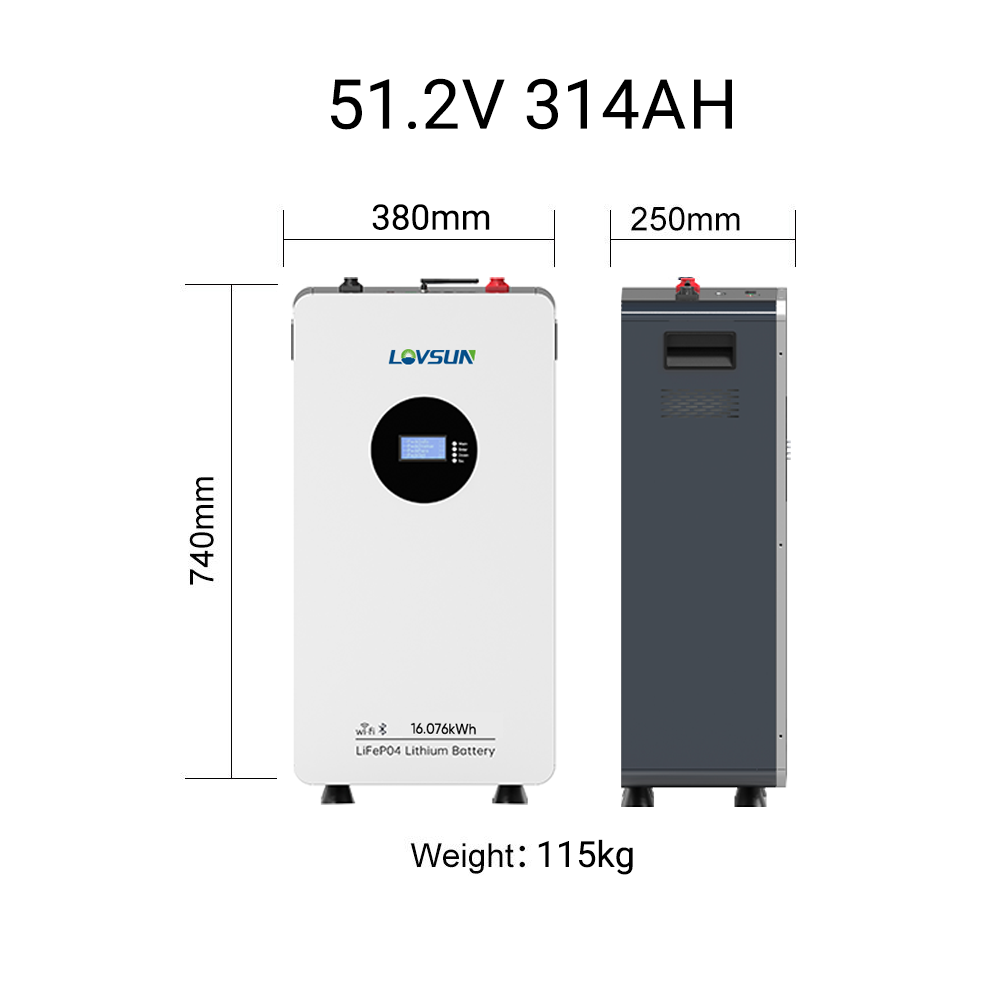

| Dimension(mm) | 780*380*250 | 580*950*250 |
| Weight(kg) | 120 | 115 |
| Cycle Life | >6000, 25°C | |
| Discharge Cut-off Voltage(V) | 43.2V | |
| Max Charge Voltage(V) | 58.4V | |
| Charge/Discharge Current(A) | 50A (Recommended) / 100A (Max) | |
| Internal Resistance | ≤30mΩ | |
| Power Consumption | <2W (Work) / <100mW (Sleep) | |
| Monitoring Parameters | System voltage, current, cell voltage, cell temperature, module temperature | |
| Communication | CAN / RS-485 / RS-232 | |
| Operating Temperature Range | -10°C ~ 50°C | |
| Transport or Storage Temperature Range | -20°C ~ 45°C | |
| Humidity | 15% - 85% (No Condensing) | |
| Product Warranty | 10 Years | |
