Grade a Lifepo4 3.2V 20A 32Ah 100AH 105AH Hithium 150AH 202Ah 320Ah Lfp 117Ah Catl Calb Rept 304ah 314Ah Lithium Battery Cells

Product Description

Product Image
Product Image
📍 Current Stock Locations

We have sufficient stock available in the following locations for fast shipping:

China Location
EU Poland Location
Germany Location
US Location
  • 3.2V LiFePO4 cells
  • 12V / 24V LiFePO4 battery packs
  • 48V energy storage systems
  • All-in-one battery packs

It is the best time to arrange quick shipping! Contact us to get more details.

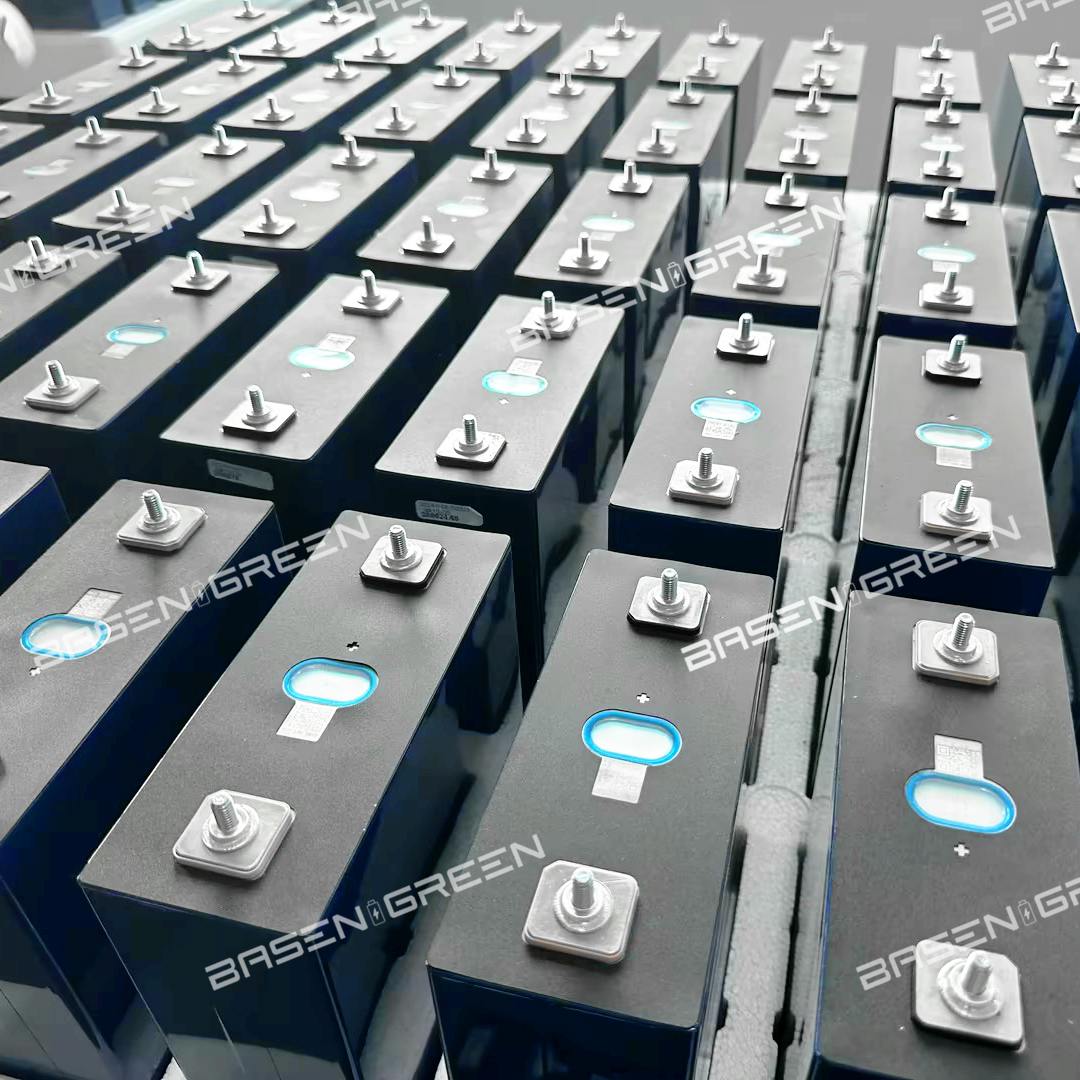

Product Specs Image 1

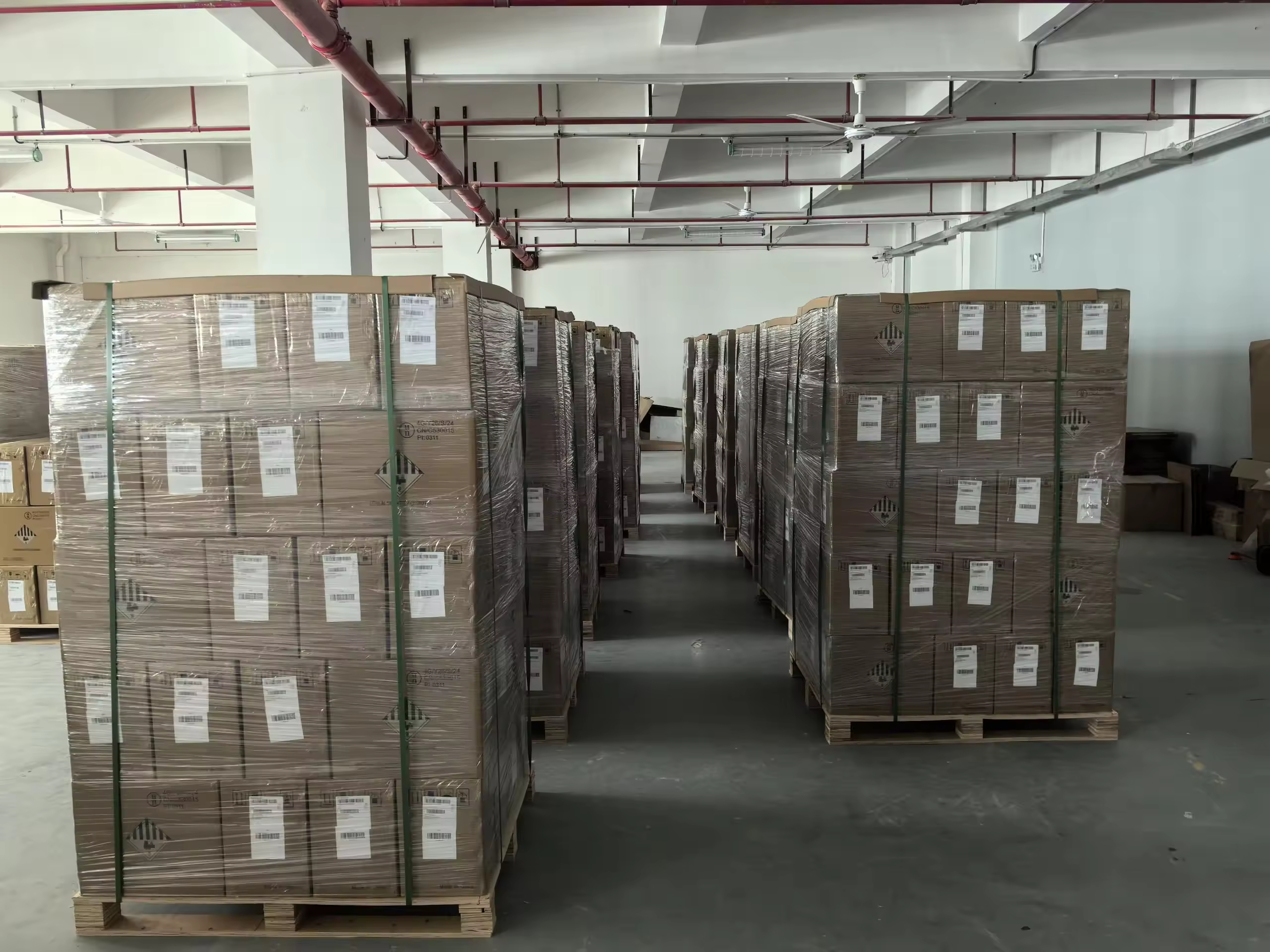

Product Specs Image 2
Product Specifications
Model Voltage (V) Capacity (Ah) AC Impedance Resistance (mΩ) Cycle Times Weight (g) Dimension H*W*T (mm)
LF50F 3.2 50 ≤2.0 1500 1050±100 130*148*27
LF100L 3.2 100 ≤0.5 5000 1985±100 118*160*50
LF105 3.2 105 ≤0.5 4000 1980±100 196*130*37
LF160 3.2 160 ≤0.5 3500 3000±100 157*174*54
LF230 3.2 230 ≤0.5 4000 4140±124 174*207*54
LF280K 3.2 280 ≤0.25 8000 5490±300 207*173*72
LF302 3.2 302 ≤0.25 6000 5300±300 208*173*72
LF304 3.2 304 ≤0.5 4000 5480+164 208*174*72
M30 3.2 306 ≤0.25 10000 5600±300 208*173*72
M31 3.2 314 ≤0.25 8000 5600±300 208*173*72
LF320 3.2 320 ≤0.25 8000 5400±150 208*174*72
📝 Configuration Note:

Before placing an order, please verify the quantity required for your system:

  • For a 48V system, you will need 16 pieces.
  • For a 24V system, you will need 8 pieces.
  • For a 12V system, you will need 4 pieces.

Suitable for Systems: 12V 24V 48V 72V 96V 108V... Solar Energy Storage System

Application: Backup power for home energy storage systems, campers, RVs, yachts, etc.

These Ready to Ship (RTS) products allow you to select the quantity and complete payment directly. RTS orders receive priority processing.

Key Features & Kit Accessories

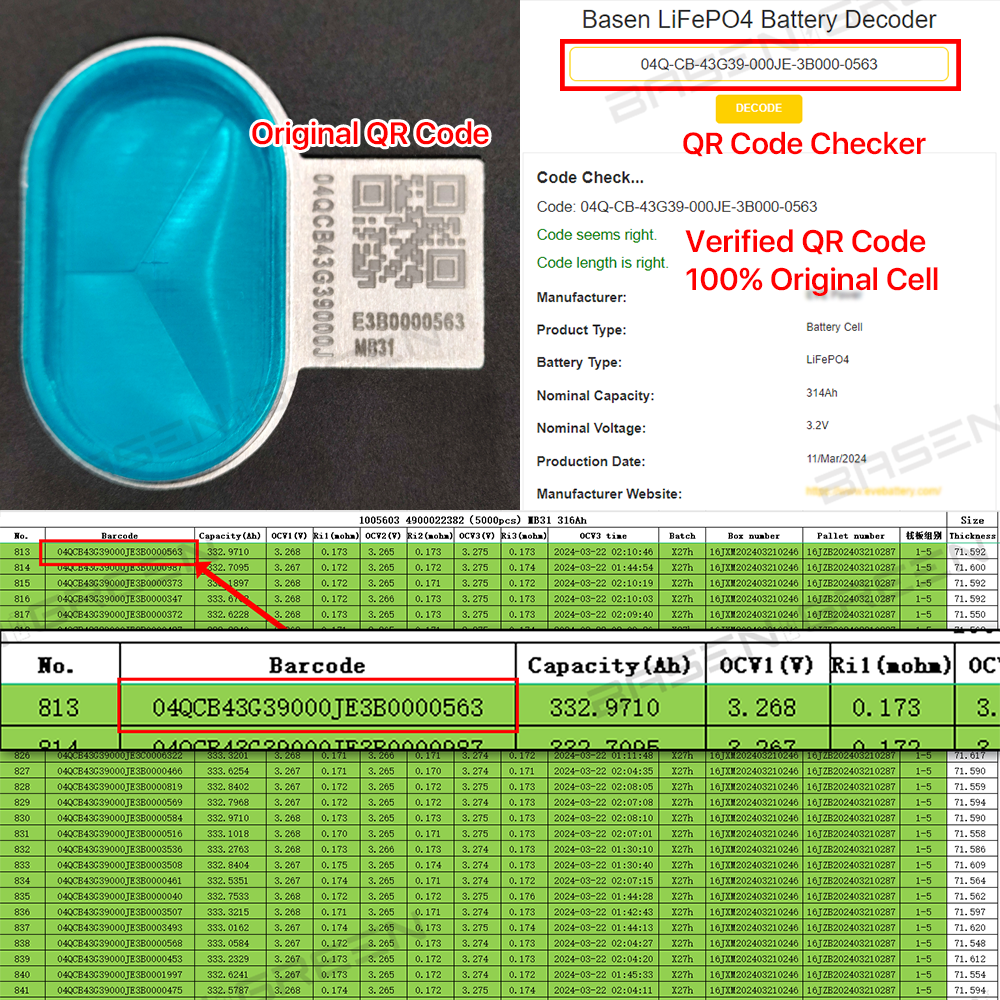

  • Grade A Quality: Brand new cells complete with original factory QR codes.

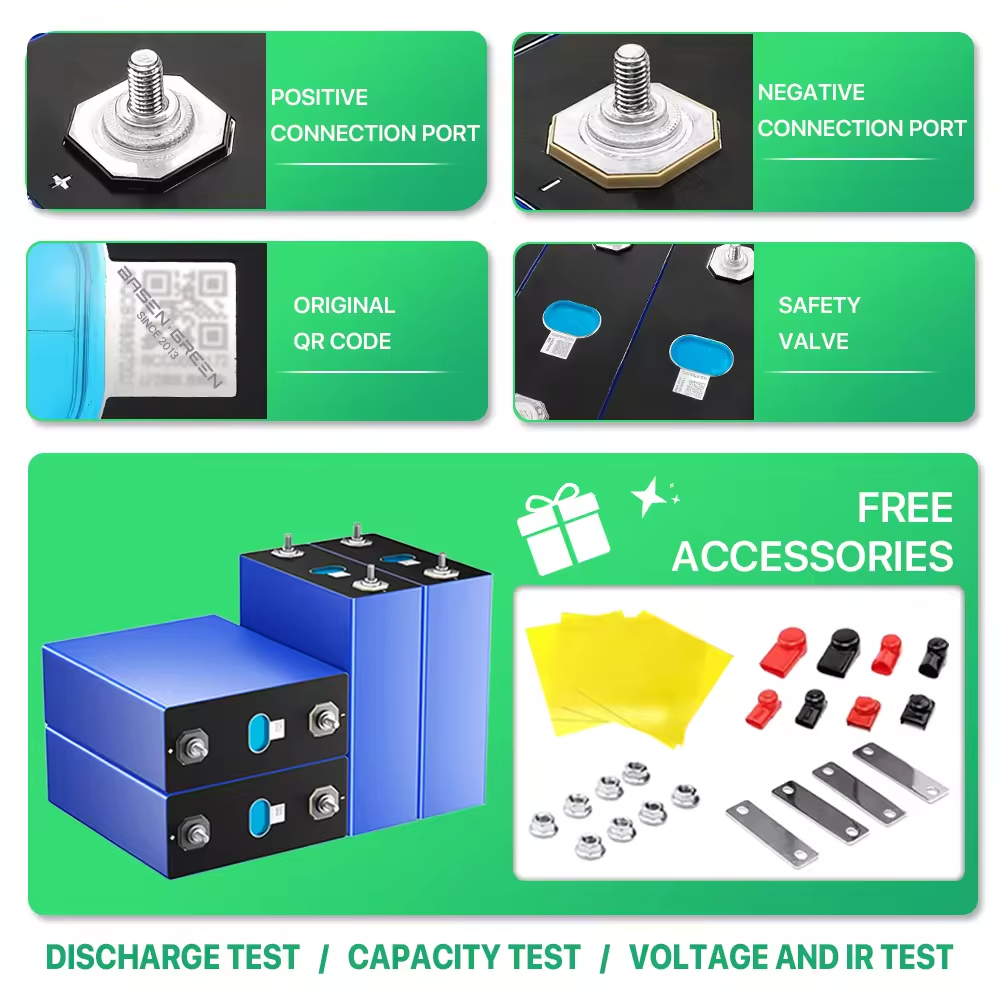

  • Complimentary Accessories: All LiFePO4 cells are shipped with free Busbars, Bolts, and Insulation boards.
    Example: If you purchase 4 pieces of batteries, we include 4 batteries, 4 busbars, 16 nuts, and 4 epoxy boards.
  • Busbar Dimensions:
    - 280Ah/304Ah: 90*20*2mm (copper plated with nickel) | Screw size: M6
    - 230Ah: 80*20*2mm (copper plated with nickel) | Screw size: M6
  • Strict Quality Testing: Prior to delivery, all batteries undergo strict testing for voltage, internal resistance, and capacity.
  • Direct Distribution: We distribute fresh factory-original stock for top battery brands including EV, CATL, LISHEN, CALB, and REPT.

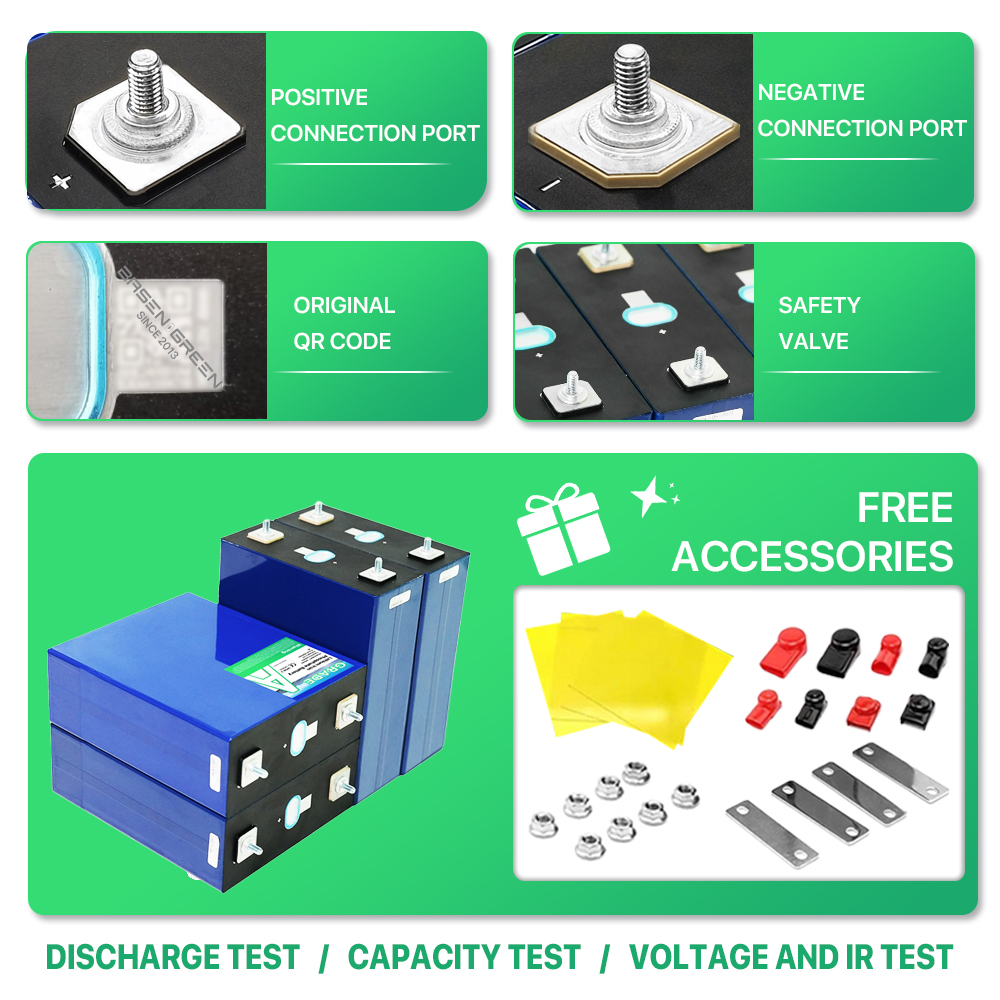

Battery Detail Image 1

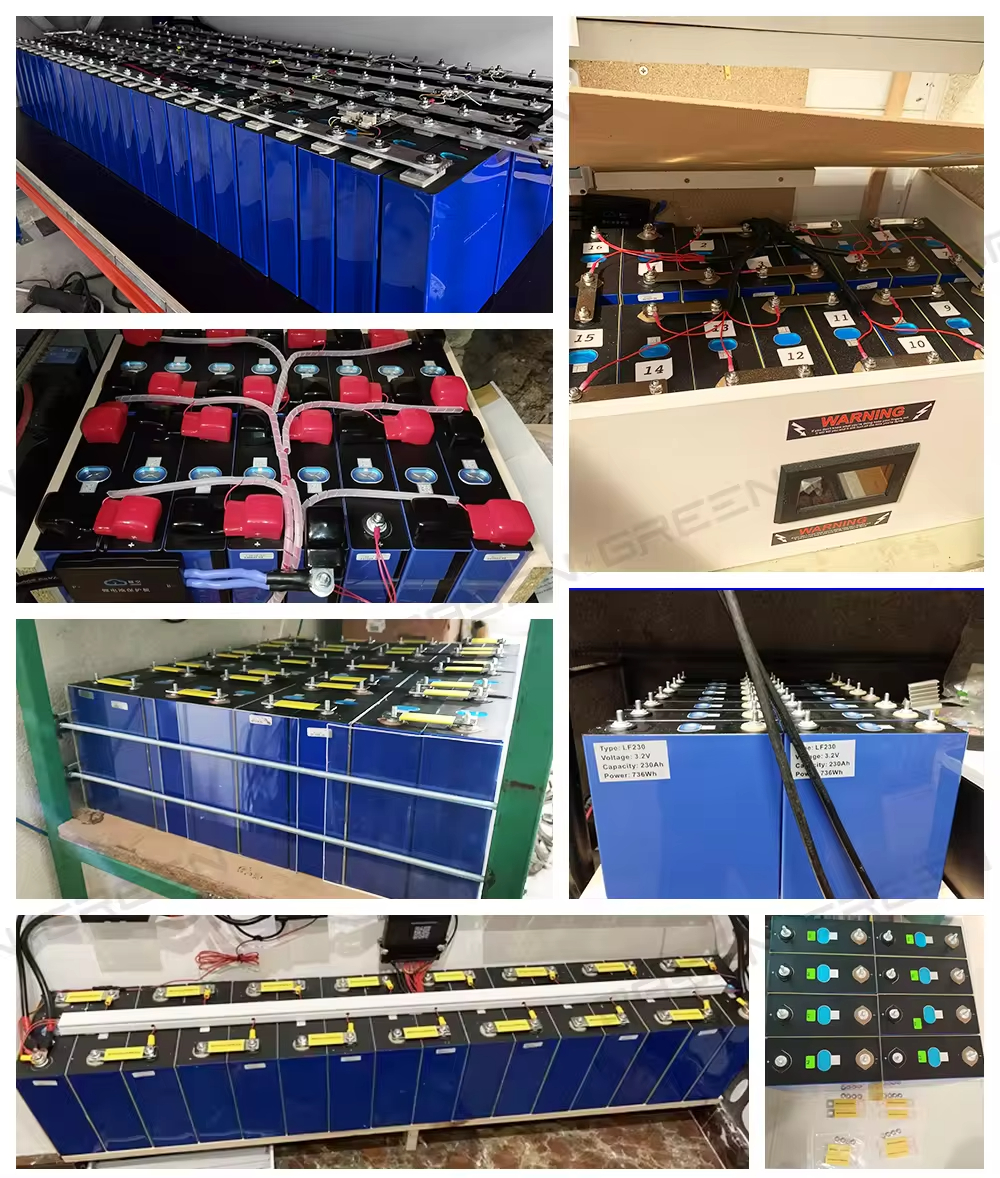

Battery Detail Image 2

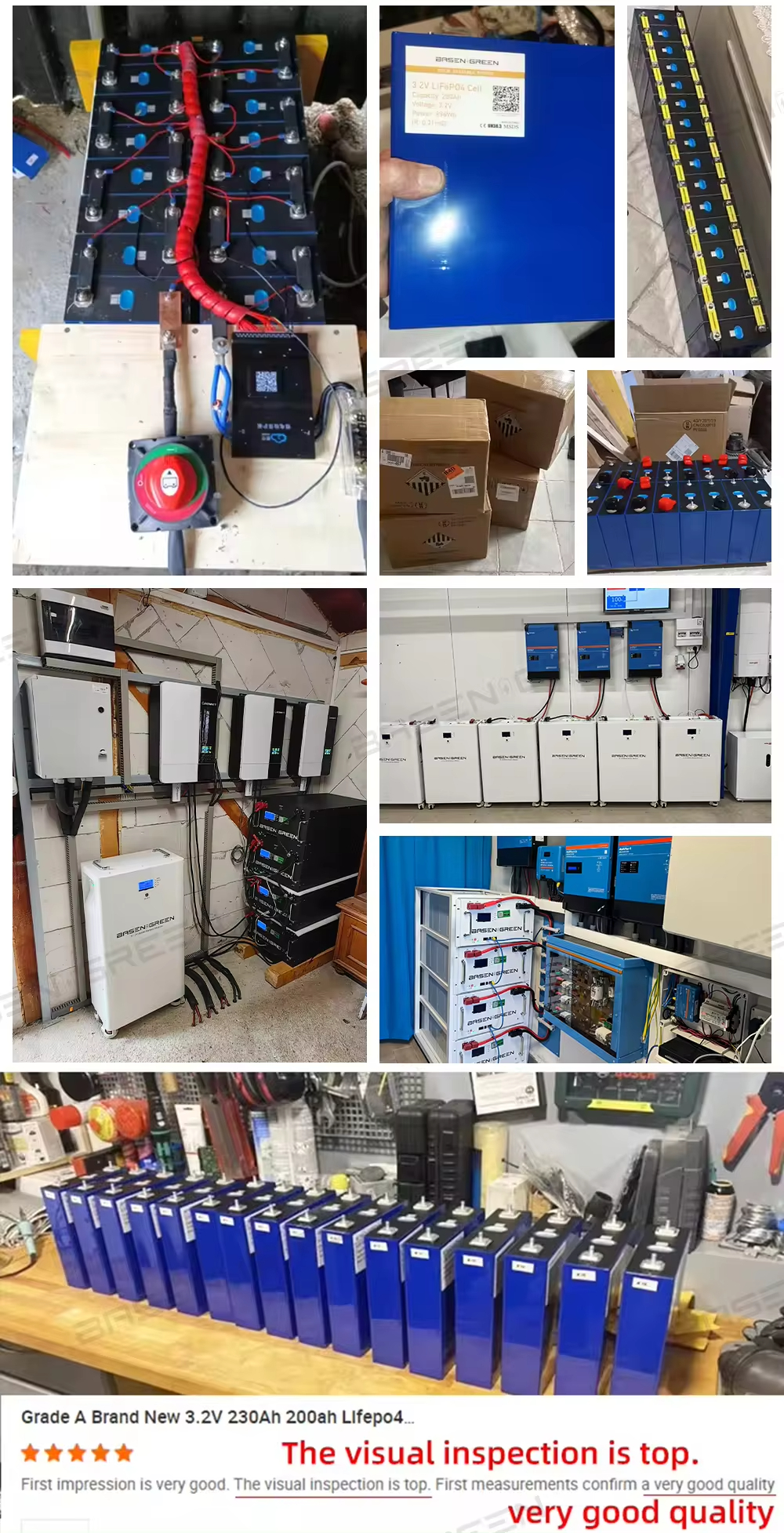

Battery Detail Image 3
Battery Detail Image 4
Battery Detail Image 5
Why Choose Us as Your Partner?

Expert Power Solutions: With 13 years of experience in the battery industry, we have served over 12,000 customers across 80+ countries. We maintain 4 overseas warehouses, achieving a repurchase rate of over 90%, an on-time delivery rate of 99.5%, and 98% positive feedback ratings.

Source & Distribution: All cells are guaranteed 100% original, brand new, Grade A. We receive fresh stock weekly to secure long-term stable supply for your projects.

Quality Testing Support: Each battery is strictly tested with matched voltage and internal resistance before shipping. We welcome third-party QC checks and online video verification.

Warranty Support: We operate local service centers and warehouses in Poland and Germany to offer complete technical assistance and warranty processing for verified manufacturer defects.

OEM/ODM Services: Our structural and software engineering team supports customization projects, while our marketing services help expand your reach locally.

Quality Assurance Process

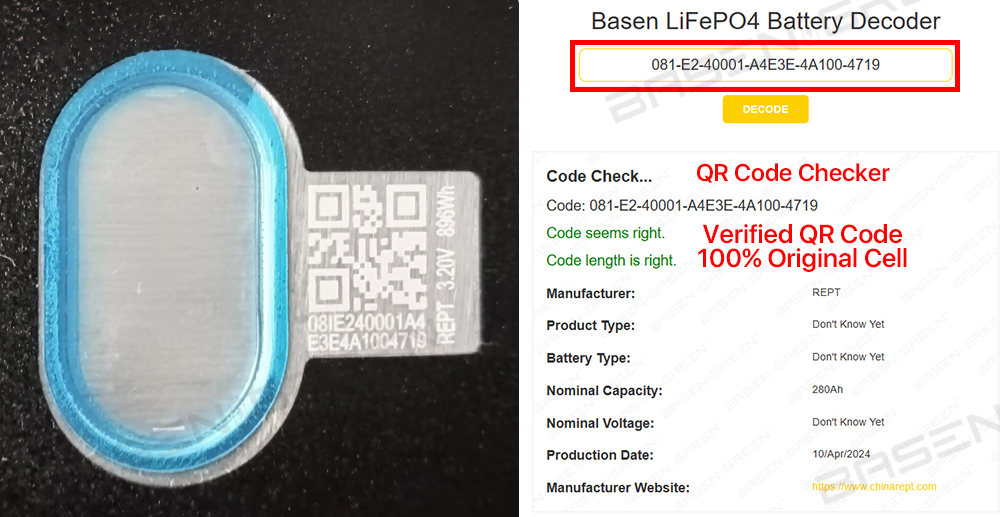

Quality Check Process 1

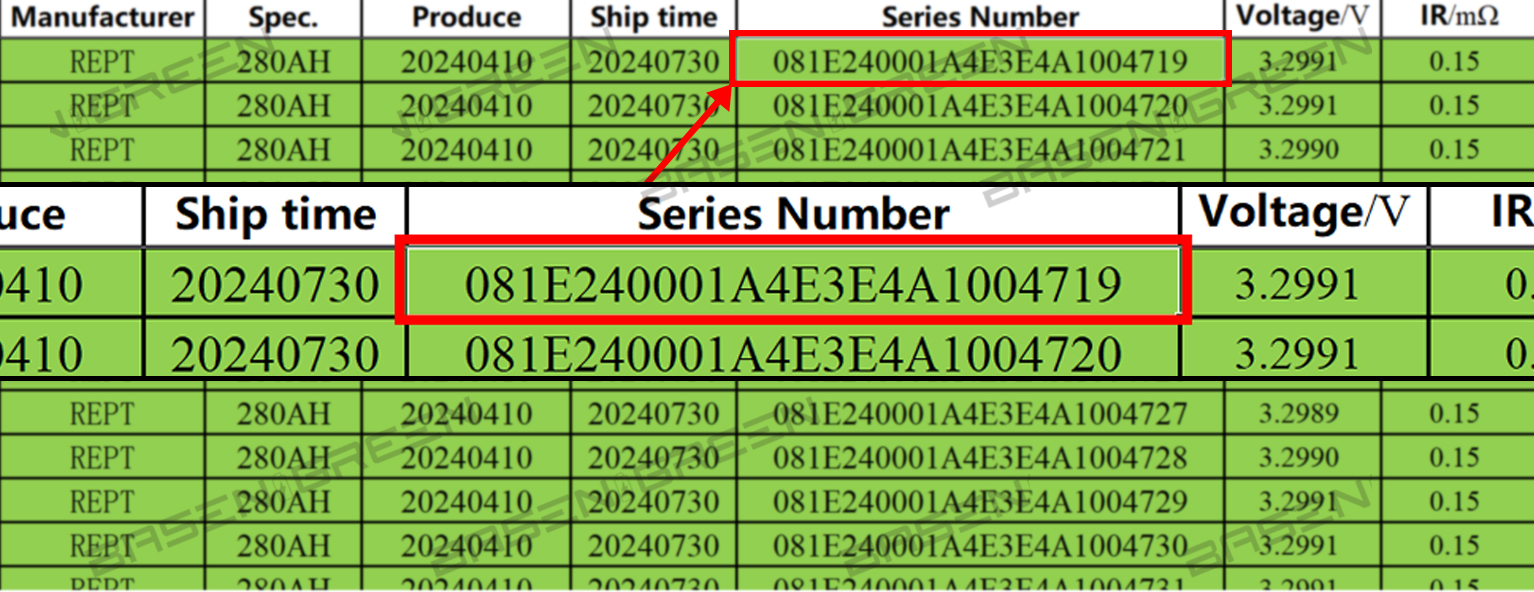

Quality Check Process 2

Every single battery is tested at least 3 times prior to shipment. This guarantees high quality, verified capacity, aligned voltage, and matched internal resistance.

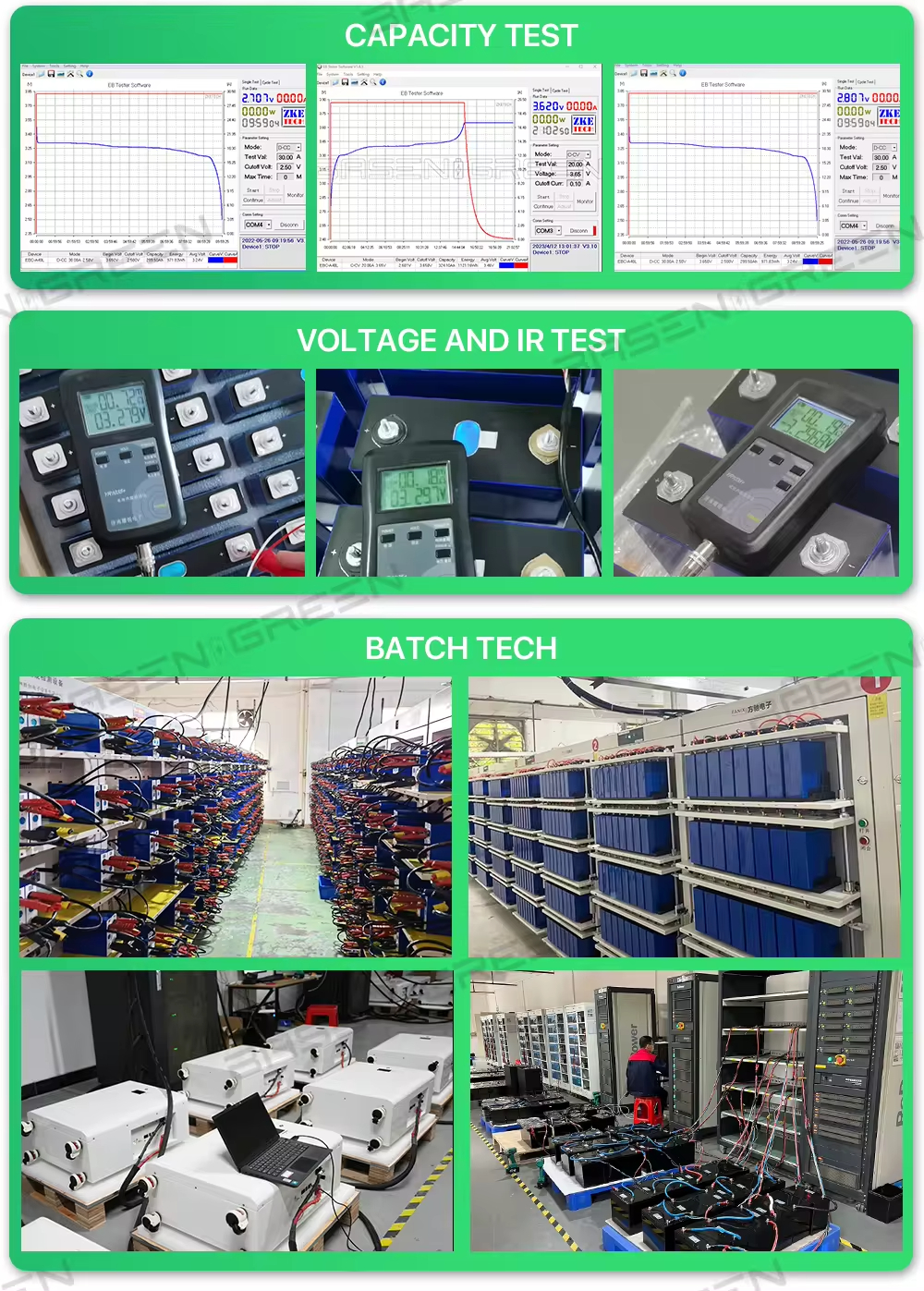

Testing Process Image 1

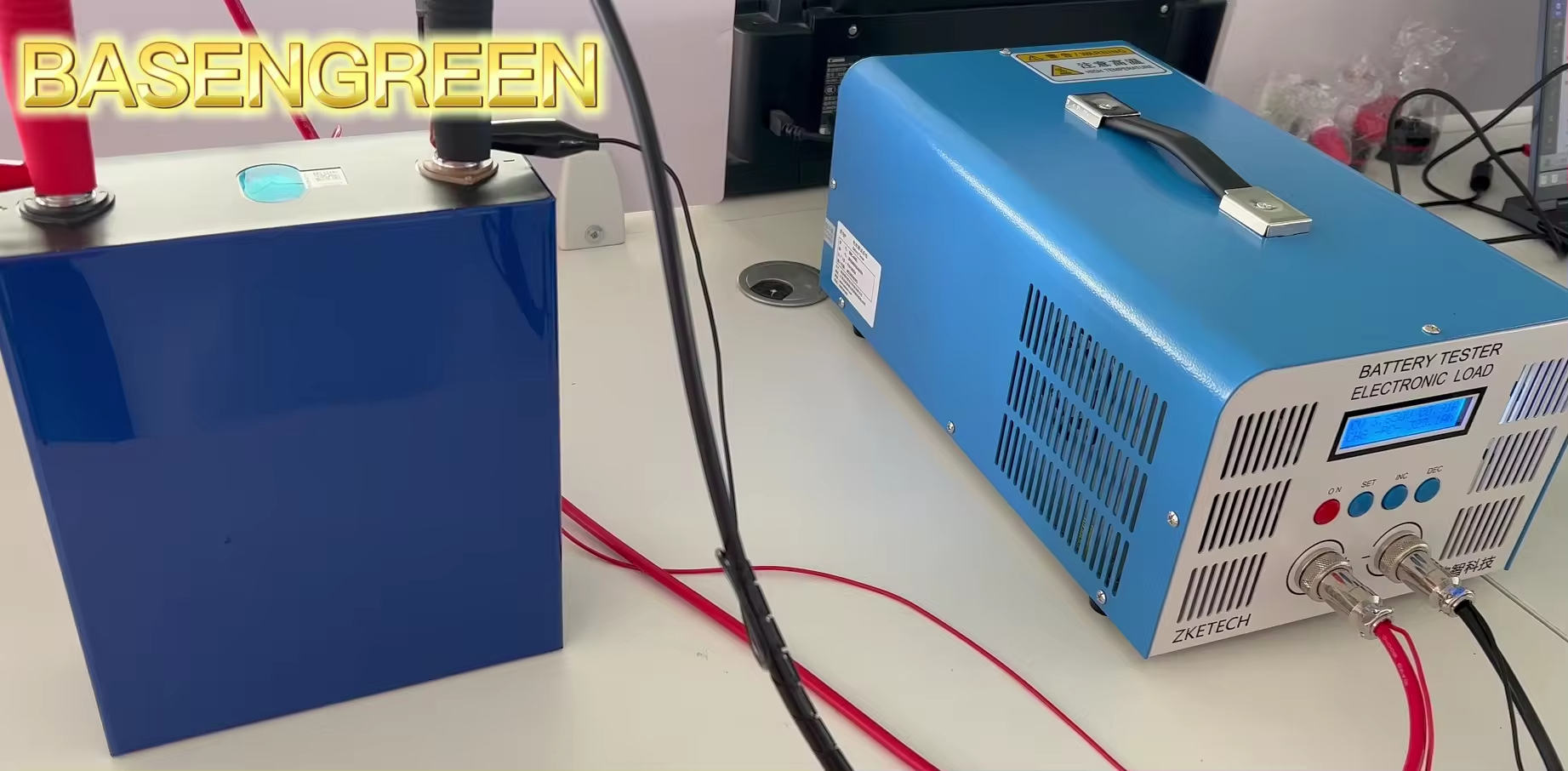

Testing Process Image 2

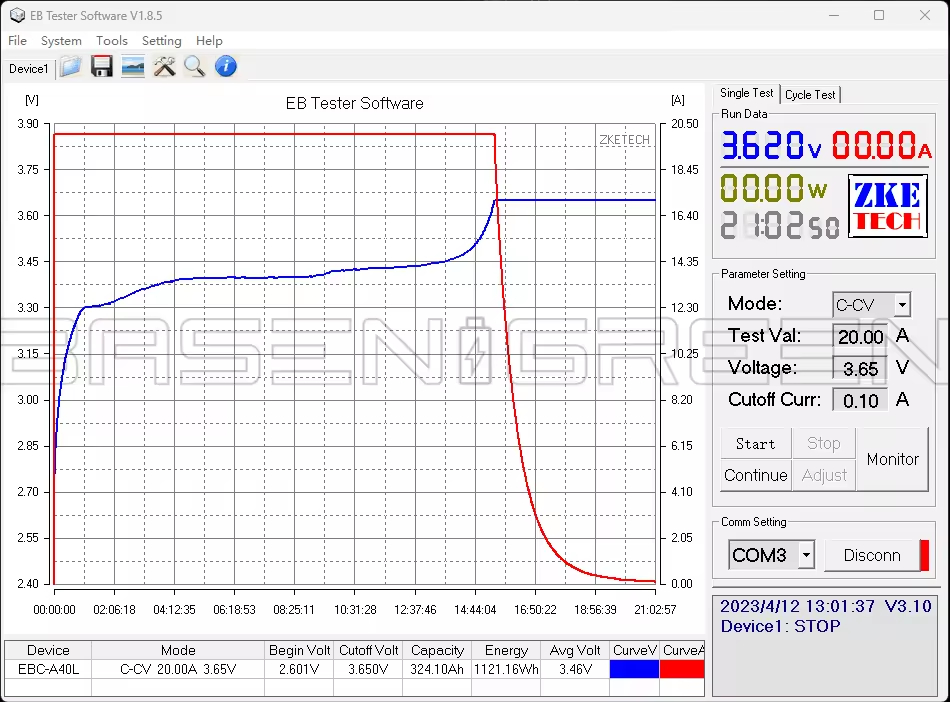

Testing Process Image 3
Overeas Inventory (Ready to Ship)

Quick Shipping From USA & EU Warehouses: 24-hour order processing, tracking number provided in 48 hours, and 7-day estimated delivery.

DIY Kits & Accessories
Product Type Model Specification
DIY Rack BOX BS-RM230-DIY 51.2V 230AH
DIY Rack BOX BS-RM280-DIY 51.2V 280AH/300AH
DIY Wall-mounted BOX BS-RM280-DIY 51.2V 280AH/300AH
DIY Rack Stackable BOX BS-OW280-DIY 51.2V 280AH/300AH
DIY BMS Kit BS-BMS-200A 16S 200A BMS with Bluetooth
Grade A LiFePO4 Cells
Product Type Model Specification
EV LiFePO4 Battery LF280K 3.2V 280Ah
EV LiFePO4 Battery LF304 3.2V 304Ah
EV LiFePO4 Battery MB30 3.2V 306Ah
EV LiFePO4 Battery MB31 3.2V 314Ah
12V Battery Packs
Product Type Model Specification
Battery Pack BG-12100 12V 100Ah with Bluetooth
Battery Pack BG-12230 12V 230Ah with Bluetooth
Battery Pack BG-12300 12V 300Ah with Bluetooth
Assembled 48V Batteries
Product Type Model Specification
Rack Mounted Battery BR-RM-LV 6kWh 51.2V 120Ah
Wall Mounted Battery BR-WM-LV 10kWh 51.2V 200Ah
Wall Mounted Battery BR-OW-LV 11.7kWh 51.2V 230Ah
Wall Mounted Battery BR-OW-LV 14.3kWh 51.2V 280Ah
Wall Mounted Battery BR-OW-LV 15kWh 51.2V 300Ah
Shipping Methods & Delivery Times
Ship From Logistics Type Delivery Time
China Warehouse DDP by Sea / Train 45-50 working days
Germany Warehouse DDP by DPD / UPS 3-7 working days
Poland Warehouse DDP by DPD / DHL 3-7 working days
USA Warehouse Local delivery 3-7 working days

What is DDP? DDP (Delivered Duty Paid) means all shipping costs, custom clearances, and destination import taxes are fully included in the price. There are no additional charges or hidden fees upon arrival.

DDP Shipping Availability: DDP options are also available for Canada, UK, Australia, Philippines, and other select regions. For areas without DDP coverage, we support standard CIF and FOB arrangements.

Official Certification: We provide full required certifications for safe battery transport, including CE, UN38.3, MSDS, and ROHS. Shipping can also be coordinated with your preferred local freight forwarder.

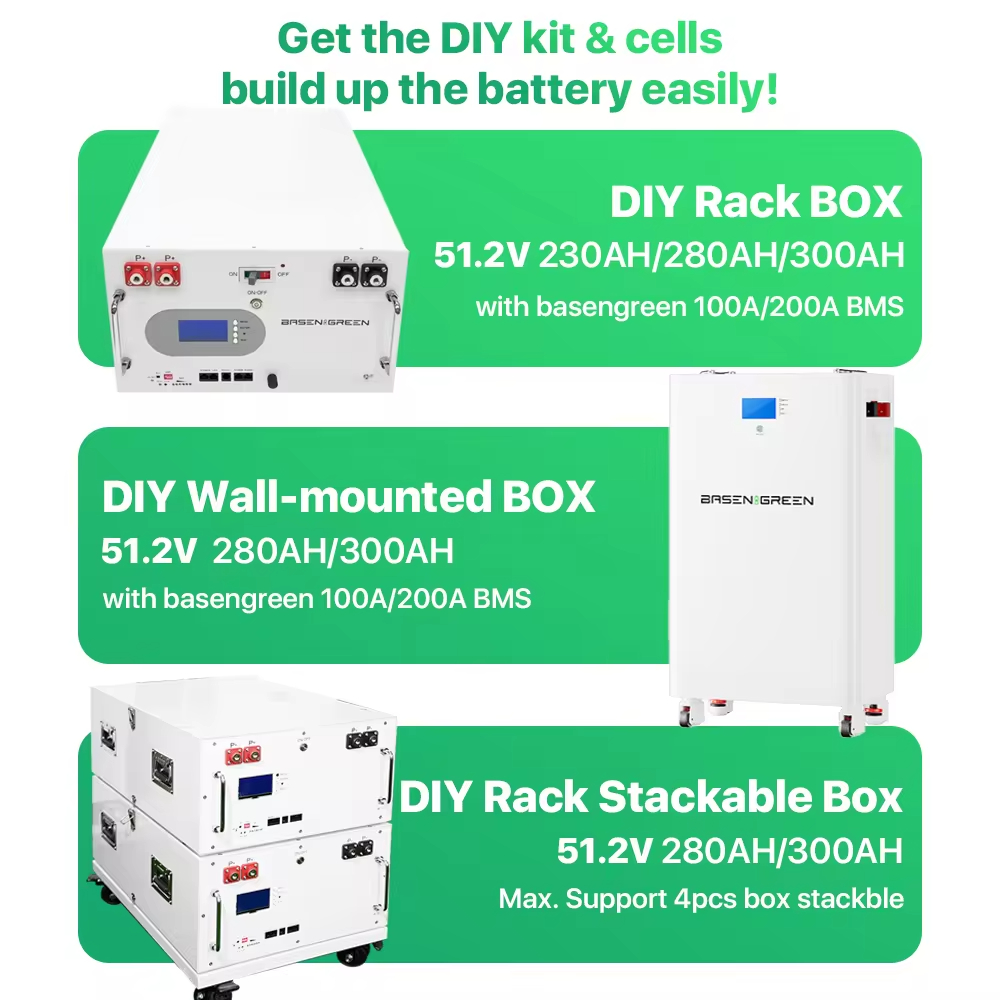

DIY Battery Box Kits
DIY Battery Box Kits
Standard DIY Box Components (Smart BMS with LCD and Bluetooth)
• 16S 200A Smart BMS with Bluetooth
• Active Balancer (Optional)
• DC Circuit Breaker (Optional)
• Integrated LCD display screen
• Metal casing shell, cover plate, and front panel
• Heavy-duty handle, screws, and flexible busbars
• Insulation board separator sheets
• USB-to-485 and Inverter communication cables
Packaging & Damage Prevention
Packaging Standard
  • Reinforced packing layout with high-density custom-fit internal protection foam.
  • Strictly uses 5-layer certified corrugated cartons for export of dangerous goods.
  • Full electrical insulation protection over positive and negative terminal connections.
  • Factory-verified testing documentation labelled clearly on each cell prior to shipment.
  • Custom heavy-duty wooden crates can be provided upon request.
Frequently Asked Questions (FAQ)
Q What is the standard warranty period for the battery cells?
We offer a 5-year warranty period starting from the confirmed date of delivery. If a single cell's capacity drops below 80% of its initial capacity, please provide test records or video confirmation for a replacement or support solution.
Q Do DIY battery packs need balancing prior to assembly?
Yes, cells must be fully balanced to the identical voltage level before assembly. Damage caused by improper connection, wrong wiring configurations, loader failures, or unbalanced DIY assembly processes is not covered under warranty.
Q What testing is completed before cells are delivered?
Every single cell is tested at least 3 times before shipping. This includes thorough validation of physical appearance, capacity rating, voltage alignment, and internal resistance.
Q What is the return and refund policy for cells?
Returns must be requested within 15 days of package arrival. Cells must be completely unused (intact terminals, no weld marks, no signs of wear, pristine physical condition). Buyers are responsible for the return shipping fees.
Q How is shipping handled and is tracking available?
For shipments originating from our China warehouse, the local carrier tracking number updates once the goods pass custom clearances at the entry ports. Standard DDP delivery takes 3-7 working days from local warehouses and 35-60 working days from the China warehouse.
Q What certificates are provided for transit and safety compliance?
We maintain fully updated compliance documentation required for battery transport, including MSDS, ROHS, CE, and UN38.3 certifications.
