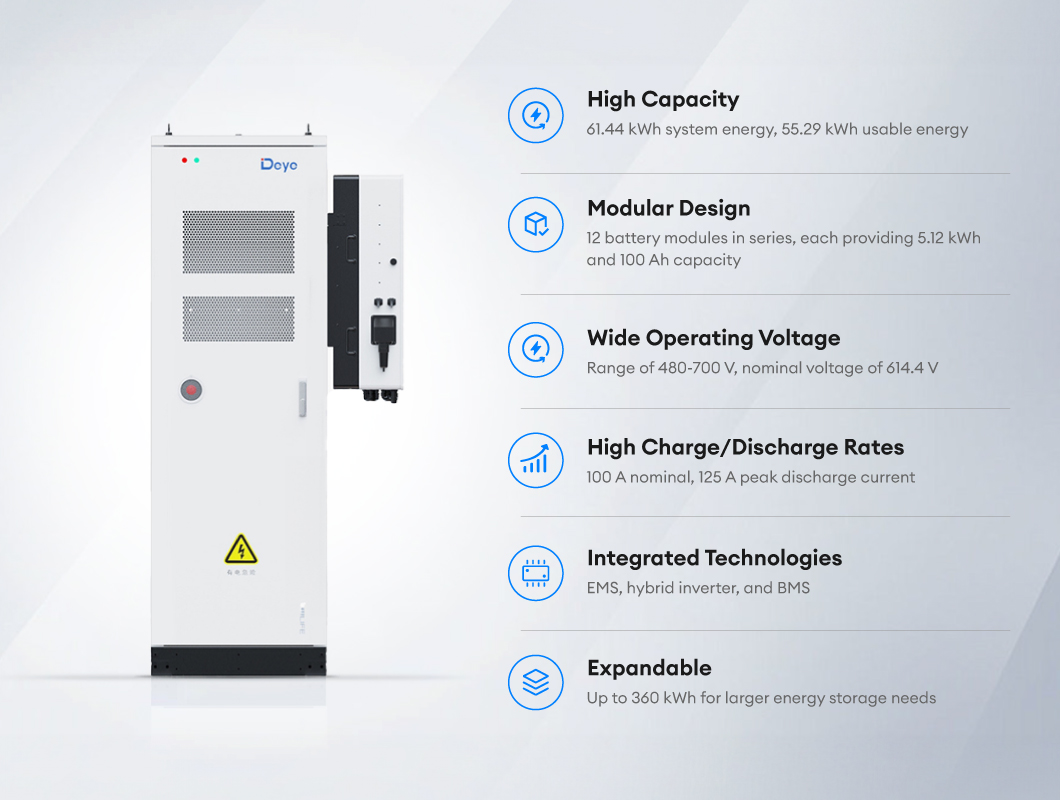

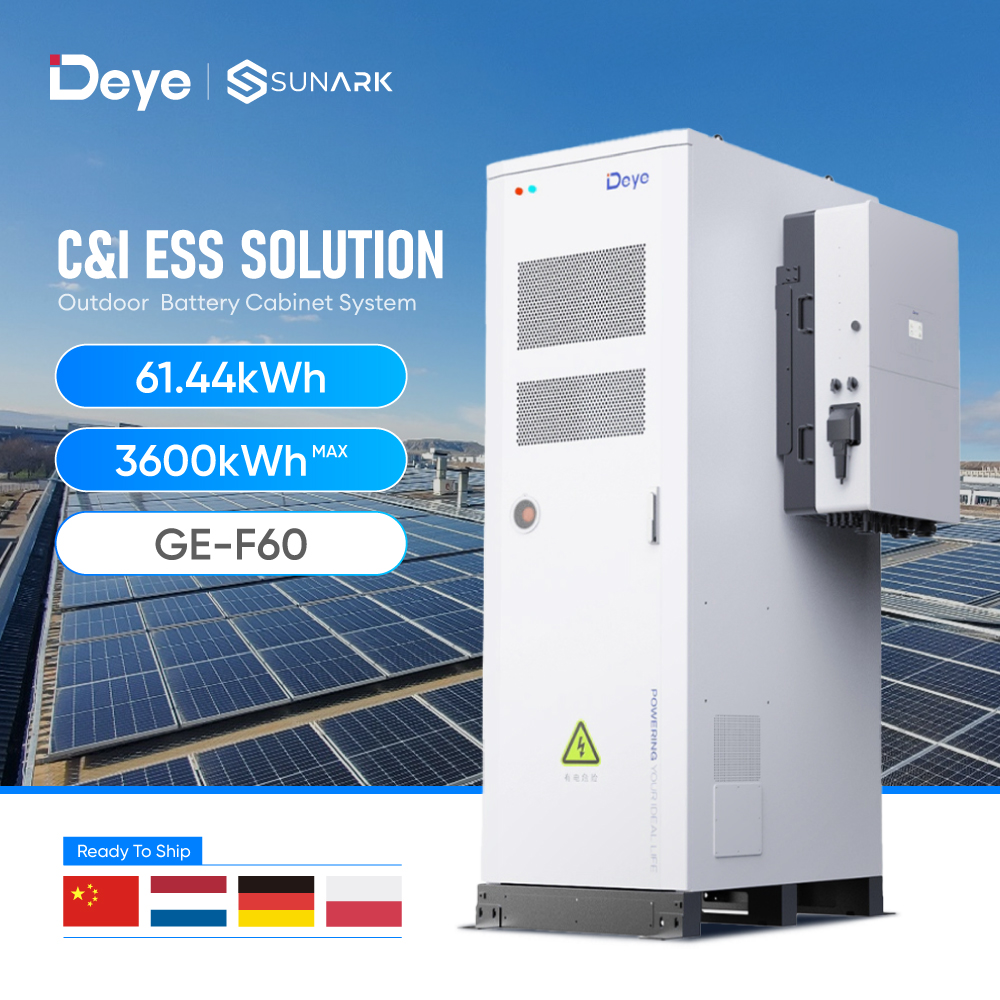

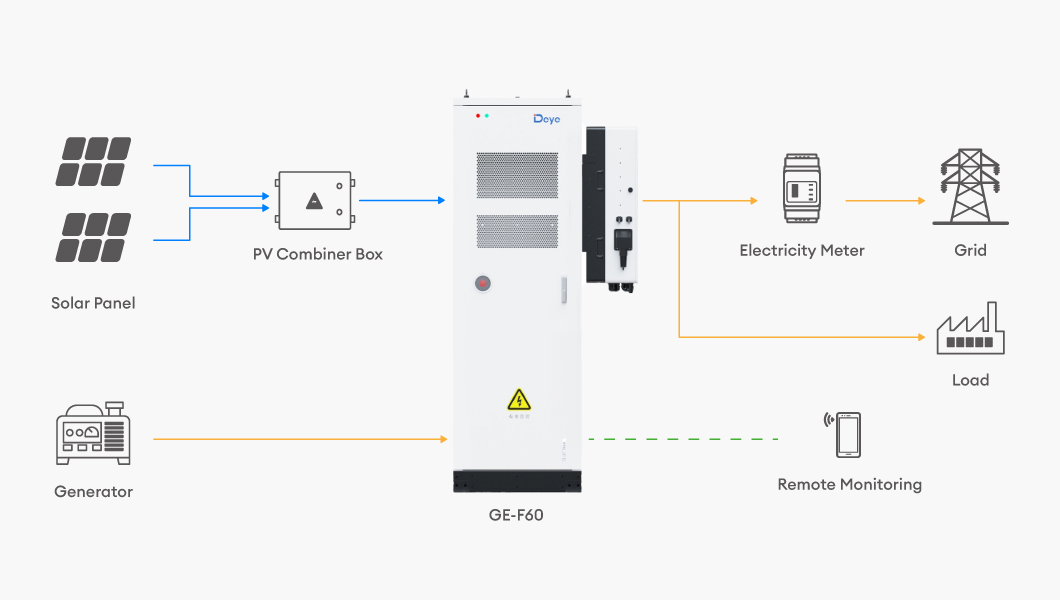

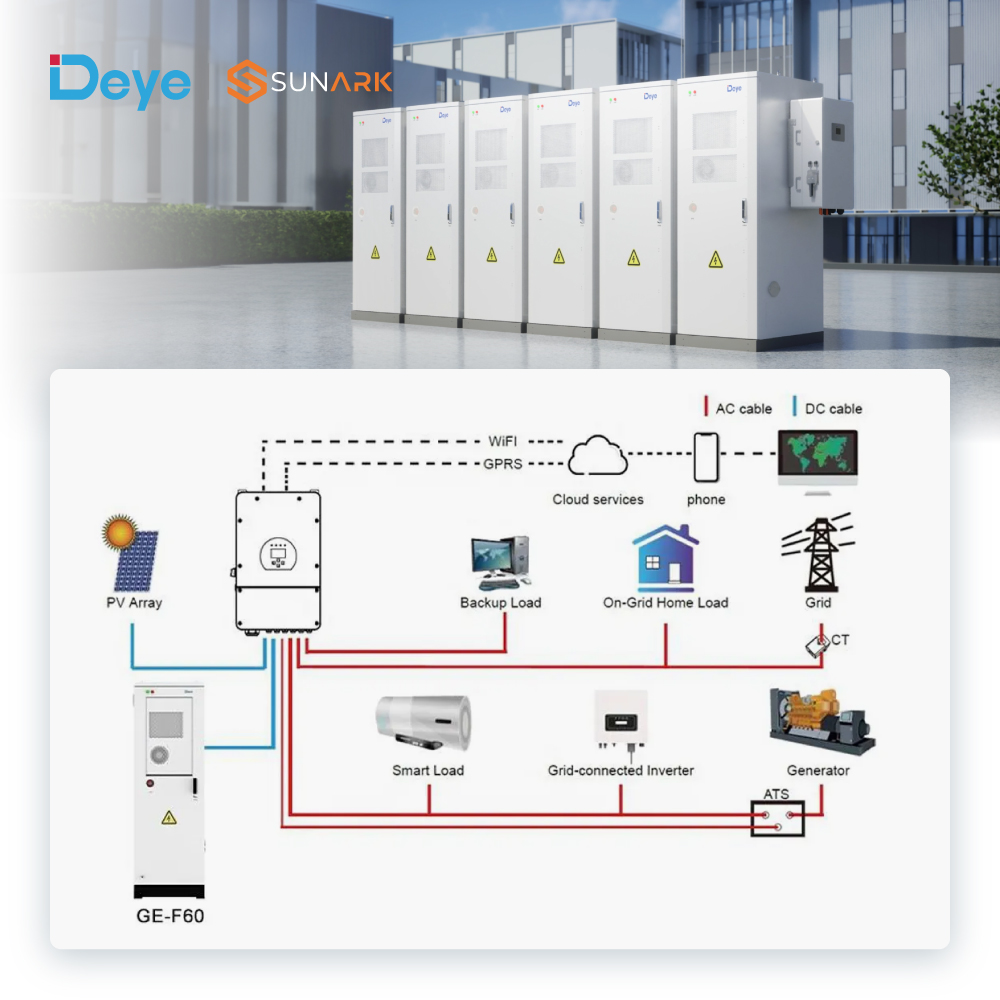

The Deye DE-F60 is a high-performance hybrid energy storage system designed for residential and commercial applications, offering seamless integration with solar power and grid connectivity. Combining advanced power conversion technology with robust battery management, it ensures reliable energy independence and cost savings.
As an authorized distributor of DEYE products, we recommend this commercial storage solution for its unmatched value and performance. With over 15 years of experience in energy storage manufacturing, our systems are operational across 160+ countries, providing reliable, clean energy to millions. Our products are backed by core technology patents and strict international standards.

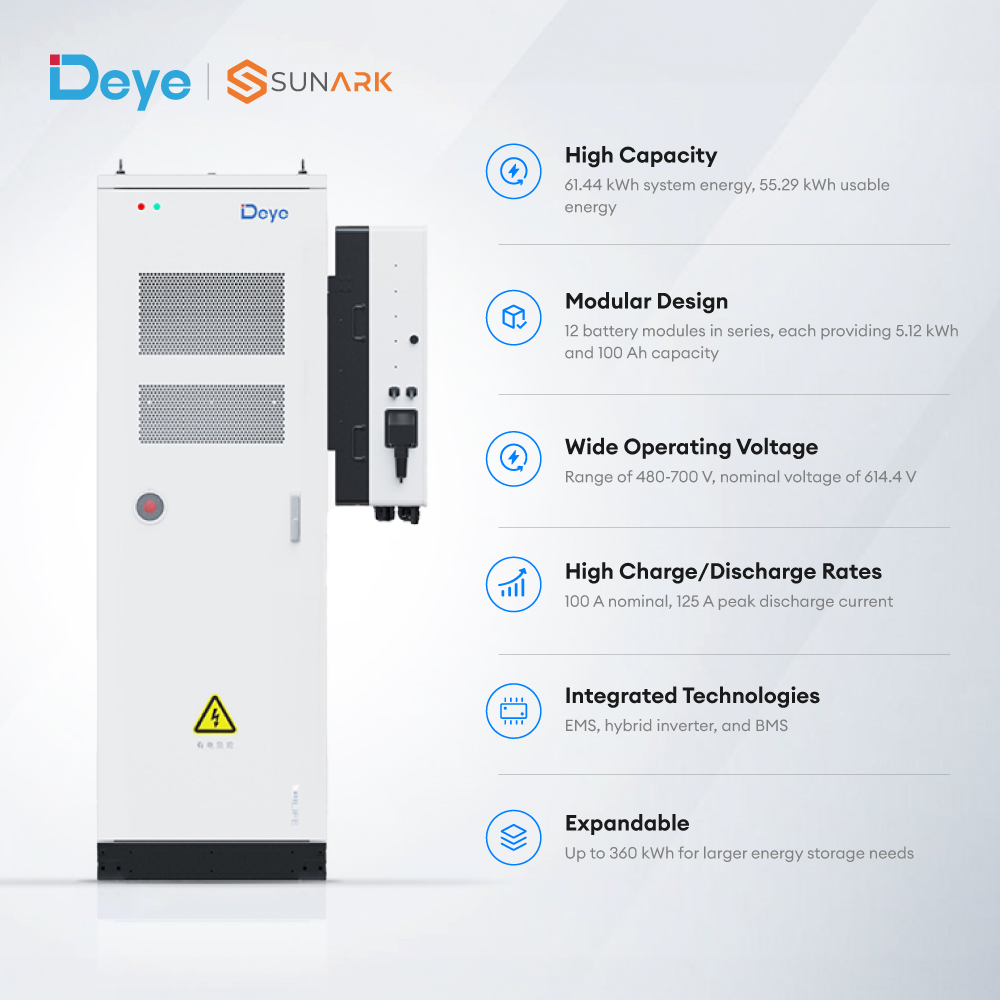

| Model | GE-F60 |
| Cell Chemistry | LiFePO4 |
| Module Energy (kWh) | 5.12 |
| Module Nominal Voltage (V) | 51.2 |
| Module Capacity (Ah) | 100 |

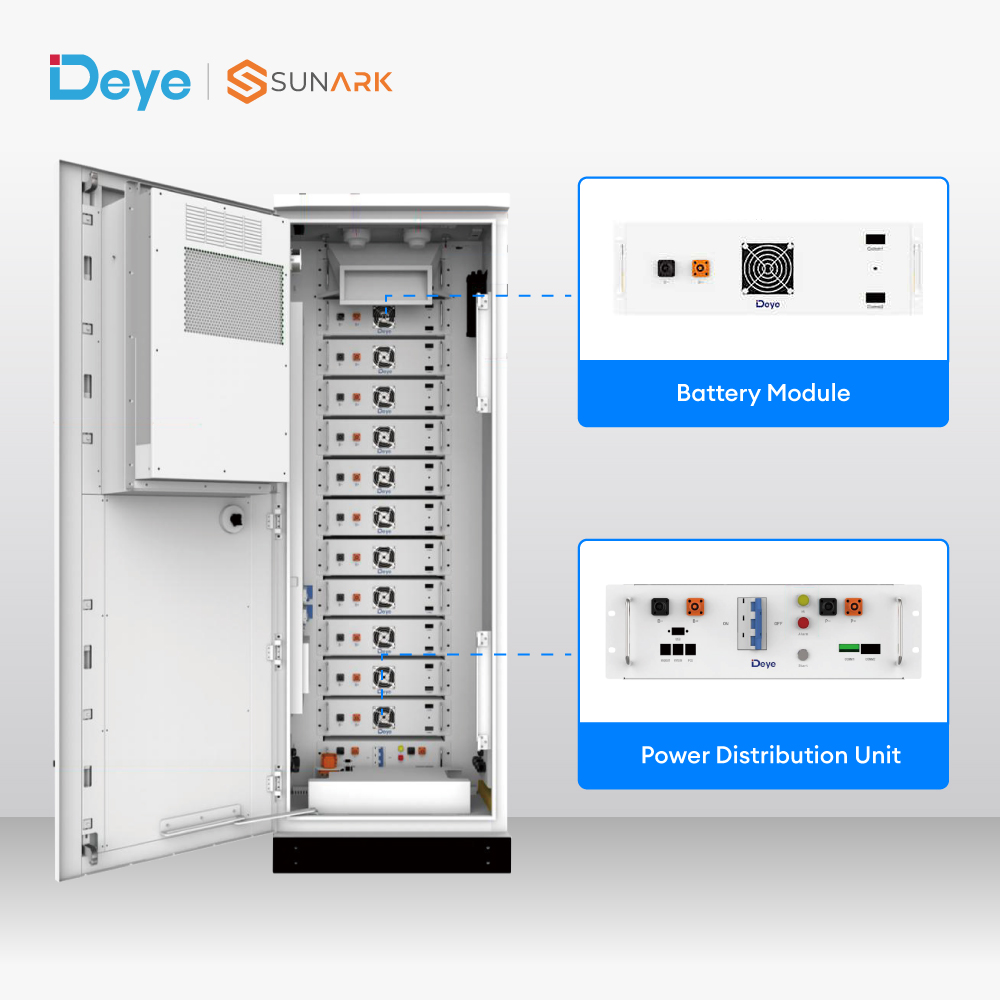

| Battery Module Qty In Series | 12 |
| System Nominal Voltage (V) | 614.4 |
| System Operating Voltage (V) | 480~700 |
| System Energy (kWh) | 61.44 |
| System Usable Energy (kWh) | 55.29 |
| Rated DC Power | 61.44 |
| Working Temperature | Charge: 0~55°C / Discharge: -20~55°C |
| Communication Port | CAN2.0 / RS485 |
| IP Rating of Enclosure | IP55 |
| Dimension (W/D/H, mm) | 780*1056*2235 |
| Weight Approximate | 1.2T |
| Cycle Life | 6000+ (25±2°C, 0.5C/0.5C, EOL70%) |
| Warranty | 10 years |
| Certification | CE, IEC62619, IEC62040, UN38.3 |

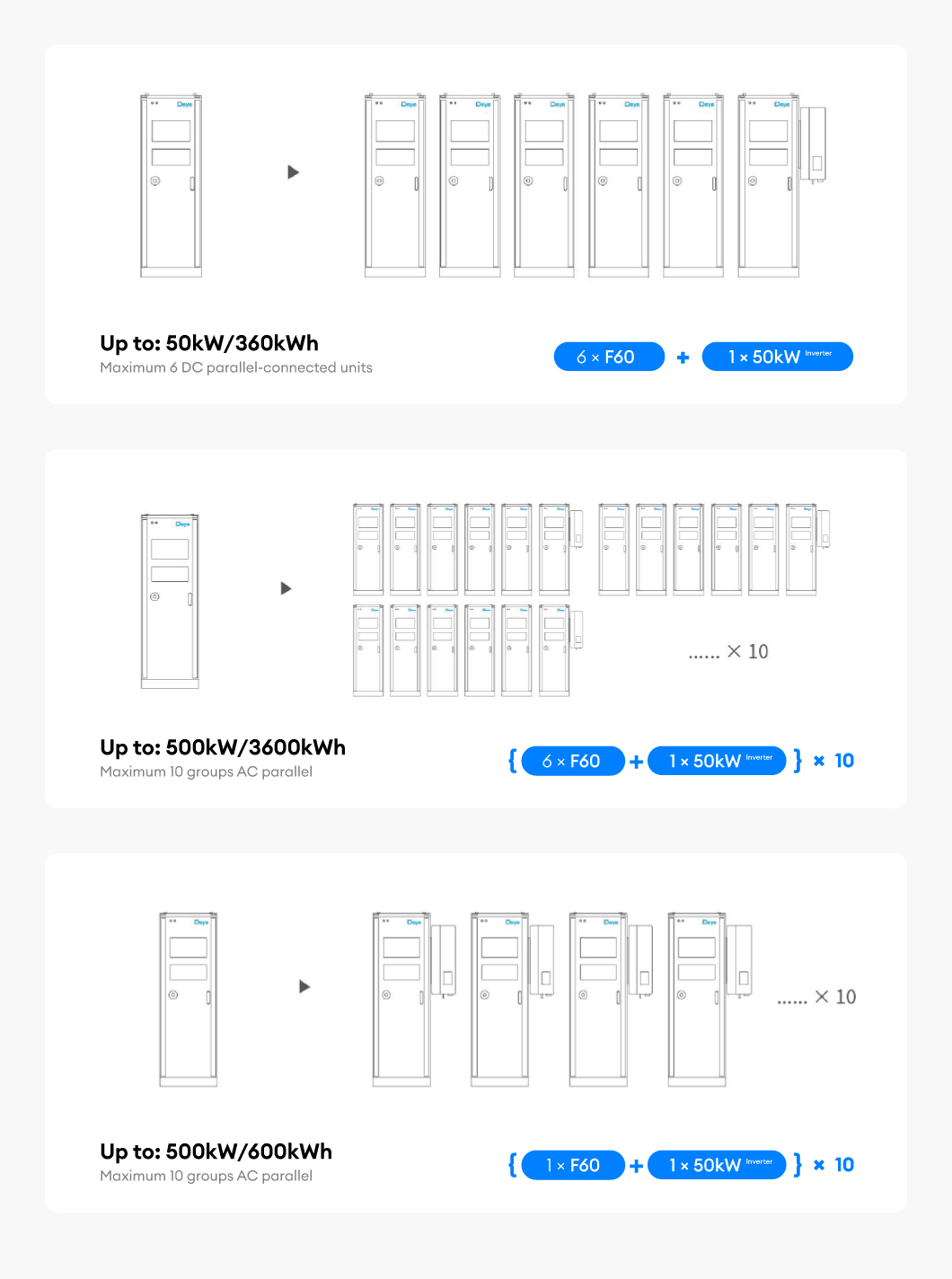

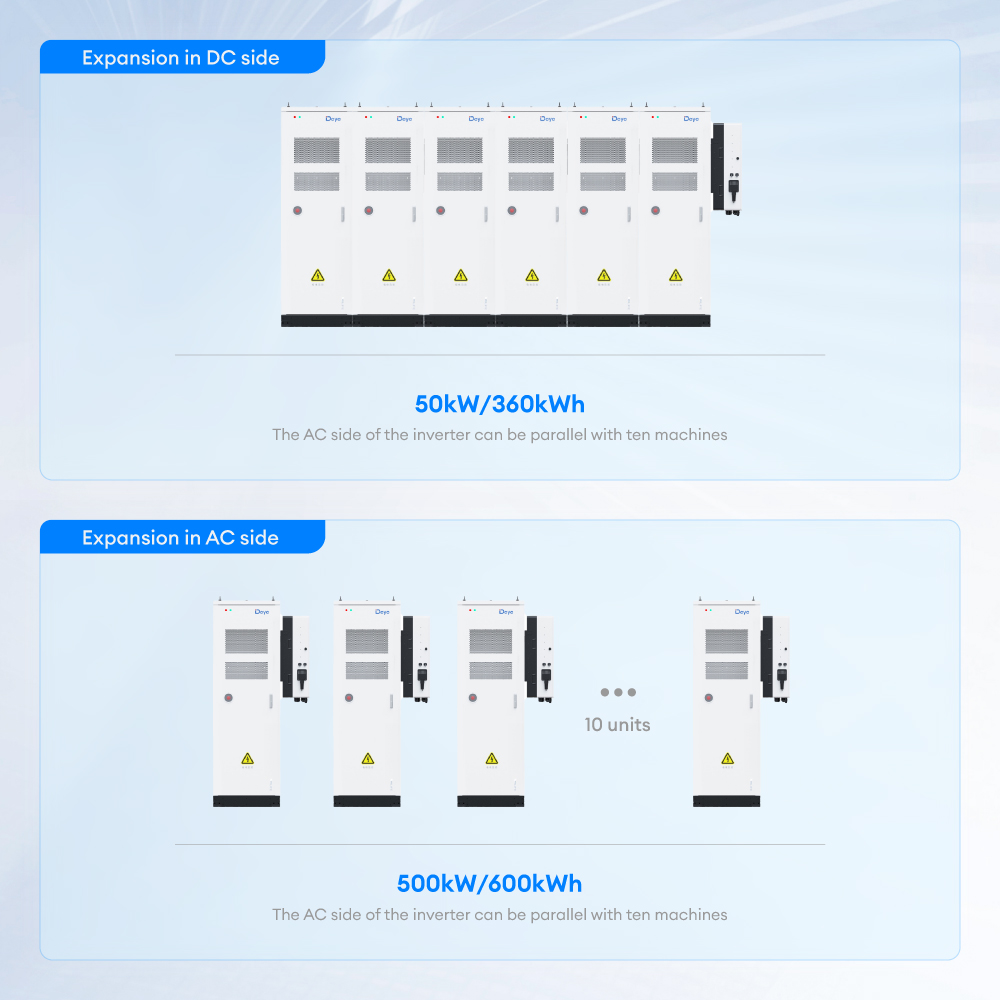

Maximum number of series and parallel connections
2024.7.23

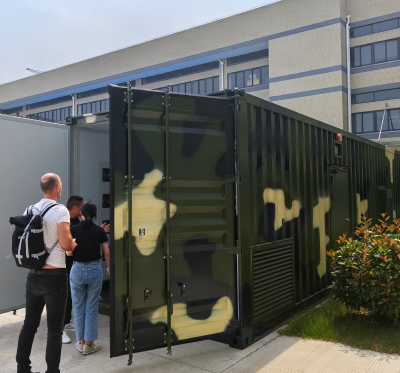

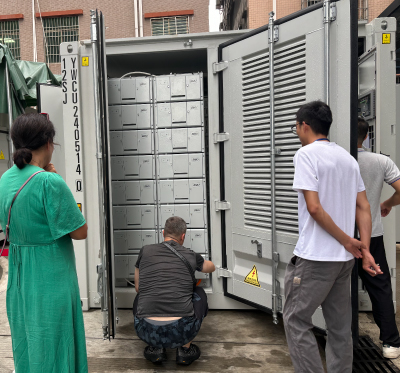

BESS 1.5MW / 3MWH System Customized for industrial application.
2024.9.21
BESS 1MW / 2.5MWH System for power outage areas.
2025.4.6
BESS 500kW PV/ 500kW PCS / 1.5kWH Battery for isolated islands.
2024.10.12
BESS 2MW / 4MWH Battery System for urban grid stability.
Professional service team is available 24/7 to support your needs.
