All Smart BMS units are actively balanced, featuring a balance current of 1A and a peak current of 1.2A.
Built-in parallel current limiting module eliminates the need for additional parallel modules. Parallel capacity expansion is more convenient and safer.
Integrated Bluetooth module allows seamless connectivity without needing an extra BT interface.
Easily scan the QR code on the BMS to download the mobile app, PC program, and user manuals.
Quickly configure parameters with a one-key setting via the mobile app or PC host software.

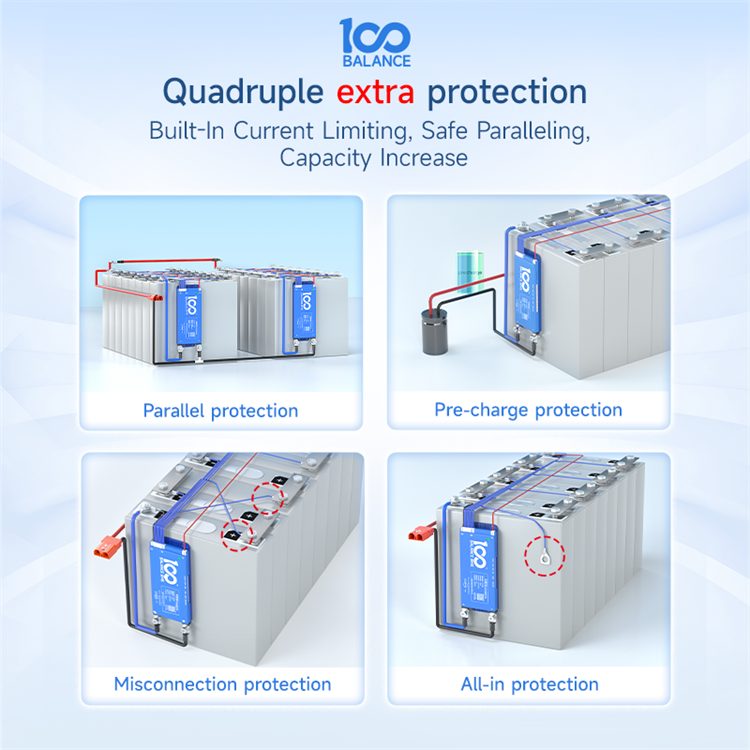

Includes basic protections (overcharge, overdischarge, overcurrent, short circuit, temperature) plus four advanced functions: parallel, miswire/drop, and precharge protection.

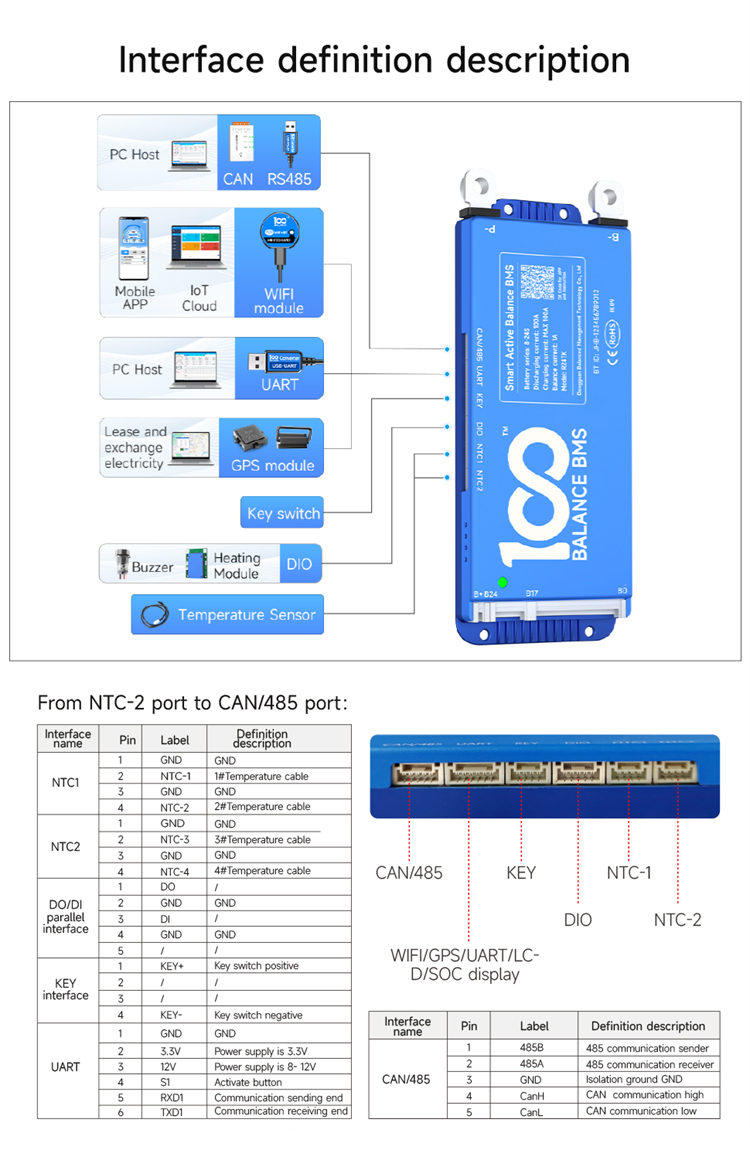

Features CAN, RS485, UART, DIO, NTC, and KEY ports. Connects to multiple extended accessories (heating, buzzer, touch screen, WiFi, GPS, CAN BOX, switch, etc.) simultaneously. (CAN/RS485 is not default interface)
Support Function Customization: Reserved custom interfaces available for bespoke function requirements.

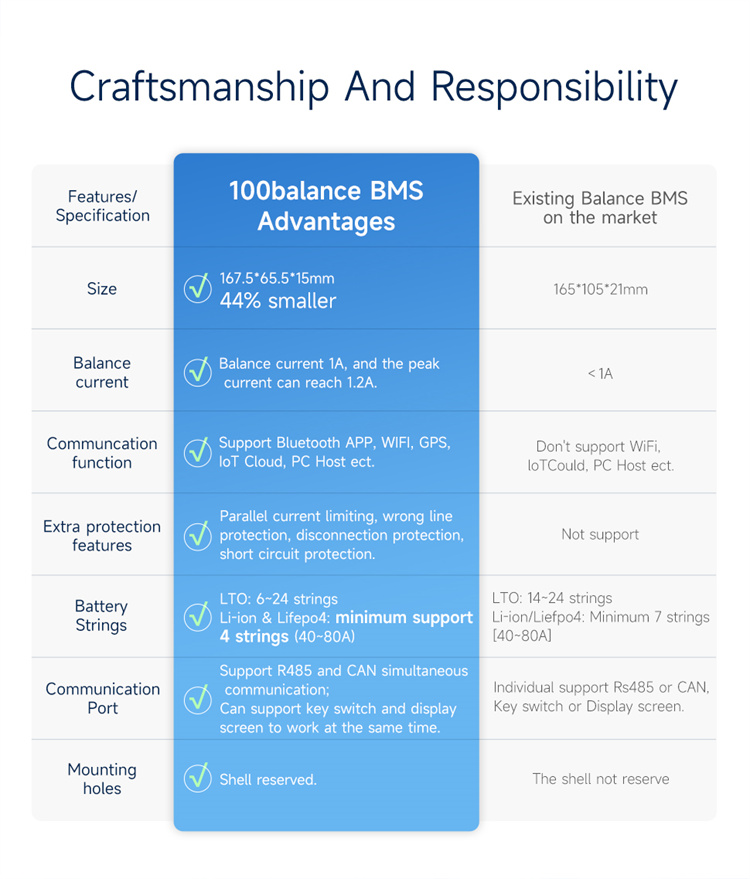

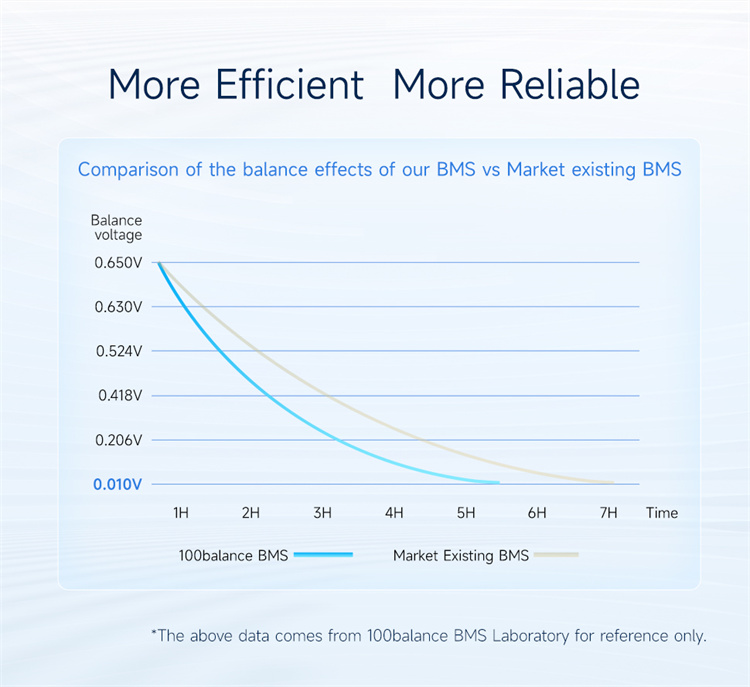

Compared to standard market alternatives, the balancing performance is highly efficient and reliable with a 1A balancing current and 1.2A peak current.
Delivers comprehensive multi-layered security protocols for your battery packs.

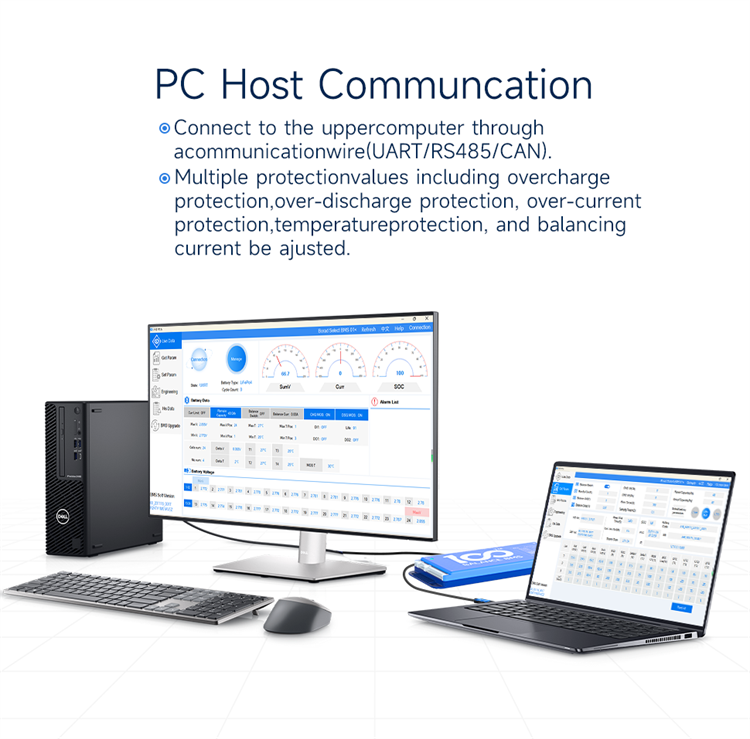

Utilize professional application platforms and PC host environments. Seamlessly integrates with GPS tracking and IoT Cloud architecture.

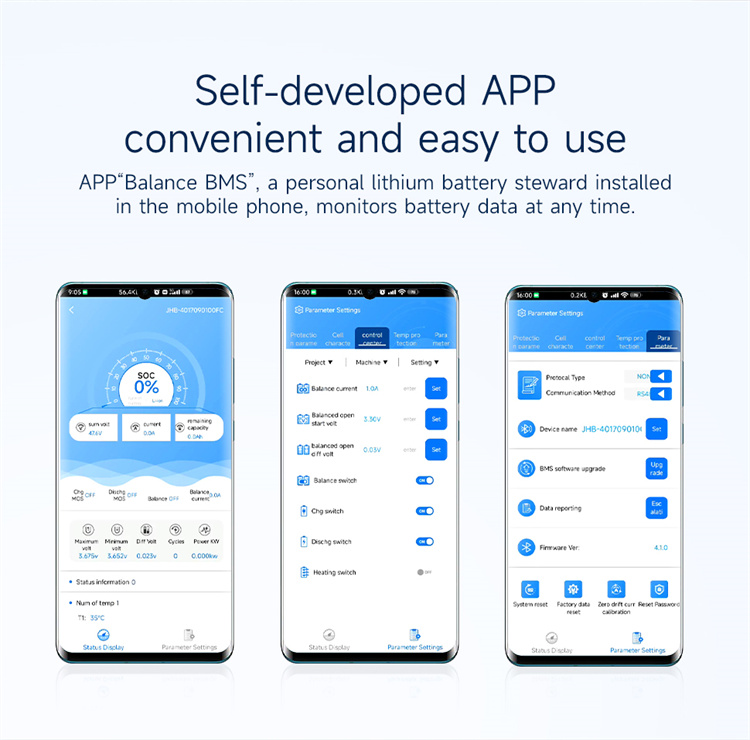

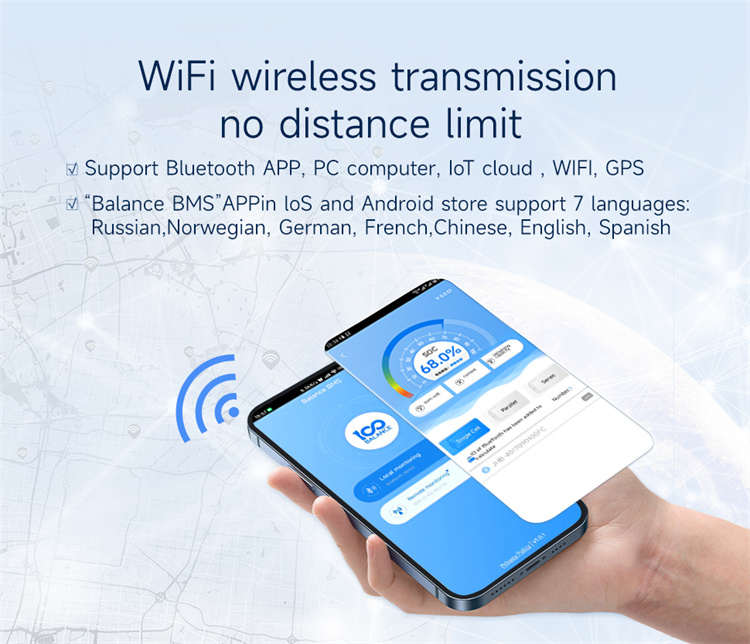

Support for Bluetooth APP, PC platforms, IoT cloud, WiFi, and GPS. The companion mobile application supports 7 languages: Chinese, English, Russian, Norwegian, German, French, and Spanish, acting as a personal steward to monitor battery status at all times.

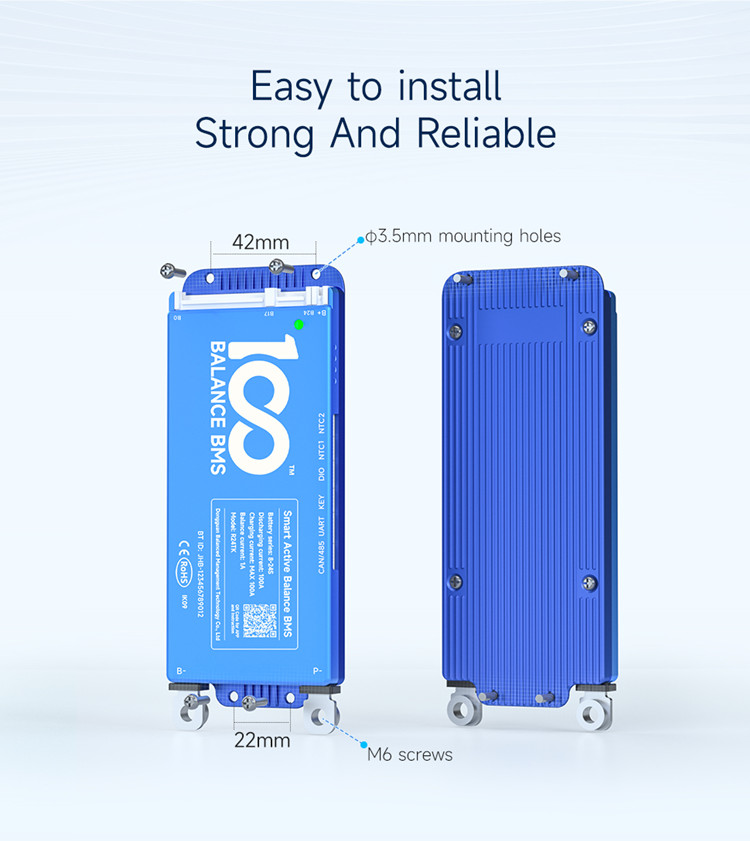

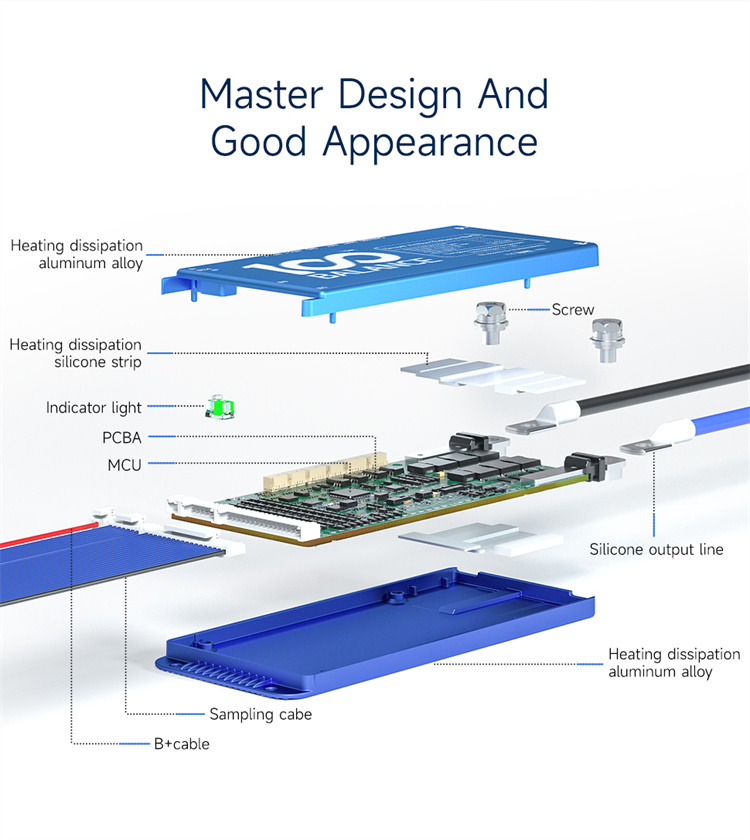

Built for simple installation, structural integrity, and long-term operating reliability.
The primary objective of a battery management system is to maximize the utilization of residual battery energy. A BMS protects multi-cell battery configurations from deep discharge, over-voltage, extreme fast charge stress, and high discharge currents. It balances individual cells to ensure consistent charging and discharging characteristics across the entire pack.

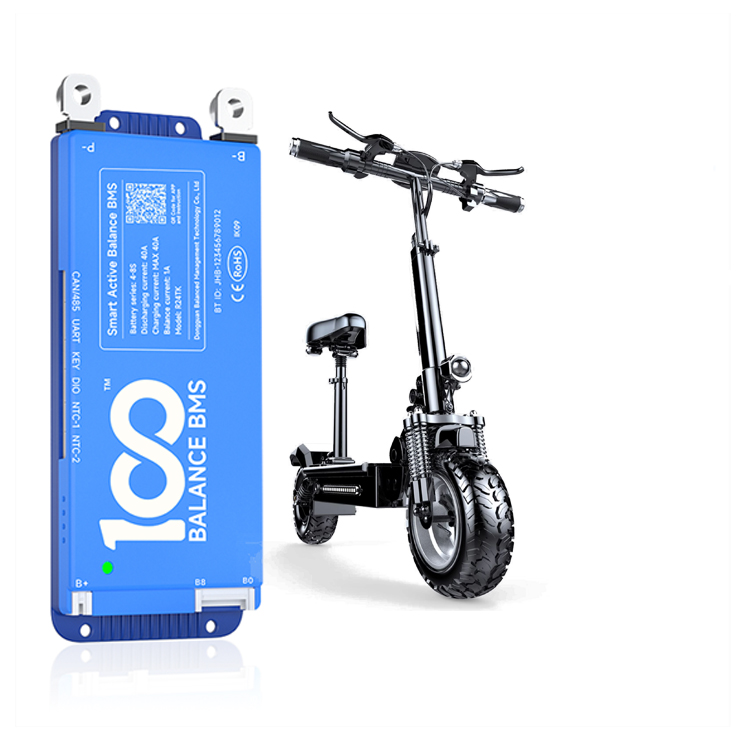

Crucial for all lithium-ion applications, this BMS is ideal for: electric two-wheelers, electric tricycles, residential energy storage systems, outdoor portable power stations, AGVs, RV power configurations, leased battery swapping networks, electric wheelchairs, lead-acid-to-lithium conversions, electric bicycles, and more.

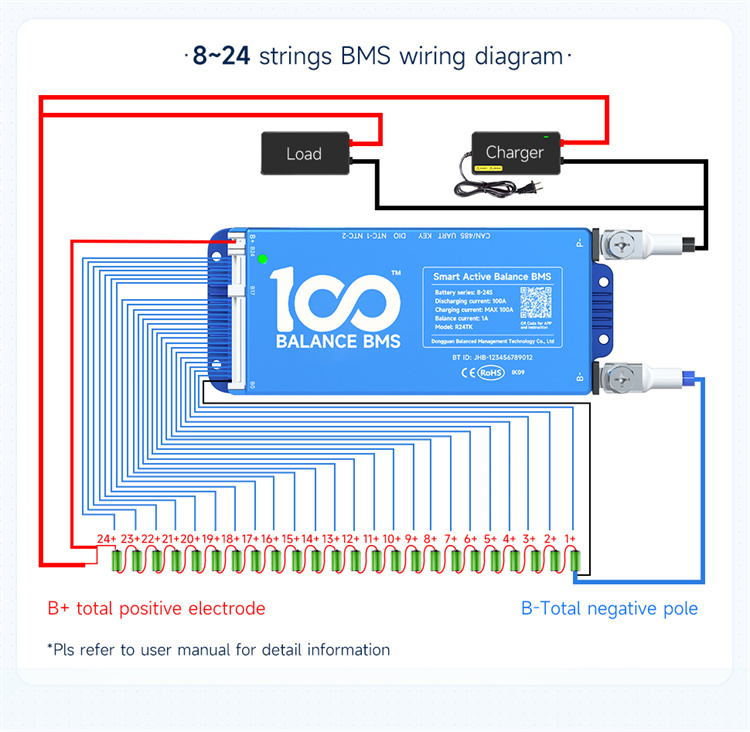

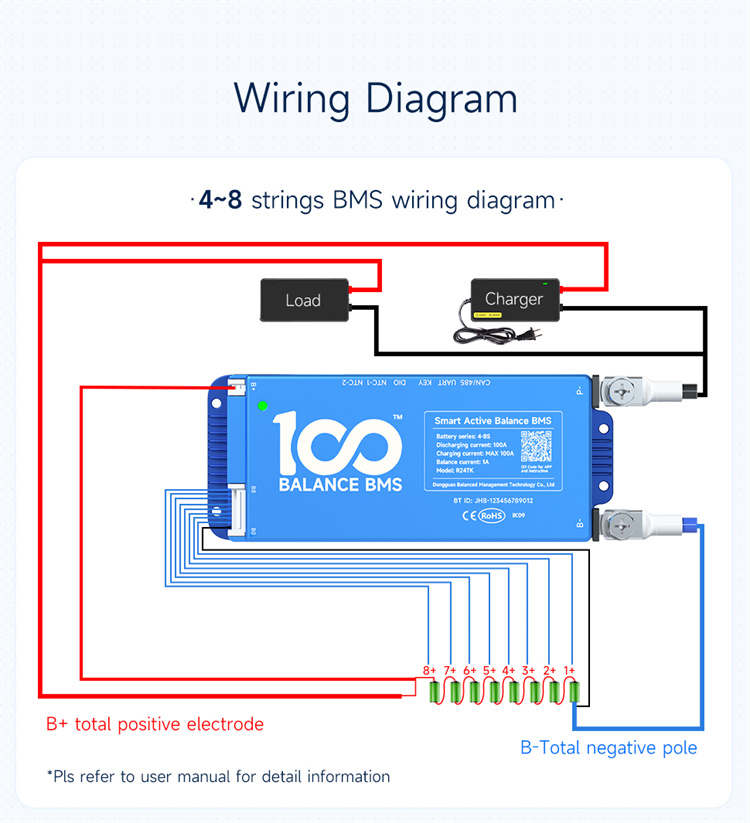

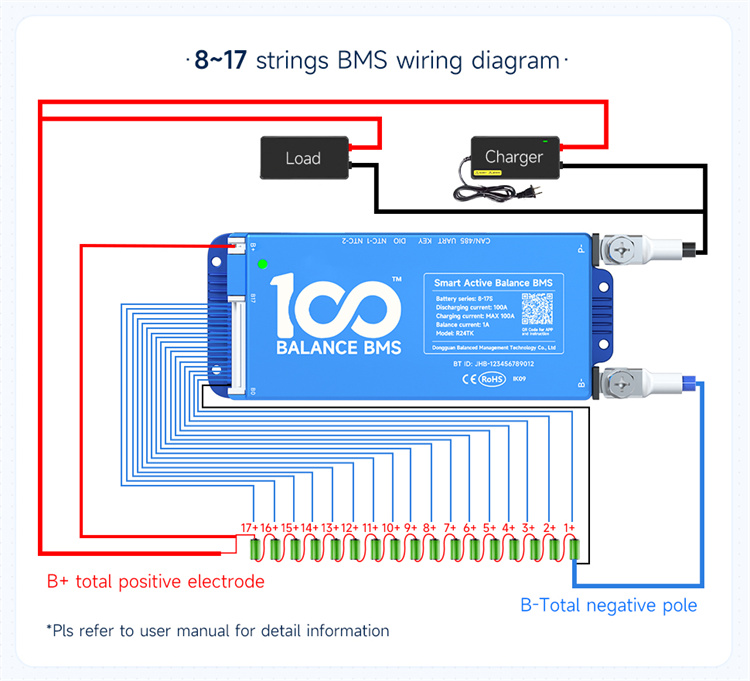

User-friendly, straightforward wiring installation.

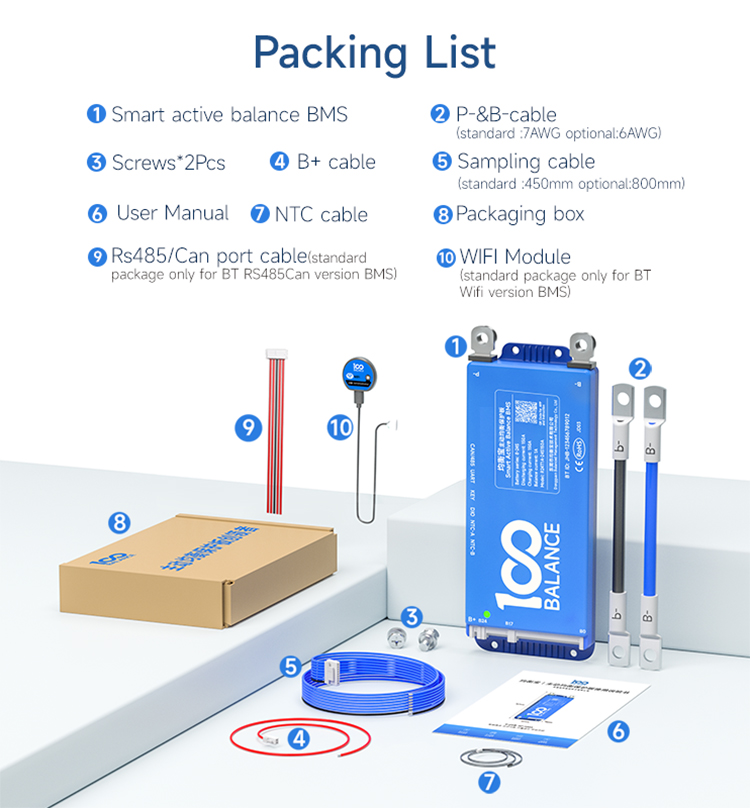

Our standard package contents include: 1x Smart Active Balance BMS, 1x Set of P- & B- cables, 2x Screws, 1x Sampling cable harness, 1x B+ cable, 1x Key switch cable, 1x NTC temperature sensor, 1x User manual, and protective packaging.

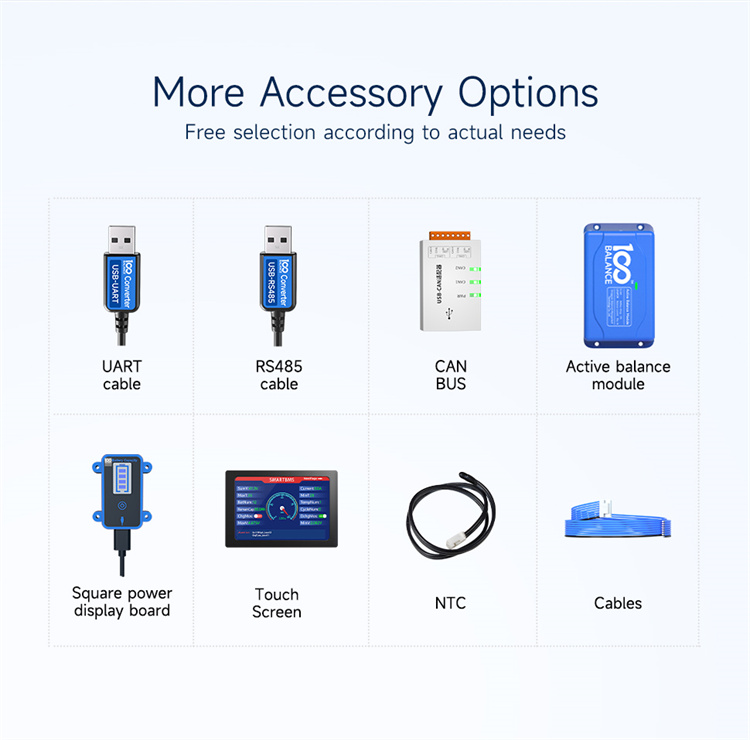

Additional accessory upgrades and expansion modules are available upon request.

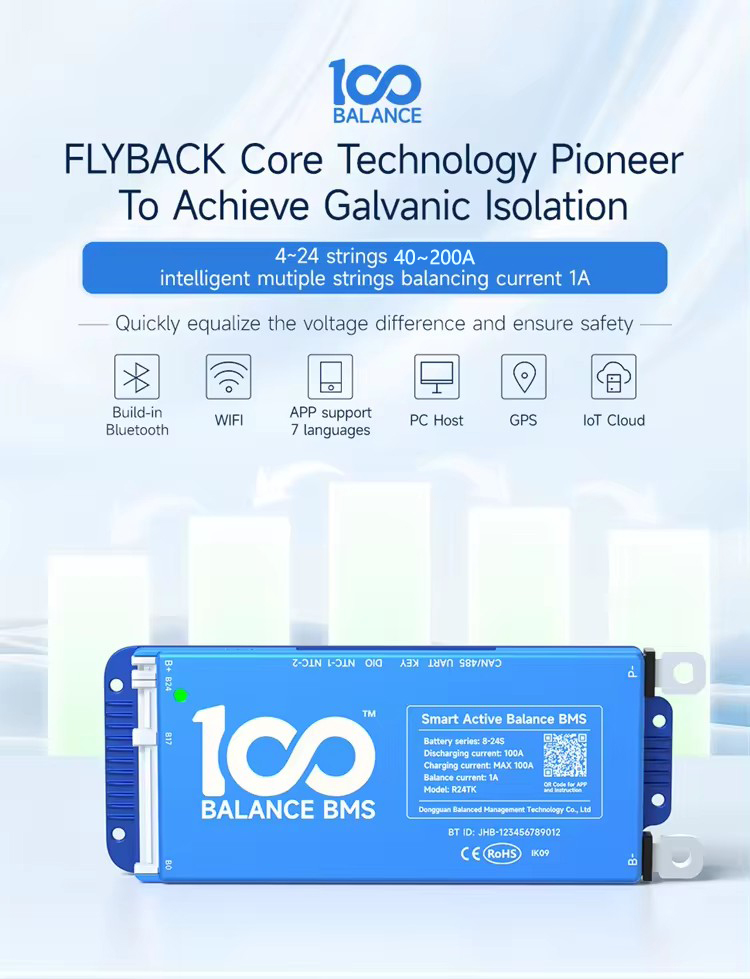

The system utilizes third-generation FLYBACK bidirectional DC active balancing technology, providing a highly efficient 1A balancing current (1.2A peak) for superior cell equalization.
Yes. It features an integrated 5W parallel current limiter that adjusts automatically based on voltage differentials, ensuring secure parallel operations without requiring extra external modules.
Beyond baseline safety features (overcharge, overdischarge, overcurrent, short circuit, temp protection), it integrates four advanced systems: parallel connection limiting, pre-charge control, drop/miswire detection, and comprehensive hardware safeguards.
It means the Bluetooth communication module is soldered directly onto the PCB board inside the BMS casing. There is no need to plug in a separate external dongle to access wireless features.

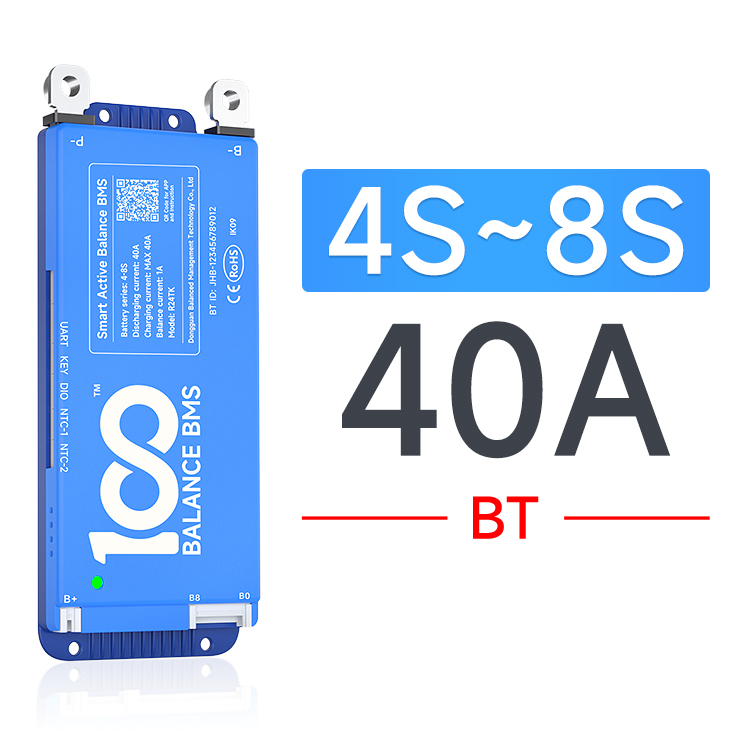

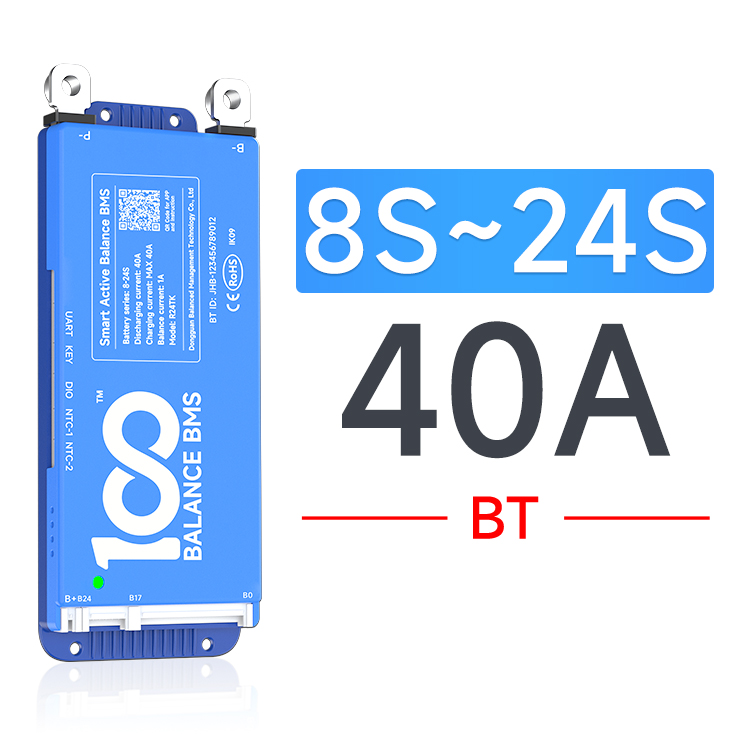

No. We offer multi-string ranges: 4S–8S, 8S–17S, and 8S–24S. For instance, the 4S–8S version adapts automatically to handle anywhere from 4 to 8 series battery configurations.
This active balancing BMS comes with a standard warranty coverage of 12 months.
