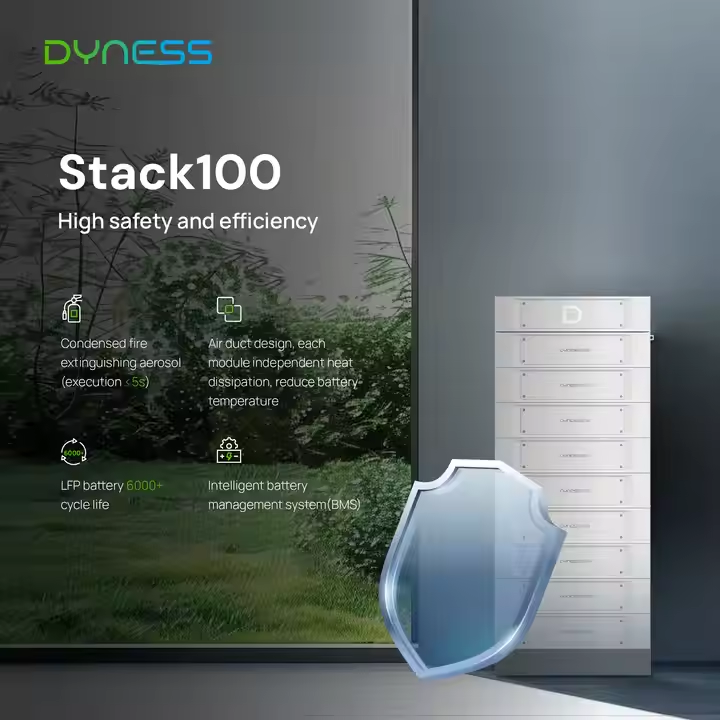

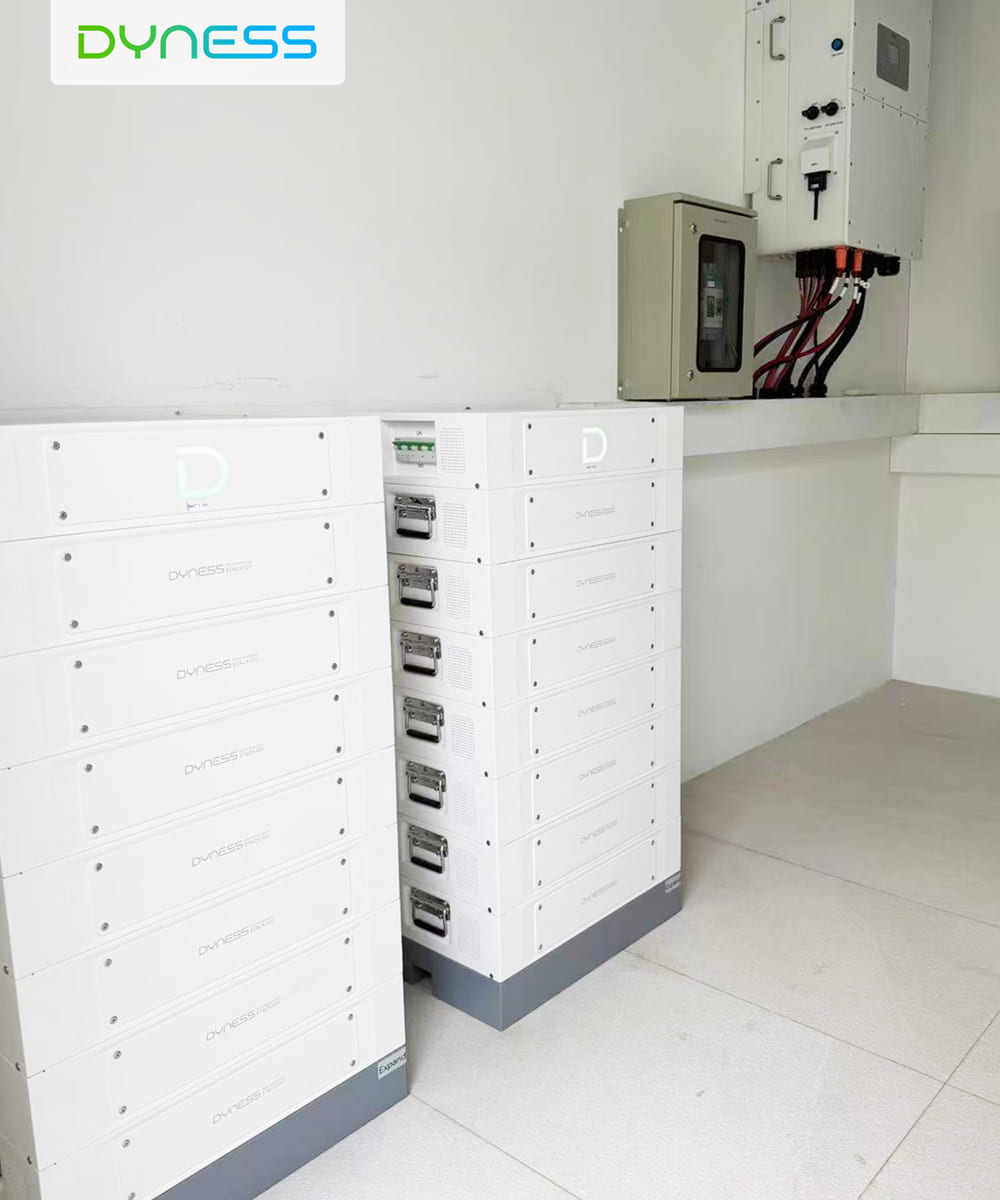

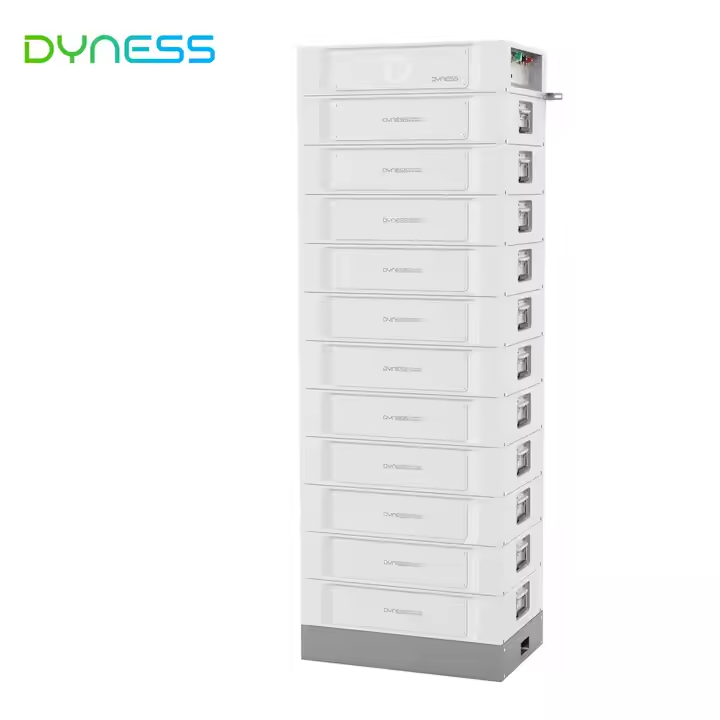

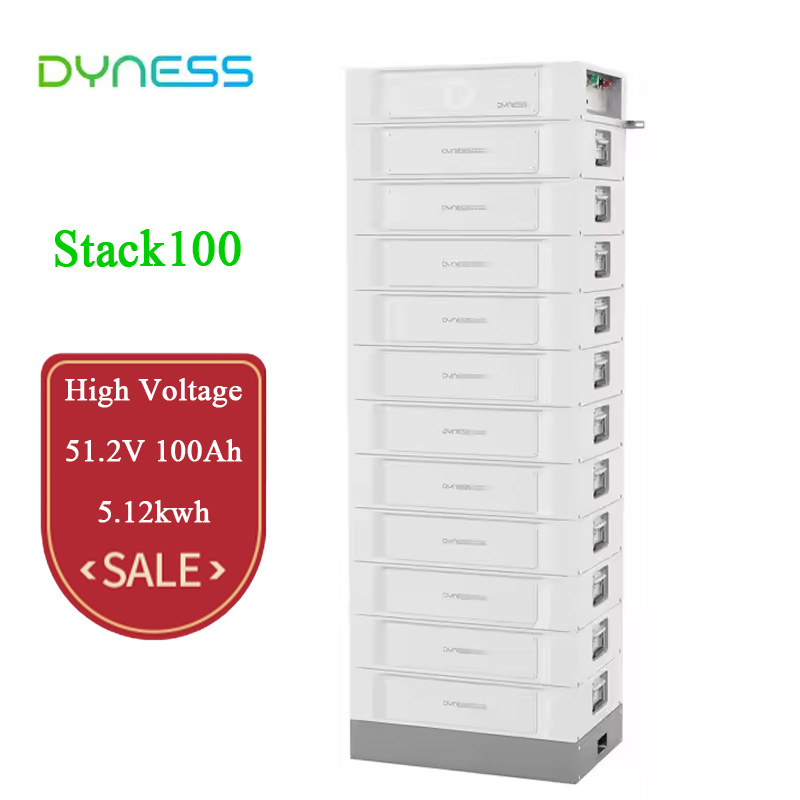

Dyness Stack100 High Voltage Battery Lithium Ion Battery Stackable Lifepo4 Battery With Inverter

1

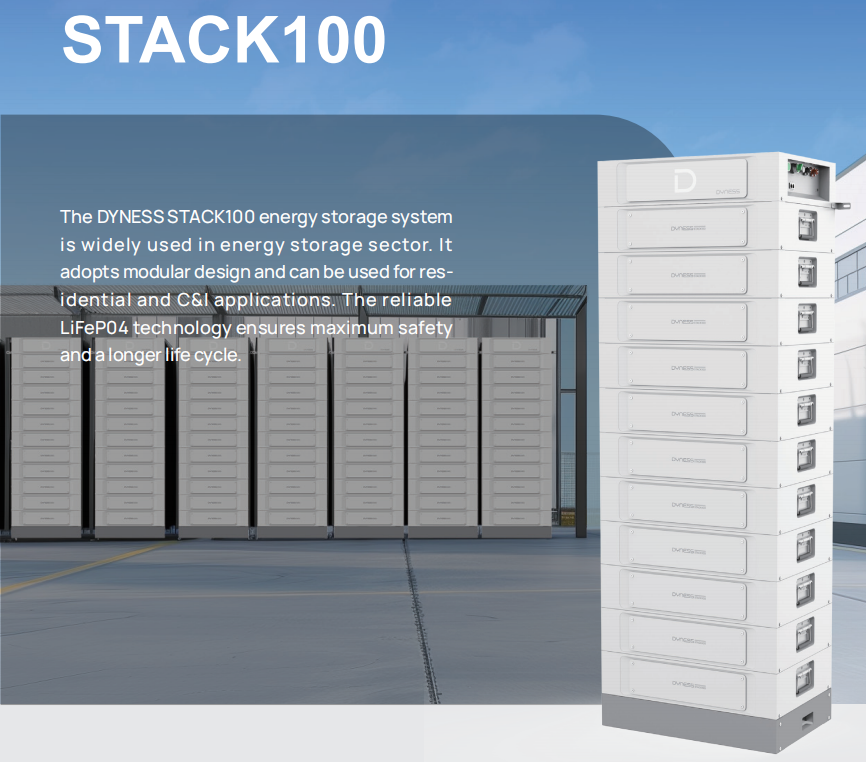

Product Description

2

Specification

Model	STACK100
Battery Type	LiFePO4
Module Volt/Capacity	51.2V/100Ah
Single Module Weight	47Kg
System Modules Serial Number	3~15
System Energy Range	15.36-76.8kWh
Operating Voltage	134-864V
Recommended Charge/Discharge Current	50A(0.5C)
Max.Charge/Discharge Current	100A (1C)
Peak Discharge Current(2min 25°C)	125A(1.25C)
Depth of Discharge	95%
Communication	CAN/RS485
Cycle Life*	Unlimited cycles /10 Years
Max.Single Cluster Dimension[WDH](mm)	5913901700mm – 11 module
Charging Temp. Range	0~55°C
Discharging Temp. Range	-20~55°C
Protection Level	IP20
Fire Protection System	Aerosolfire extinguisher
Installation method	Stack type
Cooling method	Forced wind cooling
WiFi Module	Built-in WiFi module; APP OTA function
Certification & Safety Standard	CE-EMC/CE-RED/62619/63056/62477/62040/UN38.3
Compatible Inverters	Ingeteam/Solis/GoodWe/Growatt/Solplanet/SAJ/DEYE/Hoymiles/SOLINTEG ect.

3

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

4

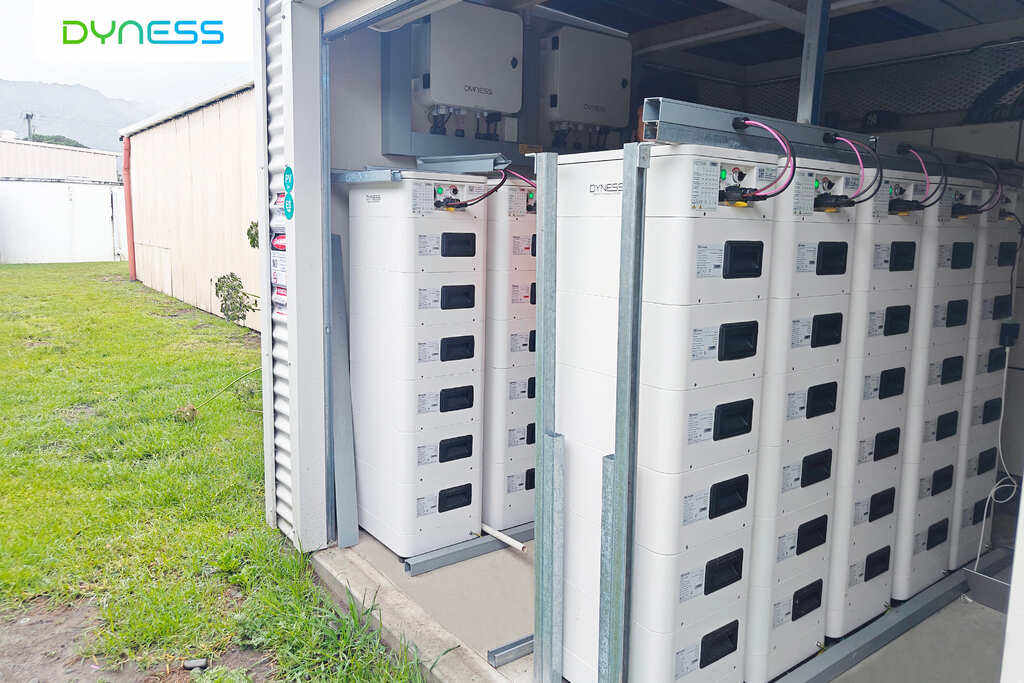

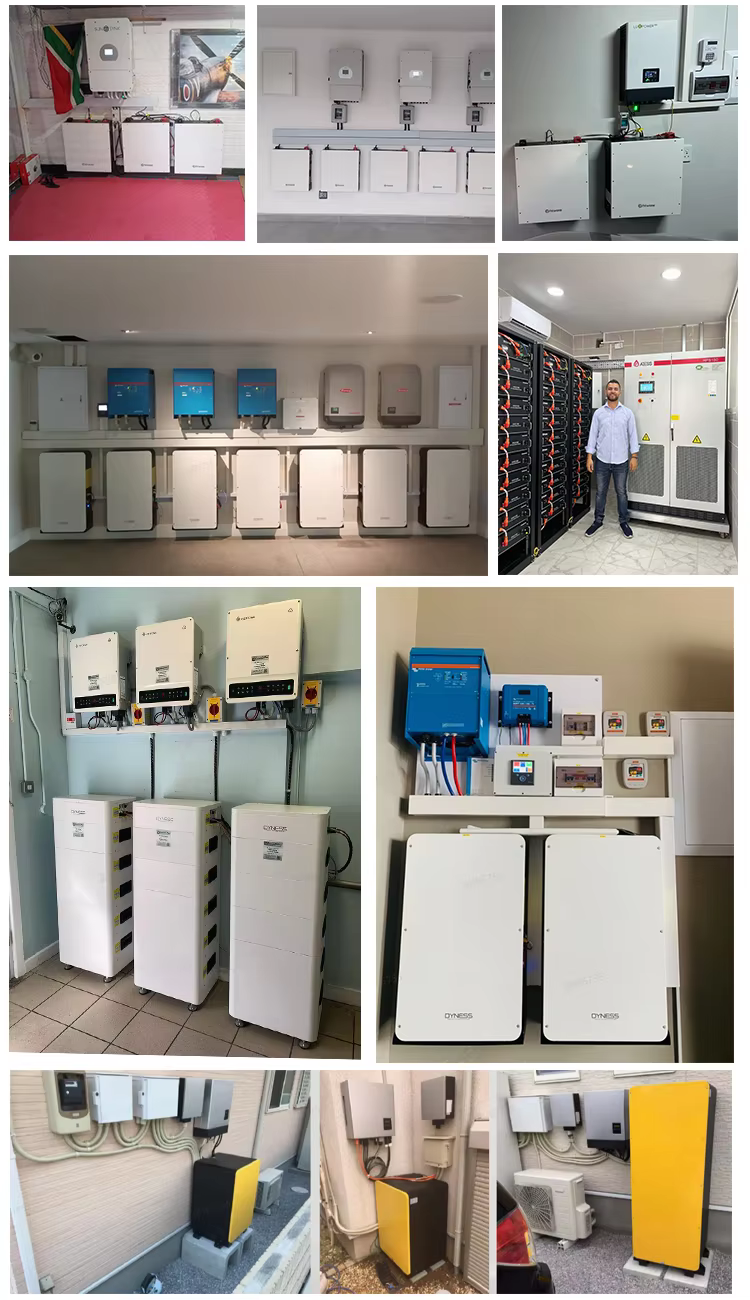

Project Cases

5

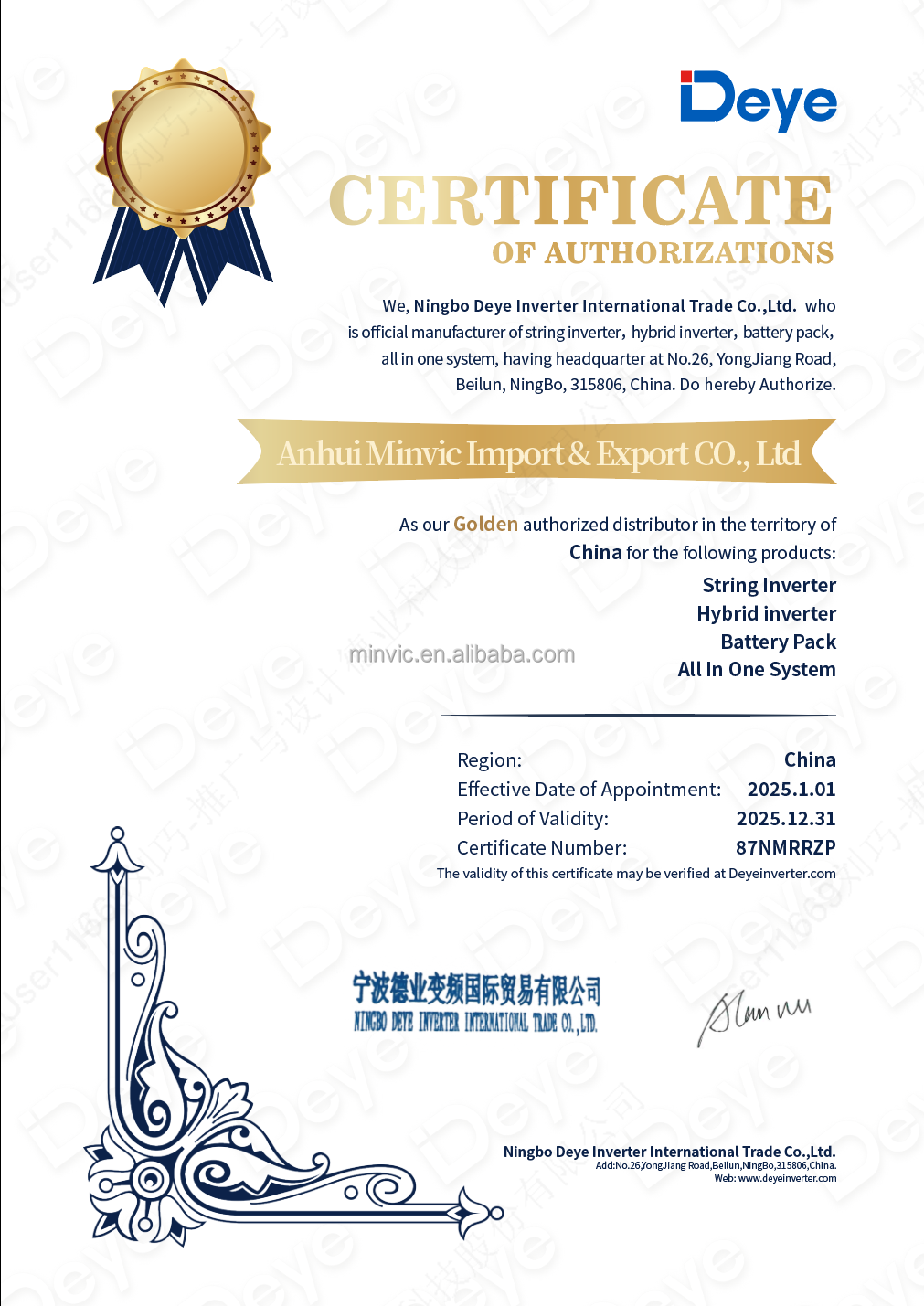

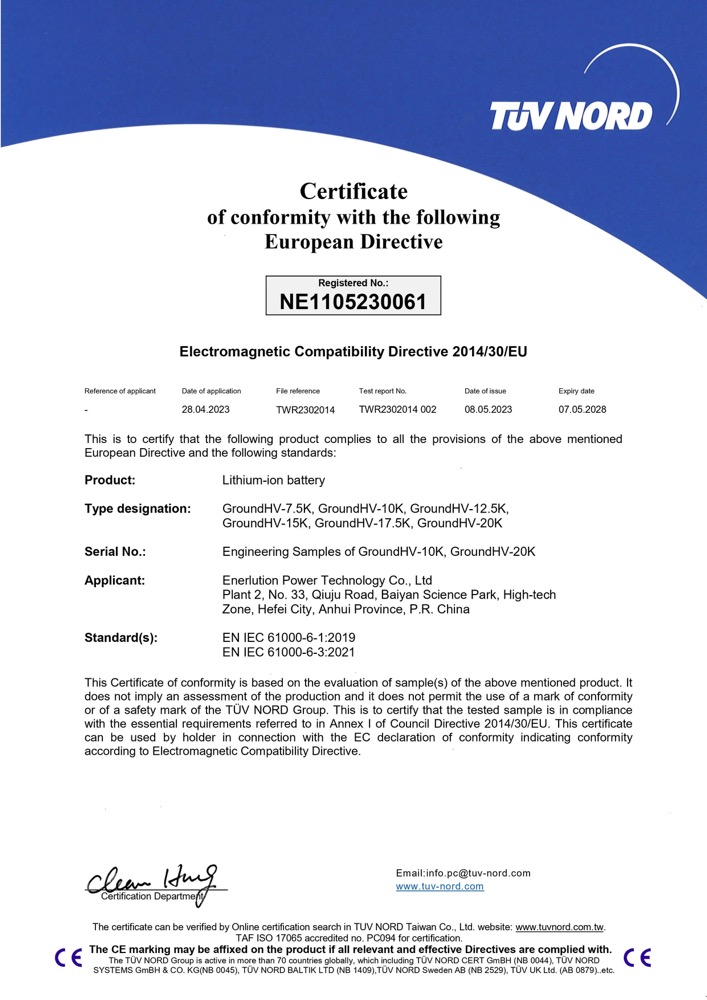

Certificates

6

Company Overview

?

Frequently Asked Questions

Q1: What is your primary expertise and background?

We are a professional Solar system and products provider with extensive experience and numerous successful projects worldwide. We manage the entire PV product supply chain and operate our own factory to provide OEM services.

Q2: How do you ensure the quality of your products?

Quality is guaranteed through our professional technical team, who conduct rigorous product testing and technical training. We also offer sample orders for evaluation before proceeding with mass production.

Q3: What solar products do you offer?

We provide a comprehensive range of solar solutions, including top-brand solar panels, On-grid/Off-grid and Hybrid inverters, as well as solar energy storage systems featuring advanced batteries and BMS platforms.

Q4: Why should we choose your services for our PV projects?

With over 10 years of industry experience and a global sales network established since 2018, our expert team provides professional technical support, comprehensive after-sales service, and a complete supply chain to meet all customer requirements.

Q5: What are your standard delivery and payment terms?

We offer flexible delivery terms including EXW, FOB, and CIF. Payment options include T/T, L/C, MoneyGram, PayPal, Western Union, and Cash. Major export ports include Ningbo, Shanghai, Shenzhen, and Hong Kong.

Q6: Do your systems support remote updates?

Yes, our systems include built-in WiFi modules and support APP OTA (Over-the-Air) functions for convenient remote updates and monitoring.

Product Detail

Dyness Stack100 High Voltage Battery Lithium Ion Battery Stackable Lifepo4 Battery With Inverter

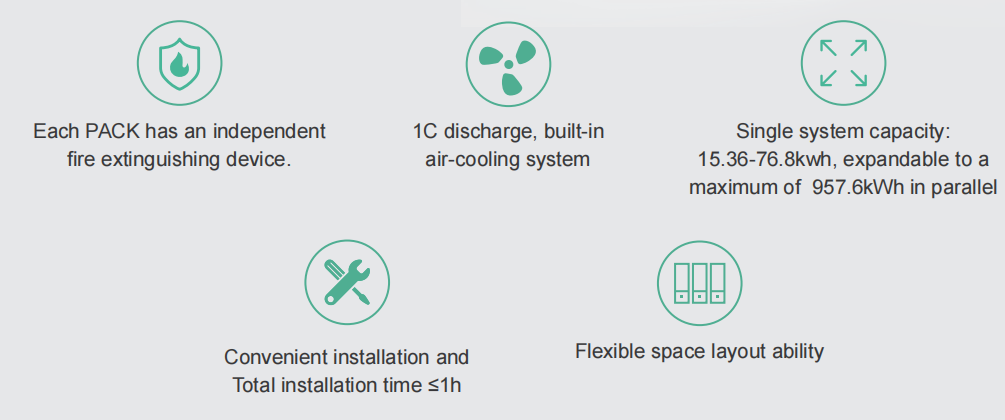

Product Description
