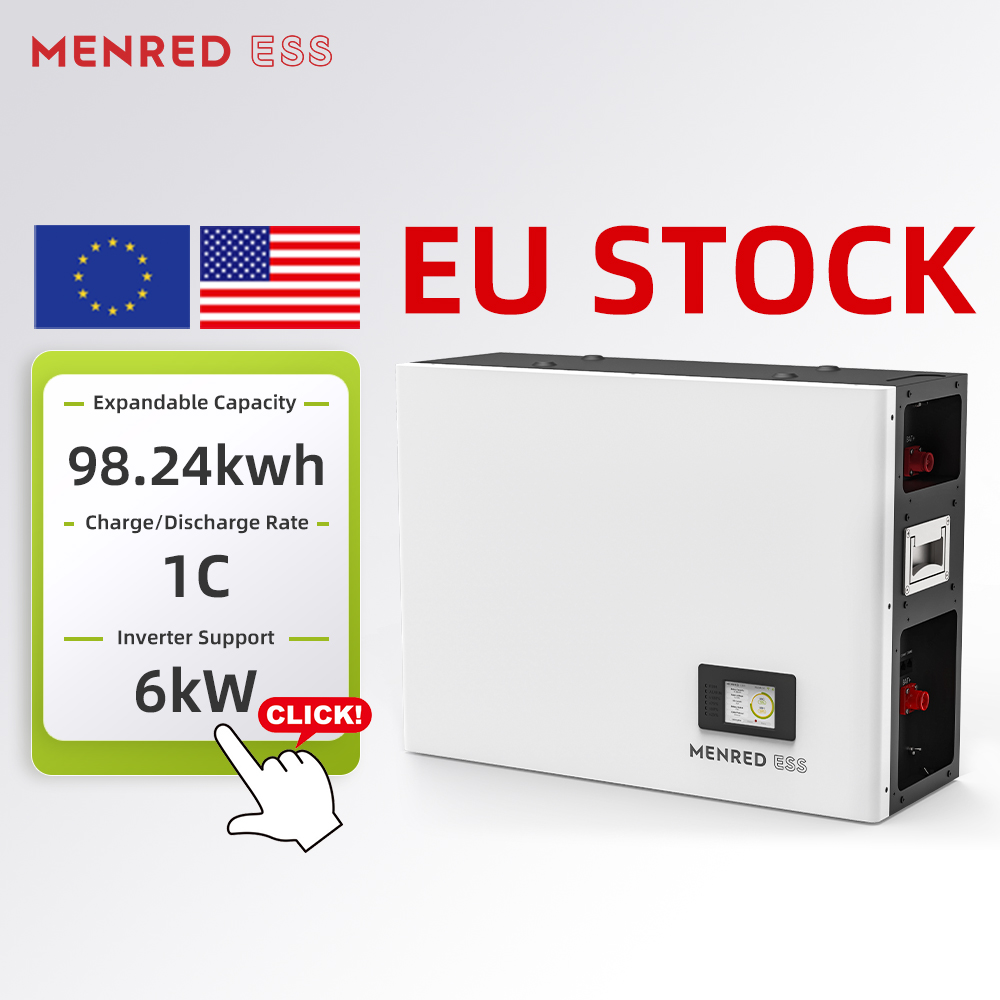

| Model | LFP.6144.W |

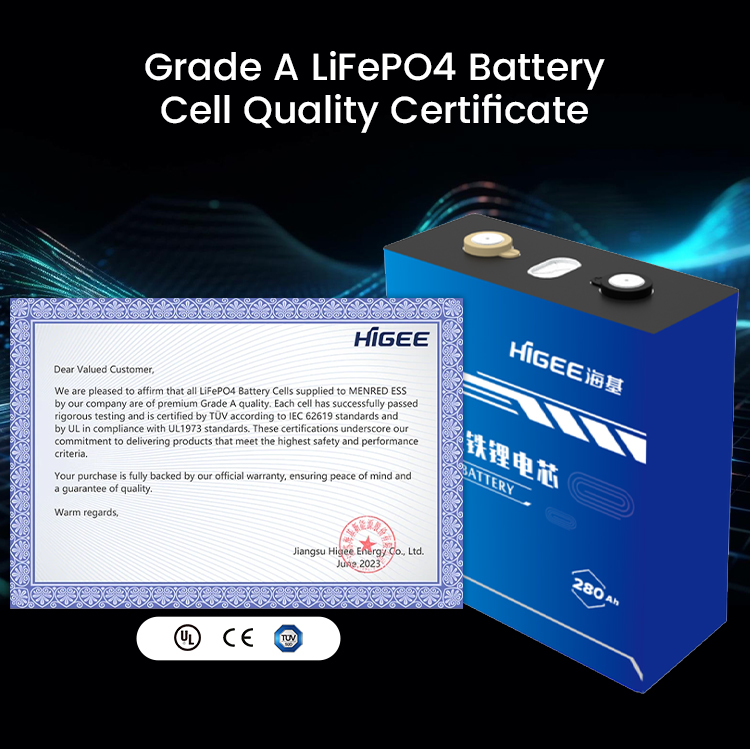

| Battery Cell | Lithium Iron Phosphate (cobalt-free)-LiFePO4 |
| Energy Capacity | 6.144kWh |
| Usable Capacity | 5.83kWh |
| Nominal Voltage | 51.2Vdc |
| Operate Voltage Range | 44.8Vdc-57.6Vdc |
| Max Charge Current | 120Amp |
| Max Discharge Current | 120Amp |
| Max Parallel | 16pcs to 98.24kWh |
| Cycle Life | ≥6000 times @ 1C 0.5C & 25±2°C |
| Operate Temperature | Discharge: -10°C to +50°C | Charge: 0°C to +50°C |
| IP Grade | IP21 |
| Installation | Wall-Mounted or Floor Installation |

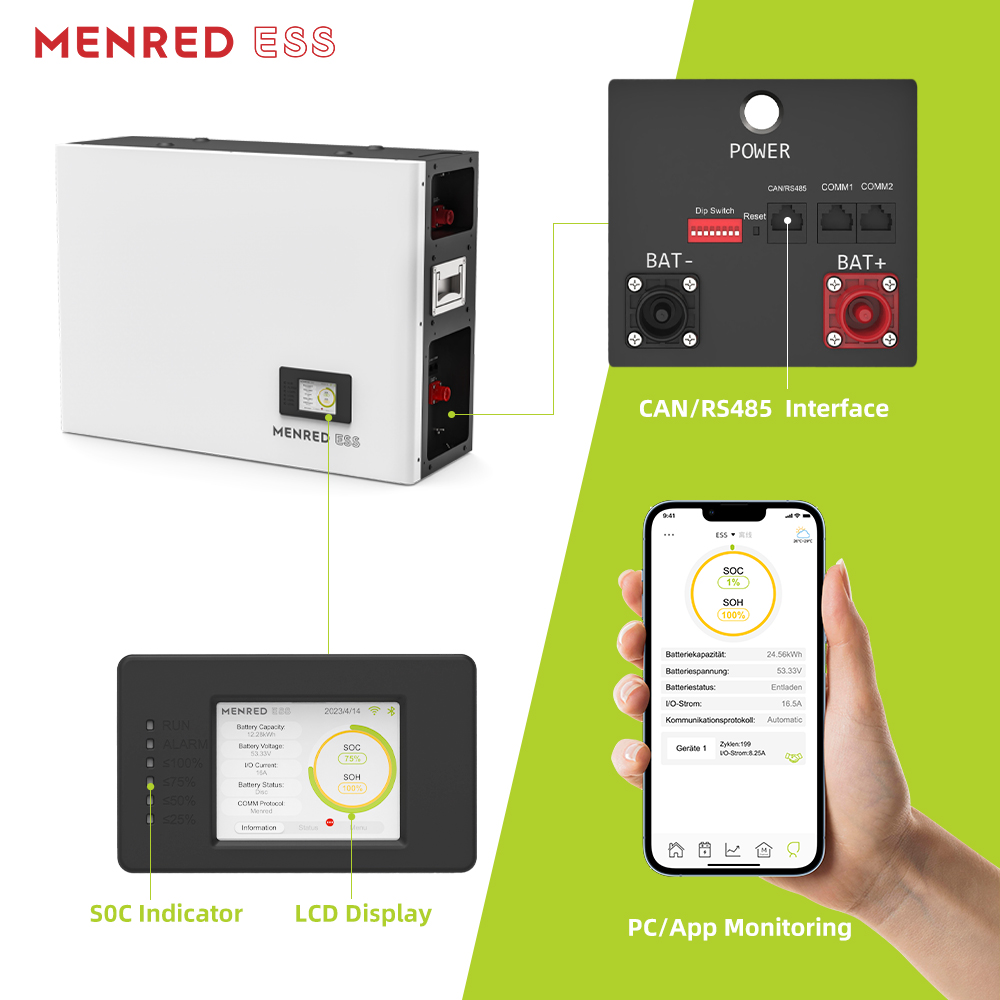

| Communication Port | CAN / RS485 |
| BMS Monitoring | SOC, System Voltage, I/O Current, Cell Voltage, Cell Temp, Battery Status, Fault code |
| Support Inverter Brands |
CAN: Victron, SMA, Studer, Goodwe, SUNGROW, Solis, SOFAR, Growatt, Luxpower, Sol-Ark, Deye, etc. RS485: PYLON, DEYE, SRNE, Growatt, Voltronic, etc. |

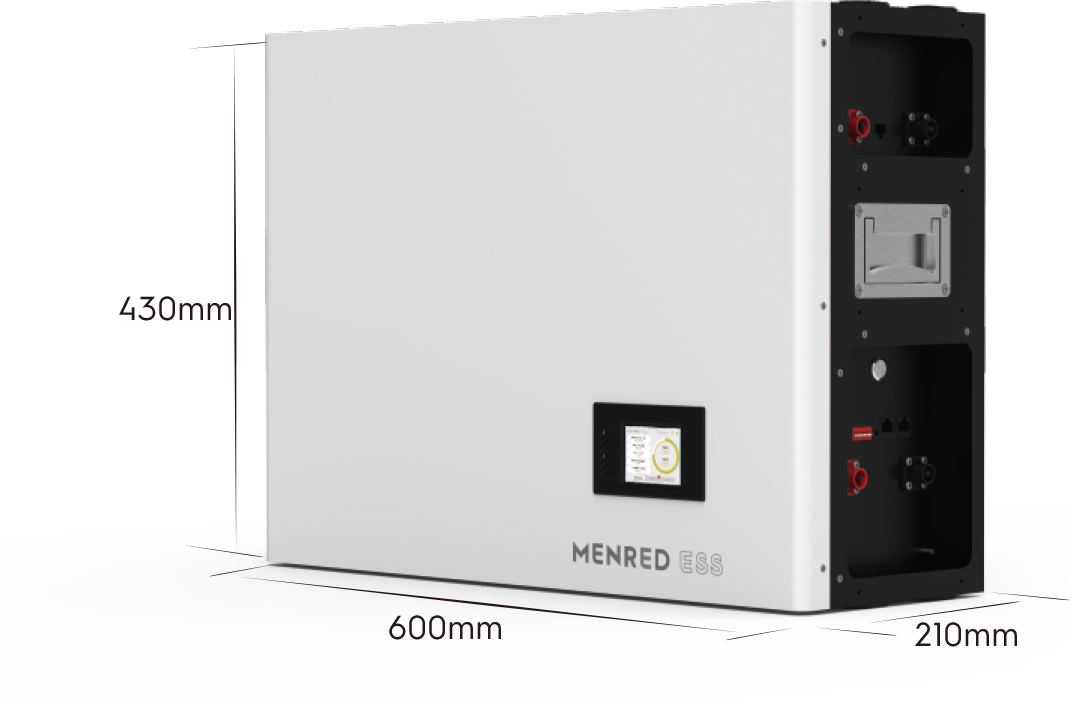

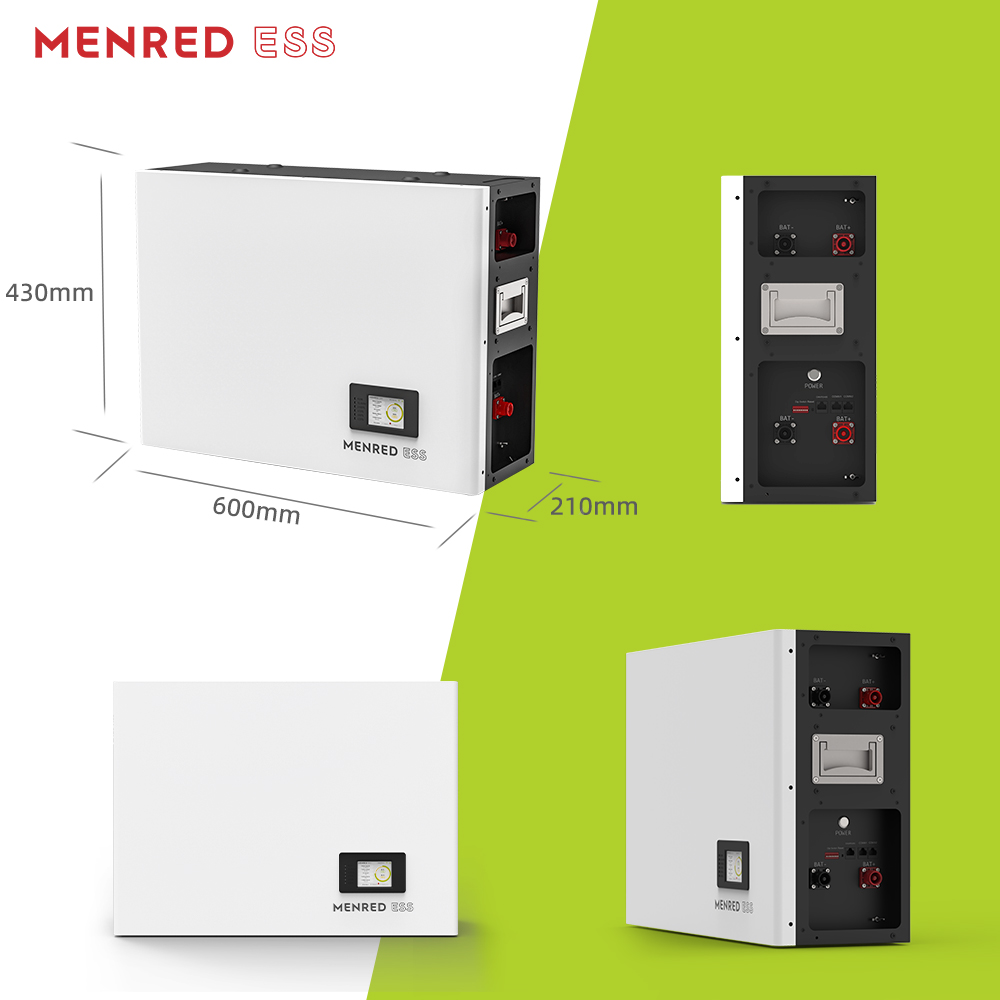

| Products Size (W*D*H) | 600*440*210 mm |
| Weight | 65kg |

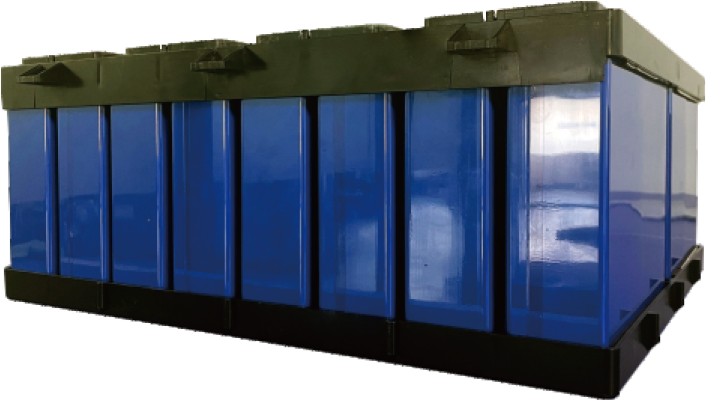

The unique design of integrated plastic fixed modules ensures a gap of 7mm between battery cells, providing sufficient and uniform heat dissipation. This prevents rapid aging and cell swelling caused by heat buildup, reducing risks of short circuits and overheating.

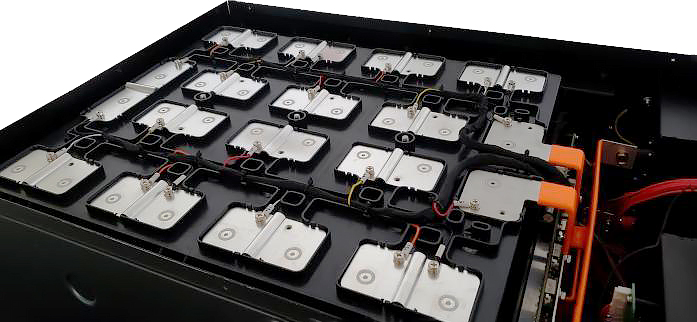

Using aluminum connection straps rated for three times the current to reduce losses. The laser seamless integrated automation production ensures reliable connections, avoiding detachment or false welding.

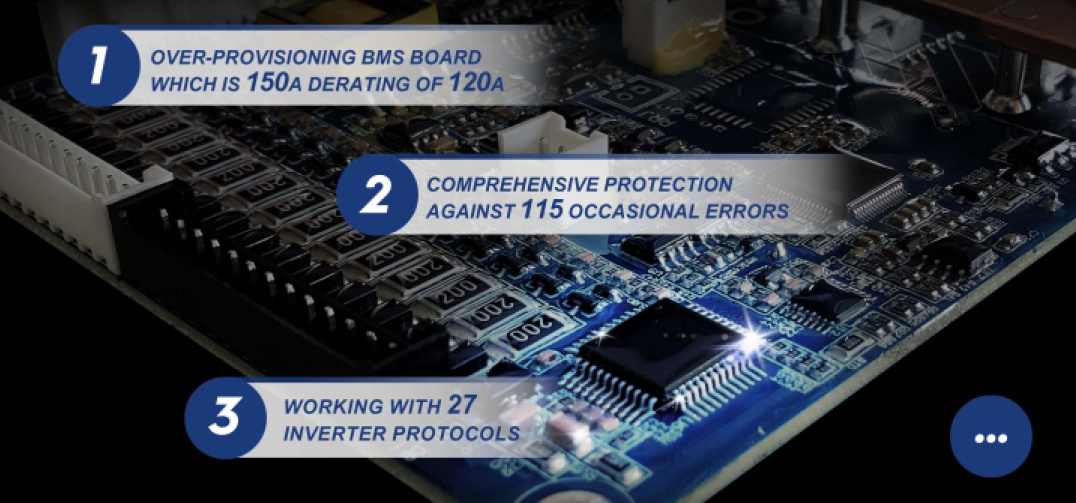

Up to 115 sensing points provide comprehensive protection. The passive balancing function ensures cell consistency during charge/discharge, maintaining peak performance with minimal degradation over time.

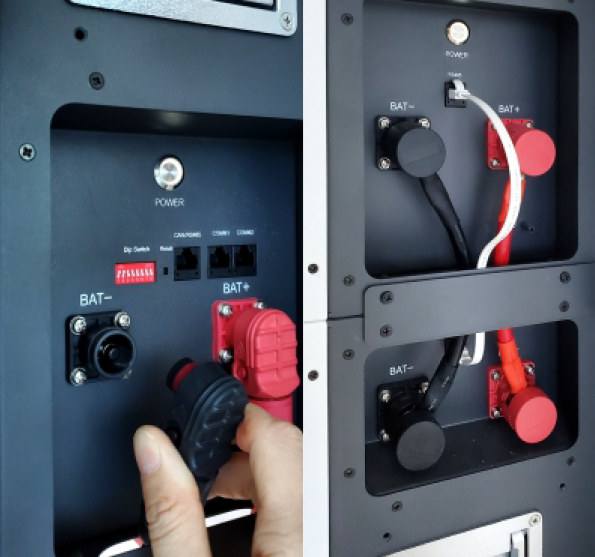

Features a hot-pluggable interface and concealed terminals. Supports both wall mounting and stacking for space-saving installation. Allows expansion up to 98.3 kWh through parallel connection of 16 modules.

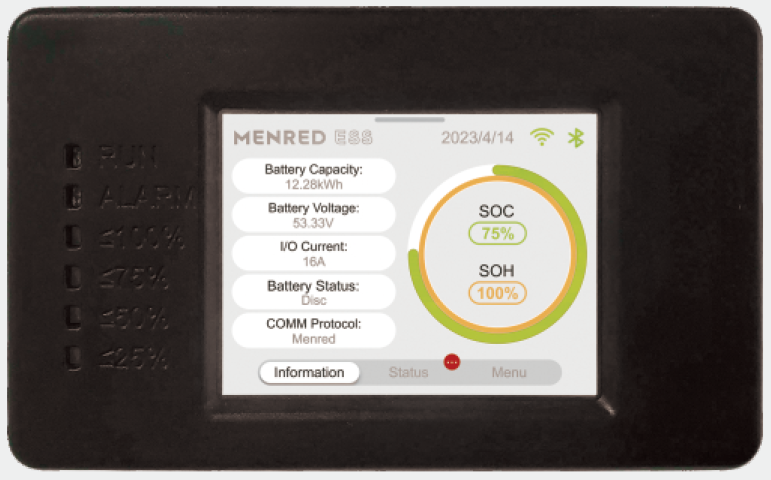

Equipped with a 2.8-inch touchscreen LCD showing SOC, system status, and faults. Supports 27 inverter protocols and Bluetooth/Wi-Fi configuration for real-time mobile app monitoring.

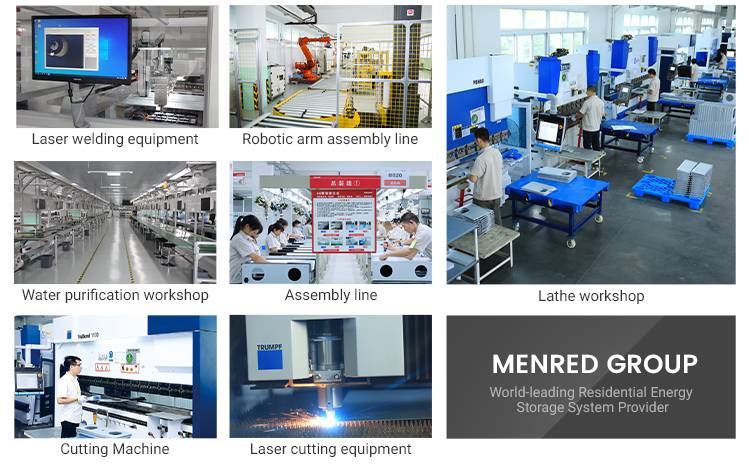

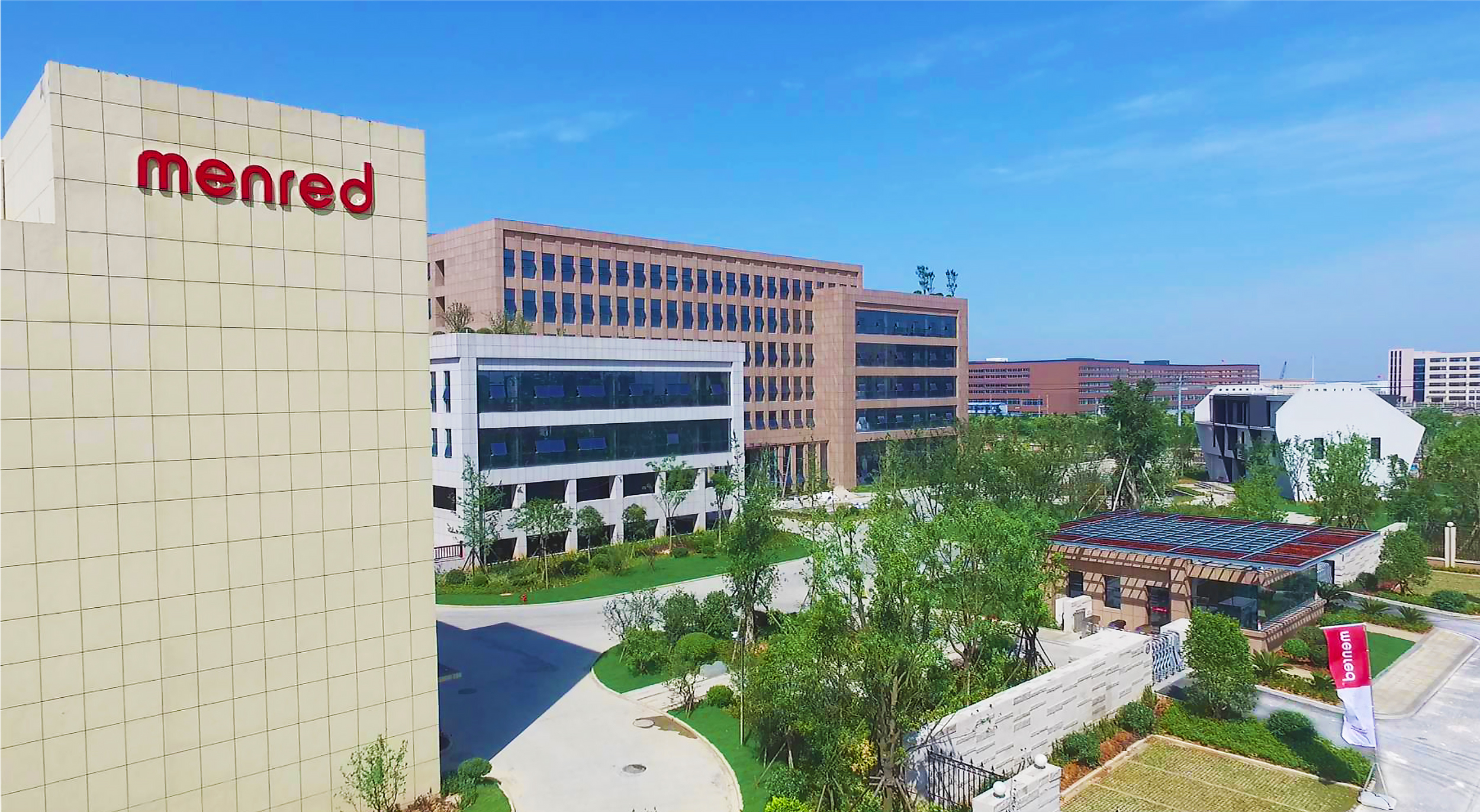

Founded in 1995, our industrial cluster manufactures a full range of energy products including heat pumps, radiant cooling, water purification, and advanced energy storage systems.

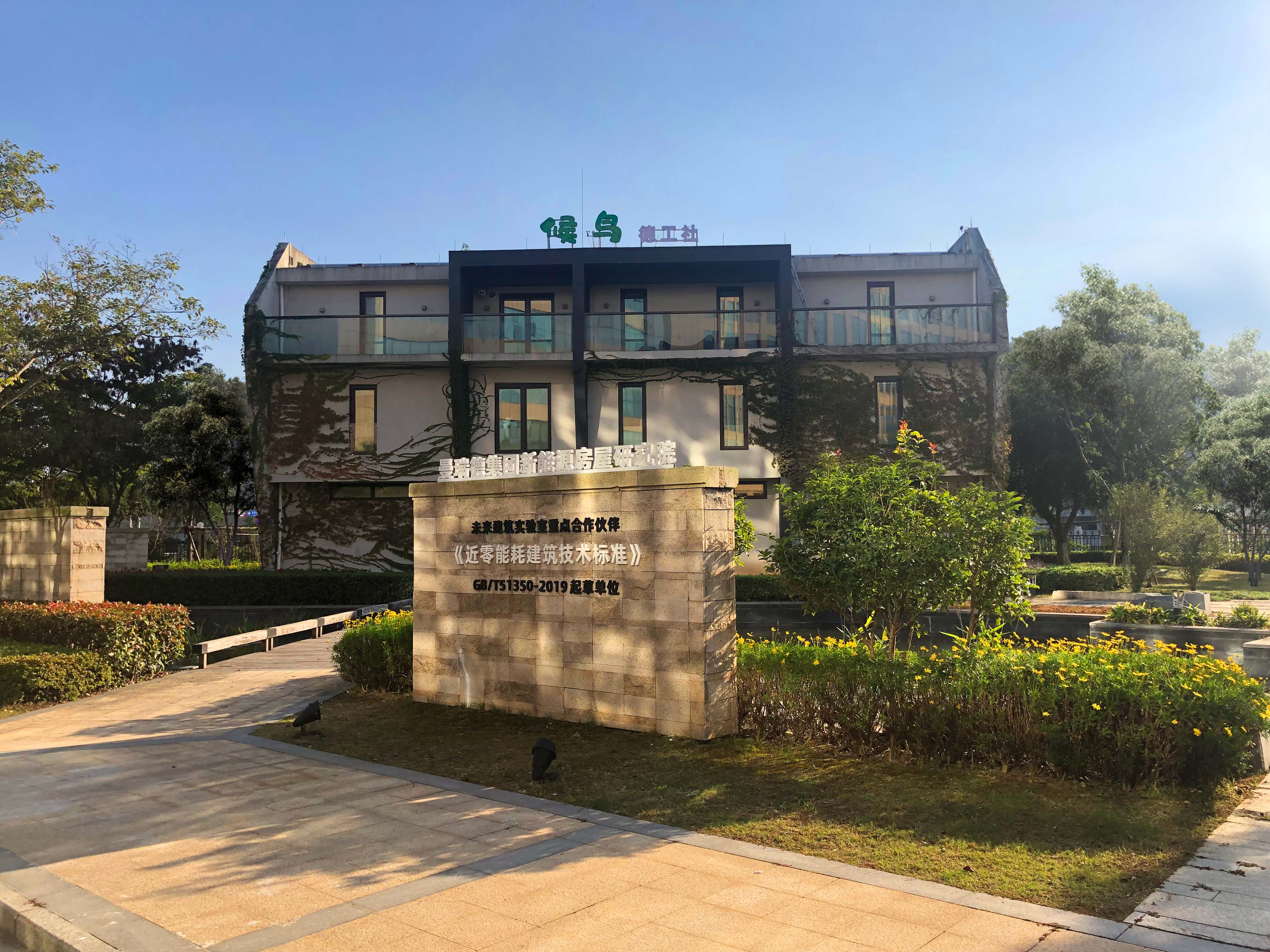

Zero Energy Housing Research Institute

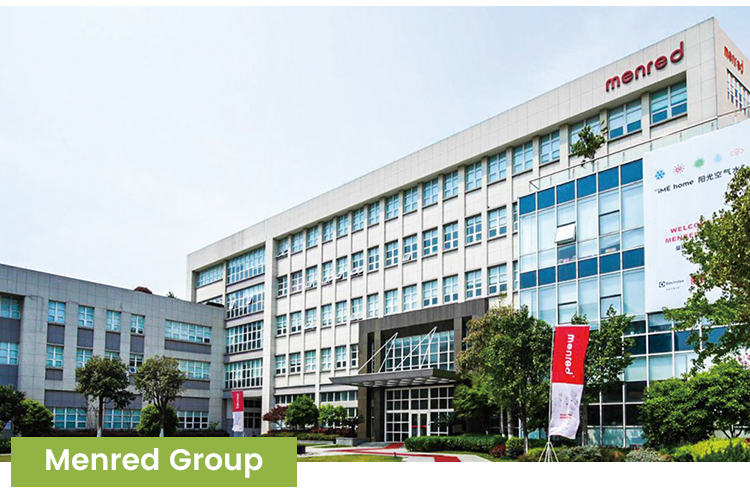

Green Building Industrial Park

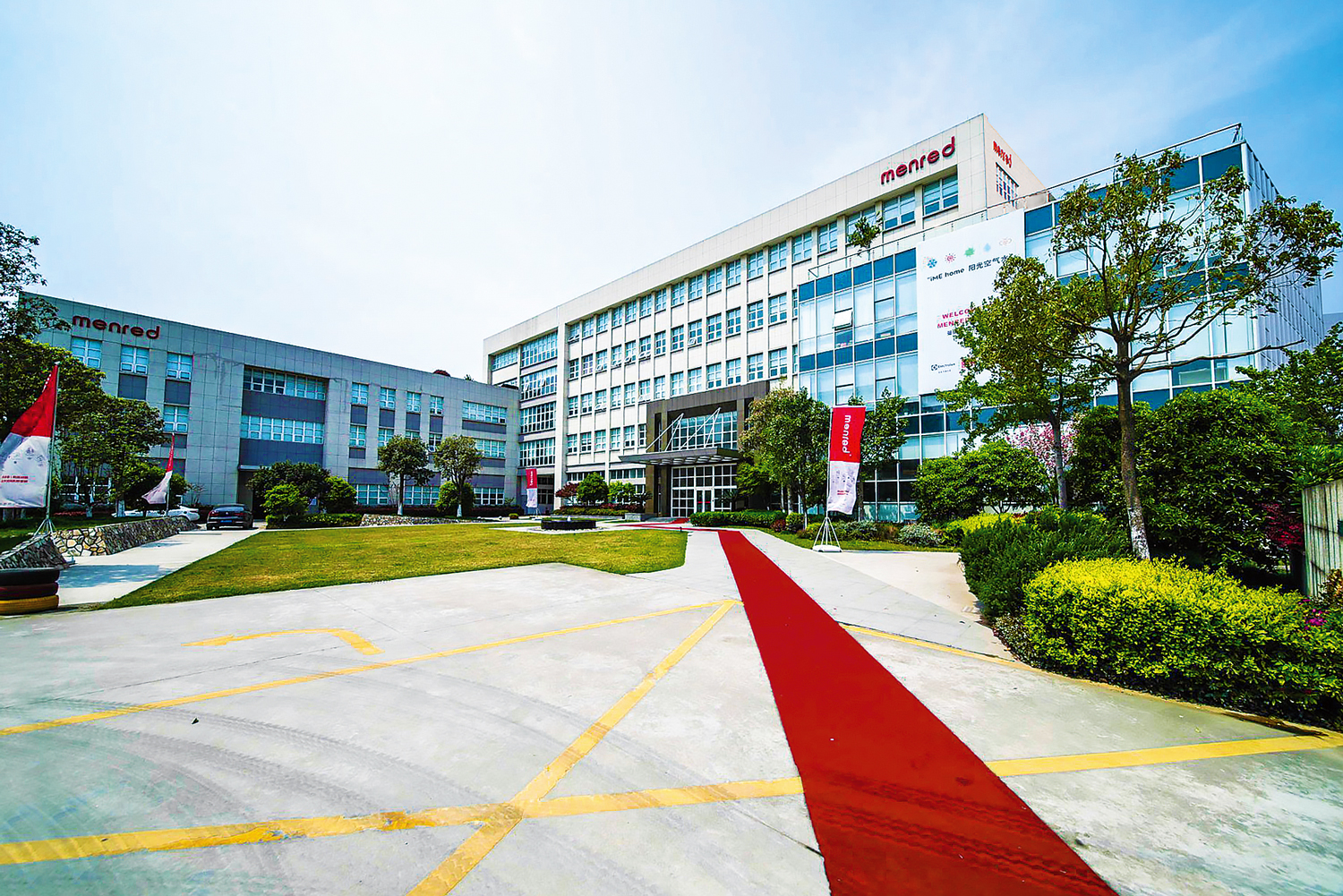

Environmental Tech Industrial Park
