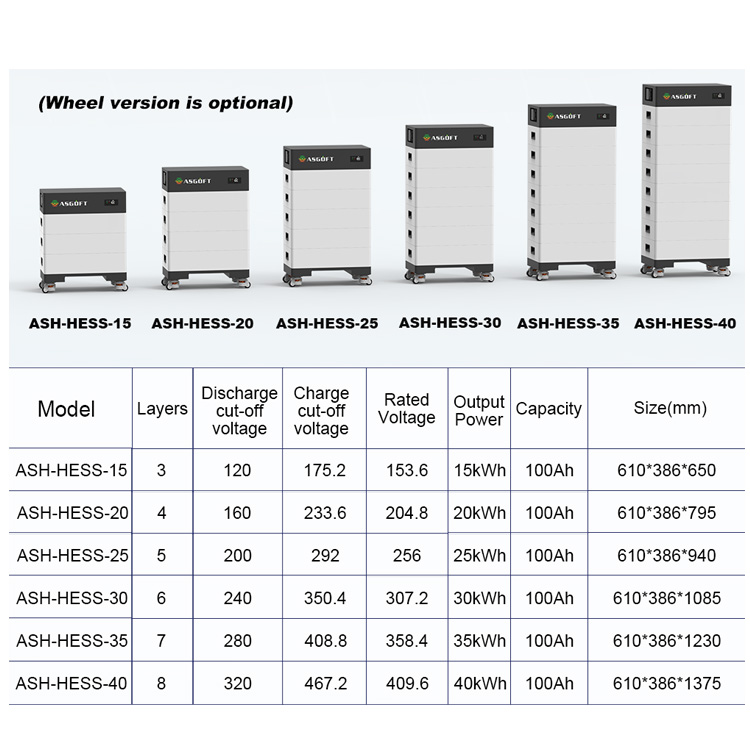

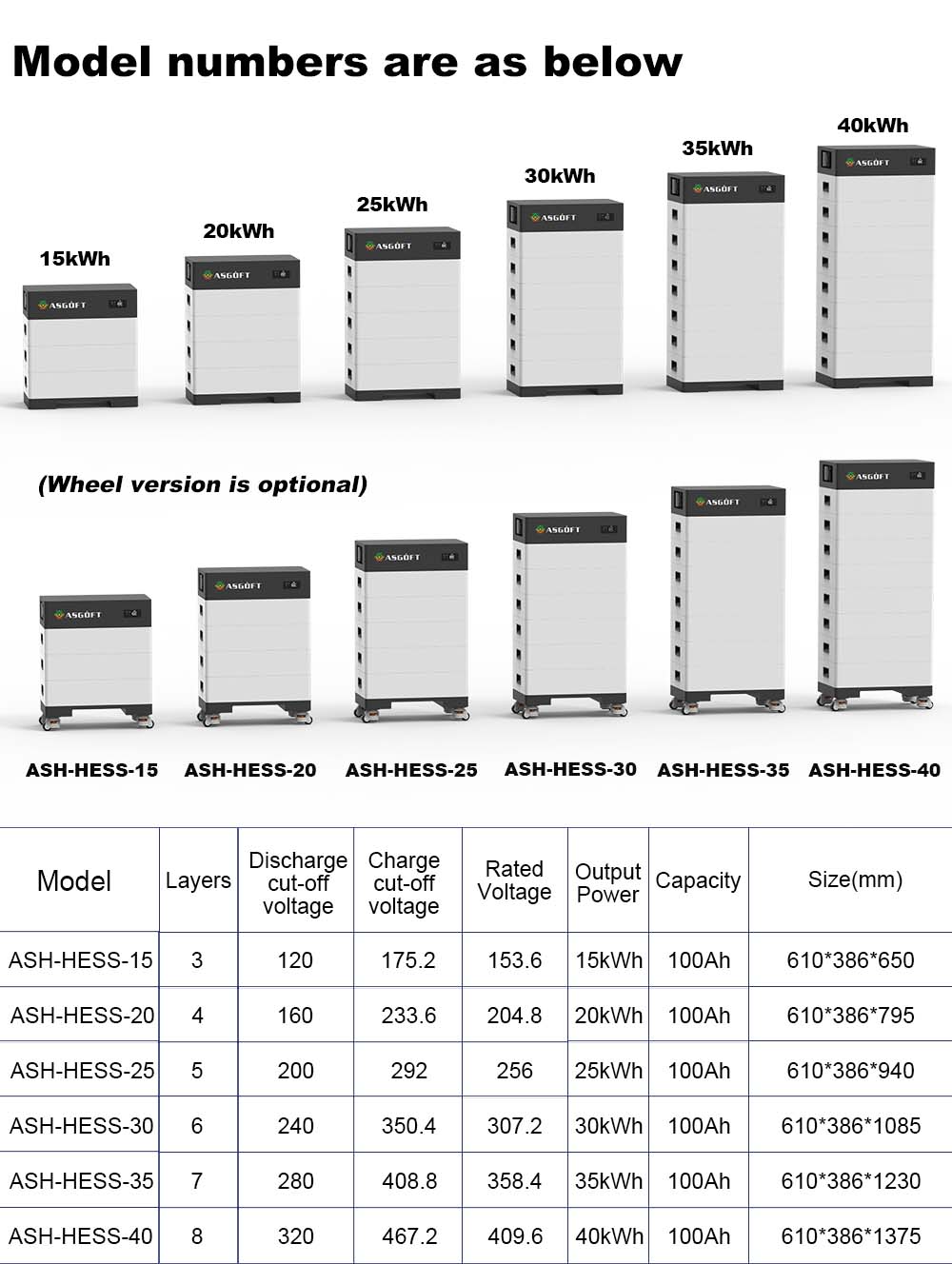

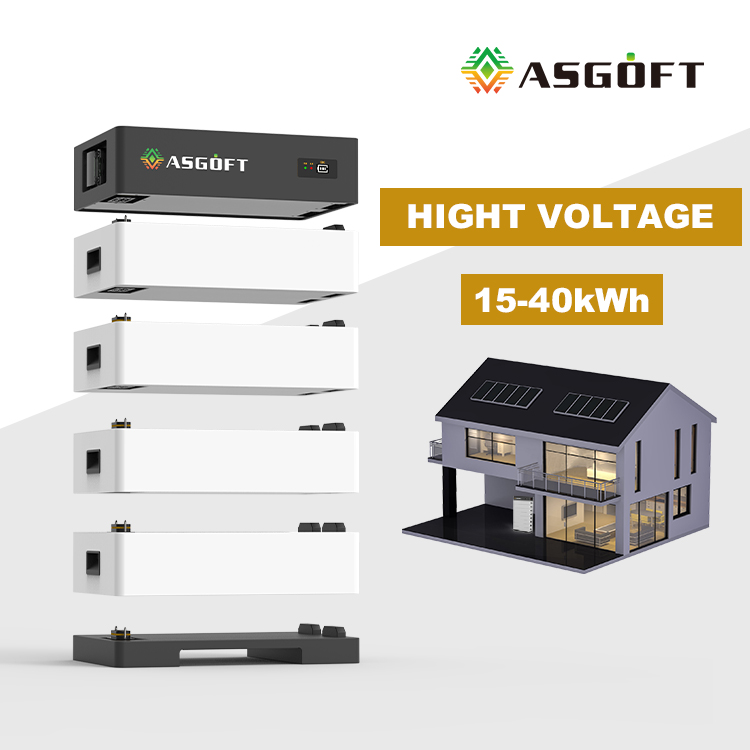

| Product Model | ASH-HESS-30 |
| Rated Voltage | 307.2V |
| Rated Capacity | 100Ah |
| Rated Energy | 30.72kWh |
| Battery Configuration | 96S1P |
| Display | LCD |
| Communication | CAN/RS485 |
| BMS | Built-in BMS |
| Battery Operating Temperature | Charge: 0℃~55℃ / Discharge: -20℃~60℃ |
| Storage Temperature Range | Less than 12 months: -10℃~35℃ / Less than 3 months: -10℃~45℃ |
| Factory Voltage | 300~310V |
| Max Discharge Current | 50A |
| Limited Charging Voltage | 350.4V |
| Cycle Performance | ≥6000 Cycles |

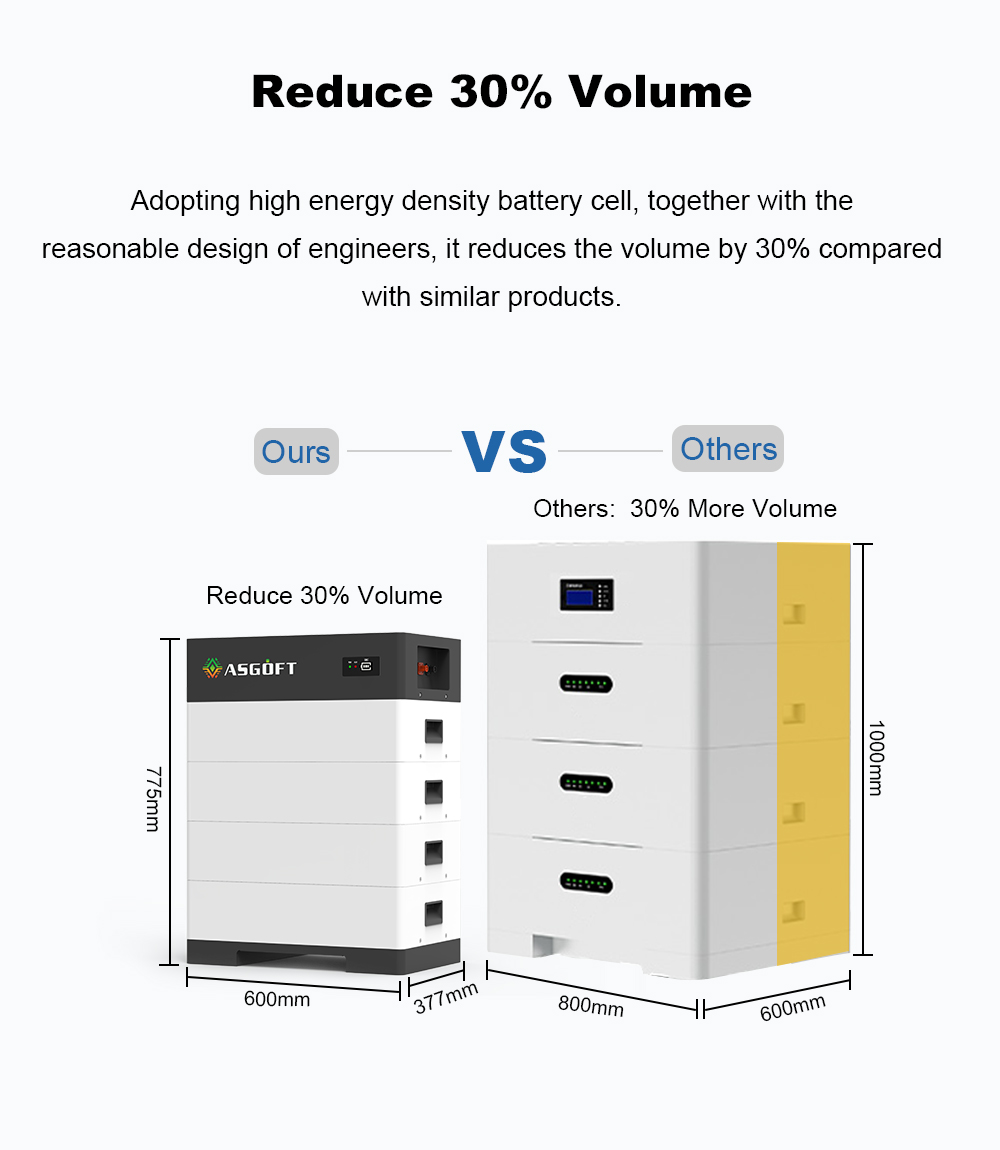

| Unit Dimension(L*W*H) | 600*377*1085mm |
| Unit Weight | 308kg ±5% |
| Warranty | 10 Years |
Our products have overseas warehouses in Germany
Welcome OEM/ODM Orders
A1: Yes. OEM & ODM are available.
A2: We provide 2-year warranty service for free, and we can also provide 10-year warranty service if you need it.

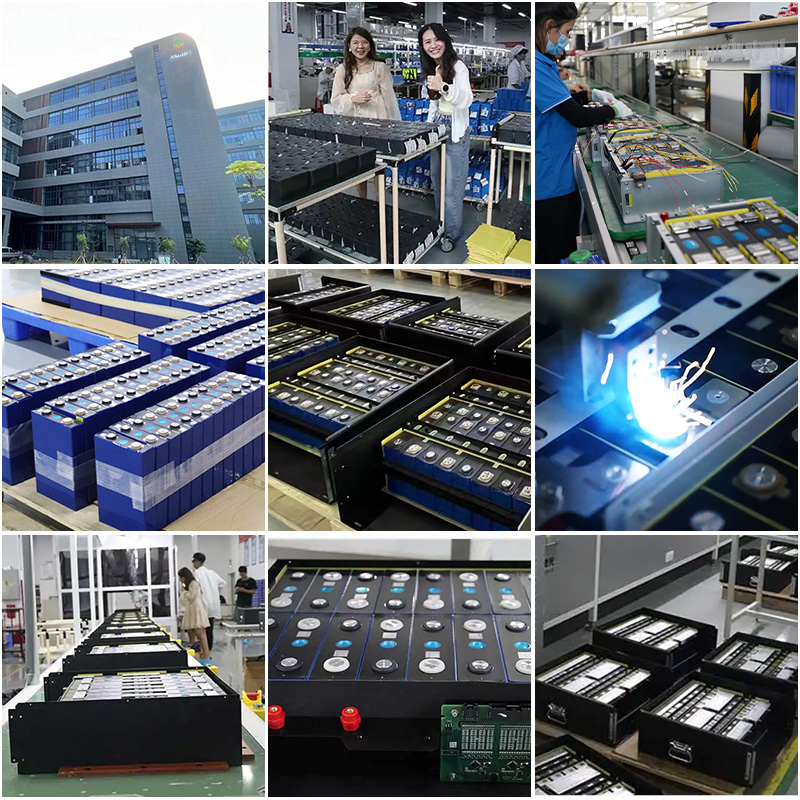

A3: All of our products undergo rigorous testing before leaving the factory, and the defective rate is less than 0.2%.
A4: Sure, support sample testing.
A5: We have professional engineers to provide you with free after-sales service consultation 24 hours a day, so that your problems can be easily solved.
A6: Sample: 2-3 working days. Order: within 3-15 working days depending on the order quantities. OEM order: 7-25 working days after confirming the sample.
