EU Stock DDP New V3 Standing 51.2V 14kWh 16kWh 16s Lifepo4 Battery Diy Kit Vertical JK V19 BMS Solar Energy Storage Diy Box

1 / 5

EU Stock DDP New V3 Standing 51.2V 14kWh 16kWh 16s Lifepo4 Battery Diy Kit Vertical JK V19 BMS Solar Energy Storage Diy Box

Send Inquiry

Product Description

Technical Specifications
Model	51.2V 280AH/300AH Battery Case with Smart BMS
Nominal Voltage	51.2V
Nominal Capacity	280Ah/314Ah
Supported battery models	280AH/302AH/304AH/310AH/300AH/314Ah
Max Charge Voltage	58.4V
Cut-off Discharge Voltage	40V
Max. Continuous Discharge Current	200A
Max Charge Current	200A
Communication	RS485/RS232/CAN
Weight (Approximate)	36KG
Dimensions (LWH)	894250400mm (with wheels)
BMS	V19 JK PB2A16S20P
Operating Temperature	Charging: -20~60℃ / Discharging: -30~60℃
Application	Power Storage System, Electric vehicles, Golf carts, etc.
OEM/ODM	Accepted

⚙️ Core Business & Product Portfolio

We are a professional enterprise focusing on the R&D, production, and sales of energy storage lithium batteries, providing customized green energy solutions globally.

Key Battery Types: 3.2V/12V/24V/51.2V LiFePO4 Batteries.
Energy Storage Systems: 24V/48V DIY Boxes (with smart BMS), 1kWh-256kWh Home Solar Storage Systems.
Application Fields: Solar storage, power walls, electric bicycles, and consumer electronics.

🛡️ Quality Assurance & Service

Production Strength: 3,000+㎡ standardized workshop with automated production lines.
Certifications: Products passed CE, ROHS, UL, UN38.3 certifications.
Support: OEM/ODM services with low MOQ; 5-year product warranty.

Global Shipping Overview
Destination	Mode	Estimated Time (ETD/ETA)	Notes
USA	Sea + FEDEX (DDP)	ETA: 25-30 working days	Tax free; No PO Box/Sensitive addresses.
EU Stock	GLS/UPS/DPD	ETA: 3-7 working days	Dispatched within 24 hours from local warehouse.
EU (China)	Railway/Sea (DDP)	ETA: 40-50 working days	Tax free.
AU	Sea + Delivery	ETA: 25-30 working days	DDP/DAP options available.

💬 Frequently Asked Questions

Q1: Are you a professional manufacturer?

A1: Yes, our factory has focused on pure batteries, lithium iron phosphate batteries, and home energy storage solutions for more than 10 years.

Q2: What about the after-sale service and warranty?

A2: We offer a standard 2-year guarantee. For any issues, we provide positive technical solutions. We also maintain warehouses in Europe to ensure faster local support.

Q3: Does the 51.2V kit include the actual battery cells?

A3: No, the standard kit includes the case and all accessories (including BMS) but not the cells. If you require battery cells, please contact us for a combined quote.

Q4: Is it easy to install the battery box?

A4: Yes, this kit is designed for easy installation. we provide detailed installation videos and instruction files to guide you through the process.

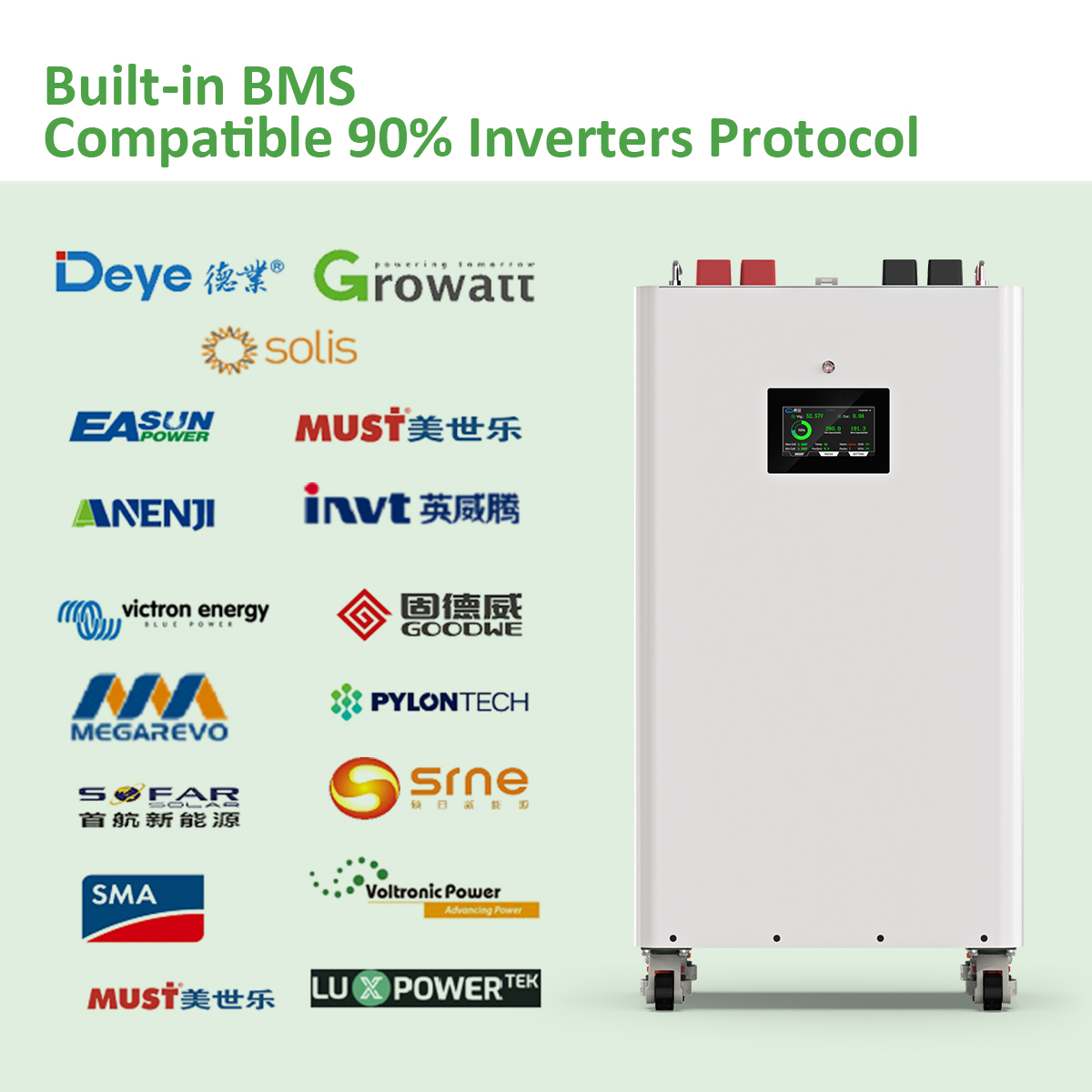

Q5: Which inverters is the internal BMS compatible with?

A5: The JK V19 PB2A16S20P BMS is compatible with mainstream brands such as Deye, PYLON, Growatt, Victron, SMA, SOLIS, and EASUN.

Q6: How many units can be connected in parallel?

A6: You can connect up to 16 units in parallel to expand your storage capacity. We also provide wheels for easier mobility of the setup.
