Hot Selling 15kwh 21kwh 24kwh 30kwh High Voltage Lithium Lifepo4 Battery Home Energy Storage Systems For Home Eu Warehouse Price

1 / 5

Hot Selling 15kwh 21kwh 24kwh 30kwh High Voltage Lithium Lifepo4 Battery Home Energy Storage Systems For Home Eu Warehouse Price

Send Inquiry

Product Description

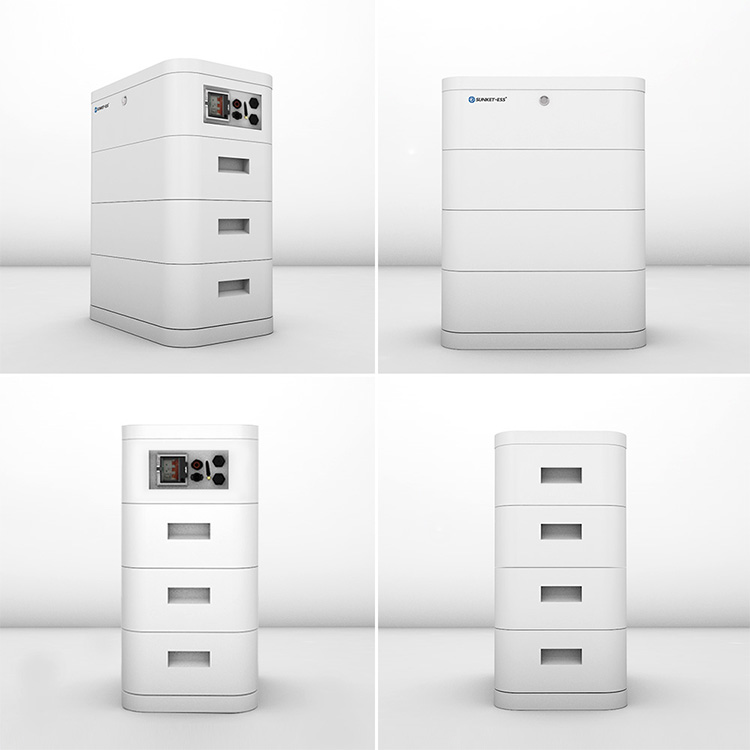

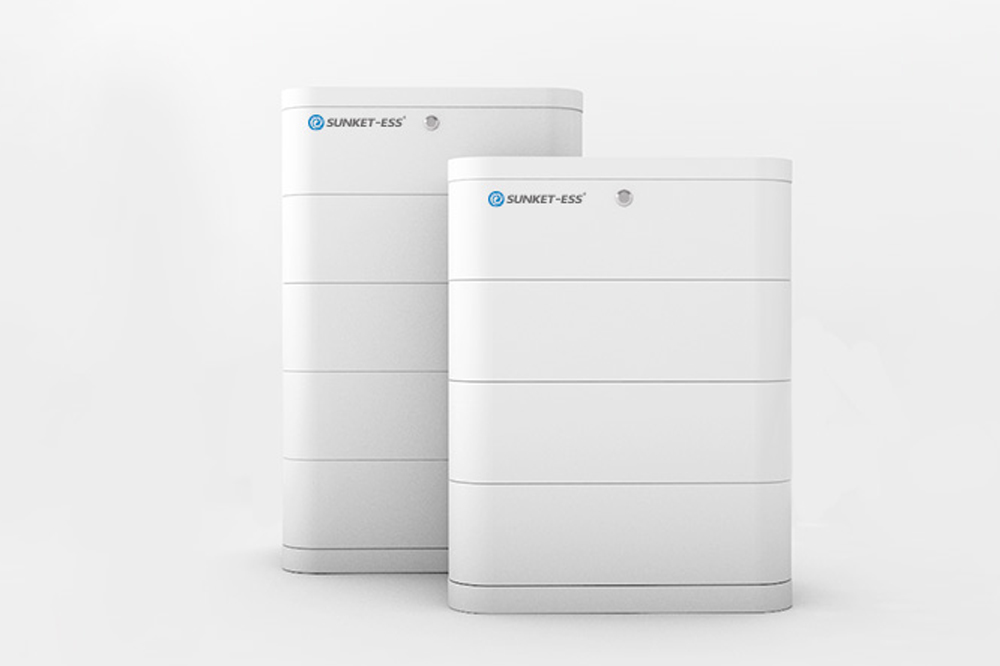

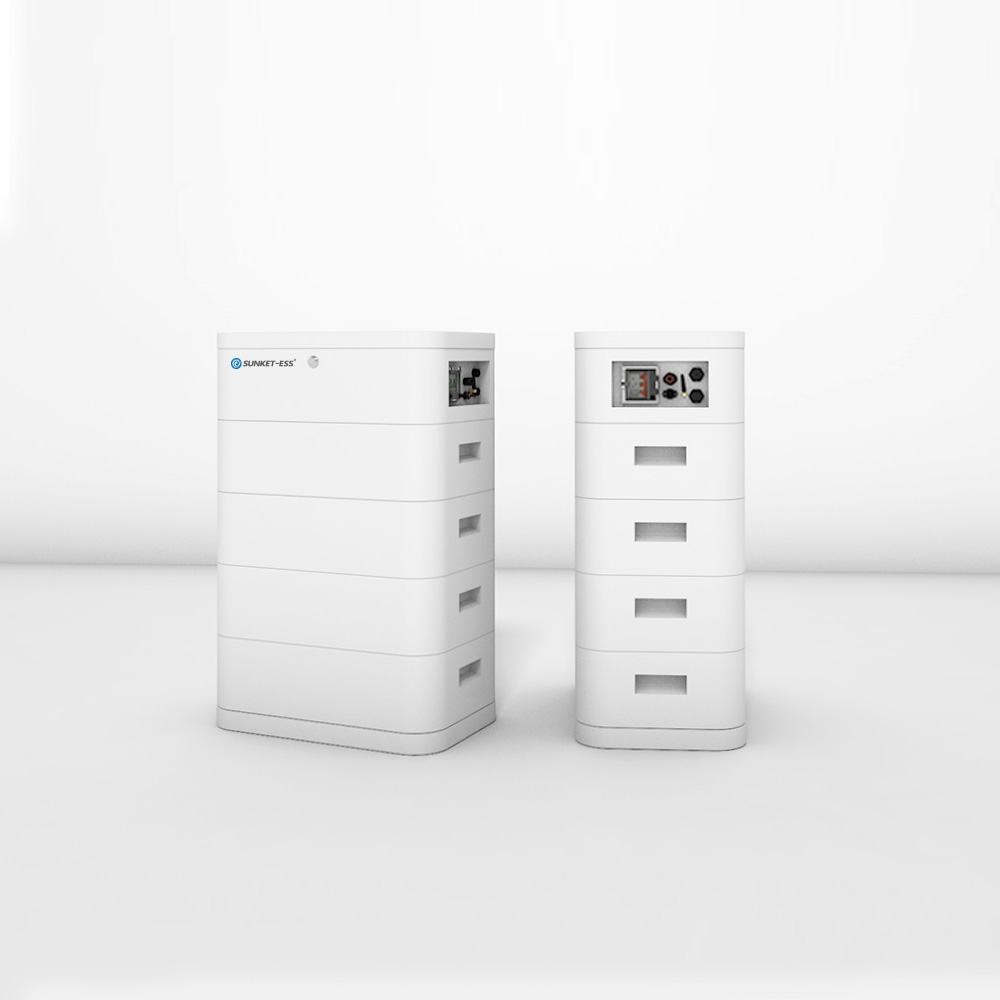

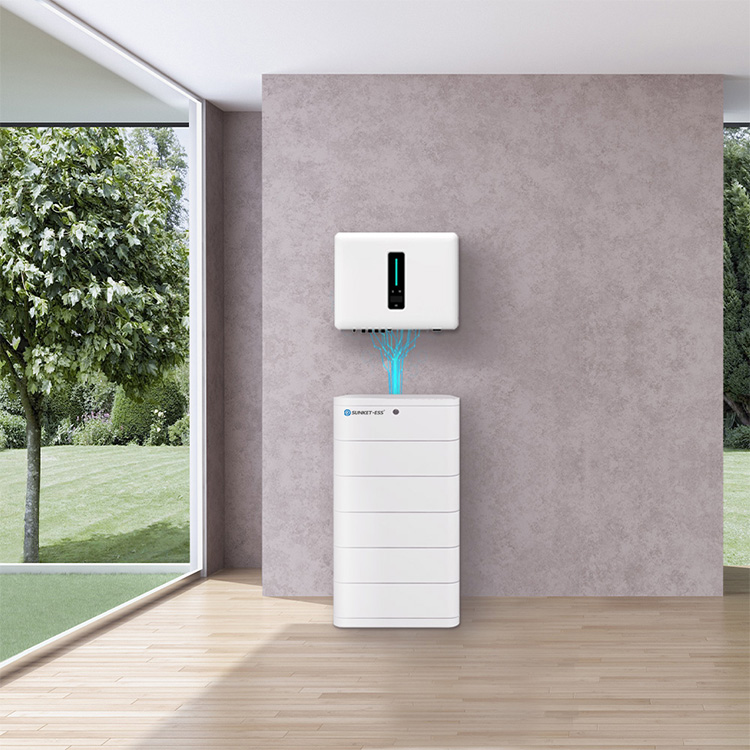

The LFP 9kWh/HV home battery is modular in 2.88 kWh increments, providing a capacity range of 8.64kWh-28.8kWh per stack. This also allows for easy servicing and future expansion. With continuous output at up to 14.4kW, true full-home backup is here.

Product Introduction

The lithium iron phosphate battery (LiFePO4 or LFP) is the safest of the mainstream lithium battery types. A single LFP cell has a nominal voltage of 3.2V. A 57.6V LFP battery consists of 18 cells connected in series.

🛡️ Rugged - Operates in deficit mode over long periods.

⚡ High round trip efficiency.

🔋 High energy density - More capacity, less weight.

🚀 High charge and discharge currents.

⚙️ Flexible charge voltages.

Technical Specifications

Module Type	LFP 9kWh	LFP 12kWh	LFP 15kWh	LFP 18kWh	LFP 21kWh	LFP 24kWh	LFP 27kWh	LFP 30kWh
Usable Energy	8.64kWh	11.52kWh	14.40kWh	17.28kWh	20.16kWh	23.04kWh	25.92kWh	28.80kWh
Battery Module	LFP 3000 / HV : 57.6V 50Ah
Number of Modules	3	4	5	6	7	8	9	10
Nominal Voltage	172.8V	230.4V	288V	345.6V	403.2V	460.6V	518.4V	576V
Voltage Ranges	135-197.1V	180-262.8V	225-328.5V	270-394.2V	315-459.9V	360-525.6V	405-591.3V	450-657V
Dis-/Charge Current	25 / 50A
Max. Charge Voltage	197.1V	262.8V	328.5V	394.2V	459.9V	525.6V	591.3V	657V
Weight	102kg	131kg	160kg	189kg	218kg	247kg	276kg	305kg
Dimension(mm)	670330697	670330855	6703301013	6703301171	6703301329	6703301487	6703301645	6703301803
Safety	CE, UN38.3, IEC62619, IEC63056, IEC62477

Compatible Inverters

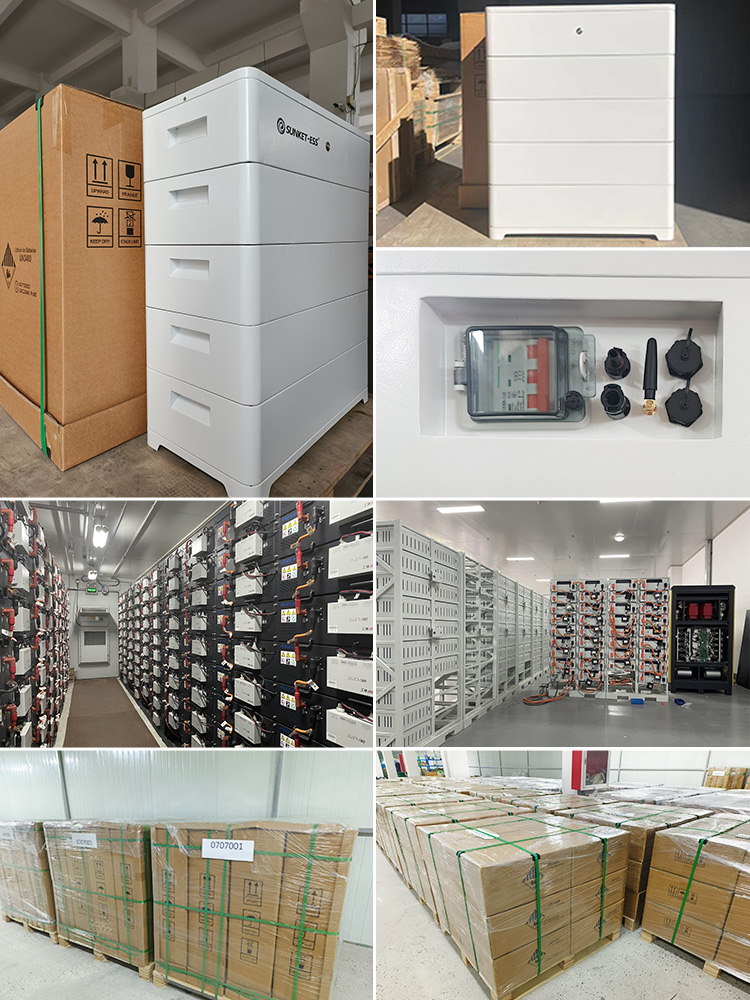

Professional Packing

Project Case

Recommend Products

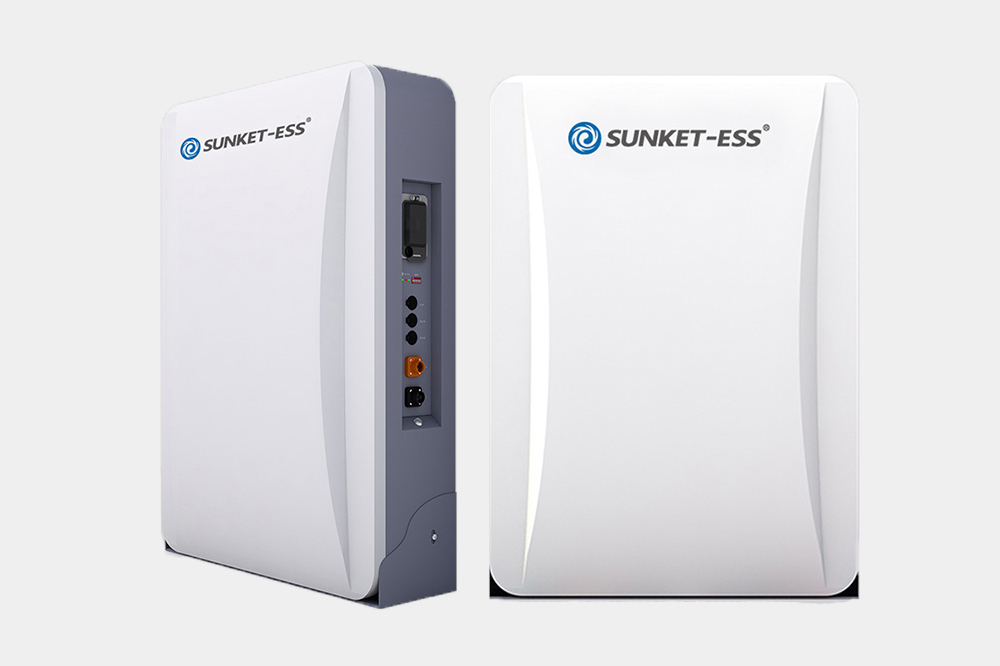

Wall Mounted Series

48v/51.2v | 5kWh - 10kWh Solution

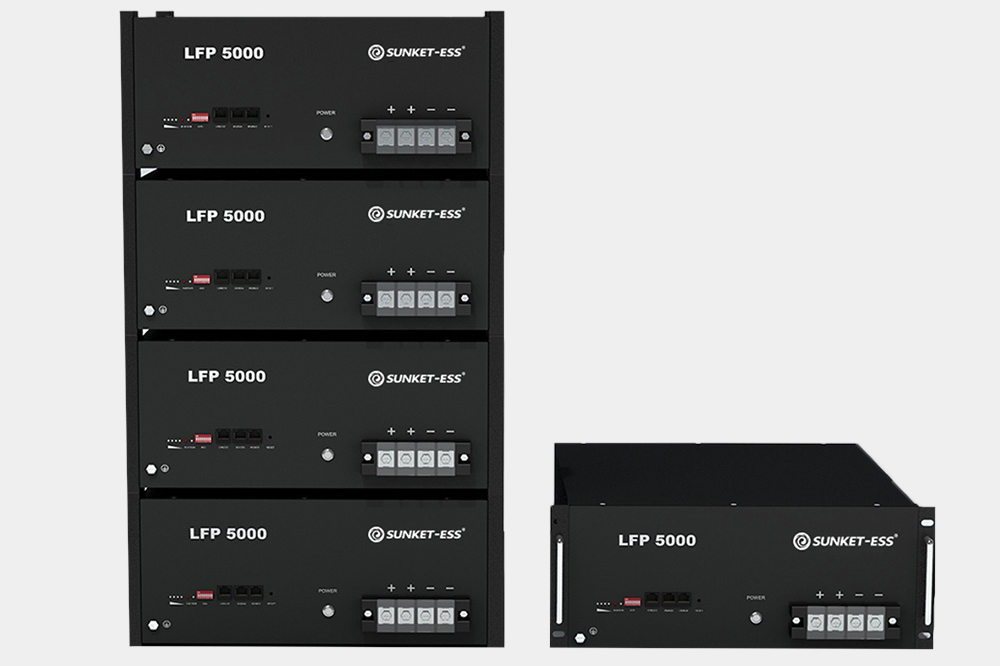

Rack Mounted Series

51.2V | 5kWh - 80kWh Solution

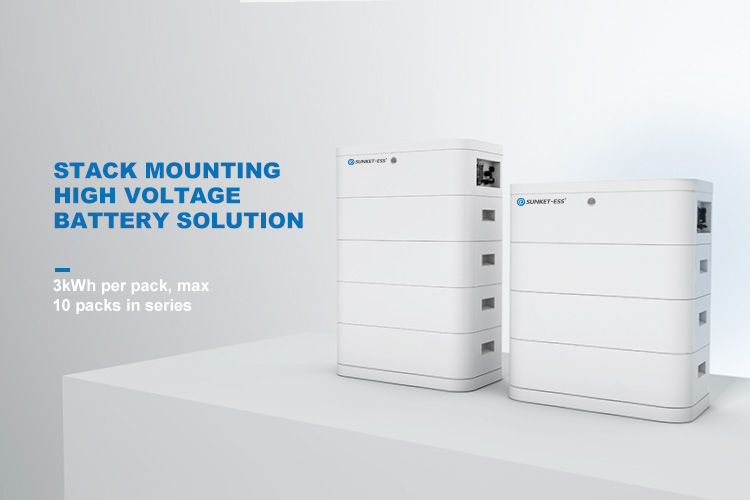

Stack Mounted Series

High Voltage 172.8V-576V | 9kWh-30kWh

Frequently Asked Questions

1. What is the main advantage of LFP (LiFePO4) chemistry? LFP is the safest mainstream lithium battery type, offering rugged performance, high thermal stability, and a long cycle life, even in demanding environments.

2. Can I expand the battery capacity later? Yes, the system is modular in 2.88 kWh increments. You can start with a base capacity and expand up to 28.8kWh per stack as your energy needs grow.

3. What is the maximum continuous output power? The system supports true full-home backup with a continuous output power of up to 14.4kW, depending on the number of modules configured.

4. Is the battery compatible with my existing inverter? Our high voltage LFP battery system is designed to be compatible with a wide range of mainstream hybrid and battery inverters on the market.

5. What safety certifications does the battery hold? The battery modules meet rigorous international safety standards, including CE, UN38.3, IEC62619, IEC63056, and IEC62477.

6. How does the stackable design benefit installation? The stackable design allows for easy servicing and quick installation without complex wiring between modules, significantly reducing setup time.
