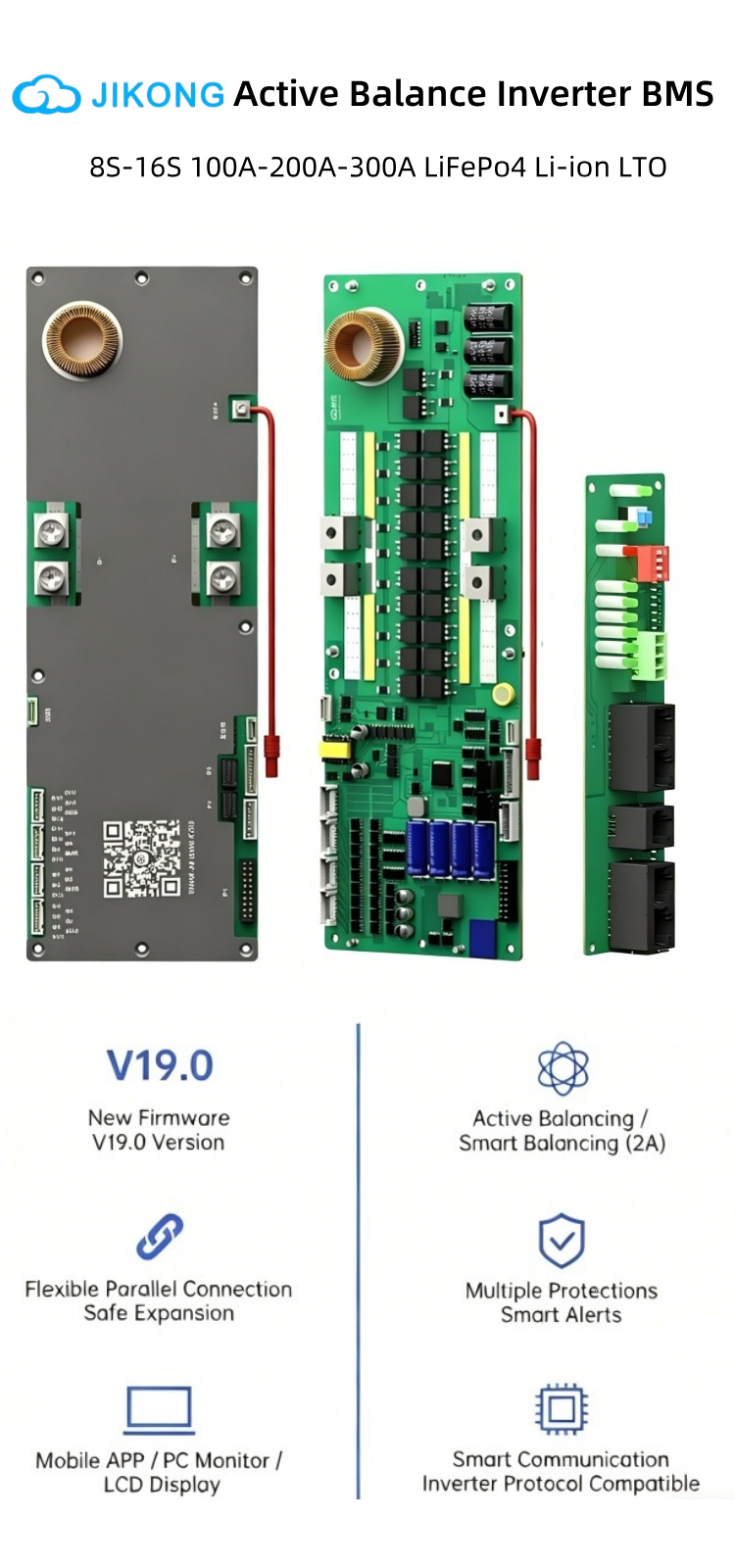

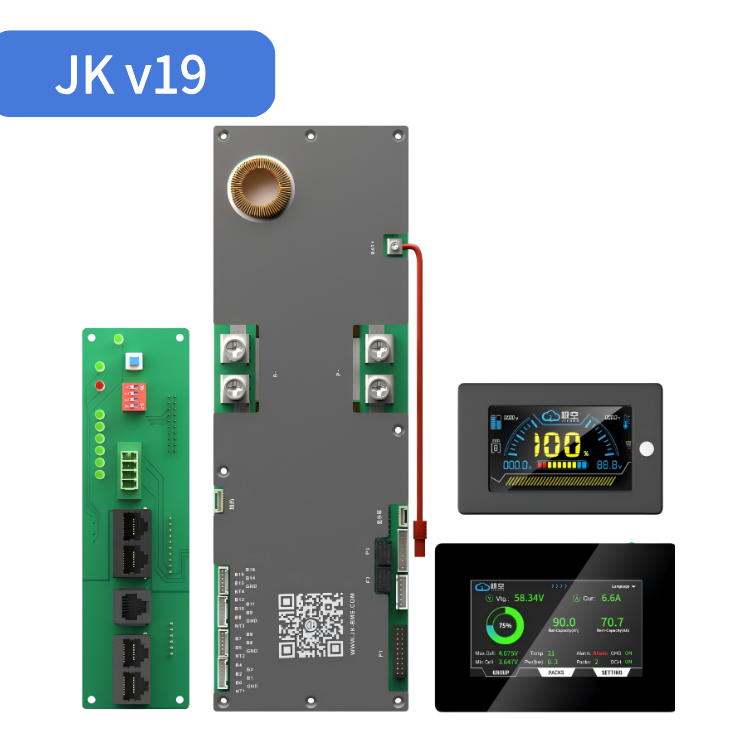

JKBMS for Lifepo4 Battery Bms 100A 200A JIKONG Smart BMS 8S 16S 48V With BT CAN RS485 UART Active Balance 1A 2A JK Inverter Bms

Send Inquiry

Product Description

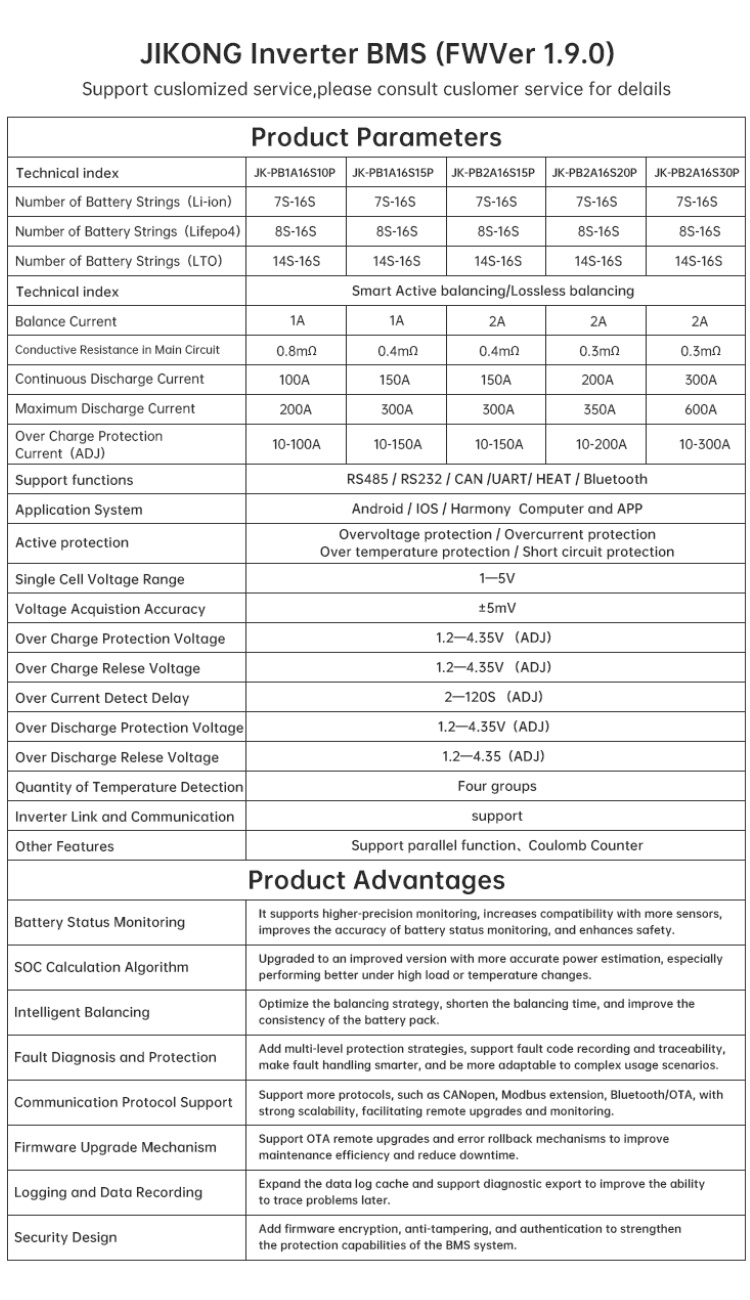

Specification

JIKING(JK) Battery Management System(BMS)
Applicable battery	Lithium-ion/Lifepo4/lo/Lead Acid

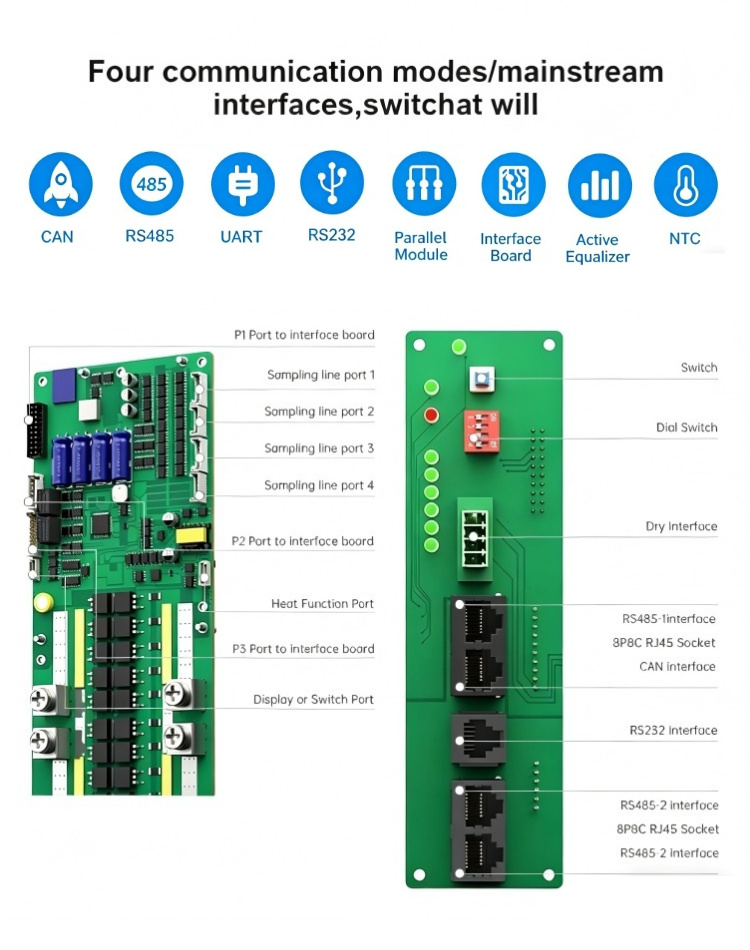

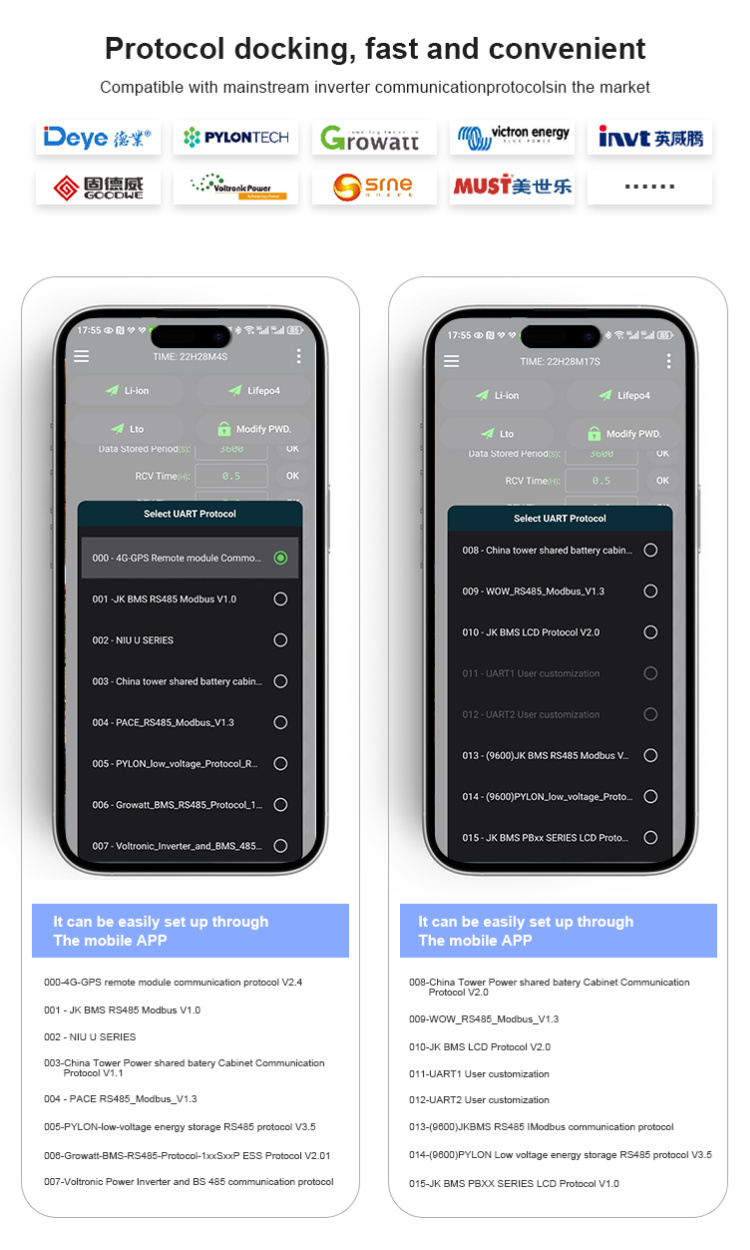

Support functions	RS485/CAN/UART/Bluetooth/heating/Parallel Operation APP/PC Host/LCD Display/Inverter Protocol
JK-PB1A16S10P	8S~16S Charge and discharge current 100A Active balancing 1A
JK-PB1A16S15P	8S~16S Charge and discharge current 150A Active balancing 1A
JK-PB2A16S15P	8S~16S Charge and discharge current 150A Active balancing 2A
JK-PB2A16S20P	8S~16S Charge and discharge current 200A Active balancing 2A
JK-PB2A16S30P	8S~16S Charge and discharge current 300A Active balancing 2A

Company Profile

FAQ

What types of batteries does JIKING (JK) BMS support?

The JIKING (JK) BMS is compatible with Lithium-ion, LiFePO4, LTO (lo), and Lead Acid batteries.

What communication interfaces are supported by these BMS models?

These models support RS485, CAN, UART, Bluetooth, and various inverter protocols, enabling flexible communication.

Can I monitor the battery parameters remotely?

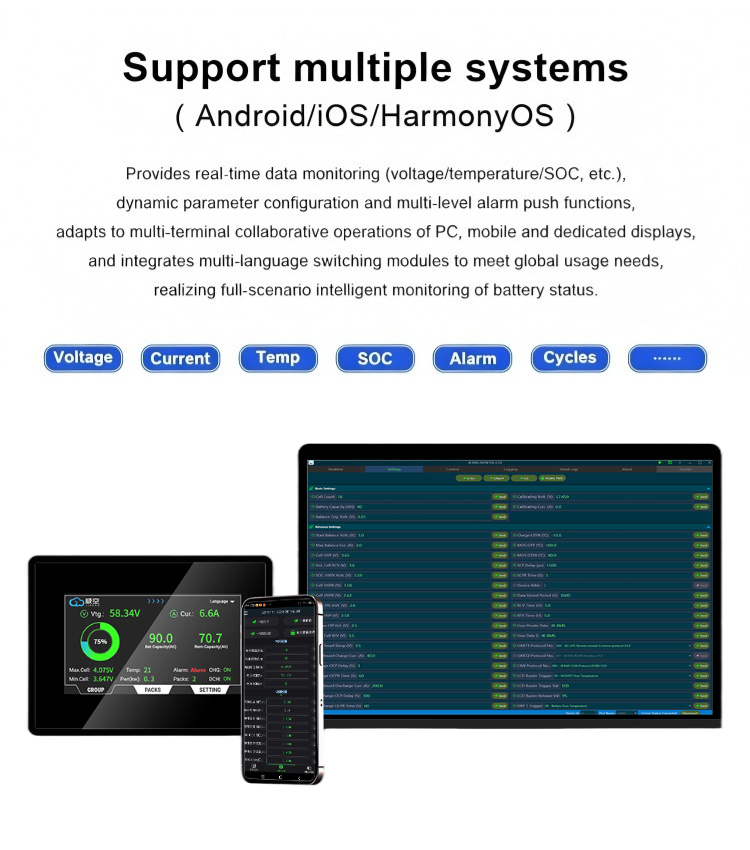

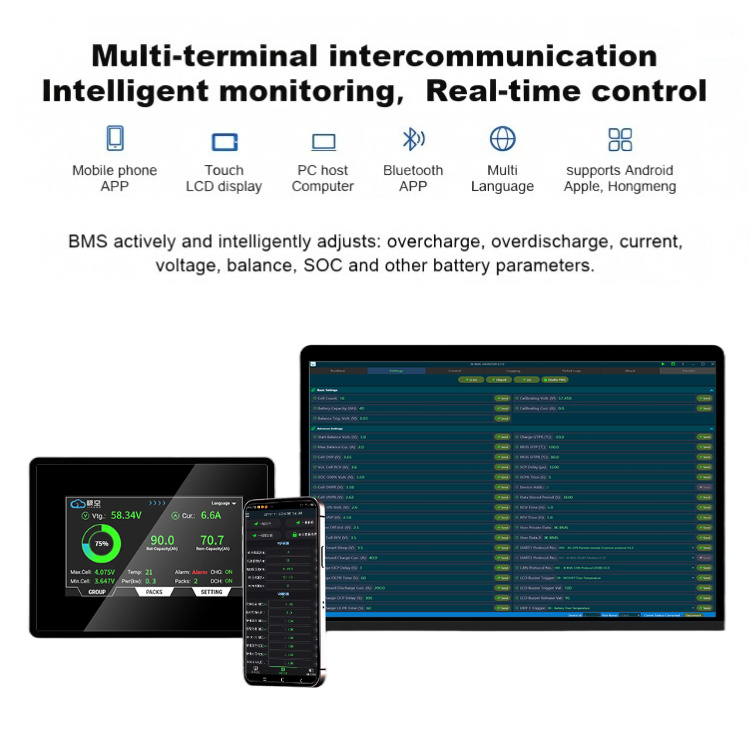

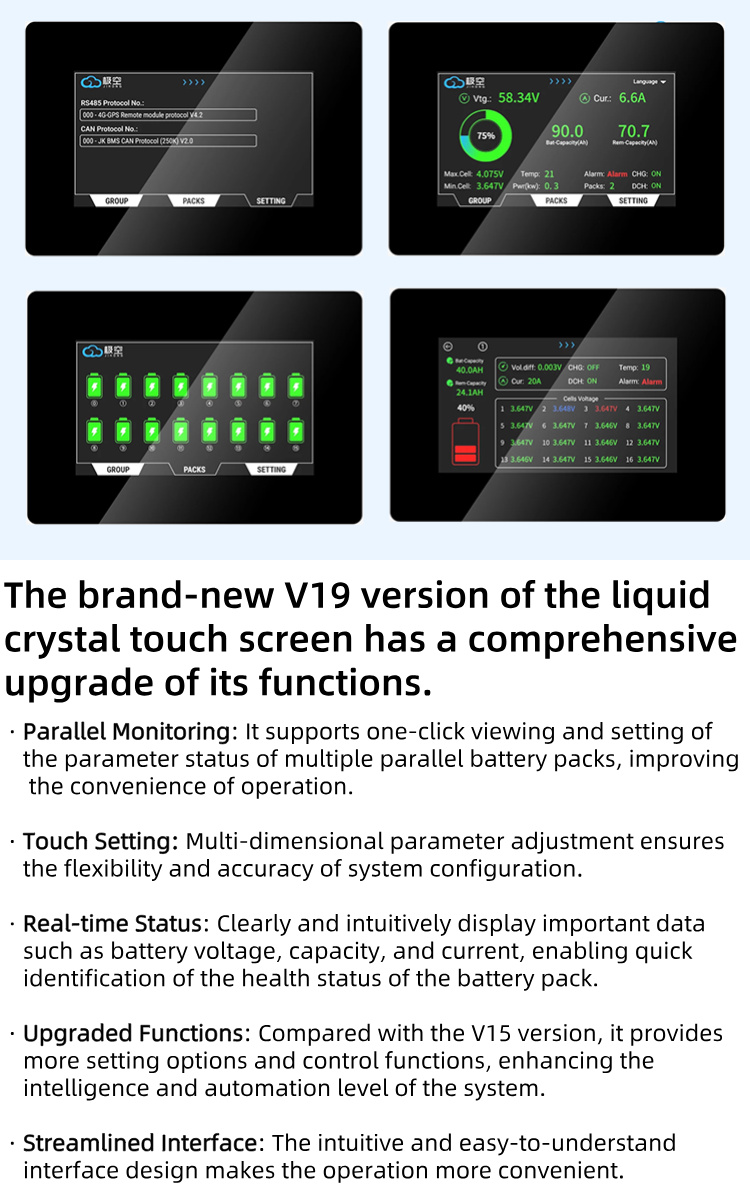

Yes, JIKING BMS supports connection via APP, PC Host, and LCD display for real-time status monitoring.

What range of battery series (S) can these models manage?

These specific BMS models support configurations from 8S to 16S battery cells.

What is the difference in active balancing current between the models?

Depending on the model, active balancing current is either 1A (e.g., JK-PB1A16S10P) or 2A (e.g., JK-PB2A16S20P).

Does the JIKING BMS support parallel operation and heating functions?

Yes, support functions include both parallel operation and heating management for low-temperature environments.
