Sales Promotion 3.2V 25Ah 22Ah 46160 Lifepo4 Battery Electric Scooter RV Speaker Solar Rechargeable Battery for Diy 12v

Products Description

Car Jump Starter High Discharge 10C 46160 3.2V 22Ah Lifepo4 Battery with Screws

High-performance power storage battery suitable for electric vehicles and industrial applications.

Model

46160

Nominal Capacity

22Ah to 50Ah Options

Nominal Voltage

3.2V

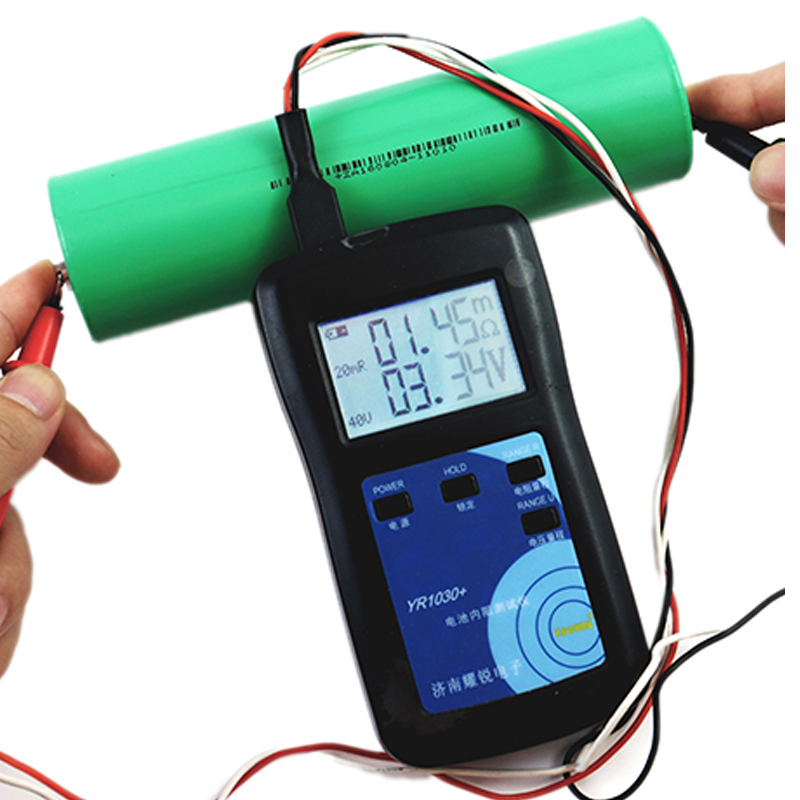

Impedance

≤ 3.0 mΩ (50%SOC)

Cut-off Charge Voltage

3.65±0.05 V

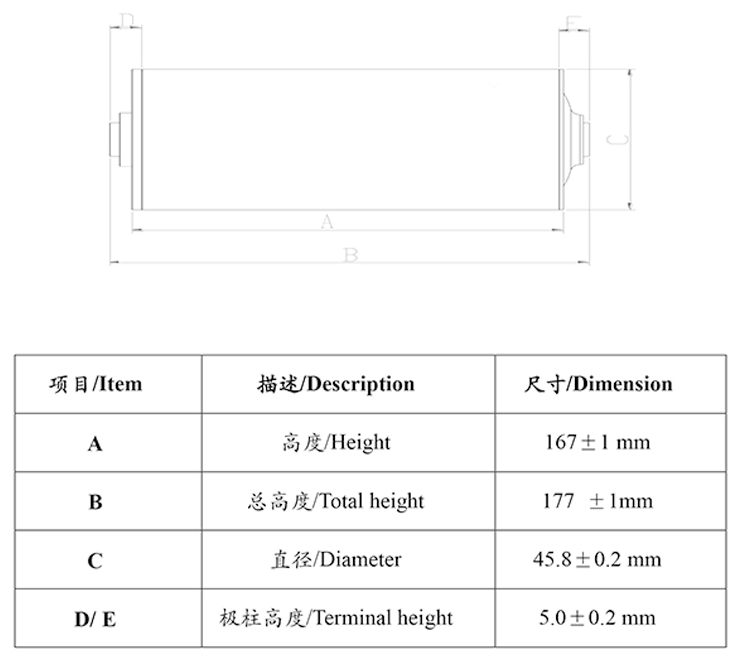

Dimensions (D*H)

45.8±0.2mm * 167±1mm

Max Discharge Current

110 A

Peak Discharge Current

220 A (Instant)

Cycle Life

≥ 1800 times

Operating Temp

Charge: 0~45°C / Discharge: -20~60°C

Details Images

Product Applications

Digital devices and Bluetooth headsets
Electric vehicles and E-bikes
Electric power tools and Mining lamps
Household Energy Storage and Solar energy systems
Backup power systems and RC model airplanes
Boats and Marine electrical systems

Precautions for Use

⚠️ Use specific battery charger only.
⚠️ Do not discard the battery in fire or a heater.
⚠️ Do not dismantle or pierce the battery with sharp objects.
⚠️ Do not immerse the battery in water or seawater.
⚠️ Do not short-circuit the positive and negative terminals with metal objects.
⚠️ Do not use the battery in locations with high static or intense magnetic fields.
⚠️ Store in a cool & dry surrounding if idle.

Packaging & Delivery

Frequently Asked Questions

Q1: What is the cycle life of the 46160 LiFePO4 battery?

The cycle life is rated at ≥1800 times until the discharge capacity is less than 80% of nominal capacity under standard test conditions.

Q2: What are the charging specifications?

The standard charge current is 11A (0.5C), with a rapid charge current of 22A. The max charge current is 44A with a cut-off voltage of 3.65V.

Q3: Can this battery be used in cold weather?

Yes, the discharge operating temperature range is -20°C to 60°C. Charging should be performed between 0°C and 45°C.

Q4: What is the maximum discharge capability?

The 46160 battery supports a maximum continuous discharge current of 110A and a maximum instant discharge current of up to 220A.

Q5: What are the physical dimensions and weight of the cell?

The cell diameter is 45.8±0.2 mm, the body height is 167±1 mm (overall height 177±1mm), and the net weight is approximately 570±10 g.

Q6: Which safety standards do these batteries comply with?

Our LiFePO4 products comply with ISO9001 system standards and many items have passed SGS, RoHS, and CE certifications.
