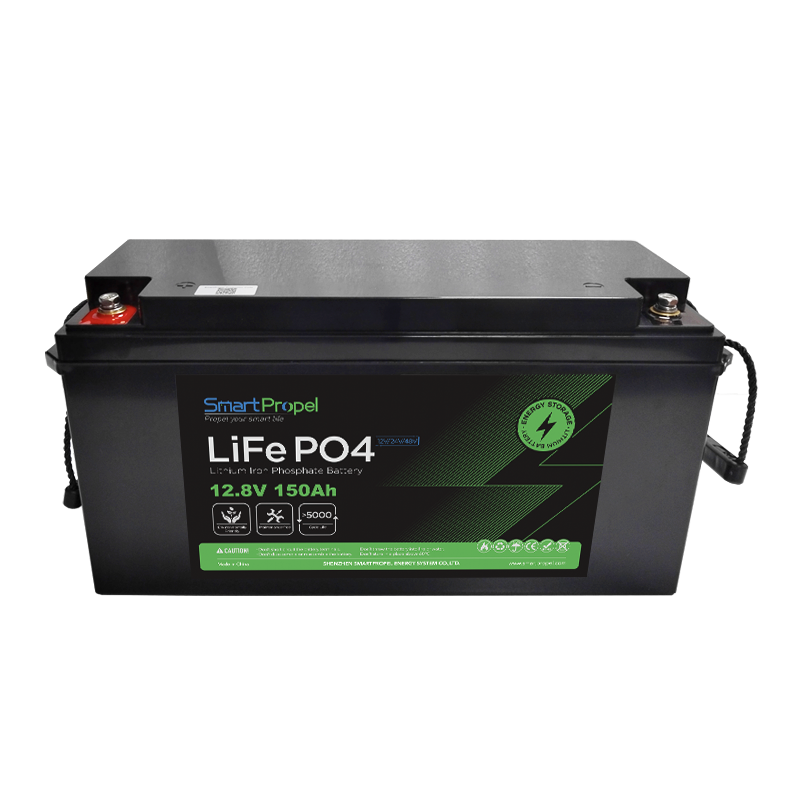

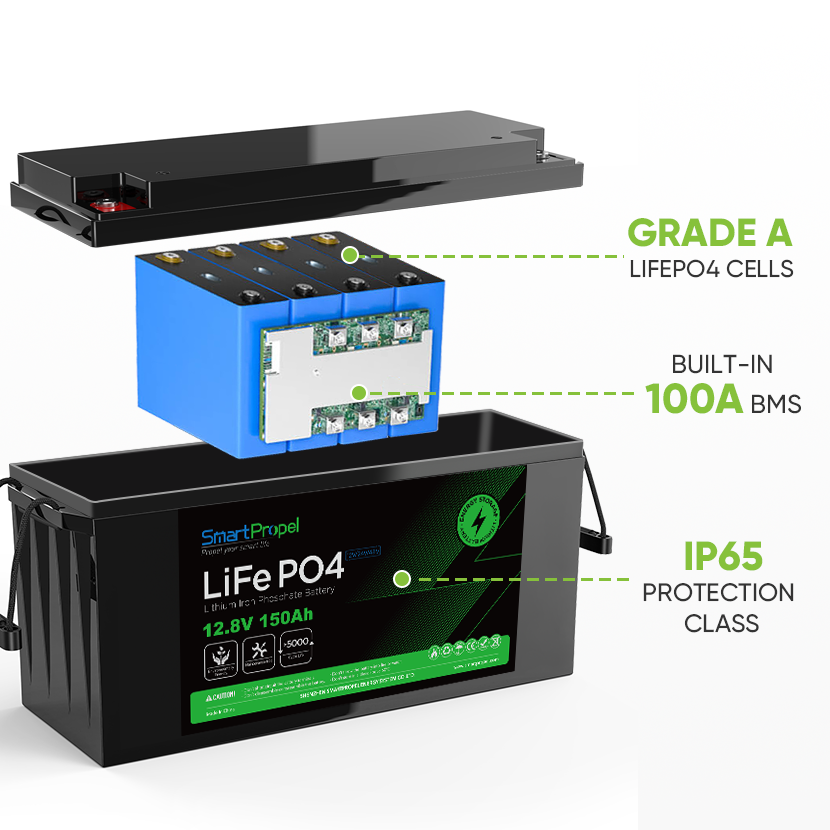

Lithium Battery 12v 150ah Lifepo4 Batteries Pack 12.8v 100ah 150ah 200ah Lithium Ion Battery Pack 12v for Rv Marine Boat

Send Inquiry

Product Description

Products Description

Technical Specifications

Electrical Characteristics		Specifications
Nominal Voltage	12.8V	Nominal Capacity: 150Ah
Energy	1920Wh	Cycle Life: 5000 times
Internal Resistance	≤40mΩ	Self Discharge: ≤3.5% per month
Standard Charging		Details
Max.Charging Voltage	14.0~14.6V	Charging Current: 10A
Max.Charging Current	100A	Mode: CC/CV (0.2C to 14.6V)
Standard Discharging		Details
Discharging Current	100A	Max. Continuous Current: 100Ah
Max.Pulse Current	300A (<3S)	Cut-off Voltage: 10.0V
Operating Conditions		Structure
Charge Temp	0℃ to 45℃	Cell: LiFePO4
Discharge Temp	-20℃ to 60℃	Casing: Plastic (IP65)
Dimensions	483170240mm	Weight: Approx. 17Kg

12V Solar Battery Features

Key Advantages:

★Using lithium iron phosphate technology, superior safety, 5000 cycles, 10 years design life.

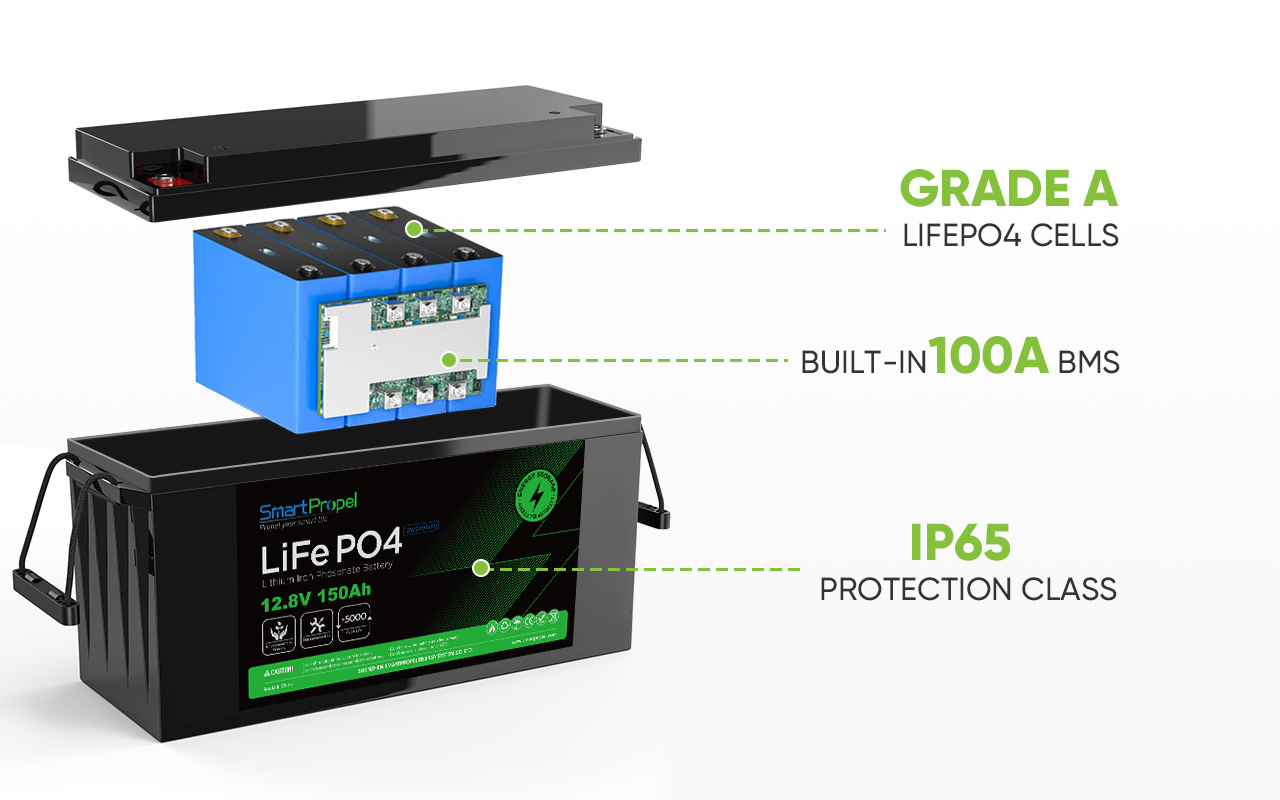

★Built-in BMS automatic protection for over-charge, over discharge, and temperature.
★Maintenance-free with internal cell balancing.
★Lighter weight: About 40% ~ 50% of the weight of a comparable lead acid battery.

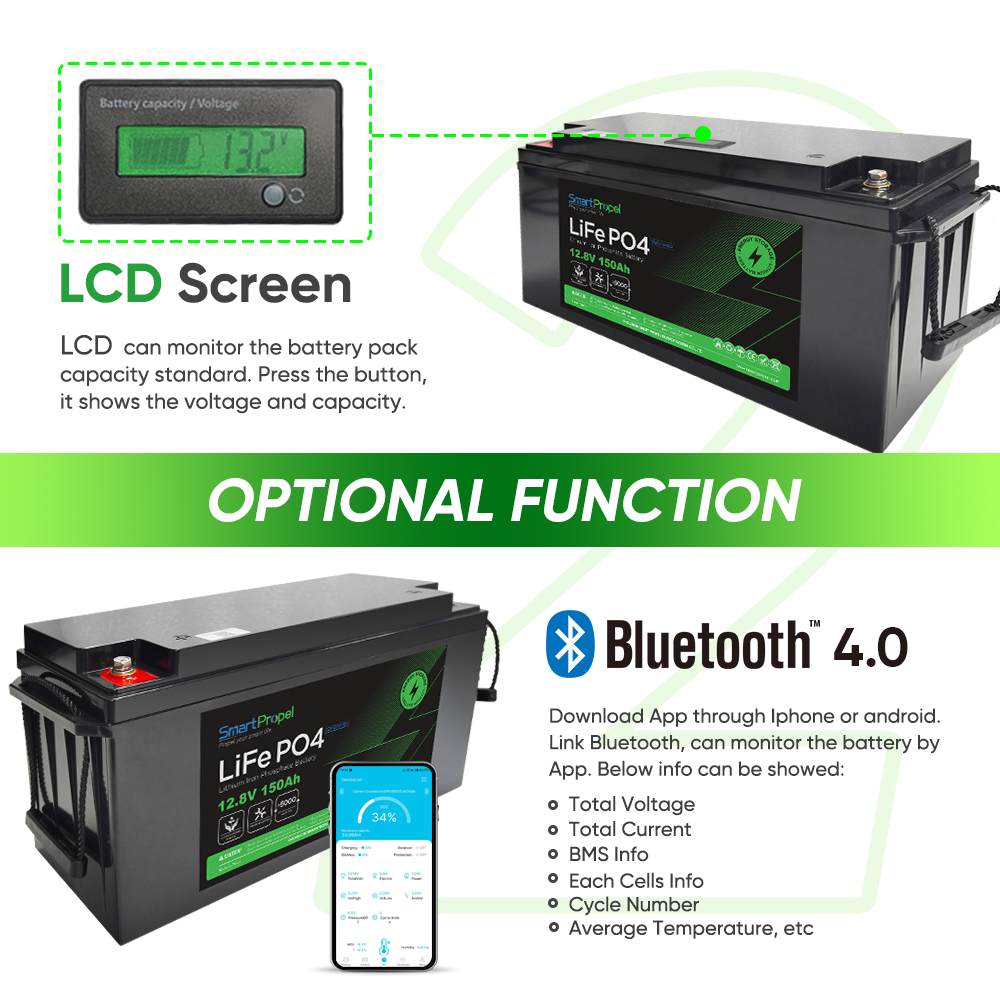

★Optional Function: LCD screen and Bluetooth Function.

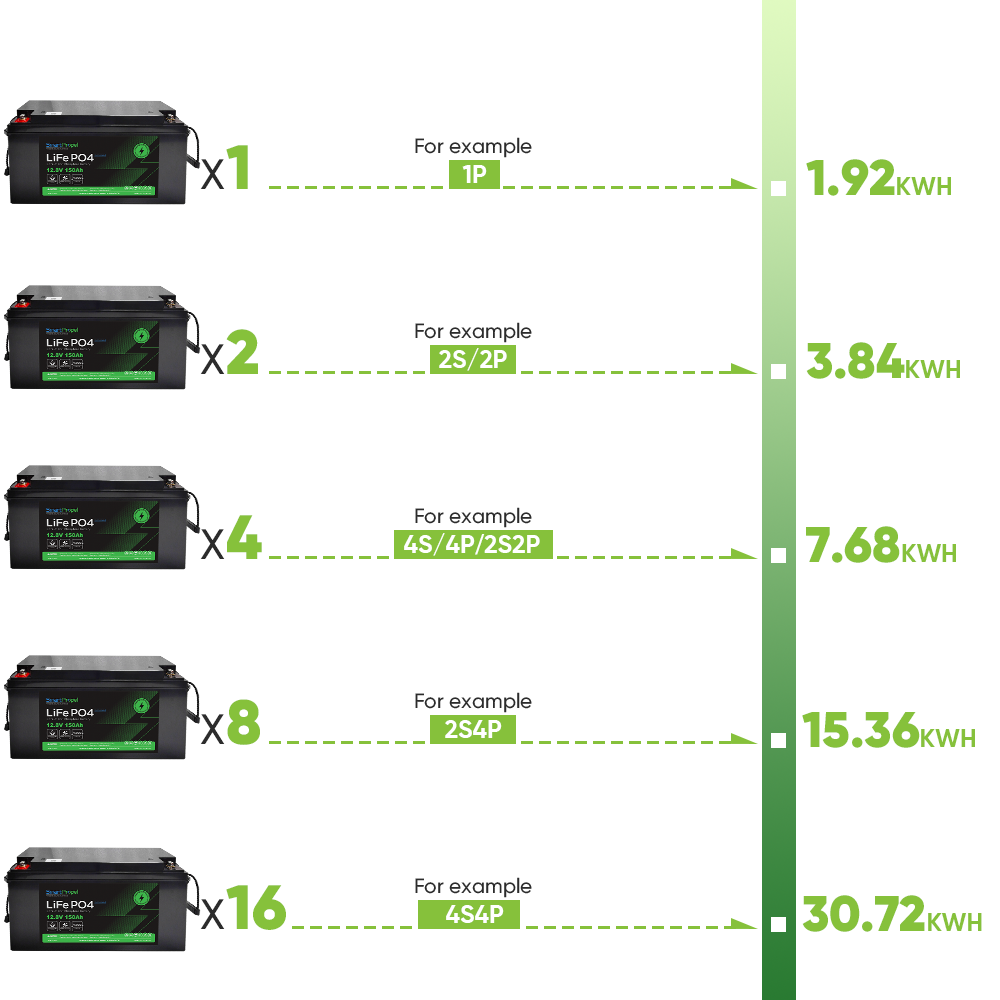

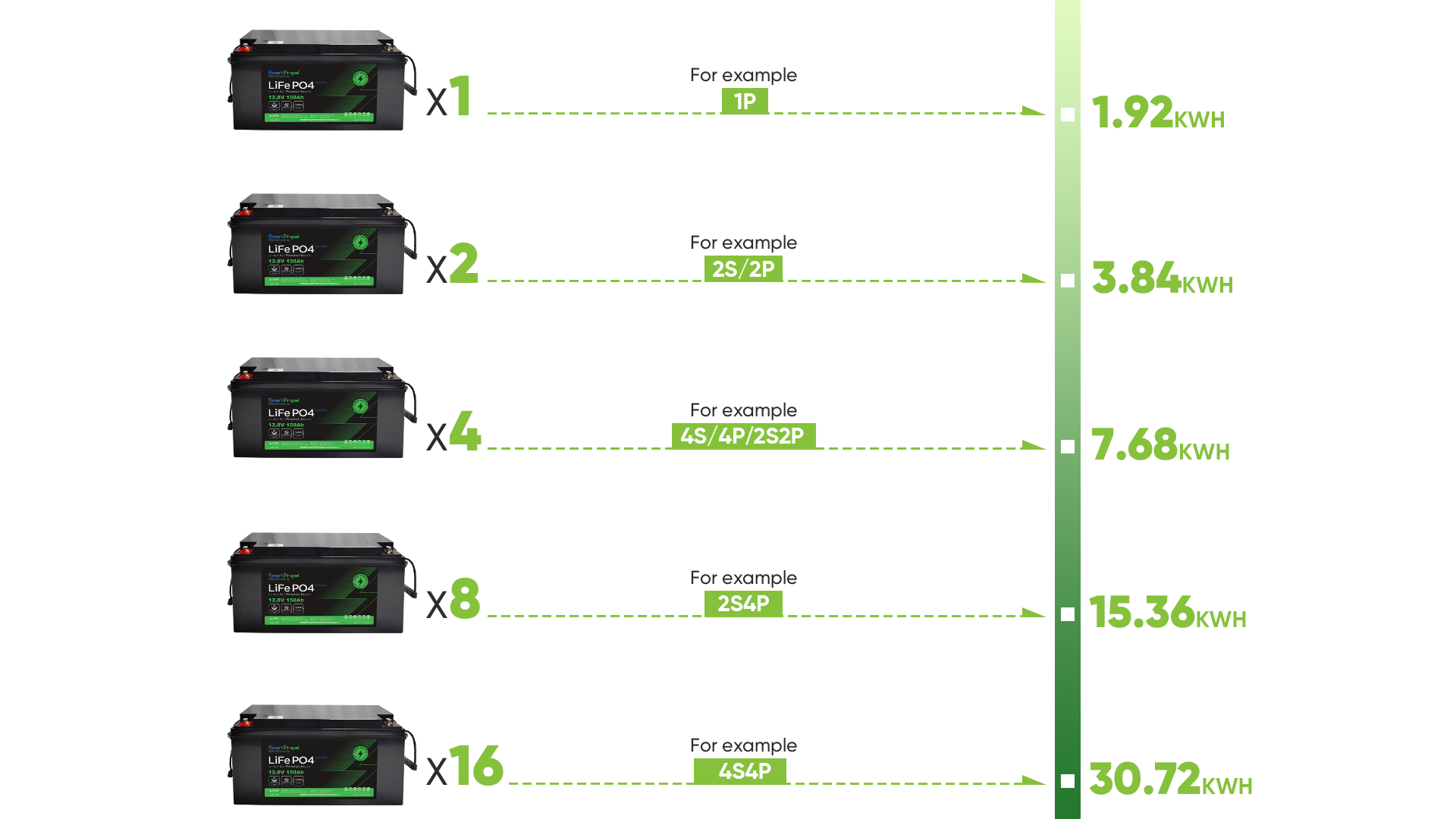

★Support maximum 16 batteries units in series or parallels.

Advanced Protection Technology

The batteries adopt an EXCLUSIVE BRACKET system, significant for battery performance and cycle life.

Application Fields

Factory Overview

Frequently Asked Questions

Does the battery pack support Bluetooth communication?

Yes. Supports LCD display and Bluetooth communication. We provide Bluetooth APP (Android & iPhone) to view battery pack data in real time.

Does the battery pack include BMS?

Yes, our battery pack includes BMS. The BMS features OVP/UVP/OCP/OTP/UTP/SCP protection functions for maximum safety.

Can it be used in series or parallel?

Yes, it can support a maximum of 4 units in series or parallel connection for 12V series usage.

What certifications do your products have?

Our products are certified with CE, FCC, RoHS, PSE, UN38.3, and MSDS, satisfying most international import requirements.

How can we guarantee quality?

We offer a 5-year warranty. All products undergo charge and discharge aging tests and a final quality inspection before shipment.

What is the expected delivery time?

Many products are in stock. We support sea, land, and air transport. International Express (UPS/FEDEX/DHL) typically delivers within 3-7 days.
