The shipping cost is calculated automatically. Please contact us to verify the actual shipping cost for your location.

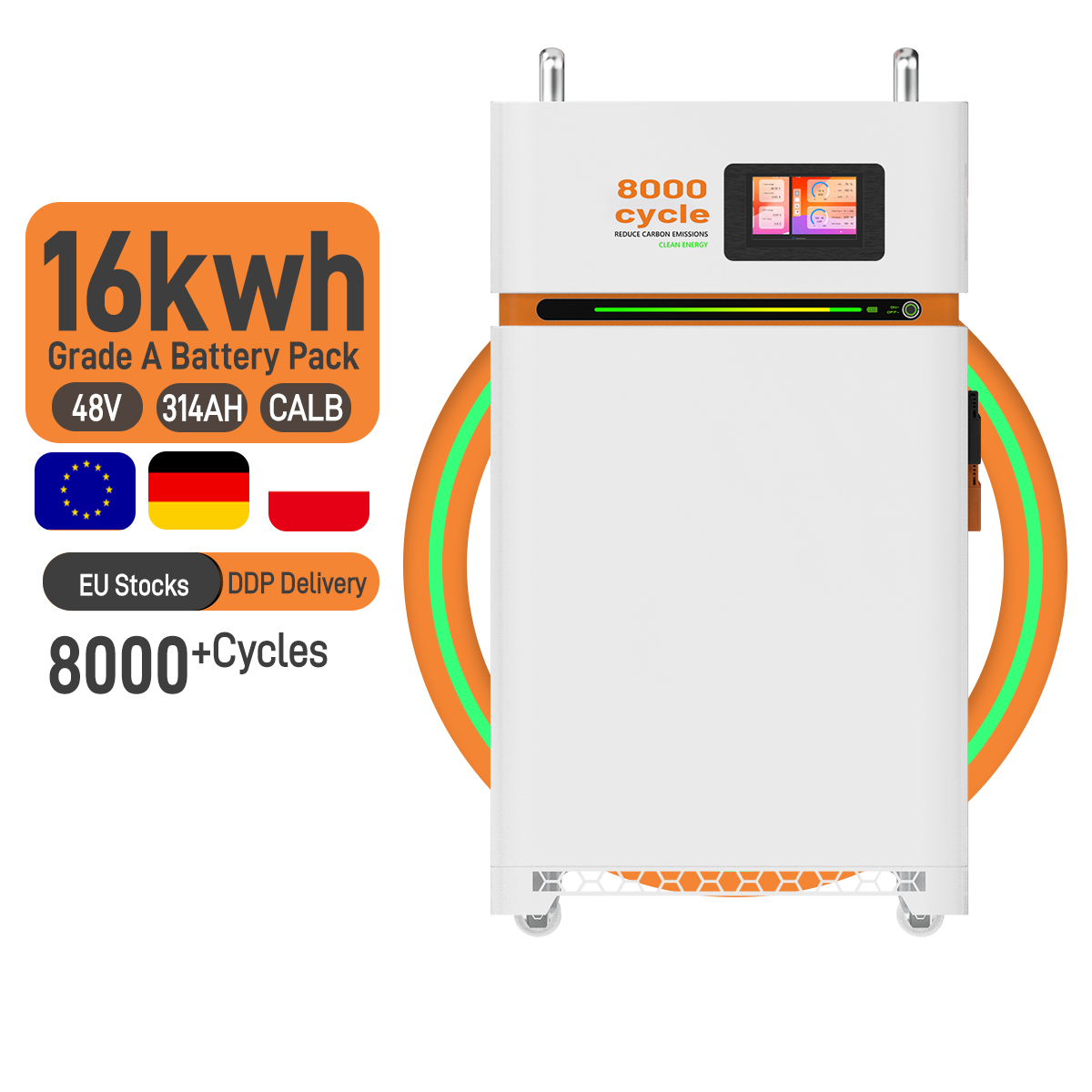

List of Products in Poland/Europe Stocks (Grade A Cells Only):
| Parameter | BL-EP48300 (16.13KWH) | BL-EP48300 (15.36KWH) |
|---|---|---|
| Cell Technology | Lithium-iron Phosphate (LiFePO4) | |
| Capacity | 314Ah | 280Ah |
| Nominal Energy | 16Kwh | 15Kwh |
| Round-Trip Efficiency | 98% | |
| Scalability | Max. 16 Modules in Parallel | |

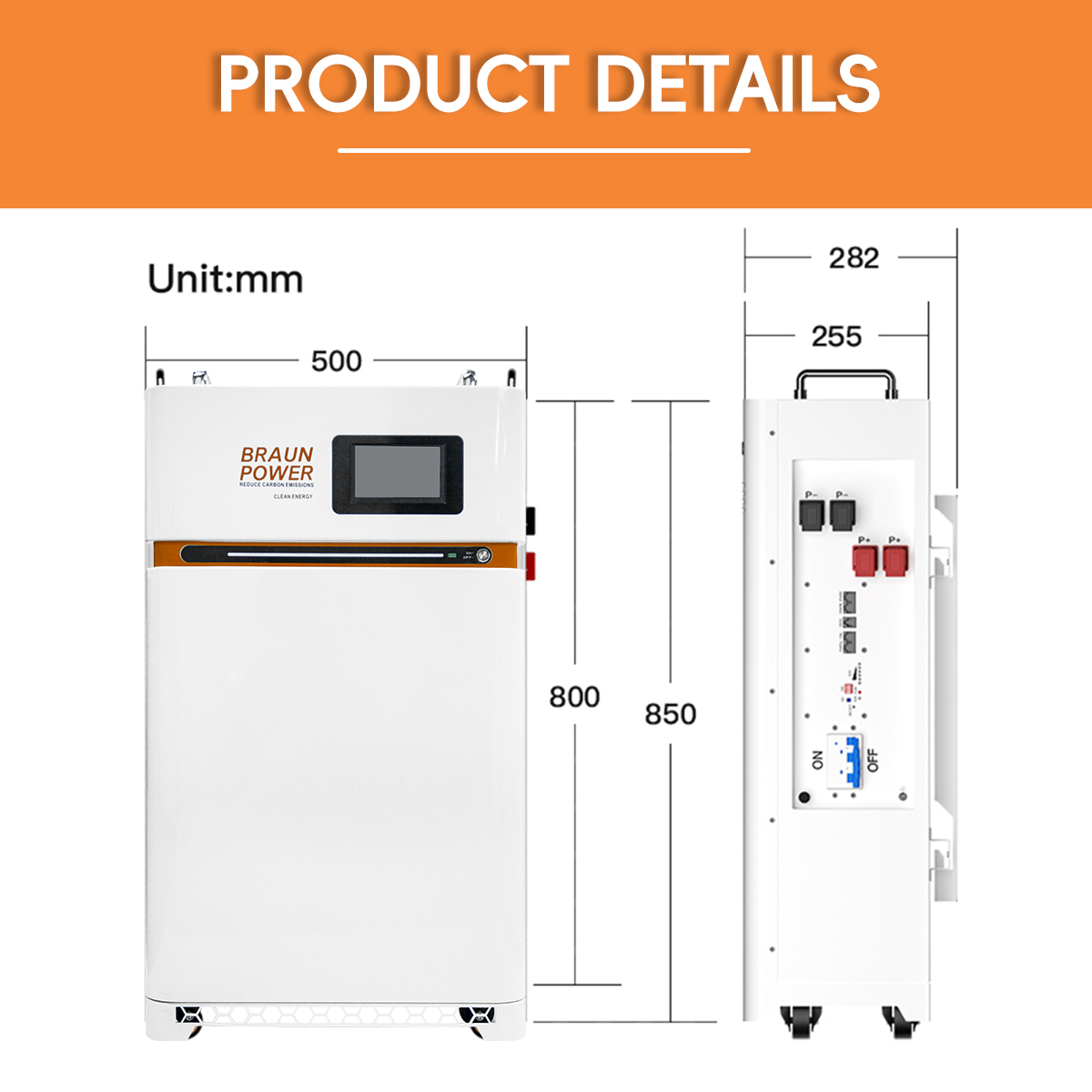

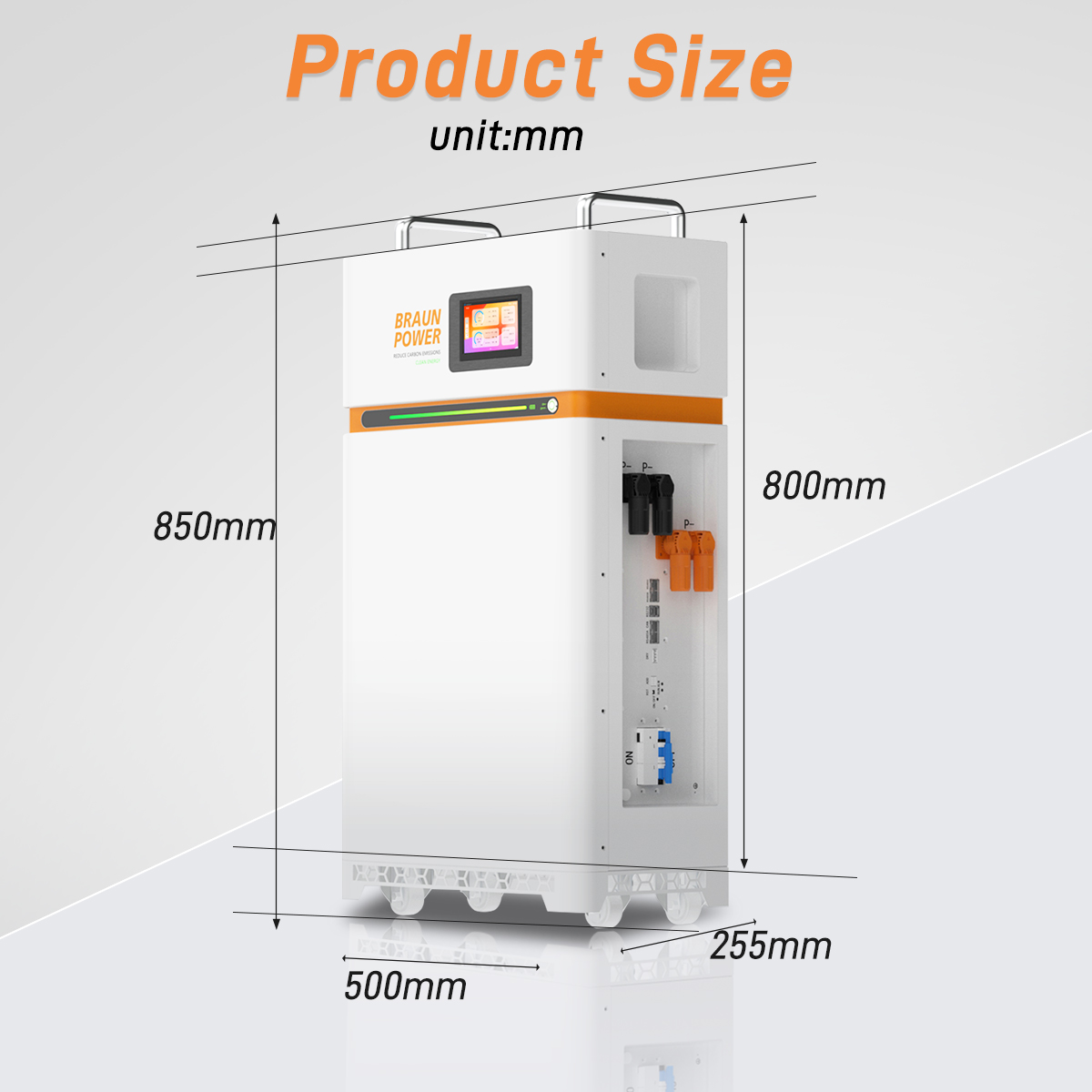

| Dimensions (L/W/H) | 850*500*282mm | |
| Weight | 145kg | |
| Installation | Indoor / Wall Mounted / Floor Standing | |
| Warranty | 10 Years Product / 15 Years Performance | |
| Electrical Parameters | ||
| Nominal Voltage | 51.2V | |
| Max Charge/Discharge Current | 200A | |
| Voltage Range | 43.2V - 57.6V | |
| General Parameters | ||
| Cycle Life | 6000 - 8000 Times (80% DoD) | |
| Protection Rating | IP55 | |

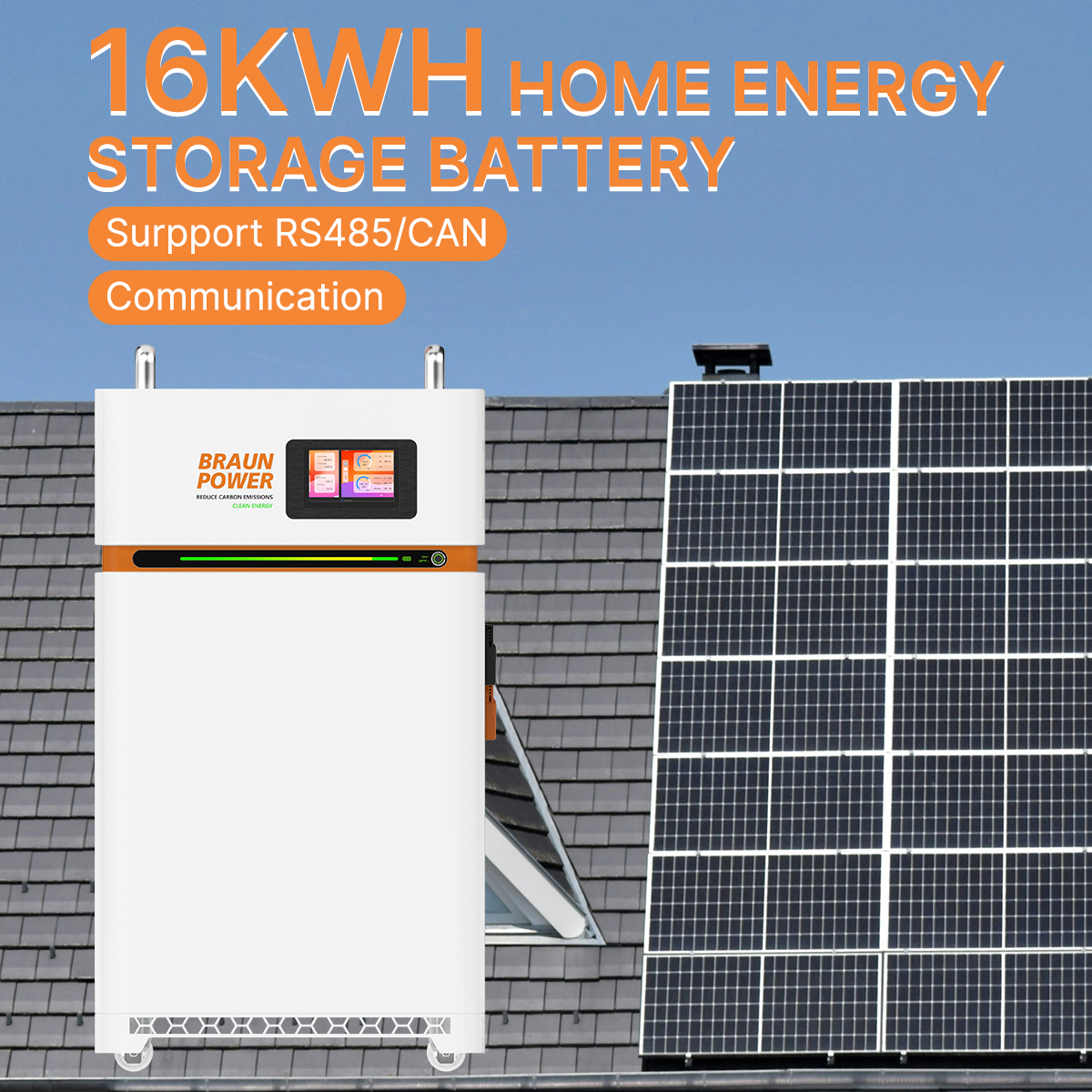

| Communication | RS485, RS232, CAN | |
| Compatible Inverters | SMA, Victron, Deye, Goodwe, Growatt, Luxpower, etc. | |

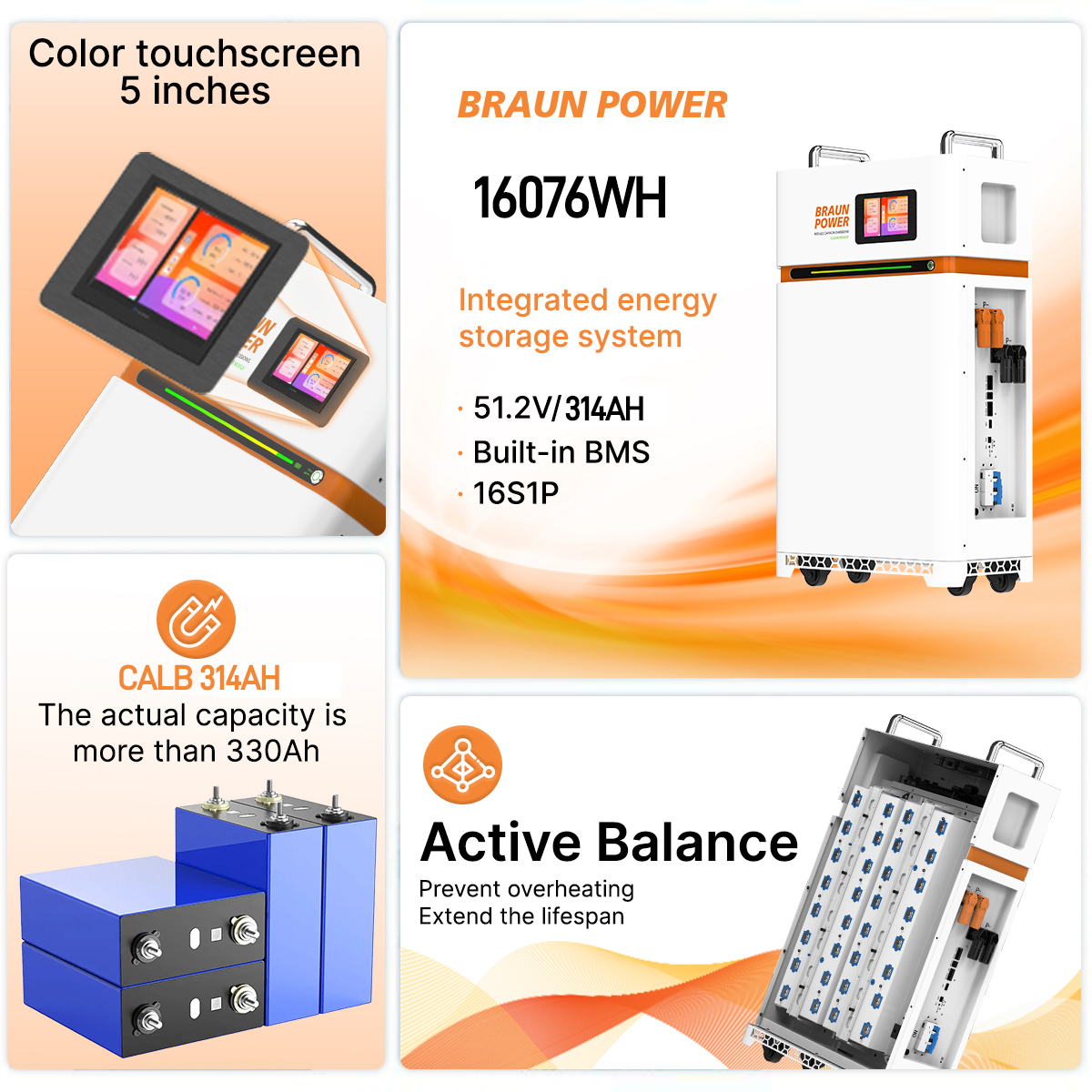

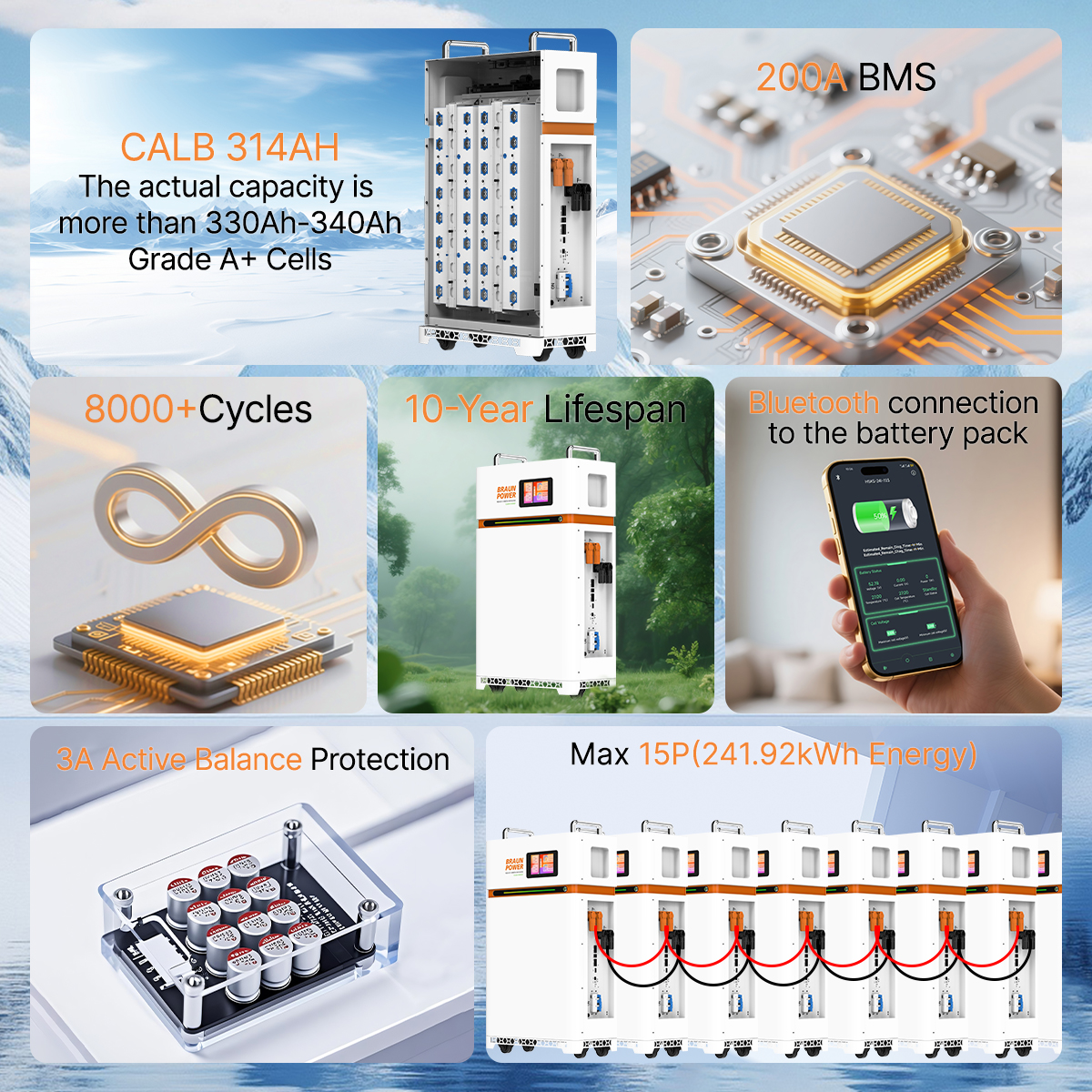

Utilizes 16pcs of premium 315AH 3.2V high-quality cells for maximum longevity.

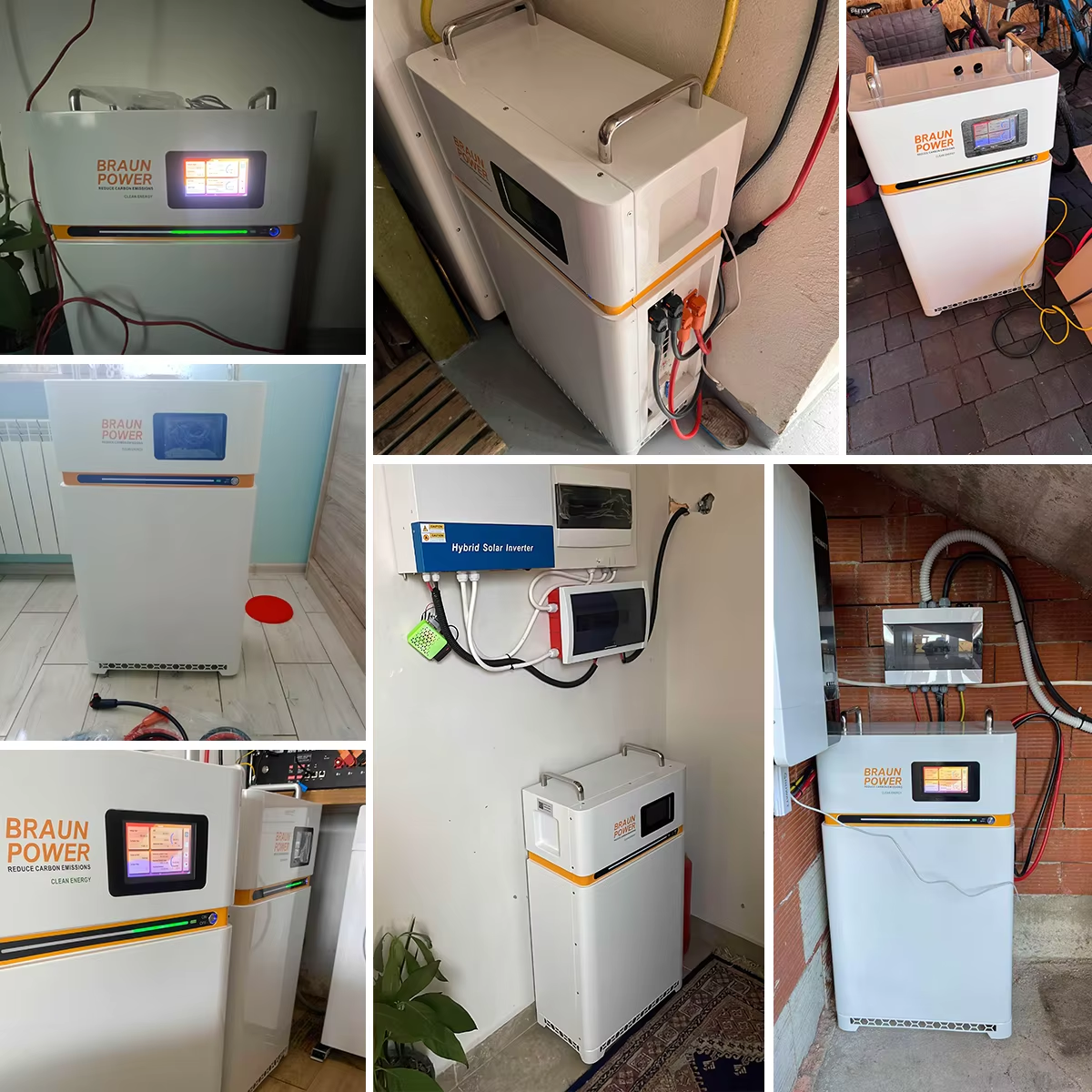

Vertical or Wall-mounted options supporting parallel expansion up to 16 packs.
5-inch display for protocol selection, supporting 17 languages including English, French, and German.

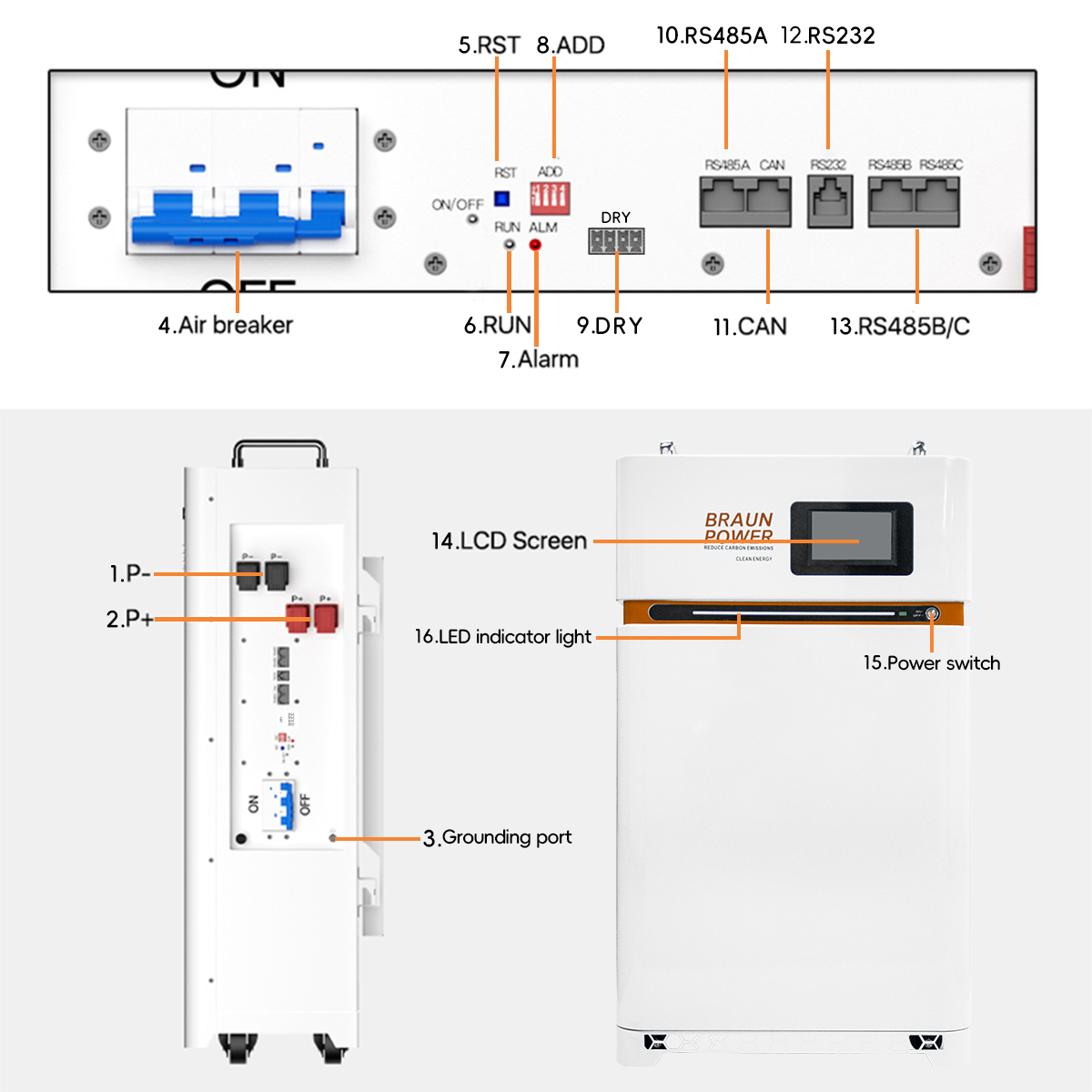

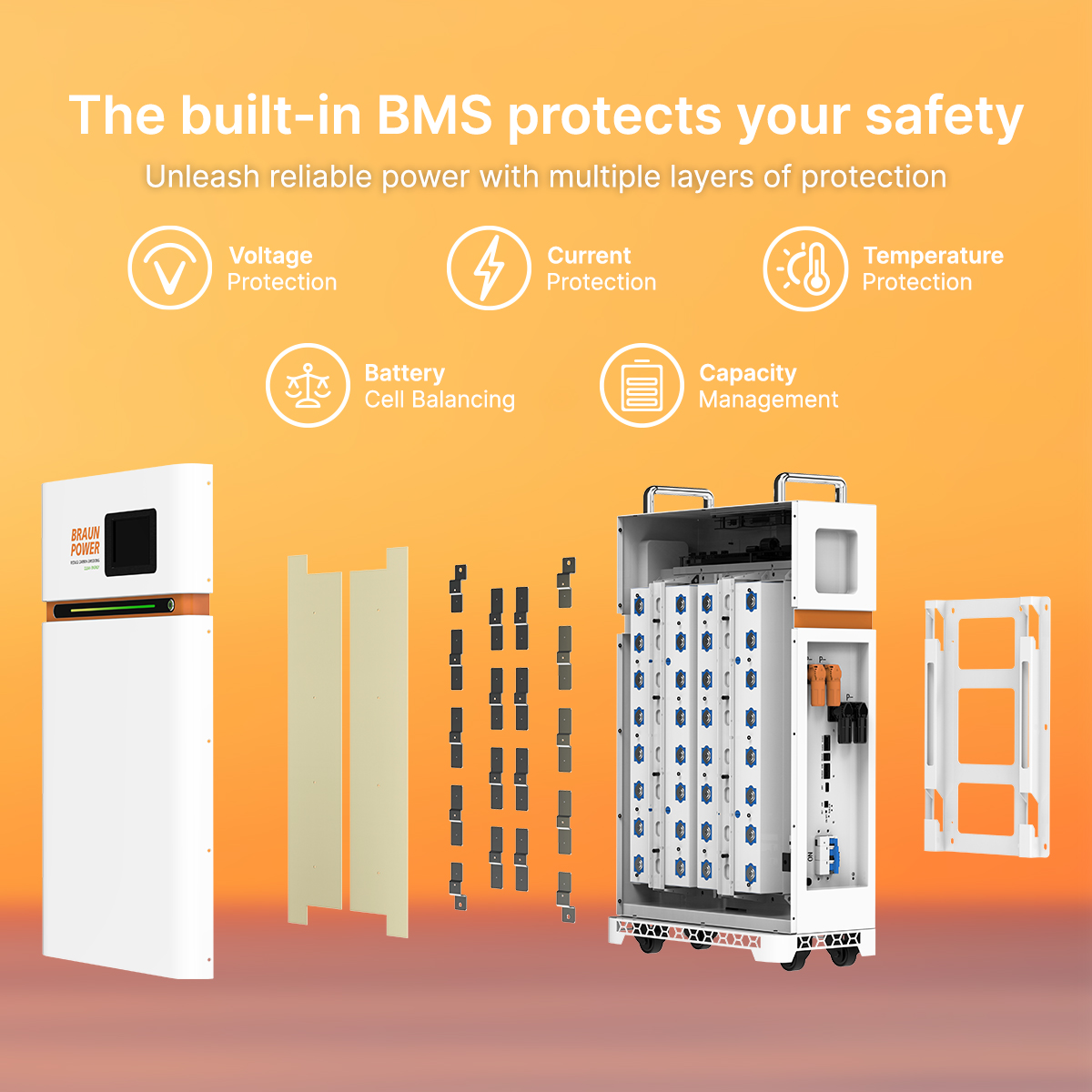

Air switch protection and smart BMS against over-current, overcharge, and short circuits.

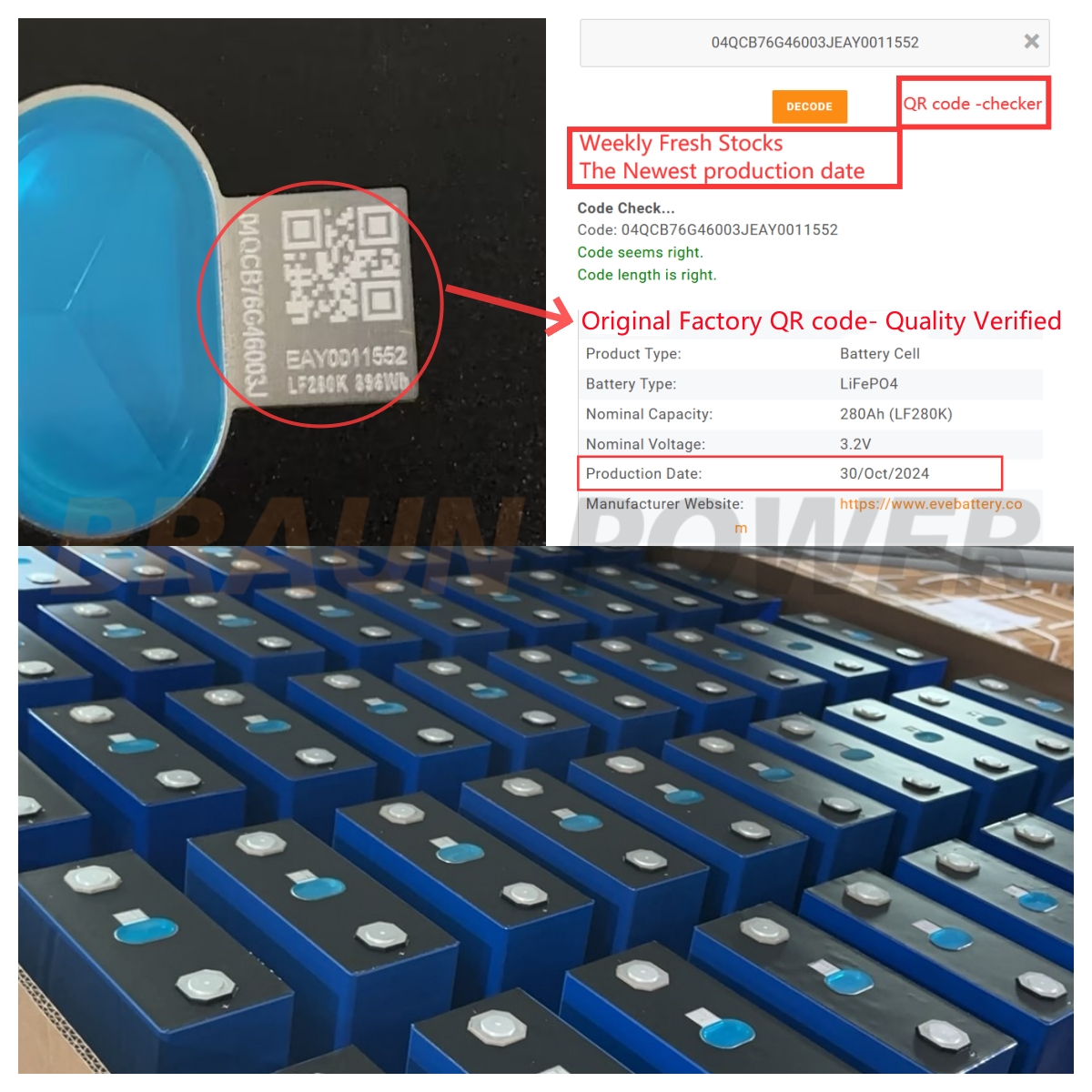

Every single battery cell undergoes testing over 3 times before assembly and shipping. This ensures full capacity, matched voltage, and consistent internal resistance.
| Package Includes |
• BL Battery Pack (1PC) • Mounting Bracket (1PC) • Expansion Bolts (10PCS) • Communication Cables (2PCS) • Parallel Cable Set (1 SET) • USB-485 Cable (1PC) |
| Ship From | Logistics Type | Delivery Time |
|---|---|---|
| China Warehouse | DDP by Sea / Train | 45-50 working days |
| Germany Warehouse | DDP by DPD/UPS | 3-7 working days |
| Poland Warehouse | DDP by DPD/DHL | 3-7 working days |
| USA Warehouse | Local Courier | 3-7 working days |
