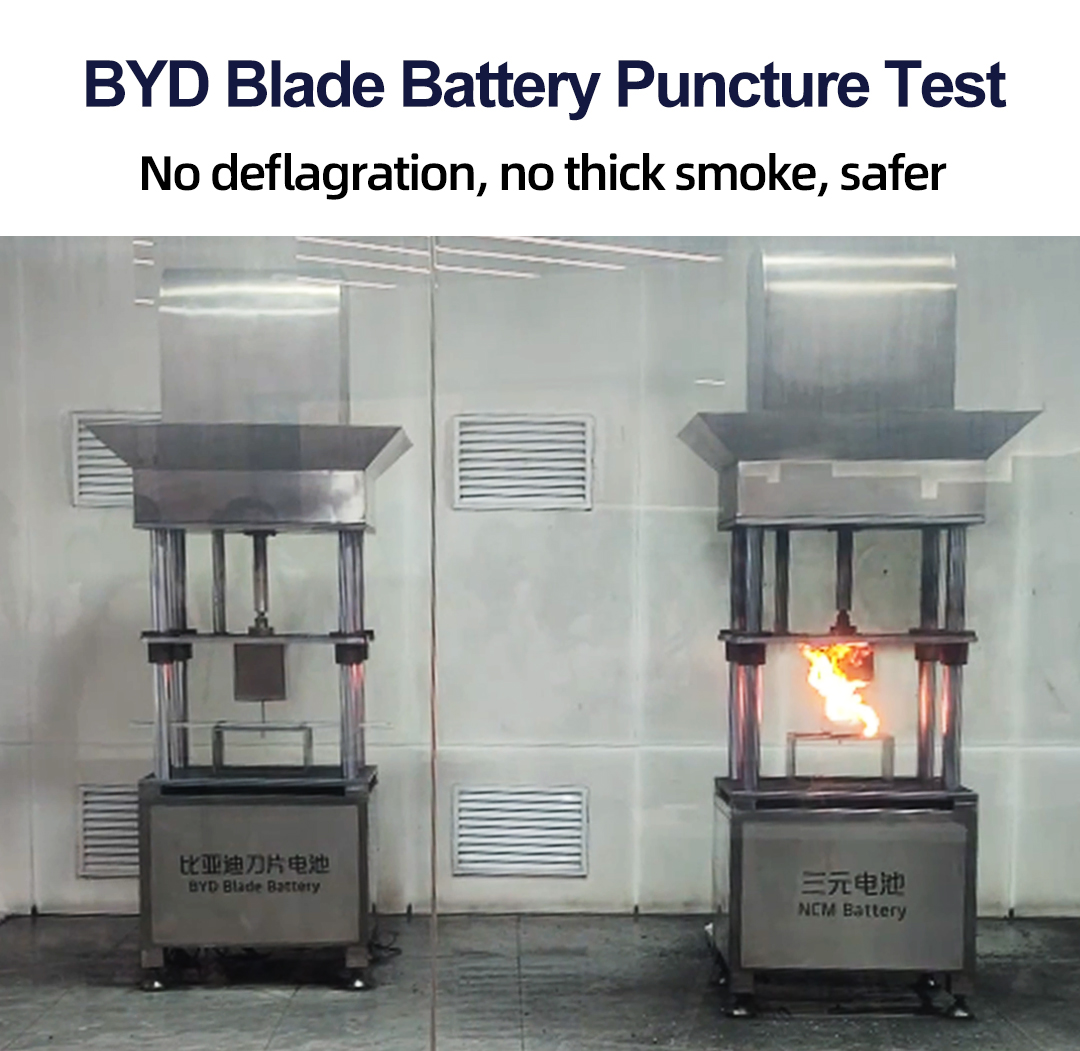

Equipped with premium BYD Blade battery cells, offering unparalleled safety through superior thermal stability and nail-penetration resistance.

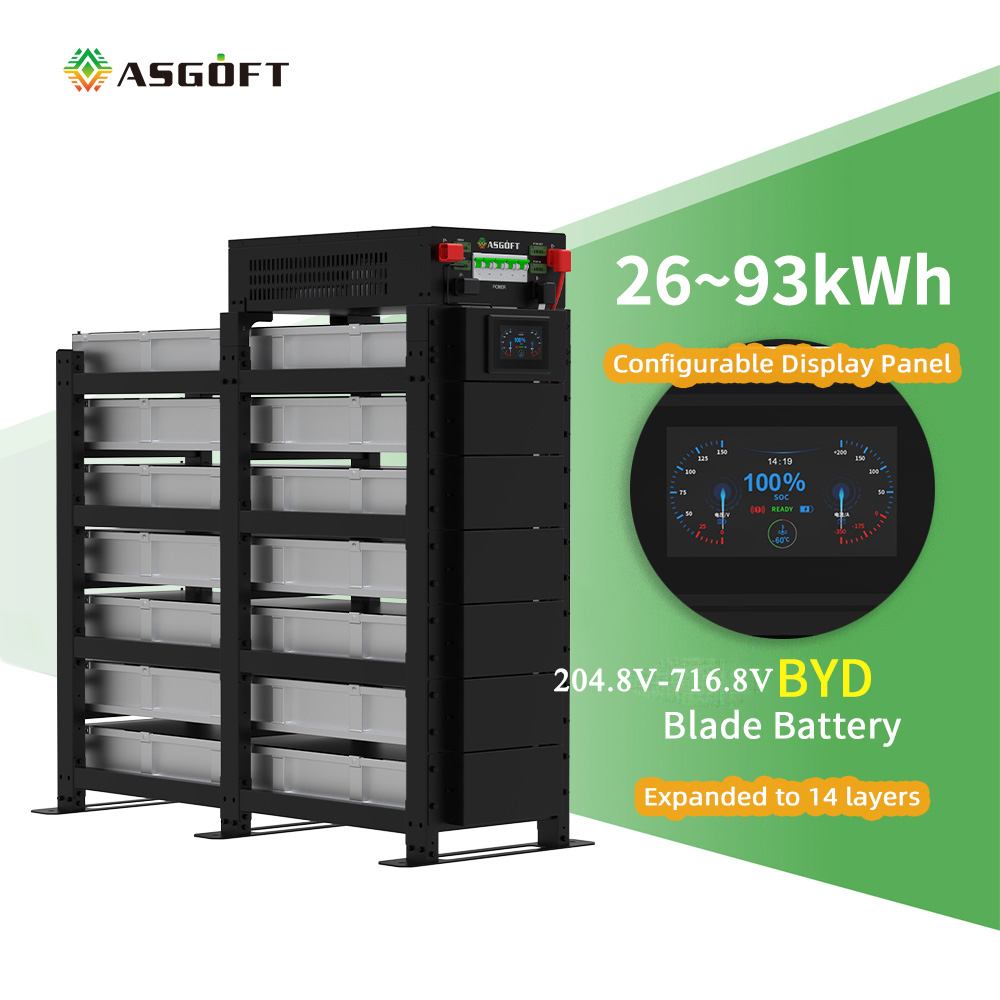

Supporting 204.8V to 716.8V (up to 1000V), minimizing conversion losses and enhancing discharge efficiency.
Over 8000 deep cycles with a 10-12 year long-term warranty, significantly reducing total cost of ownership (TCO).

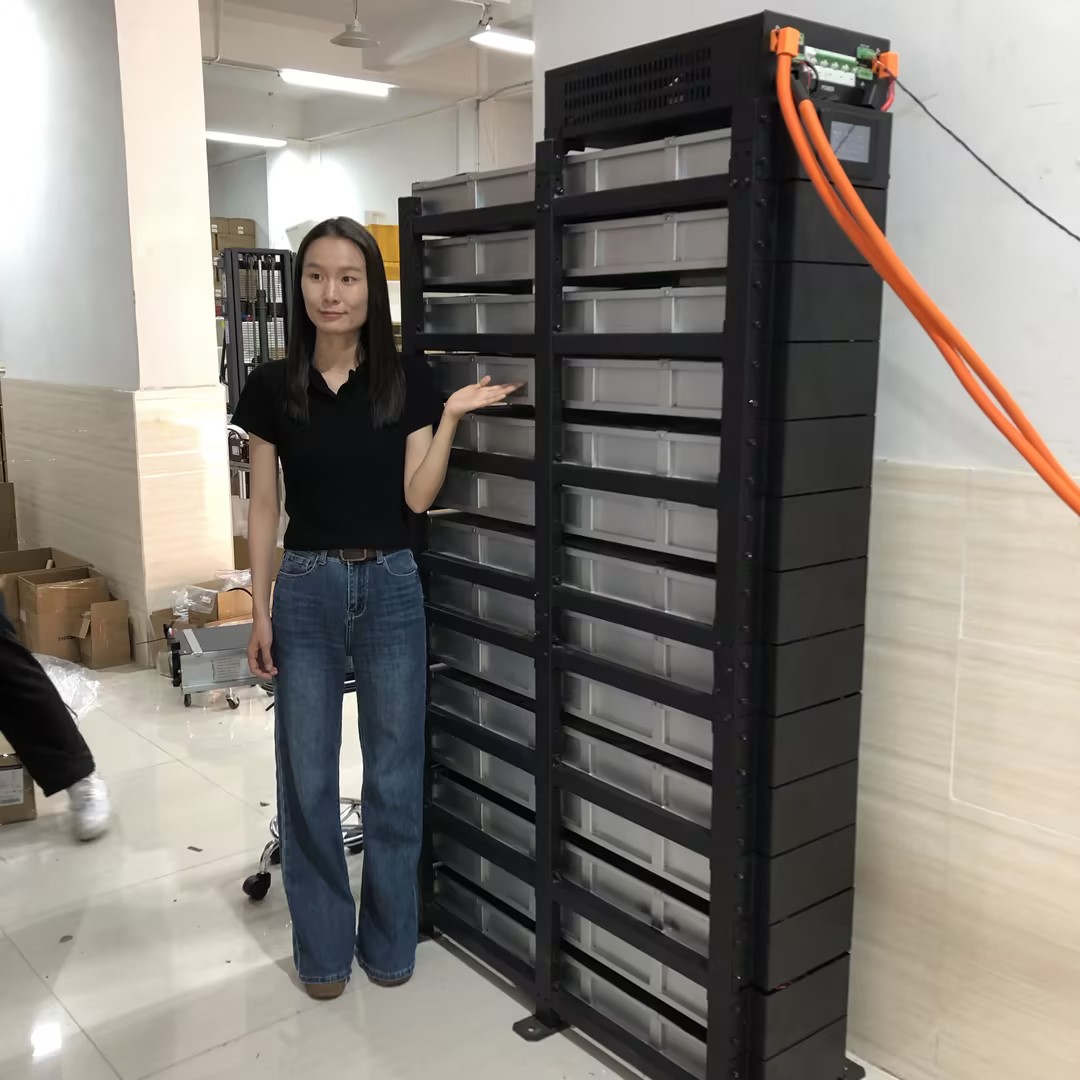

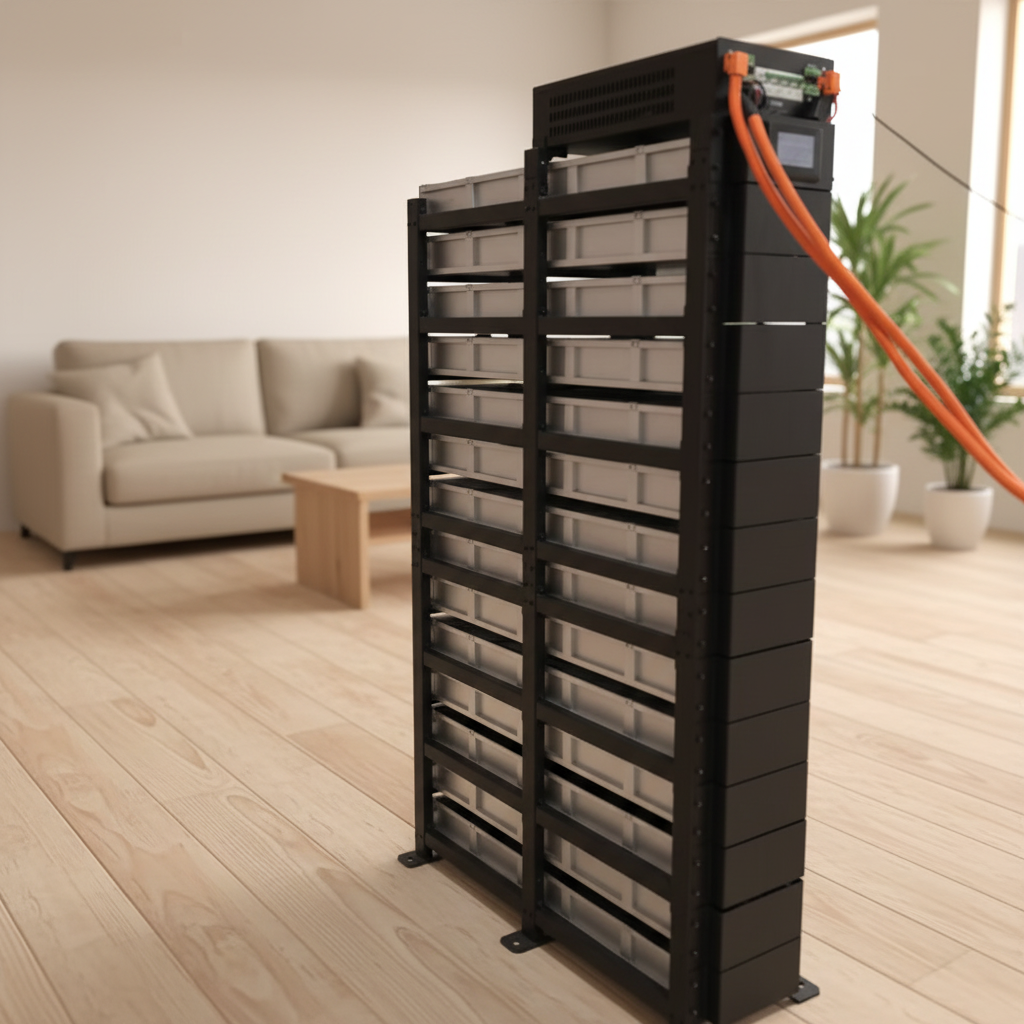

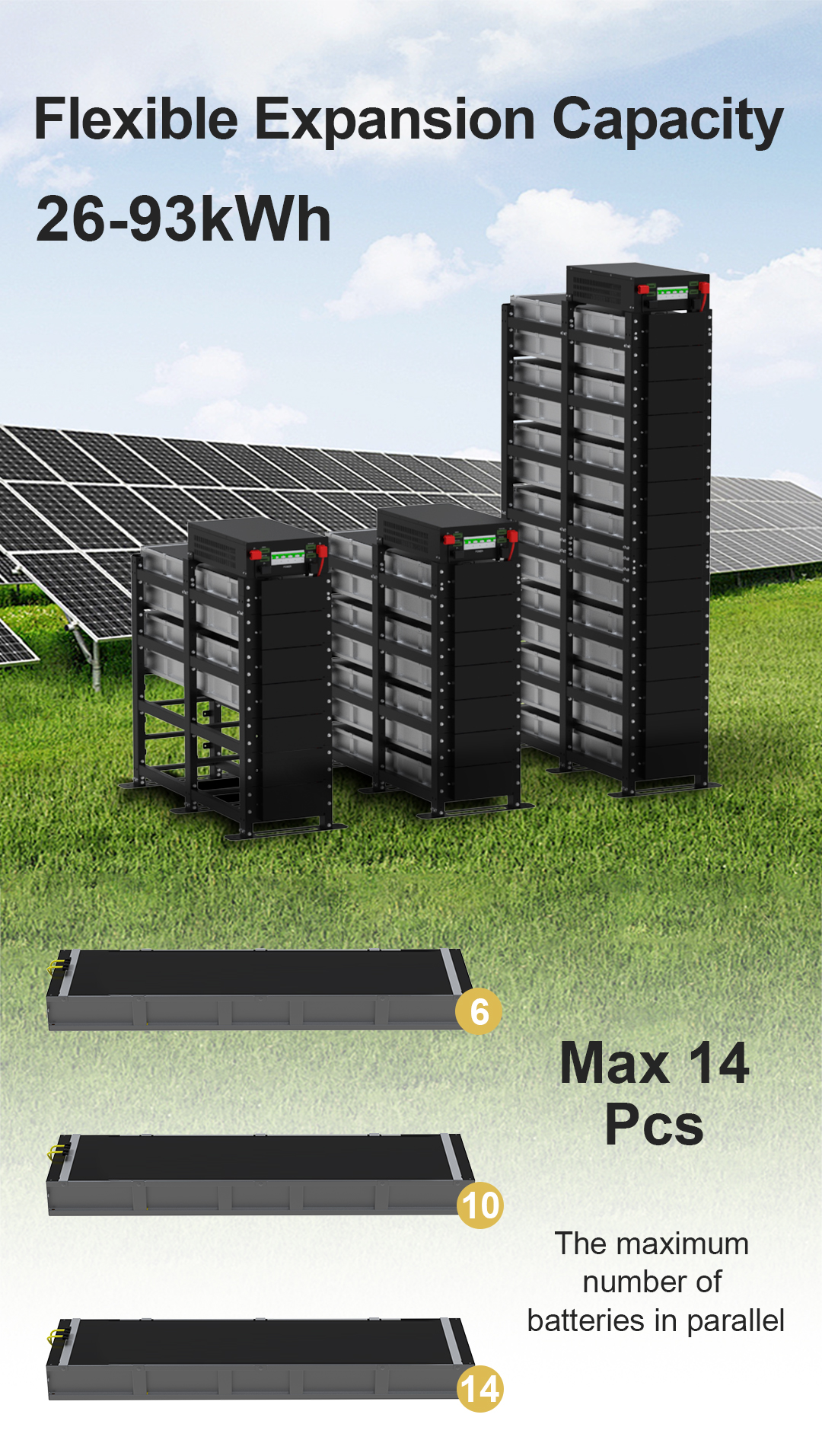

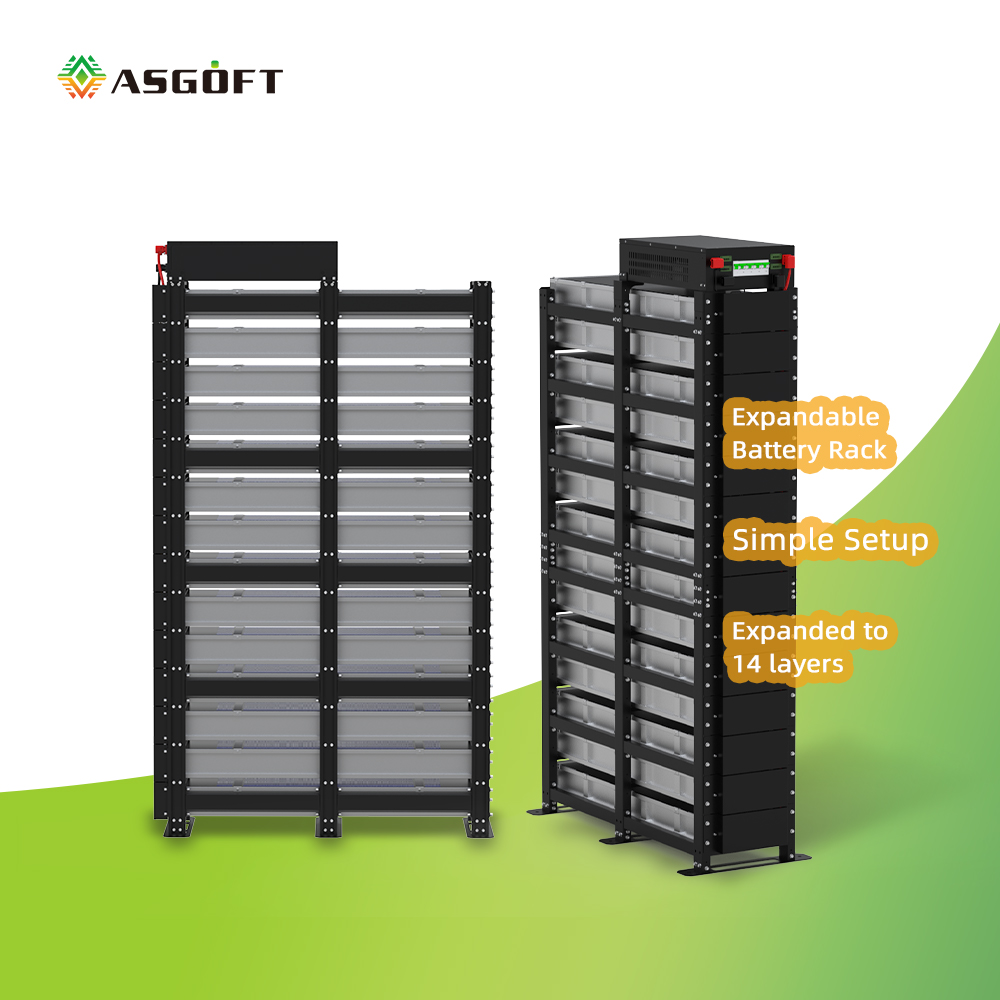

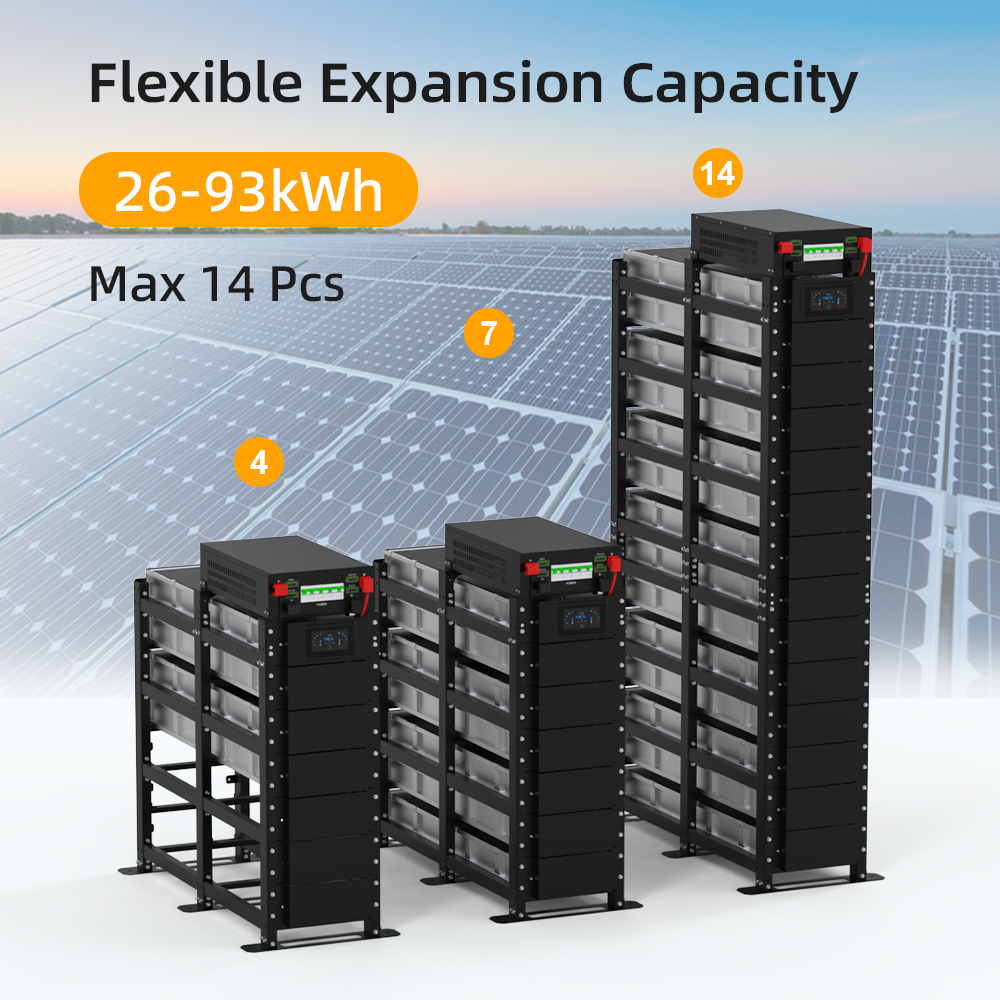

Rack-mounted design allows expansion from 20kWh to over 100kWh to meet growing power requirements.
Rapid delivery and localized logistics support across Europe from our strategic warehouse in Poland.

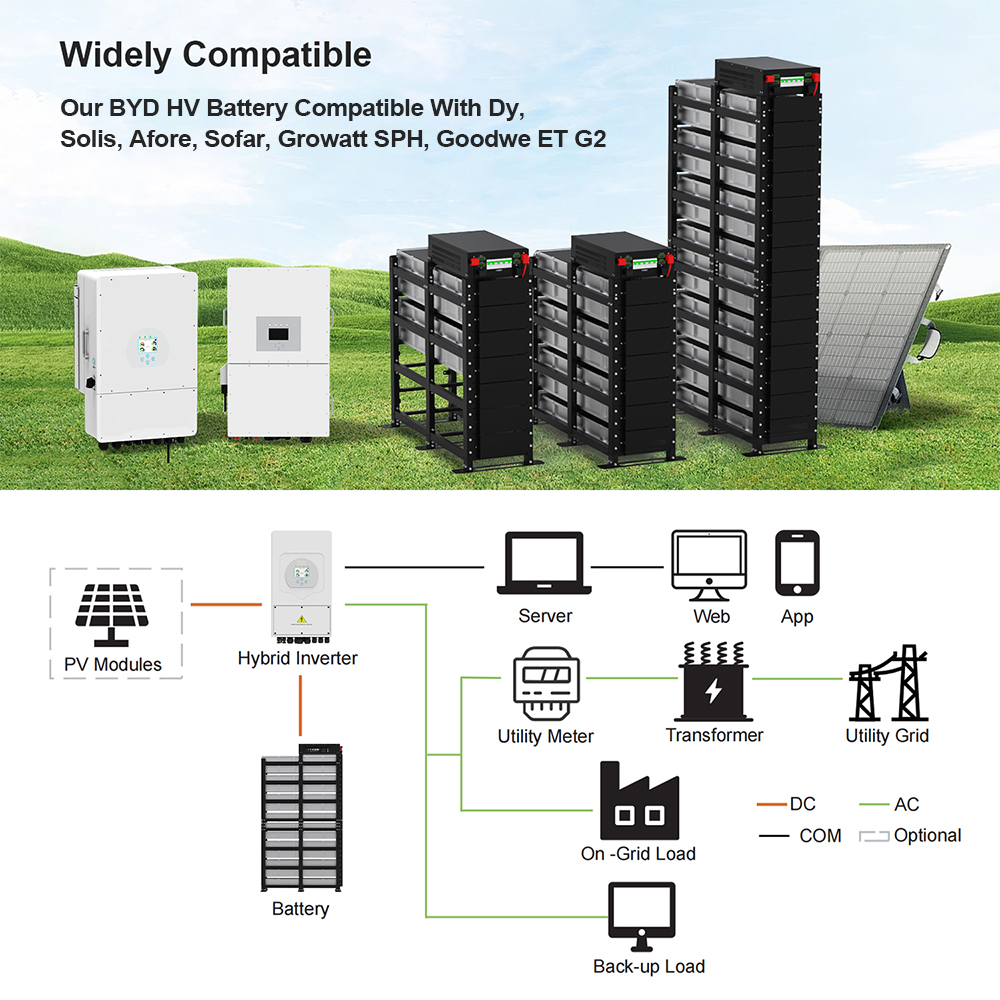

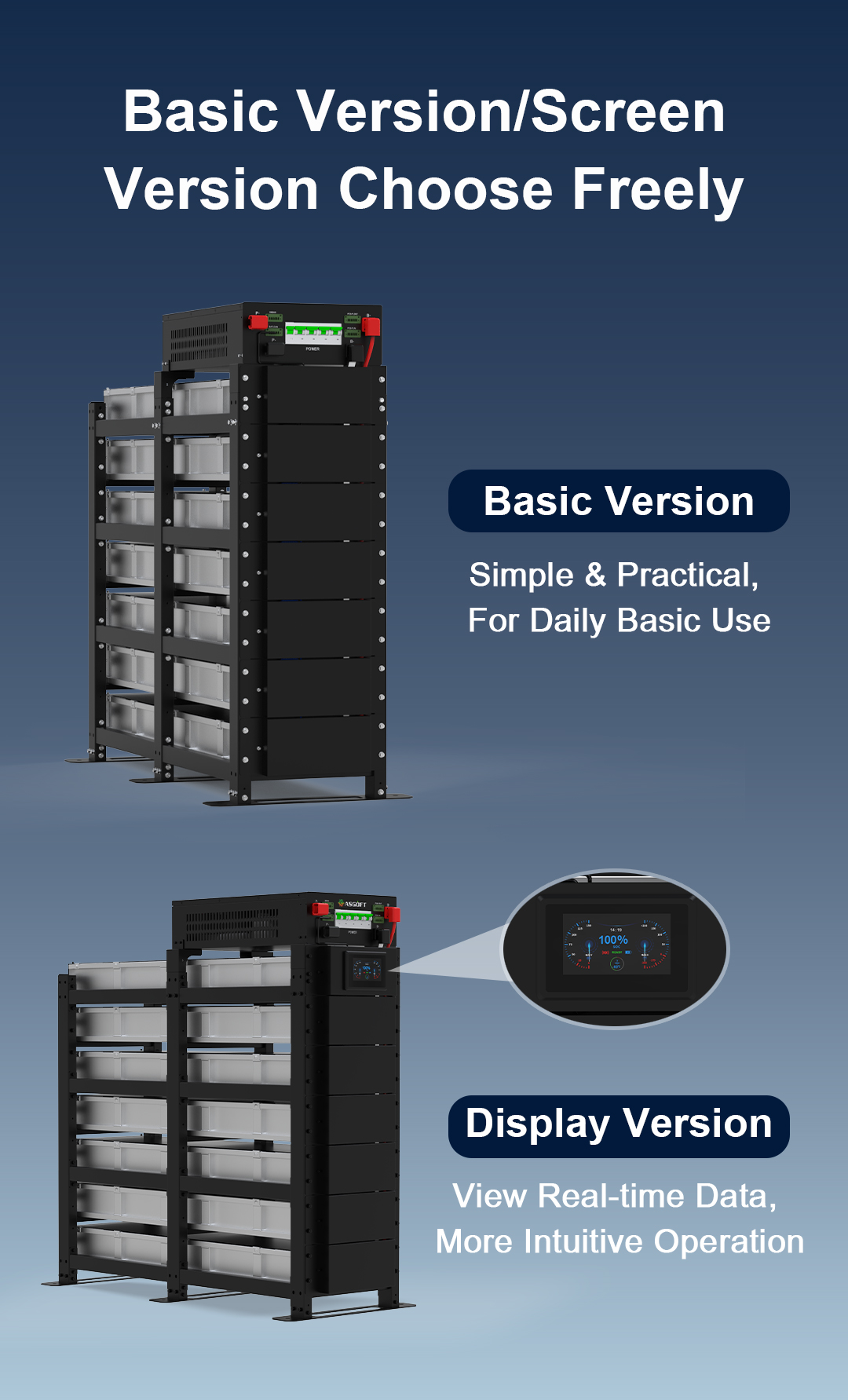

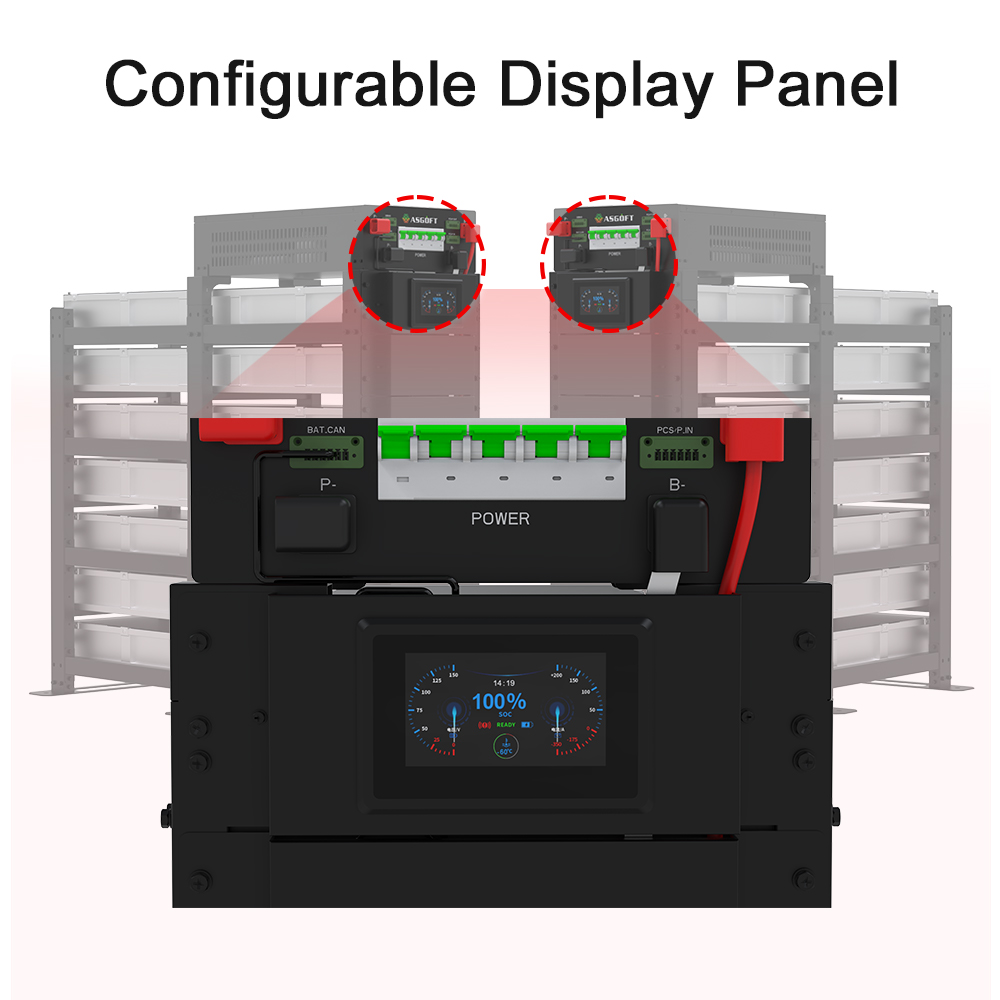

Integrated BMS for peak shaving, grid frequency regulation, and emergency backup with real-time monitoring.

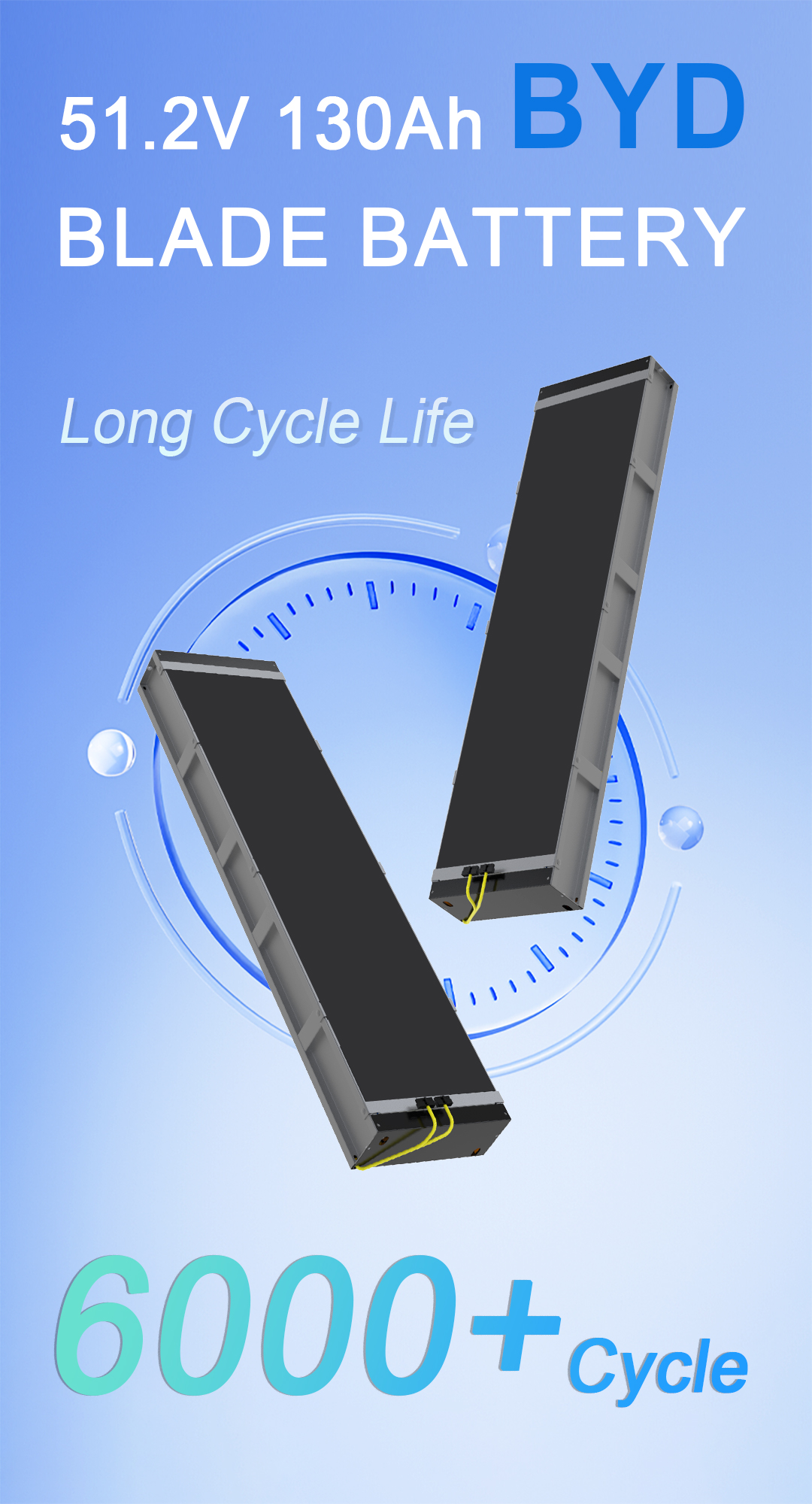

Utilizing high-capacity 130Ah prismatic LiFePO4 cells optimized for industrial-grade loads and solar farms.
Fully compliant with CE, UN38.3, and MSDS standards, guaranteeing technical reliability for global trade.

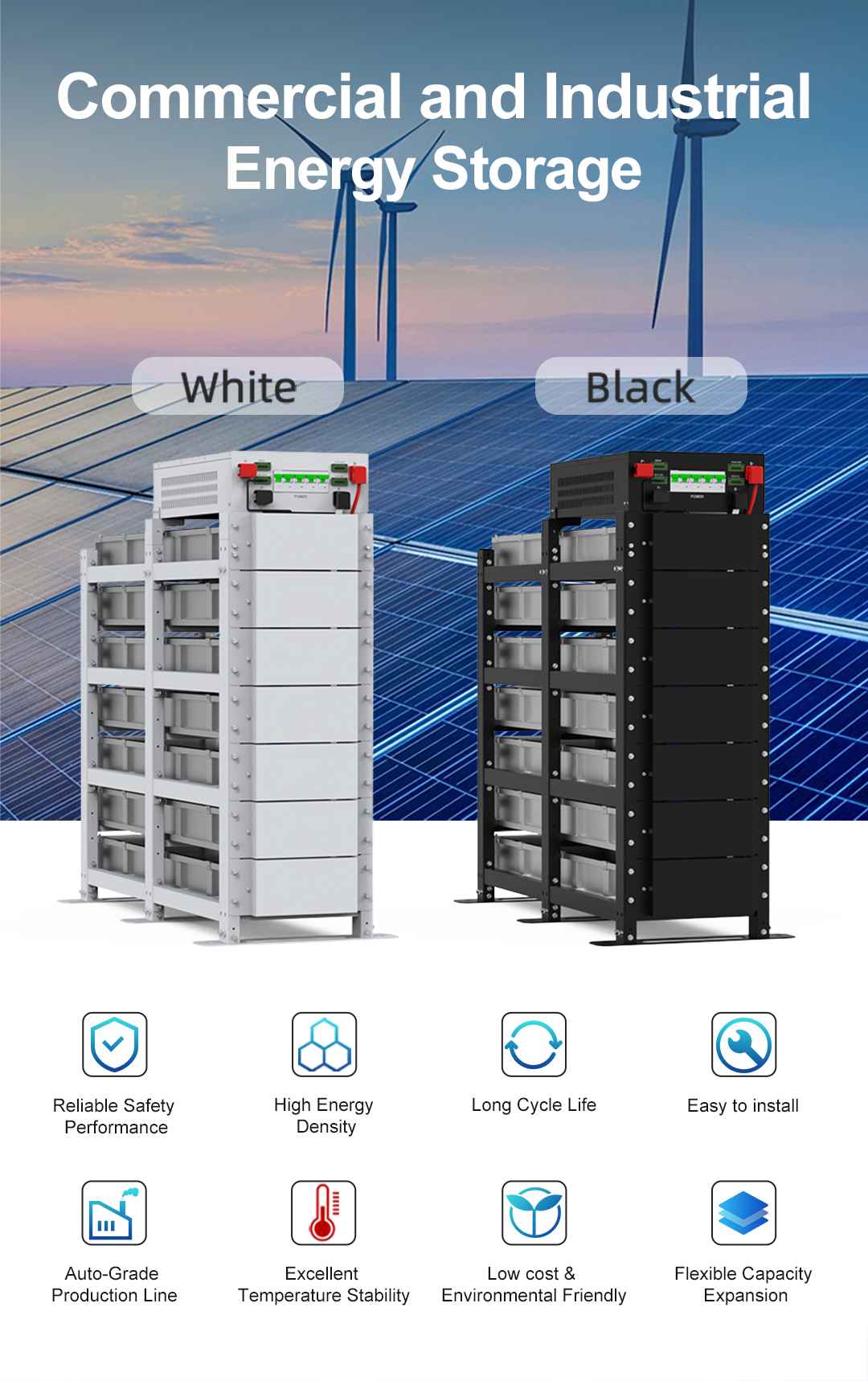

The High Voltage DC 200V-1000V series is a premium industrial & commercial energy storage solution engineered for efficiency and reliability. Utilizing authentic BYD Blade Battery cells, this system is designed for high-performance applications. With a scalable capacity ranging from 20kWh to 100kWh (including configurations like 30kWh, 50kWh, and 100kWh), it offers flexibility for diverse energy demands.
Key Advantages:
Intelligent Management & Protection:
| Project | Parameter | |
|---|---|---|
| Model | ASH-HESS-46KWh | ASH-HESS-93KWh |
| Battery Capacity | 46.6KWh | 93.2KWh |
| Rated Capacity | 130Ah | |
| Cell System | Lithium iron phosphate (LiFePO4) | |
| Nominal Voltage | 358.4V | 716.8V |
| Max Charge/Discharge | 100A | |
| Cycle Count | > 6000 Cycles | |
| Weight | 400kg ± 5% | 780kg ± 5% |
Welcome OEM/ODM Orders - Fast Logistics & Local Support
A1: Yes, both OEM and ODM services are available to meet your specific branding and technical requirements.
A2: We provide a standard 2-year warranty for free, which can be extended to 10 years based on project needs.
A3: All products undergo rigorous factory testing. Our current defective rate is maintained at less than 0.2%.
A4: Samples take 2-3 working days. Standard orders are delivered within 3-15 working days, and OEM orders take 7-25 working days after sample confirmation.
A5: Blade cells offer superior safety (LFP chemistry), high energy density, and exceptional thermal stability compared to traditional lithium-ion batteries.
A6: Yes, we have professional engineers available for 24-hour after-sales consultation to solve any technical or integration issues.
