Volt Power
1 / 5
We currently have sufficient stock in China and Poland EU locations for:
It's the best time for quick shipping!

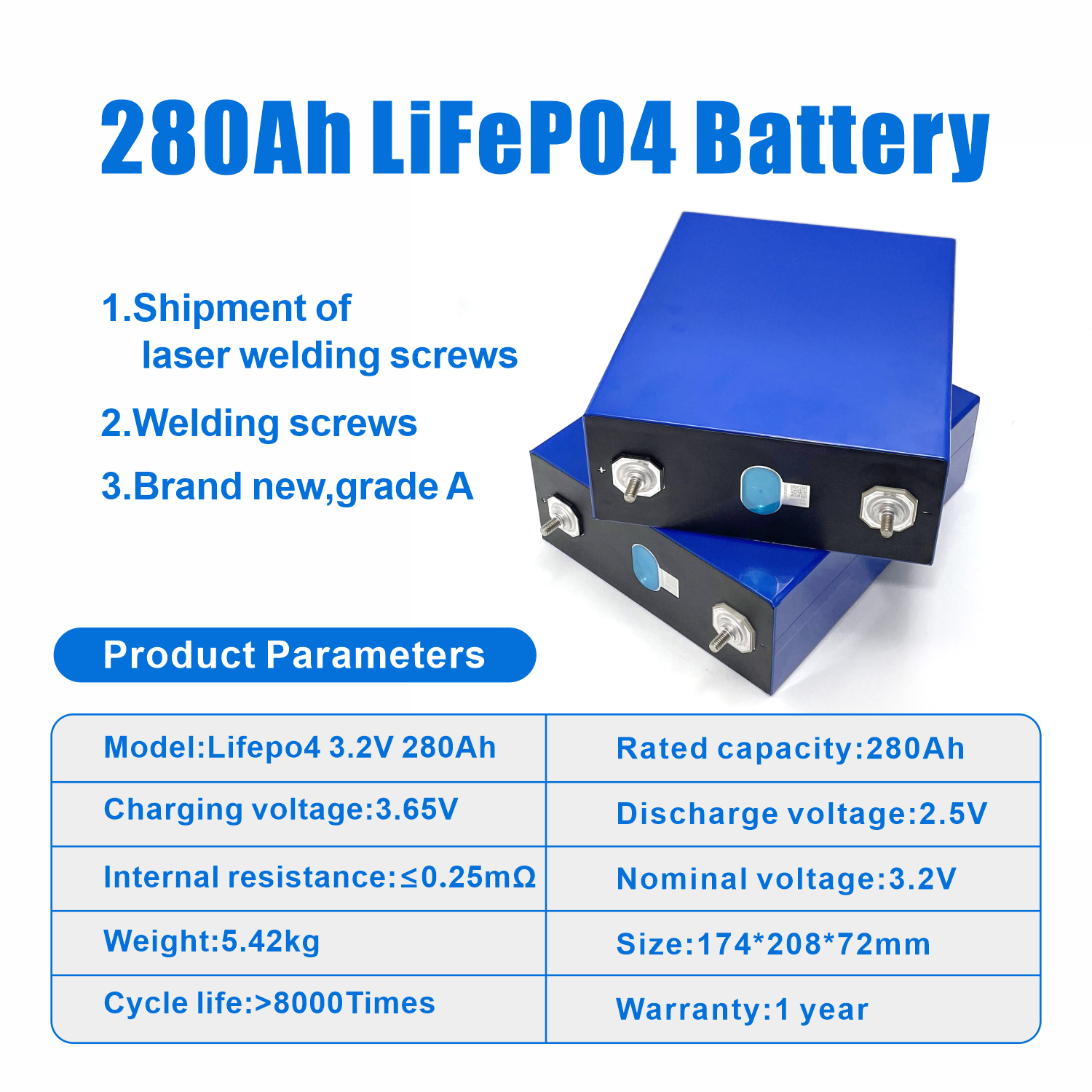

| Model | LF304 | LF280 | LF230 |
| Nominal capacity | 304Ah | 280Ah | 230AH |
| Typical voltage | 3.2V | 3.2V | 3.2V |
| Max Charge voltage | 3.65V | 3.65V | 3.65V |
| AC impedance resistance (1KHz) | ≤0.25mΩ | ≤0.25 mQ | ≤0.25mΩ |
| Charging temperature | 0℃~55℃ | ||
| Weight | 5.5KG | 5.3kg | 4.3kg |

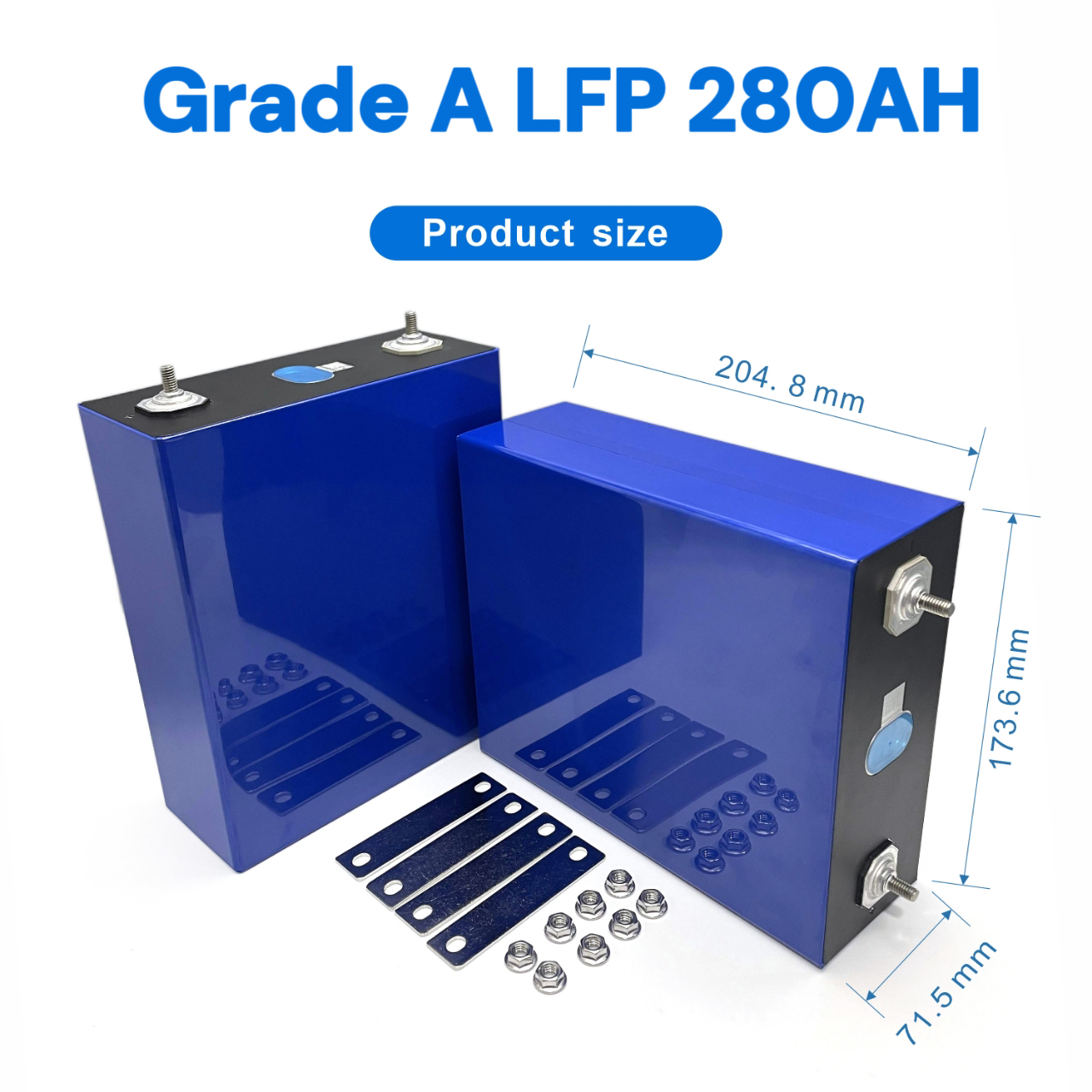

| Dimension | 208*173*72mm | 200*173*72mm | 174*54*207mm |
| Grade | Grade A & Brand New with Original QR Code | ||
| Cycle Times | >6000 Cycle Times | ||
| Warranty | 5 years warranty | ||
Application: Backup power for home energy storage systems, campers, RVs, yachts, etc.
These Ready to Ship (RTS) products allow for direct payment and priority shipping.
Key Features:
Accessories Info:
280Ah/304Ah: 90*20*2mm (copper plated with nickel)
230Ah: 80*20*2mm (copper plated with nickel)
Screw size: M6
⚡ Your Expert For Power Solution: With 10 years of experience, we have served over 12,000 customers from 80+ countries.
⚡ Source Factory & Direct Distributor: We are direct distributors for EV, CATL, LISHEN, CALB, and REPT batteries. All cells are 100% original Grade A.
⚡ Guaranteed Quality: 100% tested batteries with matched voltage and internal resistance. We welcome QC and online video checks.
⚡ Warranty & Support: We have overseas repair centers in Germany providing technical support and complete after-sales service.
⚡ OEM / ODM Supported: Experienced structural and software engineers for flexible customization.
Grade A 100% Brand New with Original QR code!
All single batteries must undergo testing at least 3 times before shipping to ensure top quality, full capacity, and perfectly matched parameters.
We provide a 5-year warranty from the date of successful delivery. If the single battery capacity drops below 80% of its initial capacity, we will provide a replacement or a satisfied solution based on your provided test evidence.
Yes, all batteries are 100% original Grade A quality and brand new with original factory QR codes which can be verified.
Each cell comes with complimentary busbars, bolts, and insulation boards. For example, if you buy 4 batteries, you will receive 4 busbars, 16 nuts, and 4 epoxy boards.
Yes, for DIY assembly, you must ensure the cells are balanced (same voltage) before building the pack. Proper assembly and a matching BMS (protection board) are required for safe operation.
Professionals detect the voltage, internal resistance, appearance, and capacity. Each battery is tested over 3 times to ensure it meets our top-quality standards before delivery.
Batteries can only be returned if they are unused (electrodes intact, no welding, no wear, good appearance). Buyers are responsible for return shipping fees. Problems must be reported within 15 days of arrival.
Tips for DIYers: These cells are prototype batteries without protection boards. You must purchase a compatible BMS separately. By placing an order, you agree to these assembly and warranty terms.
