Home > Battery Management Systems > Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A

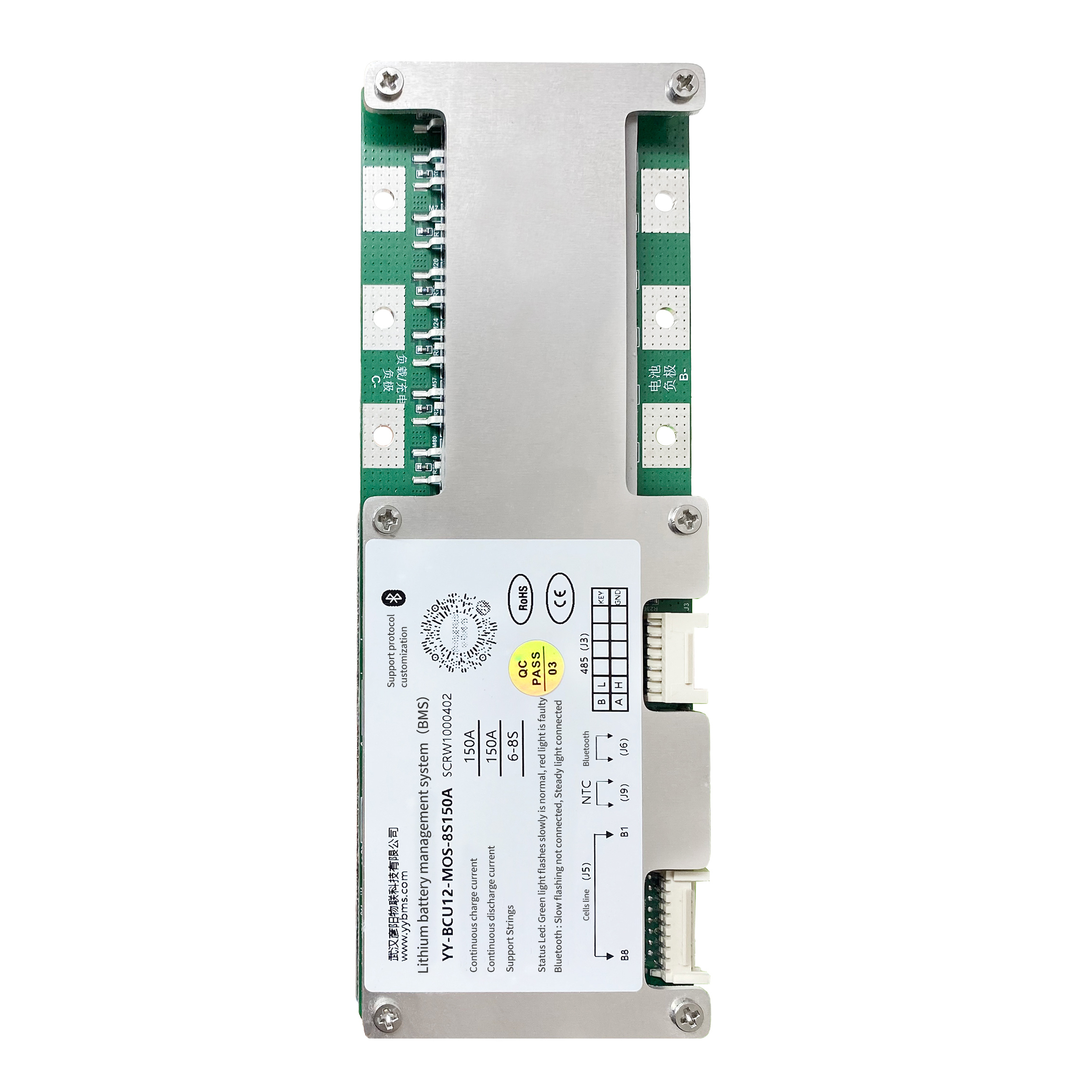

Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A
Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A
Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A
Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A
Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A
1 / 5
Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A
Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A
Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A
Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A
Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A

Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication Yanyang YY-BCU12-MOS-8S150A

Send Inquiry

Product Description

Smart BMS PCBA 150A for 24V 6S 7S 8S Lithium Battery Management System RS485 Can Communication Support UART
Model BCU12-MOS-8S150A
Number of Cells 6S-8S
Continuous Current 150A
Peak Current 300A
APP Support Android and iPhone
Accessory NTC / Cell sampling line
Product Gallery
Smart 150A BMS PCBA for 24V 6S/7S/8S Lithium Battery Management System with RS485 UART Communication

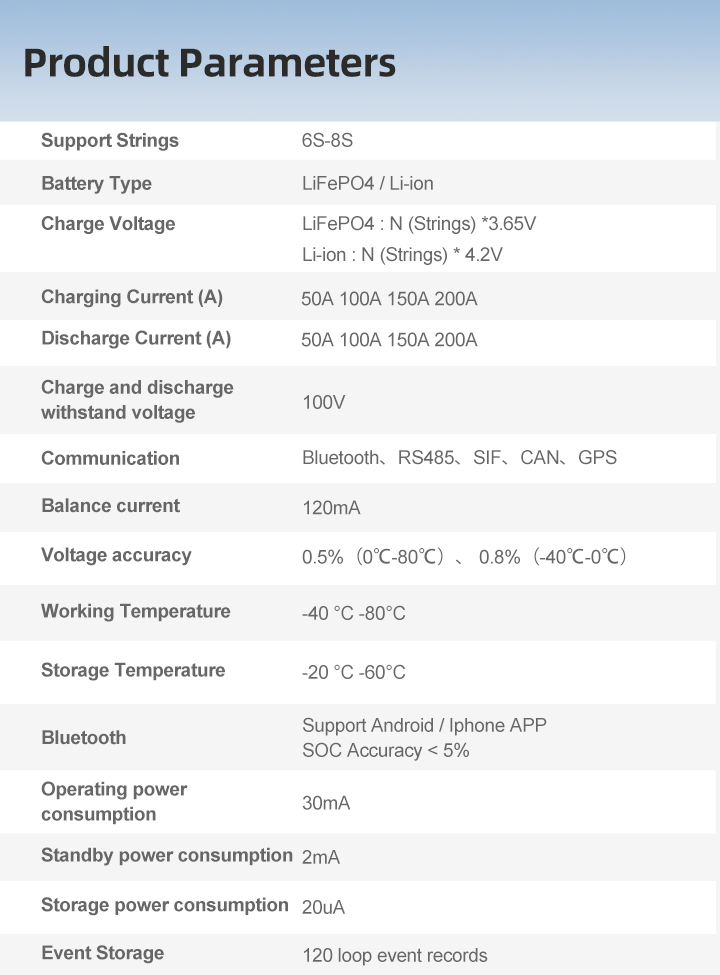

Smart 150A BMS PCBA Details and Parameters
Smart 150A BMS PCBA Configuration Specification

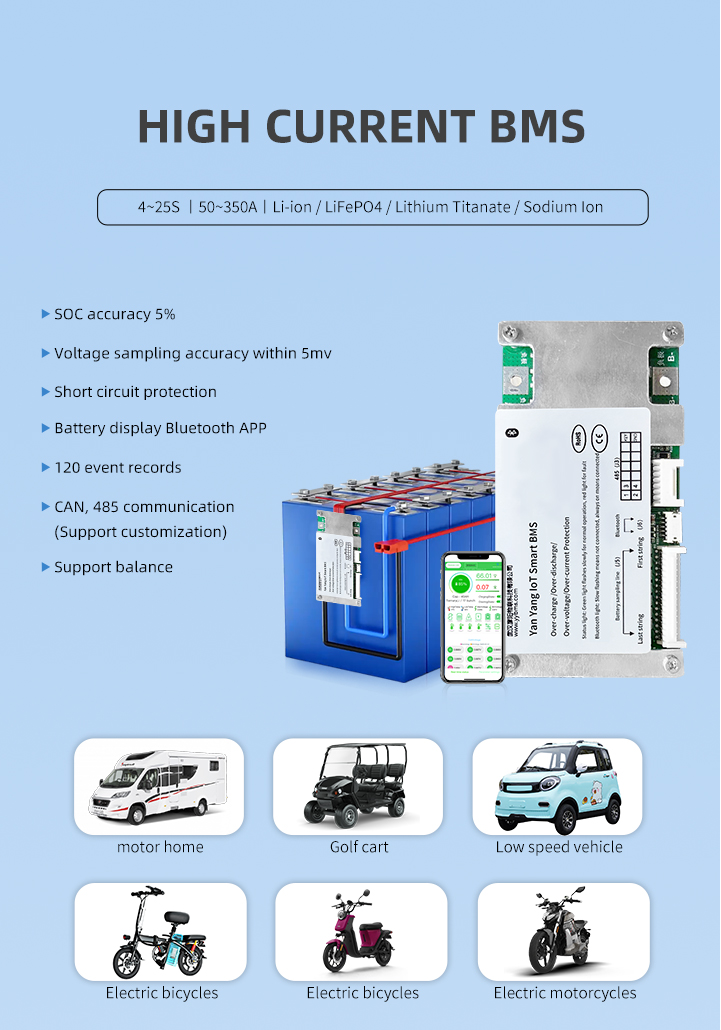

Smart 150A BMS PCBA Interface Structure

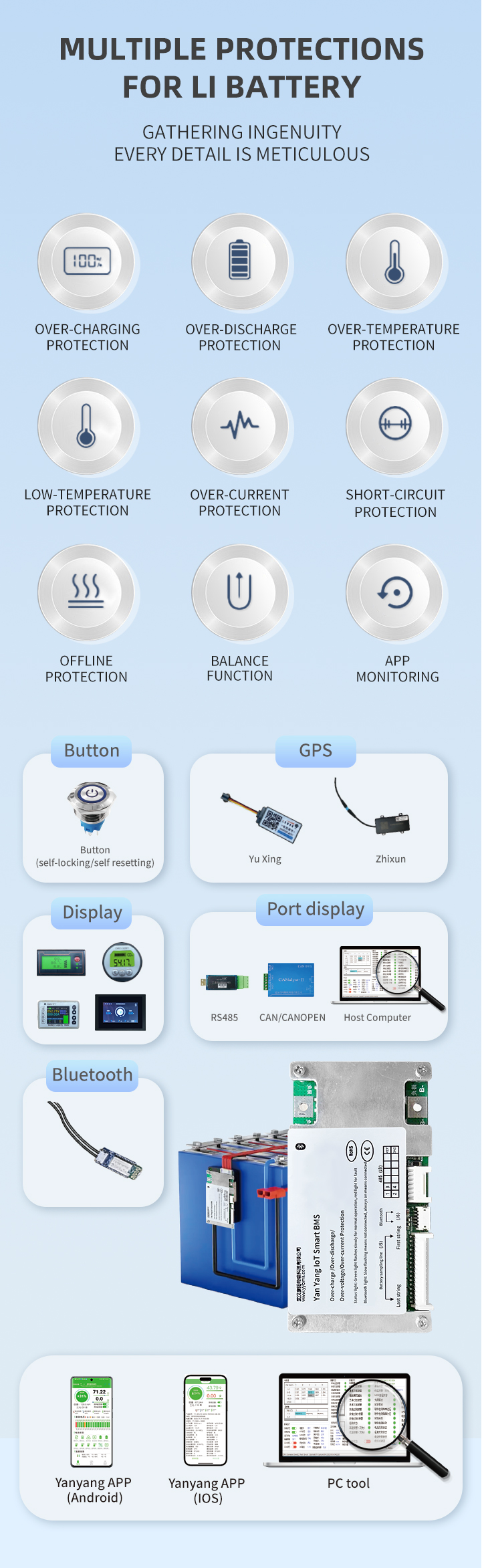

Smart 150A BMS PCBA App Interface Guide

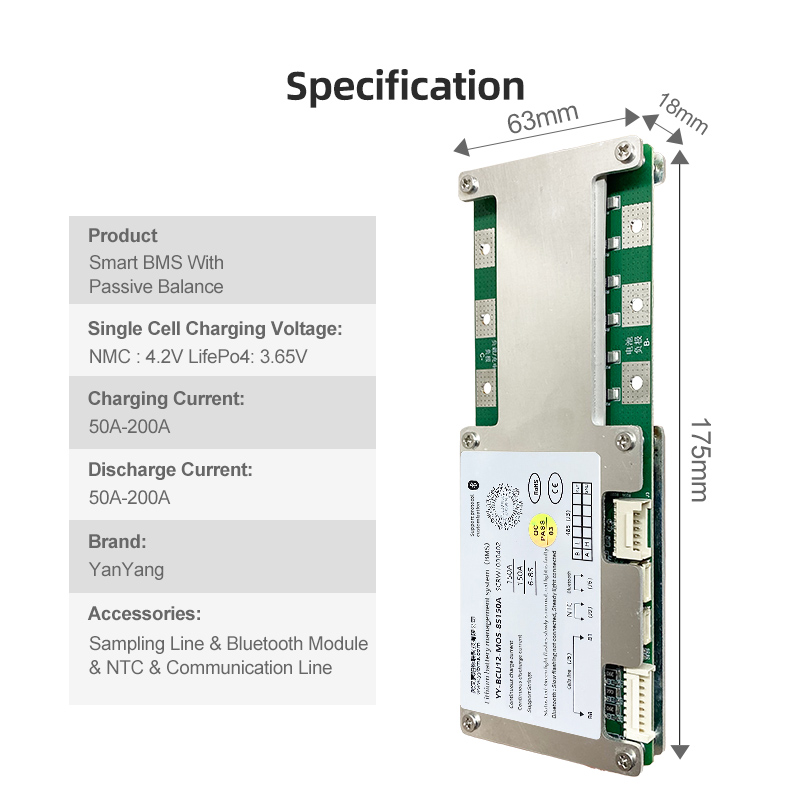

Smart 150A BMS PCBA Dimension and Design

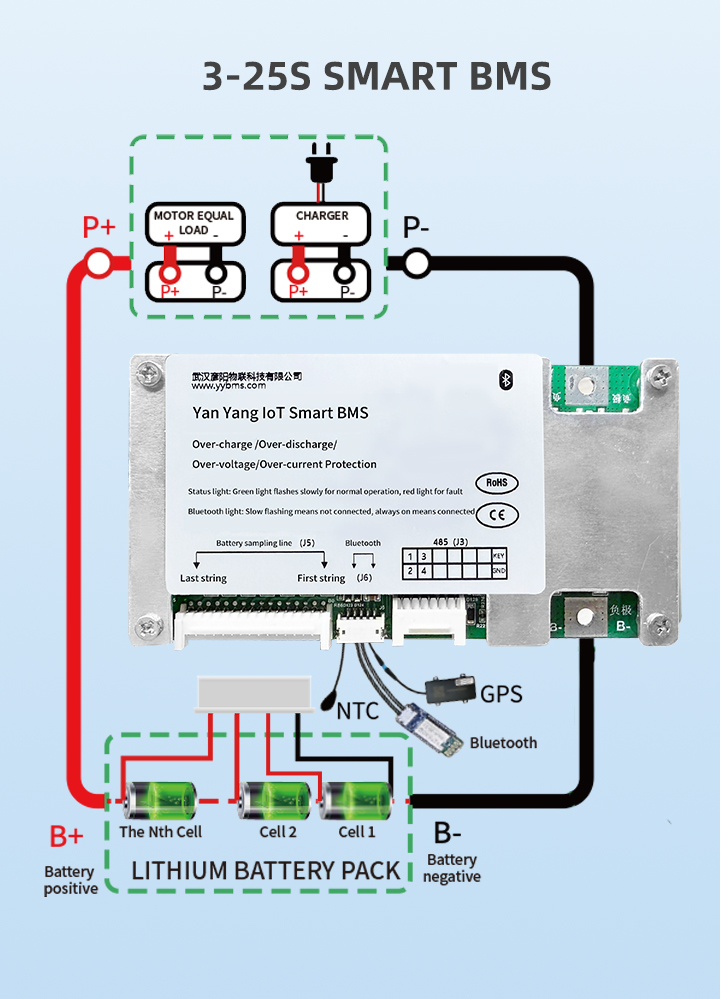

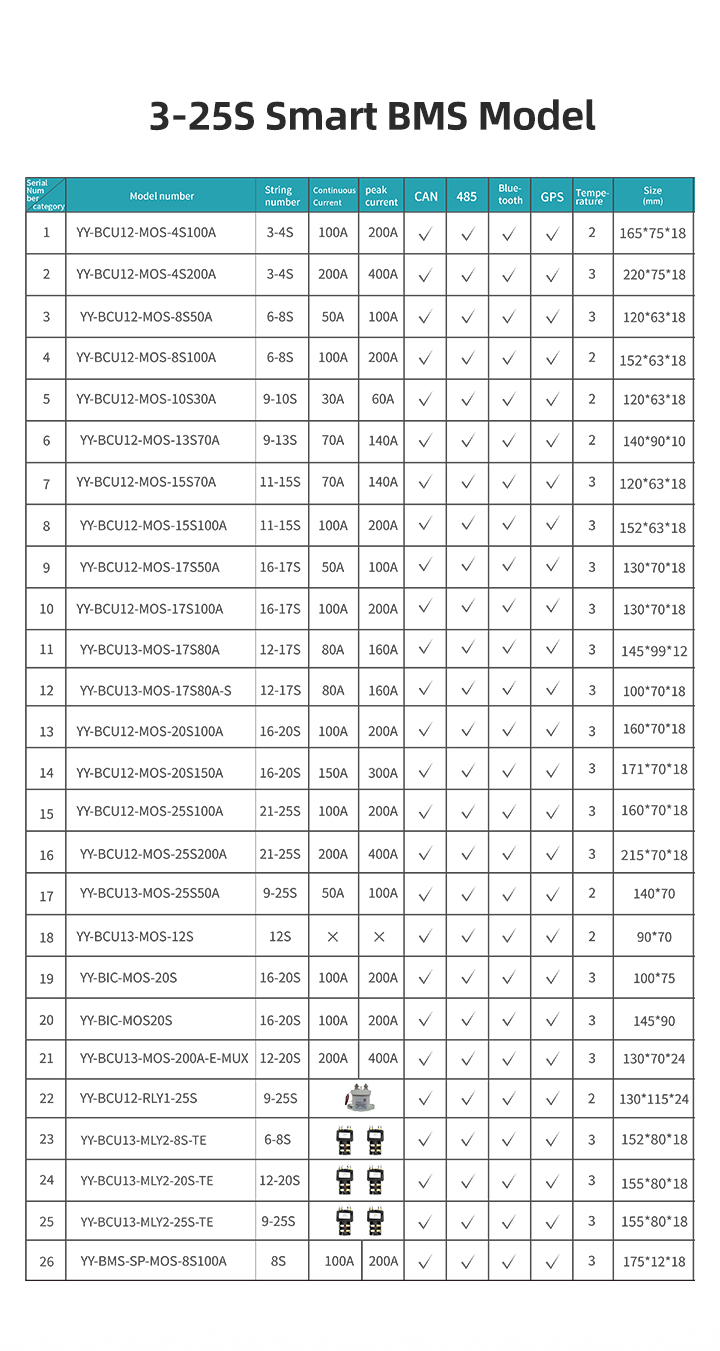

Smart 150A BMS PCBA Wiring Diagram

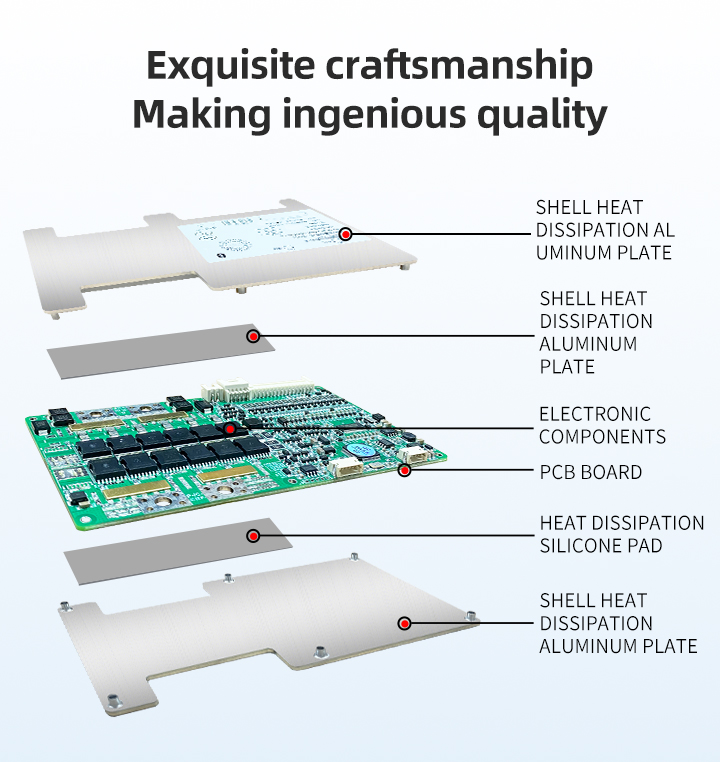

Smart 150A BMS PCBA Protection Board
Smart 150A BMS PCBA Communication Module
Smart 150A BMS PCBA Testing and Quality Control
Smart 150A BMS PCBA Packaging and Delivery
Frequently Asked Questions
1. What are the main functions of a BMS?
The main functions of a BMS include:
  • Overcharge protection
  • Over-discharge protection
  • Over-current protection
  • Short circuit protection
  • Temperature protection
2. How do I choose the right BMS for my battery pack?
When choosing a BMS, you need to consider the following factors:
  • Number of cells in the battery pack
  • Battery Pack Cell Type
  • Maximum charge and discharge current
  • Communication interface (if needed)
3. For Smart BMS with APP, which parameters can be modified?
You can modify the number of strings, capacity, battery type, switch type, protocol, etc.
4. Can I use a BMS with different types of batteries?
Typically, BMS are designed for specific battery chemistries, so it's important to use a BMS compatible with your battery type.
5. What happens if a cell fails in a BMS?
A good BMS can detect cell failures and may disconnect the affected cell to prevent safety hazards.
6. How do you verify if the soldering cable lines to the batteries are accurate before connecting to the BMS?
Using Voltage Measurement, with the battery pack assembled, measure the voltage across each cell or cell group. Compare readings with expected values to identify any discrepancies. *Important: Do not connect cable lead to BMS unless all measures are verified.
