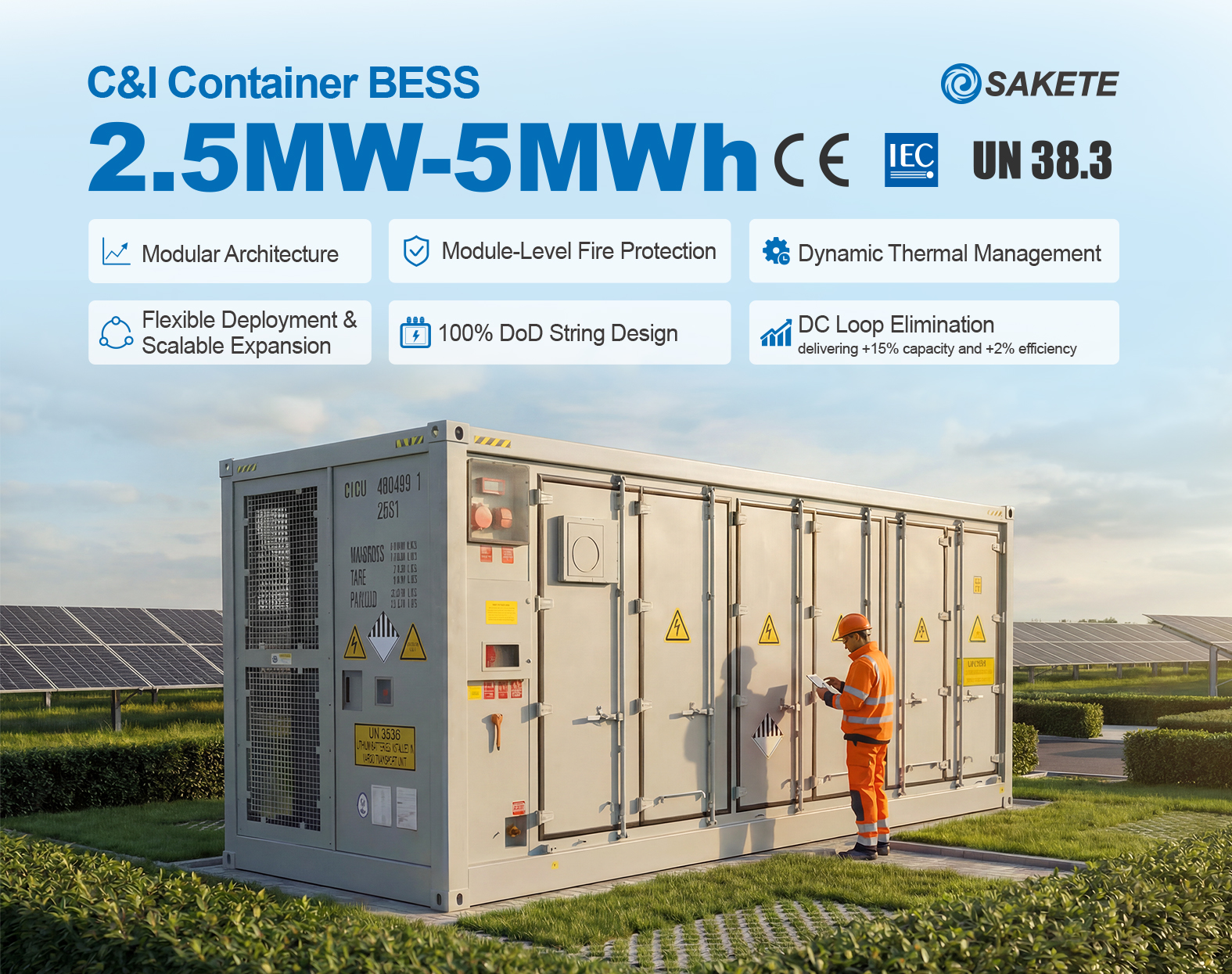

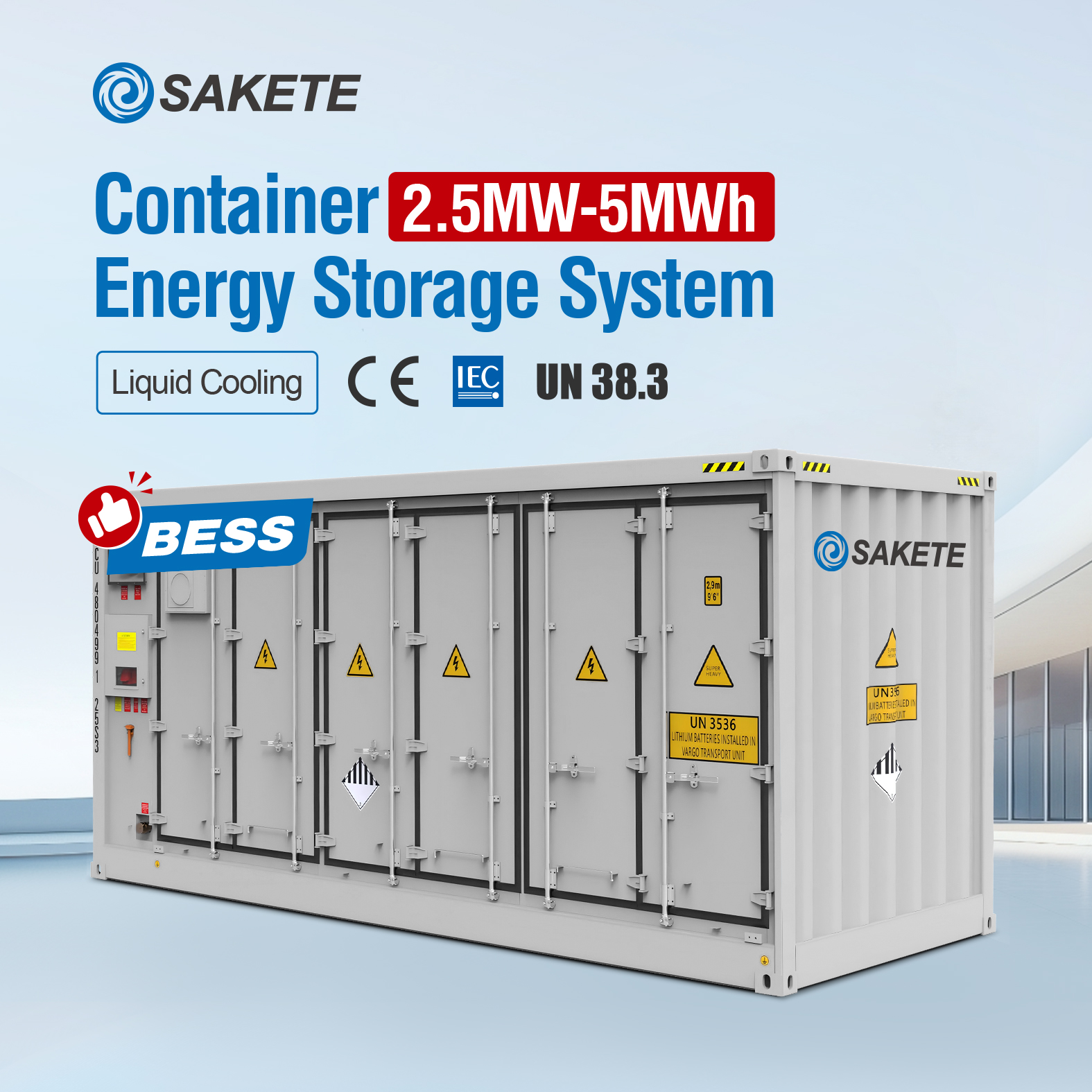

The 5MWh-2.5MW containerized energy storage system delivers stable, controllable, and cost-effective power security for industrial and commercial projects.
It efficiently absorbs low-cost electricity during off-peak hours and releases high-value energy during peak demand, helping you significantly reduce operating costs while enhancing power stability. Its millisecond-level response capability minimizes frequency fluctuations, reduces outage and curtailment risks, and ensures uninterrupted operation for critical loads.
| Battery Data | |
|---|---|
| Model | SKTESS5000-2500K |

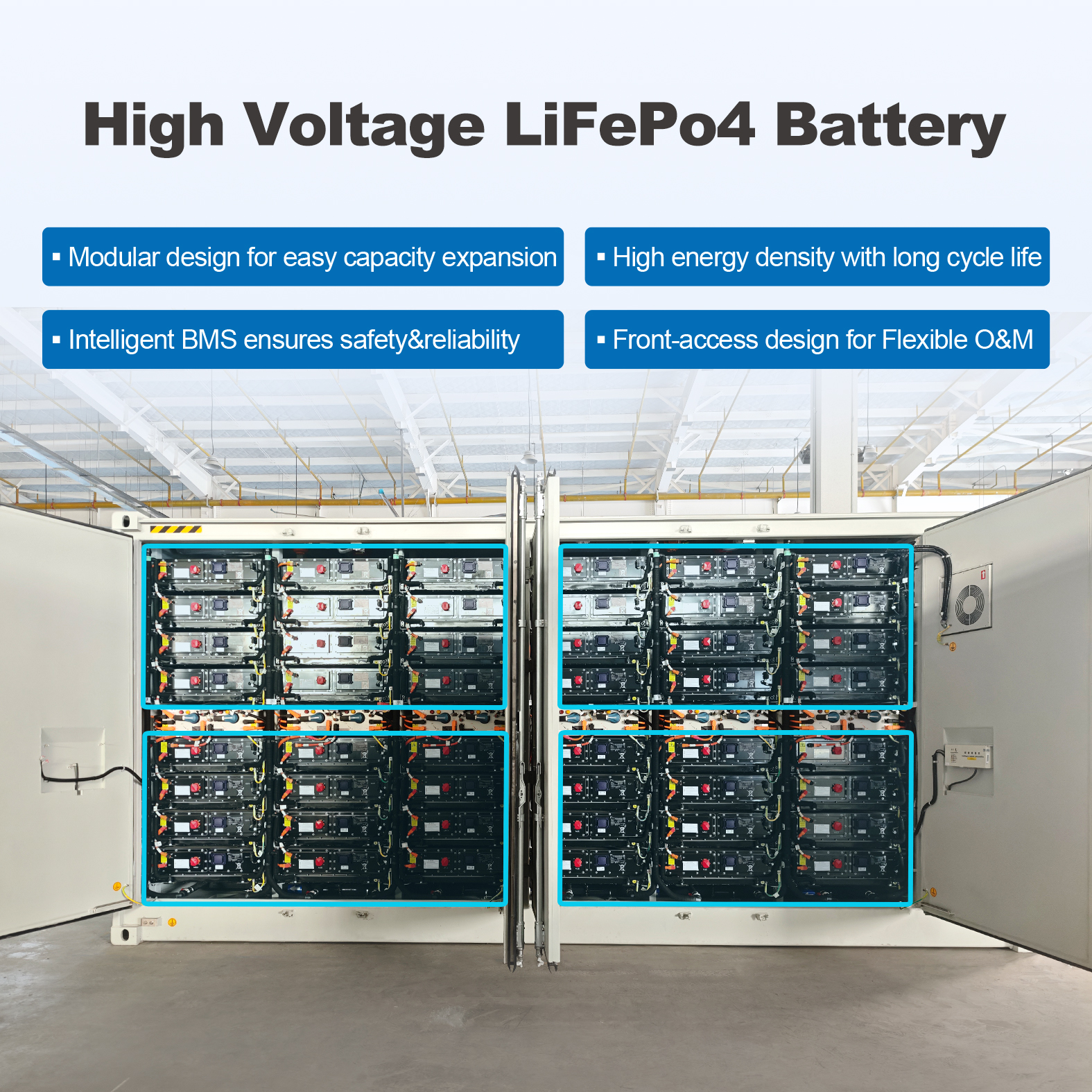

| Battery Type | LiFePO4 |
| Rated Capacity | 314Ah |

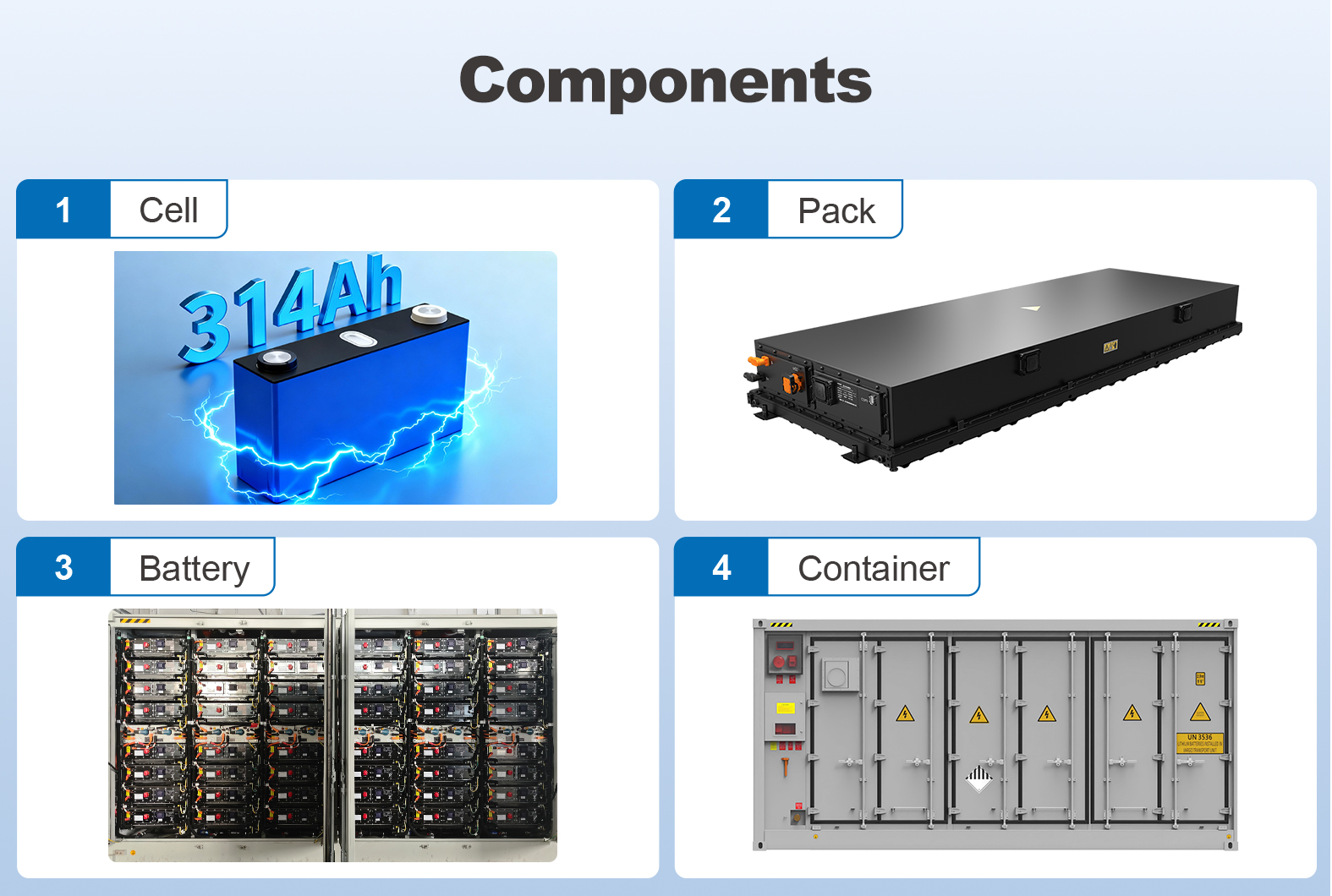

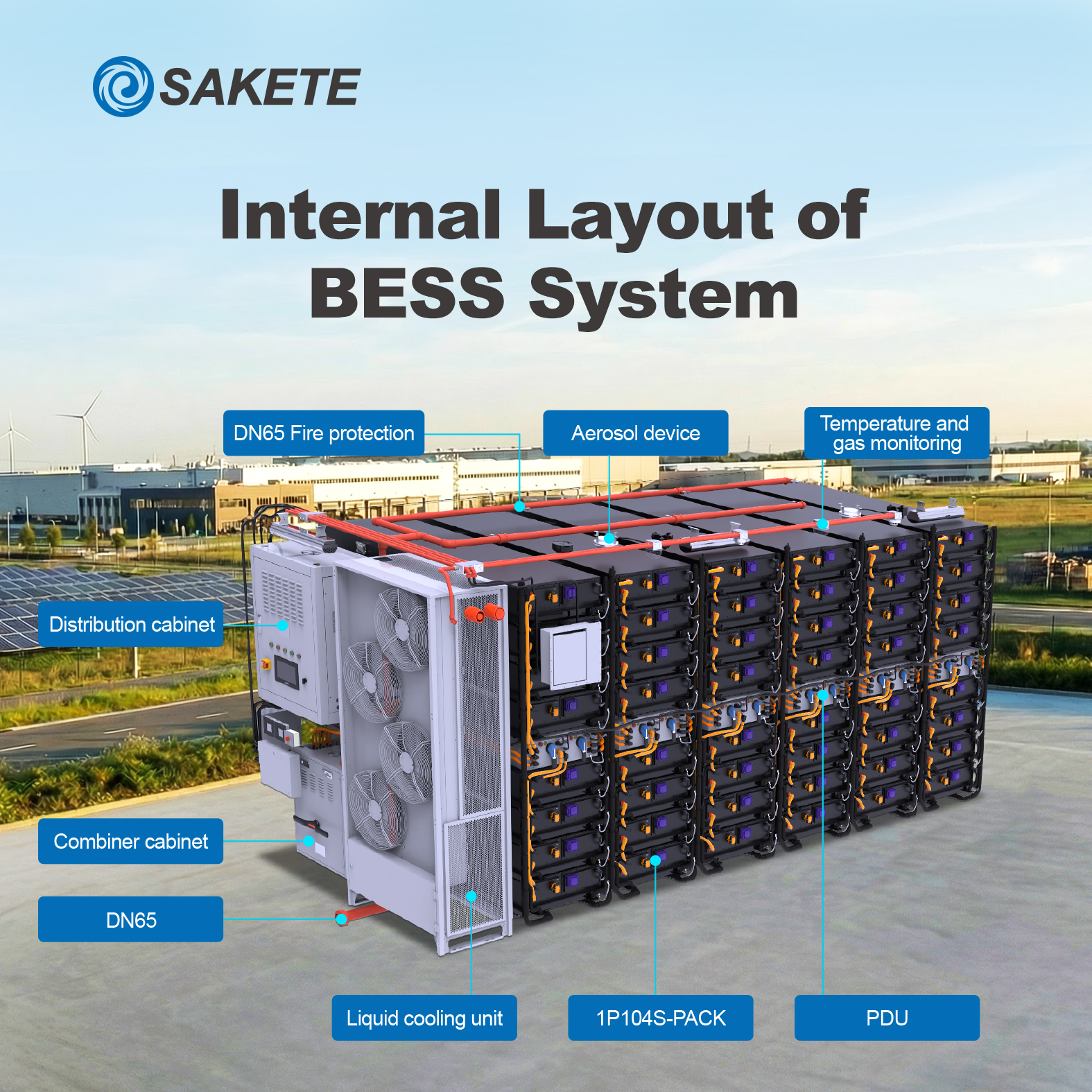

| Configuration | 12*(1P104S*4) |
| Nominal Energy | 5015.961kWh |
| Rated Voltage | 1331.2V |
| Operating Voltage Range | 1164.8-1497.6V |
| Max. Charge and Discharge Rate | 0.5C@25°C |
| Battery System Cycle Efficiency | ≥93.5% (FAT Standard) |
| System Data | |
| Dimensions (W × D x H) | 6058 × 2438 × 2896mm |
| Net Weight | 42.5T |
| Ingress Protection | IP55 |
| Noise Emission | ≤85dB |
| Operating Altitude | ≤2000m |
| Cooling | Forced Liquid Cooling |
| Coolant | 50% ethylene glycol in water |
| Fire Extinguishing System | Aerosol Fire Protection System |
| Corrosion-proof Grade | C4 |
| Communication Mode | Modbus-TCP /IEC61850 / IEC104 |
Flexible and customizable solutions for industrial & commercial energy needs:

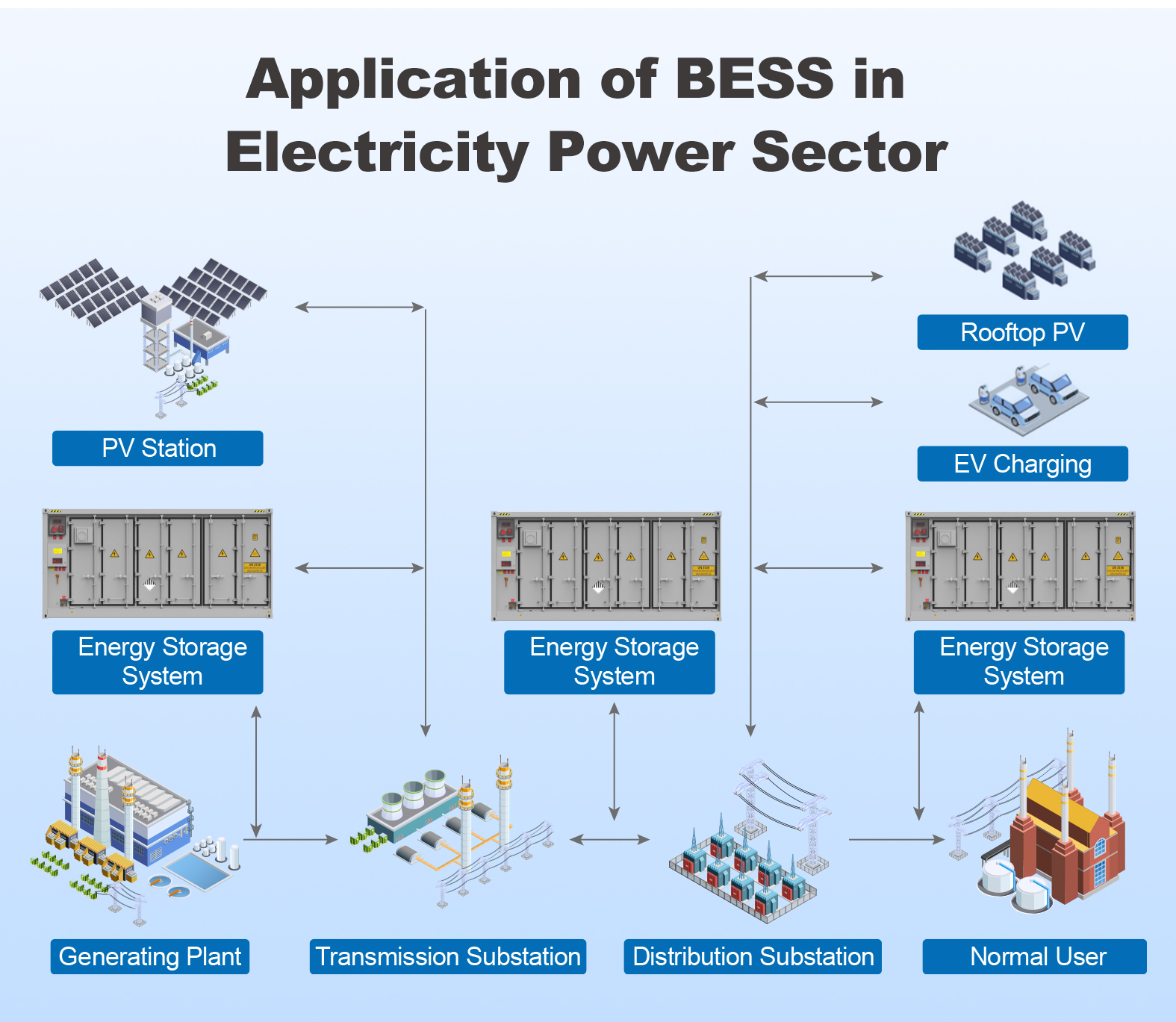

A: It is primarily designed for large-scale industrial and commercial applications, including peak shaving, renewable energy smoothing, and providing backup power for critical loads.
A: The forced liquid cooling system ensures uniform temperature distribution across all battery cells, preventing overheating and significantly extending the operational lifespan and safety of the system.
A: Yes, the system supports seamless integration with renewable sources like solar and wind, allowing for efficient energy storage and optimized self-consumption.

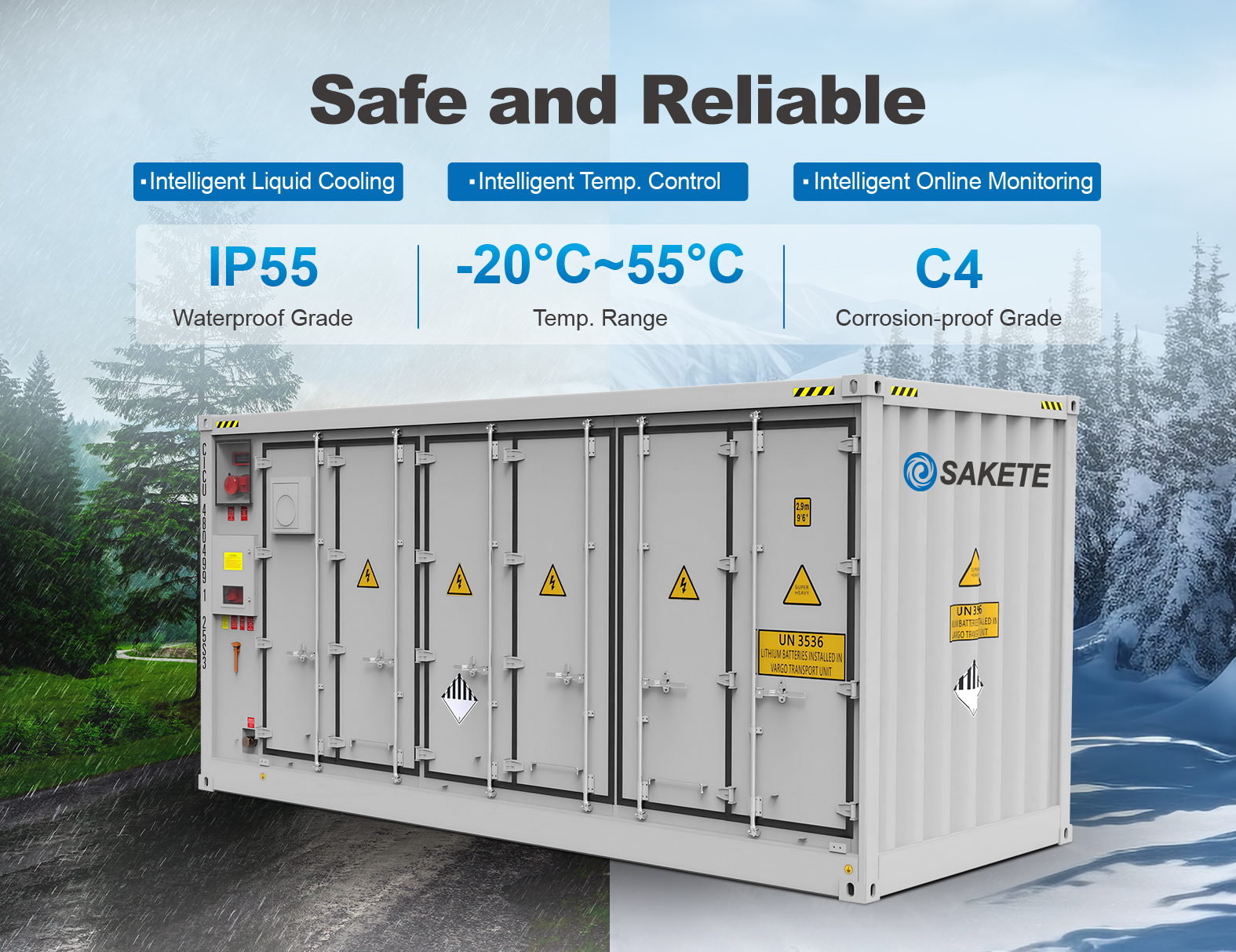

A: The container is equipped with an IP55 protection rating, a C4 corrosion-proof grade, and an advanced Aerosol Fire Protection System to ensure maximum safety in various environments.

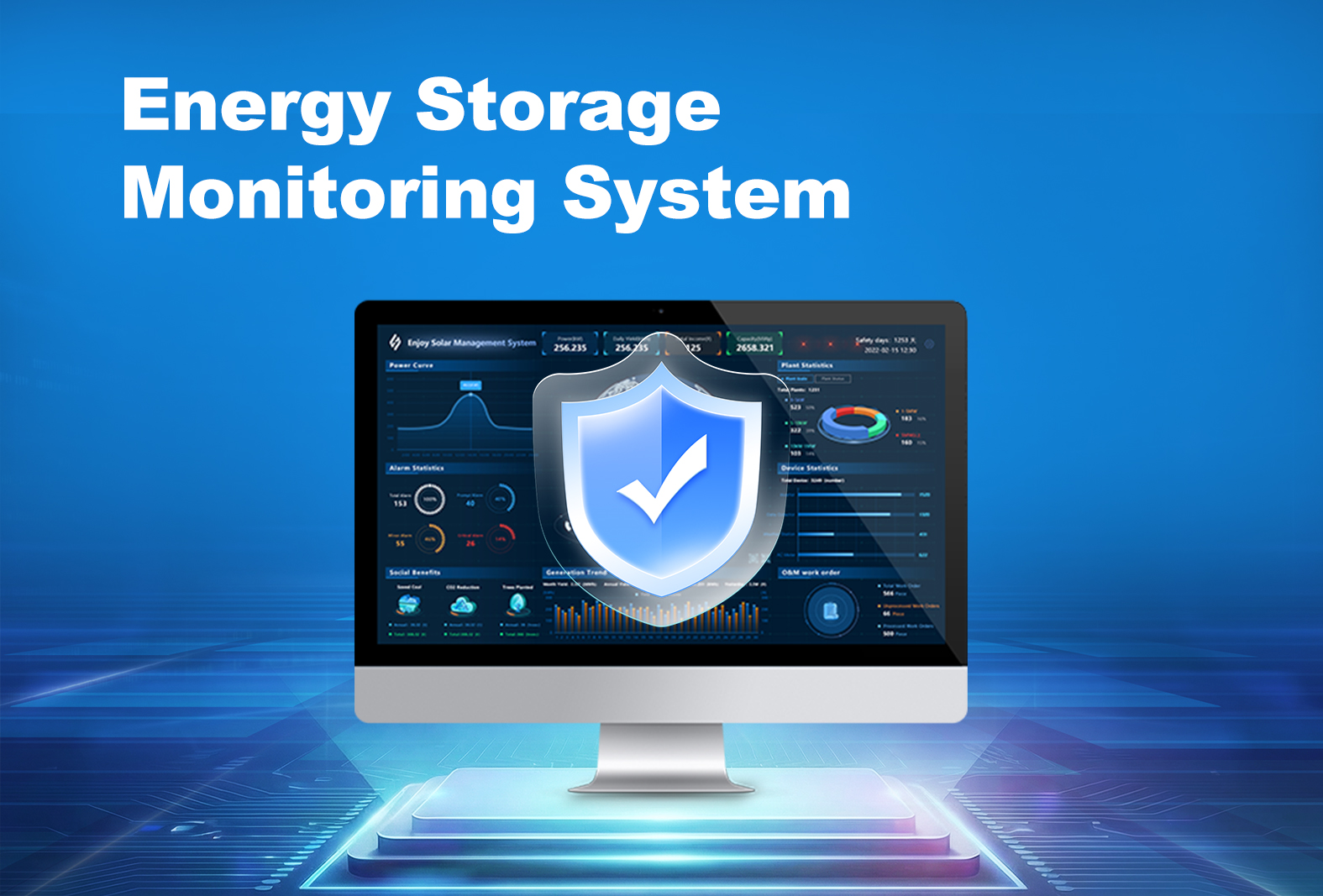

A: Absolutely. The integrated EMS supports cloud monitoring, remote diagnostics, and online updates, allowing operators to manage multi-site deployments efficiently from any location.
A: Yes, we provide comprehensive OEM and ODM services, allowing for customization of capacity, power ratings, and control strategies to meet specific project requirements.
