ZTGF 48V 200Ah 280Ah 300Ah Solar Lithium Battery 5kwh 10Kwh 15kwh Home Solar Energy System 48V LiFePO4 Energy Storage Battery
ZTGF 48V 200Ah 280Ah 300Ah Solar Lithium Battery 5kwh 10Kwh 15kwh Home Solar Energy System 48V LiFePO4 Energy Storage Battery
ZTGF 48V 200Ah 280Ah 300Ah Solar Lithium Battery 5kwh 10Kwh 15kwh Home Solar Energy System 48V LiFePO4 Energy Storage Battery
ZTGF 48V 200Ah 280Ah 300Ah Solar Lithium Battery 5kwh 10Kwh 15kwh Home Solar Energy System 48V LiFePO4 Energy Storage Battery
ZTGF 48V 200Ah 280Ah 300Ah Solar Lithium Battery 5kwh 10Kwh 15kwh Home Solar Energy System 48V LiFePO4 Energy Storage Battery
1 / 5
ZTGF 48V 200Ah 280Ah 300Ah Solar Lithium Battery 5kwh 10Kwh 15kwh Home Solar Energy System 48V LiFePO4 Energy Storage Battery
ZTGF 48V 200Ah 280Ah 300Ah Solar Lithium Battery 5kwh 10Kwh 15kwh Home Solar Energy System 48V LiFePO4 Energy Storage Battery
ZTGF 48V 200Ah 280Ah 300Ah Solar Lithium Battery 5kwh 10Kwh 15kwh Home Solar Energy System 48V LiFePO4 Energy Storage Battery
ZTGF 48V 200Ah 280Ah 300Ah Solar Lithium Battery 5kwh 10Kwh 15kwh Home Solar Energy System 48V LiFePO4 Energy Storage Battery
ZTGF 48V 200Ah 280Ah 300Ah Solar Lithium Battery 5kwh 10Kwh 15kwh Home Solar Energy System 48V LiFePO4 Energy Storage Battery

ZTGF 48V 200Ah 280Ah 300Ah Solar Lithium Battery 5kwh 10Kwh 15kwh Home Solar Energy System 48V LiFePO4 Energy Storage Battery

Send Inquiry

Product Description

ℹ
If you think the shipping cost is too expensive, please contact us and we will give you the maximum discount based on the actual situation.
Products Description

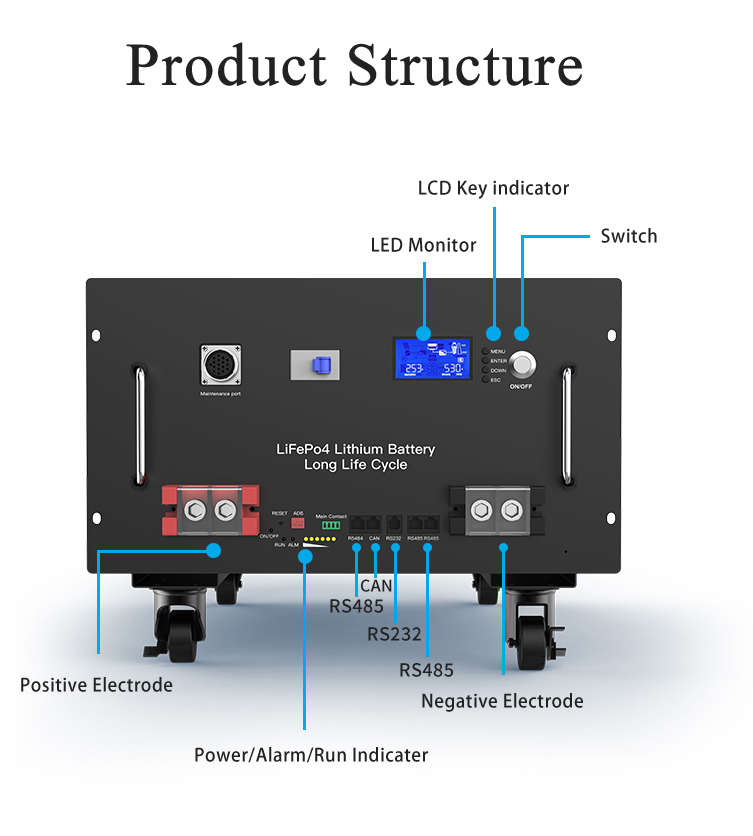

ZTGF 51.2V 280Ah LiFePO4 Battery Pack

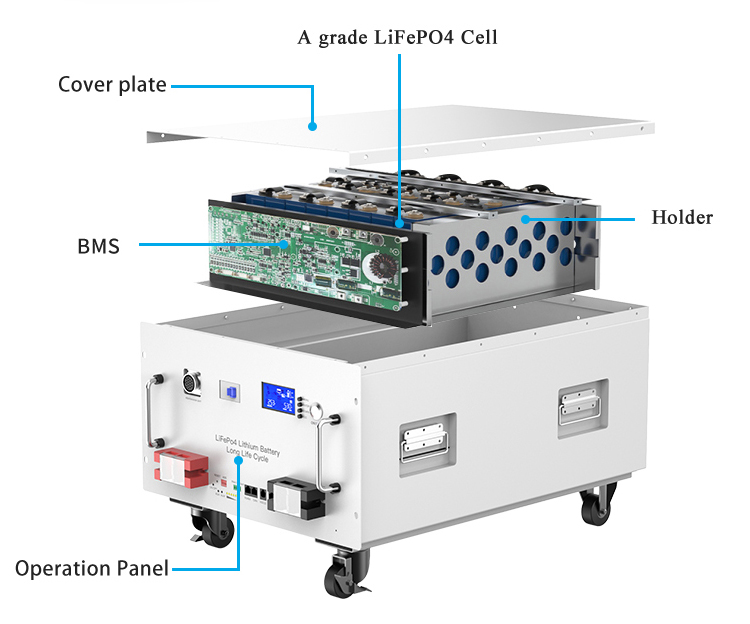

ZTGF 51.2V 280Ah LiFePO4 Battery Pack 1

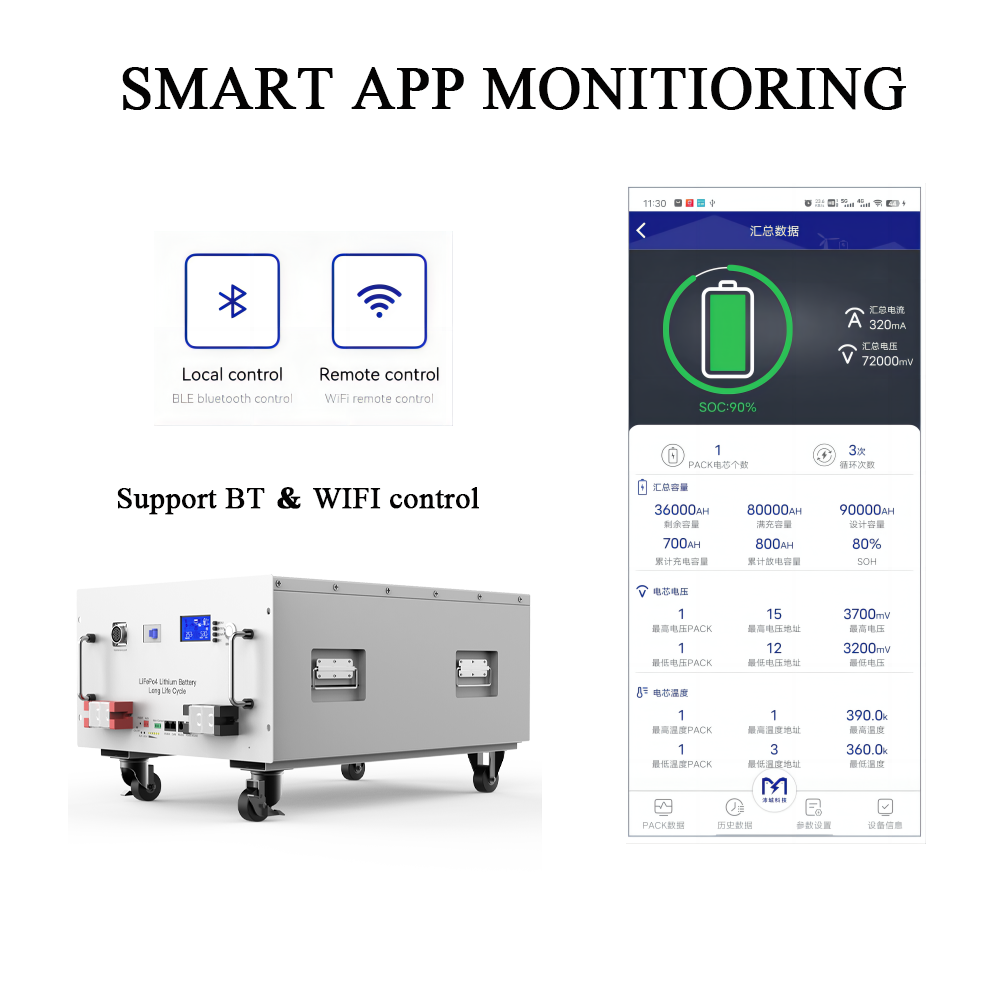

ZTGF 51.2V 280Ah LiFePO4 Battery Pack 2
ZTGF 51.2V 280Ah LiFePO4 Battery Pack 3
ZTGF 51.2V 280Ah LiFePO4 Battery Pack 4

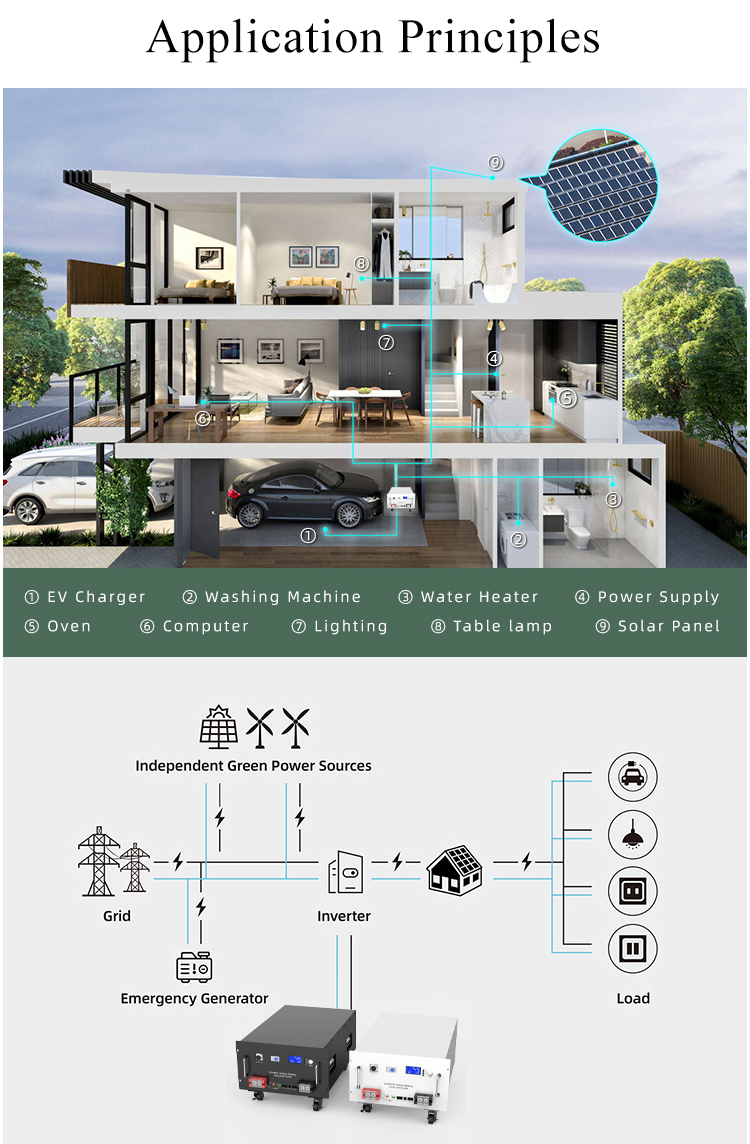

ZTGF 51.2V 280Ah LiFePO4 Battery Pack 5
ZTGF 51.2V 280Ah LiFePO4 Battery Pack 6
ZTGF 51.2V 280Ah LiFePO4 Battery Pack 7
ZTGF 51.2V 280Ah LiFePO4 Battery Pack 8
Product Parameters
Item Specification Conditions
Nominal Voltage 51.2V 25℃, 0.2C
Capacity 280Ah
Module weight 130kg ±1kg
Dimensions(W*D*H), mm 666*483*267 mm ±2mm
Operating parameters Charging Voltage 52.5V~54.0V -
Discharging Voltage 40V -
Charging current Max constant charge: 100A -
Discharging current Max constant discharge: 200A -
Temperature Charge range 0℃~45℃ -
Discharge range -20℃~55℃ -
Storage range -20℃~45℃ -
BMS Built-in BMS Voltage, current, temperature management & cell balance RS485, CAN communication
Service life Design life >10years -
Cycle life >6000 times -
BMS provides complete management and protection for the battery:
  • Voltage warning and protection for module and each single cell.
  • Current warning and protection, and the maximum operating current can be customized.
  • Temperature warning and protection, with 4 sensors for the battery pack and 1 sensor for the BMS.
  • Battery module SOC and SOH calculation, displaying accurate battery status.
  • Communicate with the SMPS or monitor device, reporting the battery data.
  • Pre-charge/discharge logic to ensure safe charging under low voltage conditions.
  • Switch-off mode, sleep mode, and operating mode configured for different conditions.
Frequently Asked Questions
What is the capacity and nominal voltage of this LiFePO4 battery pack?
This battery pack has a nominal voltage of 51.2V and a capacity of 280Ah, designed to deliver high-performance energy storage.
What safety and management features does the built-in BMS provide?
The integrated BMS manages voltage, current, and temperature, performs cell balancing, calculates SOC and SOH, supports RS485/CAN communication, and offers multiple protective operating modes.
What is the expected cycle life of the ZTGF 51.2V 280Ah battery?
It features a cycle life of over 6,000 cycles and a design life exceeding 10 years under standard test conditions (25℃, 0.2C).
What are the dimensions and weight of this battery pack?
The battery pack has a module weight of approximately 130kg (±1kg) and physical dimensions of 666 * 483 * 267 mm (±2mm).
What are the recommended temperature ranges for operation?
The recommended charging temperature range is 0℃ to 45℃, the discharging temperature range is -20℃ to 55℃, and the storage range is -20℃ to 45℃.
