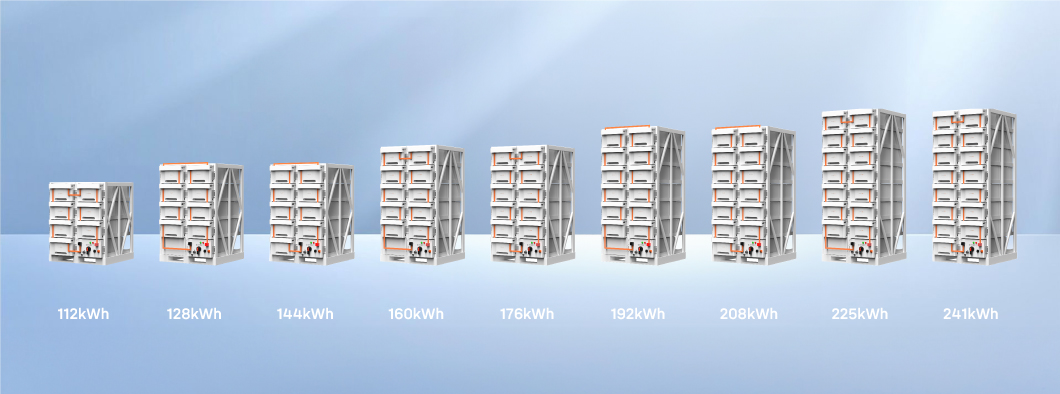

Products Description
| MODULE |
112kWh |
128kWh |
144kWh |
160kWh |
176kWh |
192kWh |
208kWh |
225kWh |
241kWh |

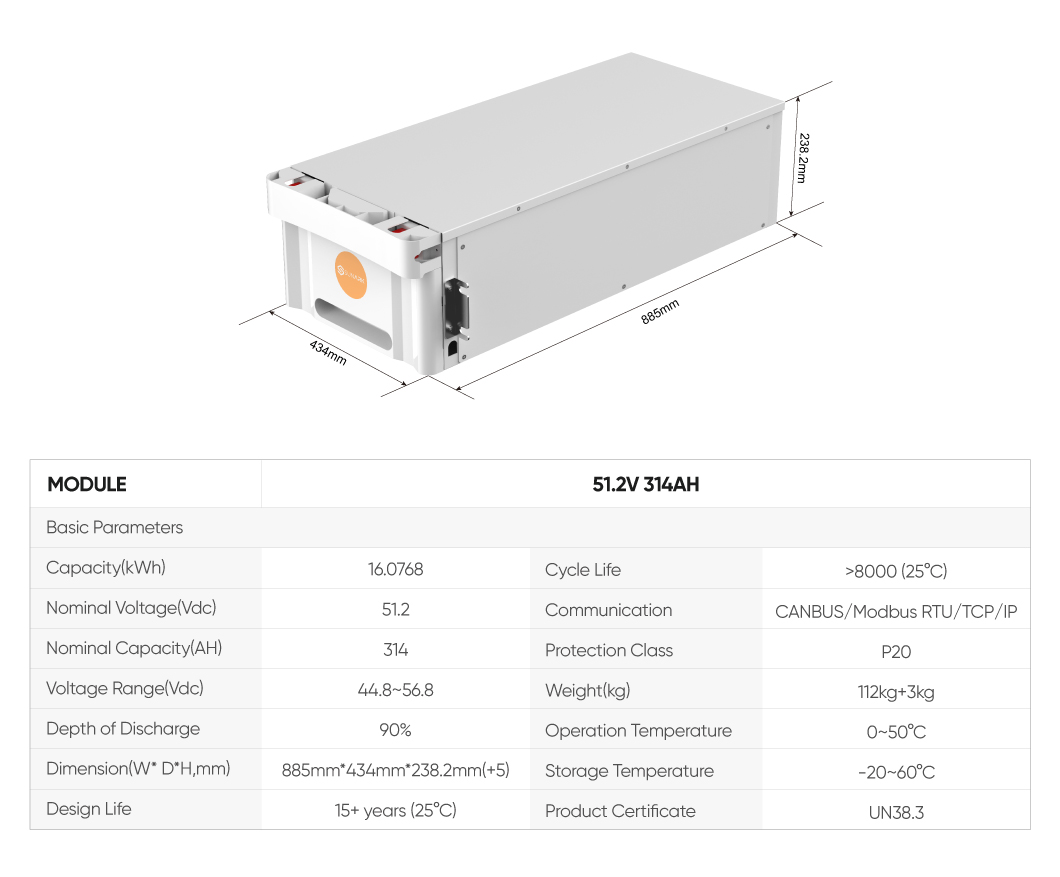

| Battery Configuration |

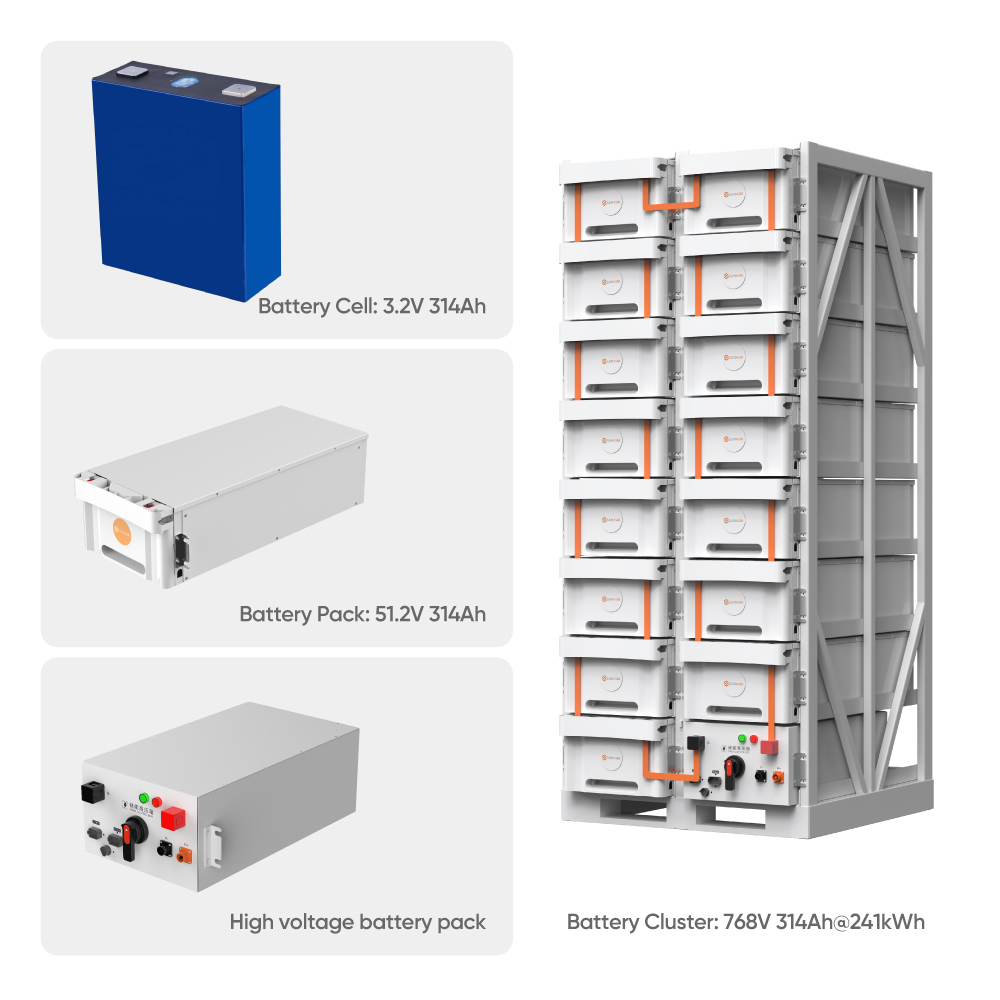

1P16S / 314Ah / 16.0768kWh per Module |
| Rated Voltage |
51.2V (Range: 44.8-56.8V) |
| Charge/Discharge |
0.5C |
| Dimension (W/D/H) |
376*885*238.5 (±5) mm | Weight: 112kg |

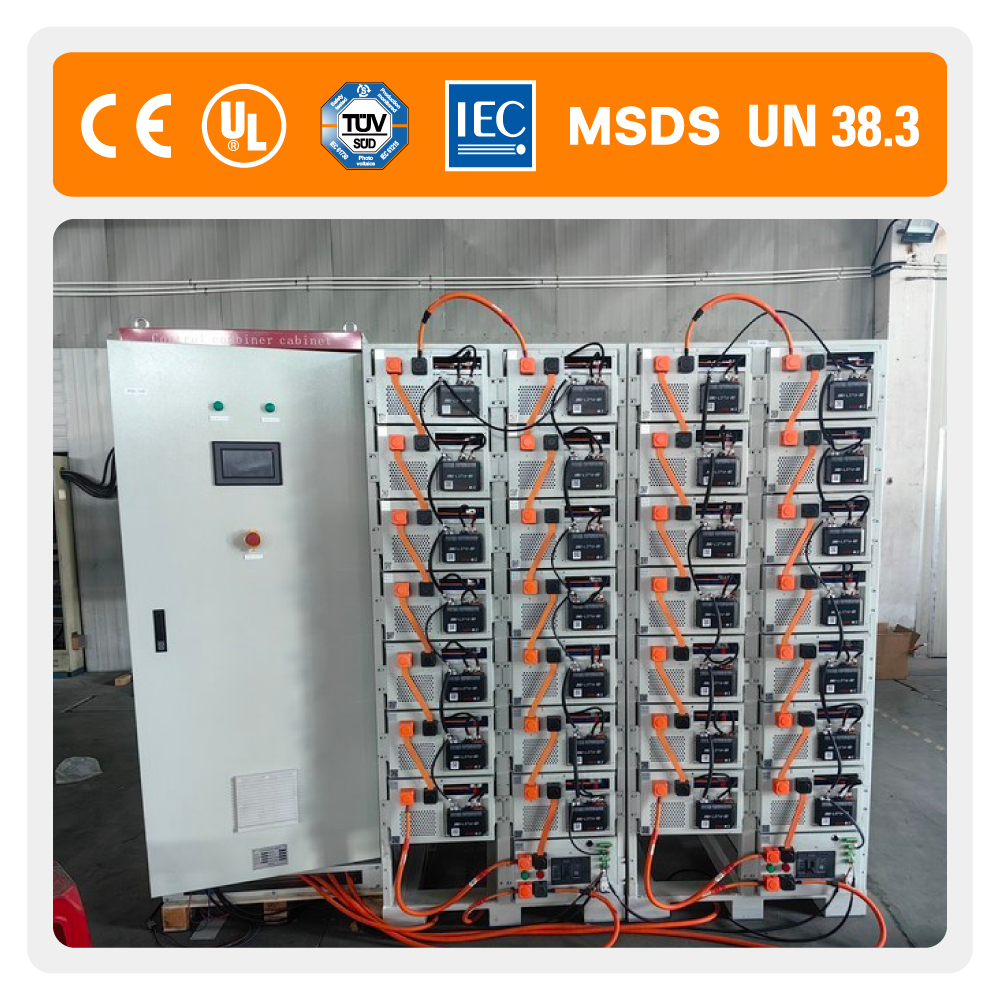

| Rack Configuration |
7mod+1BPU |
8mod+1BPU |
9mod+1BPU |
10mod+1BPU |
11mod+1BPU |
12mod+1BPU |
13mod+1BPU |
14mod+1BPU |
15mod+1BPU |
| Total Rated Energy |
112kWh |
128kWh |
144kWh |
160kWh |
176kWh |
192kWh |
208kWh |
225kWh |
241kWh |
| System Voltage |
358.4V |
409.6V |
460.8V |
512V |
563.2V |
614.4V |
665.6V |
716.8V |
768V |
| System Weight |
985kg |
1110kg |
1235kg |
1350kg |
1475kg |
1600kg |
1725kg |
1850kg |
1975kg |
| BMS/Display |
7" Touch screen Included | CAN/RS485 Communication | IP20 Protection |

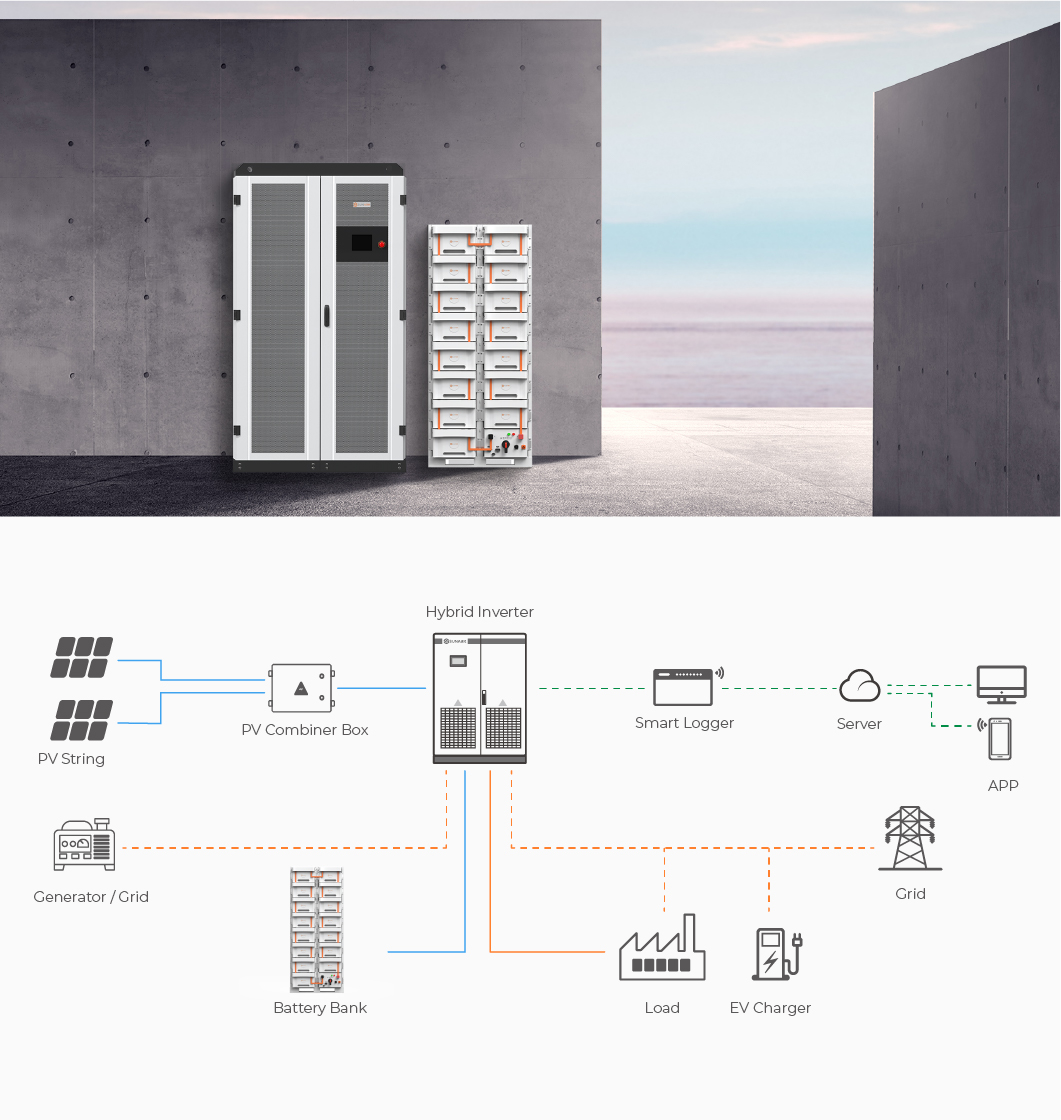

Applications

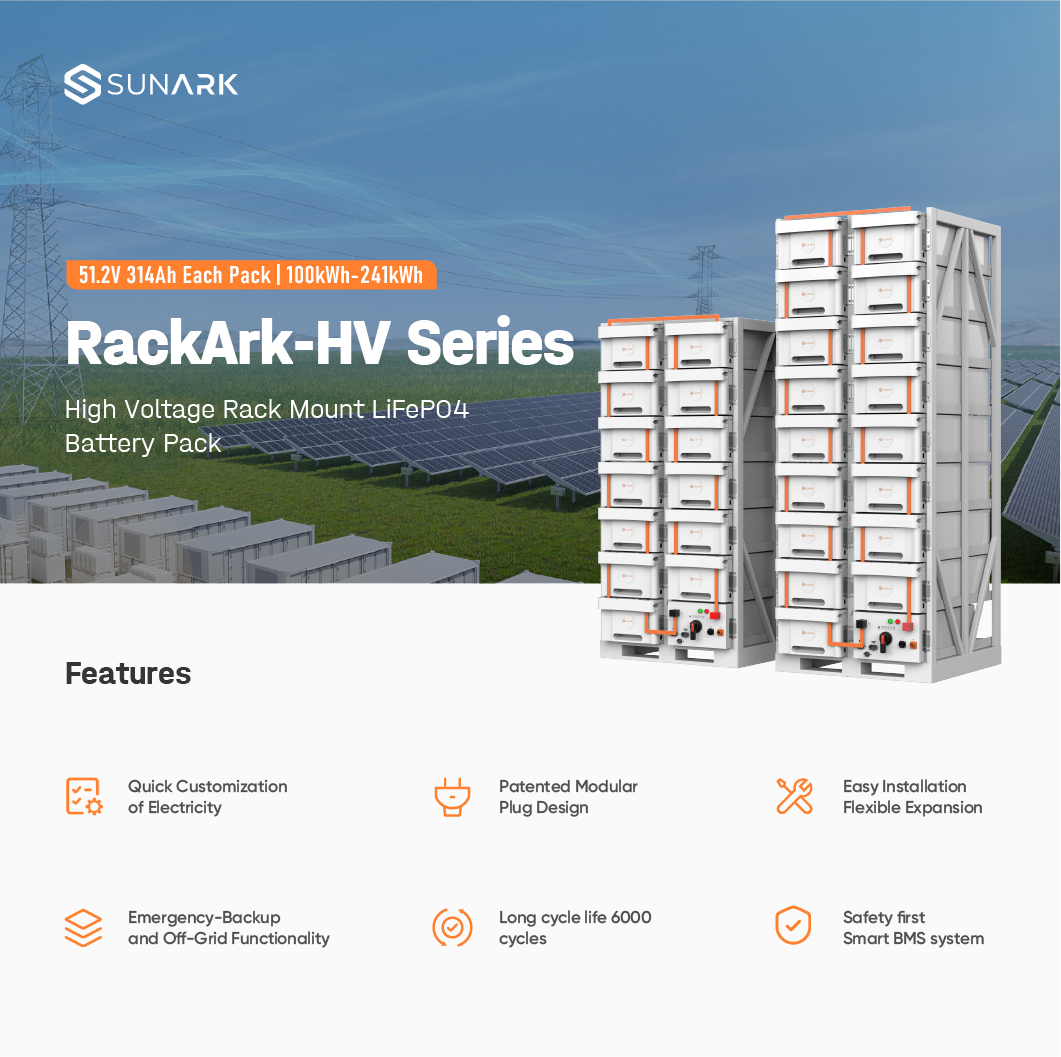

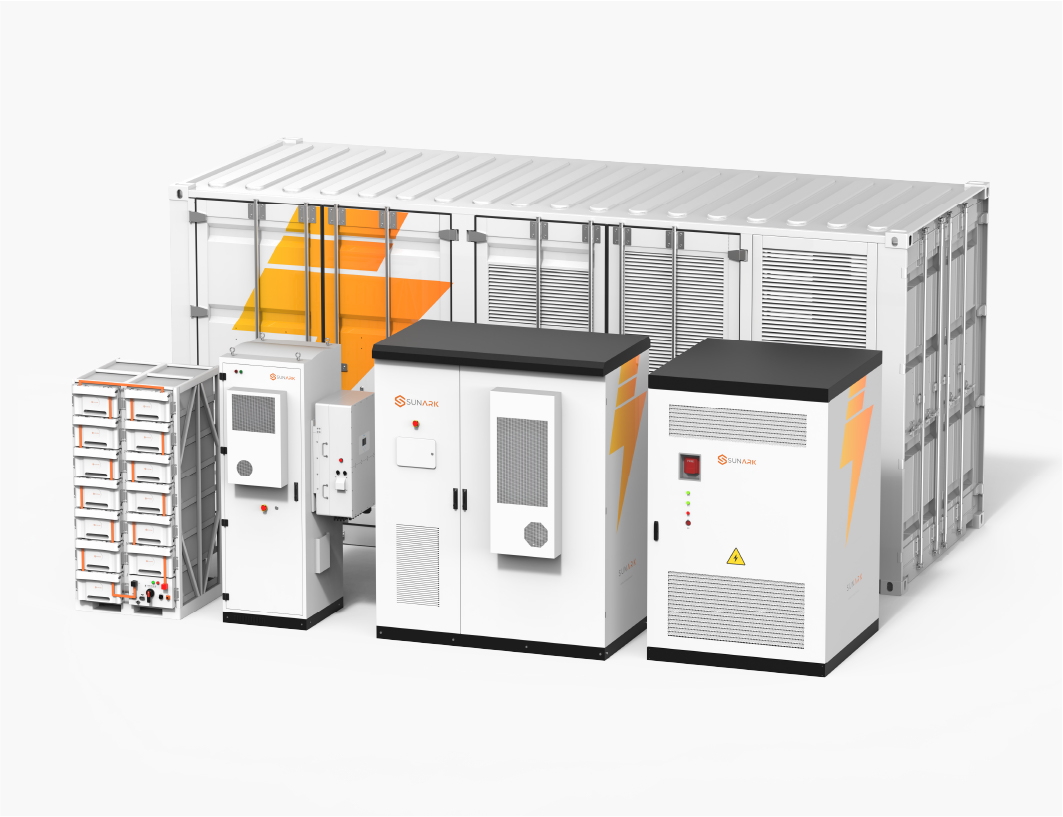

Products Series

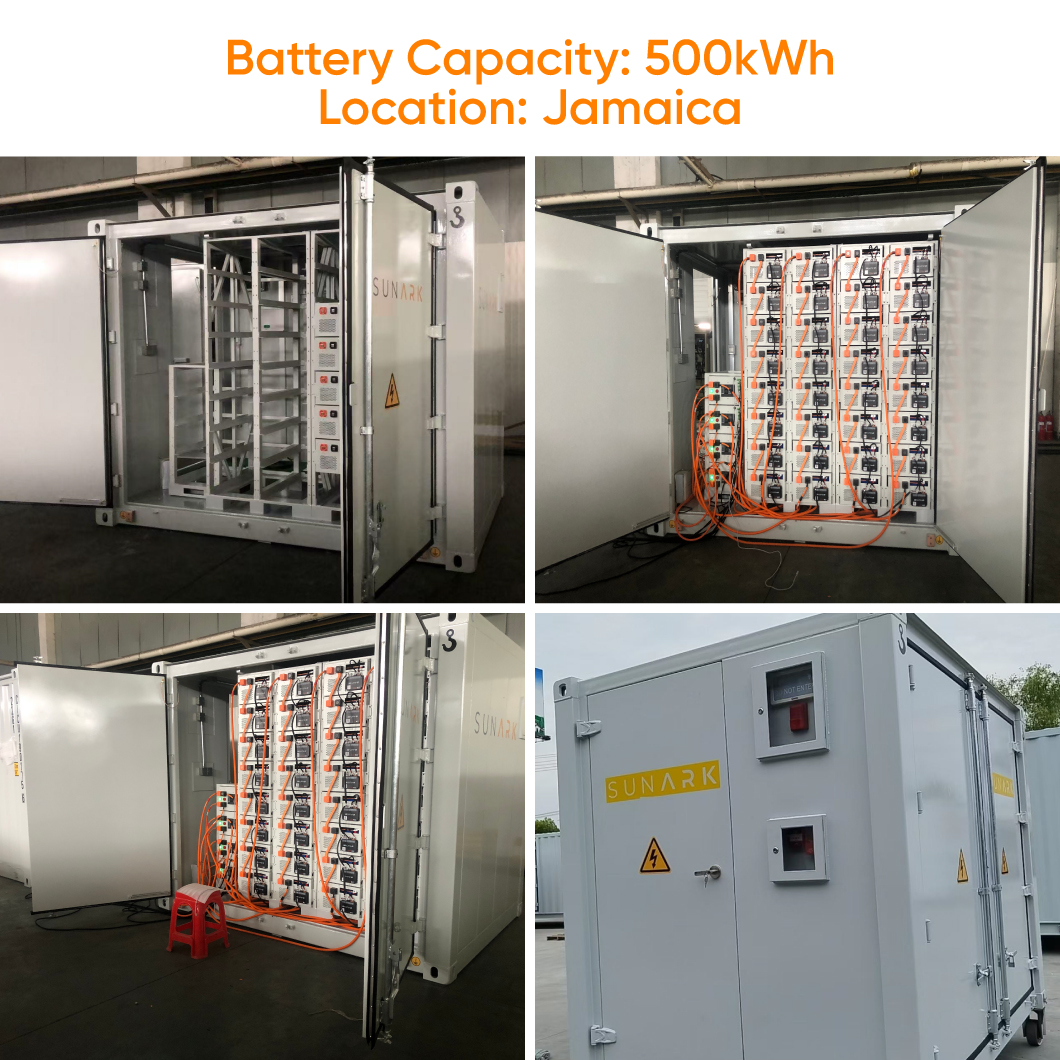

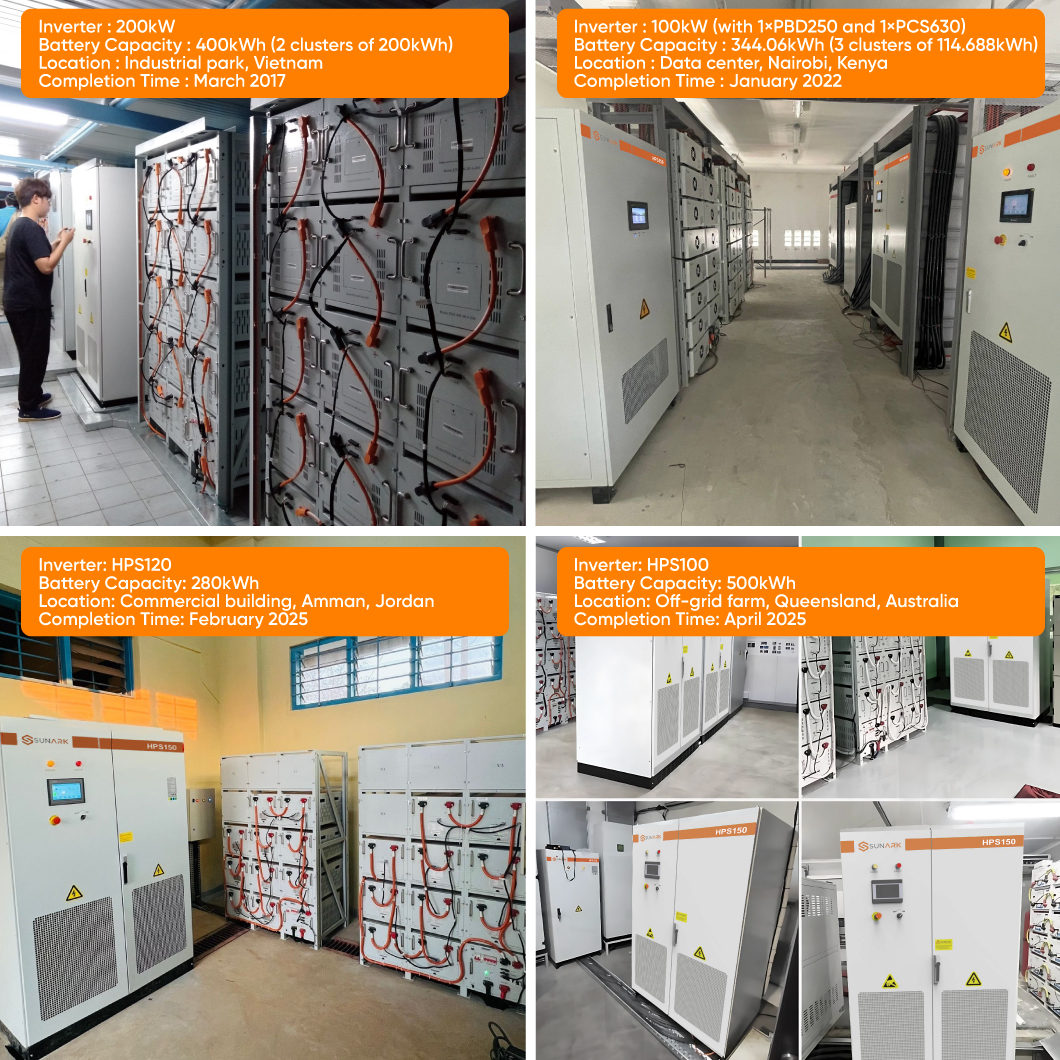

Project Highlights
About Our Factory
We are a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. With 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. Till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. We are a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on. We hold core technology patents in new materials, new technologies and new structures of battery power supply, and has participated in the formulation of international, national and industrial standards.
Frequently Asked Questions
What is the expected lifespan of these battery modules?
The battery modules are designed for high durability, typically supporting over 6000 cycles at 80% Depth of Discharge (DOD), ensuring long-term reliability for energy storage systems.

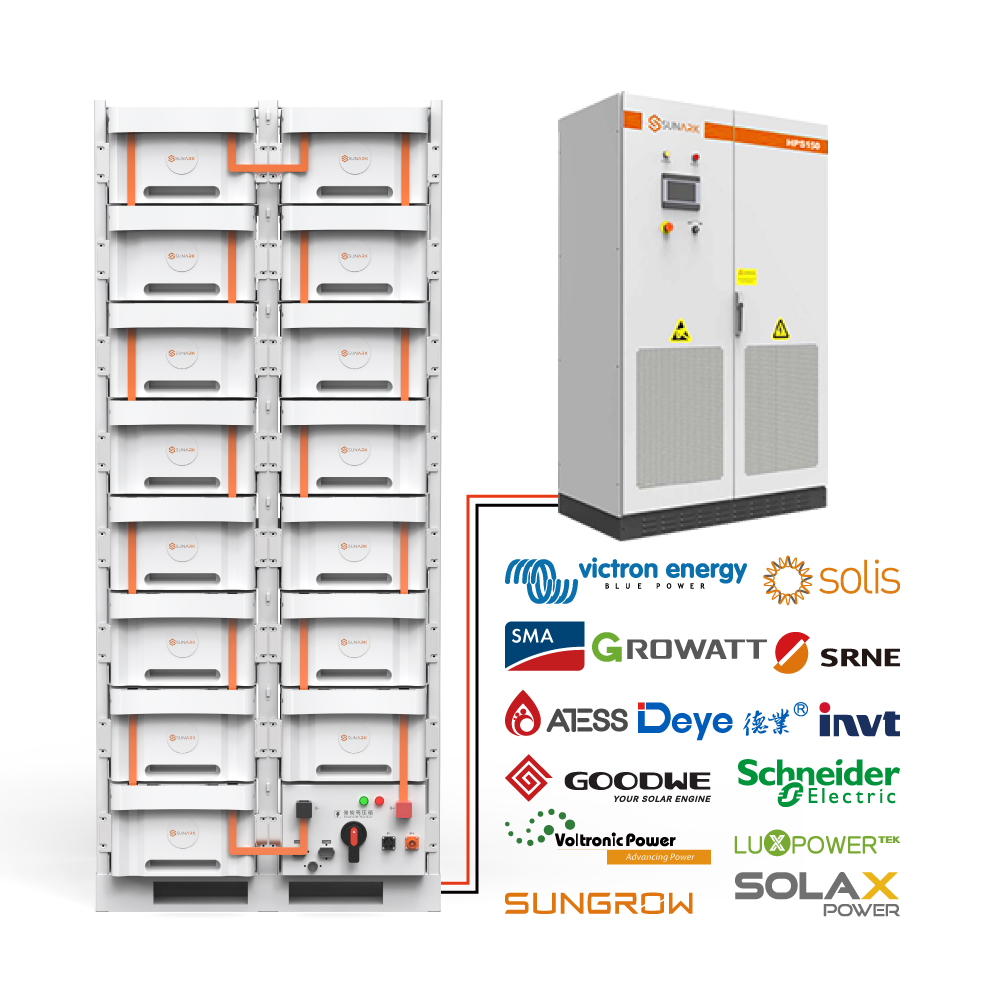

Is the system compatible with different inverter brands?
Yes, our systems support standard CAN and RS485 communication protocols, making them compatible with the majority of leading hybrid and off-grid inverters on the market.
Can I expand the storage capacity later?
Absolutely. The modular "Rack" design allows for easy scalability. You can start with a smaller configuration and add more modules as your energy needs grow.
What safety protections are included in the BMS?
The integrated Battery Management System (BMS) provides comprehensive protection against over-voltage, under-voltage, over-current, short circuits, and extreme temperatures.
Are these systems suitable for outdoor installation?
The standard rack has an IP20 protection degree, which is designed for indoor or sheltered environments. For outdoor specific requirements, please consult for customized enclosure solutions.
Does the system provide real-time monitoring?
Yes, each system comes with a 7-inch touch screen display for local monitoring, and remote monitoring is supported via RS485/CAN communication interfaces.
