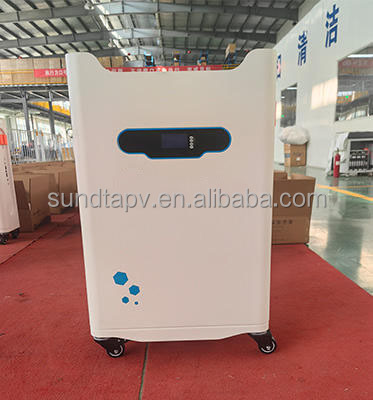

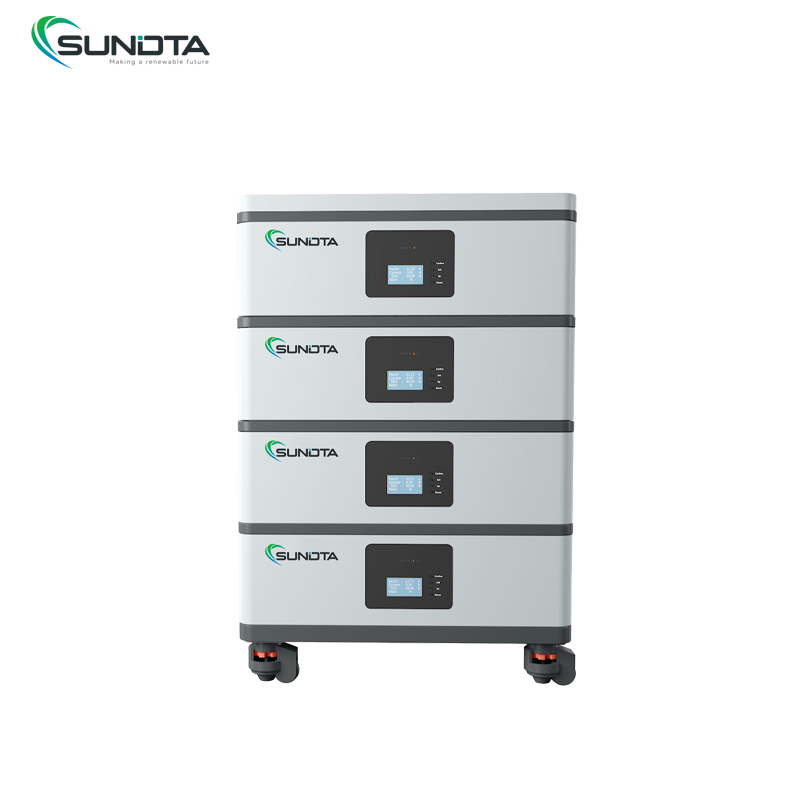

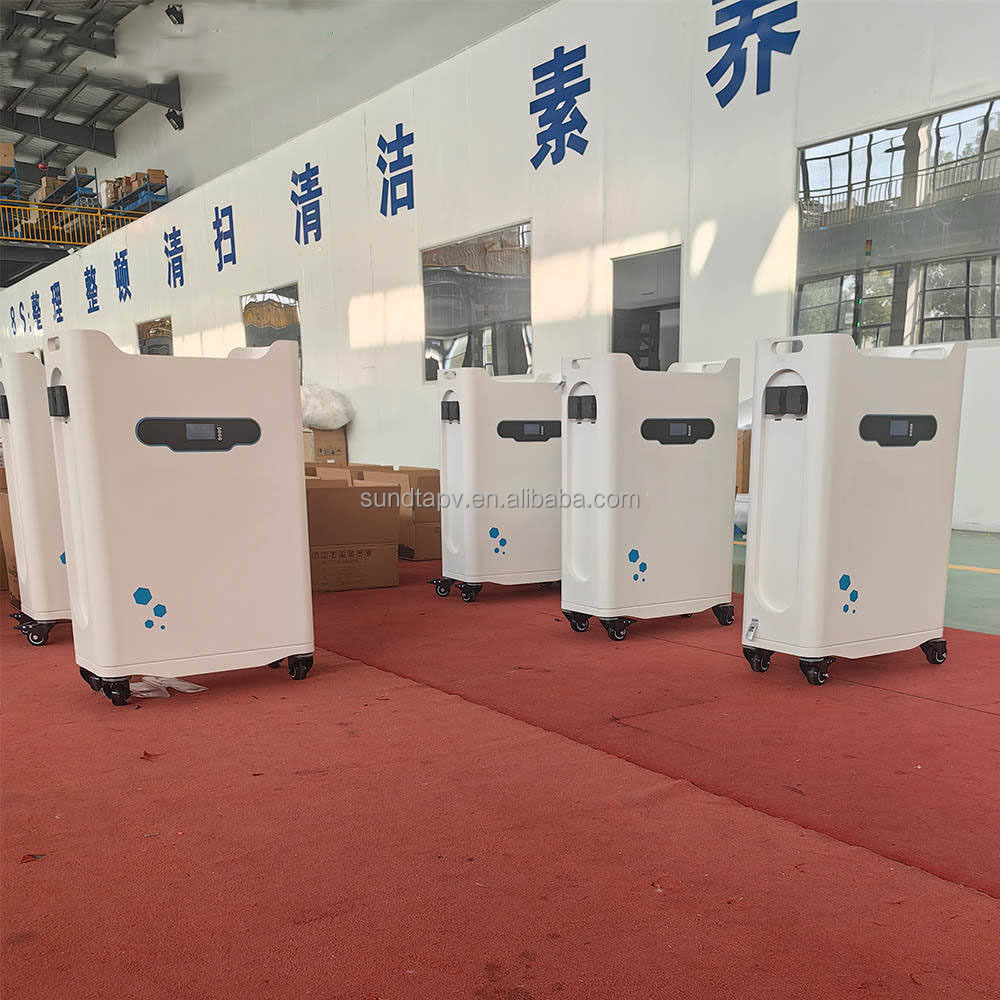

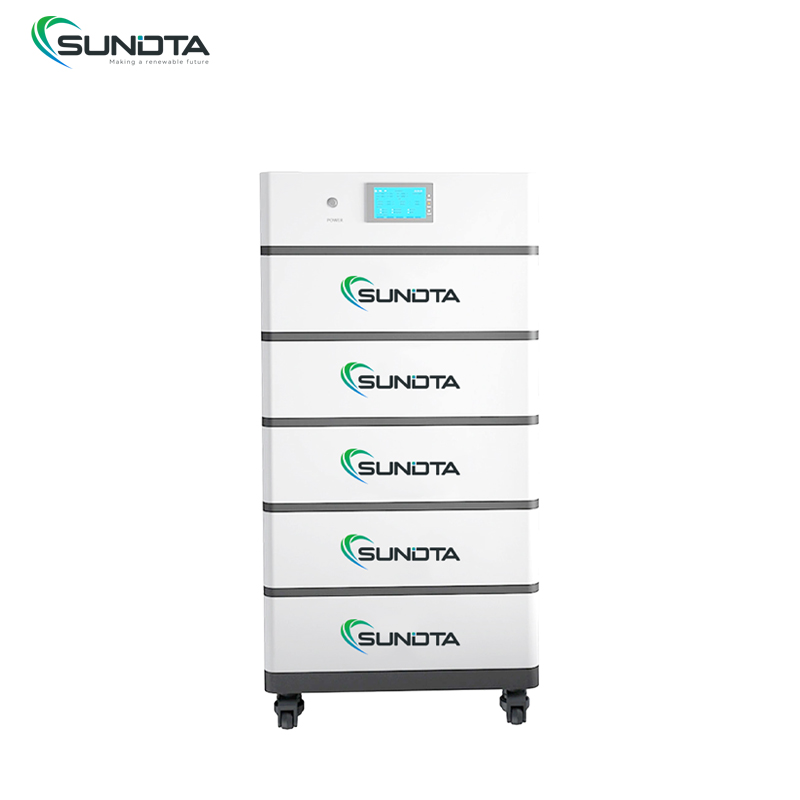

Sundta High Voltage 10kwh 20kwh 30KWH Lifepo4 Lithium Battery Residential Home Stacked Solar Energy Storage Battery Packs

Send Inquiry

Product Description

Product Parameters

Model	POLO-HS2	POLO-HS3	POLO-HS4	POLO-HS5	POLO-HS6
Battery Type	2 Modules	3 Modules	4 Modules	5 Modules	6 Modules
Cell Capacity	55AH
Battery Module Capacity	5.6kwh
Expandable Capacity	11.20kwh
Nominal Voltage	204.8V
Voltage Range	172.8v-233.6v
Rated Charge/Discharge Current	50A @25±2℃
Maximum Charge/Discharge Current	100A @25±2℃
Working Temperature	-20~55℃
Weight (kg)	121kg	169kg	217kg	265kg	313kg

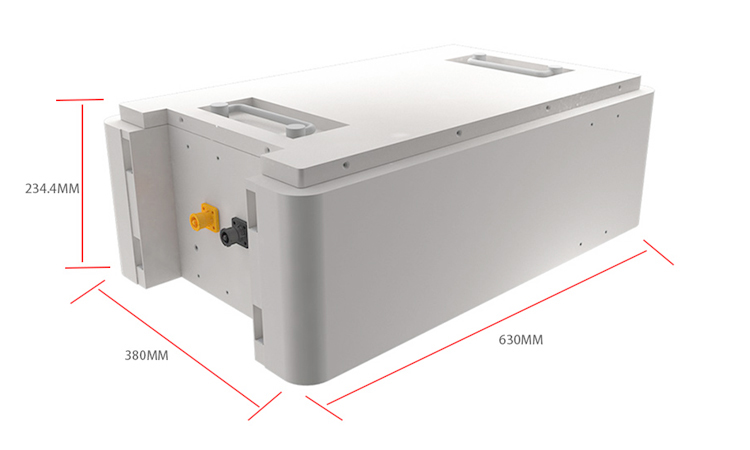

Dimension (mm)	630380720	630380920	6303801120	6303801320	6303801520
Communication Mode	CAN & RS485
Battery Protection	Over-current / Over-voltage / Short circuit / Under-voltage / Over temperature / Low temperature
Warranty	10 Years
Altitude	＜2000m
Cooling	Natural
Cycle Life	≥6000 Cycles
IP Rated	IP65
Safety Standards	CE, UN38.3, MSDS, IEC62619

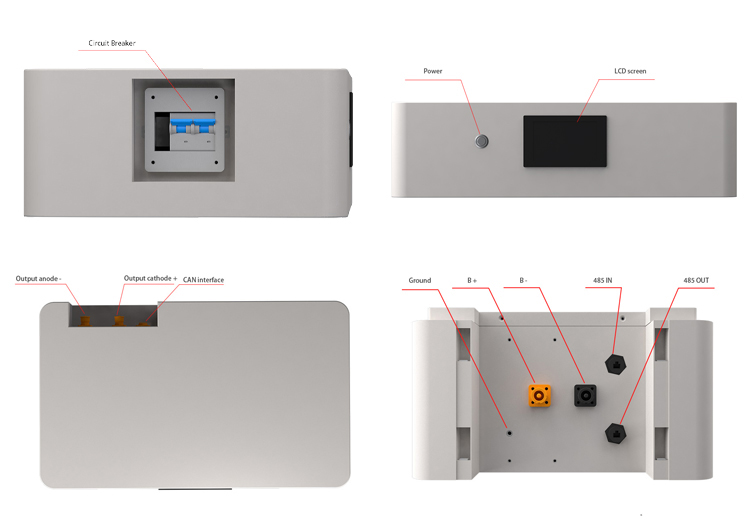

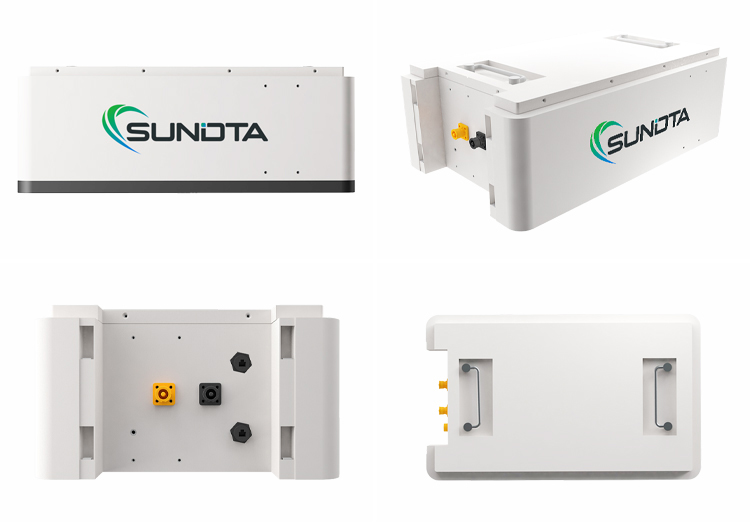

Details Images

Product Packaging

Certifications

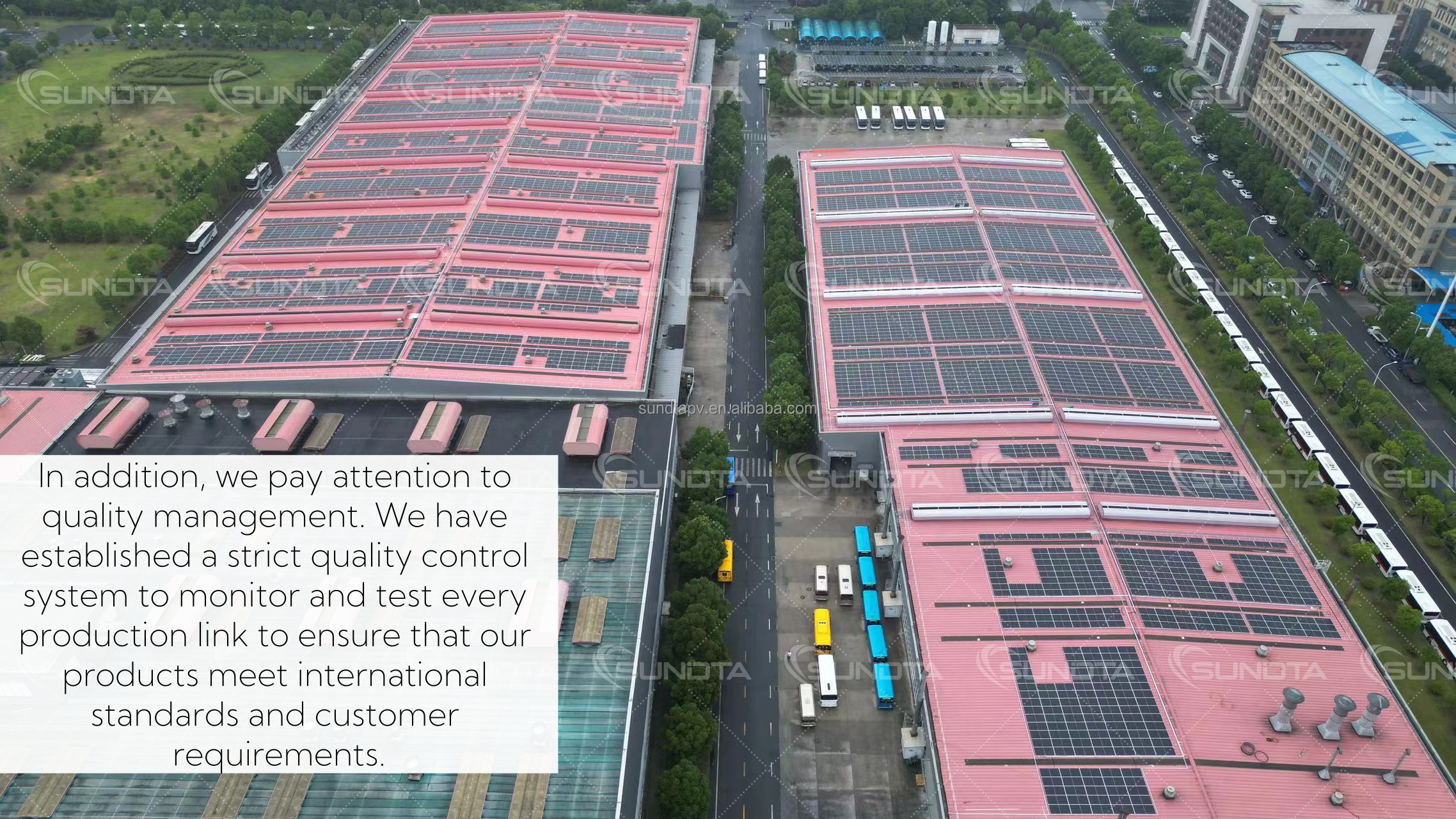

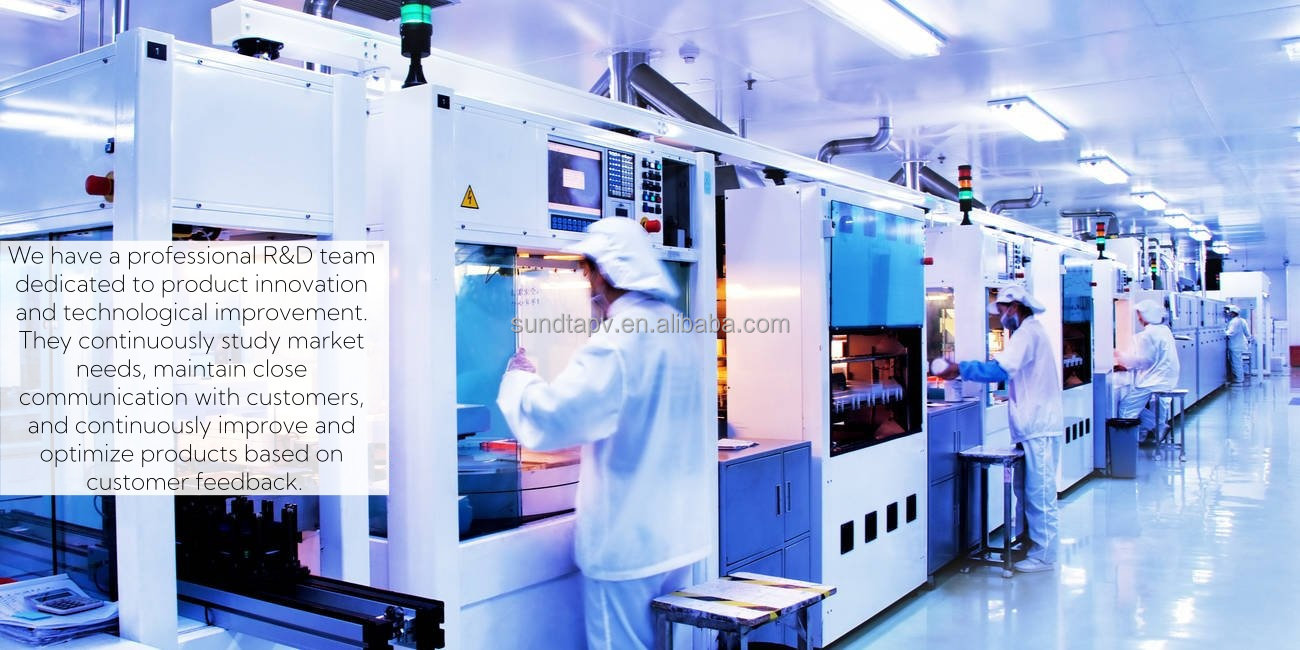

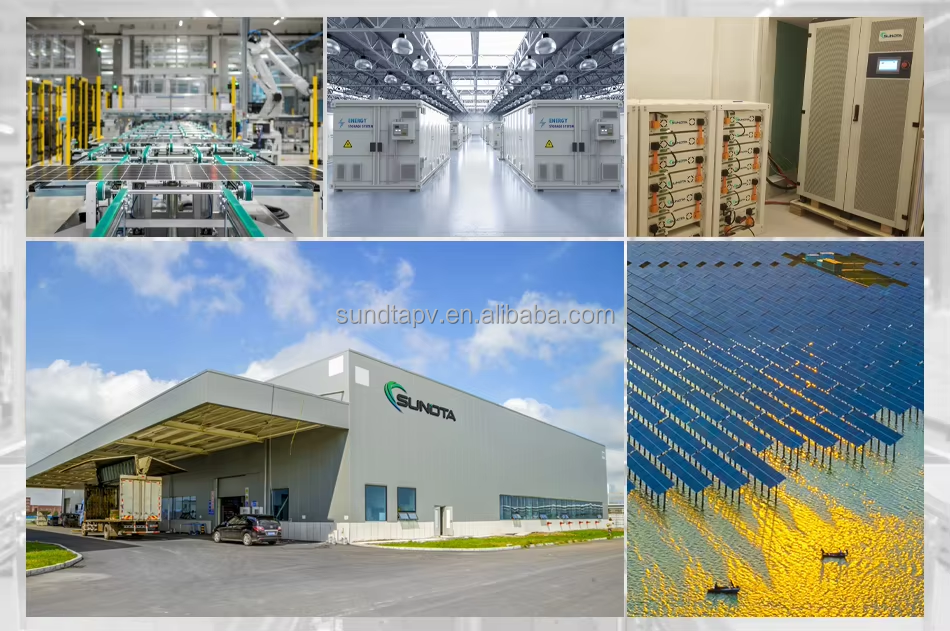

Our Team and Facility

Frequently Asked Questions

What is the expected lifespan of the battery?

The battery system is designed for longevity, offering a cycle life of ≥6000 cycles, ensuring reliable performance for many years.

Is the battery capacity expandable?

Yes, the system is flexible and supports expandable capacity up to 11.20kwh, allowing you to scale according to your energy needs.

What kind of warranty is provided?

We provide a comprehensive 10-year warranty for this battery system, reflecting our confidence in the product's quality and durability.

Can the battery be installed outdoors?

The system features an IP65 protection rating, making it highly resistant to dust and water, suitable for various installation environments.

What safety certifications does the product hold?

The product meets international safety and quality standards, including CE, UN38.3, MSDS, and IEC62619 certifications.

How does the system handle communication?

It supports standard industrial communication modes, specifically CAN and RS485, for seamless integration with inverters and monitoring systems.
