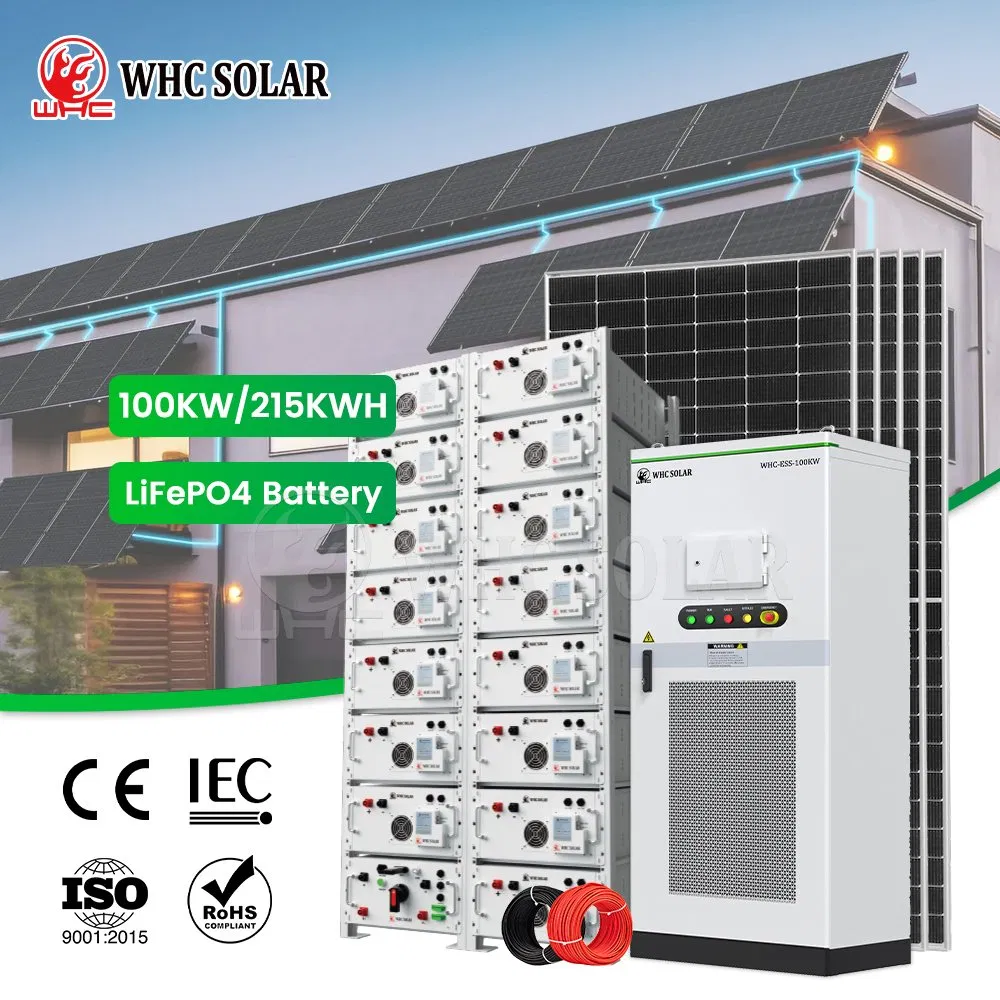

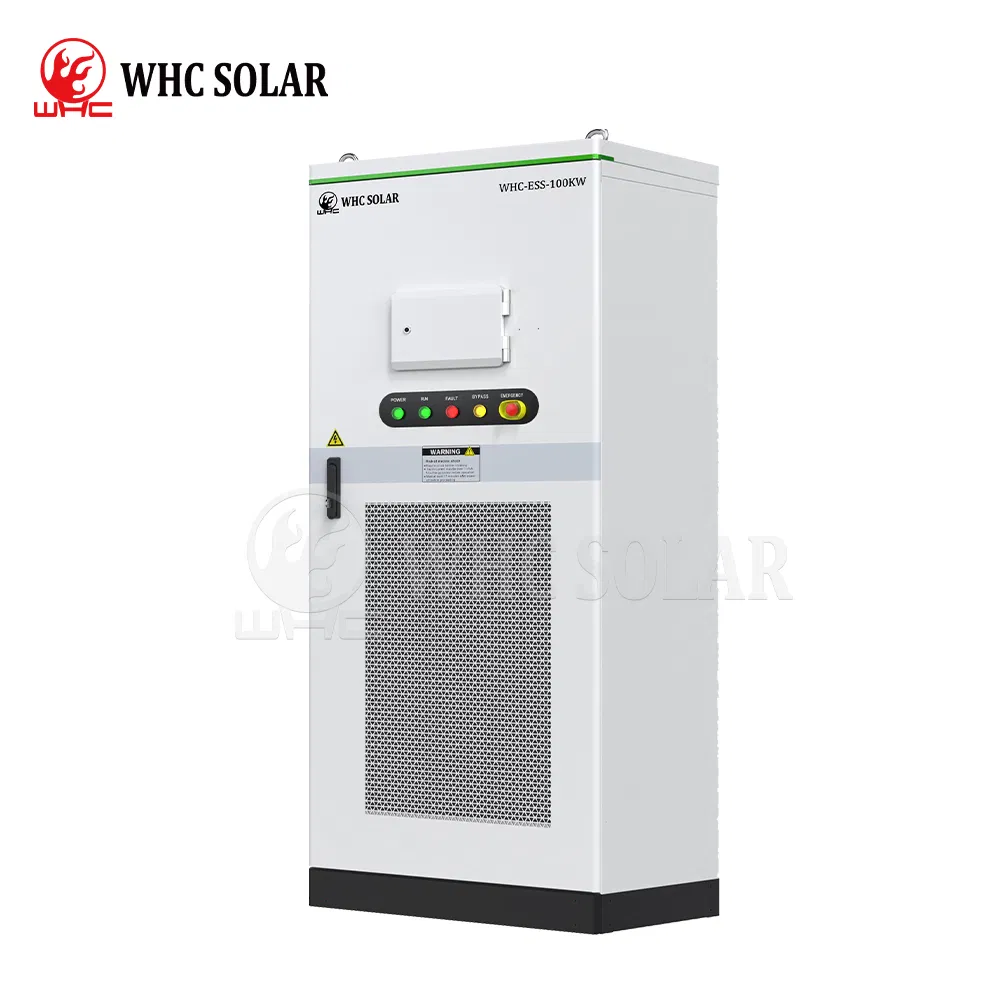

100KW Industrial and Commercial Energy Storage Box Energy Storage Cabinet Battery Cabinet Energy Storage Systems

Customization: Available
Container Size: 2700mm*1100mm*2550mm
Weight: 2700KG

Product Description

📊 Overview - Basic Info.
Model NO.
100KW-Li-215KWH
Nominal Voltage
768V
Warranty
3 years
Nominal Capacity
215KWH
Cycle Life
6000 Times
System Type
Commercial Solar System
Max. Output Power
100KW
Output Voltage
AC220V
Solar Panel
550W Mono Solar Panel
Battery Capacity
215Kwh
Max PV Input Power
200KW
UPS Type
1KVA/900W
Max Efficiency
99%
Cooling Method
Intelligent air cooling
📝 Product Description
Energy Storage System

Solar Energy System also known as off-grid solar system is the most cost effective type for the solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, lithium ion battery or gel battery, and other standard solar accessories. This solar system will not only provide you continuous electricity but will also reduce your heavy electricity bills.

⚙️ Product Parameters
NO. Item Quantity
1100kw/215kwh solar Energy storage System (integrated BMS/PCS/EMS, LiFePo4 Battery 215kWh, Etc)1 Set
2550W Solar Mono Panel182 Pieces
3100KW PCS System1 Set
4UPS1 Set
5EMS Management System1 Set
6Battery Cable RV*50cm² 50cm18 Pieces
7PV Combiner Box: N4 Plus1 Piece
8PV Cable 1*10mm 100M4 Pieces
9Solar Panel Bracket1 Set
10MC4 solar Cable Connector30 Pieces
11Solar Py Crimping Tool kit1 Set
🔍 Detailed Photos & Specifications

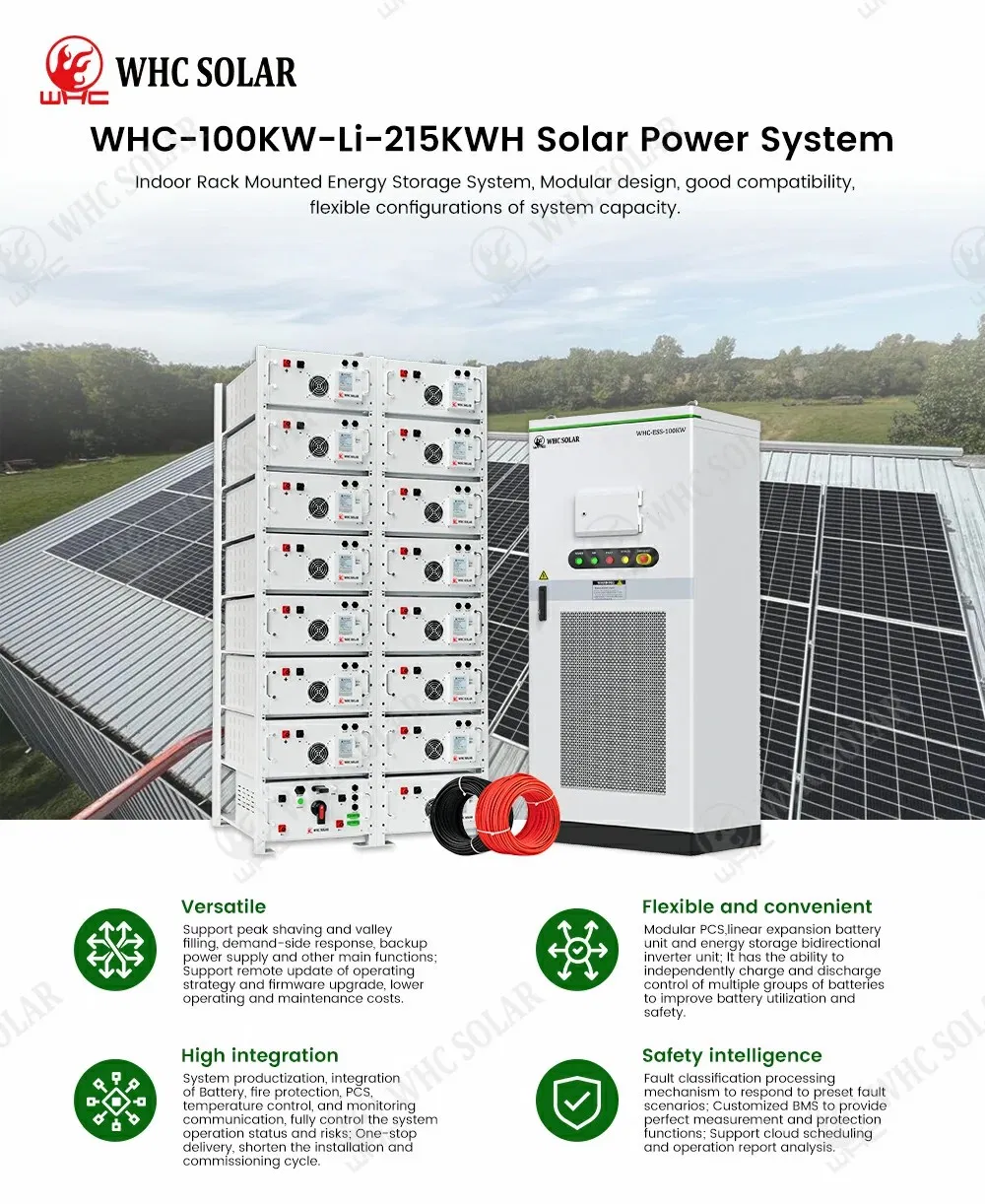

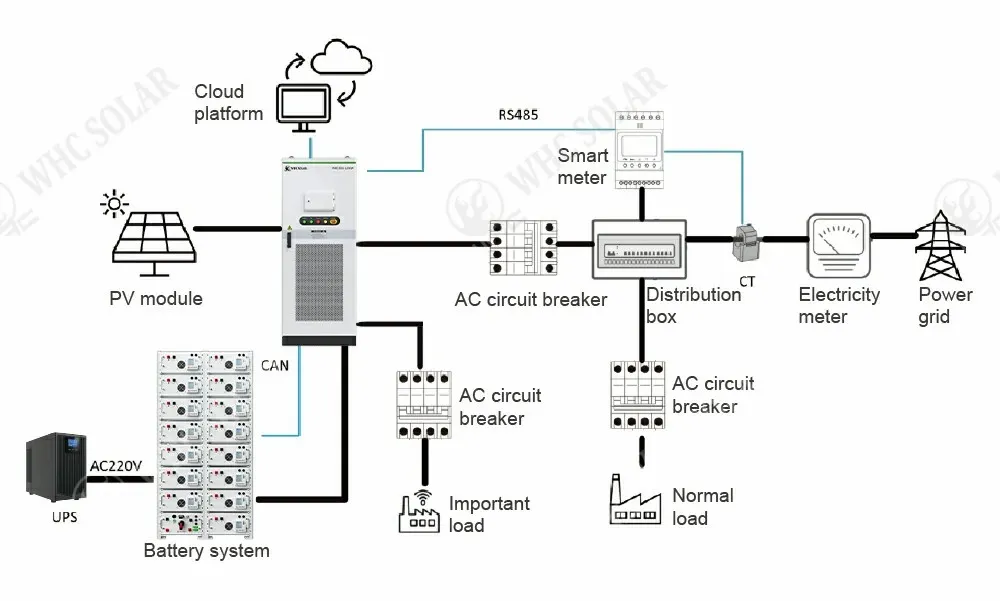

System Overview

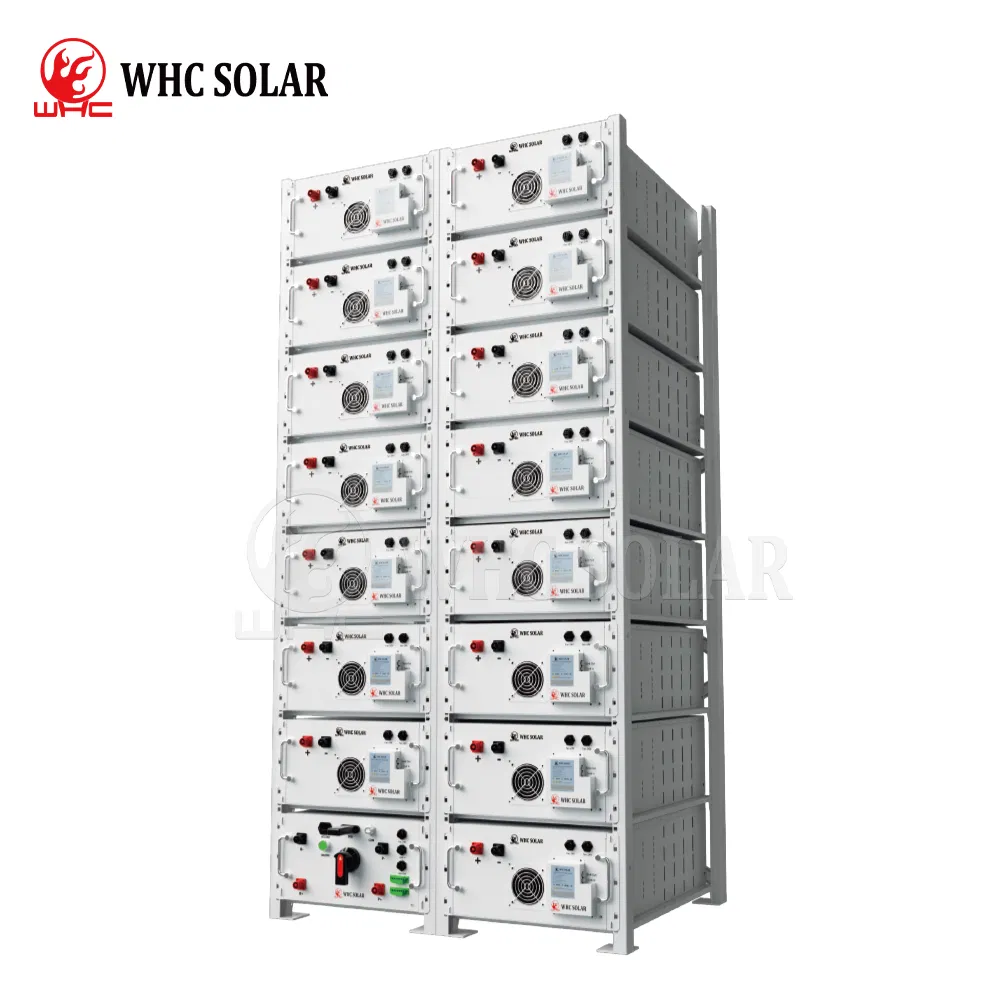

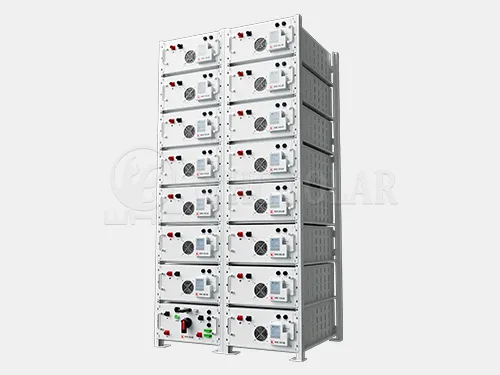

Battery Data
100KW/215Kwh Solar Energy Storage System Battery Data:
  • Chemistry: LiFePo4
  • Cell spec: 3.2v/280Ah
  • Rack Rated Energy Capacity: 215kwh
  • Nominal Voltage: 768V
  • Cycle: >6000 (@25ºC, 0.5c/0.5c)
AC Data:
  • Max output power: 100KW
  • Max Efficiency 98.78%
Architecture
  • Type: 0-1500V, 140A
  • 2-Stage BCMU, BMU Architecture
  • High voltage control box
  • Ethernet communication and upgrade interface
  • Master-slave stable structure for system operation
General Data
General Data
  • Dimension: 2700*1100*2550mm
  • Weight: <2700kg
  • Protection: IP65
  • Temperature: -20-40C

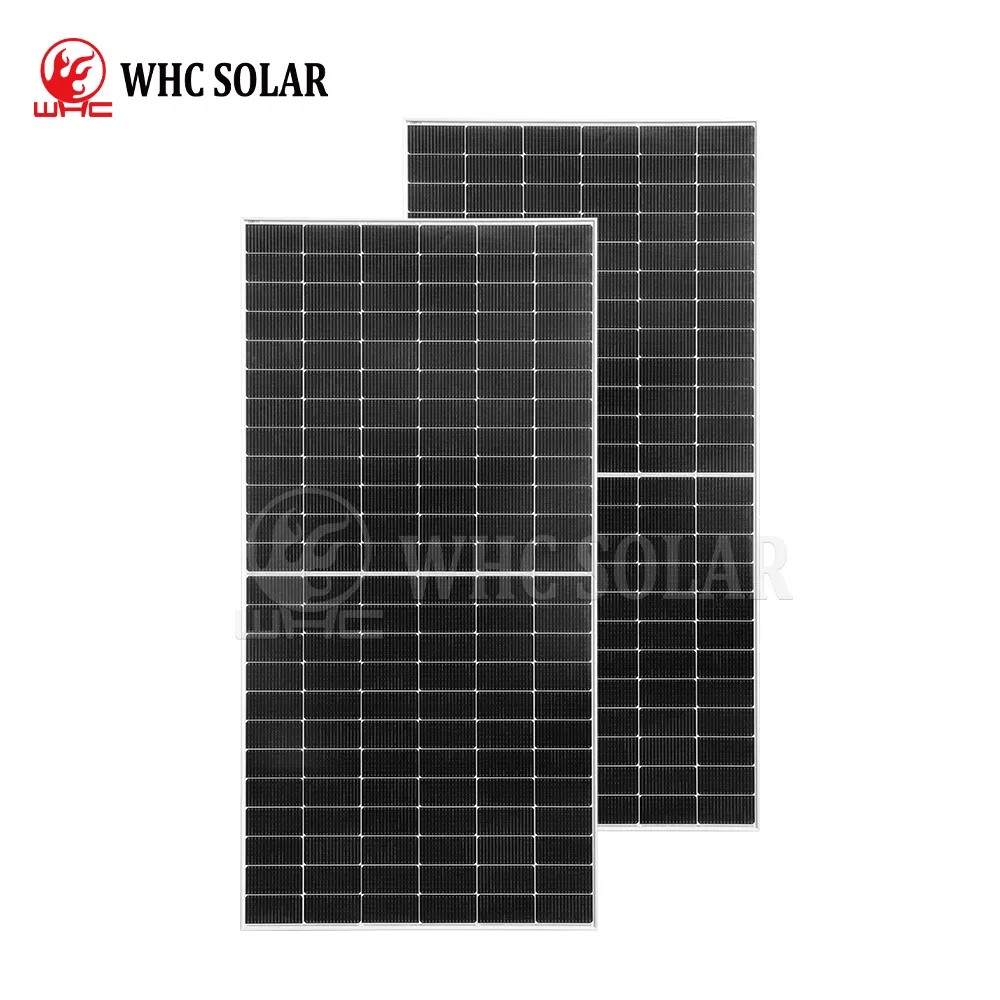

Mono Solar Panel
  • Model: 550M-144
  • Voc: 49.95V | Vmp: 41.97V
  • Module Efficiency: 20.9%
  • Max System Voltage: 1500V DC
Solar Panel
PCS System
100KW PCS System
  • Max PV input power: 200KW
  • MPPT Range: 180-800V
  • Protection: IP55
  • Cooling: Intelligent air cooling

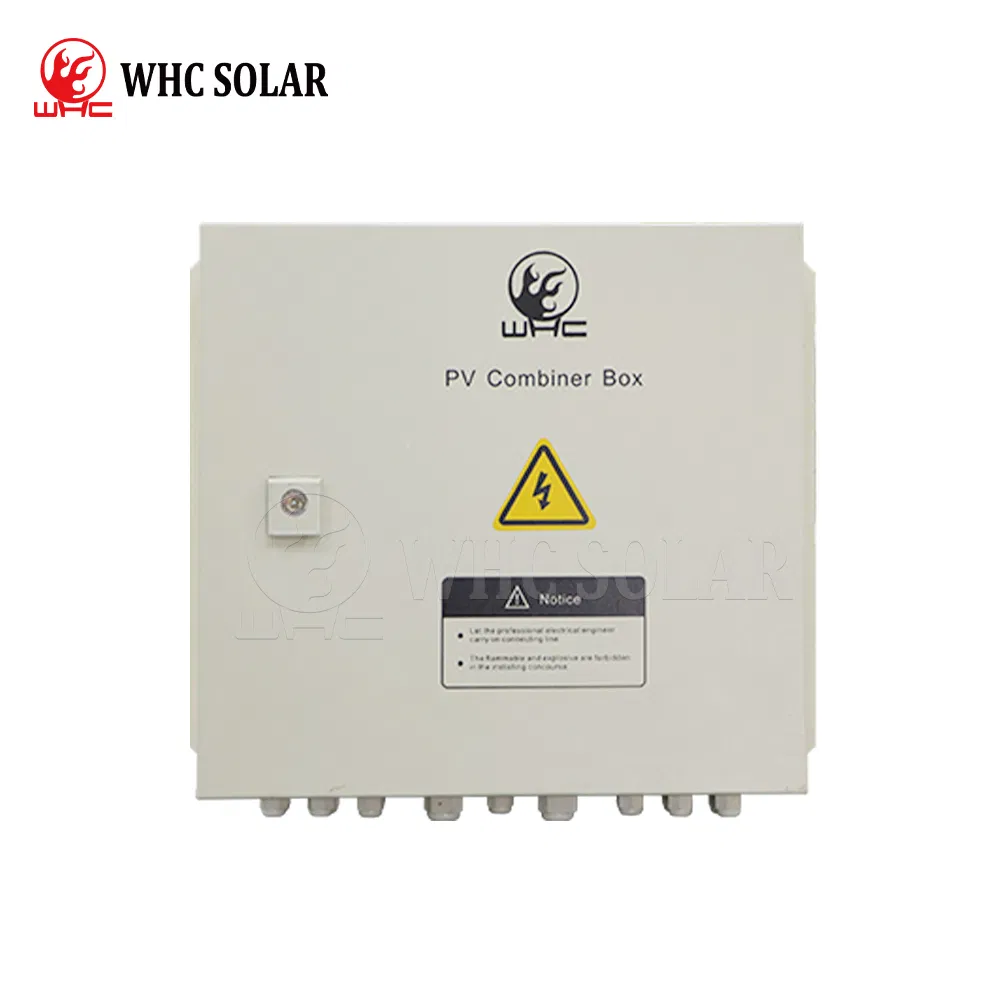

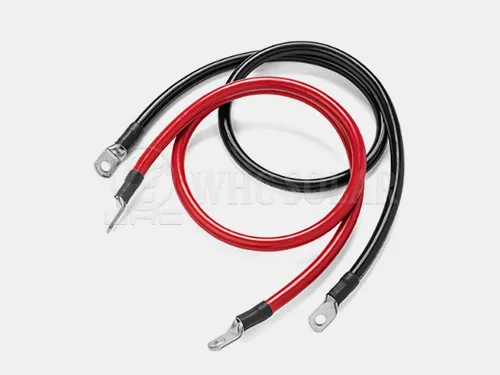

UPS Cable Combiner Box

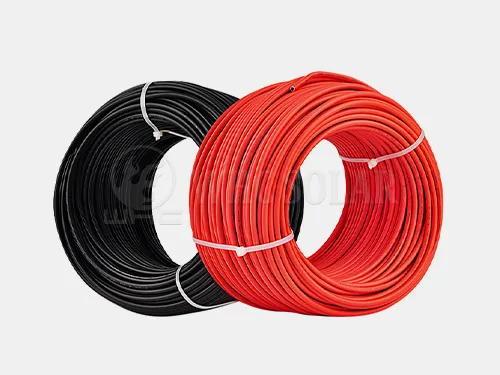

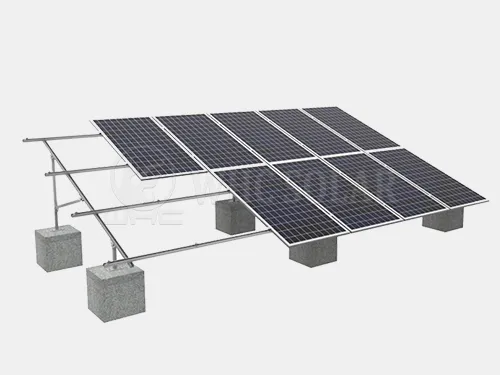

PV Cable Bracket MC4

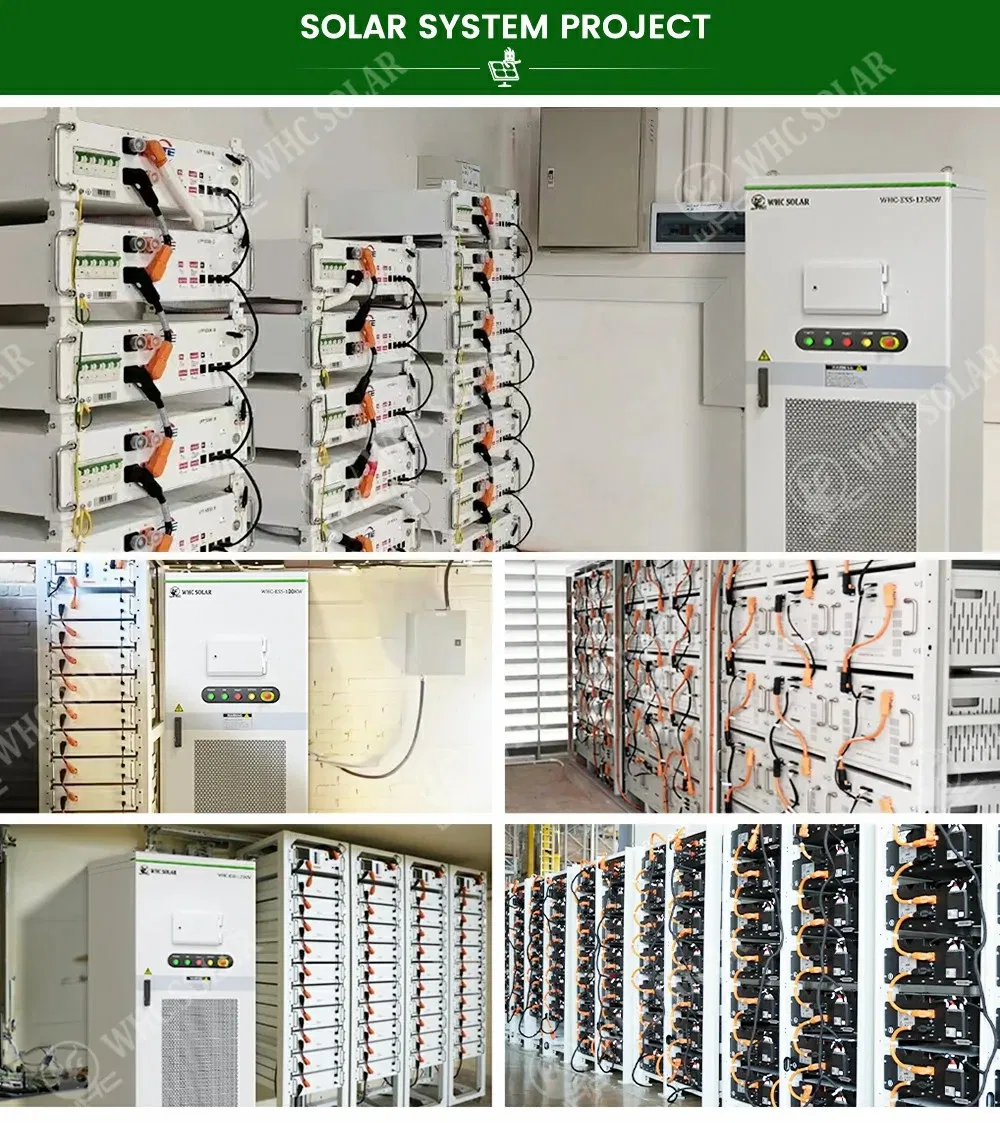

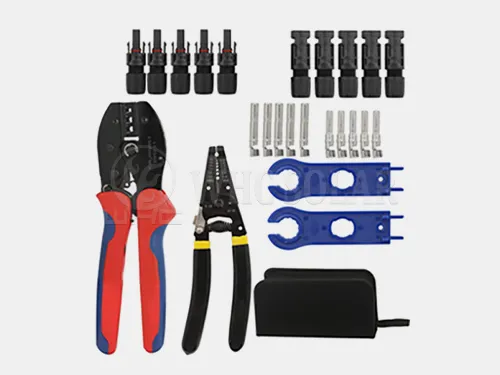

Tool Kit System Map Internal View

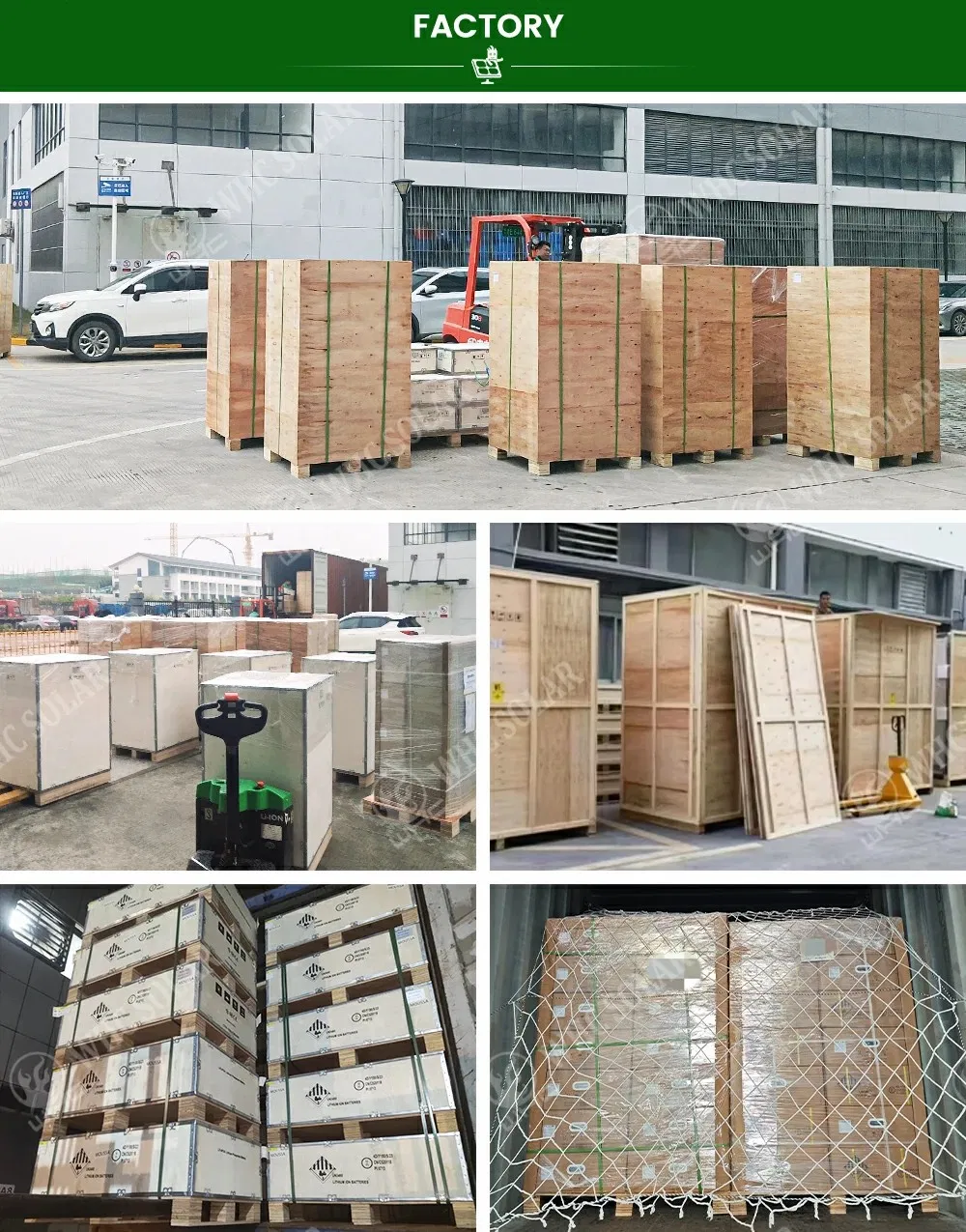

🏢 Production & Facilities
Facility 1 Facility 2 Facility 3
Facility 4 Facility 5
Frequently Asked Questions
What is the lifespan of the LiFePo4 battery in this system?
The system utilizes high-quality LiFePo4 cells with a cycle life of over 6000 times at 25ºC, ensuring long-term reliability for over 10-15 years under standard operating conditions.
Is this energy storage system suitable for industrial use?
Yes, with a 100KW output power and 215KWH capacity, it is specifically designed for commercial and industrial energy storage, peak shaving, and backup power applications.
What kind of protection does the outdoor cabinet offer?
The cabinet is rated at IP65, providing excellent protection against dust and water, making it suitable for various outdoor environments.
Can the system be monitored remotely?
Yes, the integrated EMS (Energy Management System) includes Ethernet communication interfaces for remote monitoring and system management.
Does the system include all necessary installation components?
Yes, the package is a complete solution including solar panels, PCS, battery racks, combiner boxes, brackets, cables, and even a crimping tool kit for installation.
What is the maximum PV input power supported?
The 100KW PCS system supports a maximum PV input power of up to 200KW, allowing for efficient solar charging.
