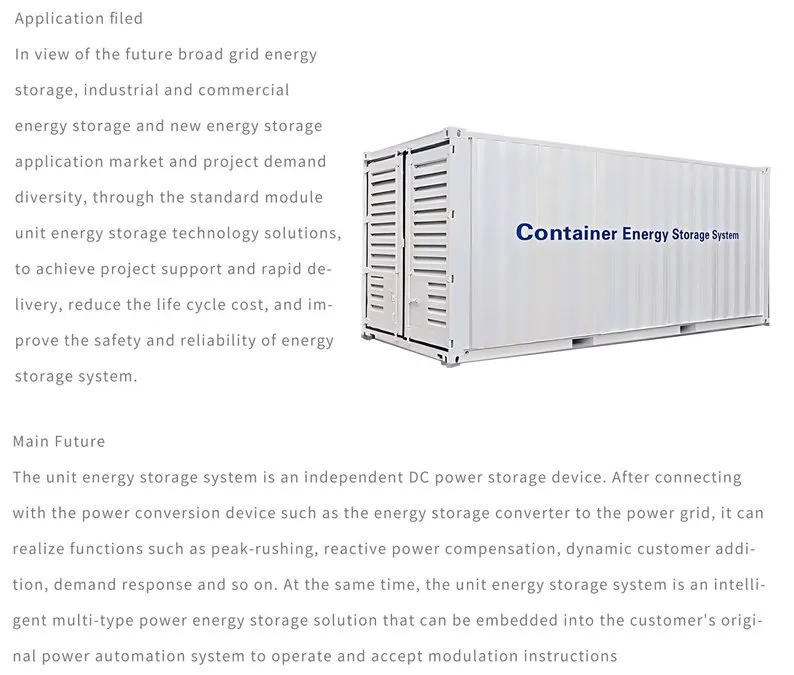

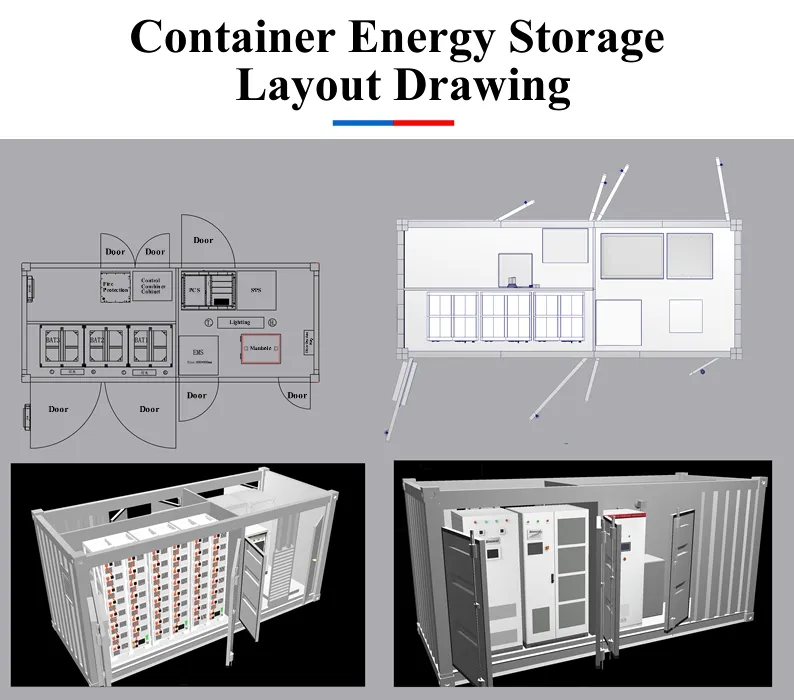

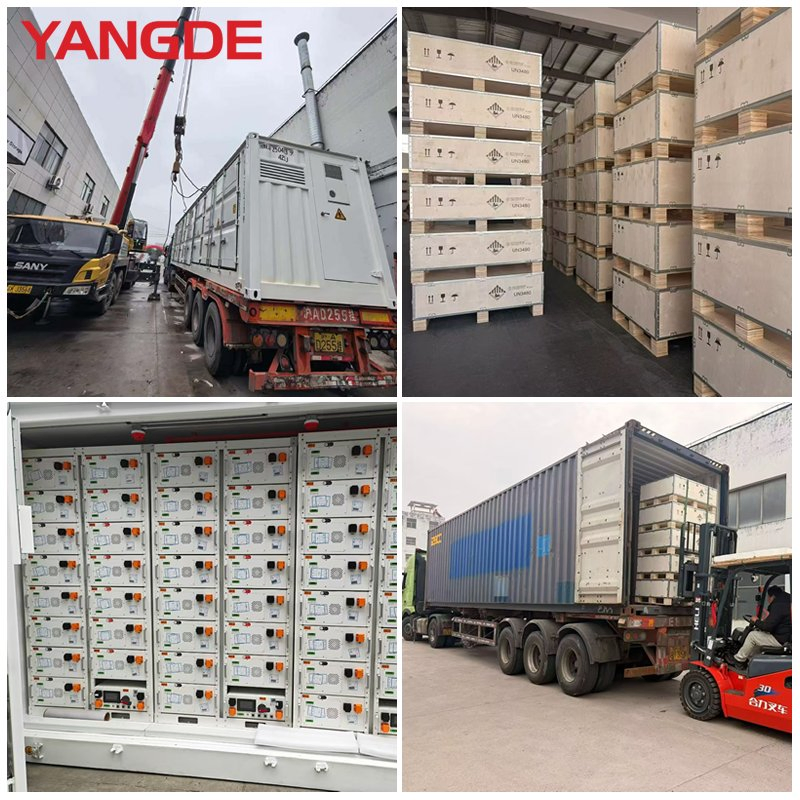

| No. | Product Name | Product Model | Unit | Quantity | Remark |
|---|---|---|---|---|---|

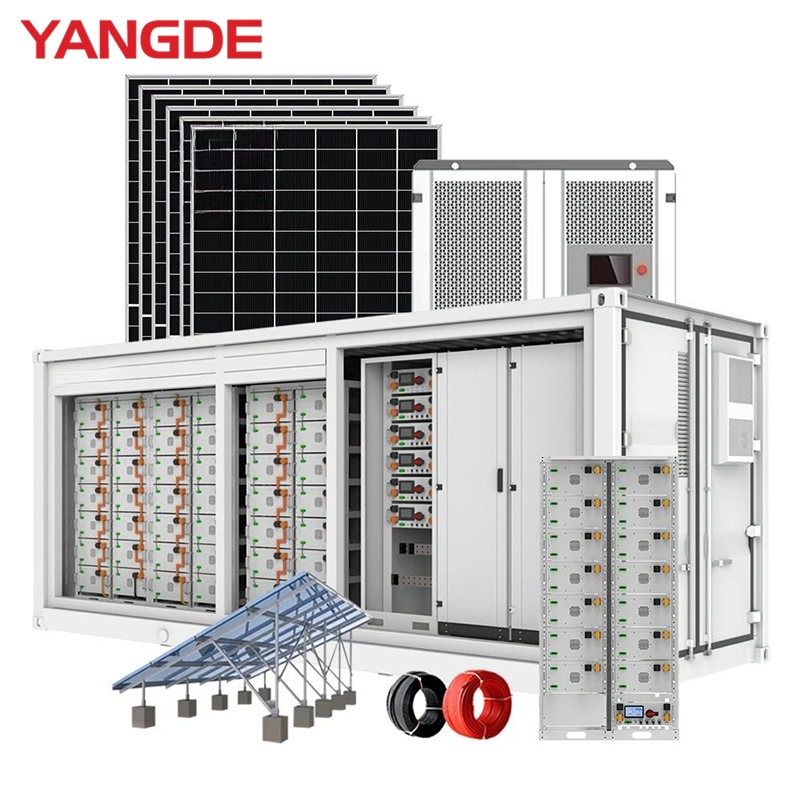

| 1 | Battery System | 1MWH | - | - | - |
| 1.1 | Battery Module | 1 P 16 S | pc | 70 | BMU: Brand Choice / Collection Line: Brand Choice |
| 1.2 | High Pressure Tank | Standard | pc | 5 | BCU: Brand Choice / Main control wiring harness: Brand Choice |
| 1.3 | Battery Rack | 2 columns 8 layers | pc | 5 | Brand Choice |
| 1.4 | Control the Confluence cabinet | 800*600*1800 | set | 1 | BAU and Display/UPS /Dc Circuit Breaker /Switching Power Supply |
| 1.5 | Primary Cable | Customized | batch | 1 | - |
| 1.6 | Secondary Cable | Customized | batch | 1 | - |
| 2 | Electric Accessory | - | - | - | - |
| 2.1 | PCS | 500KW | set | 1 | optional / customized / provided by customer |
| 3 | Fire Fighting System | Heptafluoropropane / Perfluorhexone | set | 1 | - |

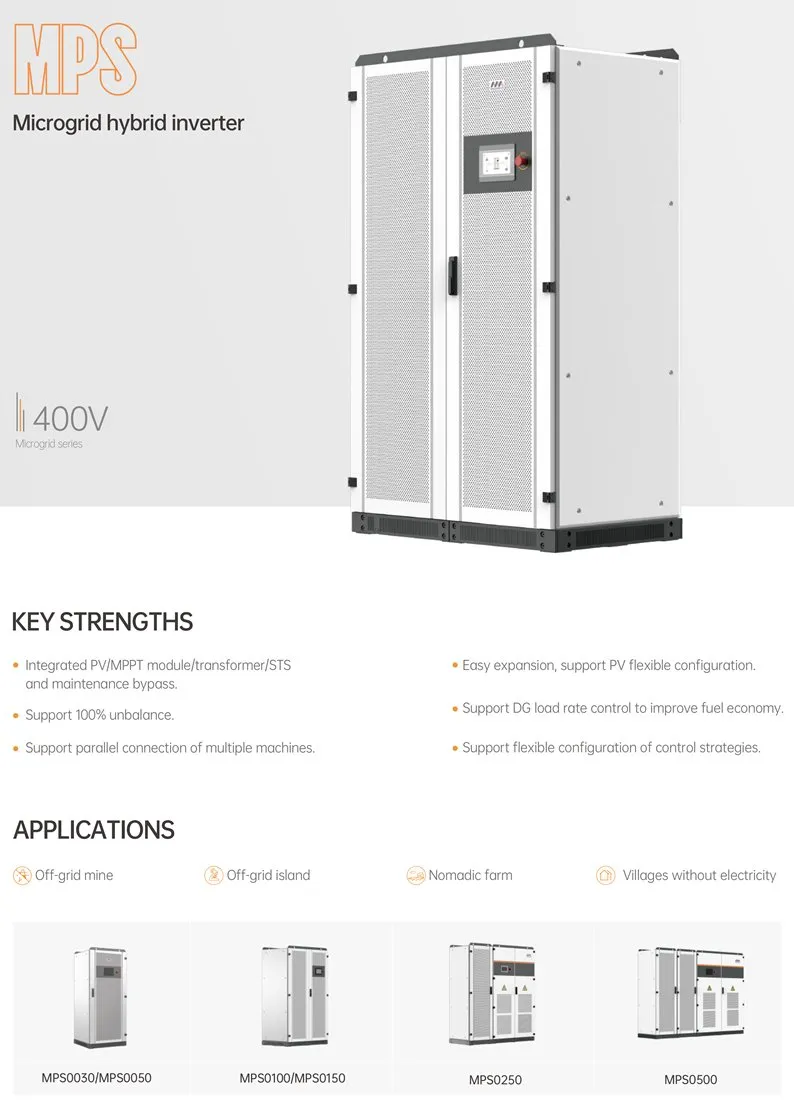

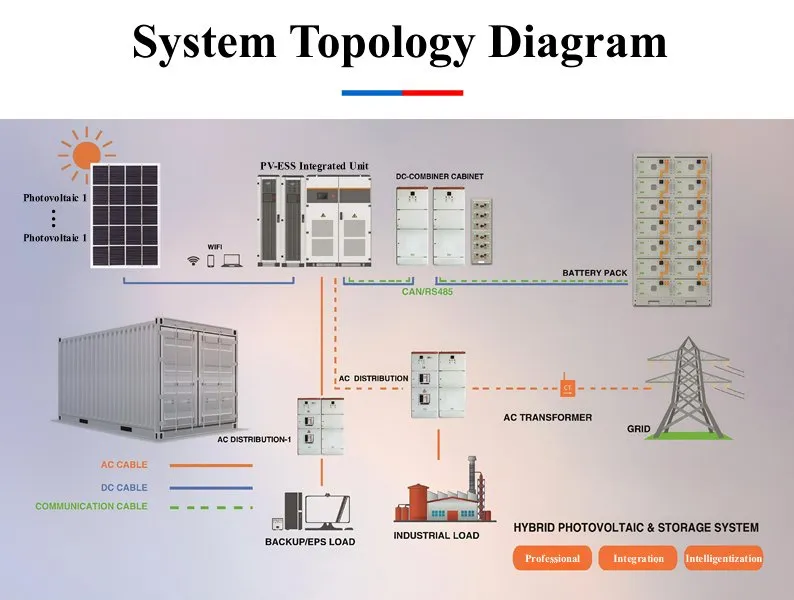

| Parameter | MPS0030 | MPS0050 | MPS0100 | MPS0150 | MPS0250 | MPS0500 |
|---|---|---|---|---|---|---|
| AC (on-grid) | ||||||
| Max. output power (kVA) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rate output power (kW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated voltage (V) | 400 | |||||
| Voltage range (V) | 320~460 | |||||
| Rated current (A) | 43 | 72 | 144 | 216 | 361 | 722 |
| Rated frequency (Hz) | 50/60 | |||||
| Frequency range (Hz) | 45~55/55~65 | |||||
| THDi | <3% | |||||
| Power factor | 1lagging-1leading (Settable) | |||||
| Grid type | 3W+N+PE | |||||
| AC (off-grid) | ||||||
| Max. output power (kVA) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rated power (kW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated voltage (V) | 400 | |||||
| Rated current (A) | 43 | 72 | 144 | 216 | 361 | 722 |
| THDu | ≤1% linear; or <5% nonlinear | |||||
| Rated frequency (Hz) | 50/60 | |||||
| Overload capacity | 110% long-term, 120% 1min | |||||
| PV input | ||||||
| Max. PV input voltage (V) | 1,000 | |||||
| Max. PV power (kW) | 36/72 | 60/120 | 120/180/240 | 120/180/240 | 300/360 | 600/660/720 |
| MPPT module quantity | 1/2 | 1/2 | 2/3/4 | 2/3/4 | 5/6 | 10/11/12 |
| MPPT voltage range (V) | 250-850 | |||||
| Battery | ||||||
| Battery voltage range (V) | 250~850 | 320~850 | 420~850 | 420~850 | 420~850 | 500~850 |
| Max. charging power (kW) | 36/72 | 60/120 | 120/180/240 | 120/180/240 | 300/360 | 600/660/720 |
| General data | ||||||
| Dimension (WDH) (mm) | 800*800*1900 | 800*800*1900 | 1200*800*2050 | 1200*800*2050 | (600*720*2,050)*1 + 1,200*800*2,050 | (600*720*2,050)*2 + 1,600*1,050*2,050 |
| Weight (kg) | 620/650 | 720/750 | 1,120/1,150/1,180 | 1,250/1,280/1,310 | 1,980/2,010 | 3,265/3,295/3,325 |
| Operation temp (ºC) | -30 ~ 55 | |||||
| Relative humidity | 0~95% non-condensing | |||||
| Ingress protection | IP20 | |||||
| Noise emission (dB) | <70 | |||||
| Operating altitude | <5,000m (>3,000m Derating) | |||||
| Cooling | Air Cooling | |||||
| Display and communication | ||||||
| Display | LCD touch-screen | |||||
| BMS communication | RS485, CAN | |||||
| EMS communication | RS485, TCP/IP | |||||
| Certificates | EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683, NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105 | |||||
