| No. | Product Name | Product Model | Unit | Quantity | Remark |
|---|---|---|---|---|---|

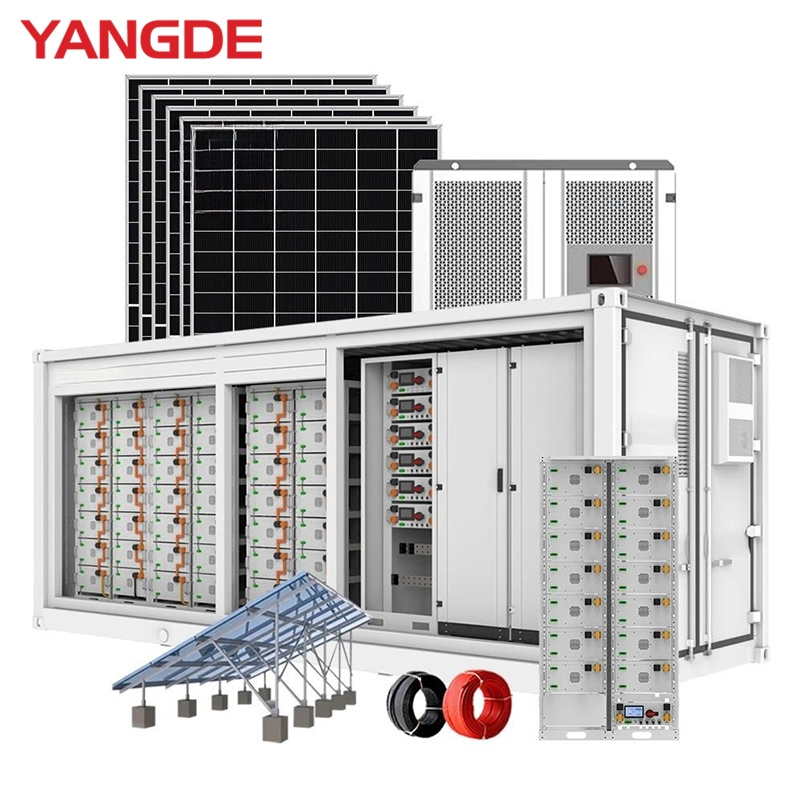

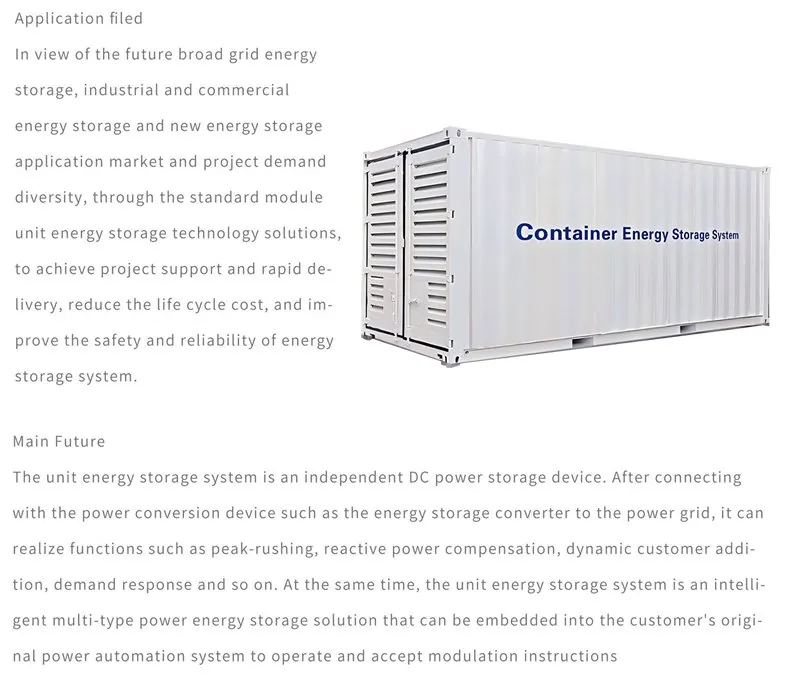

| 1 | Battery System | 1MWH | - | - | - |
| 1.1 | Battery Module | 1 P 16 S | pc | 70 | BMU & Collection Line: Standard selection |
| 1.2 | High Pressure Tank | Standard | pc | 5 | BCU & Main control wiring harness: Standard selection |
| 1.3 | Battery Rack | 2 columns 8 layers | pc | 5 | Standard configuration |
| 1.4 | Control Confluence Cabinet | 800*600*1800 | set | 1 | Includes BAU, Display, UPS, DC Circuit Breaker, Switching Power Supply |
| 1.5 | Primary Cable | Customized | batch | 1 | - |
| 1.6 | Secondary Cable | Customized | batch | 1 | - |
| 2 | Electric Accessory | - | - | - | - |
| 2.1 | PCS | 500KW | set | 1 | Optional/customized |
| 3 | Fire Fighting System | Heptafluoropropane / Perfluorhexone | set | 1 | Advanced safety protection |

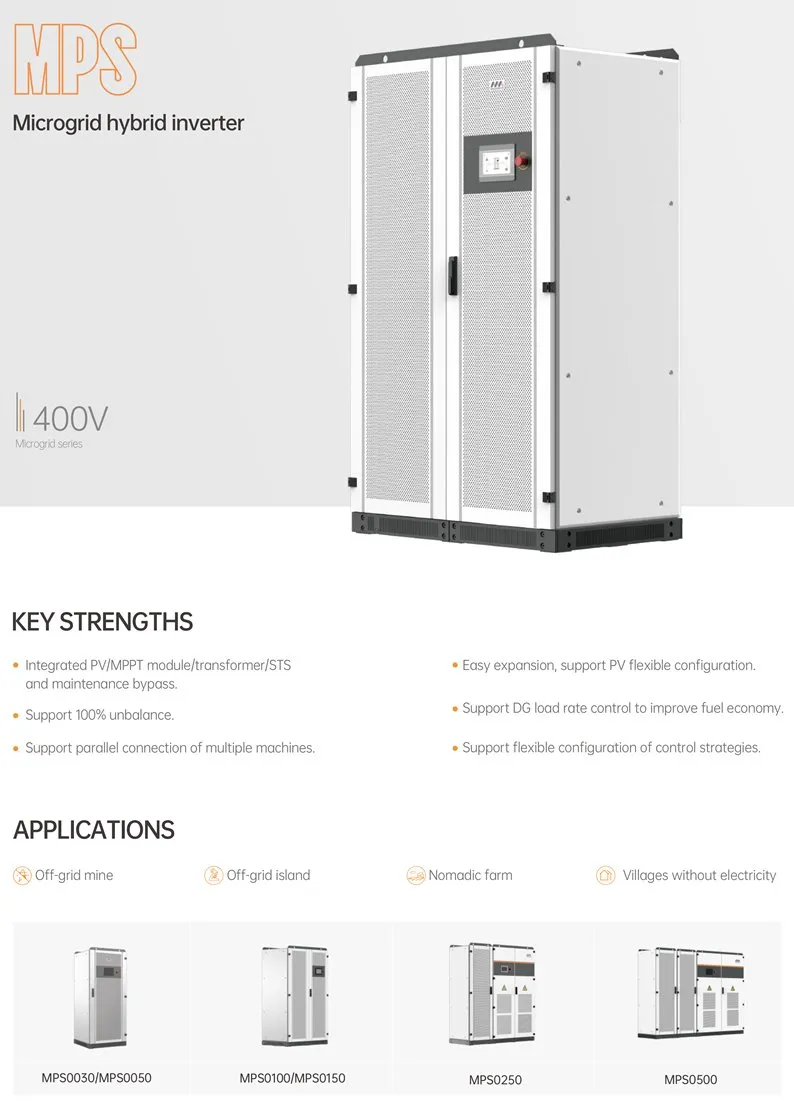

| Parameter | MPS0030 | MPS0050 | MPS0100 | MPS0150 | MPS0250 | MPS0500 |
|---|---|---|---|---|---|---|
| AC (On-Grid) | ||||||
| Max. Output Power (kVA) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rated Voltage (V) | 400 | |||||
| THDi | <3% | |||||
| AC (Off-Grid) | ||||||
| Rated Power (kW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Overload Capacity | 110% long-term, 120% 1min | |||||
| PV Input | ||||||
| Max. PV Voltage (V) | 1,000 | |||||
| MPPT Voltage Range (V) | 250-850 | |||||
| General Data | ||||||
| Dimensions (W*D*H) | 800*800*1900 | 800*800*1900 | 1200*800*2050 | 1200*800*2050 | Custom | Custom |
| Ingress Protection | IP20 | |||||
| Cooling | Air Cooling | |||||
| Display | LCD touch-screen | |||||

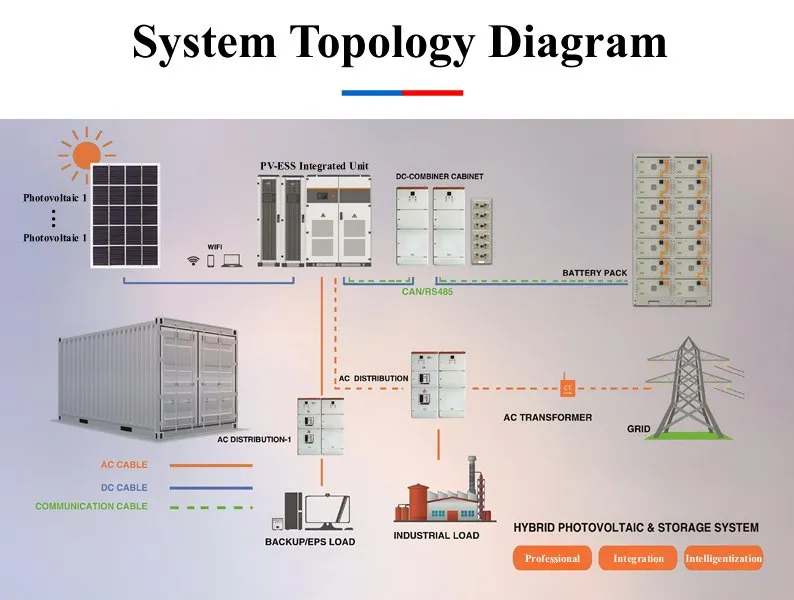

We provide complete solutions for PV power plants and energy storage systems, covering solar PV modules, storage batteries, power conversion systems (PCS), and management systems (BMS/EMS). We design and supply core components, eliminating the complexity of multi-vendor coordination.

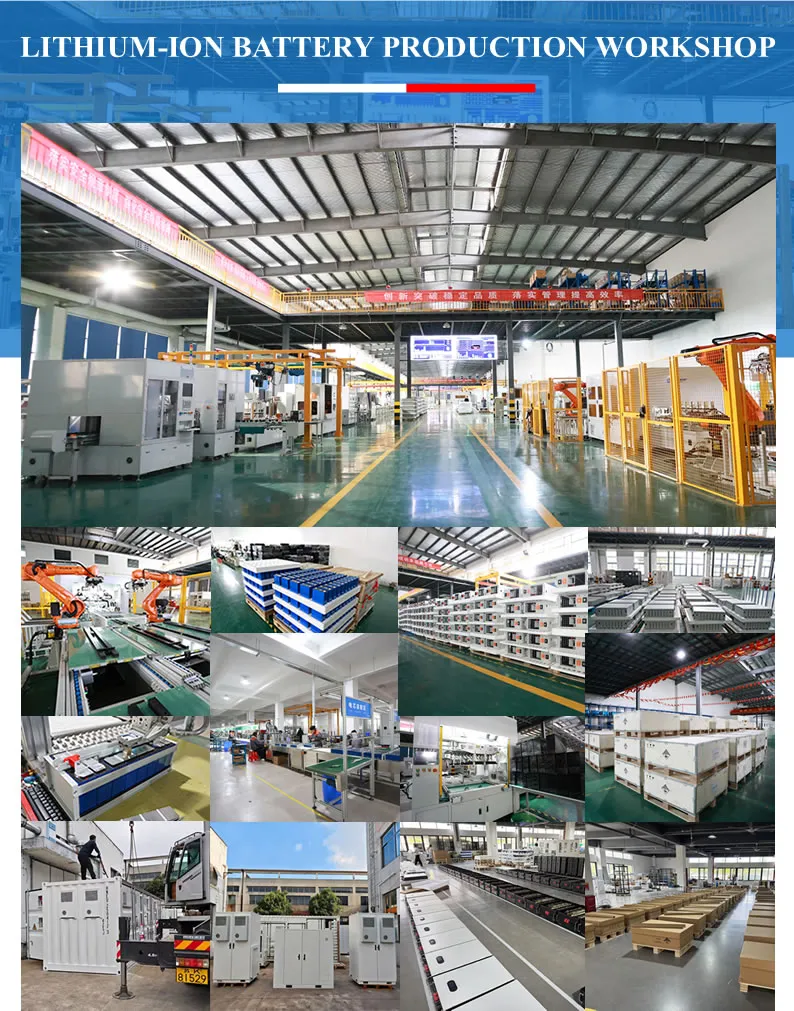

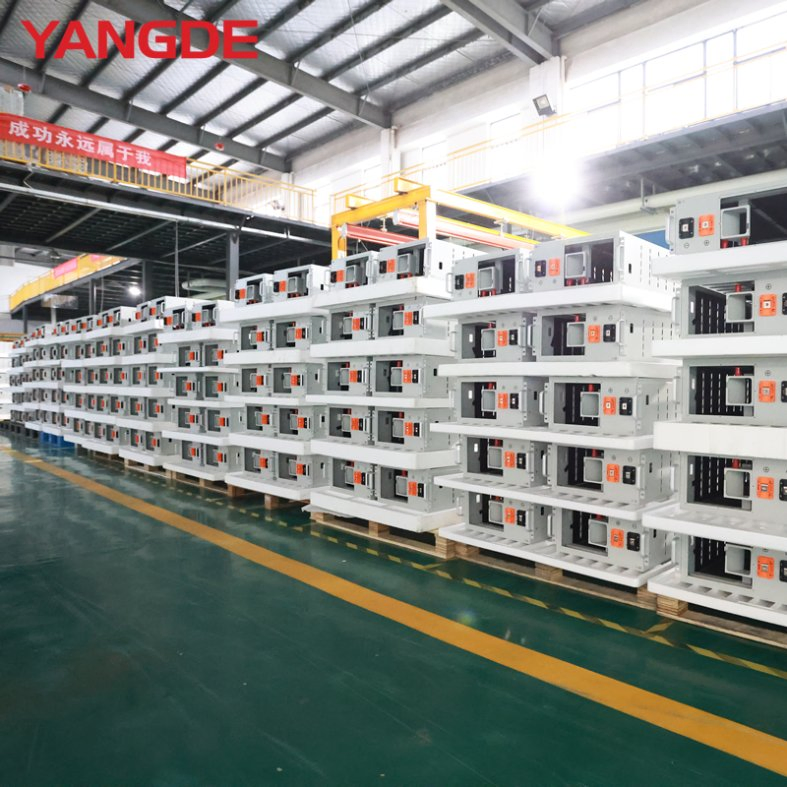

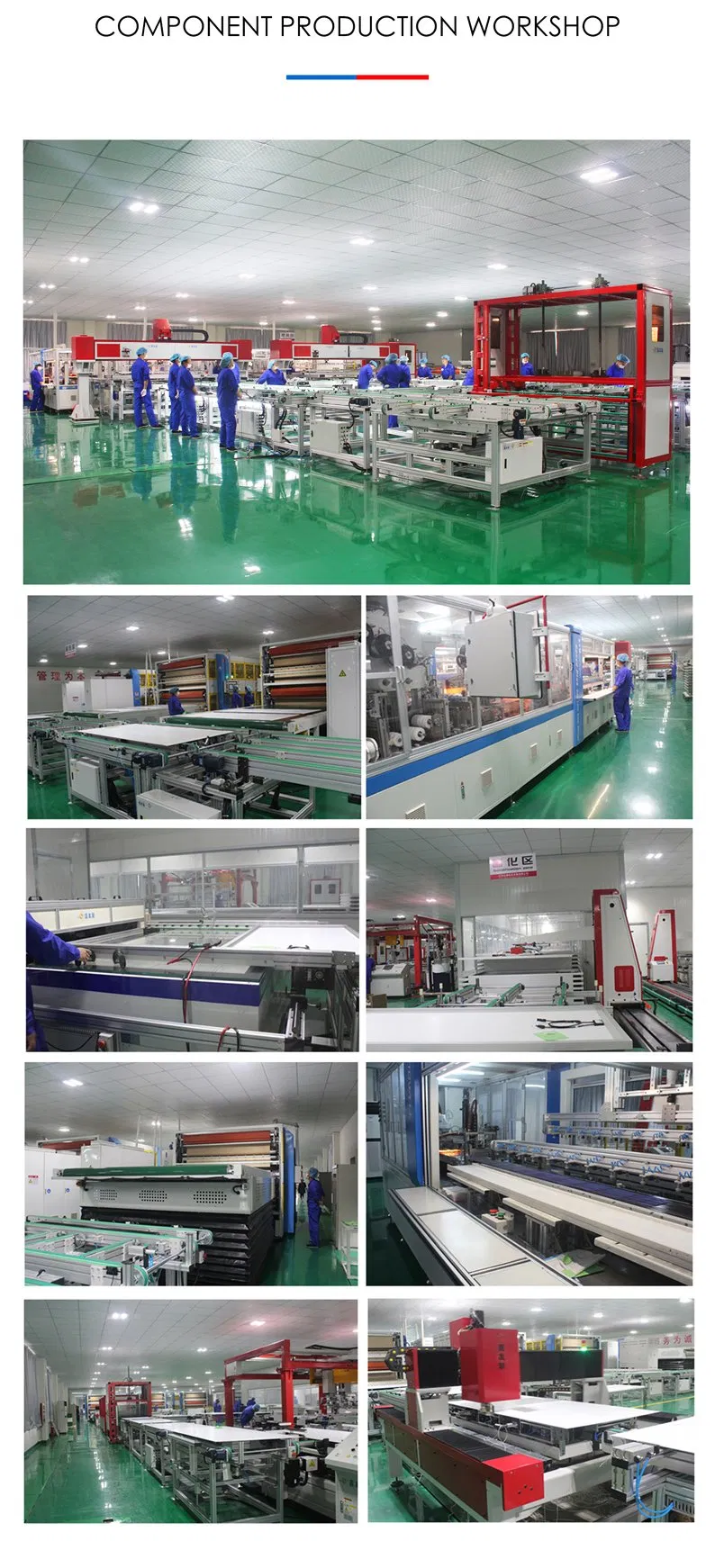

Crucially, we manufacture most core components in-house. Customers enjoy one-stop service with the cost advantages and quality assurance that come from working directly with the factory.
From battery packs and BMS to PCS and distribution cabinets, we control product consistency and reliability from the source, passing optimizations directly to our customers.
Since 2012, we have accumulated extensive experience in power electronics and system integration, including thermal management and energy scheduling algorithms.
We guarantee PV modules and storage systems against defects for two (2) years. For storage batteries, additional warranty terms based on cycle life are available.
We provide customized designs based on irradiation conditions and application scenarios (Residential, C&I, Utility-scale) to ensure optimal safety and efficiency.
We provide 0.5% to 1% of key spare parts (battery modules, BMS boards, etc.) free of charge. Our team offers lifetime technical support and 24-hour response times.
To extend system life, we recommend monthly data checks, quarterly dust cleaning/terminal inspections, and semi-annual battery balancing.
