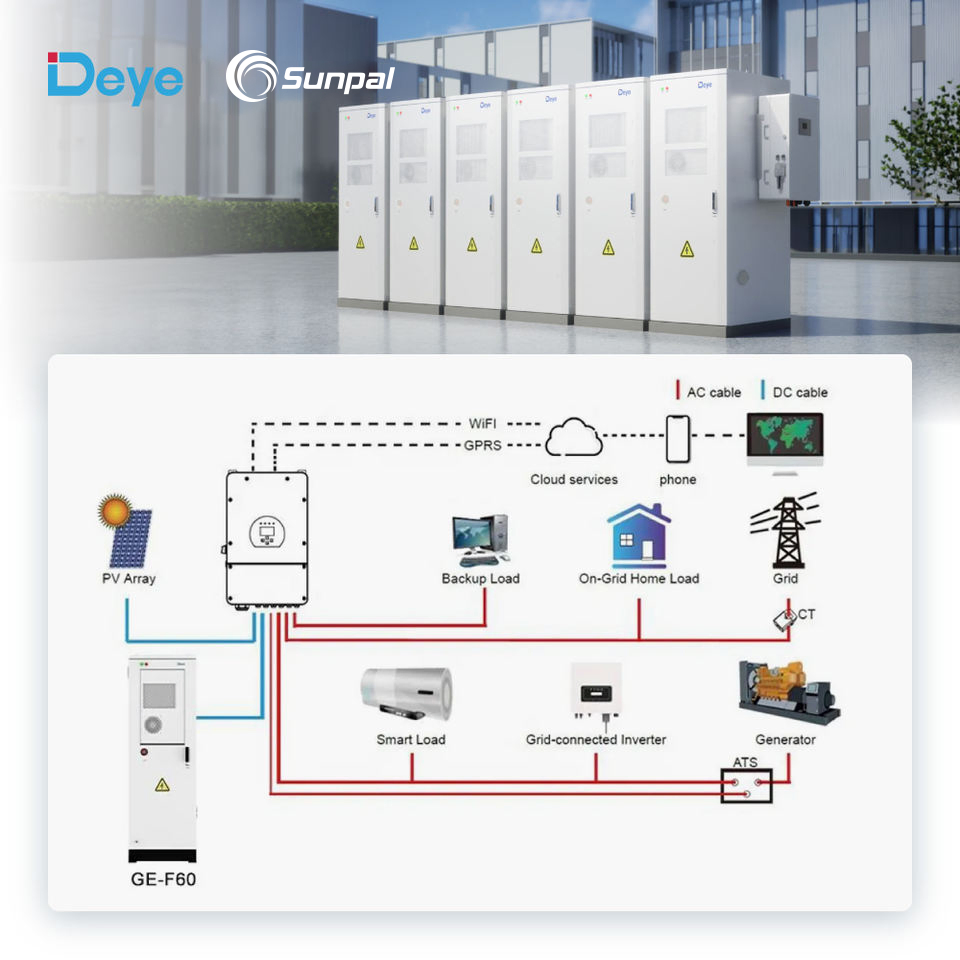

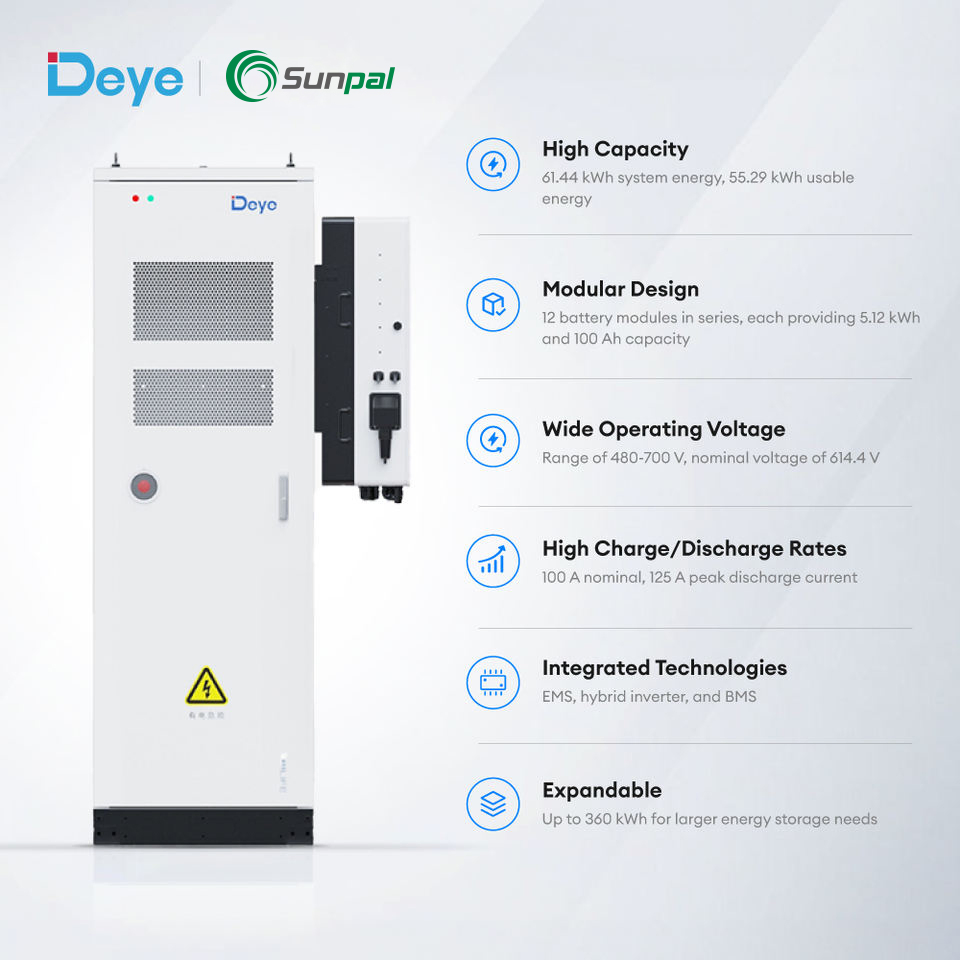

| Model | GE-F60 |
| Cell Chemistry | LiFePO4 |
| Module Energy (kWh) | 5.12 |
| Module Nominal Voltage (V) | 51.2 |
| Module Capacity (Ah) | 100 |
| Battery Module Qty In Series | 12 |
| System Nominal Voltage (V) | 614.4 |
| System Operating Voltage (V) | 480~700 |
| System Energy (kWh) | 61.44 |
| System Usable Energy (kWh) | 55.29 |
| Rated DC Power (kW) | 61.44 |
| Charge/Discharge Current (A) | Recommend: 50 | Nominal: 100 | Peak: 125 (2 mins) |
| Working Temperature (°C) | Charge: 0~55 / Discharge: -20~55 |
| Communication Port | CAN2.0 / RS485 |
| IP Rating | IP55 |

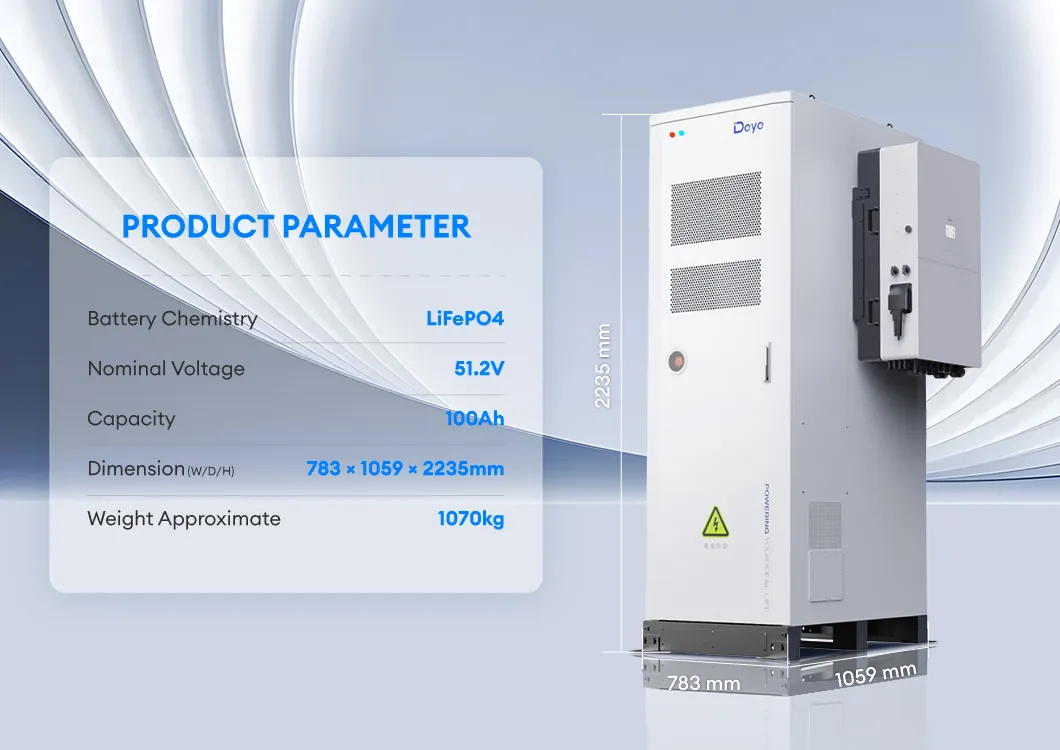

| Dimension (W/D/H, mm) | 780*1056*2235 |
| Weight Approximate | 1.2T |
| Cycle Life | 25±2°C, 0.5C/0.5C, EOL70% ≥ 6000 |
| Warranty | 10 years |
| Certification | CE, IEC62619, IEC62040, UN38.3 |
