⚡ Product Description
Our lithium iron phosphate (LFP) battery cells combine advanced core technology and strict production standards, featuring high energy density, extreme safety, and ultra-long service life—your reliable choice for multi-scenario power supply. Covering 2.5Ah-684Ah capacities, they fit needs from portable devices to large-scale energy storage projects.
Core Advantages

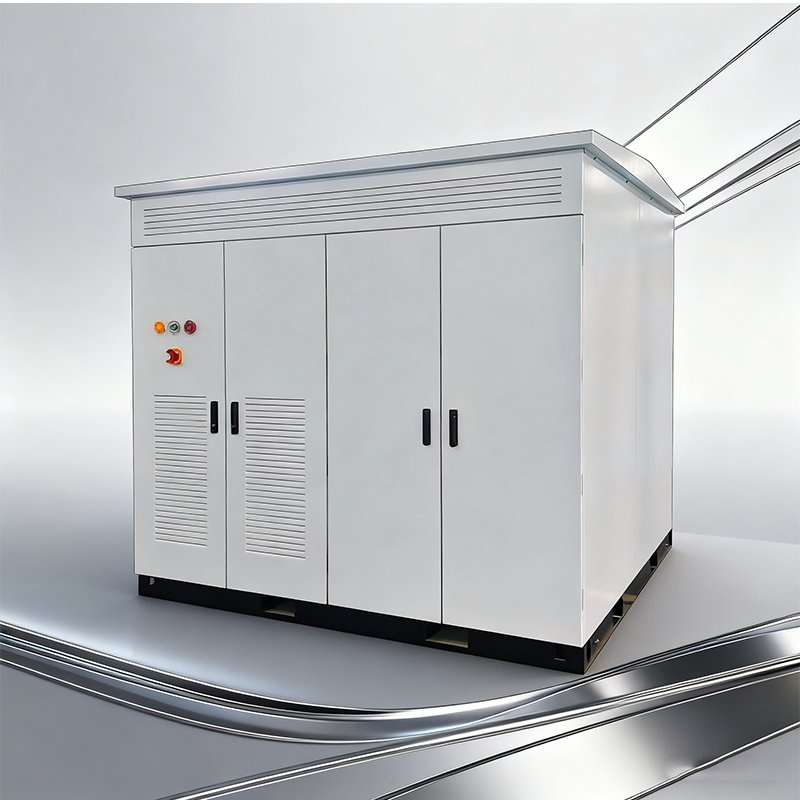

| General Specification |
1500V |
750V |
| Battery Type | LFP 100Ah |
| Battery Energy Capacity (kWh) | 532.48 |
| Nominal Voltage (V) | 1331.2 | 665.6 |
| Battery Voltage Range (V) | 1164.8~1497.6 | 582.4~748.8 |
| Max.CP-rate | 0.5CP |

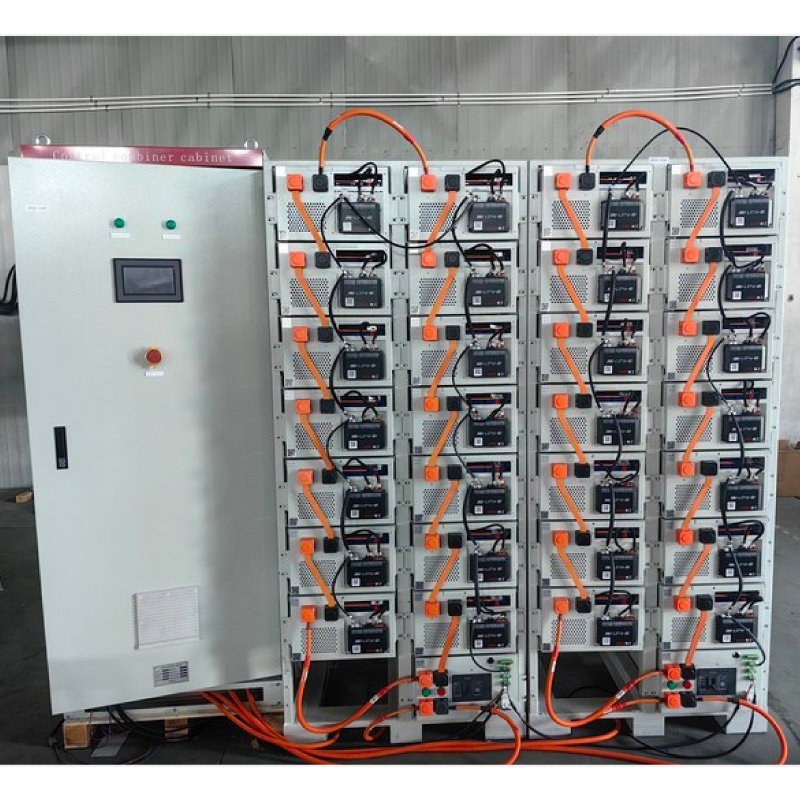

| Module Configuration | 2P16S*26S*2P | 2P16S*13S*4P |
| Dimension (WxHxD) (mm) | 2200*2443*1400 |
| Weight (kg) | 6000 |
| Operating Ambient Temperature | -30~55°C |
| Cooling Mode | HVAC |
| Protection Class | IP54 |
| Fire Suppression | Aerosol |
| Communication Protocol | Modbus TCP |
❓ Frequently Asked Questions
What is the expected cycle life of this energy storage system?
The system utilizes high-quality LFP cells designed for a cycle life of 5000 cycles, ensuring long-term reliability for commercial and industrial use.
What safety features are integrated into the system?

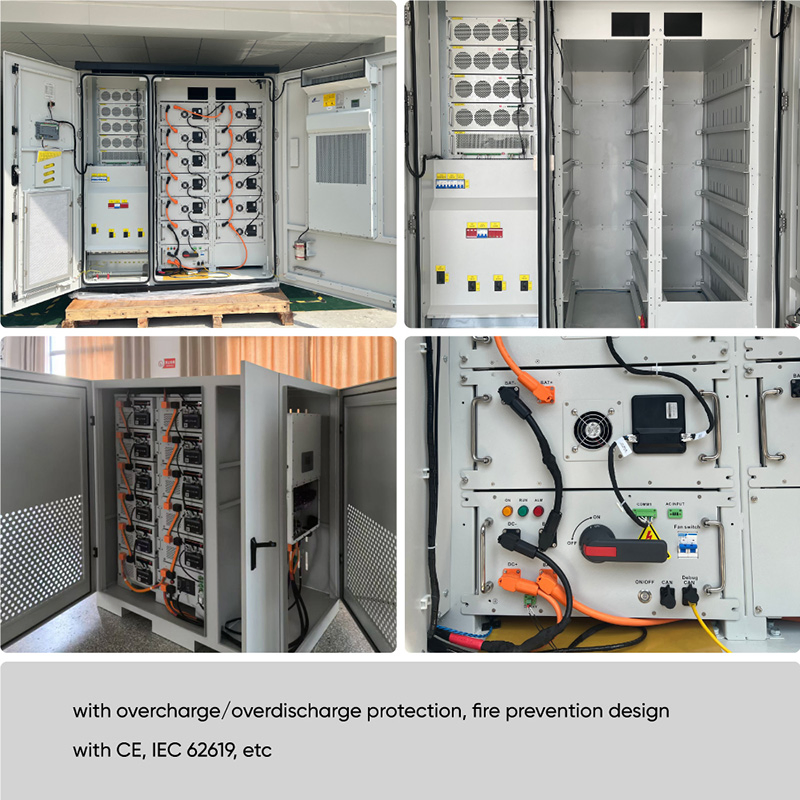

Safety is a priority; the system includes an Aerosol-based fire fighting system and is designed with short-circuit proof integrated protection.

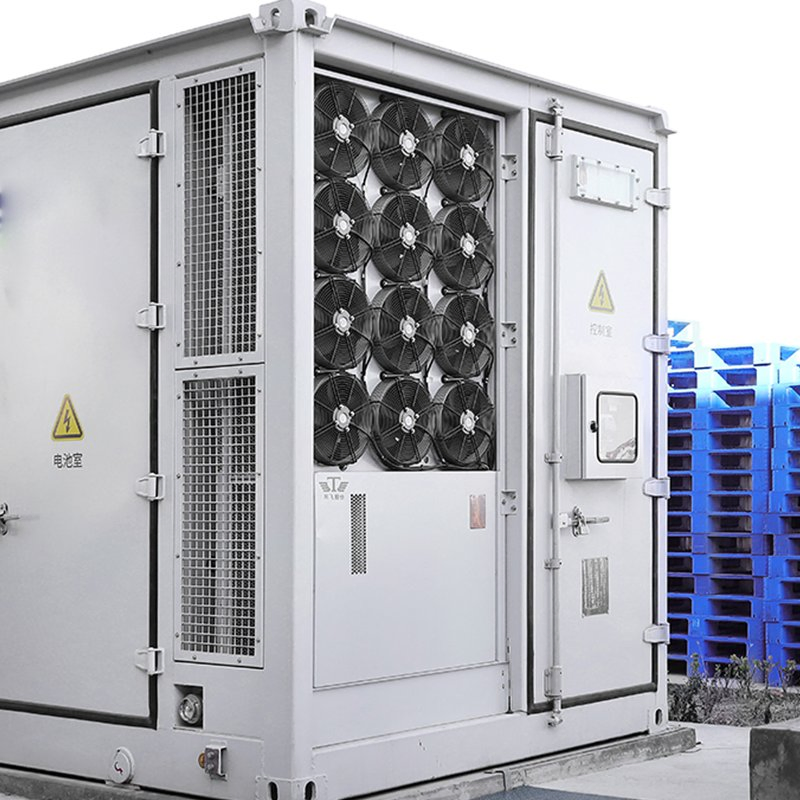

How is the temperature regulated within the unit?
Depending on the specific configuration, the system employs either Air Cooling or high-efficiency HVAC systems to maintain optimal operating temperatures between -30°C and 55°C.
Which communication protocols are supported?
The system supports multiple communication interfaces including LAN, CAN, and RS485, utilizing the Modbus TCP protocol for seamless integration with external management systems.
What certifications does the product hold?
Our energy storage systems comply with international standards including IEC62619, UL1973, UL9540A for safety, UN38.3 for transportation, and EMC/FCC for electromagnetic compatibility.
Can multiple units be connected in parallel?
Yes, the system supports parallel configuration. For the 1500V system, up to 8 units can be paralleled, while the 750V system supports up to 4 units.
