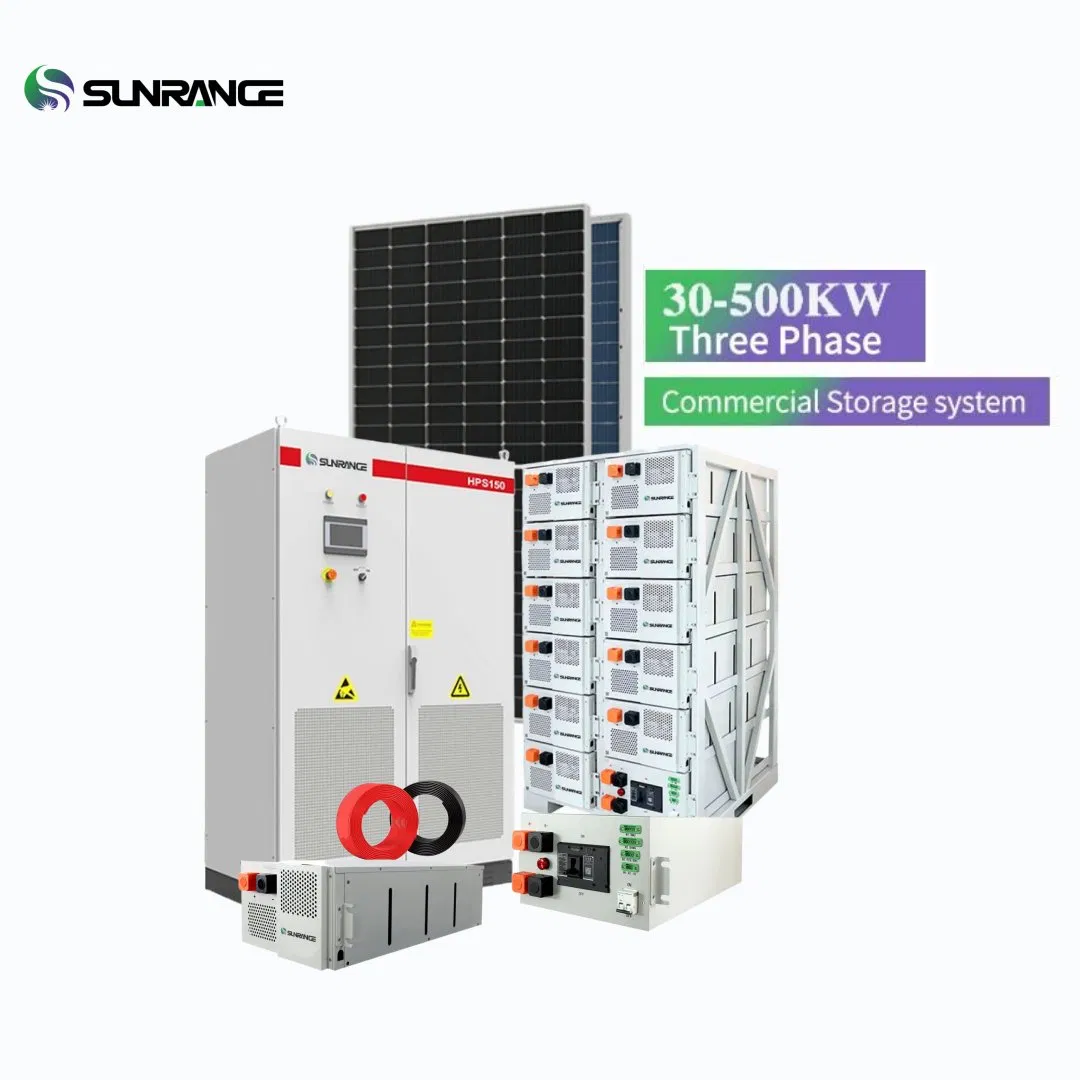

Sunrange 150kwh 200kwh 400kwh Solar Energy Storage System Industrial and Commercial Ess Bess Solar Battery Energy Storage System
Sunrange 150kwh 200kwh 400kwh Solar Energy Storage System Industrial and Commercial Ess Bess Solar Battery Energy Storage System
Sunrange 150kwh 200kwh 400kwh Solar Energy Storage System Industrial and Commercial Ess Bess Solar Battery Energy Storage System
Sunrange 150kwh 200kwh 400kwh Solar Energy Storage System Industrial and Commercial Ess Bess Solar Battery Energy Storage System
Sunrange 150kwh 200kwh 400kwh Solar Energy Storage System Industrial and Commercial Ess Bess Solar Battery Energy Storage System
1 / 5
Sunrange 150kwh 200kwh 400kwh Solar Energy Storage System Industrial and Commercial Ess Bess Solar Battery Energy Storage System
Sunrange 150kwh 200kwh 400kwh Solar Energy Storage System Industrial and Commercial Ess Bess Solar Battery Energy Storage System
Sunrange 150kwh 200kwh 400kwh Solar Energy Storage System Industrial and Commercial Ess Bess Solar Battery Energy Storage System
Sunrange 150kwh 200kwh 400kwh Solar Energy Storage System Industrial and Commercial Ess Bess Solar Battery Energy Storage System
Sunrange 150kwh 200kwh 400kwh Solar Energy Storage System Industrial and Commercial Ess Bess Solar Battery Energy Storage System

Sunrange 150kwh 200kwh 400kwh Solar Energy Storage System Industrial and Commercial Ess Bess Solar Battery Energy Storage System

Customization: Available
After-sales Service: Technical Guidance
Warranty: 5-30 Years
Send Inquiry

Product Description

🔹 Basic Info & Overview
Model NO.:SR-30/50/100/150/250/500KW-HY
Condition:New
Certification:ISO, CB, CE
Application:Commercial
Type:Commercial Solar Energy Storage System
Battery:Gel/ LiFePO4 Battery
System Type:Hybrid Solar PV System
Solar Panel:Monocrystalline 400-700W
Grid Type:3W+N+PE
Controller:MPPT Types
⚙️ Product Specifications

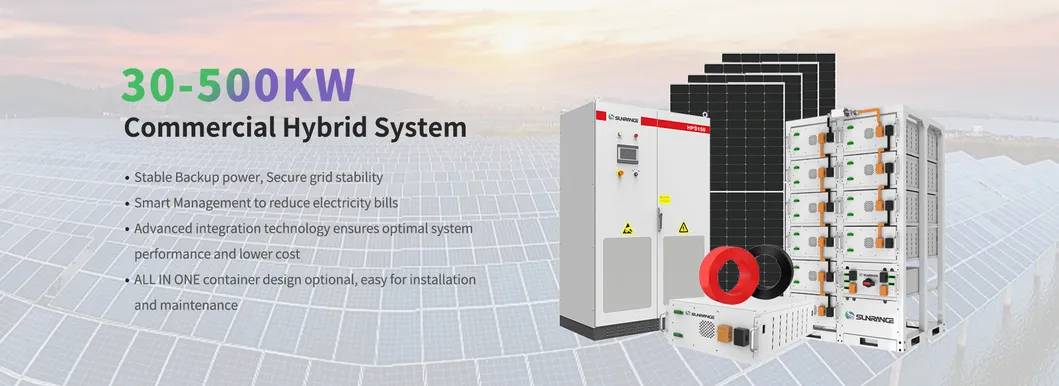

Solar Energy Storage System Overview
Model No. SR-30KW-HY SR-50KW-HY SR-100KW-HY SR-150KW-HY SR-250KW-HY SR-500KW-HY
AC Rated Power 30KW 50KW 100KW 150KW 250KW 500KW
Grid Voltage 380/400VAC
Max. Output (KVA) 33 55 110 165 275 550
Solar Panel Qty 60PCS 90PCS 180PCS 270PCS 450PCS 900PCS
Total PV Power 34.8KW 52.2KW 104.4KW 156.6KW 261KW 522KW
Battery Capacity 40.96KWH 100.352KWH 202.752KWH 304.128KWH 473.088KWH 946.176KWH
📦 Key System Components

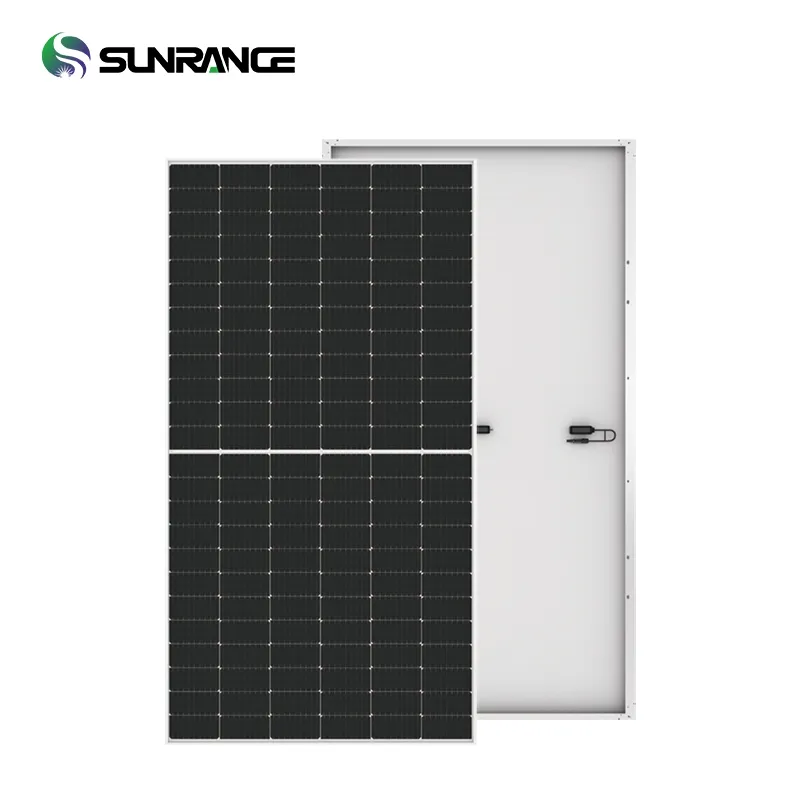

N-Type Topcon Solar Panel
N-Type Topcon Solar Panel
  • Model: SR72P-580N
  • Maximum Power (Pmax): 580W
  • Open Circuit Voltage (Voc): 51.57V
  • Short Circuit Current (lsc): 14.33A
  • Module Efficiency: 22.44%

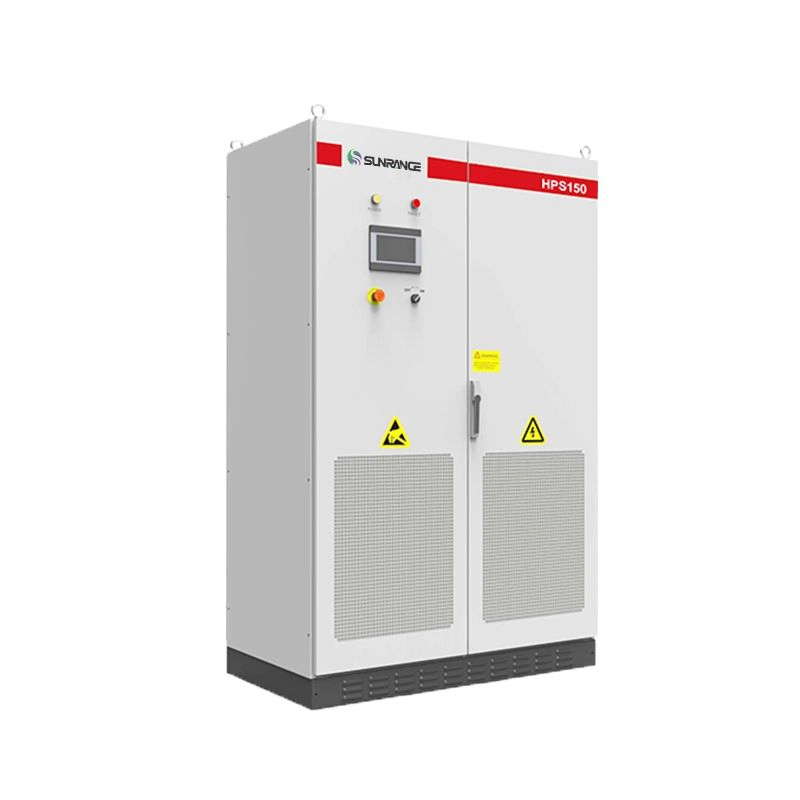

All-in-One Hybrid Inverter
  • Supports PV, Battery, DG, Grid, and Load
  • Seamless switch within 6ms via SCR
  • Dynamic power distribution for load demand
  • Easily expandable system capacity
Hybrid Inverter

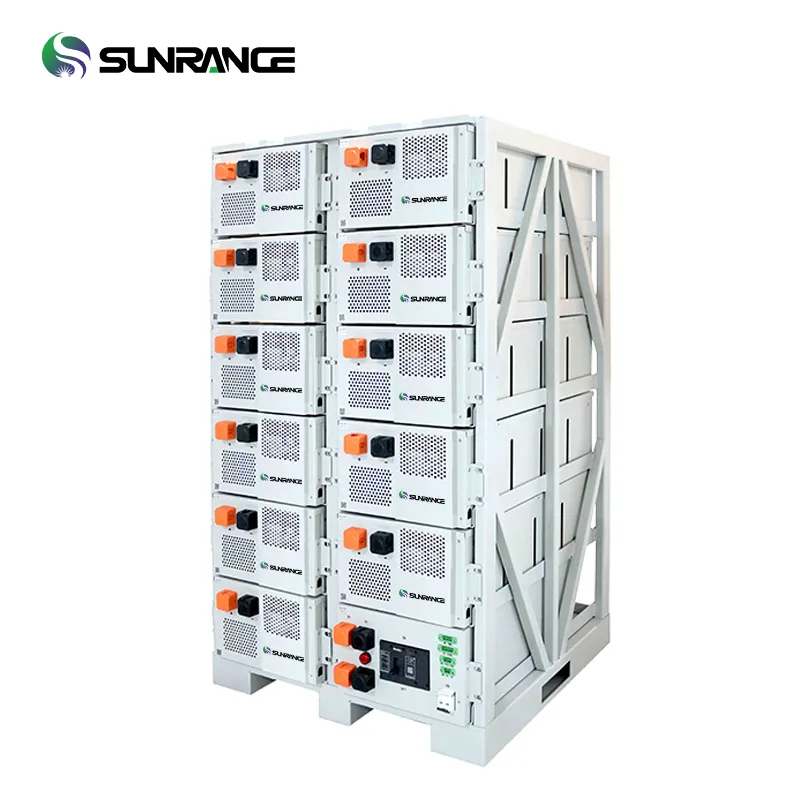

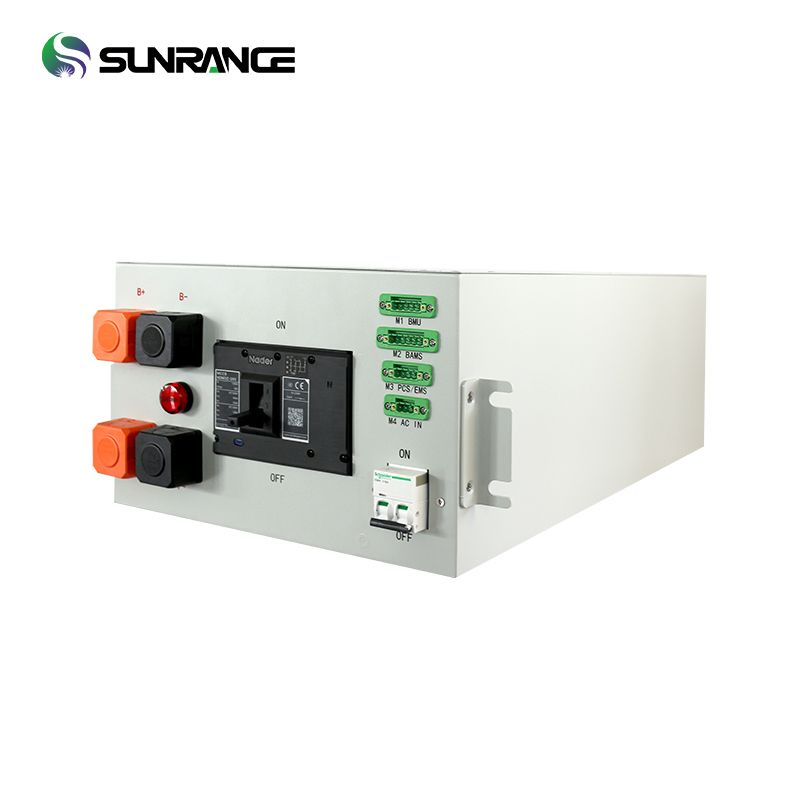

Solar Battery Packs
Solar Battery Packs
  • Rack mounted, Deep Cycle long lifespan
  • GEL/LiFePO4 Lithium Ion options
  • Over 6000 cycles at 90% DOD
  • Maintenance-free with high discharge performance
Online Monitoring System
  • One-click installation and registration
  • Safe operation with traceable logs
  • Full lifecycle data storage
  • Remote dispatch and navigation support
Online Monitoring System
🛠️ Technical Support & Packaging

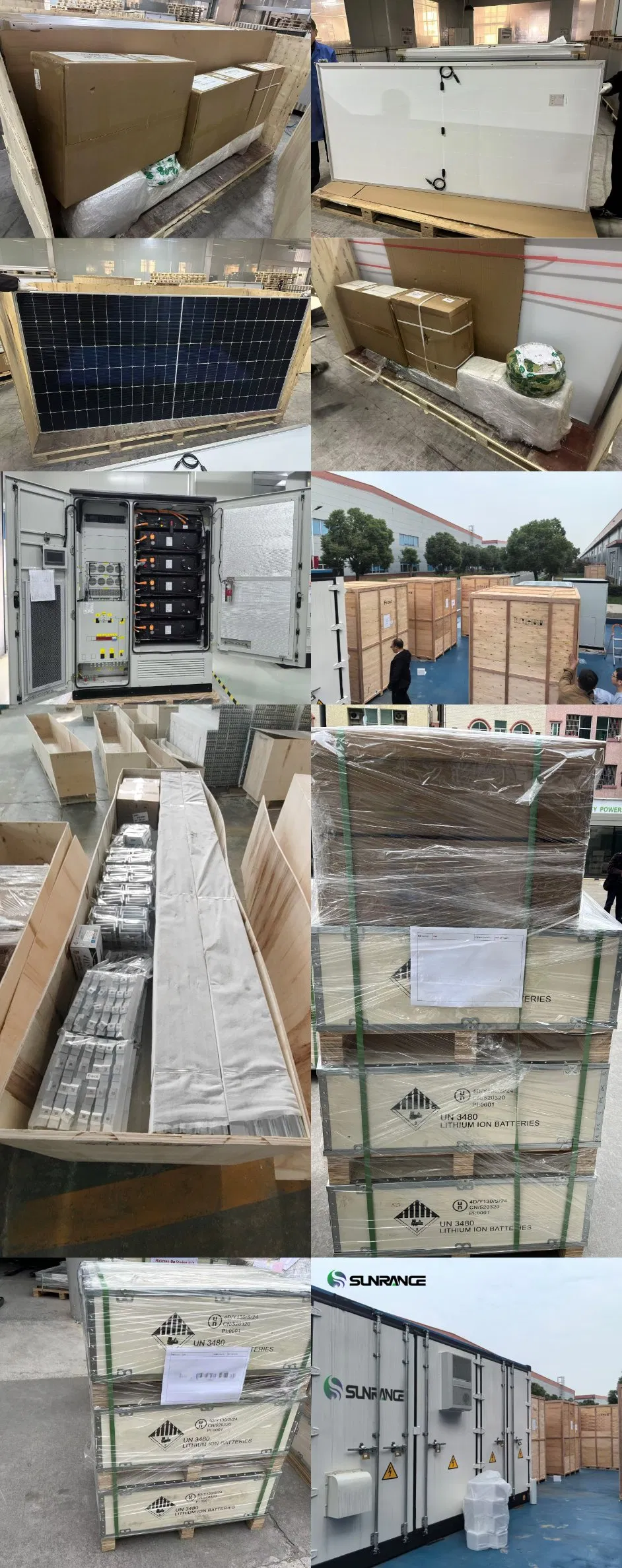

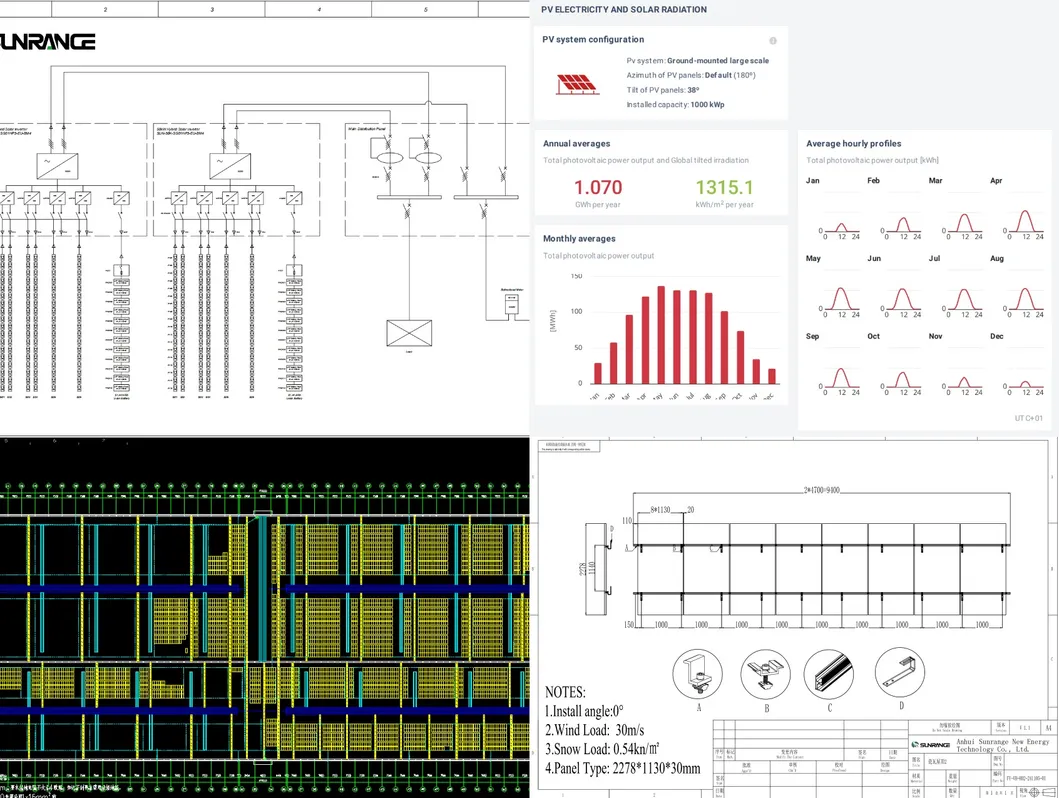

Technical Support Diagram Packaging and Shipping details
🏗️ Project Cases

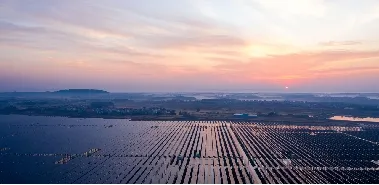

Project Case 1

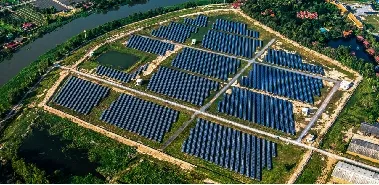

Project Case 2

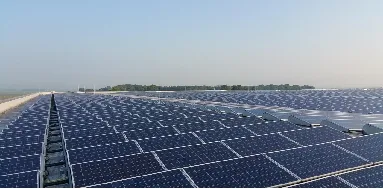

Project Case 3

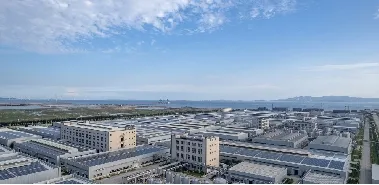

Project Case 4
Project Case 5
Project Case 6
Project Case 7

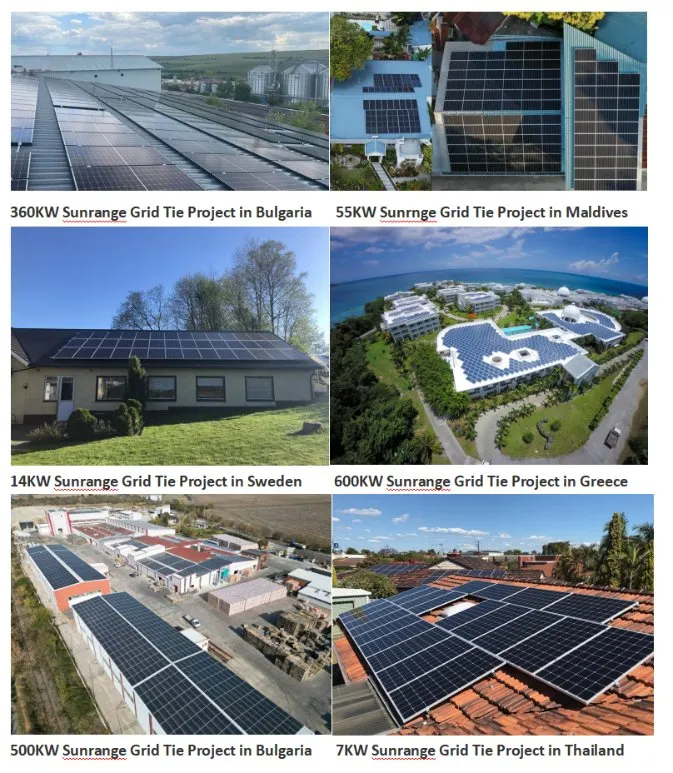

Project Summary
📜 Certifications
Product Certifications
💡 Frequently Asked Questions
1. What types of batteries are used in this energy storage system?
The system supports high-performance GEL and LiFePO4 (Lithium Iron Phosphate) battery types, offering flexibility based on project requirements.
2. How long is the expected lifespan of the battery packs?
The LiFePO4 battery packs are designed for deep cycle performance, offering more than 6000 cycles at up to 90% Depth of Discharge (DOD).
3. Can the system switch to backup power automatically during a grid failure?
Yes, the integrated all-in-one hybrid inverter features SCR technology that enables a seamless switch to backup power within 6ms.
4. Is remote monitoring possible for the commercial ESS?
Yes, we provide an Online Monitoring System that supports one-click registration, traceable logs, and real-time data security for the full lifecycle of the system.
5. Can the system capacity be expanded in the future?
Absolutely. The system architecture is designed for scalability, allowing for easy expansion of system capacity to fulfill growing load demands.
6. What certifications do these systems hold for international use?
Our solar energy storage systems are fully certified with ISO, CB, and CE standards, ensuring compliance with global quality and safety regulations.
