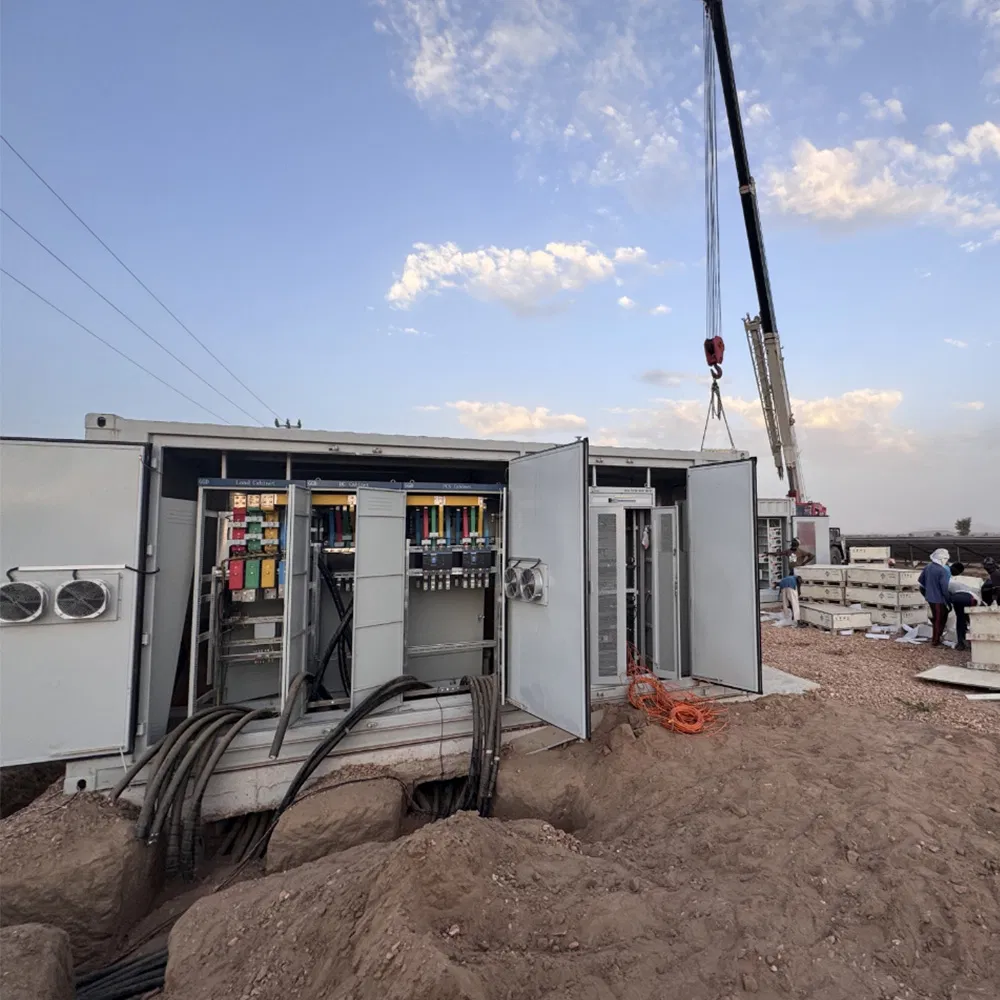

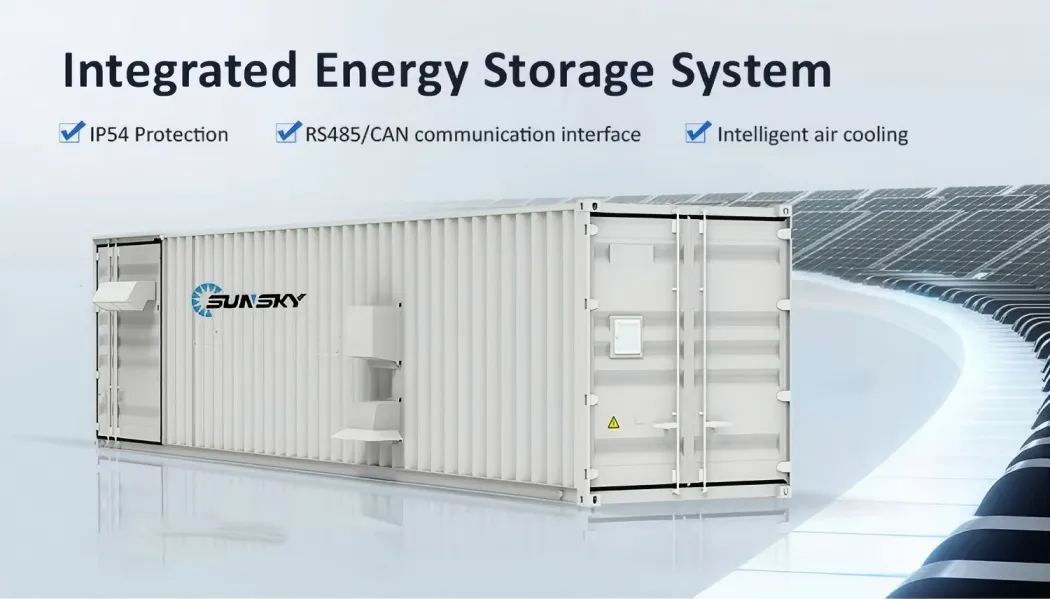

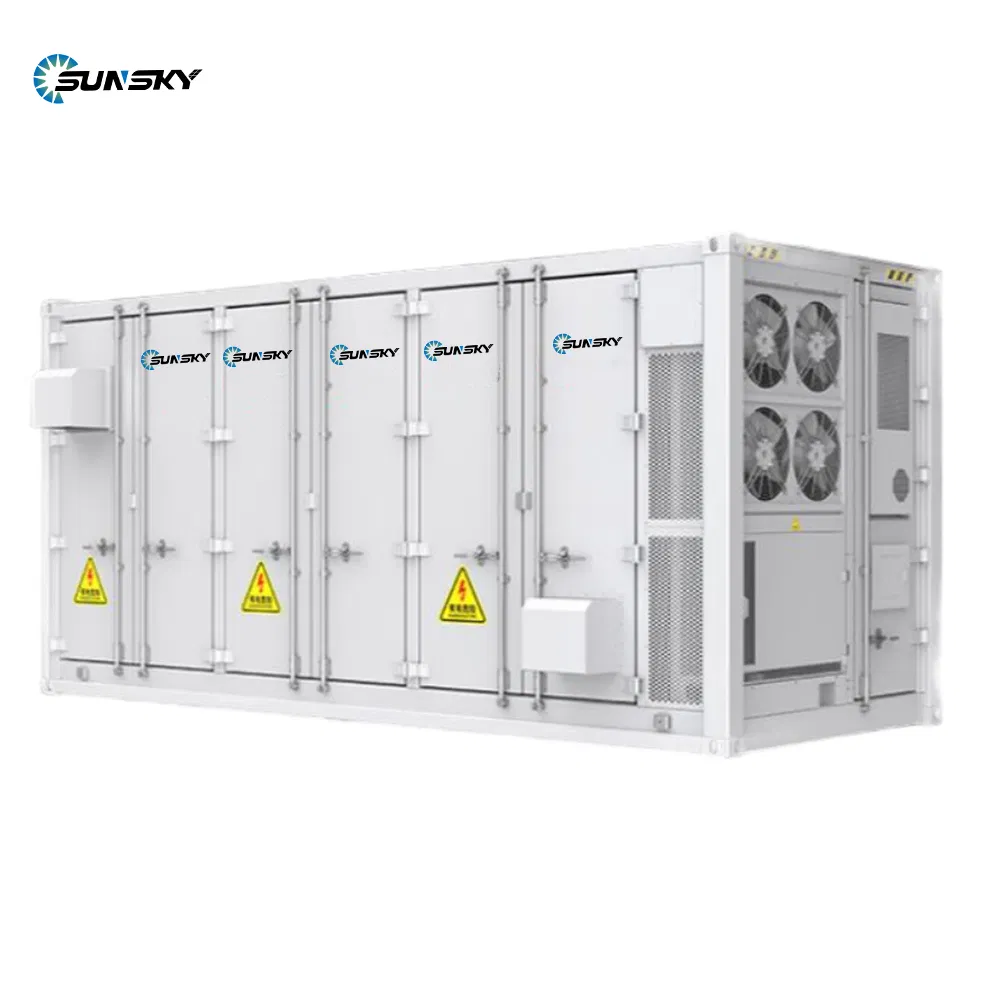

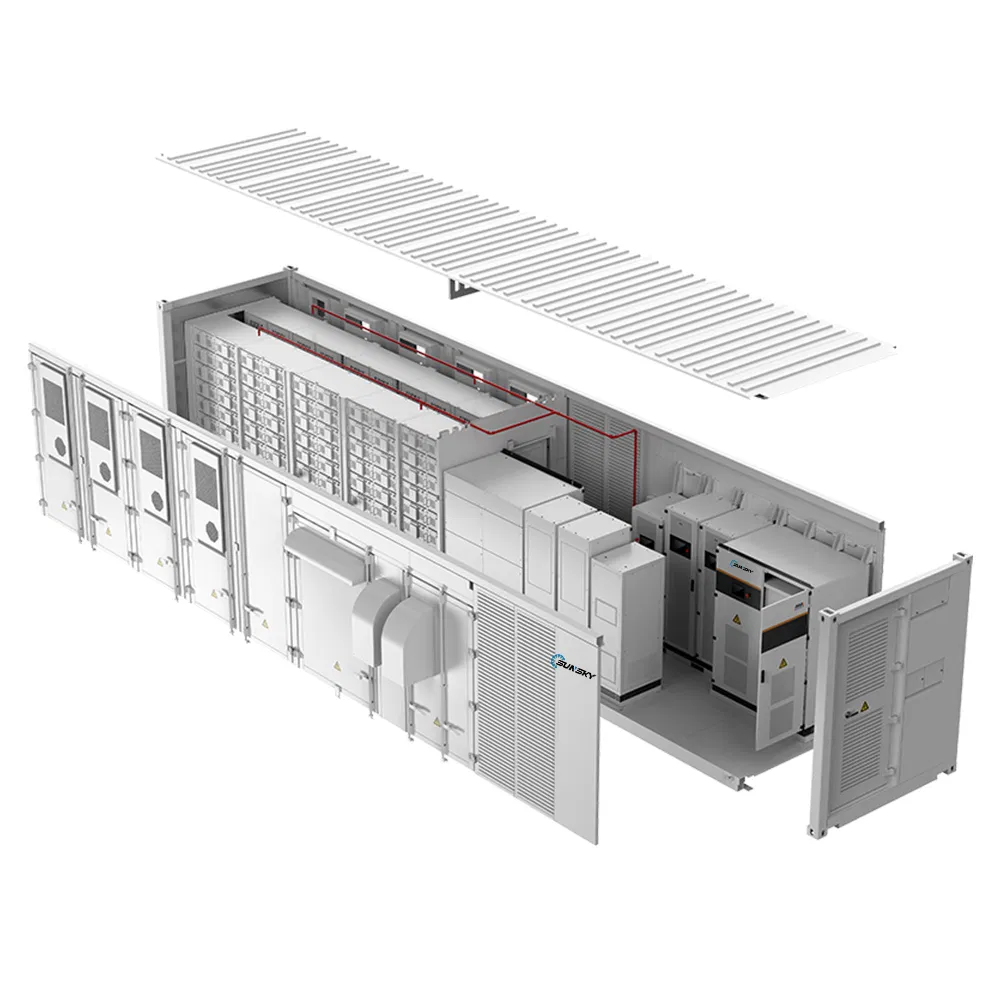

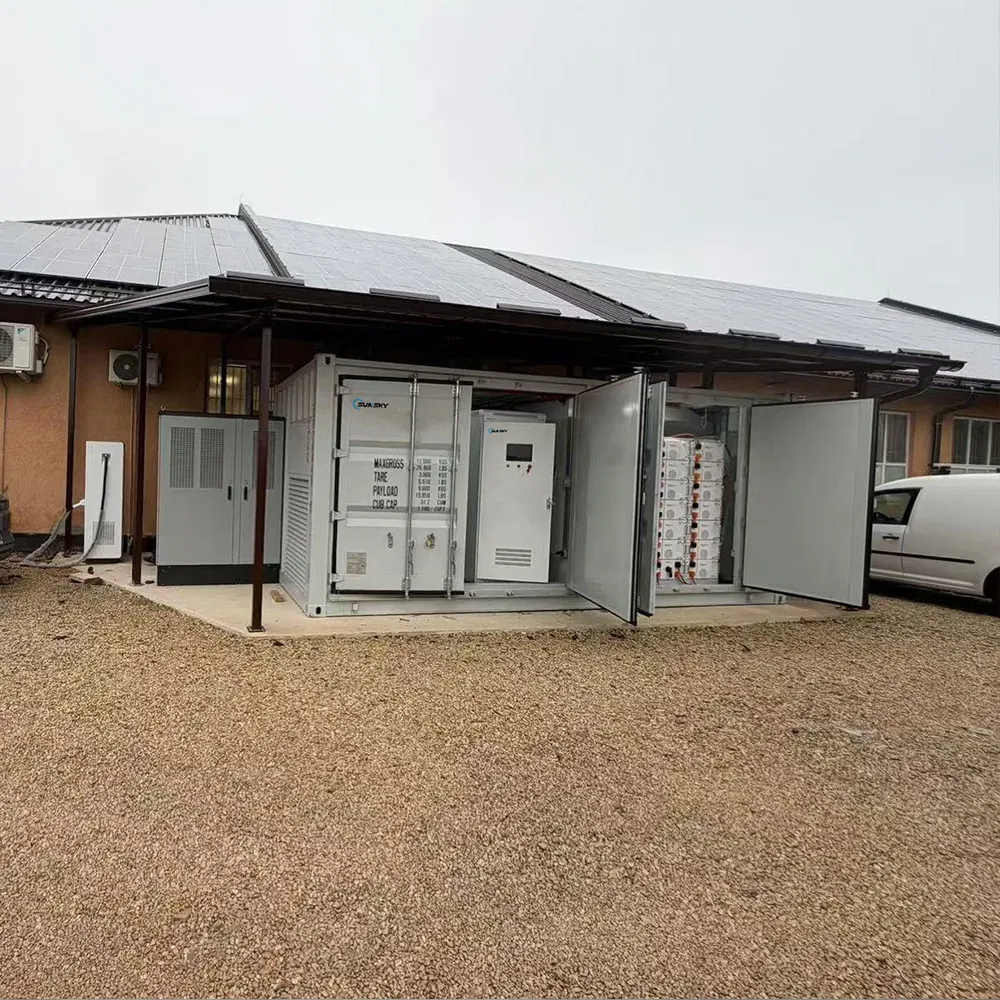

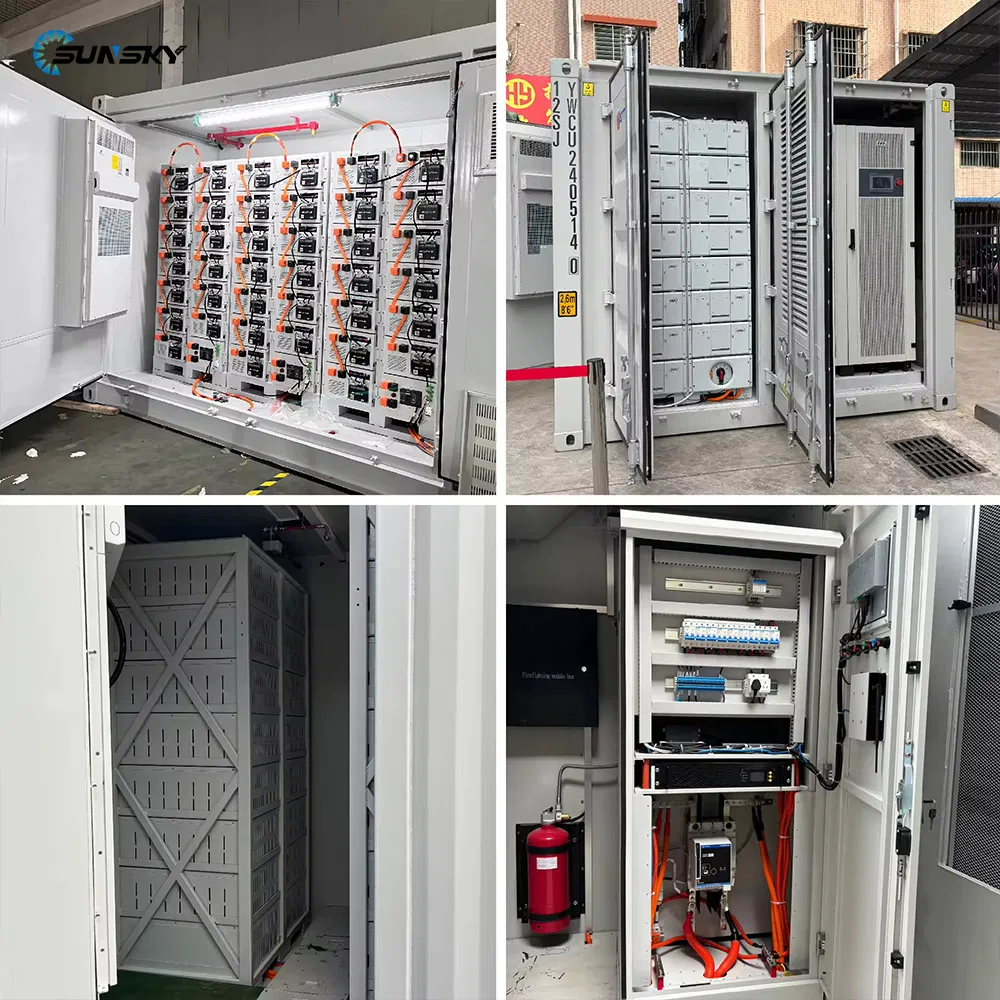

The 20-ft and 40HQ liquid-cooled ESS container integrates PACK, EMS, BMS, HVAC, and fire safety system into one cabinet. Compared with air cooling, liquid cooling empowers the ESS product with higher power density and ensures the temperature difference between the cells within 3 ºC, which effectively extends battery service life and improves energy efficiency. It can be applied to the power generation side, grid side, as well as C&I ESS scenarios.
| Model | SUN20FT-0.5MW/1MWh | SUN40FT-1MW/2MWh |
|---|---|---|
| Cell type | 3.2V/280Ah/LFP | |
| Cell brand | HIGEE/EVE/REPT/CORNEX | |
| Celle life cycle | >8,000 Cycles @ 25°C | |
| Number of Cluster | 5 | 10 |
| Total Rated Energy | 1003.52kWh | 2007.04kWh |
| Rated voltage | 627.2V | |
| BMS interface | Ethernet, CAN, RS485 | |
| Rated AC power | 1*500kW | 2*500kW |
| Dimension (L*W*H) | 6058*2591*2438mm | 12116*2438*2896mm |
| Degree of protection | IP54 | |
| Fire extinguisher | HFC bottle group | |
* High efficiency up to 22.84%
* SMBB + Half-cell tech for reliability
* Lower temperature coefficient (-0.29%/ºC)
* Bifaciality rate up to 80-85%

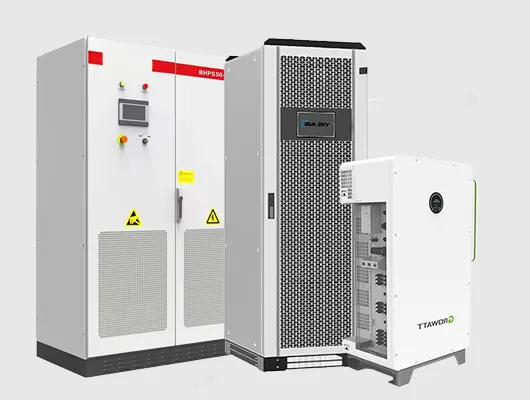

* Intelligent IC control & Pure sine wave
* Multiple protection functions
* Double Sided PCB / Aluminum alloy shell
* Warranty: 10 Years

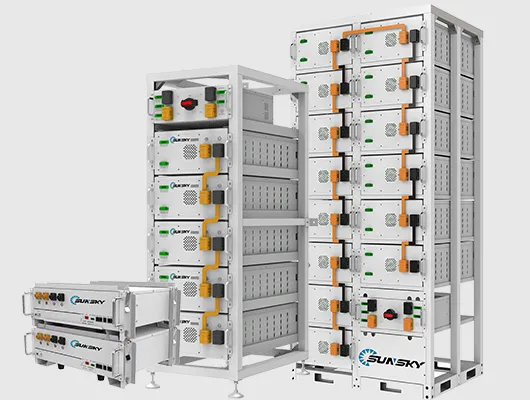

Standard battery module consists of 16 units 3.2V single cells. Each unit provides 14.336kWh. Customized energy storage solutions available from kWh to GWh scales to meet exact project requirements.

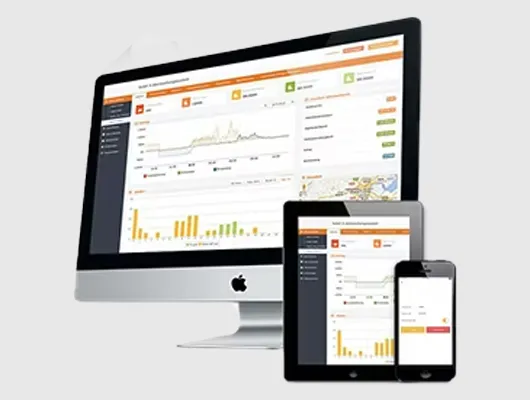

* One-click installation & registration
* Real-time dispatch and navigation
* Safe operation with traceable logs
* Full lifecycle data storage for security
