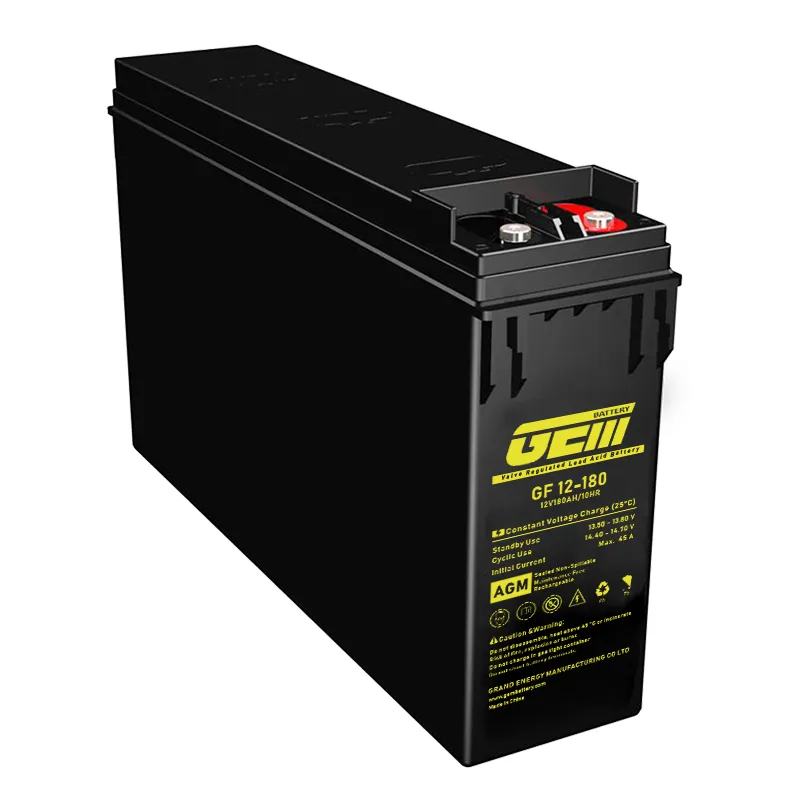

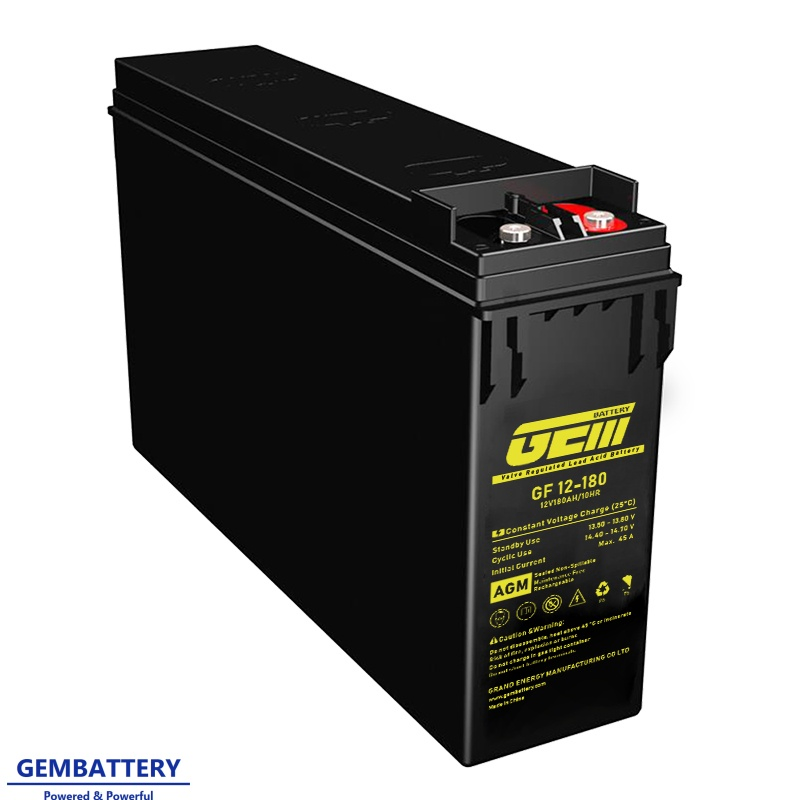

GF Series batteries are tailor-designed for telecom applications and data centers. Featuring a front terminal access layout, these batteries are easily installed in modular cabinet and rack systems.
Utilizing advanced AGM technology and high-quality Pb-Ca-Sn thicker plates, the GF Series ensures excellent gas recombination efficiency and internal pressure regulation. This design provides absolute safety and high reliability, offering a 12-year float service life. Flame retardant ABS cases are also available for enhanced security.
| Model | Voltage (V) | Capacity (AH/10HR) | Dimension (mm) | Weight (kg) | Terminal | |||
|---|---|---|---|---|---|---|---|---|
| L | W | H | TH | |||||
| GF 12-50 | 12 | 50 | 277 | 106 | 223 | 230 | 17.0 | M8*16 |
| GF 12-75 | 12 | 72 | 562 | 115 | 187 | 194 | 19.5 | M8*16 |
| GF 12-100 | 12 | 100 | 394 | 110 | 286 | 286 | 30.0 | M8*16 |
| GF 12-105 | 12 | 105 | 507 | 110 | 223 | 238 | 32.0 | M8*16 |
| GF 12-120 | 12 | 120 | 551 | 109 | 240 | 240 | 40.7 | M8*16 |
| GF 12-155 | 12 | 155 | 551 | 110 | 288 | 288 | 48.5 | M8*16 |
| GF 12-180 | 12 | 180 | 550 | 125 | 280 | 280 | 54.0 | M8*16 |
| GF 12-200A | 12 | 200 | 546 | 125 | 316 | 323 | 58.0 | M8*16 |
| GF 12-200B | 12 | 200 | 561 | 125 | 316 | 316 | 58.5 | M8*16 |

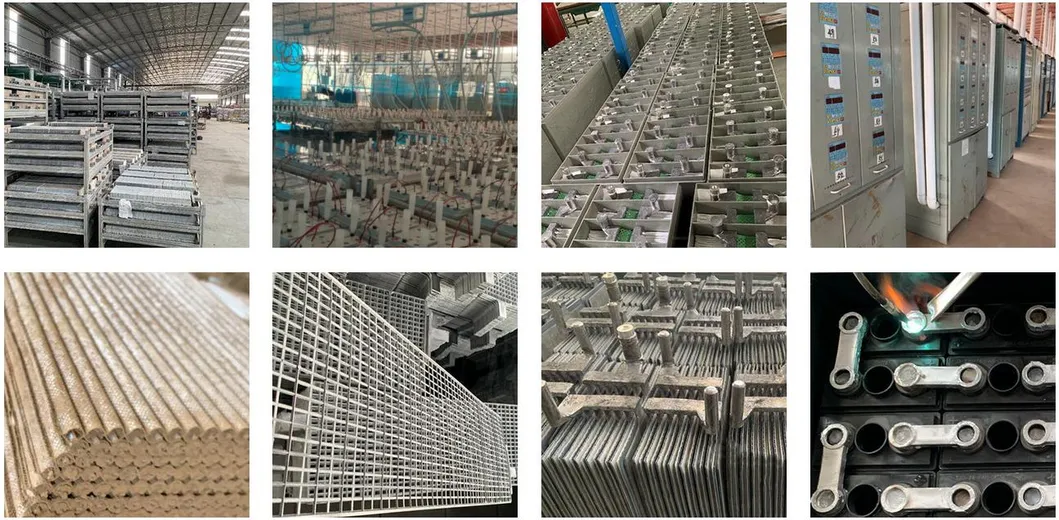

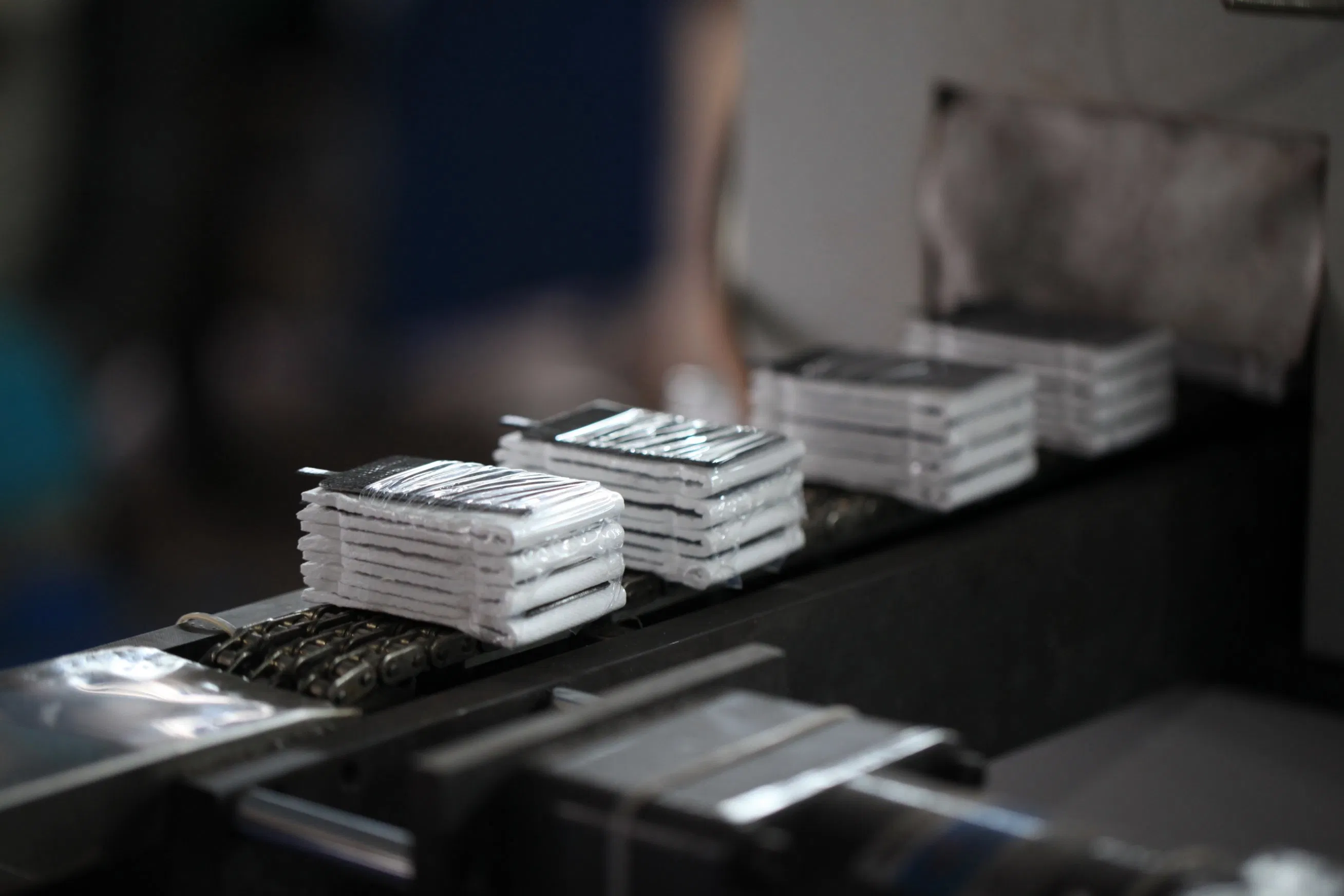

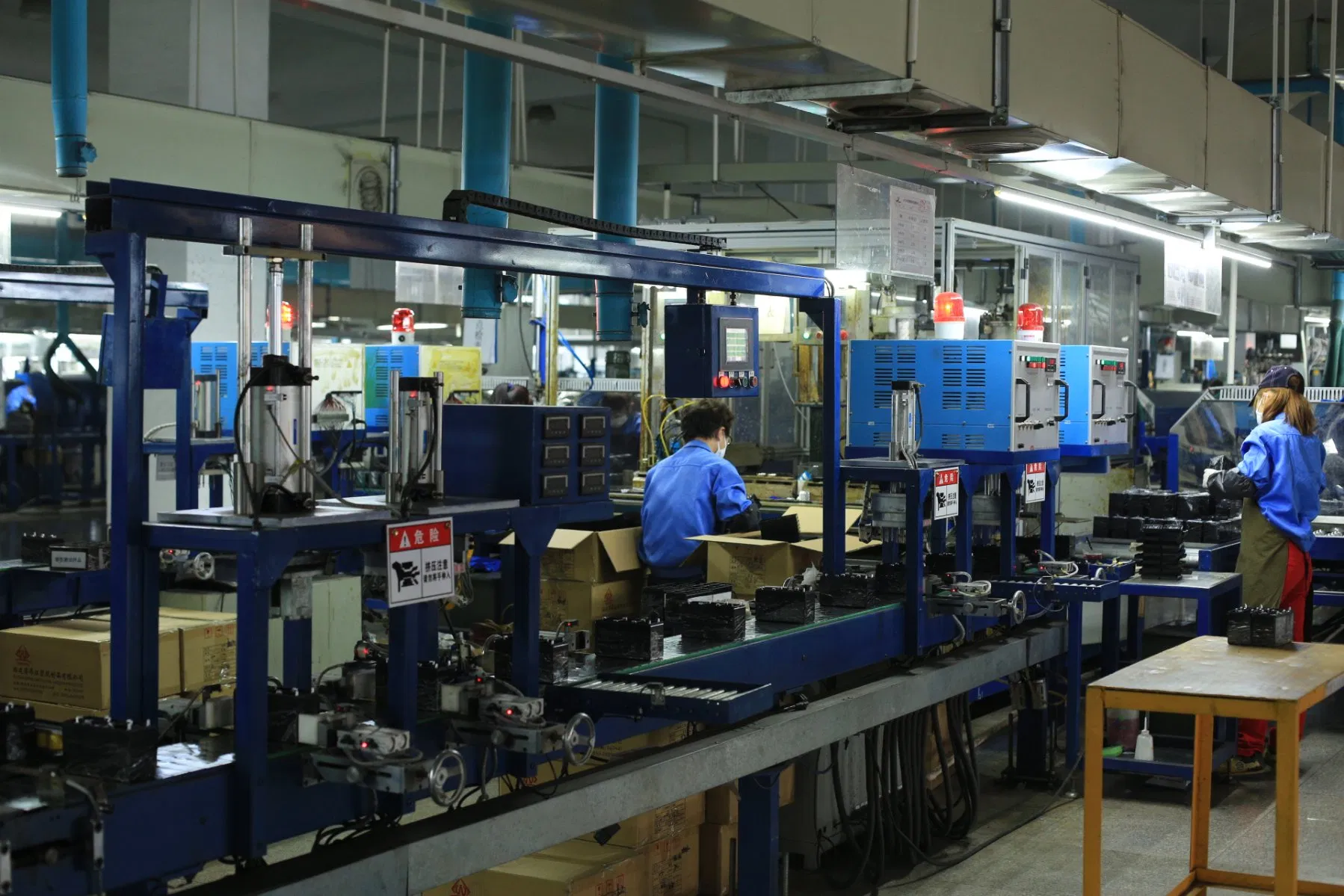

Our expert teams focus on Product Engineering, R&D, and Quality Management. We utilize in-house labs for rigorous plate testing, including Spectrum analysis to ensure lead purity exceeds 99.996%. Every battery undergoes extreme condition testing—including high/low temperature, short circuit, and welding quality checks—before reaching the customer.
A1: The GF Series is designed for a 12-year float service life under optimal conditions, making it ideal for long-term telecommunication and data center use.
A2: The front terminal layout allows for much easier installation and maintenance within standard 19-inch or 23-inch modular cabinets and racks, common in telecom environments.
A3: Yes, they utilize AGM technology which facilitates internal gas recombination. We also offer flame-retardant ABS cases to meet strict safety standards.
A4: Yes, our batteries are designed to operate in a wide temperature range from -45ºC to 65ºC, ensuring reliability in diverse climates.

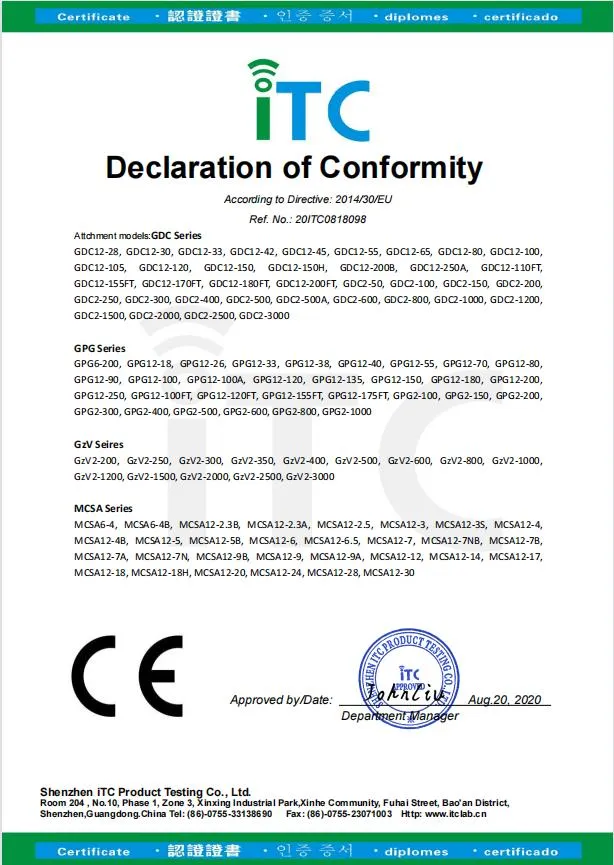

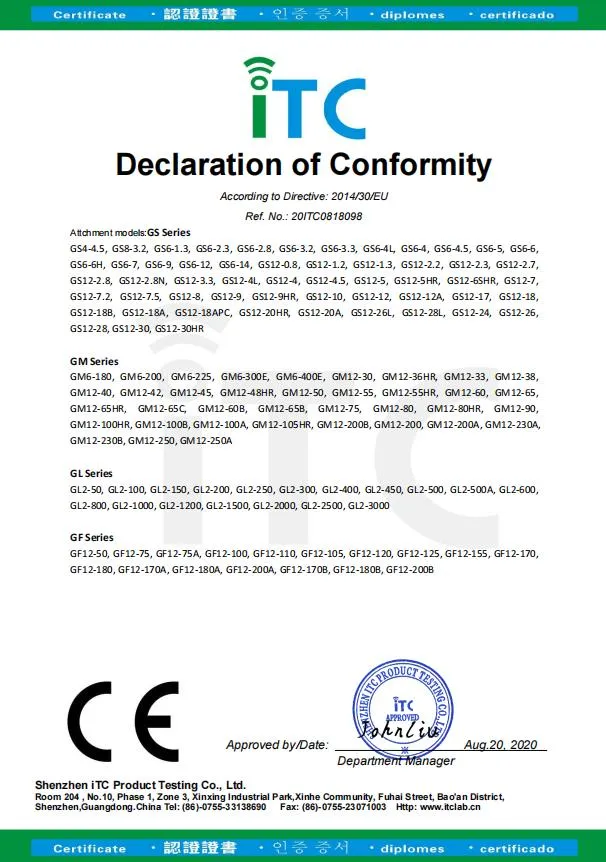

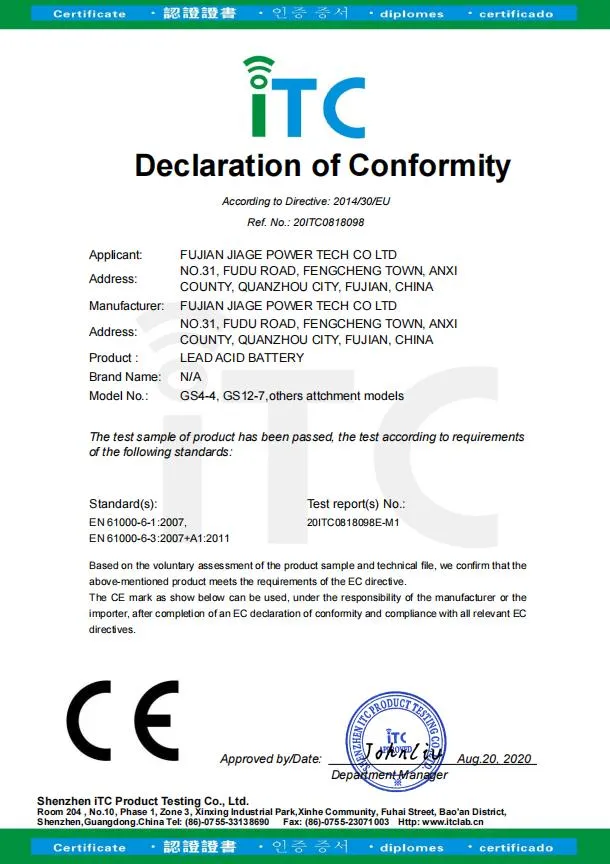

A5: Our products are qualified with ISO9001, ISO14001, UL, CE, and RoHS certificates, complying with international IEC standards.
A6: We use high-purity lead ingots with a purity level exceeding 99.996% to ensure superior performance and longevity.
