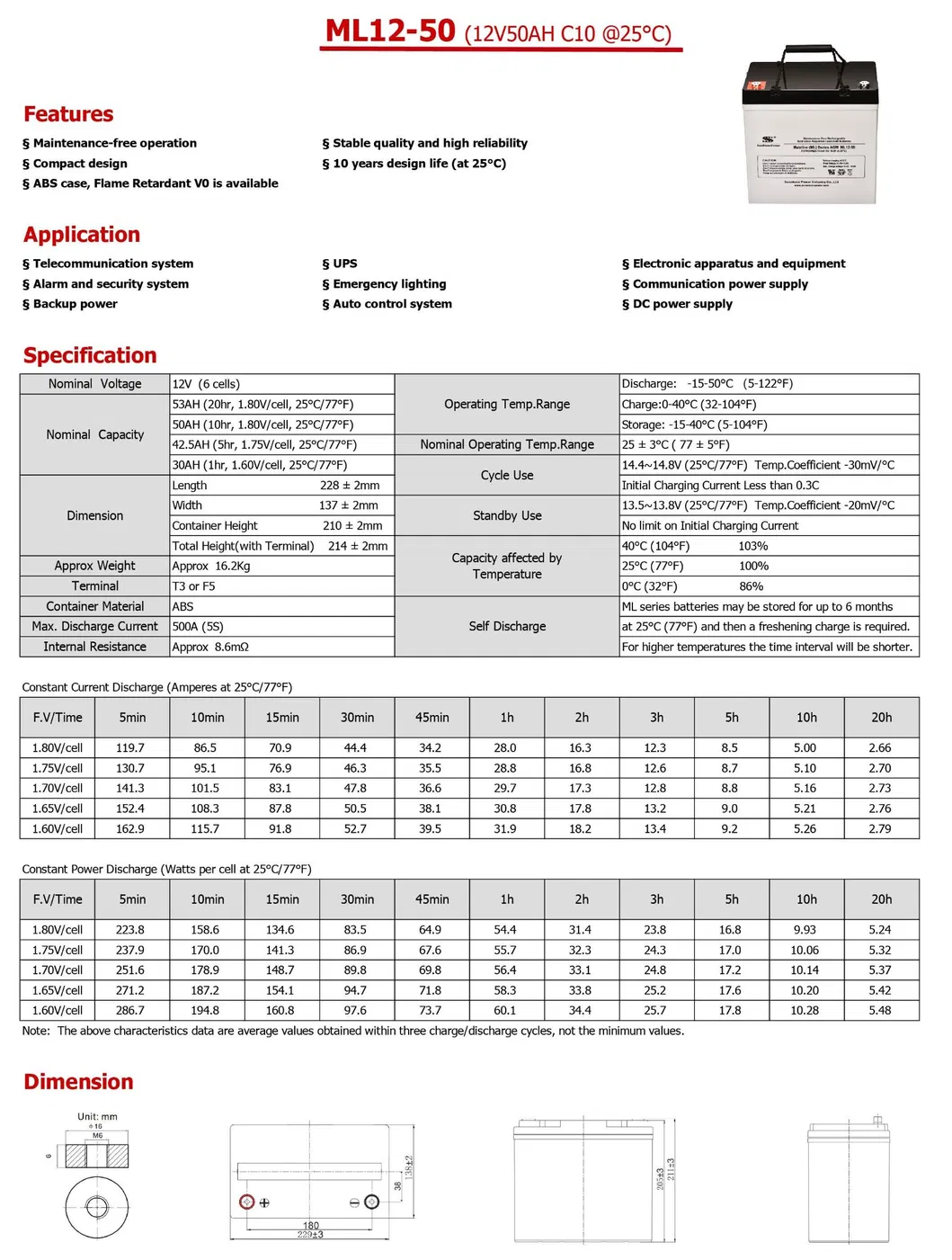

| Nominal Voltage | 12V (6 cells) | Operating Temp. Range | Discharge: -15 to 50°C (5-122°F) Charge: 0 to 40°C (32-104°F) Storage: -15 to 40°C (5-104°F) |
| Nominal Capacity | 53AH (20hr, 1.80V/cell, 25°C) 50AH (10hr, 1.80V/cell, 25°C) 42.5AH (5hr, 1.75V/cell, 25°C) |
Nominal Operating Temp. | 25 ± 3°C (77 ± 5°F) |
| Dimensions | Length: 228±2mm Width: 137±2mm Container Height: 210±2mm Total Height: 214±2mm |
Cycle Use | 14.4~14.8V (25°C) Initial Current < 0.3C |
| Approx Weight | Approx 16.2Kg | Standby Use | 13.5~13.8V (25°C) No limit on Initial Current |

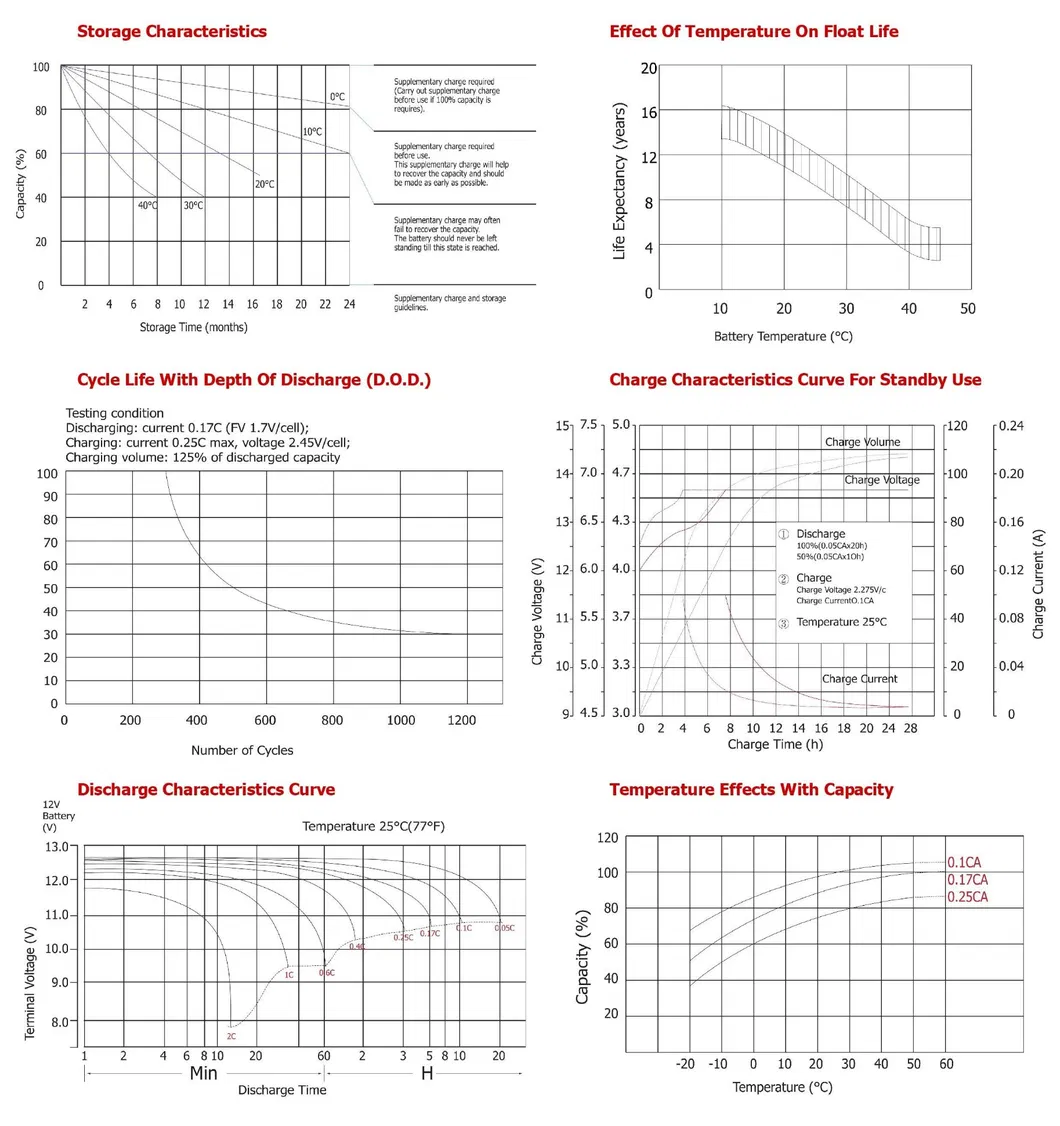

| Terminal | T3 or F5 | Capacity vs Temp. | 40°C: 103% | 25°C: 100% | 0°C: 86% |
| Container Material | ABS | Internal Resistance | Approx 8.6mΩ |
