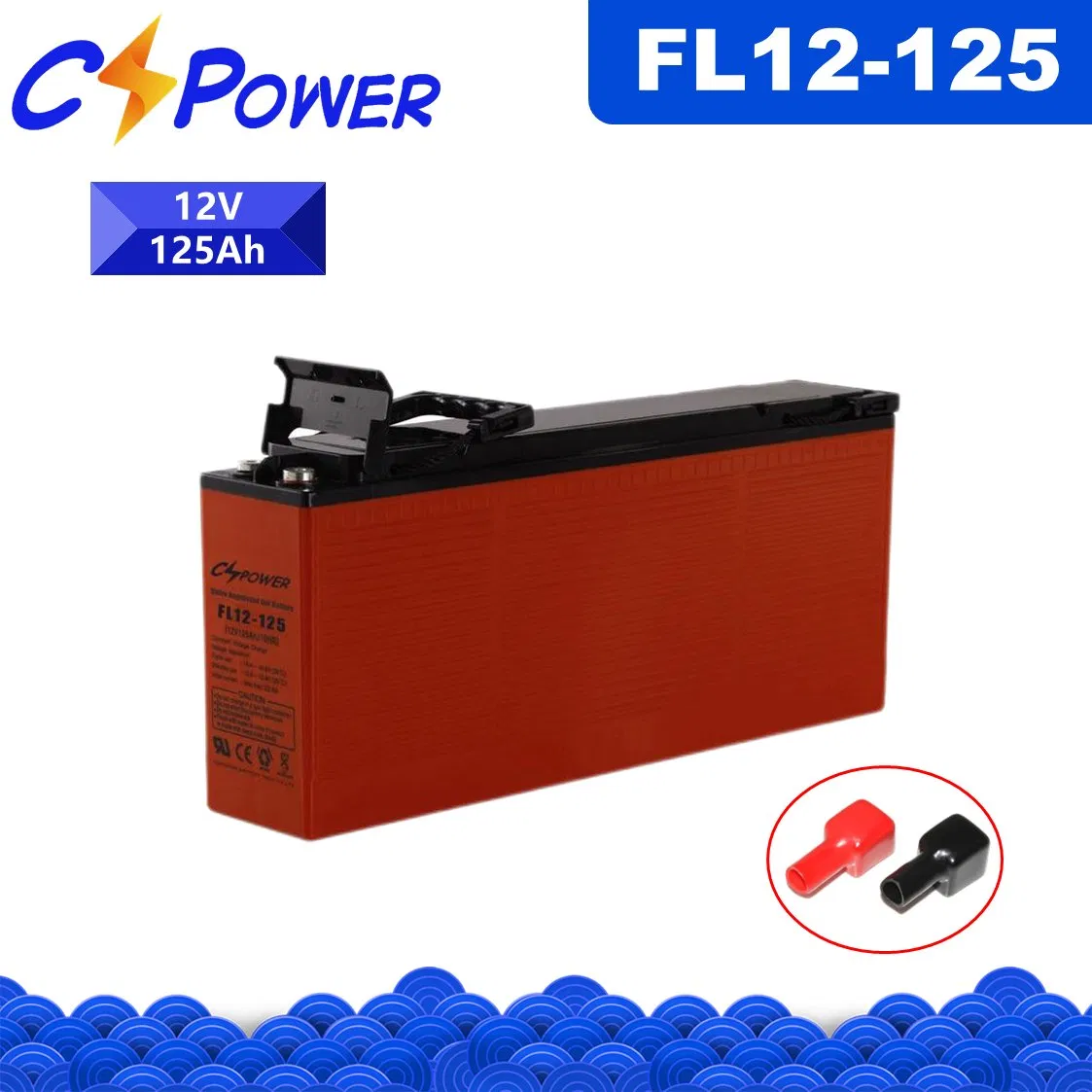

China Cspower Front Terminal Telecommunication UPS Battery Solar Gel Battery 125ah

Customization: Available
Type: Lead-Acid Batteries
Usage: UPS, Electric Power

Product Description

📊 Basic Specifications
Model NO.FL12-125
Nominal Voltage12V
Nominal Capacity125Ah
ElectrolyteGel
ShapeFront Terminal Battery
Lifespan12-15 Years
Size552*110*239mm
Weight38kg
Warranty3 Years
Lead Material99.997% Pure Lead
Case MaterialABS
Cycle Life1600 Cycles at 50% DOD

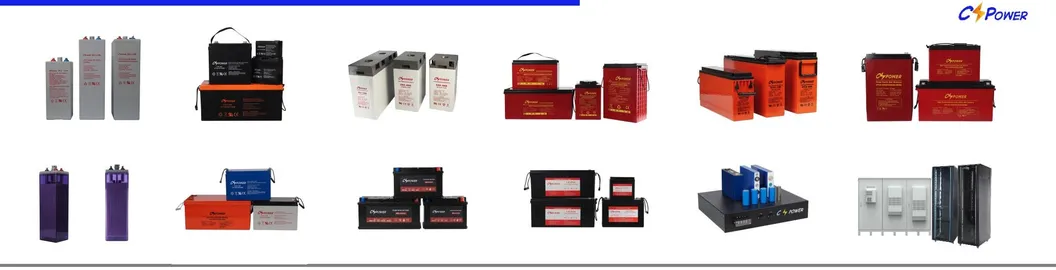

Front Terminal Battery
💡 Product Overview

Front Access Terminal Slim GEL Battery

The FL series of 12V GEL deep cycle batteries are recognized as a reliable and high-quality battery system. Designed with advanced patented GEL technology, these batteries offer a long service life of 10-15 years. They comply with international standards such as IEC60896-21/22, BS6290-4, and the Eurobat Guide.

Key Features
✔️
Maintenance-Free: Completely maintenance-free and non-spillable construction.
✔️
Wide Temp Range: Operates efficiently from -20°C to +60°C.
✔️
Explosion Proof: Safety valve regulated with integrated flame arrestor.
✔️
Low Self-Discharge: Less than 3% self-discharge per month at 25°C.
✔️
High Recovery: Superior deep discharge recovery capability using Supper-C additives.
📋 Technical Parameters (FL12-125)
ParameterValue
Design Floating Life @ 25ºC15 Years
Capacity @ 25ºC20 hour rate132.6Ah
10 hour rate125Ah
1 hour rate79.8Ah
Internal Resistance≤4.9 mΩ (Full Charged)
Max. Discharge Current750A (5s)
Charge Voltage @ 25ºCStandby Use13.6-13.8V
Cycle Use14.4-14.9V

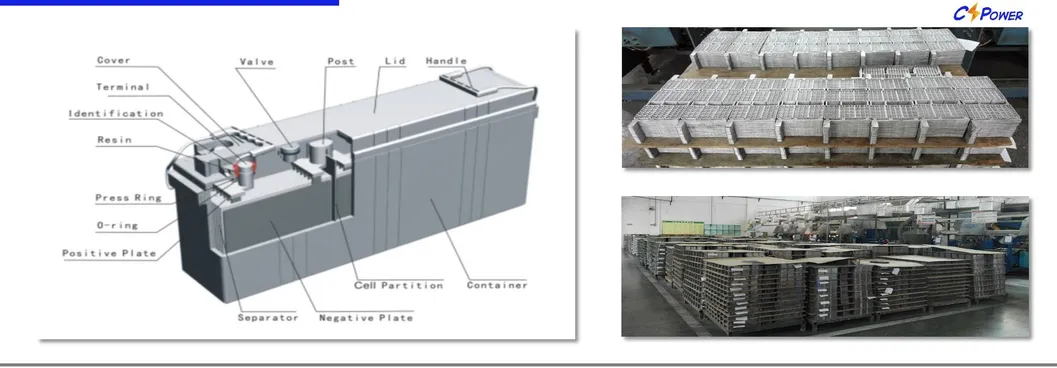

Battery Structure
🏭 Production & Quality Control

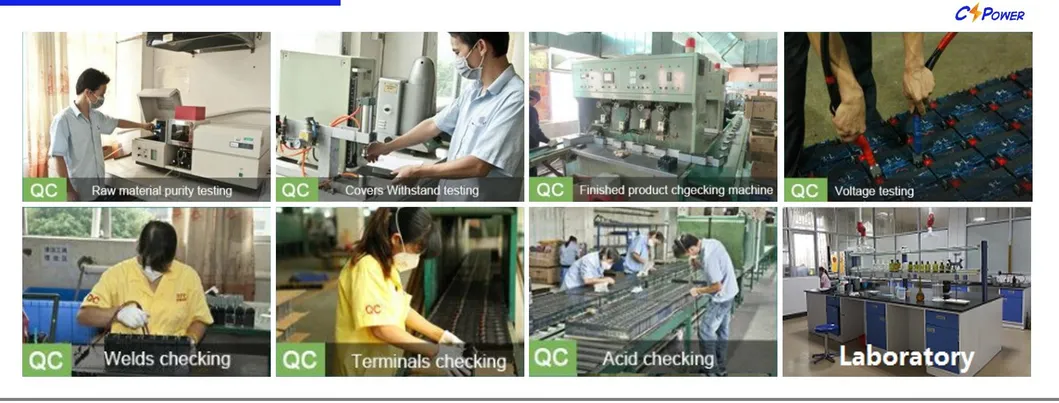

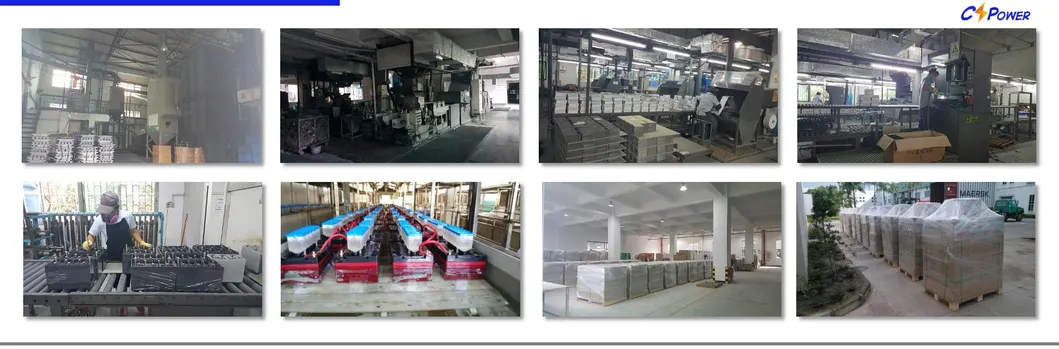

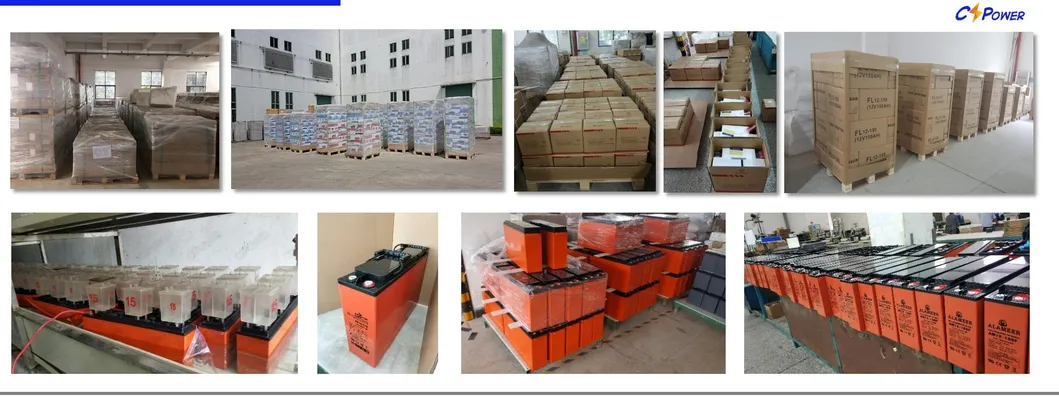

Assembling Quality Control Packing
🚀 Main Applications
Applications
🔹 Telecommunication Control Equipment
🔹 UPS & Computer Stand-by Power
🔹 Solar & Wind Energy Systems
🔹 Emergency Lighting & Fire Systems
🔹 Electric Powered Vehicles & BTS

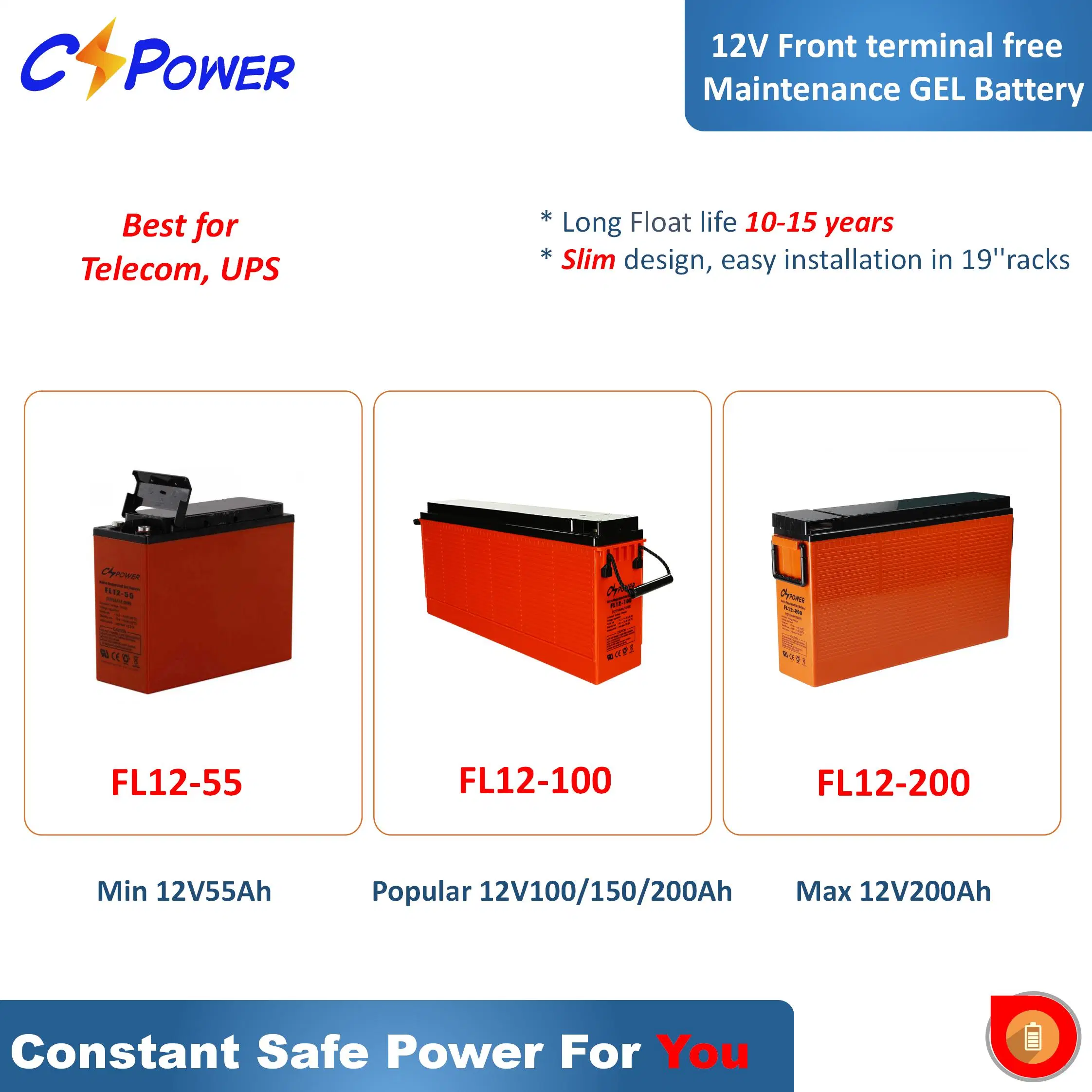

📑 FL Series Model List
ModelVoltageCapacityDimensions (L*W*H)Weight (kg)
FL12-5512V55Ah277*106*223mm16.0

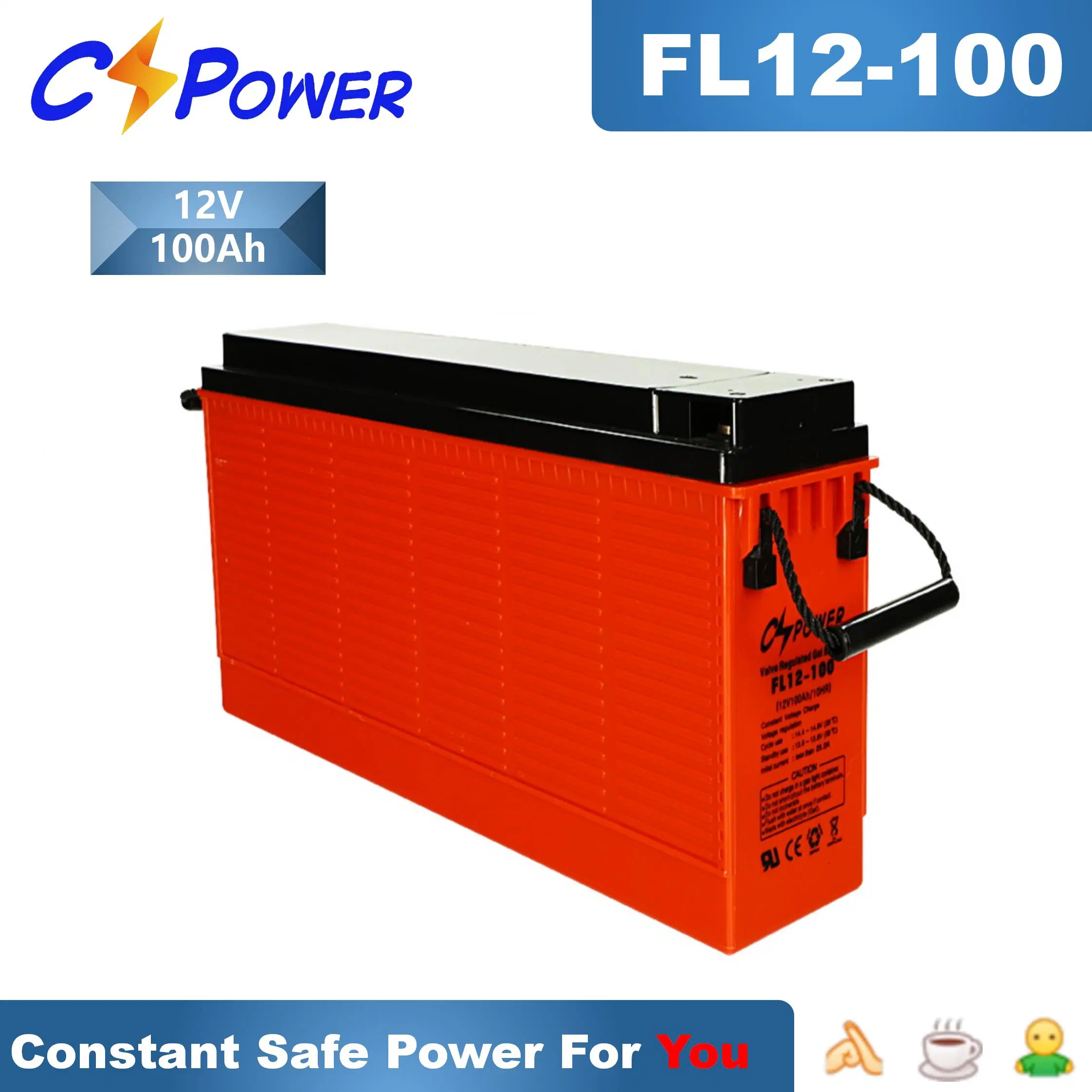

FL12-10012V100Ah507*110*223mm29.4
FL12-12512V125Ah552*110*239mm38.0
FL12-15012V150Ah551*110*288mm44.0
FL12-200A12V200Ah560*125*316mm58.0
Frequently Asked Questions
Q1. Can the battery be delivered by sea and air?
Yes, our batteries can be delivered by both sea and air. We have full documentation including MSDS and test reports for safe transport as non-dangerous products.
Q2. How long is the typical delivery time?
Generally, it takes about 7 days for stock products, 20 days for partial container orders, and approximately 30 days for a full 20ft container.
Q3. Why does the battery have different capacities at different hour rates?
Battery capacity is dynamic and depends on the discharge current. A lower discharge current (like a 20-hr rate) allows the battery to deliver more total Amp-hours than a high discharge current.
Q4. What is the shelf life and how should it be maintained?
VRLA batteries self-discharge less than 3% per month at 25°C. They should not be stored for more than 6 months without recharging. In hot climates, recharge every 3 months.
Q5. How is product quality controlled during production?
We utilize a comprehensive quality system including Incoming Quality Control (IQC), In-process Quality Control (PQC) with full inspections, and Outgoing Quality Control (OQC) to ensure zero defects.
Q6. Can I fast charge the battery?
Fast charging is generally not recommended as it can be harmful to the long-term health and cycle life of the battery.
