Basic Specifications
Model NO.
6FM55FR (12V55AH/10HR)
Discharge Rate
Low Discharge Rate
Certificate
CE/UL/ISO9001/ISO14001/Ohsas18001
Capacity
1,000,000 PCS/Month
Product Overview

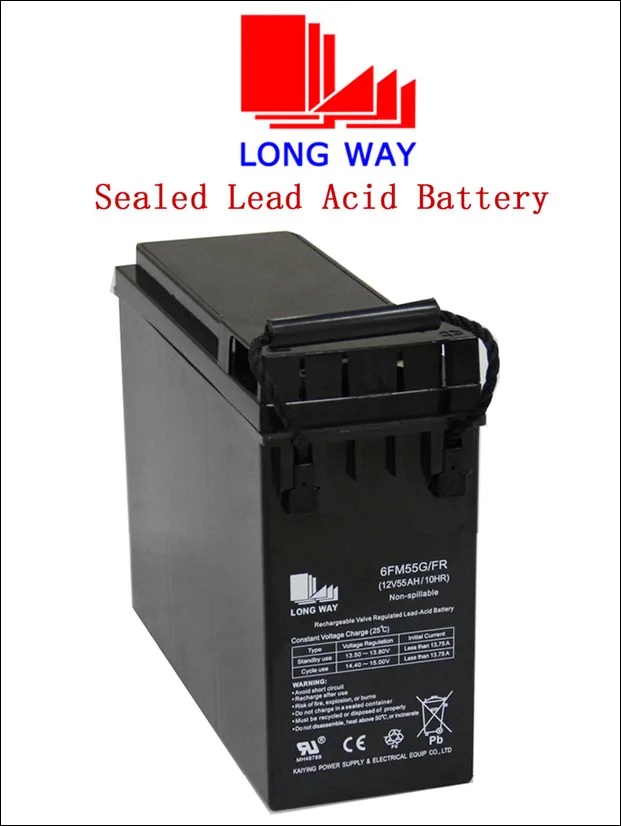

12V55ah AGM Front Access Battery for Telecommunications System
This front terminal battery is designed with a service life of up to 12 years specifically for Telecom use. All units are highly efficient, leak-proof, and completely maintenance-free. Featuring front access terminals, it ensures easy and quick connections for various standby power requirements.

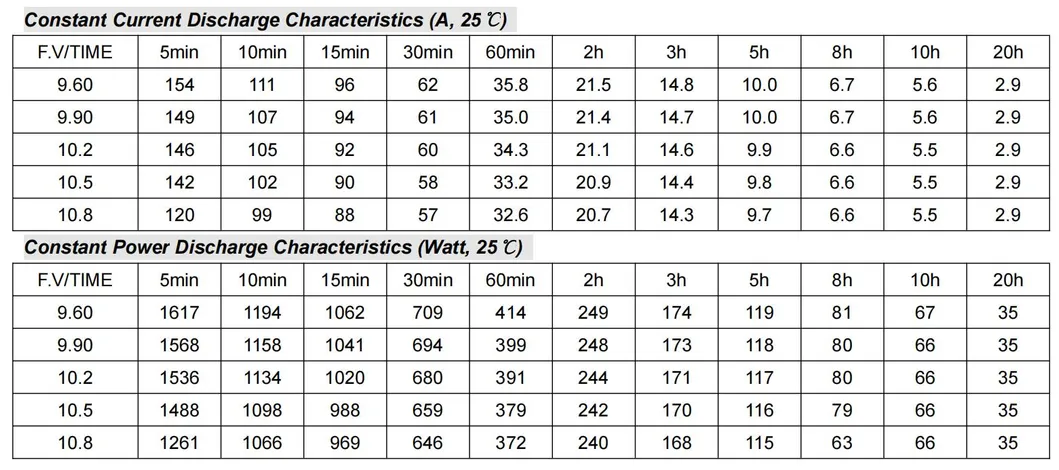

Detailed Technical Parameters
Size
L291*W106*H223 (TH230) mm
Weight
Approx. 18.0kg (39.7 lbs)
Internal Resistance
Approx. 6.4mΩ
Float Charge
13.7~13.9VDC @25ºC
Container Material
ABS (UL94-HB) / V0 optional
Key Features & Advantages
🌿 Environmental friendly
🔋 Thick pasted plates (lead-tin-calcium alloy)
🌬️ Centralized venting system
🛠️ Front access terminals for easy install
⚡ Low internal resistance
📉 Lower self-discharge rate
Typical Applications
- Communication & Telecommunication Systems
- Uninterruptible Power Supplies (UPS)
- Electronic Cash Registers
- Microprocessor-based Office Machines
- Standby Power Supplies

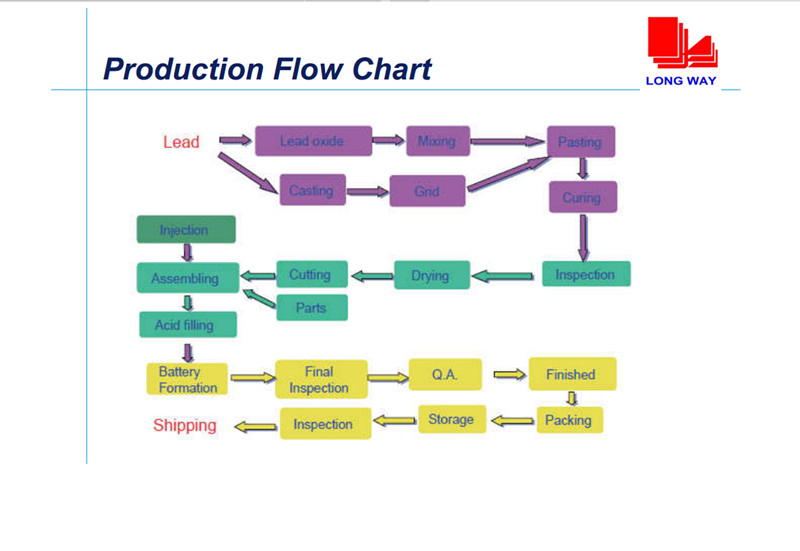

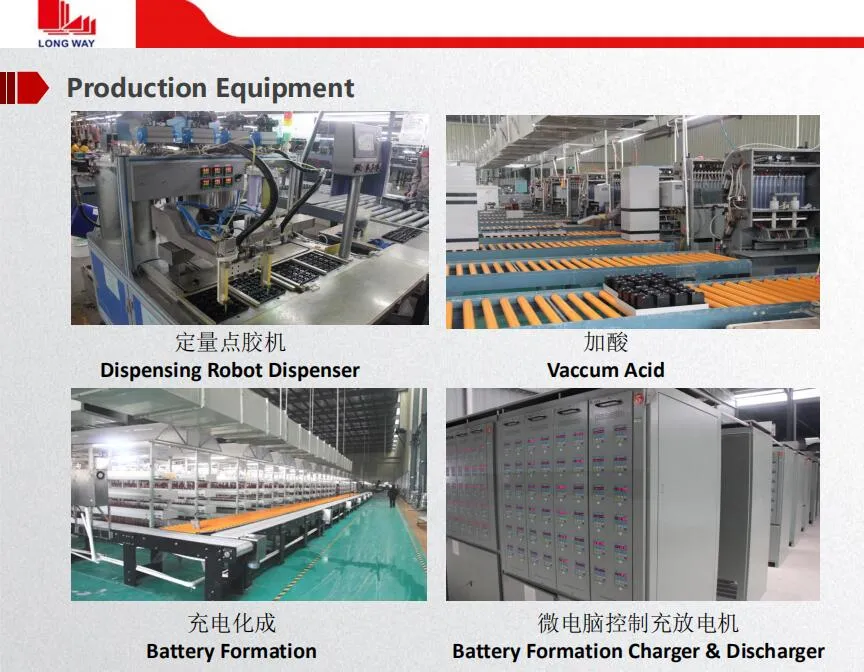

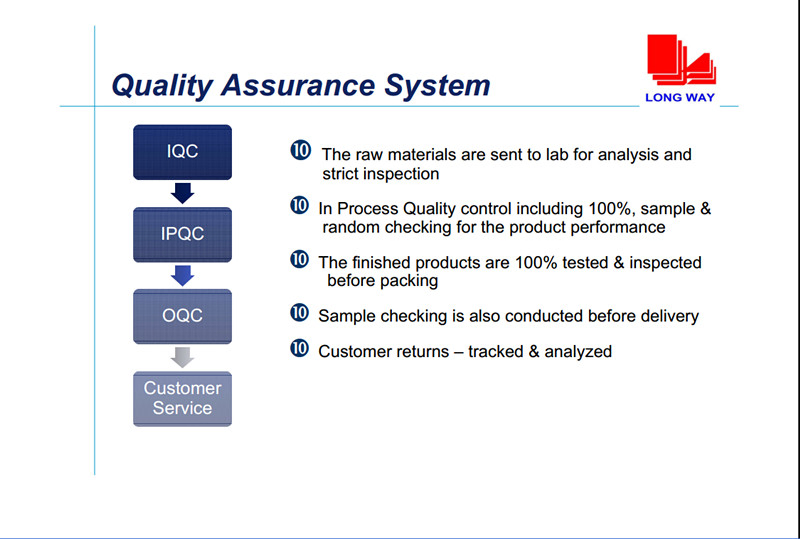

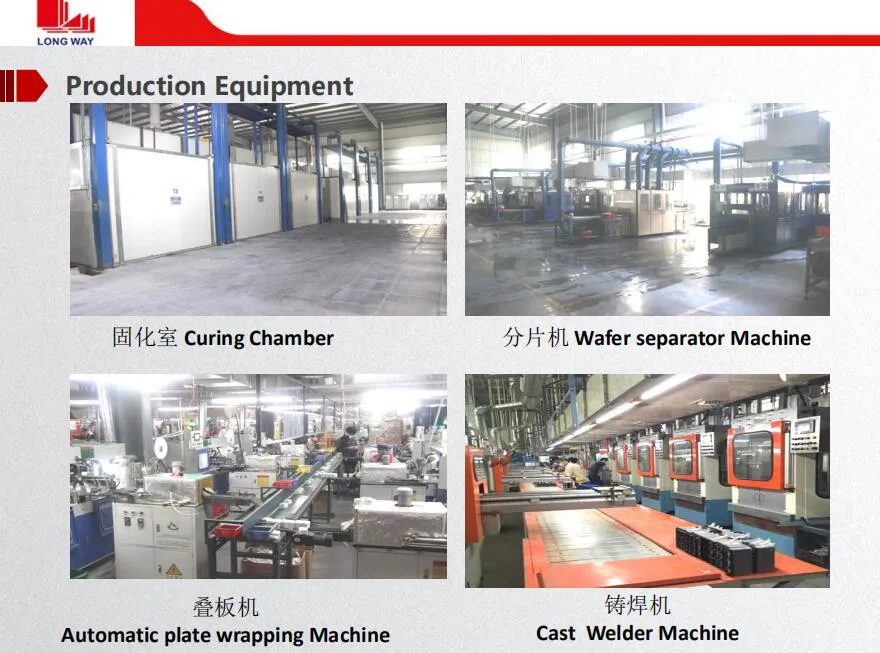

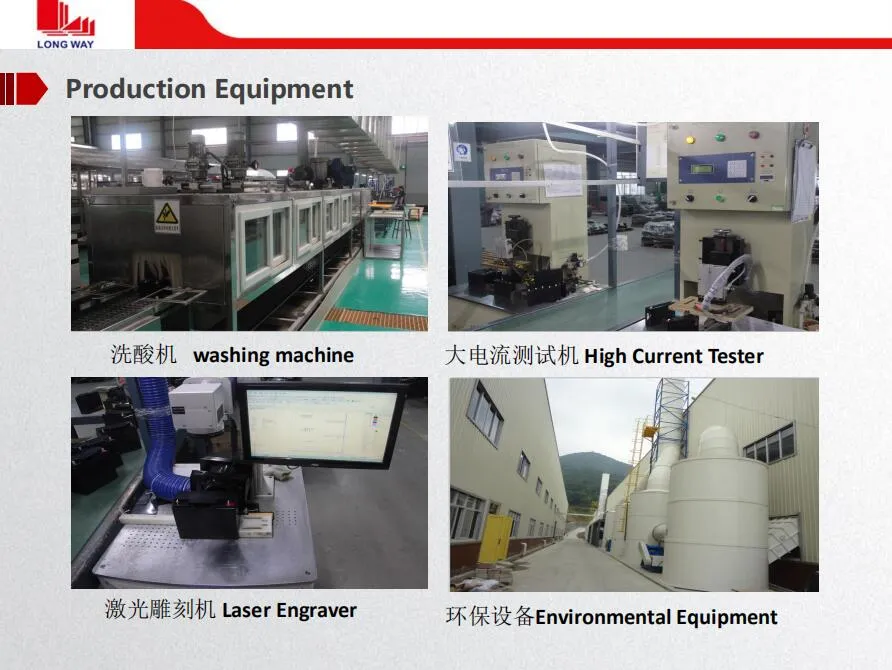

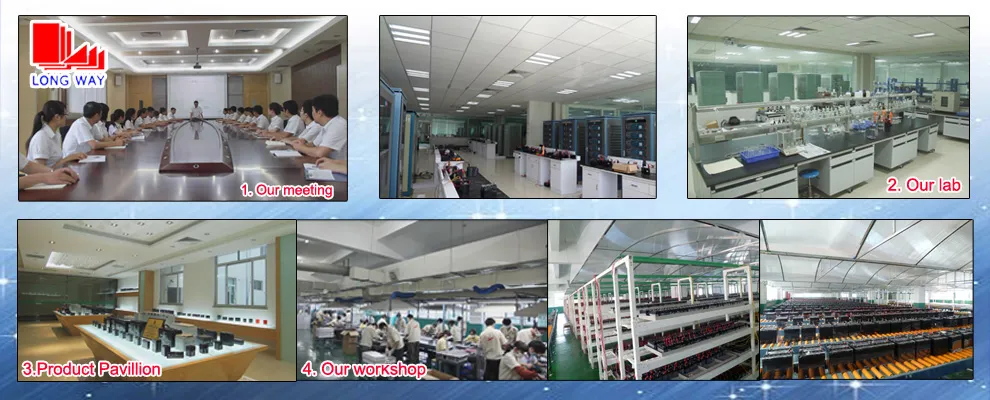

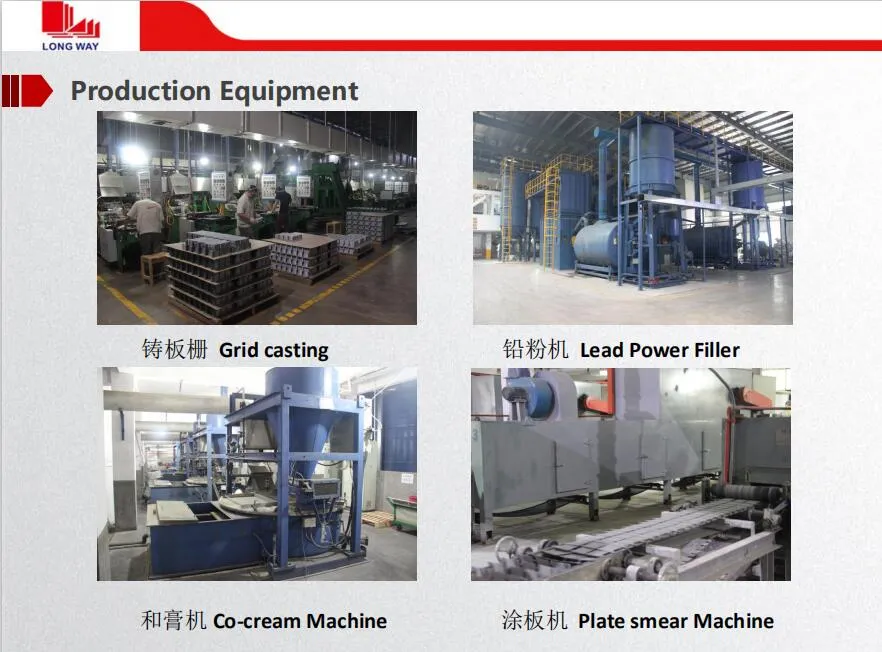

Manufacturing & Quality Assurance
Full Series Model Comparison
| Battery Model |
Nominal Voltage (V) |
Capacity (AH) |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (Kg) |
Terminal |
| 6FM55FR | 12 | 55 | 291 | 106 | 223 | 18.0 | F12 |
| 6FM75FR | 12 | 75 | 562 | 115 | 187 | 23.5 | F12 |
| 6FM85FR | 12 | 85 | 562 | 115 | 187 | 25.5 | F12 |
| 6FM105FR | 12 | 105 | 527 | 110 | 225 | 32.5 | F12 |
| 6FM110FR | 12 | 110 | 410 | 110 | 288 | 33.0 | F12 |
| 6FM125FR | 12 | 125 | 551 | 109 | 239 | 36.0 | F12 |
| 6FM150FR | 12 | 150 | 565 | 110 | 288 | 44.0 | F12 |
| 6FM180FR | 12 | 180 | 560 | 125 | 316 | 52.0 | F12 |
Frequently Asked Questions
What is the expected service life of the FR series battery?
The 6FM55FR series is a front terminal battery designed with an expected life of up to 12 years in telecommunications and standby applications.
Is this battery maintenance-free?

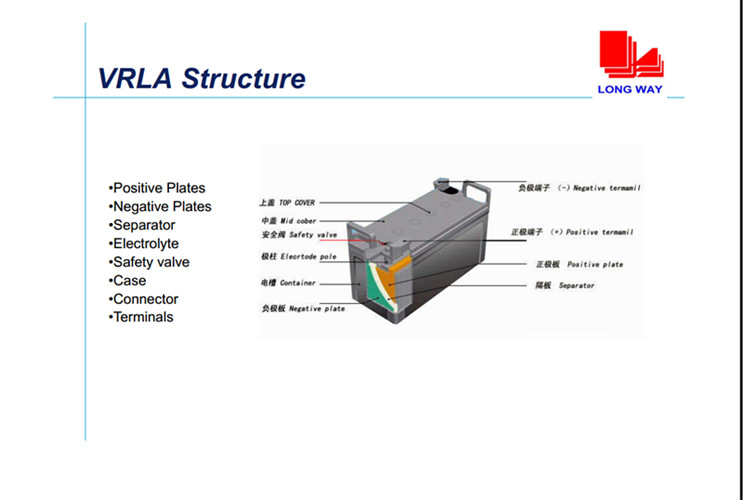

Yes, these are Valve Regulated Lead Acid (VRLA) batteries. They are sealed, leak-proof, and require no addition of water or electrolyte during their service life.
What are the storage requirements to prevent self-discharge?
Batteries can be stored for more than 6 months at 25ºC. The self-discharge ratio is less than 3% per month at this temperature. We recommend charging the batteries before use if stored for long periods.
Can the container material handle high flammability requirements?
The standard container is made of ABS (UL94-HB). However, flammability resistance of UL94-V0 is available upon specific request.
Why is "Front Access" important for telecom systems?
Front access terminals allow for much easier and quicker connection and maintenance, especially when batteries are installed in standard power racks or cabinets.
What is the optimal operating temperature for these batteries?
The nominal operating temperature is 25ºC ± 3ºC. However, they can operate in discharge conditions from -20ºC to 60ºC.
