144kwh Lithium-Ion Battery Featuring Smart Air Cooling Technology

1 / 5

144kwh Lithium-Ion Battery Featuring Smart Air Cooling Technology

Send Inquiry

Product Description

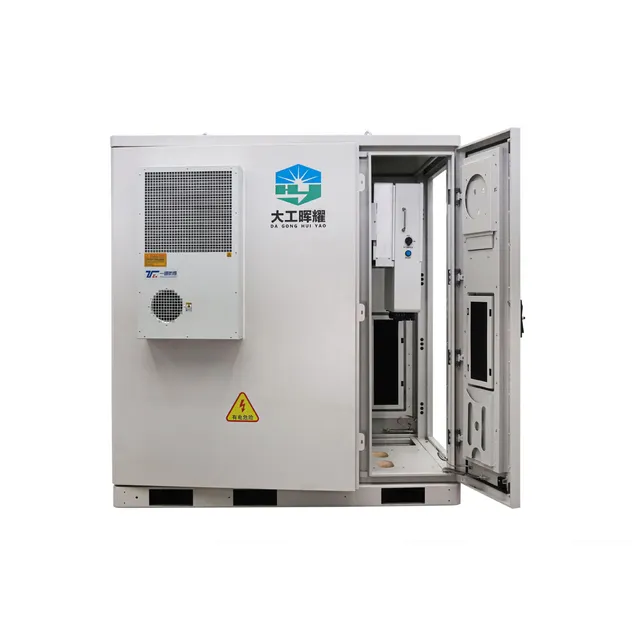

144kWh Lithium-Ion Energy Storage System

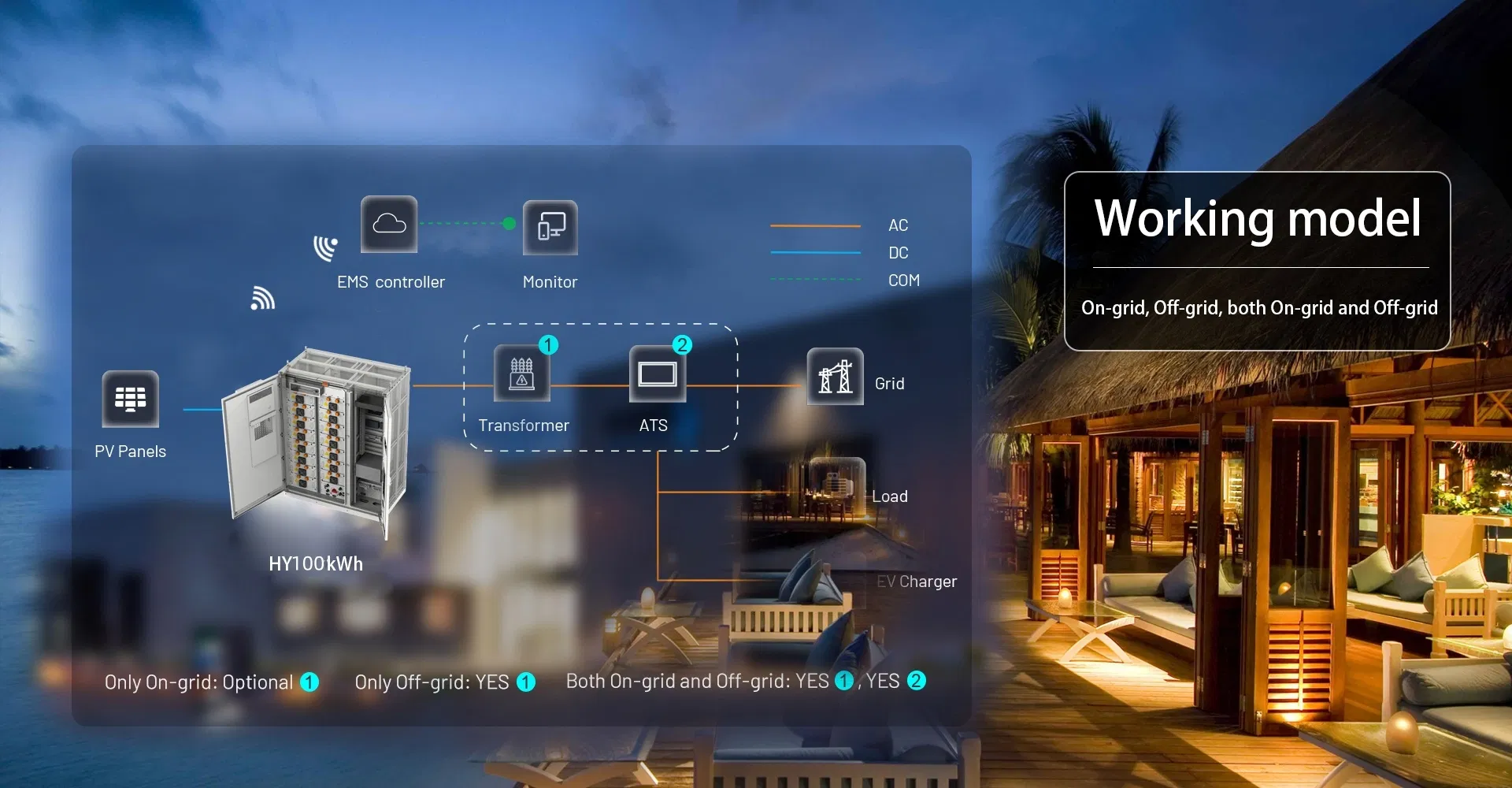

Unleashing the power of innovation, our 144kWh/50kW energy storage system is meticulously engineered to cater to a wide array of application scenarios. Whether you're seeking a robust backup power supply, efficient peak shaving, seamless power output, or strategic utilization of peak-valley electricity price differences, this system is your ultimate solution.

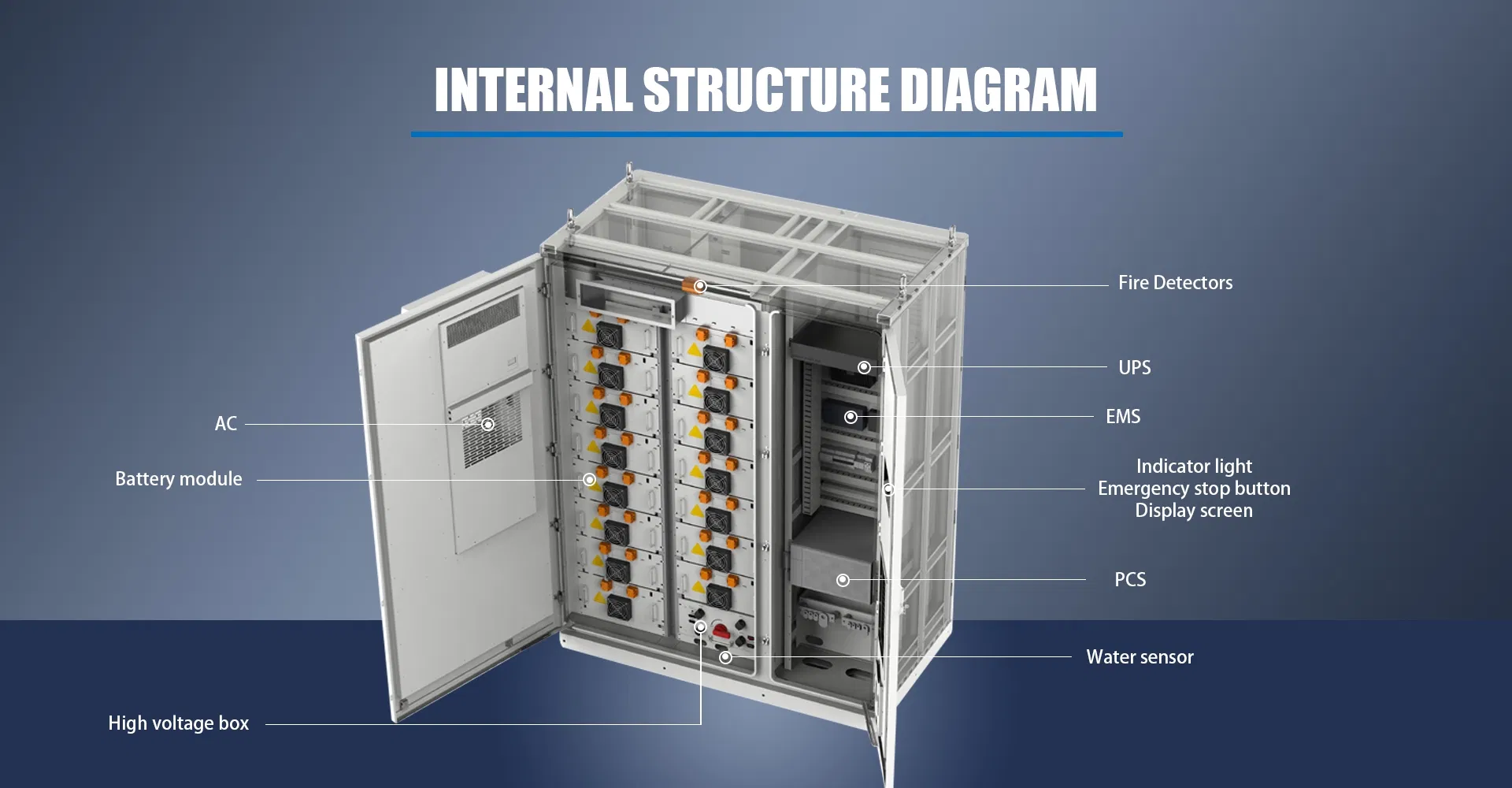

Core Components

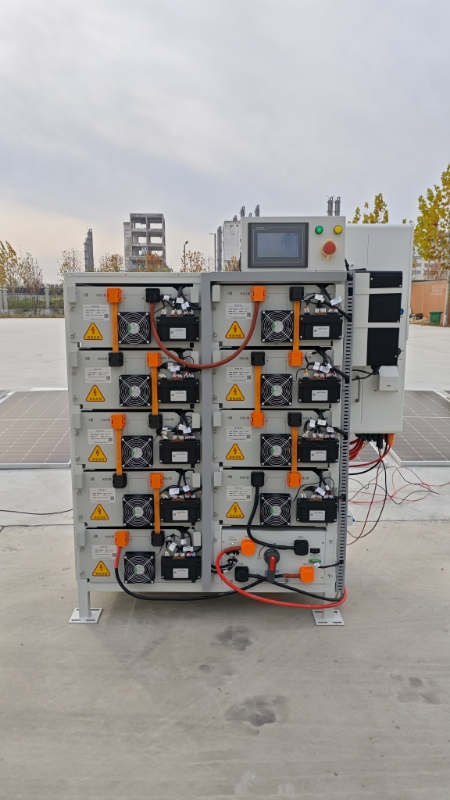

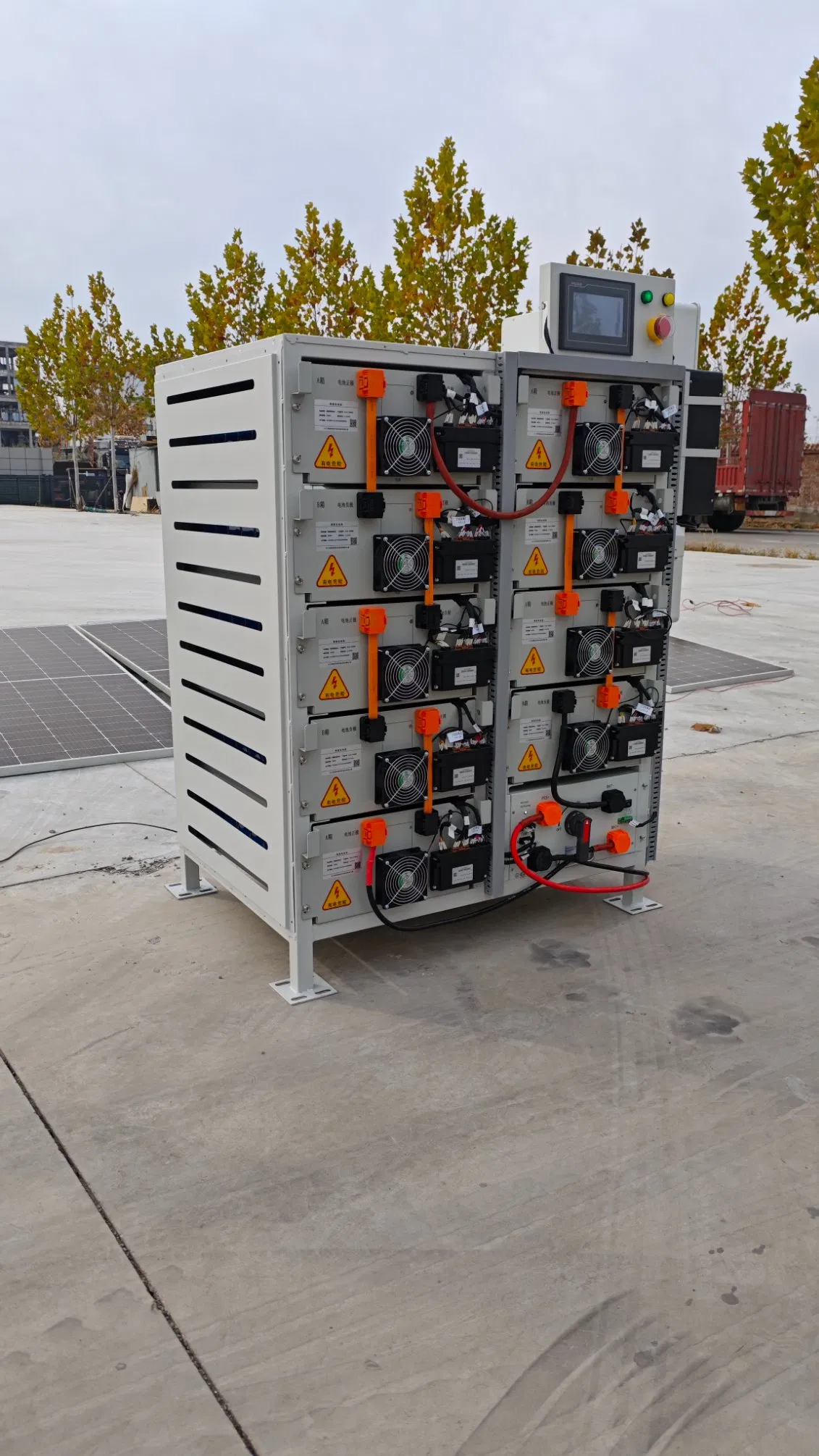

⚡ Energy Storage Battery Pack
🛡️ Battery Management System (BMS)
📦 High-Voltage Control Box

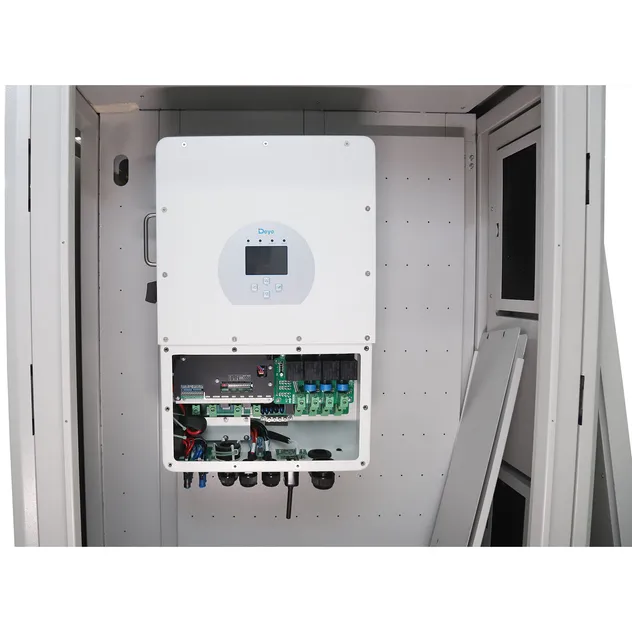

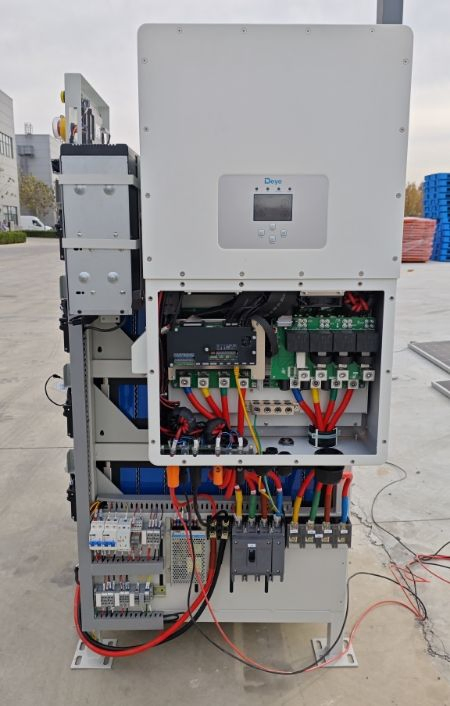

🔄 Hybrid Inverter 50kW
❄️ Air Conditioning System
🔥 Fire Protection System

Technical Specifications

Product Data Sheet (DH-144kWh-50K)
Rated Output Voltage	3L/N/PE 220/380 \| 230/400Vac
Rated Output Power	50KW
Grid Type	Three phase
Battery Capacity	460.8V 144kWh
Battery Cell Type	LiFePO4 (314Ah 1P 144S)
Cooling System	Smart Air Cooling
Dimensions (LWH)	1646 * 1004 * 1695 mm
Weight	≤ 1400 Kg
Protection Level	IP54
Communication	RS485, Ethernet, CAN, Modbus TCP/RTU

Professional BESS Solutions

As a professional Battery Energy Storage System (BESS) provider, we deliver reliable energy solutions globally by integrating expertise in electrochemistry, power electronics, and system integration. We are committed to green development to create a sustainable future, enabling universal access to clean energy.

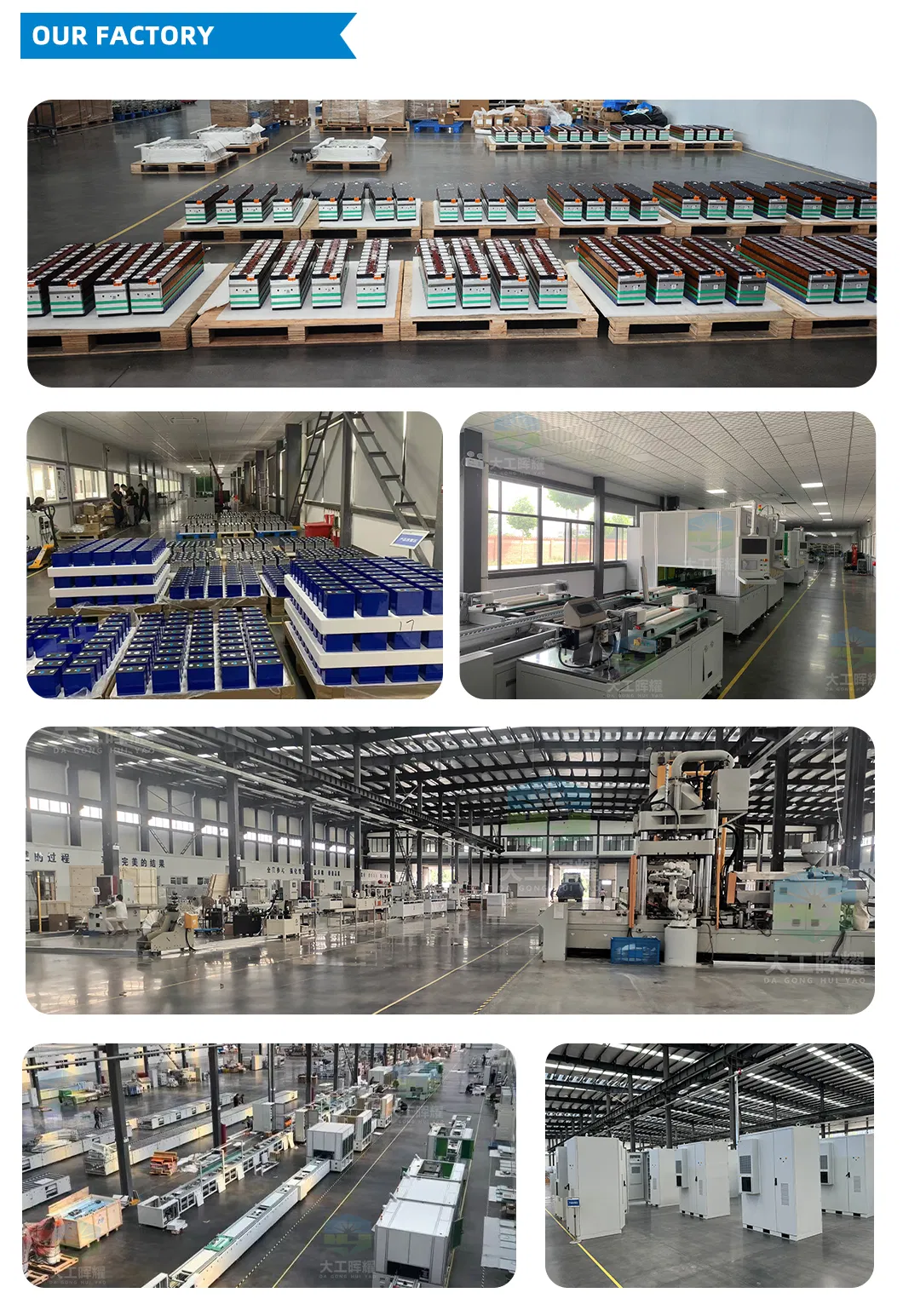

Manufacturing Excellence

Frequently Asked Questions

Q: Does the system require technical adjustments during the first operation?

A: No, all parameters are preset at the factory. The system will automatically adapt upon startup without manual adjustment.

Q: How can I monitor the system status?

A: You can view the device directly via the built-in LCD screen, or use an optional WIFI module to connect to our mobile APP.

Q: How often is maintenance required?

A: The system is designed for high automation. Regular monitoring via the screen or APP is sufficient; no frequent component changes are required under normal operation.

Q: What is the after-sales policy for this system?

A: Within the warranty period, product defects are replaced free of charge. Beyond the warranty period, replacement parts are provided at a 20% discount on the original price.

Q: What are the payment terms for orders?

A: We accept T/T payments, with a 30% deposit required before production and the remaining 70% balance due before delivery.

Q: What is the factory's daily production capacity?

A: Our factory maintains a daily production capacity of up to 500 units to ensure timely delivery.
