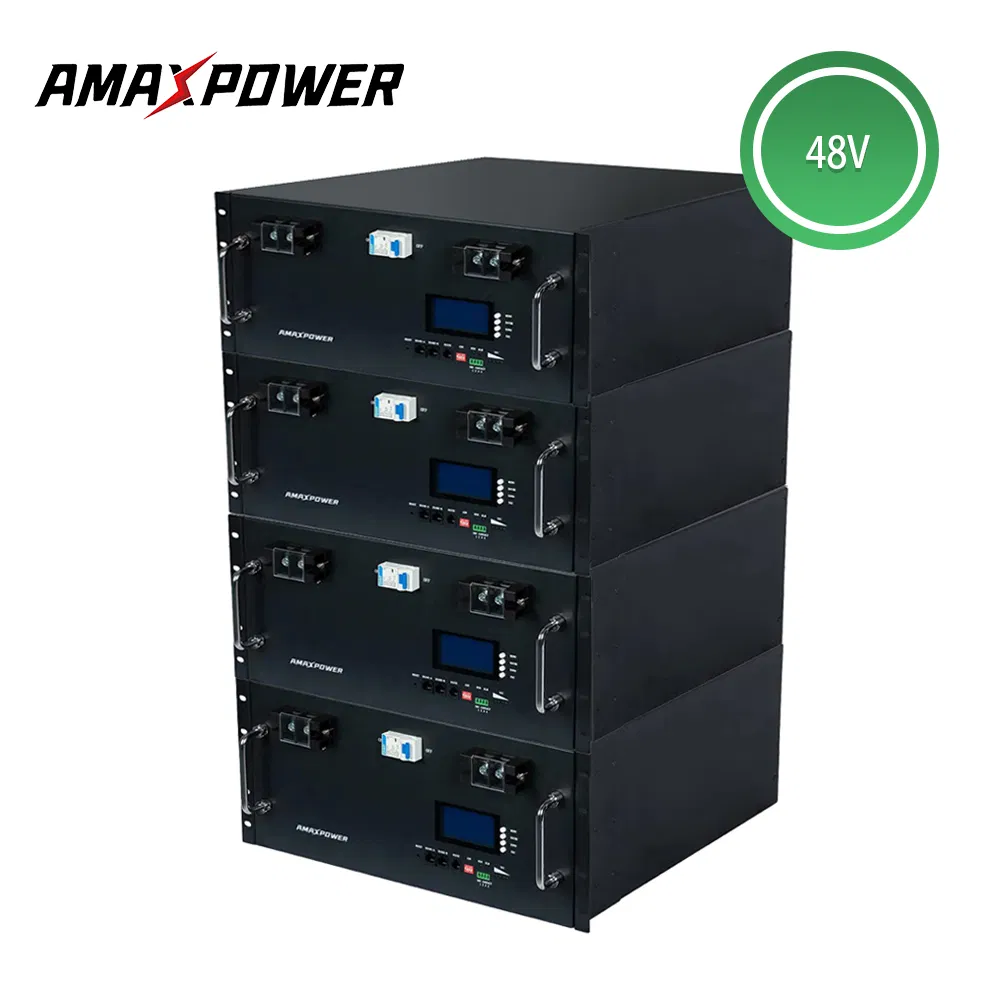

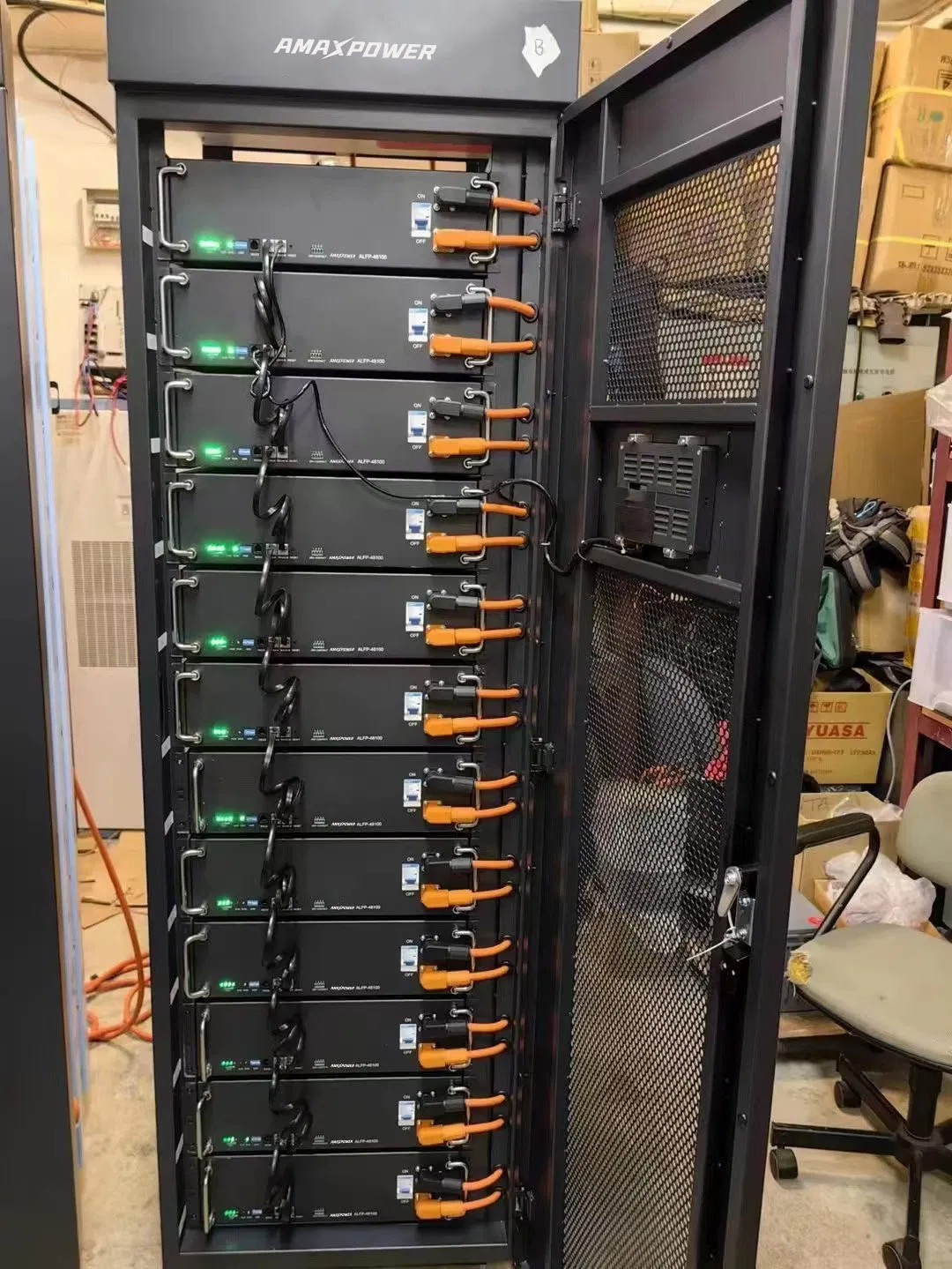

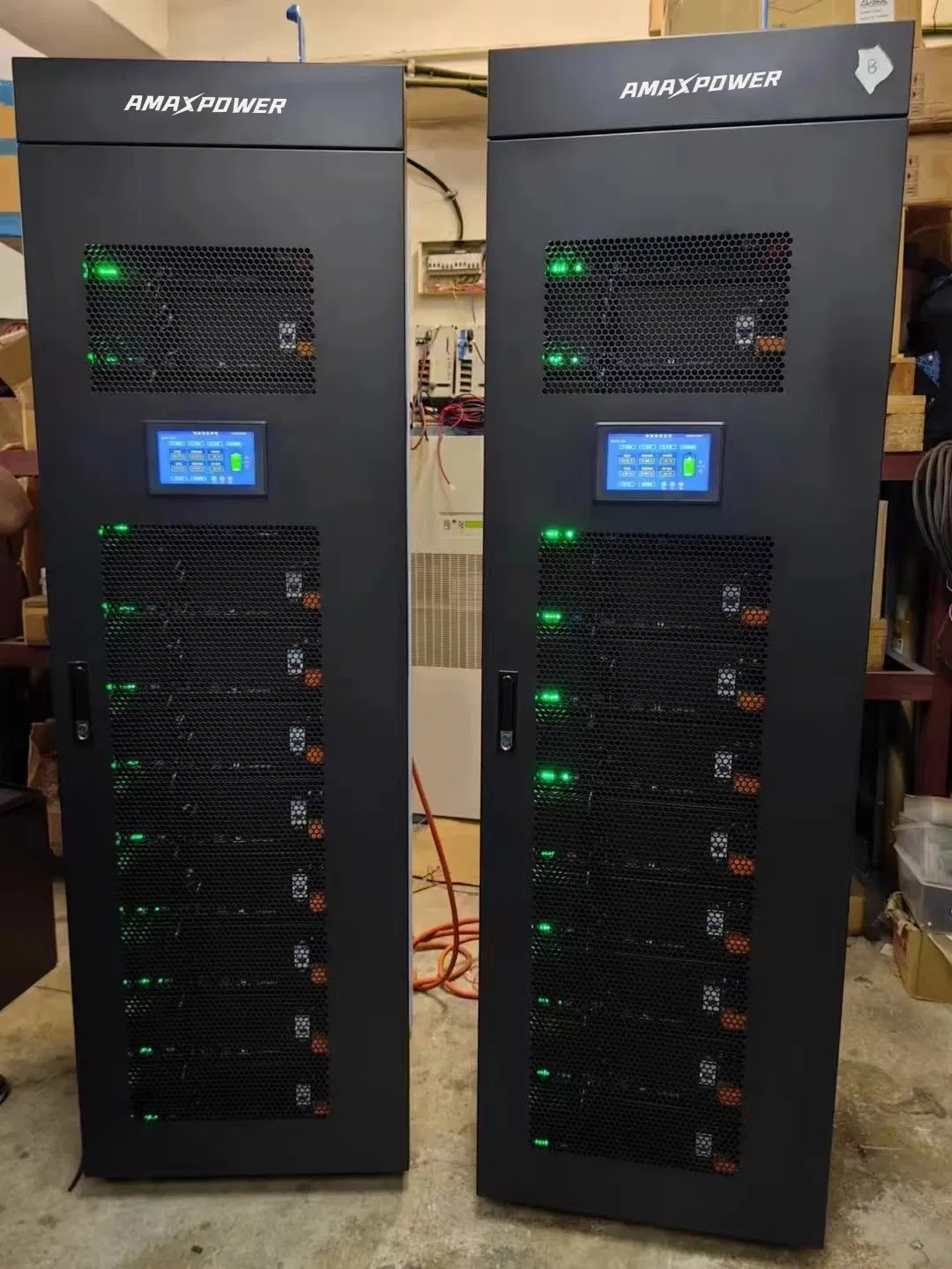

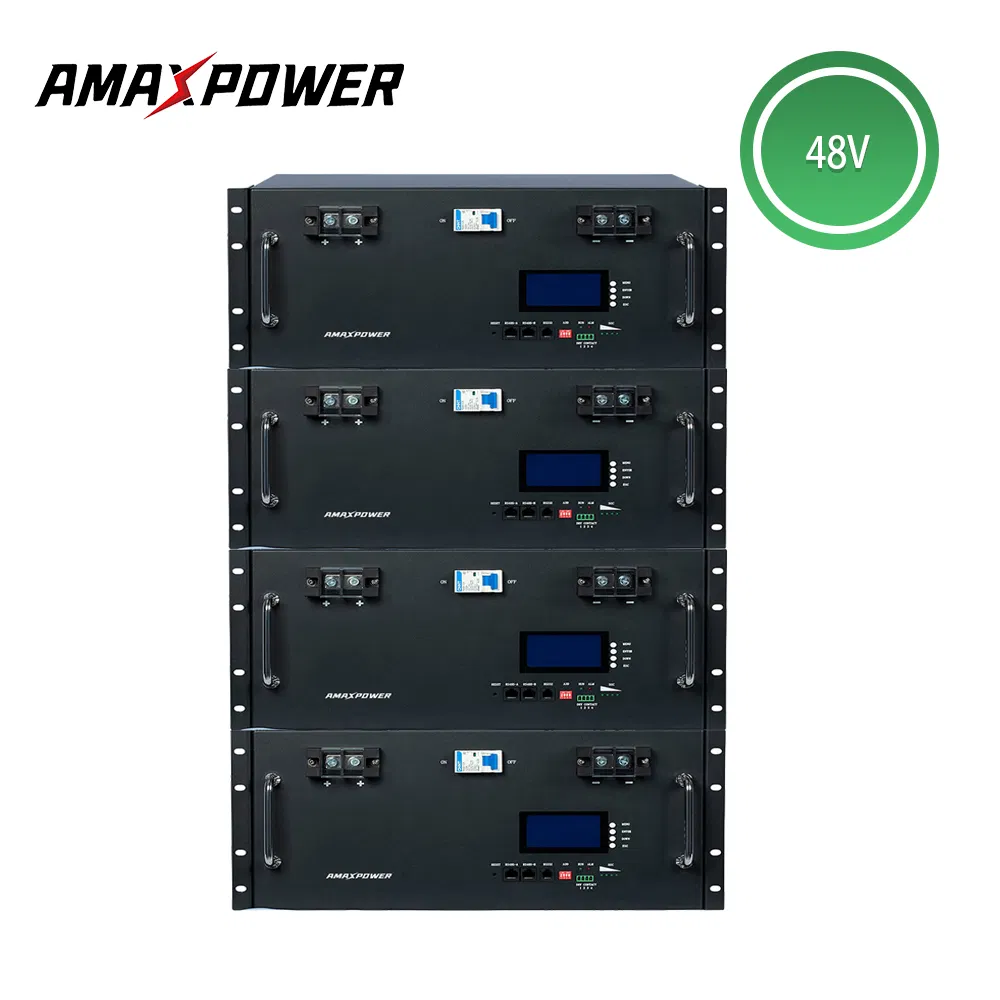

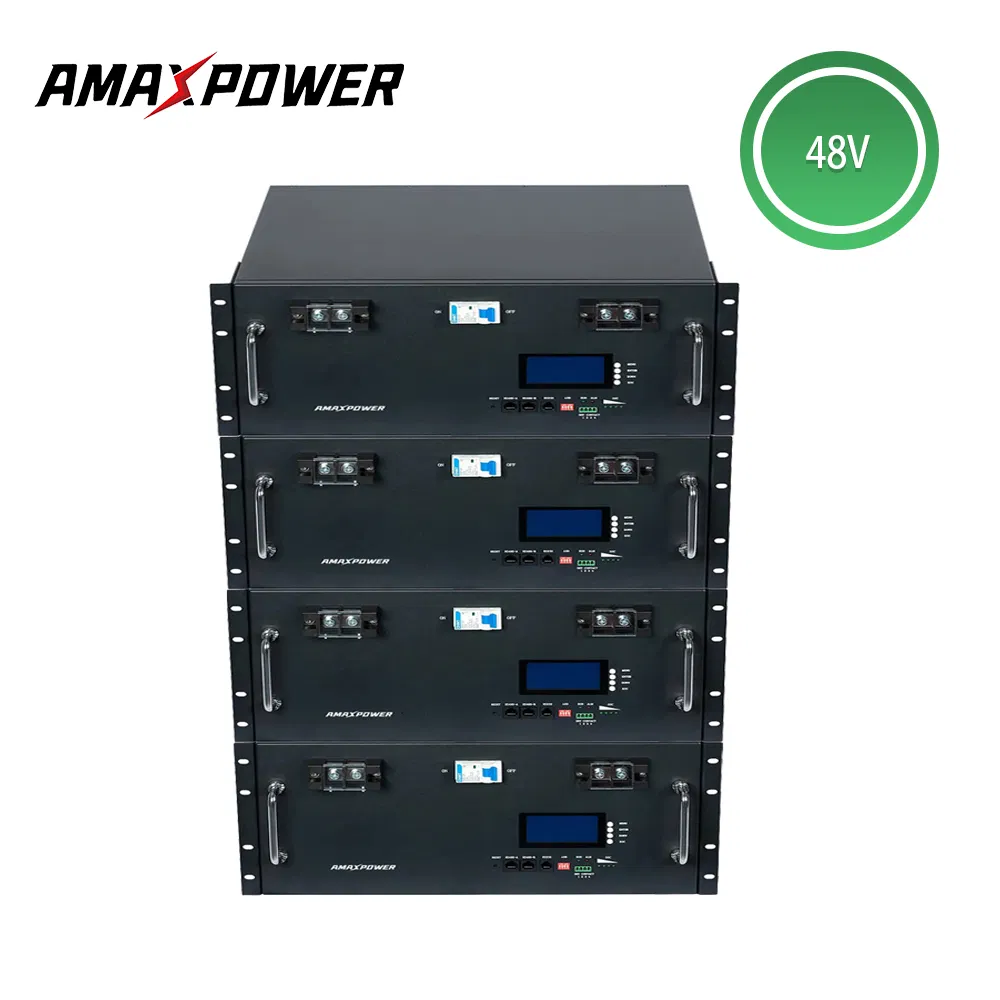

Telecom Rack Mounted Li-ion Battery (48V/51.2V)
The rack-mounted lithium battery system is designed for communications back-up and energy storage. Utilizing advanced LiFePO4 technology, the system offers benefits of long cycle life, compact size, lightweight design, and high environmental safety. It is an ideal solution for harsh outdoor environments and critical backup power needs.
| MODEL SPECIFICATION | 48V 100Ah | 48V 150Ah | 48V 200Ah | 51.2V 100Ah | 51.2V 150Ah | 51.2V 200Ah |
|---|---|---|---|---|---|---|
| Nominal Energy | 4.8KWh | 7.2KWh | 9.6KWh | 5.12KWh | 7.68KWh | 10.24KWh |
| Dimensions | 442*133*450mm | 442*177*480mm | 442*222*480mm | 442*133*450mm | 442*177*480mm | 442*222*510mm |
| Weight | 43KG | 67KG | 80KG | 45KG | 70KG | 84KG |
| Nominal Voltage | 48.0V | 51.2V | ||||
| Cycle Life | ≥4000 cycles @100%DOD / ≥6000 cycles @80%DOD | |||||
| IP Class | IP30 | |||||
| Warranty | 5 Years | |||||

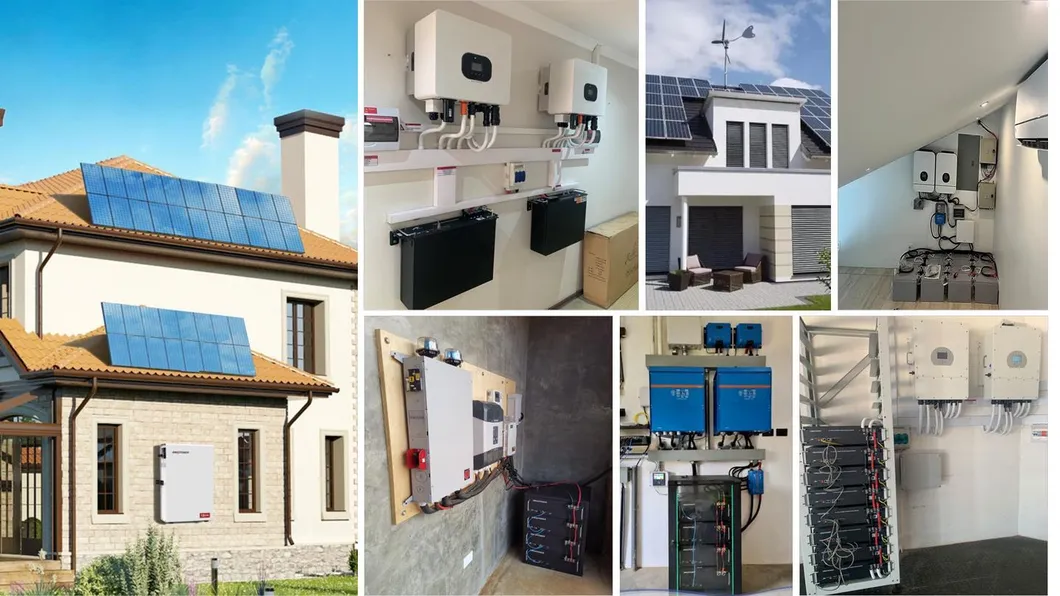

Our products are versatile and used in household solar, RV/Marine energy storage, low-speed vehicles, forklifts, solar street lights, communication base stations, UPS backup, and off-grid power plants.

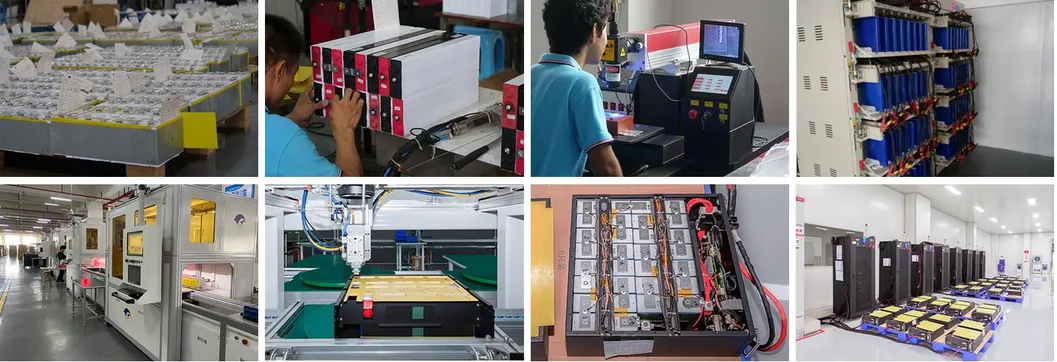

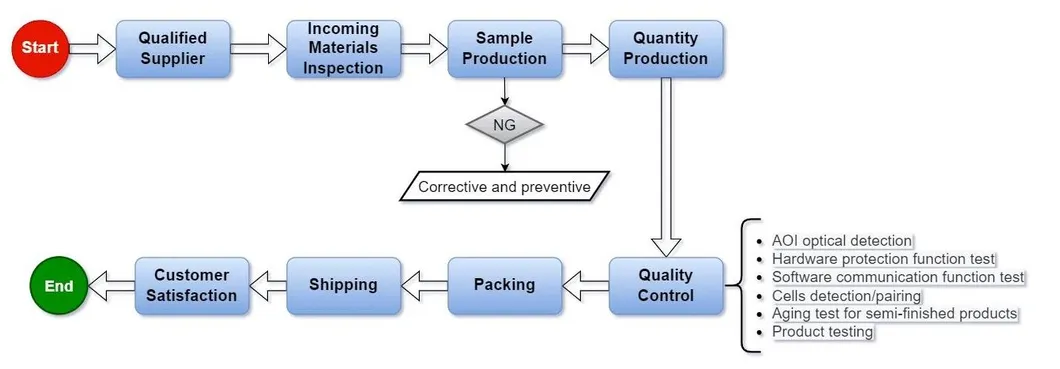

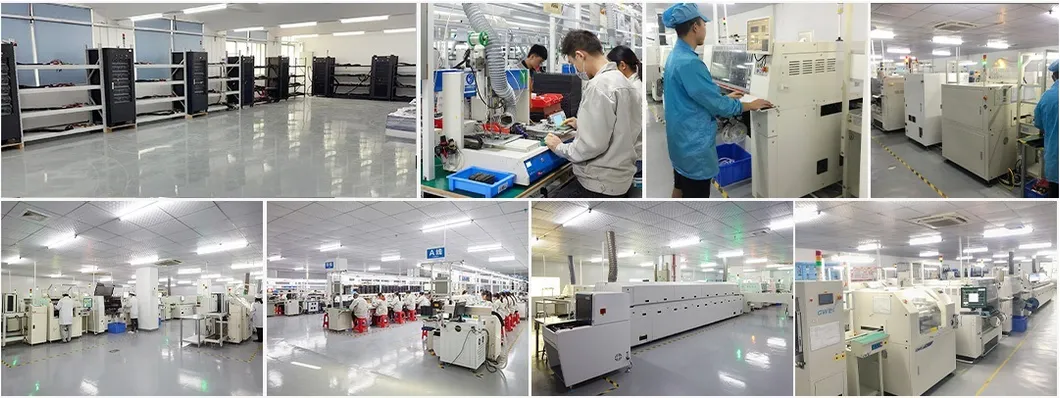

As a professional manufacturer and high-tech enterprise, we produce a full range of storage batteries including AGM, Gel, Deep Cycle, and LiFePO4 batteries. Our facility adheres strictly to ISO management systems, ensuring high-quality output for global markets.
