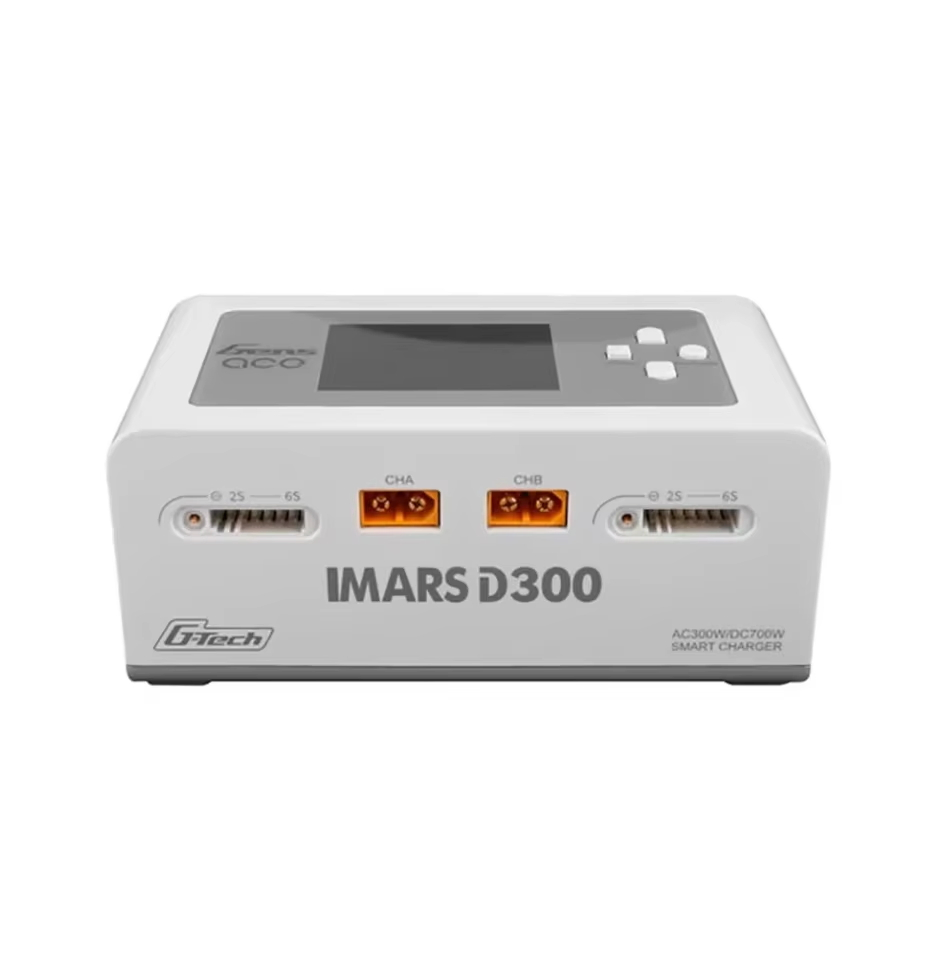

2024 Imars D300 Smart Battery Charger with Plug-and-Play Technology for Racing Drones

Basic Specifications

Model NO.

D300

Rechargeable

Yes

Size

Small

Max Takeoff Weight

1kg

Drone Weight

50g

Camera Features

720p HD Video Recording

Aerial Photography

Yes

Package

Paper

Specification

145mm*76mm*62mm

Origin

China

Production Capacity

100,000,000/Year

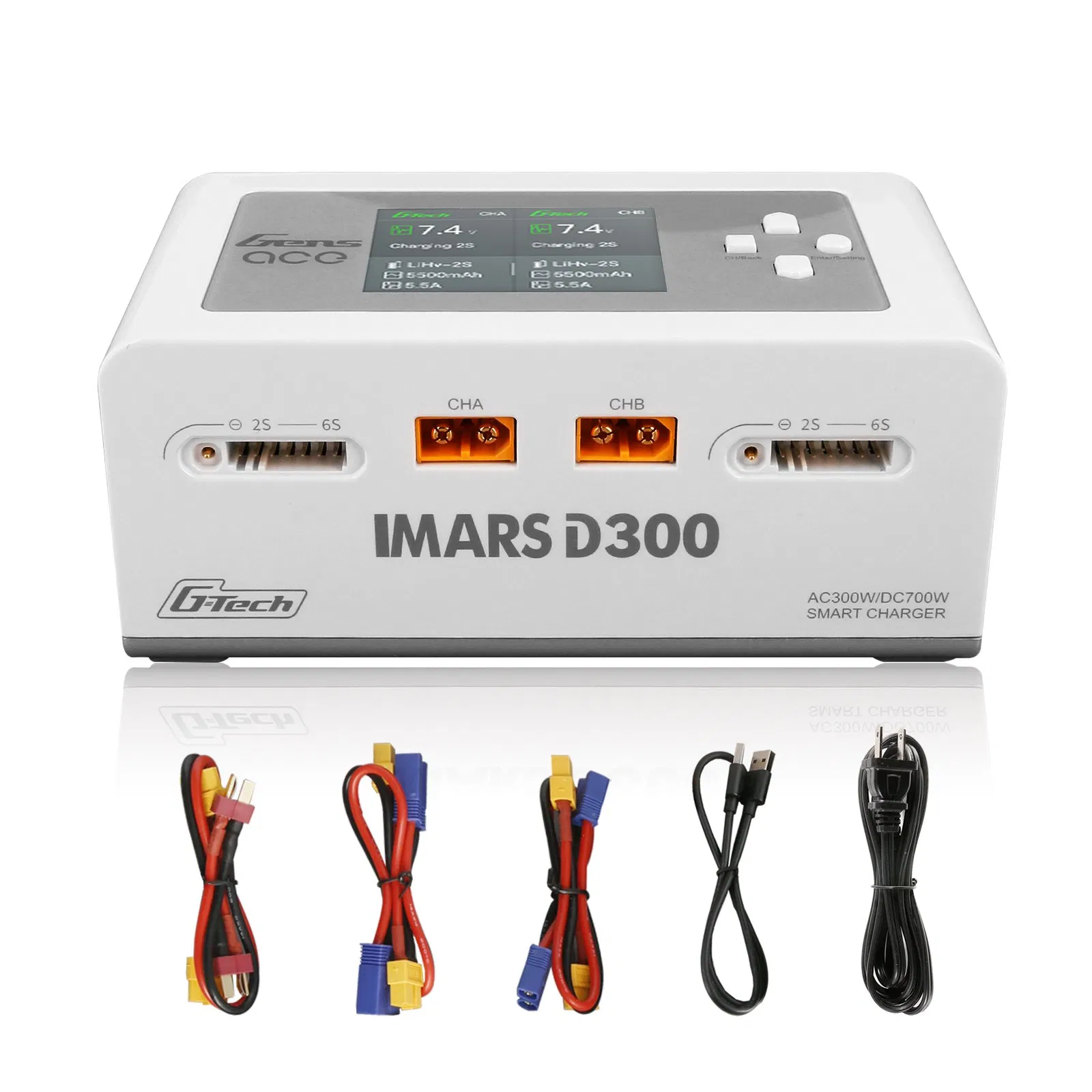

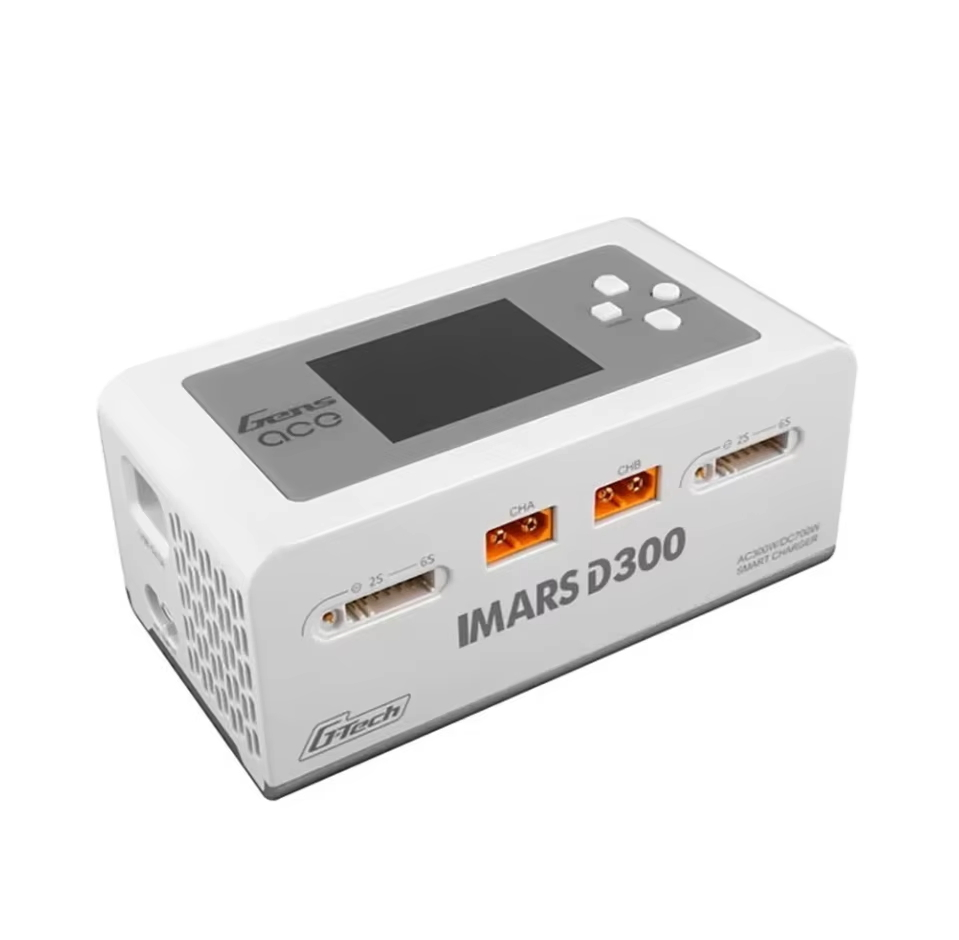

IMARS D300 Dual Channel Smart Charger

⚡

Dual Channel Design

Charge two batteries simultaneously with independent control and monitoring for maximum efficiency.

🧠

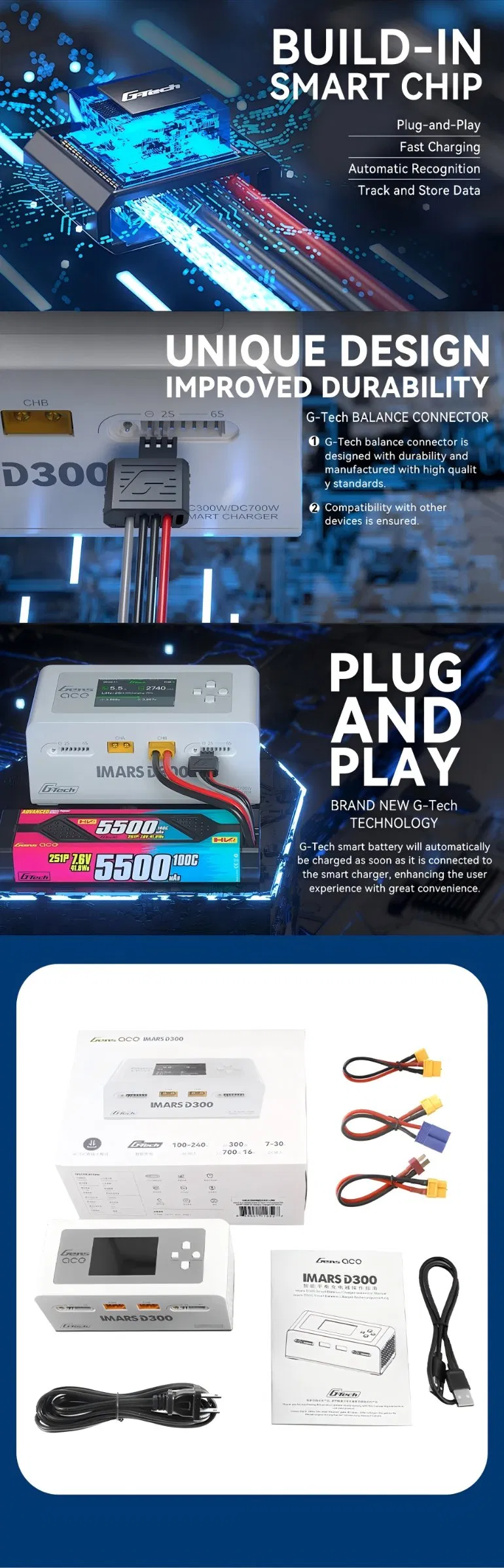

G-Tech Smart System

Built-in smart chip with plug-and-play technology for automatic battery parameter recognition.

📊

IPS Display

2.4-inch high-definition screen provides real-time tracking and clear data visualization.

Superior Performance

High Power Output: AC Input 300W / DC Input 700W (350W × 2).
Maximum Current: Charging current up to 16A; Input current up to 34A.
Wide Compatibility: Supports LiHV (3.8V), LiPo (3.7V), Li-Ion (3.6V), LiFe (3.2V), and NiMH (1.2V).
Precision Control: Standard voltage tolerance within ±10mV.

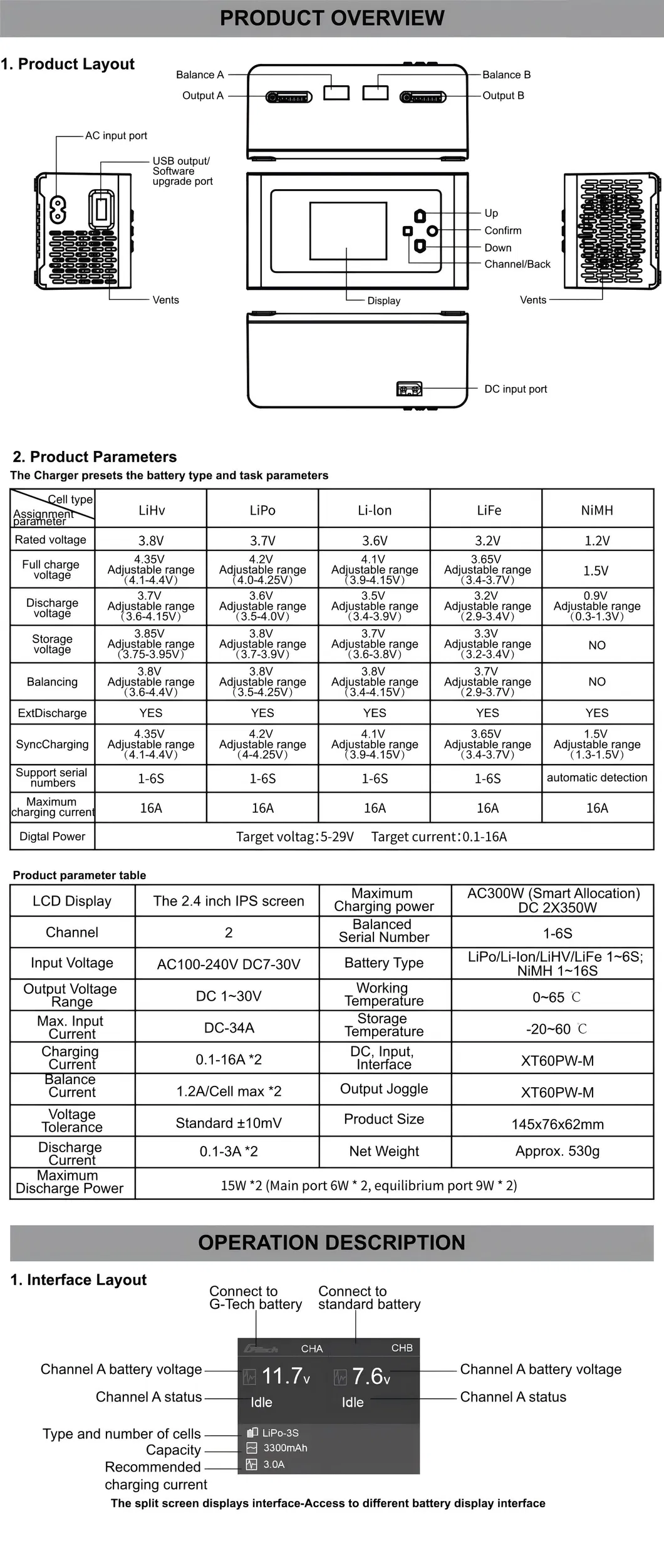

Technical Specifications

Parameter	Value
Product Dimensions	145 × 76 × 62mm
Net Weight	Approx. 530g
AC Input Voltage	100-240V
DC Input Voltage	7-30V
Output Voltage Range	DC 1-30V
Charging Current	0.1-16A × 2
Discharge Current	0.1-3A × 2
Max Discharge Power	15W × 2 (Balance port 9W × 2)
Operating Temperature	0-65°C

Ideal Applications

RC Models Racing Drones Photography Equipment Competition RC Vehicles

Detailed Photos

Frequently Asked Questions

1. What battery types are compatible with the IMARS D300?

The D300 supports a wide range of batteries including LiHV, LiPo, Li-Ion, LiFe (1-6S serial charging), and NiMH batteries.

2. Can I charge two different types of batteries at the same time?

Yes, the dual-channel design allows you to charge two batteries simultaneously with independent parameter settings for each channel.

3. What is the G-Tech Smart Charging System?

G-Tech is a plug-and-play technology that automatically recognizes smart battery parameters, optimizing the charging process without manual input.

4. What is the maximum power output of this charger?

It provides up to 300W of power when using AC input and up to 700W (350W per channel) when using DC input.

5. Does the charger include safety protection features?

Absolutely. It features integrated multi-protection mechanisms, intelligent temperature monitoring, and automatic balance charging with a precision of ±10mV.

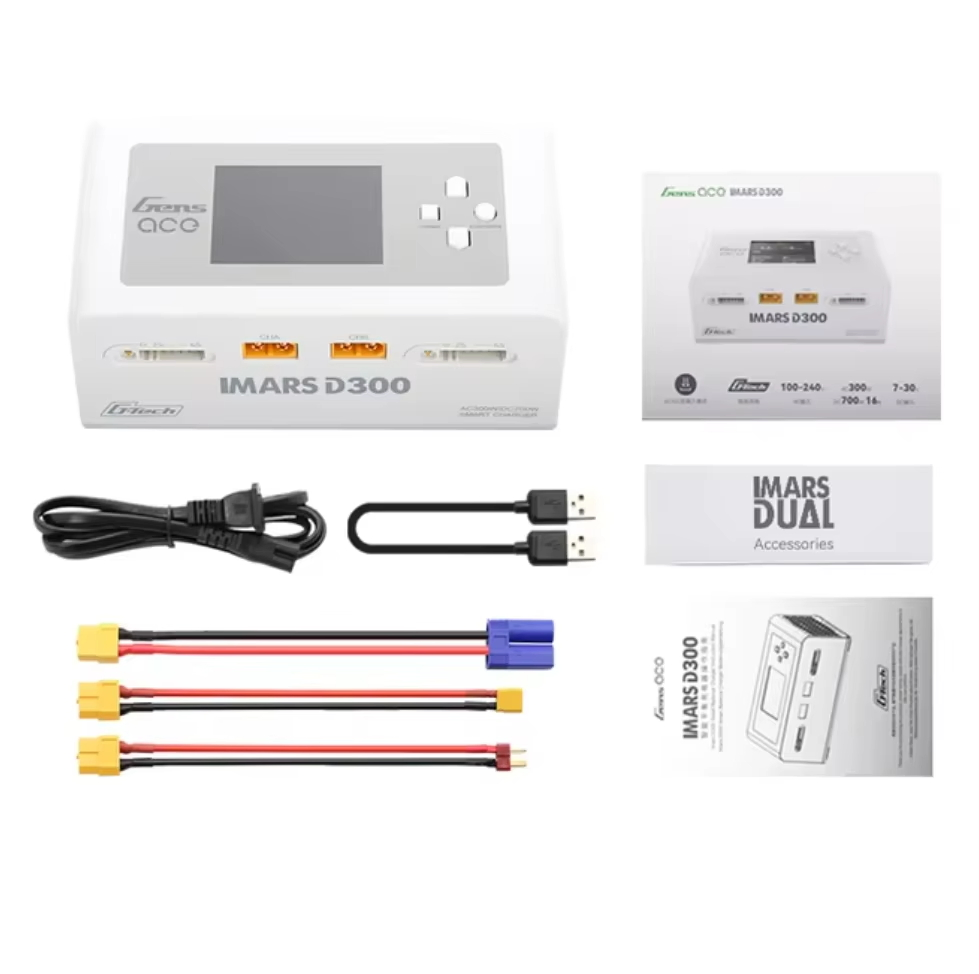

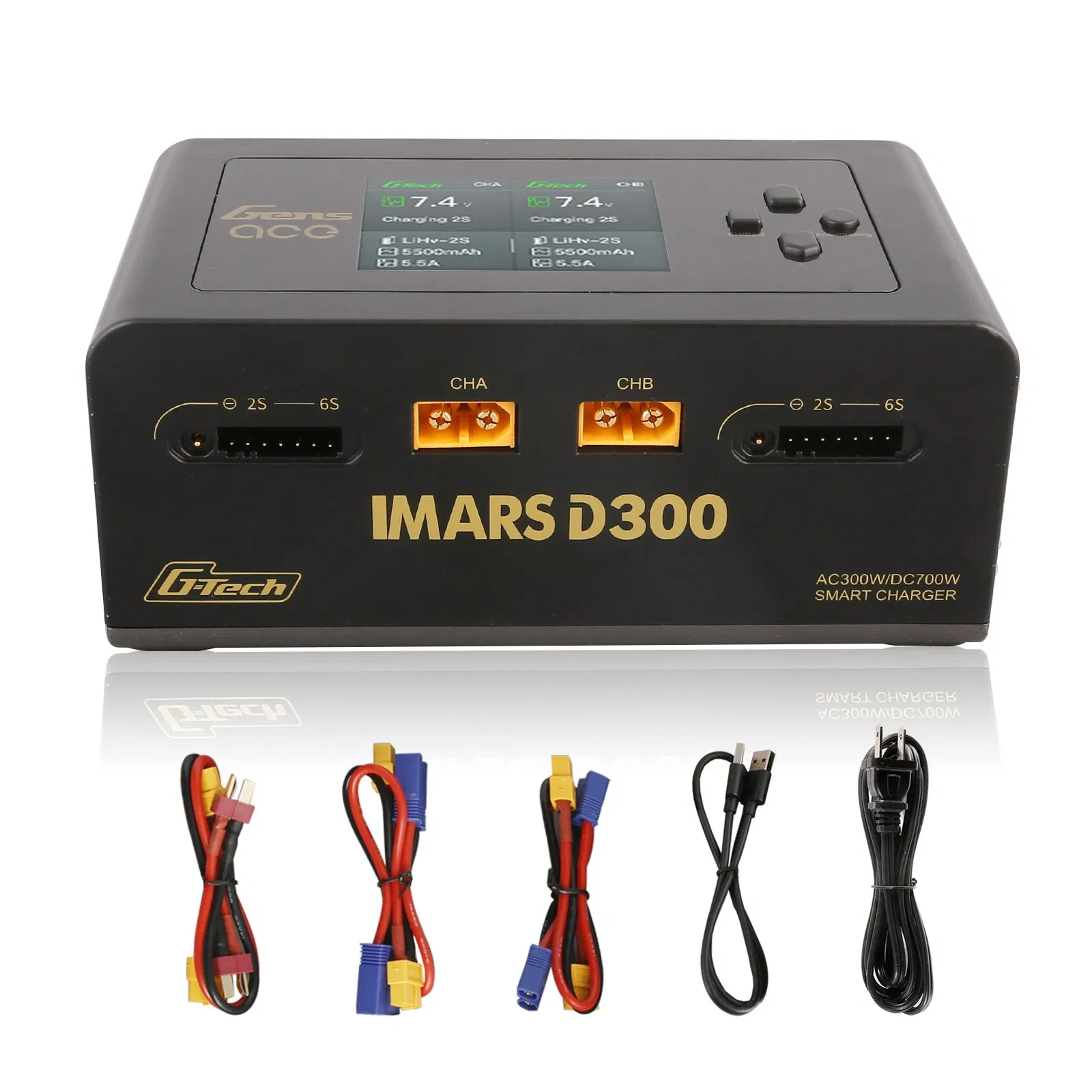

6. What is included in the package?

The package contains 1× IMARS D300 Main Unit, 3× Charging Connection Cables, 1× Power Cable, and 1× User Manual.
