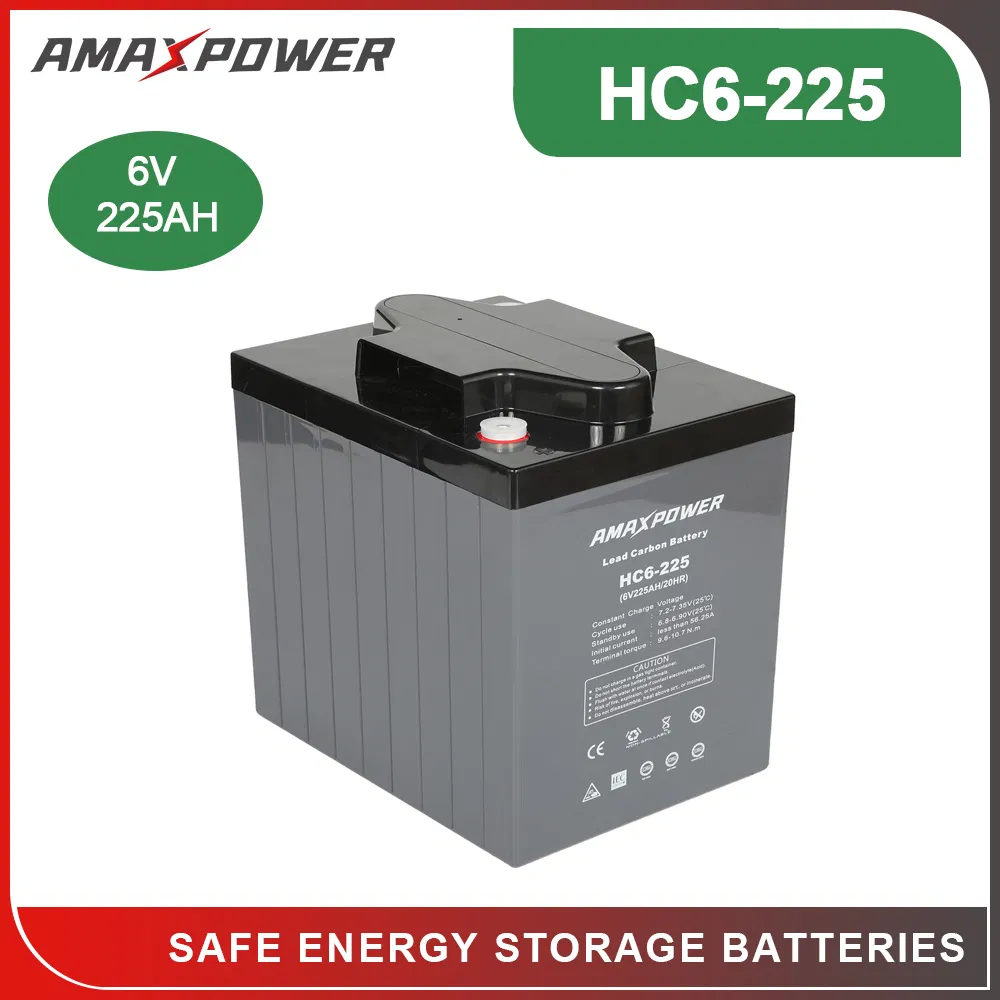

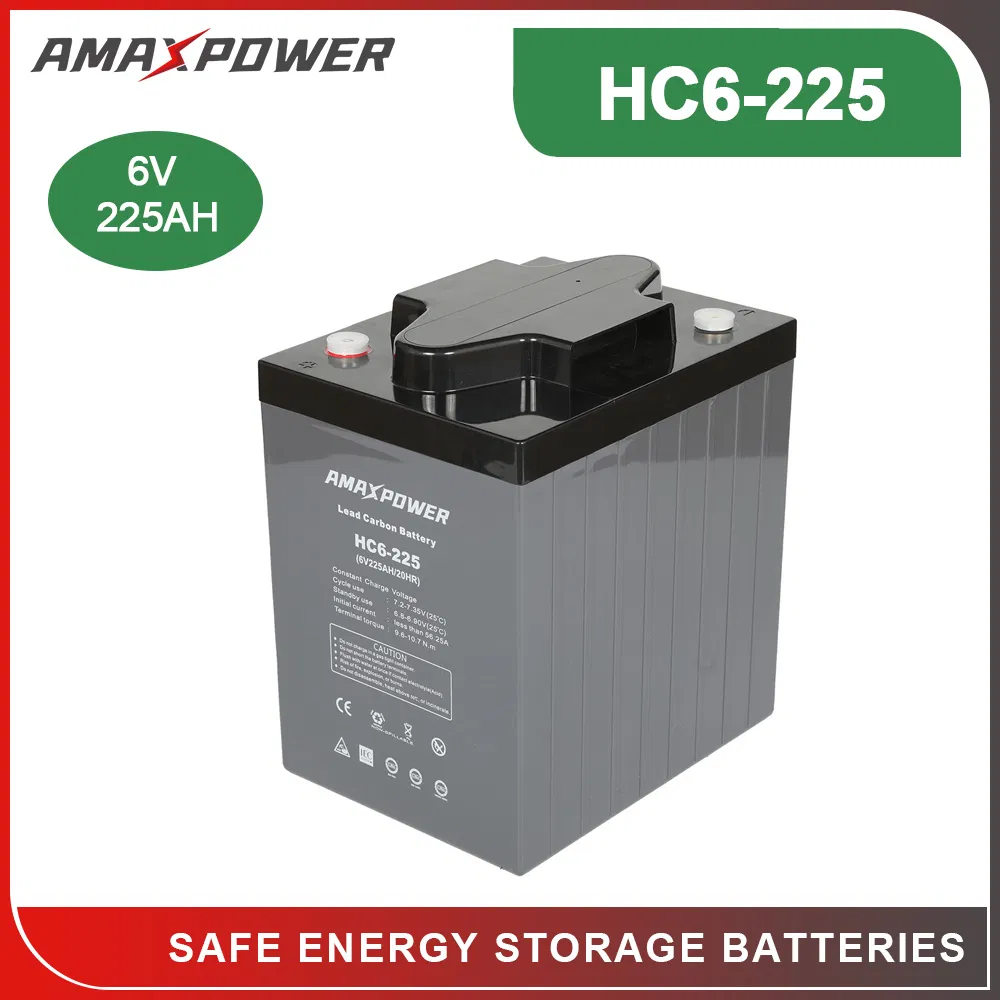

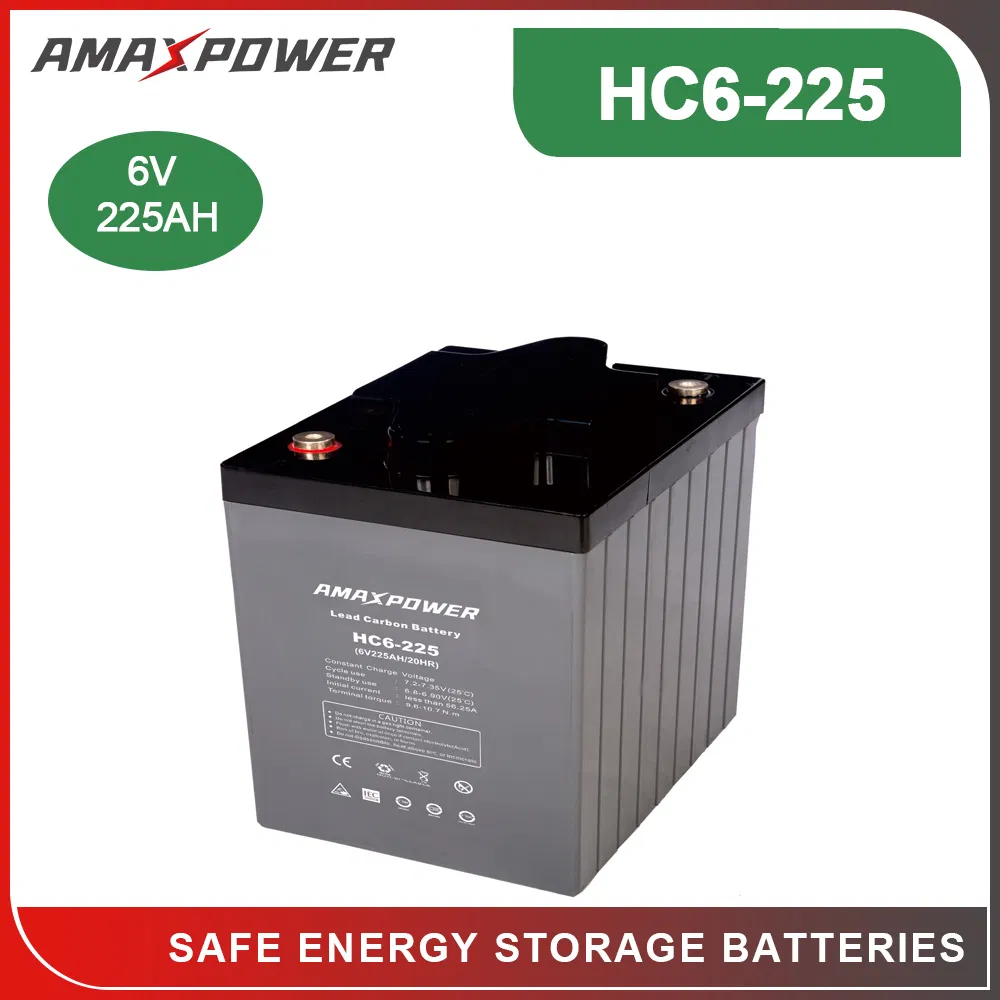

Fast Charge Long Life Lead Carbon Battery For Renewable Energy Storage System
HC Series Lead Carbon battery uses functional activated carbon and graphene as carbon materials, which is added to the negative plate of the battery to make the battery with the advantages and super capacitance. Meanwhile, it is adopted the technology of nano Silica GEL and one-time Gel filling technology & formation, which improves the ability of rapid charge/discharge, also greatly extends the cyclic life of the battery, like 80% DOD with the cyclic number of 2000 times. It widely used for the application of PSOC.
| Parameter | Specification | |
|---|---|---|
| Nominal Voltage | 6V (3 cells) | |
| Nominal Capacity | 225Ah @ 20 hour-rate | |
| Dimension (L*W*H) | 243±1mm * 187±1mm * 275±1mm | |
| Weight | Approx. 32.5kg | |
| Max. Discharge Current | 2250A (5S) | |
| Internal Resistance | Approx. 2.0mΩ (Fully charged @ 25ºC) | |
| Operating Temp. Range | Discharge: -30~60°C | Charge: -30~60°C | Storage: -30~60°C | |
| Container Material | ABS Plastic | |

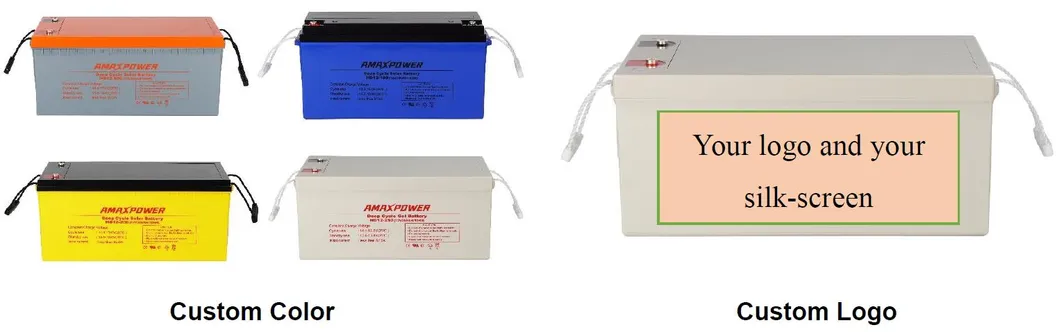

We provide professional OEM & ODM services to both domestic and international clients. Our extensive experience in R&D and manufacturing ensures high-quality products tailored to your own brand requirements.

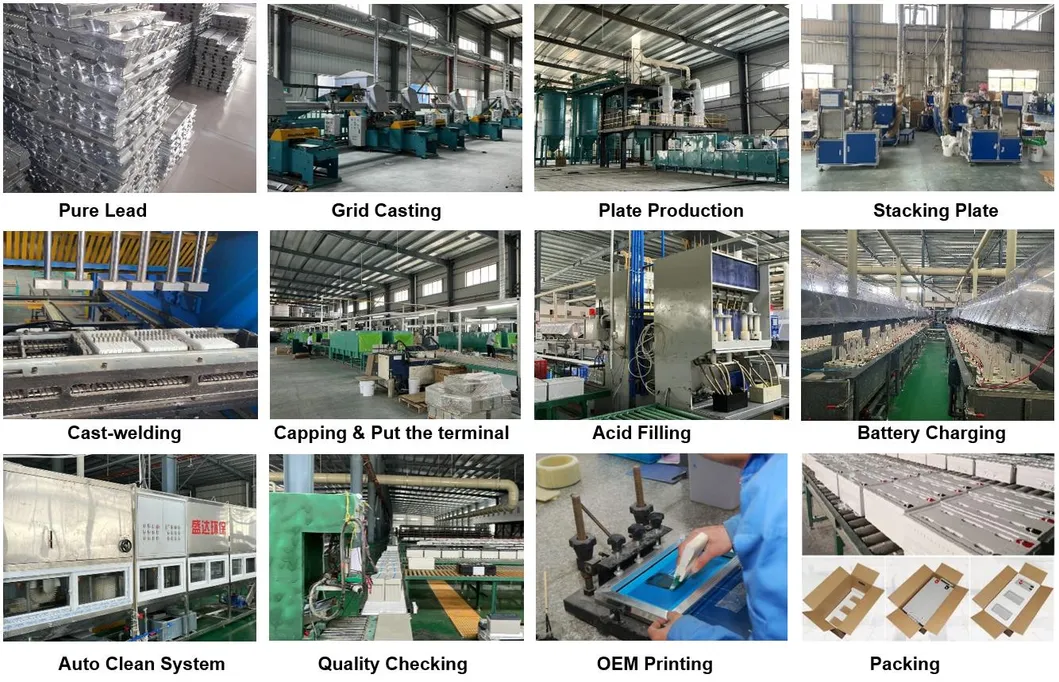

Founded in 2005, the facility covers a 50,000-square-meter modern industrial park with an annual production capacity of approximately 2,000,000kVAh. We strictly comply with ISO quality management systems.

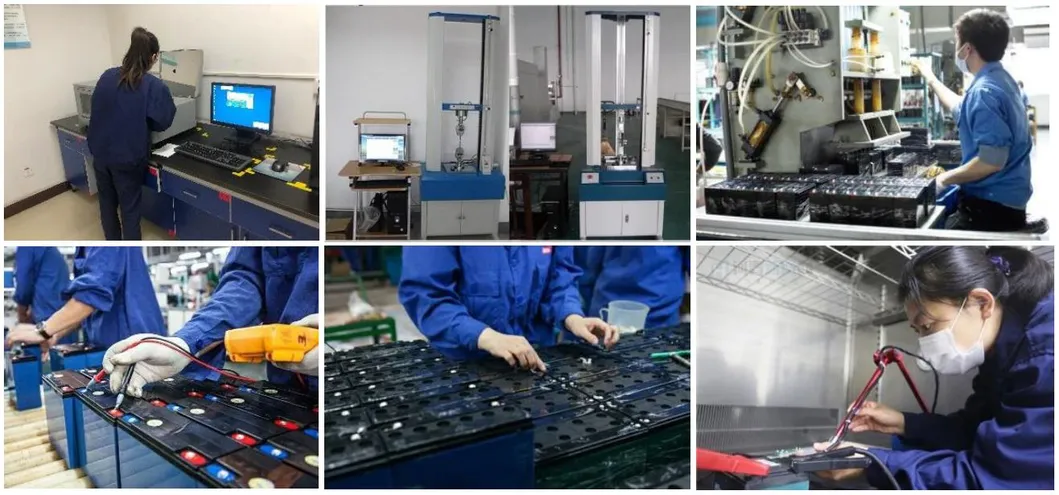

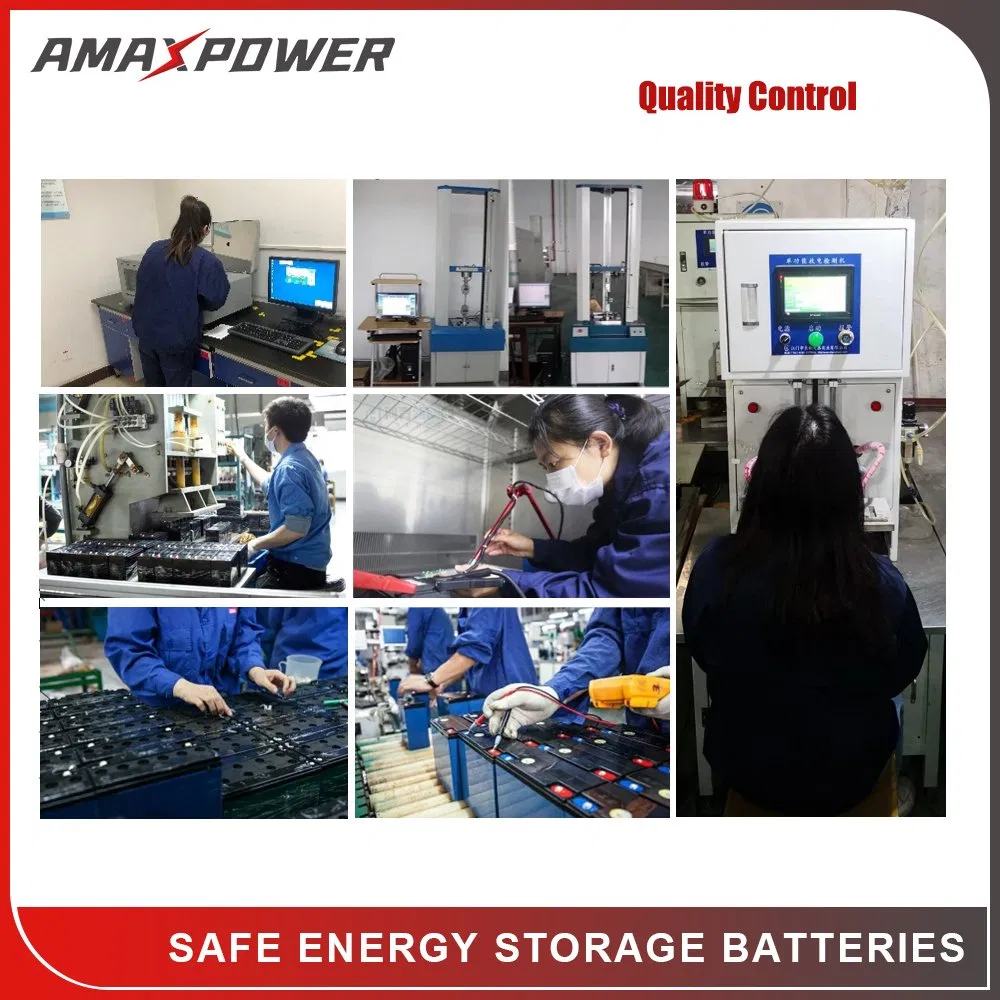

QC Process:
1. Pure lead plates (99.9999% purity).
2. Anti-impact/burst testing for battery cases.
3. Precise acid filling by weight.
4. Rigorous online monitoring and deep cycle testing.
5. 100% pre-shipment testing.
Lead Carbon batteries combine the advantages of lead-acid batteries and supercapacitors, offering much faster recharge capability and a significantly higher cycle life, especially in Partial State of Charge (PSOC) applications.
Yes, the HC series is designed for deep cycle performance, offering up to 2000 cycles at 80% Depth of Discharge (DOD).
Yes, we are a professional manufacturer with over 17 years of experience, and we produce the plates ourselves to ensure high purity and quality control.
Stock products typically take 7 days. Production orders range from 20 days for partial containers to 30 days for full 20ft containers.
Batteries should not be stored for more than 6 months at 25°C without recharging. In hot climates, they should be recharged every 3 months.

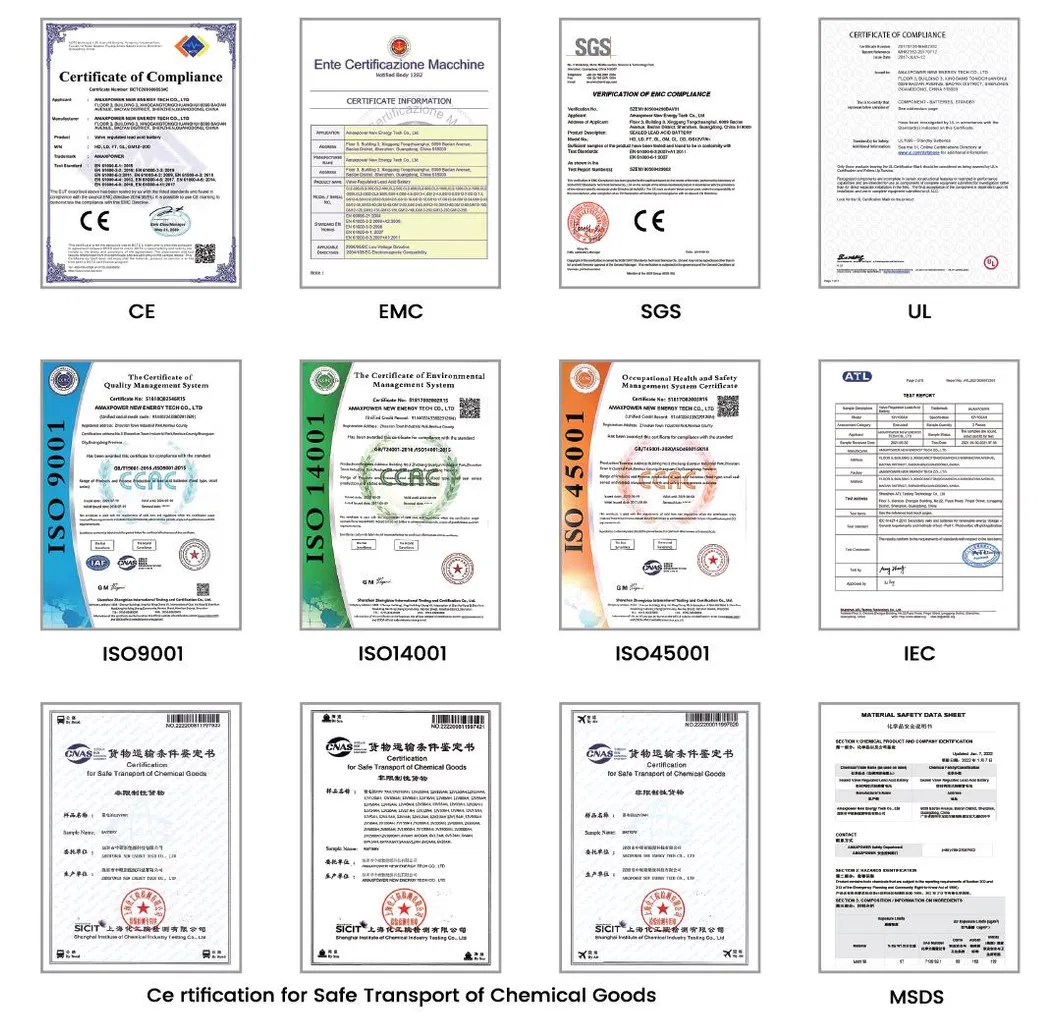

Yes, our batteries have MSDS and test reports for safe transport by both sea and air as non-dangerous products.
