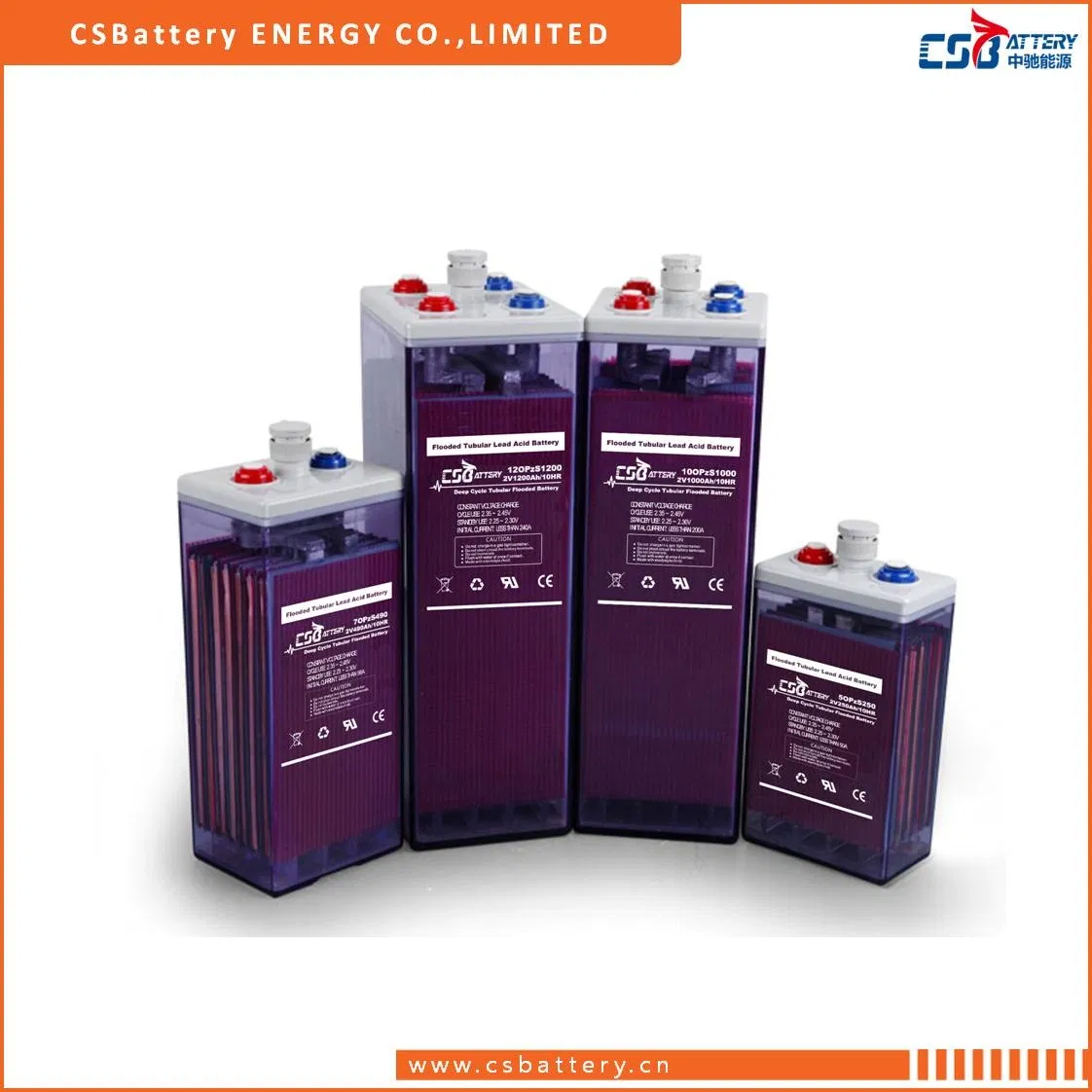

OPzS Tubular Super Deep Cycle Flooded Battery 2Volt 200Ah - 3000Ah
Tubular Deep Cycle Solar Flooded battery, featuring 20-25 years long life, ideal for large Solar Power Systems and Telecom Systems. These batteries are recognized as reliable, high-quality systems in the industry, designed with advanced technology and complying with international standards such as IEC60896-21/22 and BS6290-4.

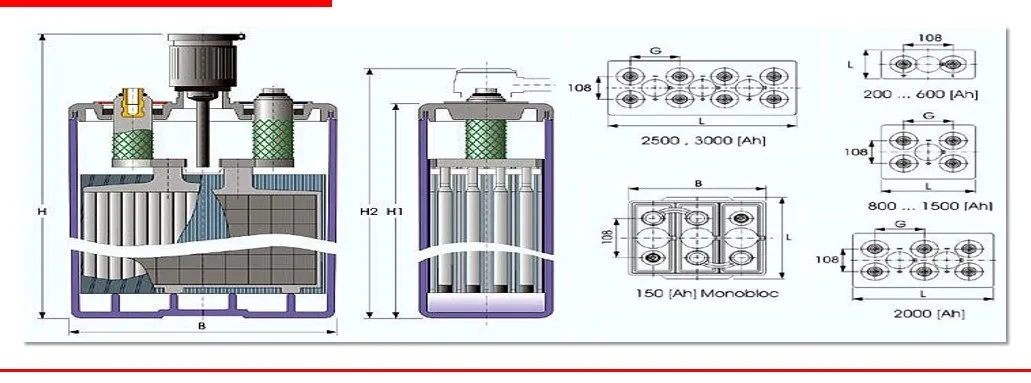

| Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm) | Weight (kg) | Terminal | ||||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Total Height | Net | Gross | ||||
| 4OPzS200 | 2 | 200 | 103 | 206 | 355 | 410 | 12.8 | 17.5 | M8 |
| 5OPzS250 | 2 | 250 | 124 | 206 | 355 | 410 | 15.1 | 20.5 | M8 |
| 6OPzS300 | 2 | 300 | 145 | 206 | 355 | 410 | 17.5 | 24 | M8 |

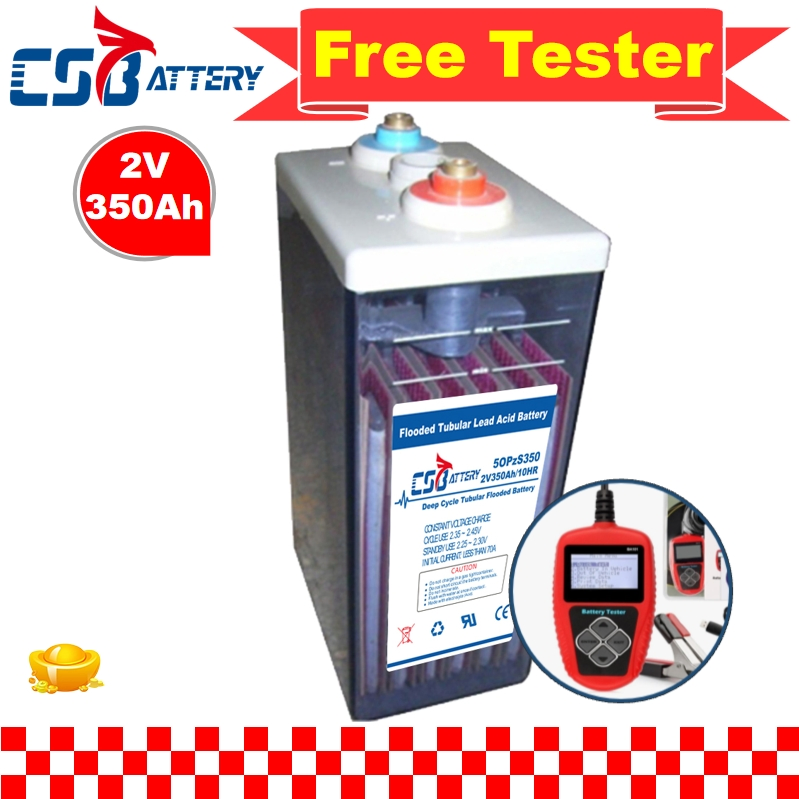

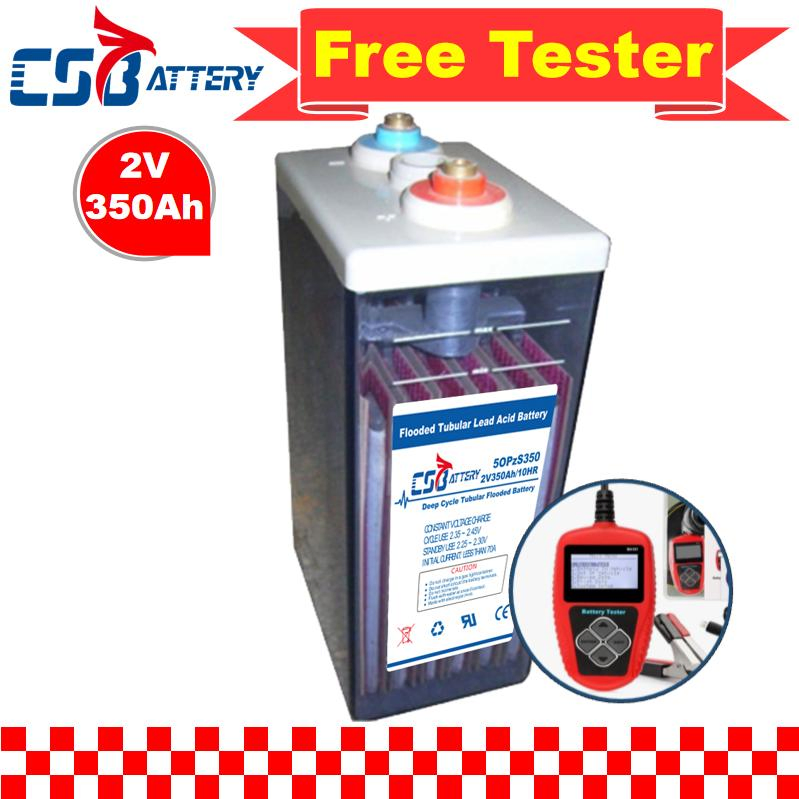

| 5OPzS350 | 2 | 350 | 124 | 206 | 471 | 526 | 19.8 | 27 | M8 |
| 6OPzS420 | 2 | 420 | 145 | 206 | 471 | 526 | 23 | 32 | M8 |
| 6OPzS600 | 2 | 600 | 145 | 206 | 646 | 701 | 32.6 | 47 | M8 |
| 10OPzS1000 | 2 | 1000 | 233 | 210 | 646 | 701 | 54 | 78 | M8 |
| 12OPzS1500 | 2 | 1500 | 275 | 210 | 773 | 828 | 81.7 | 112 | M8 |
| 24OPzS3000 | 2 | 3000 | 576 | 212 | 772 | 806 | 170 | 230 | M8 |
| Component | Positive plate | Negative plate | Container & Cover | Separator | Electrolyte |
|---|---|---|---|---|---|
| Features | Tubular Plate high Sn low Ca grid | Balanced Pb-Ca grid | Fire resistance ABS | Advanced PVC separator | 1.235g/CM3 Acid |
