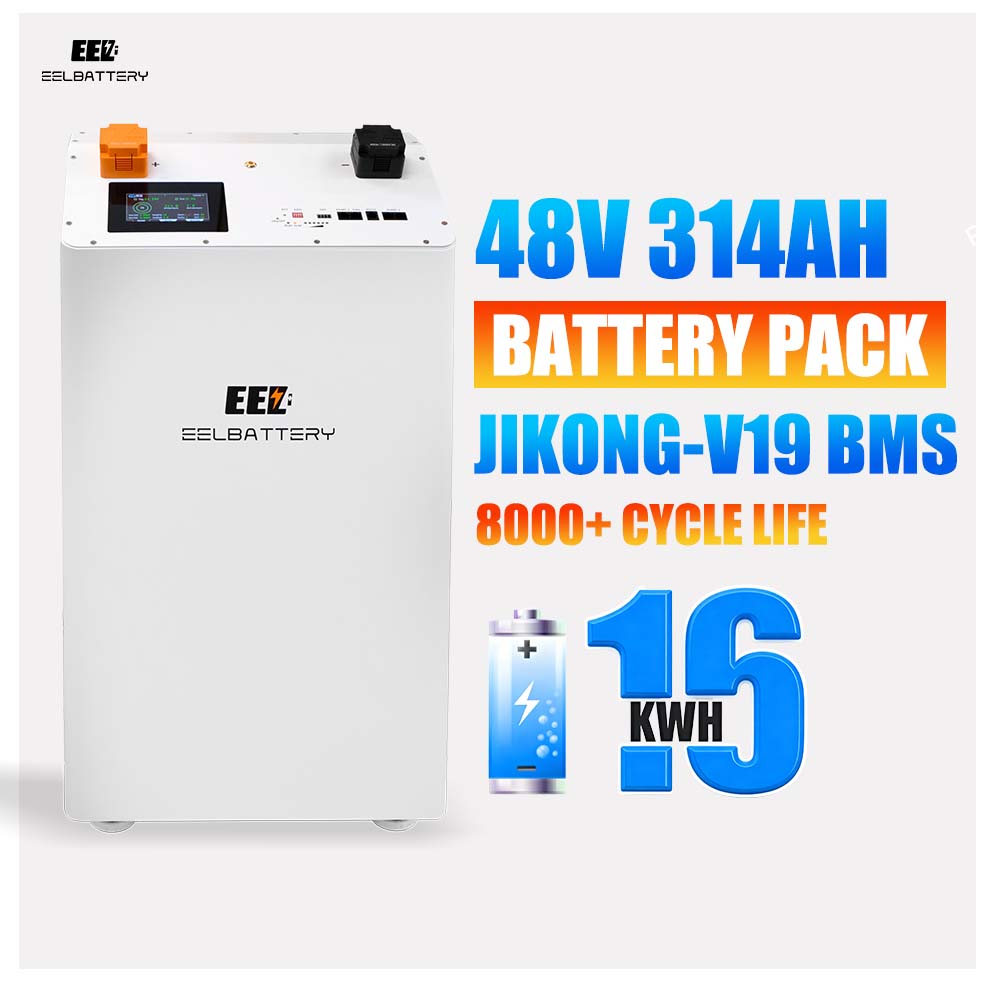

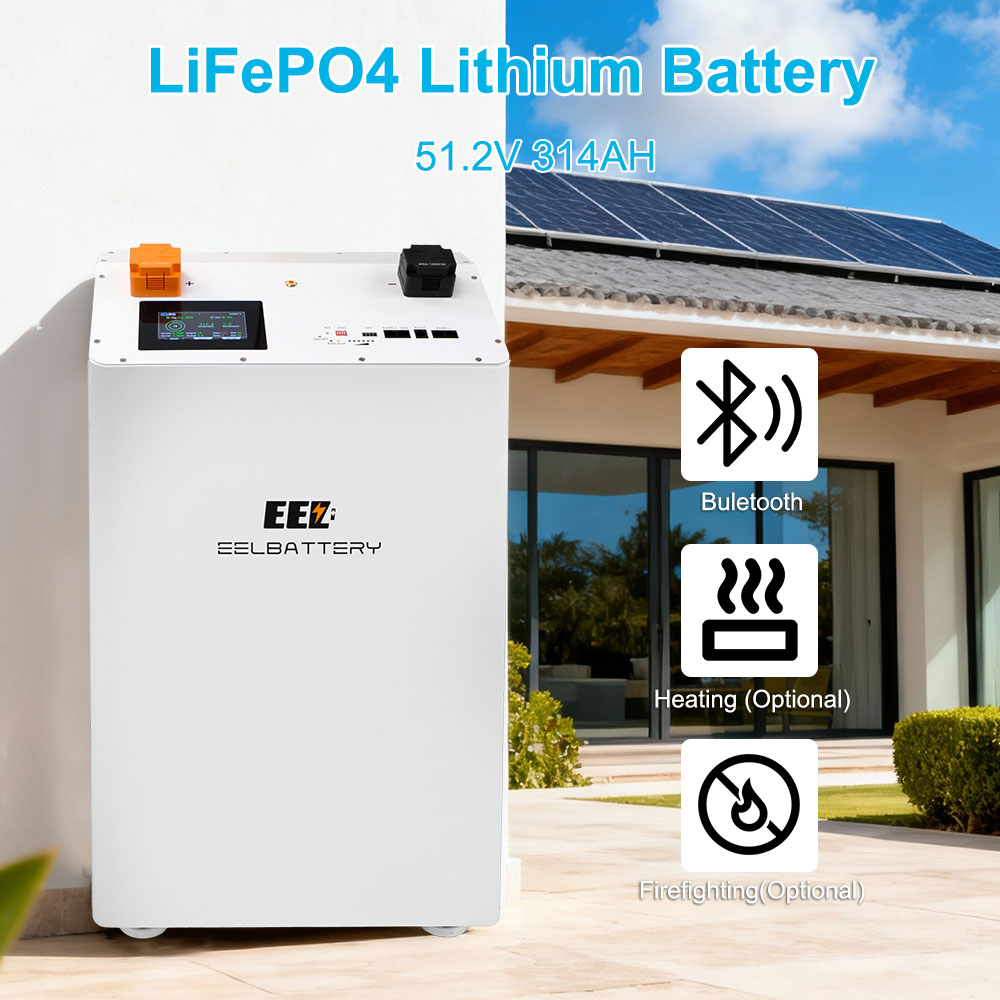

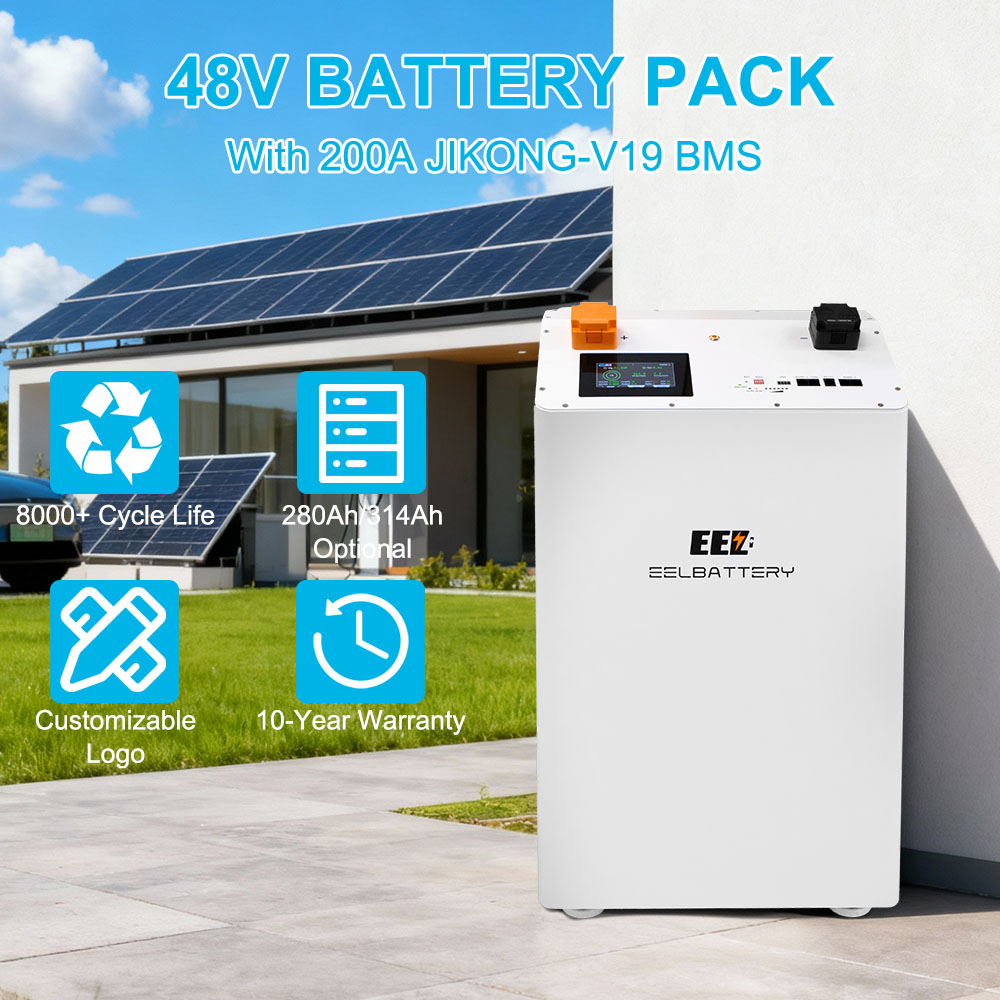

EU STOCK 51.2V 16kwh Vertical LiFePO4 Battery Pack Dual Protection Home Solar ESS Pre-Assemble Completed Energy Storage System

Product Description

Product Banner
Product Parameters
Model Specs: JKLIV3-51.2V 16KWh / JKLIV3-16KWh-200A
Cell Technology LiFePO4 battery cells
Nominal Voltage 51.2V
Nominal Capacity 314Ah
Nominal Energy 16KWh
Heating System Yes
Scalability Up to 15 Units in Parallel

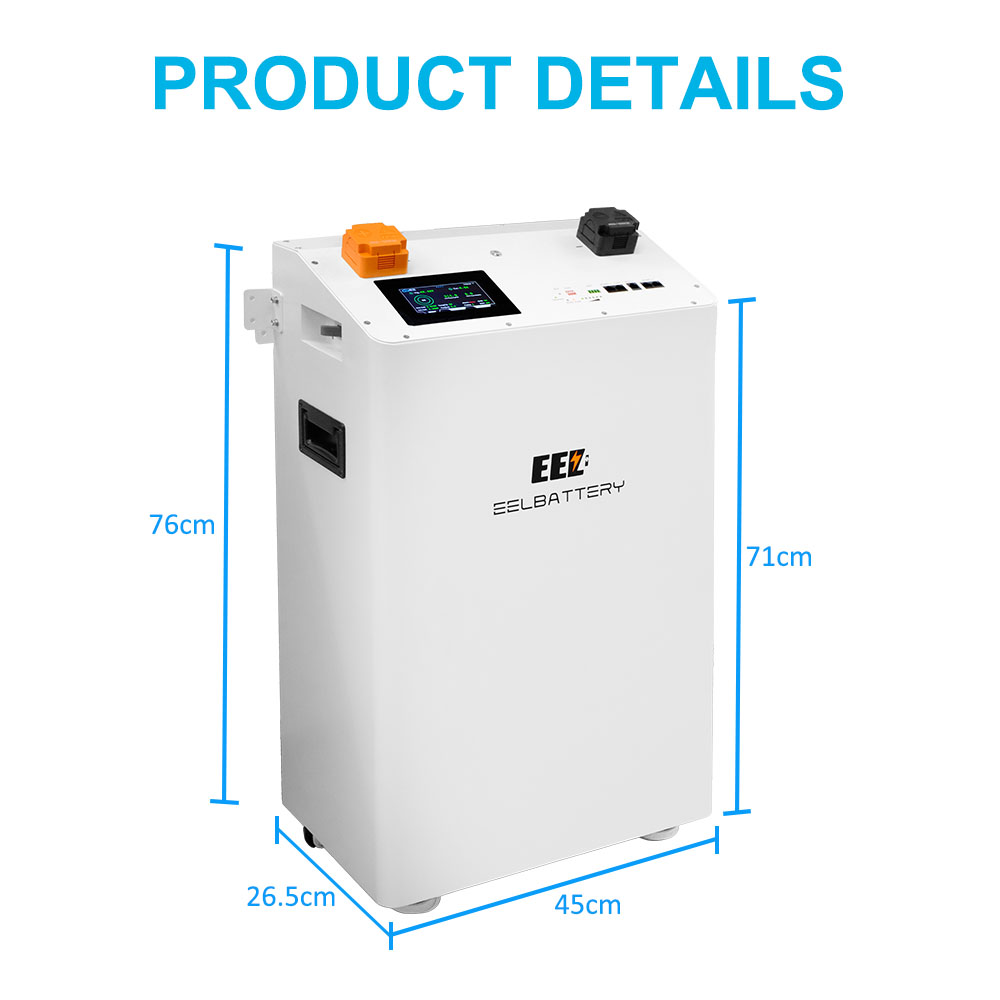

Dimensions (L/W/H) 40*25*70 cm
Gross Weight 130kg
Installation Indoor
Warranty 10 Years Product Warranty / 15 Years Service life
Electrical Parameters
BMS PB2A16S20P
Max Charge Current 200A
Max. Cont. Charge Current 200A
Max. Cont. Discharge Current 200A
Operating Voltage Range 43.2V-57.6V
Charge Cut-off Voltage 58.4V
Discharge Cut-Off Voltage 43.2V
General Parameters
Cycle Life ≥8000
Service Life 15 Years
Display 4.3 inch Touchscreen
Communication RS485, RS232, CAN
Charge Temperature Range -20°C~60°C (Under 0°C, Heating systems start working)
Discharge Temperature Range -20°C~55°C (Under 0°C, work with reduced capacity)
Storage Temperature Range -20°C~55°C @ 60% ± 25% relative humidity
Compatible Inverters Victron, Growatt, Deye, Goodwe, Must, SMA, etc.
* Refer to the latest inverter-compatible list.
** Under specific test conditions

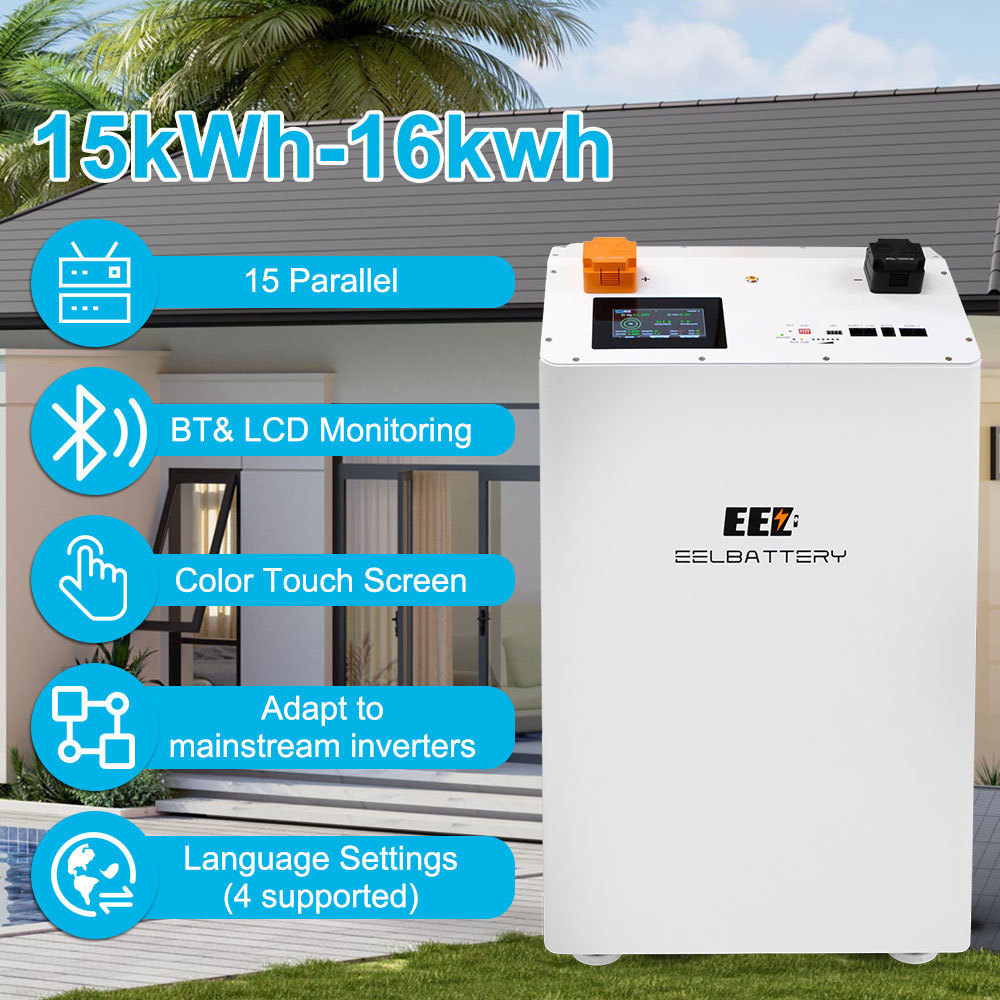

Detail 1

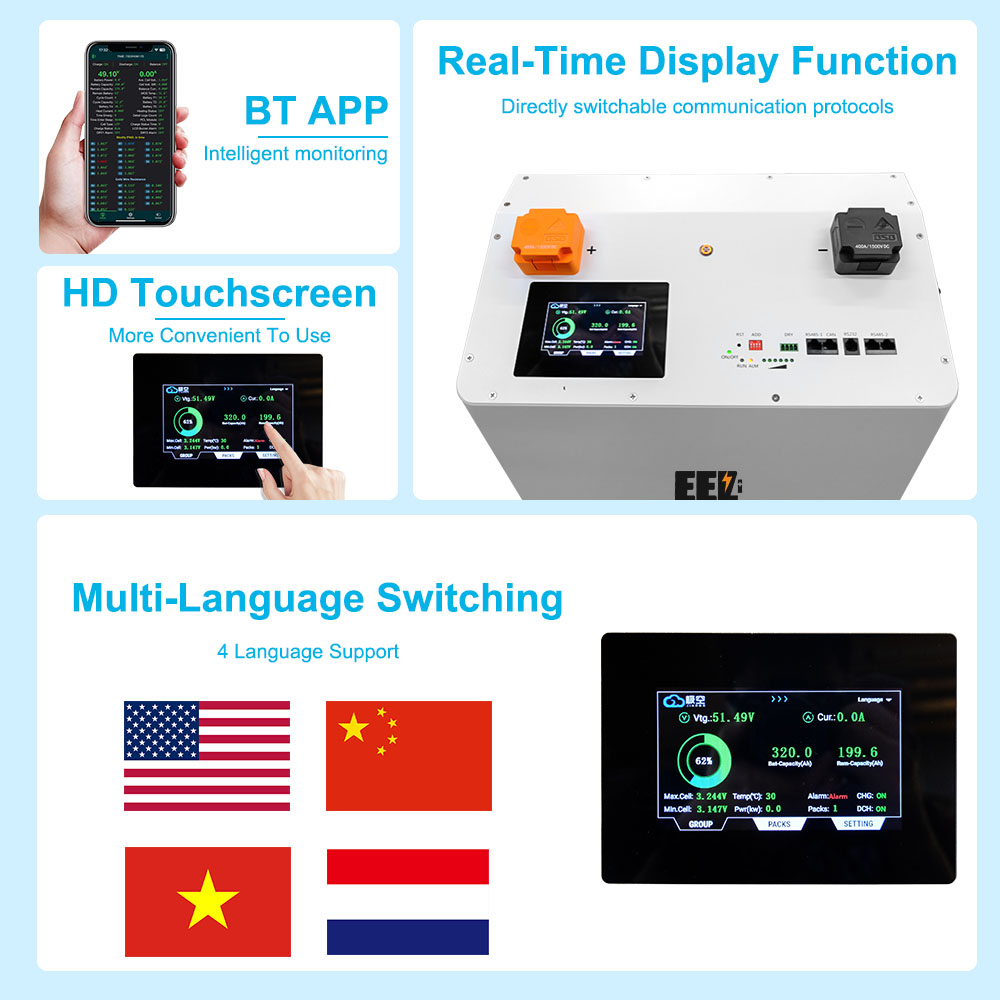

Detail 2

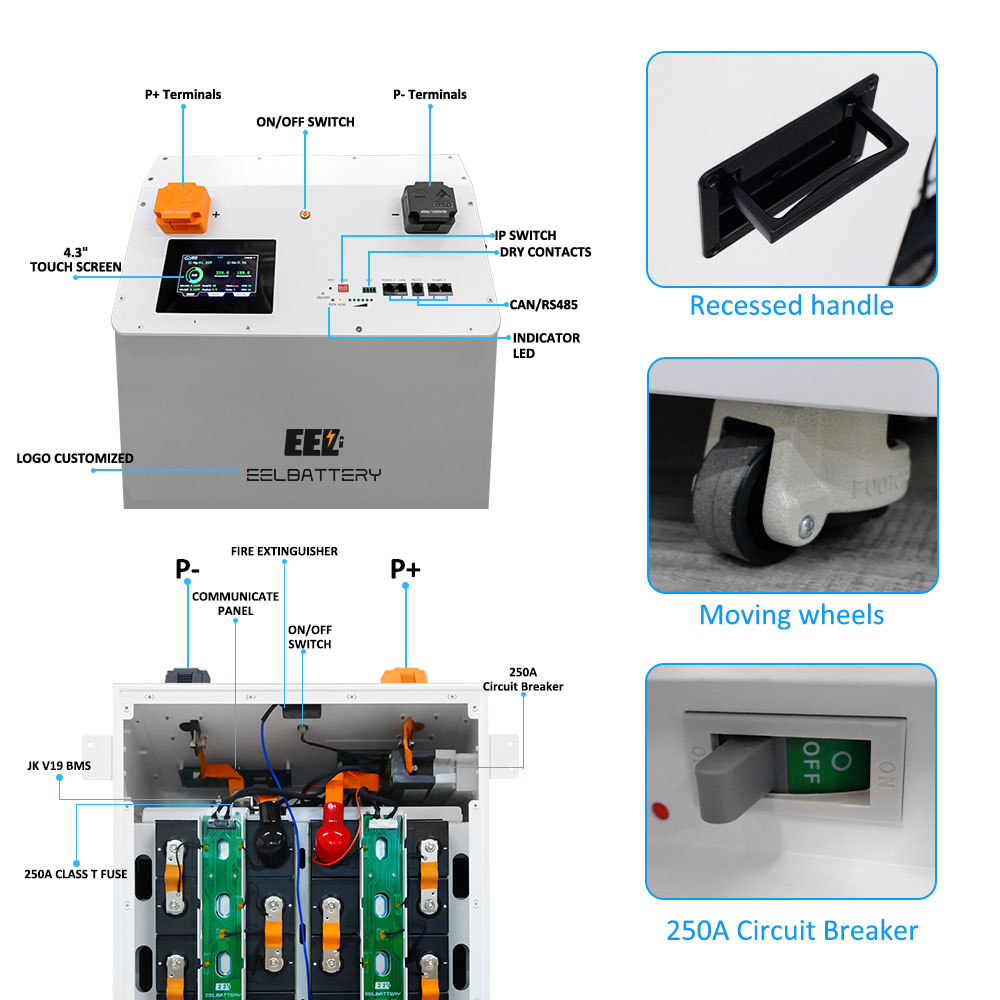

Detail 3

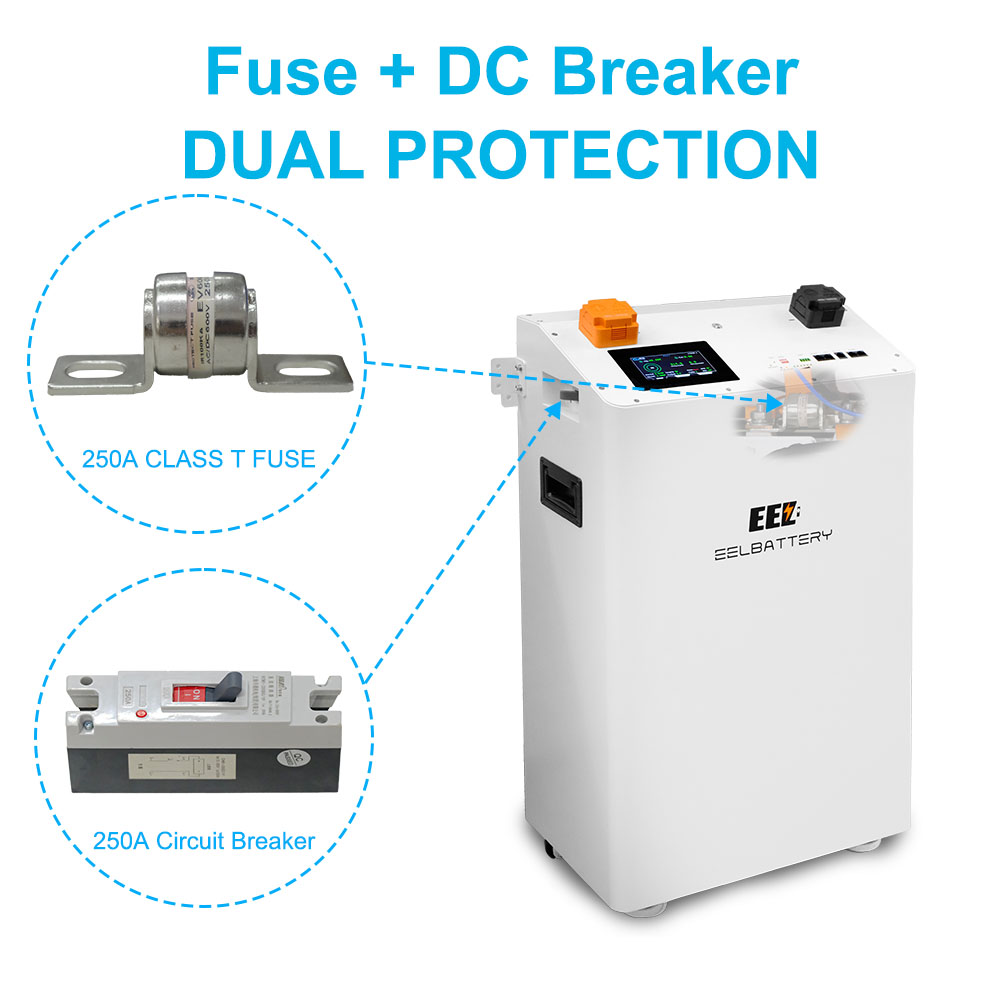

Detail 4

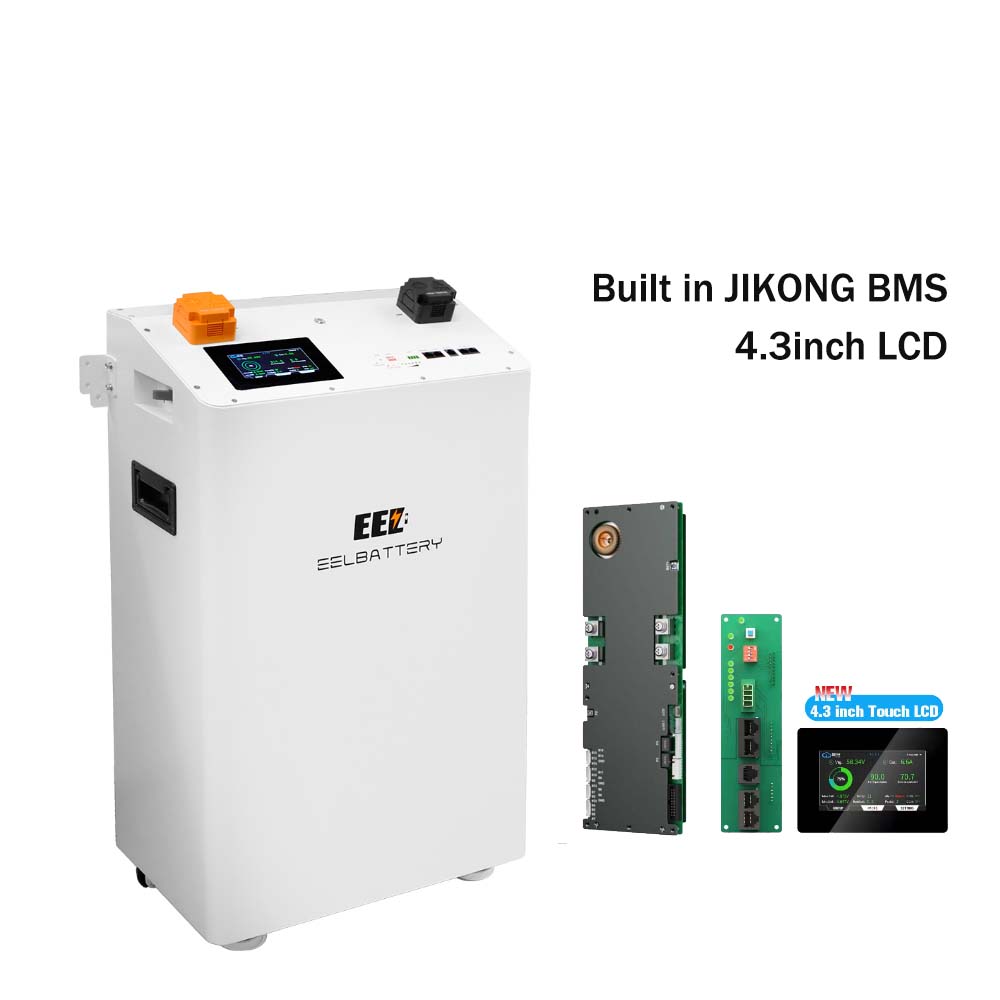

Detail 5

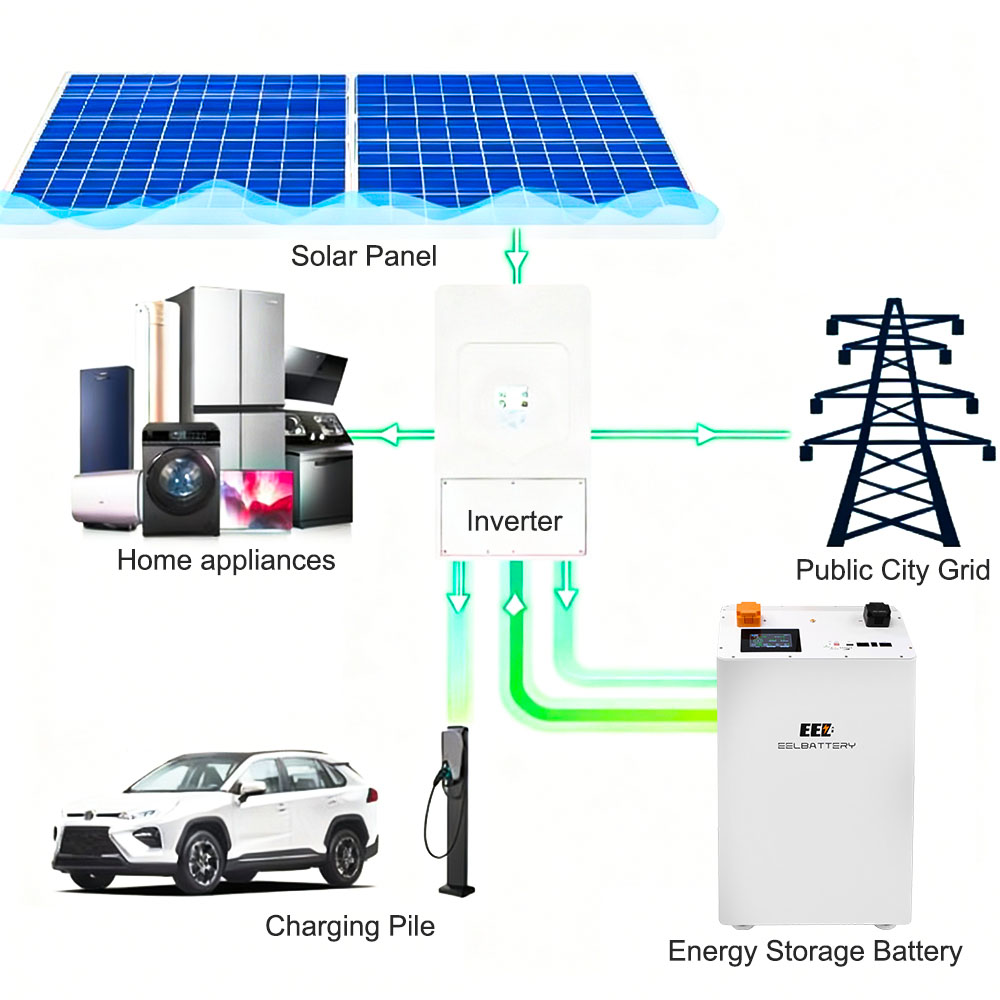

Product Application
Application Diagram
Battery Accessories

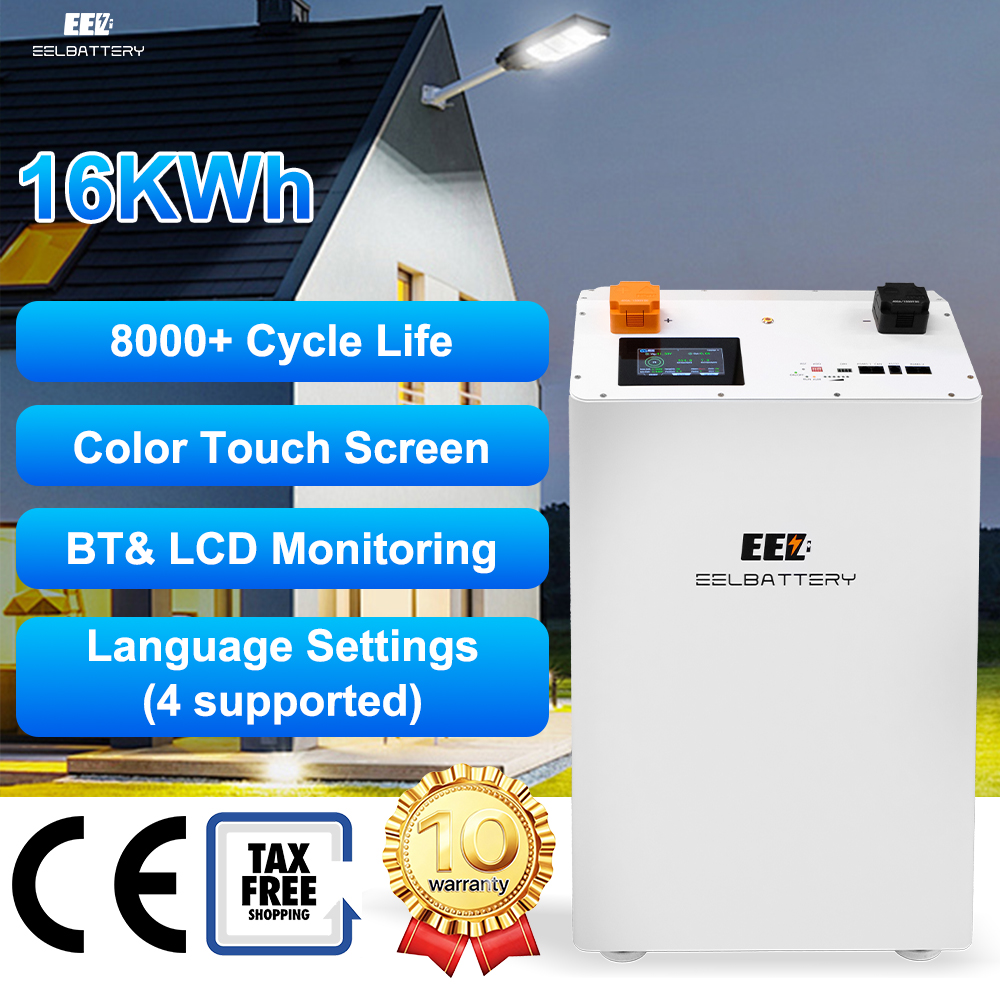

Accessories Details
Parts List
  • 1 * Battery Pack (Preassembled)
  • 1 * Hard-Wooden Packing Box
Shipping & Delivery
Ship to Warehouse Shipping Option Handling Time (Days) Estimated Delivery Time (Days)
EU Country PL / DE FedEx/DHL/UPS 1~7 2~15
CN Sea Freight + Express 1~15 35-45
USA USA FedEx/DHL/UPS 1~7 2~7
CN Sea Freight + Express 1~15 25-35
CA / UK CN Sea Freight + Express / Truck / Train 1~7 35~50
AU CN Sea Freight + Express / Truck 1~15 25-35
Asian CN Sea Freight + Express / Truck 1~15 25-60 working days
Other Region CN Sea Freight / Express - Please inquiry for specific details
*Note: The above transportation time is only the reference time of most orders, excluding customs inspection time or other special events such as natural disasters, port congestion, and other uncontrollable factors.
*The tracking information will be updated after pick up by Local Express. Please wait patiently.

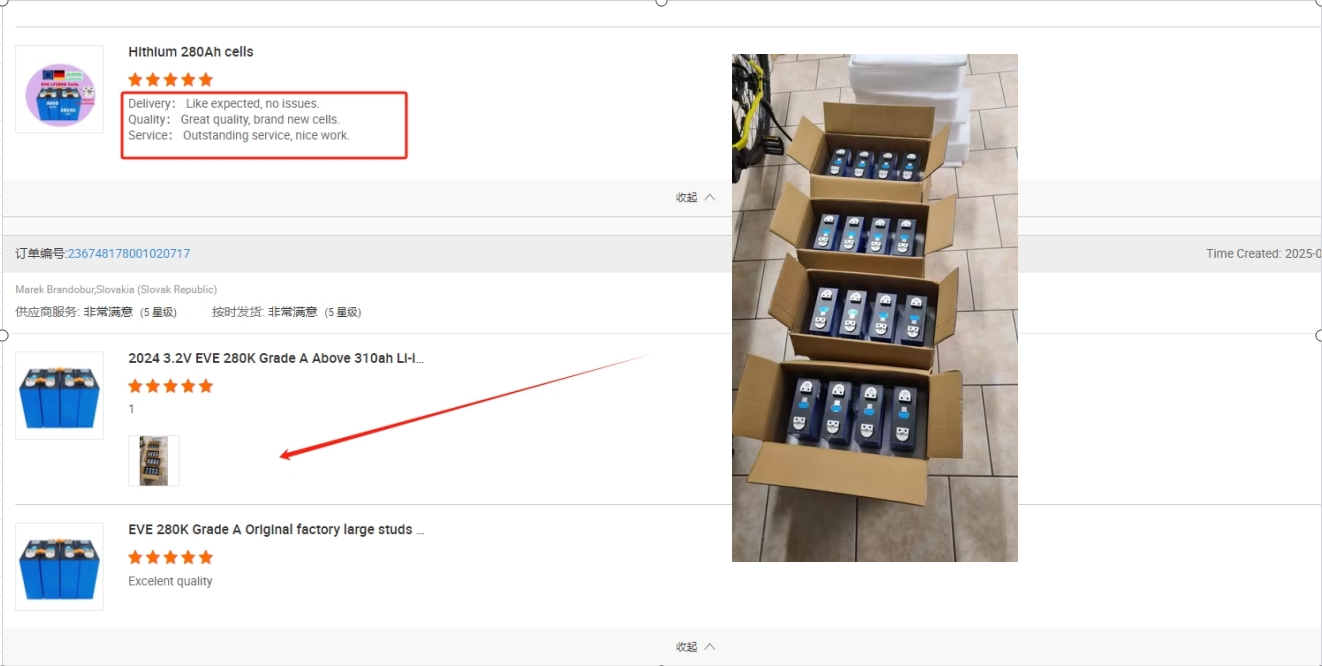

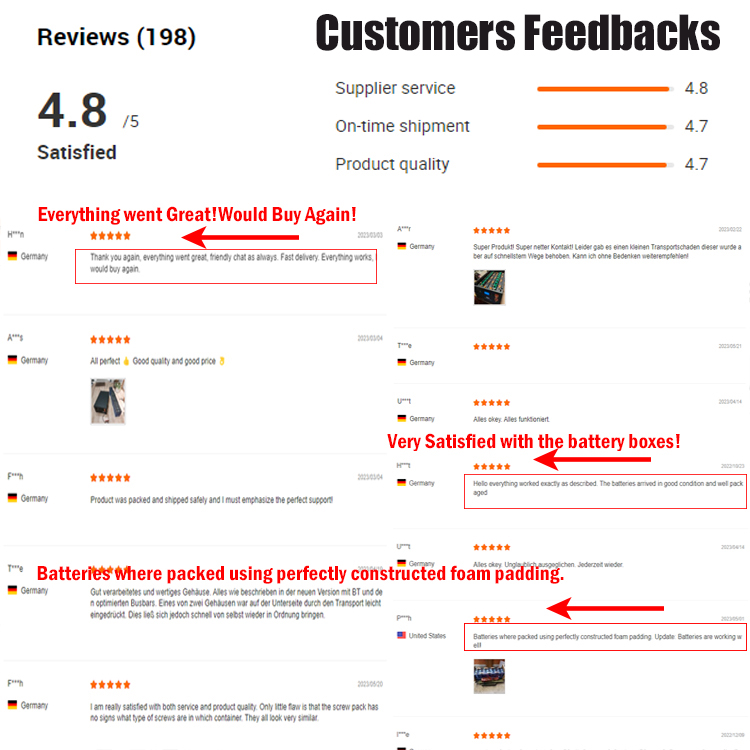

Customers Feedback
Feedback 1
Feedback 2
Feedback 3
Feedback 4
Product Compliance
Frequently Asked Questions
Q1: What is the lifespan and cycle life of the LiFePO4 cells?
The battery pack utilizes premium LiFePO4 cells, designed for a long service life of up to 15 years and featuring a cycle life of 8000 cycles or more under standard conditions.
Q2: How does the low-temperature heating system operate?
The integrated heating system automatically starts operating when the charge temperature drops below 0°C. This ensures safe charging and performance stability even in extreme winter temperatures.
Q3: Can I connect multiple battery packs in parallel for larger capacity?
Yes, this battery pack is highly scalable. You can connect up to 15 units in parallel to expand your total capacity according to your system requirements.
Q4: Which hybrid or off-grid inverters are compatible with this system?
The system is designed for high compatibility with top inverter brands including Victron, Growatt, Deye, Goodwe, Must, SMA, and others.
Q5: What accessories are included in the packaging box?
Each shipment includes 1 * preassembled battery pack and 1 * robust hard-wooden packing box to guarantee physical protection during transport.
Q6: How does shipping transit time vary for EU and US buyers?
For order delivery, shipping from local EU warehouses takes 2–15 days, and US local warehouse shipments take 2–7 days. Shipping from CN warehouses by sea freight typically ranges from 25–45 days depending on the region.
